Abstract
The invention discloses a stamping device for automobile protection plates suitable for different-size processing, and relates to the technical field of automobile plate stamping.
Description
Technical Field
The invention relates to the technical field of automobile plate stamping, in particular to a stamping device for automobile protection plates, which is suitable for processing of different sizes.
Background
The automobile bottom protection plate is arranged on the automobile chassis and below the position corresponding to the engine and used for protecting the mechanical structure of the engine, when mountain self-driving is carried out, the demand for the automobile chassis protection plate is more and more, and the automobile chassis protection plate is very effective for protecting the bottom of the automobile engine on a mountain uneven road;
the stamping device for the automobile plates, disclosed by the publication number of CN107282735A, is an increasingly mature technology and comprises a fixed frame, an air pipe, a fan, a motor, a stamping device, a case, a left plate, a right plate, a middle plate, a through groove, a bottom plate, a push disc, a connecting plate, a connecting rod, a push rod, a stamping plate, a traction piece and a movable strip. The invention has the beneficial effects that: connecting rods are arranged on two sides of a push rod inside the stamping device, the connecting rods are connected with the push rod through a traction piece, the traction piece is composed of three movable strips, and the traction effect of the traction piece is utilized, so that the phenomenon that an independent push rod is bent due to overlarge stress when pushed is avoided. Through connecting the tuber pipe on quick-witted incasement wall to the tuber pipe runs through inside the right board of mount is connected to the fan of mount top, makes the tuber pipe take out into negative pressure state with quick-witted incasement portion when the punching press board, thereby increases the punching press effect, and at quick-witted bottom of the case installation push away the dish, it pushes down panel to lift panel cooperation punching press board on the push away dish, thereby increases punching press effect when promoting punching press speed ", but this kind of stamping device is in the in-service use, still has following defect:
when installing different vehicle chassis, different position fluting punching press designs need to be carried out to the vehicle chassis guard plate, current stamping device is used for single guard plate to carry out the punching press and uses, when being used for the not automobile guard plate of equidimension to carry out the punching press, can't carry out fixed mounting, need the manual work to press, the in-process of punching press is pressed to the manual work, the guard plate takes place to rock easily, cause the damage of rectifying a deviation to the guard plate of punching press, lead to unable and install the use bottom the car, stamping device can't adjust the position according to the demand and carries out the punching press to the guard plate simultaneously, certain limitation has.
Disclosure of Invention
In order to solve the technical problems in the prior art, the invention provides the punching device for the automobile protection plates suitable for processing in different sizes.
In order to achieve the purpose, the invention specifically adopts the following technical scheme:
the utility model provides a stamping device for automobile protection board suitable for not unidimensional processing, is including removing the base, the top fixedly connected with support column of removing the base, the fixed footstock of top fixedly connected with of support column, the top of fixed footstock is provided with fixed establishment, the avris fixedly connected with fixed block of fixed footstock, the avris of fixed block is provided with feed mechanism, the opposite side of fixed footstock is provided with the punching press frame, the inside top of punching press frame is provided with first punching press mechanism, the top avris of punching press frame is provided with second punching press mechanism.
The automobile protection plate clamping device is further arranged to clamp and fix automobile protection plates of different sizes through the arranged fixing mechanism, so that the first punching mechanism and the second punching mechanism are prevented from shaking during punching, and the automobile protection plates are conveniently punched.
The fixed establishment include with the bottom fixedly connected with micro motor of fixed footstock, micro motor's transmission end fixedly connected with initiative carousel, the outside of initiative carousel is provided with driven turntable through drive belt and fixed footstock top one side, the first lead screw of one side fixedly connected with of driven turntable, the first slide rail of top both sides fixedly connected with of fixed footstock, the removal slider that the top sliding connection of first slide rail has, fixedly connected with mount pad between the top of removal slider, the bottom fixedly connected with thread block of mount pad, thread block and first lead screw thread interlude are connected, the top avris symmetry of mount pad is provided with two sets of fixing device boards, and is two sets of one side both ends of fixing device board alternate and are connected with the guide bar, the one end fixedly connected with splint of guide bar, the back of splint is through first electric telescopic handle and fixing device board fixed connection.
The automobile protection plate clamping device is further arranged to be convenient for pushing the clamping plates to be mutually adjusted along the guide rod, so that automobile protection plates of different sizes on the mounting seat can be clamped and fixed conveniently, and stamping processing is facilitated.
Feed mechanism include with the avris fixed connection's of fixed block fixed braced frame, braced frame's top fixedly connected with driving motor, the small-size initiative dish of driving motor's transmission end fixedly connected with, the outside transmission of small-size initiative dish is connected with the rubber tape, the one end transmission of rubber tape is connected with small-size driven plate, the bottom of small-size driven plate is provided with the second lead screw, the avris threaded connection of second lead screw and lift seat, the second slide rail sliding connection that the surperficial both sides of lift seat and fixed braced frame avris set up, the avris fixedly connected with second electric telescopic handle of lift seat, the flexible end fixedly connected with push pedal of second electric telescopic handle.
The automobile protection plate lifting device is further arranged to lift the automobile protection plate on the lifting seat, so that the lifting of workers is avoided, time and labor are wasted, and in the up-and-down adjustment process, the second sliding rail and the lifting seat are arranged to slide to keep balance.
First punching press mechanism include with the first electric cylinder of the top fixedly connected with of punching press frame, first electric cylinder's bottom fixedly connected with connecting seat, four corners interlude of connecting seat are connected with the guide bar, guide bar and inside top and the bottom fixed connection of punching press frame, the bottom fixedly connected with a plurality of pneumatic cylinder of connecting seat, a plurality of the bottom fixedly connected with punching press seat of pneumatic cylinder, the top avris of punching press seat alternates and is connected with the interlude guide arm, every the outside cover of interlude guide arm is equipped with expanding spring.
The invention is further arranged in such a way that the punching seat can be timely reset for the next punching use after the punching is finished by the telescopic cooperation of the arranged inserting guide rod and the telescopic spring.
Second punching press mechanism include with the avris fixed connection's of punching press frame fixed mounting board, the top fixedly connected with third slide rail of fixed mounting board, the top sliding connection of third slide rail has the removal sliding block, remove one side and the third electric telescopic handle fixed connection of sliding block, the top fixedly connected with device frame of removing the sliding block, one side fixedly connected with fourth electric telescopic handle of device frame, fourth electric telescopic handle's flexible end fixedly connected with and device frame sliding connection's backup plate, one side fixed link of backup plate has second electric cylinder, second electric cylinder's bottom fixedly connected with punching press head.
The invention is further provided with a second electric cylinder for pushing and stamping the stamping head.
The top of the movable base is fixedly connected with a switch panel, and a protective layer is arranged on the surface of the switch panel.
The invention is further provided that the protective layer protects the switch panel.
The surface of the switch panel is provided with a second electric cylinder control switch, a fourth electric telescopic rod control switch, a third electric telescopic rod control switch, a first electric cylinder control switch, a driving motor control switch, a first electric telescopic rod control switch and a small motor control switch,
the second electric cylinder, the fourth electric telescopic rod, the third electric telescopic rod, the first electric cylinder, the driving motor, the first electric telescopic rod and the small motor are respectively controlled by the second electric cylinder control switch, the fourth electric telescopic rod control switch, the third electric telescopic rod control switch, the first electric cylinder control switch, the driving motor control switch, the first electric telescopic rod control switch and the small motor control switch.
The invention is further configured to control the device by means of a control switch.
The invention has the beneficial effects that:
1. according to the clamping and fixing device, when clamping and fixing stamping are carried out on automobile protection plates of different sizes, the small motor, the first lead screw and the mounting seat are adjusted and matched front and back, so that the automobile protection plates can be conveniently moved to the bottom of the first stamping mechanism to be stamped and used, and the clamping plates can be conveniently pushed to be mutually adjusted along the guide rods through the extension and retraction of the first electric telescopic rods on the two groups of fixing device plates, so that the automobile protection plates of different sizes on the mounting seat can be clamped and fixed, the stamping processing is convenient, and the shaking in the stamping process is avoided.
2. According to the invention, the movable sliding block on the third sliding rail is pushed to slide left and right by the stretching of the third electric telescopic rod, so that the punching head can be conveniently moved to adjust the punching position, the backup plate is pushed to slide back and forth by the stretching of the fourth electric telescopic rod, and the punching head is pushed by the second electric cylinder to be used for punching when different positions at the top of the protection plate are punched, so that the use is convenient.
Drawings

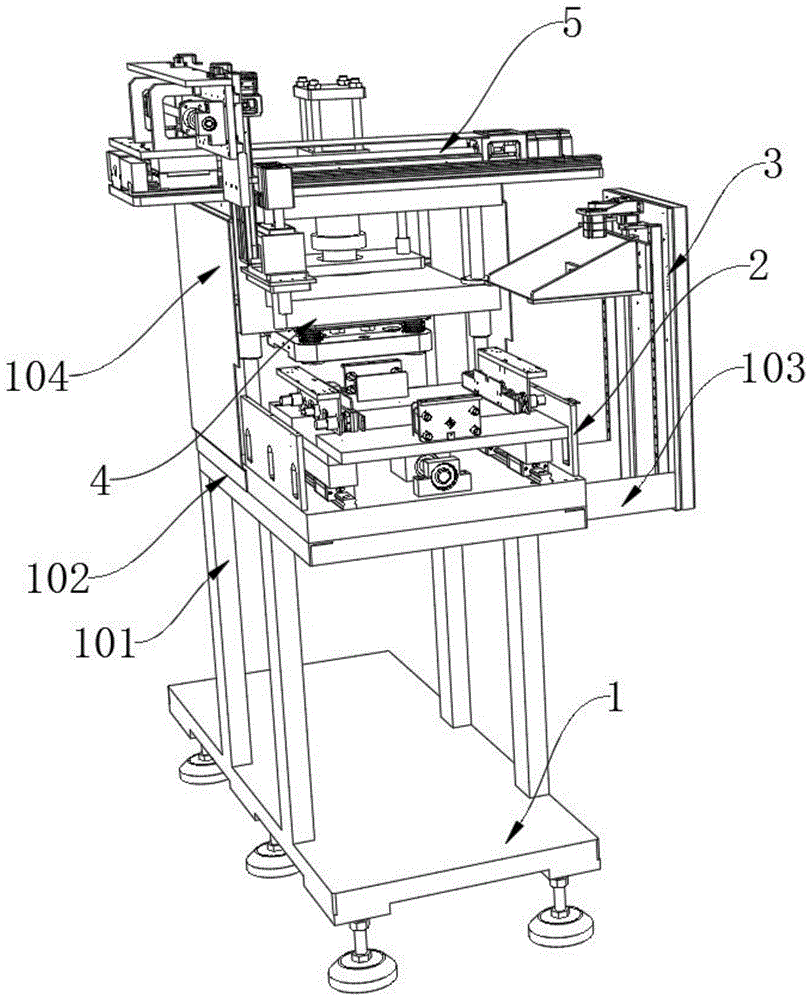

FIG. 1 is a schematic overall view of a punching device for an automobile fender, which is suitable for machining different sizes according to the present invention;
fig. 2 is a schematic structural diagram of a feeding mechanism of a stamping device for automobile protection plates suitable for machining different sizes, according to the present invention;
fig. 3 is a schematic structural diagram of a second punching mechanism of the punching device for the automobile protection plate, which is suitable for machining different sizes;
FIG. 4 is a schematic structural diagram of a first punching mechanism of the punching device for the automobile protection plate, which is suitable for machining different sizes;
FIG. 5 is a schematic structural view of a fixing mechanism of the punching device for automobile protection plates suitable for different sizes;
fig. 6 is a schematic structural view of a fixed top seat of the punching device for the automobile protection plate, which is suitable for processing different sizes.
In the figure: 1. moving the base; 101. a support pillar; 102. fixing the top seat; 103. a fixed block; 104. stamping the frame; 2. a fixing mechanism; 201. a small-sized motor; 202. an active turntable; 2021. a transmission belt; 2022. a driven turntable; 2023. a first lead screw; 2024. a first slide rail; 2025. moving the slide block; 203. a mounting seat; 204. a thread block; 205. a fixing device plate; 206. a guide bar; 207. a splint; 208. a first electric telescopic rod; 3. a feeding mechanism; 301. a support frame; 302. a drive motor; 303. a small driving disk; 304. a rubber belt; 305. a small driven disk; 306. a second screw rod; 3061. a lifting seat; 307. a second slide rail; 308. a second electric telescopic rod; 309. pushing the plate; 4. a first punching mechanism; 401. a first electric cylinder; 402. a connecting seat; 403. a guide rod; 404. a hydraulic cylinder; 405. punching a seat; 406. inserting a guide rod; 407. a tension spring; 5. a second stamping mechanism; 501. fixing the mounting plate; 502. a third slide rail; 503. moving the slider; 504. a third electric telescopic rod; 505. a device frame; 506. a fourth electric telescopic rod; 507. a backup plate; 508. a second electric cylinder; 509. and (5) stamping the head.
Detailed Description
The technical solution of the present patent will be described in further detail with reference to the following embodiments.
Reference will now be made in detail to embodiments of the present patent, examples of which are illustrated in the accompanying drawings, wherein like or similar reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary only for the purpose of explaining the present patent and are not to be construed as limiting the present patent.
In the description of this patent, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings for the convenience of describing the patent and for the simplicity of description, and are not intended to indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the patent.
In the description of this patent, it is noted that unless otherwise specifically stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can include, for example, fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.
Referring to fig. 1-6, a stamping device for automobile protection plates suitable for different sizes of processing includes a movable base 1, a top fixedly connected with support column 101 of the movable base 1, a top fixedly connected with fixed footstock 102 of the support column 101, a fixing mechanism 2 arranged on the top of the fixed footstock 102, a fixed block 103 fixedly connected with the side of the fixed footstock 102, a feeding mechanism 3 arranged on the side of the fixed block 103, a stamping frame 104 arranged on the other side of the fixed footstock 102, a first stamping mechanism 4 arranged on the inner top of the stamping frame 104, and a second stamping mechanism 5 arranged on the top side of the stamping frame 104.
Referring to fig. 5 and 1, the fixing mechanism 2 includes a small motor 201 fixedly connected to the bottom end of the fixed top base 102, a driving turntable 202 is fixedly connected to the driving end of the small motor 201, a driven turntable 2022 is disposed on the outer side of the driving turntable 202 and one side of the top of the fixed top base 102 through a transmission belt 2021, a first lead screw 2023 is fixedly connected to one side of the driven turntable 2022, first slide rails 2024 are fixedly connected to both sides of the top of the fixed top base 102, a movable slider 2025 is slidably connected to the top of the first slide rails 2024, a mounting base 203 is fixedly connected between the tops of the movable sliders 2025, a threaded block 204 is fixedly connected to the bottom end of the mounting base 203, the threaded block 204 is in threaded insertion connection with the first lead screw 2023, two fixing device plates 205 are symmetrically disposed on the side of the top end of the mounting base 203, guide rods 206 are inserted and connected to both ends of one side of the two fixing device plates 205, a clamping plate 207 is fixedly connected to one end of the guide rod 206, and a clamping plate 207 is fixedly connected to the back of the clamping plate 207 through a first electric telescopic rod 208 and the fixing device plate 205
During the specific use, when getting fixed punching press to the car guard plate of equidimension not, rotation through the micro motor 201 that sets up drives initiative carousel 202, rotation through initiative carousel 202 drives drive belt 2021 and rotates, rotation through drive belt 2021 makes driven turntable 2022 rotate and is convenient for drive first lead screw 2023 and rotates, thereby the convenience carries out the screw thread rotation to screw block 204, it adjusts around going on to remove mount pad 203, be convenient for install at mount pad 203 top and fix the car guard plate, place the car guard plate and harden back, flexible through the first electric telescopic handle 208 on two sets of fixing device boards 205 that set up, be convenient for promote splint 207 and carry out the mutual regulation along guide bar 206, thereby be convenient for press from both sides the car guard plate of equidimension not to get on the mount pad 203 and get fixedly, be convenient for carry out the punching press and handle.
Referring to fig. 2 and 1, the feeding mechanism 3 includes a fixed support frame 301 fixedly connected to the side of the fixed block 103, a driving motor 302 is fixedly connected to the top end of the support frame 301, a small driving disk 303 is fixedly connected to the driving end of the driving motor 302, a rubber belt 304 is connected to the outer side of the small driving disk 303 in a driving manner, a small driven disk 305 is connected to one end of the rubber belt 304 in a driving manner, a second lead screw 306 is arranged at the bottom end of the small driven disk 305, the second lead screw 306 is in threaded connection with the side of the lifting seat 3061, two sides of the surface of the lifting seat 3061 are in sliding connection with a second slide rail 307 arranged on the side of the fixed support frame 301, a second electric telescopic rod 308 is fixedly connected to the side of the lifting seat 3061, and a push plate 309 is fixedly connected to the telescopic end of the second electric telescopic rod 308.
When the automobile protection plate lifting device is used, when the automobile protection plate is lifted and adjusted in the horizontal height, the small driving disc 303 is driven to rotate through the rotation of the arranged driving motor 302, the rubber belt 304 is driven to rotate through the rotation of the small driving disc 303, the small driven disc 305 is driven to rotate, so that the second screw rod 306 and the lifting seat 3061 can be conveniently adjusted in a threaded rotation mode, the automobile protection plate on the lifting seat 3061 is lifted, lifting of workers is avoided, time and labor are wasted, in the up-and-down adjustment process, the balance is kept by sliding the second sliding rail 307 and the lifting seat 3061.
Referring to fig. 4 and fig. 1, first punching press mechanism 4 includes the first electric cylinder 401 of top fixedly connected with punching press frame 104, the bottom fixedly connected with connecting seat 402 of first electric cylinder 401, four corners of connecting seat 402 alternate and are connected with guide rod 403, guide rod 403 and the inside top and the bottom fixed connection of punching press frame 104, the bottom fixedly connected with a plurality of pneumatic cylinder 404 of connecting seat 402, the bottom fixedly connected with punching press seat 405 of a plurality of pneumatic cylinder 404, the top avris of punching press seat 405 alternates and is connected with interlude guide arm 406, the outside cover of every interlude guide arm 406 is equipped with expanding spring 407.
During the specific use, when punching press different auto shield boards, the flexible connecting seat 402 that promotes of first electric cylinder 401 through punching press frame 104 top slide adjusting about the guide bar 403 goes on, and the regulation of connecting seat 402 is convenient for drive pneumatic cylinder 404 and descends, make the punching press seat 405 carry out the punching press to the auto shield board under the hydraulic cushion of pneumatic cylinder 404 and use, under the flexible cooperation of interlude guide arm 406 and expanding spring 407 through setting up, make the resetting that the punching press seat 405 can be timely when the punching press is ended, carry out next punching press and use.
Referring to fig. 3 and fig. 1, the second punching press mechanism 5 includes the fixed mounting plate 501 with avris fixed connection of punching press frame 104, the top fixedly connected with third slide rail 502 of fixed mounting plate 501, the top sliding connection of third slide rail 502 has the removal sliding block 503, remove one side and the third electric telescopic handle 504 fixed connection of sliding block 503, the top fixedly connected with device frame 505 of removing sliding block 503, one side fixedly connected with fourth electric telescopic handle 506 of device frame 505, the flexible end fixedly connected with of fourth electric telescopic handle 506 and the backup plate 507 of device frame 505 sliding connection, one side fixed connection of backup plate 507 has second electric cylinder 508, the bottom fixedly connected with punching press head 509 of second electric cylinder 508.
During the specific use, the removal sliding block 503 on the third slide rail 502 of flexible promotion through the third electric telescopic handle 504 that sets up slides about, is convenient for remove the position of adjusting the punching press to punching press head 509, and the flexible promotion backup plate 507 through the fourth electric telescopic handle 506 that sets up slides around carrying out, when sliding to the position at the guard plate top that needs the punching press, promotes the punching press through the second electric cylinder 508 that sets up and uses to punching press head 509.
Referring to fig. 1, the top of the mobile base 1 is fixedly connected with no switch panel, and the surface of the switch panel is provided with a protective layer.
Referring to fig. 1, 2, 3, 4, 5 and 6, a second electric cylinder control switch, a fourth electric telescopic rod control switch, a third electric telescopic rod control switch, a first electric cylinder control switch, a driving motor control switch, a first electric telescopic rod control switch and a small motor control switch are provided on the surface of the switch panel,
referring to fig. 1, 2, 3, 4, 5 and 6, the second electric cylinder 508, the fourth electric telescopic rod 506, the third electric telescopic rod 504, the first electric cylinder 401, the driving motor 302, the first electric telescopic rod 208 and the small motor 201 are respectively controlled by the second electric cylinder, the fourth electric telescopic rod, the third electric telescopic rod, the first electric cylinder, the driving motor, the first electric telescopic rod and the small motor.
The working principle is as follows: when carrying out the punching press to unidimensional automobile protection board, the removal base 1 through setting is convenient for remove stamping device, remove stamping device to appointed punching press place, support through support column 101 is fixed footstock 102, thereby be convenient for carry out the punching press to automobile protection board and use stamping device, feed mechanism 3 through the fixed block 103 avris carries out the material loading use to the car of major possession, avoid artifical transport to consume physical power, 2 automobile protection boards of equidimension not press from both sides through the fixed establishment that sets up and get fixedly, avoid taking place to rock when carrying out the punching press at first punching press mechanism 4 and second punching press mechanism 5, thereby be convenient for carry out the punching press to automobile protection board.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and the technical solutions and the inventive concepts thereof according to the present invention should be equivalent or changed within the scope of the present invention.
Claims (7)
1. The utility model provides a stamping device for auto guard plate suitable for not unidimensional processing, is including removing base (1), its characterized in that, top fixedly connected with support column (101) of removing base (1), top fixedly connected with fixed footstock (102) of support column (101), the top of fixed footstock (102) is provided with fixed establishment (2), avris fixedly connected with fixed block (103) of fixed footstock (102), the avris of fixed block (103) is provided with feed mechanism (3), the opposite side of fixed footstock (102) is provided with stamping frame (104), the inside top of stamping frame (104) avris is provided with first punching press mechanism (4), the top of stamping frame (104) is provided with second punching press mechanism (5).
2. The punching device for automobile protection plates suitable for different sizes of processing according to claim 1, it is characterized in that the fixing mechanism (2) comprises a small motor (201) fixedly connected with the bottom end of the fixed top seat (102), the transmission end of the small motor (201) is fixedly connected with a driving turntable (202), a driven turntable (2022) is arranged at the outer side of the driving turntable (202) and one side of the top of the fixed top seat (102) through a transmission belt (2021), one side of the driven turntable (2022) is fixedly connected with a first screw rod (2023), two sides of the top of the fixed top seat (102) are fixedly connected with a first slide rail (2024), a movable sliding block (2025) is connected to the top of the first sliding rail (2024) in a sliding manner, a mounting seat (203) is fixedly connected between the tops of the movable sliding blocks (2025), the bottom end of the mounting seat (203) is fixedly connected with a thread block (204), the thread block (204) is in threaded penetration connection with the first screw rod (2023), two groups of fixing device plates (205) are symmetrically arranged at the edge side of the top end of the mounting seat (203), two ends of one side of each group of fixing device plates (205) are connected with guide rods (206) in an inserting way, one end of the guide rod (206) is fixedly connected with a clamping plate (207), the back of the clamping plate (207) is fixedly connected with the fixing device plate (205) through a first electric telescopic rod (208).
3. The punching device for the automobile protection plate suitable for different-size processing according to claim 2, wherein the feeding mechanism (3) comprises a fixed supporting frame (301) fixedly connected with the side of the fixed block (103), the top end of the supporting frame (301) is fixedly connected with a driving motor (302), a driving end of the driving motor (302) is fixedly connected with a small driving disc (303), the outside of the small driving disc (303) is in transmission connection with a rubber belt (304), one end of the rubber belt (304) is in transmission connection with a small driven disc (305), the bottom end of the small driven disc (305) is provided with a second lead screw (306), the second lead screw (306) is in threaded connection with the side of the lifting seat (3061), the two sides of the surface of the lifting seat (3061) are in sliding connection with a second sliding rail (307) arranged on the side of the fixed supporting frame (301), the side of the lifting seat (3061) is fixedly connected with a second electric telescopic rod (308), and the telescopic end of the second electric telescopic rod (306308) is fixedly connected with a push plate (309).
4. The punching device for the automobile protection plates suitable for different sizes to be processed according to claim 3, wherein the first punching mechanism (4) comprises a first electric air cylinder (401) fixedly connected with the top end of the punching frame (104), a connecting seat (402) is fixedly connected with the bottom end of the first electric air cylinder (401), guide rods (403) are penetratingly connected with four corners of the connecting seat (402), the guide rods (403) are fixedly connected with the top end and the bottom end inside the punching frame (104), a plurality of hydraulic cylinders (404) are fixedly connected with the bottom end of the connecting seat (402), a plurality of punching seats (405) are fixedly connected with the bottom end of the hydraulic cylinders (404), penetration guide rods (406) are penetratingly connected with the top end side of each punching seat (405), and a telescopic spring (407) is sleeved on the outer side of each penetration guide rod (406).
5. The stamping device for the protection plates of the automobiles suitable for different sizes to process according to claim 4, wherein the second stamping mechanism (5) comprises a fixed mounting plate (501) fixedly connected with the side of the stamping frame (104), a third sliding rail (502) is fixedly connected with the top of the fixed mounting plate (501), a moving sliding block (503) is slidably connected with the top of the third sliding rail (502), one side of the moving sliding block (503) is fixedly connected with a third electric telescopic rod (504), the top end of the moving sliding block (503) is fixedly connected with a device frame (505), one side of the device frame (505) is fixedly connected with a fourth electric telescopic rod (506), the telescopic end of the fourth electric telescopic rod (506) is fixedly connected with a backup plate (507) slidably connected with the device frame (505), one side of the backup plate (507) is fixedly connected with a second electric cylinder (508), and the bottom end of the second electric cylinder (508) is fixedly connected with a stamping head (509).
6. The punching device for automobile protection plates suitable for different sizes to process according to claim 5, characterized in that the top of the movable base (1) is fixedly connected without a switch panel, and the surface of the switch panel is provided with a protective layer.
7. The punching device for the automobile protection plate suitable for different sizes of processing according to claim 6, wherein a second electric cylinder control switch, a fourth electric telescopic rod control switch, a third electric telescopic rod control switch, a first electric cylinder control switch, a driving motor control switch, a first electric telescopic rod control switch and a small motor control switch are arranged on the surface of the switch panel, and the second electric cylinder (508), the fourth electric telescopic rod (506), the third electric telescopic rod (504), the first electric cylinder (401), the driving motor (302), the first electric telescopic rod (208) and the small motor (201) are respectively controlled by the second electric cylinder control switch, the fourth electric telescopic rod control switch, the third electric telescopic rod control switch, the first electric cylinder control switch, the driving motor control switch, the first electric telescopic rod control switch and the small motor control switch.
