CN115573465A - Waterproof system structure for wall through hole of comprehensive pipe rack

Info

Publication number: CN115573465A
Application number: CN202211402858.1A
Authority: CN
Inventors: 严中; 张乾坤; 张兴其; 代迎立; 潘旋; 封泉博
Original assignee: Hefei Municipal Design And Research Institute Co ltd
Current assignee: Hefei Municipal Design And Research Institute Co ltd
Priority date: 2022-11-10
Filing date: 2022-11-10
Publication date: 2023-01-06

Abstract

The invention discloses a comprehensive pipe gallery through-wall hole waterproof system structure which comprises a pipe gallery structure wall, a plurality of holes formed in the pipe gallery structure wall and a waterproof sleeve respectively penetrating through each hole, wherein a sealing assembly for sealing the waterproof sleeve is arranged at the position, close to two ends, of the waterproof sleeve; the sealing component is provided with a plurality of openings for penetrating pipelines; both ends of the waterproof sleeve are respectively connected with an outlet rack pipe; and a drainage hole bolt is arranged in the outlet pipe. The sealing assembly is adopted to seal the waterproof casing, the waterproof casing can be well sealed in the states of penetrating the pipeline and not penetrating the pipeline, compared with the sealing mode of using the sealing material in the prior art, the waterproof casing has the advantages that the water seepage and water leakage phenomena between the embedded casing and the wall penetrating pipeline are avoided, and the service life is longer.

Description

Waterproof system structure for wall through hole of comprehensive pipe rack

Technical Field

The invention relates to the technical field of comprehensive pipe galleries, in particular to a waterproof system structure of a wall-through hole of a comprehensive pipe gallery.

Background

The utility tunnel is a structure and accessory facilities built under the city for accommodating more than two types of city engineering pipelines. The comprehensive pipe gallery effectively solves the problem of 'road zippers' of urban roads, guarantees the smoothness of the urban roads and is beneficial to relieving the problem of urban road congestion; meanwhile, various urban overhead network cables such as electric power, telecommunication, video television and the like are eliminated, the urban overall environment is beautified, better conditions are created for the life of urban residents, and unified centralized management and operation are facilitated after all the pipelines are arranged in a corridor, so that the management efficiency is improved, the pipeline failure rate is reduced, and the life line of urban life is guaranteed more efficiently and safely. But various pipelines (channels) are branched through the wall body of the pipe gallery and are led out, and the water prevention of the through-wall holes of the pipelines faces various problems.

At present, the traditional method for preventing the wall-through holes of the comprehensive pipe gallery from being waterproof is poor in waterproof effect, and mainly shows that the waterproof life is difficult to control, the operation of a pipeline unit is difficult, outlet pipelines leak water seriously, and the operation management and maintenance of the pipe gallery and the pipelines are very inconvenient in the operation and maintenance stage.

For example, the wall-through hole waterproofing commonly used in engineering mainly adopts the method of 02S404 waterproof casing, and the method has the following defects:

1. sealing materials are adopted between the pipelines and the pipeline and between the pipelines and the embedded sleeve in the later period for plugging, the service life of the sealing materials is low, and water seepage and water leakage between the embedded sleeve and the wall-penetrating pipeline are serious in the operation and maintenance period;

2. the sleeve is poorly combined with the concrete of the pipe gallery structure wall, expands and contracts for a long time, and a gap between the embedded sleeve and the structure is easy to have a water leakage phenomenon;

3. the pipeline penetration is carried out in stages, the thickness and the number of single-hole pipelines are possibly different, the pipeline plugging is difficult to process, and water leakage is easy to occur;

4. the corridor pipeline is directly led into the outlet well without a plugging measure, so that the backflow phenomenon is easy to generate;

5. the high-voltage cable is easy to generate eddy current when passing through a steel pipe or a cast iron pipe, and potential safety hazards exist.

Technical personnel in this technical field are dedicated to research and develop a utility tunnel wall hole waterproof system structure for solving the above technical defects.

Disclosure of Invention

In view of the above defects in the prior art, the technical object of the present invention is to provide a waterproofing system structure for through-wall holes of utility tunnel, which solves the problem of poor waterproofing effect of the existing waterproofing system for through-wall holes of utility tunnel.

In order to achieve the technical purpose, the invention provides a comprehensive pipe gallery wall-through hole waterproof system structure, which comprises a pipe gallery structure wall, a plurality of holes formed in the pipe gallery structure wall and waterproof sleeves respectively penetrating through the holes, and is characterized in that: a plurality of water stop rings are arranged on the periphery of the waterproof casing pipe in the hole, and sealing components for sealing the waterproof casing pipe are respectively arranged at the positions, close to the two ends, of the waterproof casing pipe; the sealing component is provided with a plurality of openings for penetrating pipelines;

both ends of the waterproof sleeve are respectively connected with an outlet rack pipe;

the corridor drainage pipe positioned outside the pipe corridor structure wall is connected with the waterproof sleeve through flexible connection; the other outlet gallery discharge pipe positioned on the inner side of the pipe gallery structure wall is connected with an outlet well casing pipe penetrating through the outlet well; the two ends of the outlet well casing are also respectively provided with the sealing assemblies.

Preferably, the sealing assembly comprises a sealing plate and a temporary water stopping plate, and the sealing plate and the temporary water stopping plate are connected through a detachable connecting piece;

the sealing plate is provided with a plurality of openings for penetrating pipelines, and the temporary water stop plate can seal all the openings on the sealing plate.

Preferably, the sealing plate and the waterproof sleeve are both made of a non-metal matrix composite material.

Preferably, both ends of the waterproof casing are respectively provided with a detachable sealing end cover.

Preferably, the other corridor calandria, which is located inside the pipe corridor structure wall, is provided with a drain hole bolt inside.

The invention has the beneficial effects that:

1. the sealing assembly is adopted to seal the waterproof casing, the waterproof casing can be well sealed in the states of penetrating the pipeline and not penetrating the pipeline, compared with the sealing mode of using the sealing material in the prior art, the waterproof casing has the advantages that the water seepage and water leakage phenomena between the embedded casing and the wall penetrating pipeline are avoided, and the service life is longer.

2. Set up the seal ring between waterproof sleeve and the piping lane structure wall, strengthened the associativity between waterproof sleeve and the piping lane structure wall, further avoided the capillary seepage between waterproof sleeve and piping lane structure wall.

3. Each seal assembly operates independently, only needs to correspond when wearing to establish the pipeline and tears the interim sealing plate in the seal assembly open, when not wearing to establish the pipeline, and corresponding seal assembly does not demolish interim sealing plate, and the closing plate can set up the trompil that corresponds the diameter according to the diameter of the pipeline of wearing to establish among the seal assembly to further guarantee the good waterproof nature of waterproof sleeve pipe and piping lane structure wall, and adapt to the threading demand of different diameter pipelines.

4. Be provided with the drainage hole bolt through going out the corridor calandria, avoid ponding in the outlet wire well to flow backward and get into piping lane structure wall.

5. The sealing plates in the waterproof sleeve and the sealing assembly are made of nonmetal-based composite materials, so that eddy current is prevented from being generated when the high-voltage cable is penetrated, and potential safety hazards are avoided.

Drawings

FIG. 1 is a schematic structural diagram of an embodiment of the present invention;

FIG. 2 isbase:Sub>A schematic cross-sectional view taken along line A-A of FIG. 1;

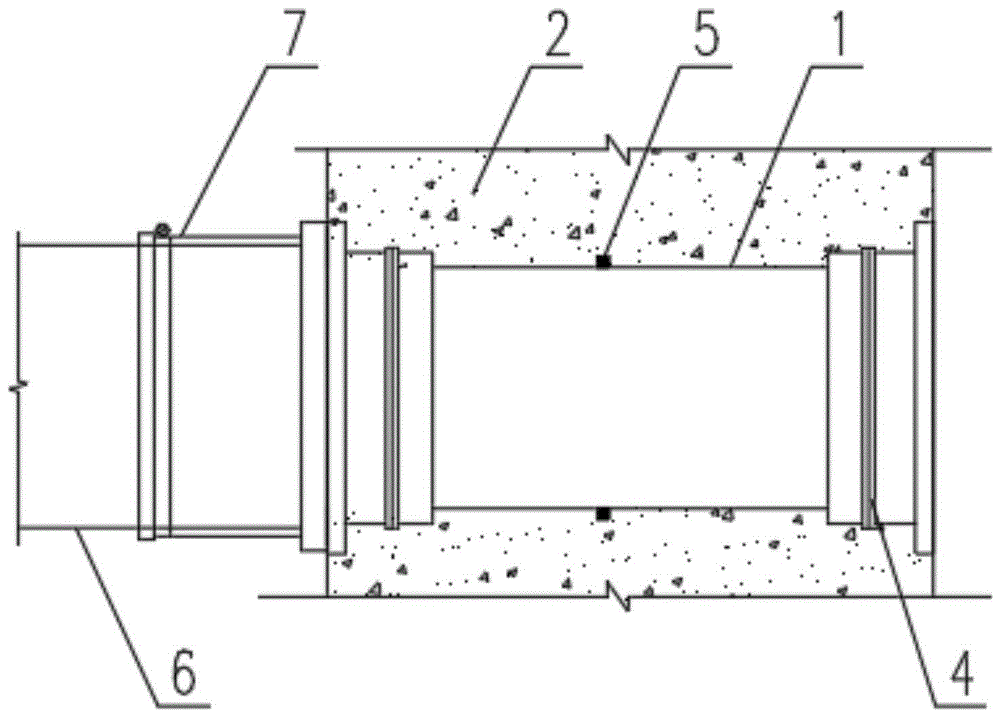

FIG. 3 is a schematic view of the construction of a single waterproof sleeve portion of FIG. 2;

FIG. 4 is a schematic diagram of the flexible connection of FIG. 3;

FIG. 5 is a schematic structural view of the seal assembly of FIG. 3;

FIG. 6 is a schematic structural view of an embodiment of the sealing plate of FIG. 5;

FIG. 7 is a schematic structural view of another embodiment of the sealing plate of FIG. 5;

FIG. 8 is a schematic view of the structure of the drainage pipe and the drainage hole plug of the wire outlet well in the present invention;

FIG. 9 is a schematic view of the technical principle of the present invention;

fig. 10 is a schematic view of the overall arrangement of the present invention in actual use.

In the figure: 1 waterproof bushing, 2 piping lane structure walls, 3 end cover, 4 seal assembly, 41 sealing plates, 42 interim stagnant water board, 43 connecting pieces, 5 seal rings, 6 corridor calandria, 7 flexible couplings, 8 wells, 9 drainage hole bolts, 10A landmass, 11B landmass, 12 pipeline branch mouth, 13 well casing of being qualified for the next round of competitions.

Detailed Description

The conception, the specific structure and the technical effects of the present invention will be further described with reference to the accompanying drawings to fully understand the objects, the features and the effects of the present invention.

Example (b):

as shown in fig. 1-8, the structure of the comprehensive pipe rack wall-through hole waterproof system includes a pipe rack structure wall 2, a plurality of holes formed on the pipe rack structure wall 2, and a waterproof sleeve 1 respectively inserted into each hole, wherein a plurality of water stop rings 5 are arranged on the periphery of the waterproof sleeve 1 in the holes, and sealing assemblies 4 for sealing the waterproof sleeve 1 are respectively arranged at positions of the waterproof sleeve 1 near two ends; the sealing component 4 is provided with a plurality of openings for penetrating pipelines;

two ends of the waterproof sleeve 1 are respectively connected with an outlet rack pipe 6;

as shown in fig. 9, the outlet duct 6 located outside the pipe gallery structure wall 2 is connected with the waterproof casing 1 through a flexible connection 7; the other corridor discharging pipe 6 positioned on the inner side of the pipe corridor structure wall 2 is connected with a wire outlet well casing 13 penetrating through the wire outlet well 8; sealing assemblies 4 are also respectively arranged at two ends of the outlet well casing 13.

The main innovation of the invention is that the sealing component 4 can keep good sealing effect of the waterproof casing 3 when a pipeline is penetrated or not, and avoids the phenomena of water leakage and water seepage in the later operation and maintenance stage.

Specifically, the sealing assembly 4 includes a sealing plate 41 and a temporary water stop plate 42, and the sealing plate 41 and the temporary water stop plate 42 are connected by a detachable connecting piece 43; the sealing plate 41 is provided with a plurality of openings for penetrating pipelines, and the temporary water stop plate 42 can seal all the openings on the sealing plate 41.

In order to prevent the capillary seepage between waterproof sleeve 1 and 2 rooms of piping lane structure wall, waterproof sleeve 1 is from taking better waterproof performance, and waterproof sleeve 1 adopts ABS, the compound material of UPVC or other materials that have functions such as watertight, airtight, and waterproof sleeve 1 interval adopts the distance buckle to adjust, sets up fixed steel bar between waterproof sleeve 1, is convenient for construct and quality assurance.

In order to further prevent the capillary seepage between waterproof sleeve 1 and 2 of piping lane structure walls, waterproof sleeve 1 is located the periphery in the hole and is provided with at least round seal ring 5, and seal ring 5 adopts flexible material to make.

As shown in fig. 6 and 7, according to the diameter of the pipeline, the sealing plate 41 is provided with an opening with a corresponding diameter, and the waterproof sleeve 1 and the sealing plate 41 are both made of rubber-based composite materials, so that the pipeline can be ensured to be efficient and free of damage in the later period; furthermore, when the high-voltage cable is arranged in a penetrating mode, eddy current is not easy to generate, and potential safety hazards are eliminated.

In order to prevent the differential settlement from causing the damage of the waterproof sleeve 3 and the connection joint of the outlet rack pipe 6, the waterproof sleeve 3 is connected with the outlet rack pipe 6 through a flexible connection 7.

In some embodiments, the two ends of the waterproof casing 1 are respectively provided with a detachable sealing end cover 3; when the pipeline is not penetrated, the self-contained sealing end cover 3 is reserved, and a waterproof effect can be achieved; when the pipeline is arranged in a penetrating way, the self-contained sealing end cover 3 is removed, and the matched sealing component 4 is used.

As shown in fig. 10, in practical use, the outlet well 8 is the end of the pipe rack structure wall 2 from which the rack pipe 6 is led out to both sides, the rack pipe 6 is buried in the soil in a pipe rack form, the outlet well 8 serves the land blocks a 10 and B11 on both sides, respectively, and the pipeline branch port 12 is a structural form designed for the pipeline outlet in the pipe rack structure wall 2.

The foregoing detailed description of the preferred embodiments of the invention has been presented. It should be understood that numerous modifications and variations could be devised by those skilled in the art in light of the present teachings without departing from the inventive concepts. Therefore, the technical solutions available to those skilled in the art through logic analysis, reasoning and limited experiments based on the prior art according to the concept of the present invention should be within the scope of protection defined by the claims.

Claims

1. Utility tunnel wears waterproof system structure in wall hole, including the waterproof sleeve pipe of wearing to establish respectively in a plurality of holes and each hole that pipe gallery structure wall, pipe gallery structure were seted up on the wall, its characterized in that: a plurality of water stop rings are arranged on the periphery of the waterproof sleeve in the hole, and sealing components for sealing the waterproof sleeve are respectively arranged at the positions, close to the two ends, of the waterproof sleeve; the sealing component is provided with a plurality of openings for penetrating pipelines;

2. The utility tunnel through-wall hole waterproof system structure of claim 1, characterized in that: the sealing assembly comprises a sealing plate and a temporary water stopping plate, and the sealing plate is connected with the temporary water stopping plate through a detachable connecting piece;

3. The utility tunnel through-wall hole waterproof system structure of claim 2, characterized in that: the sealing plate and the waterproof casing are both made of non-metal matrix composite materials.

4. The utility tunnel through-wall hole waterproofing system structure of any of claims 1 to 3, characterized in that: and two ends of the waterproof sleeve are respectively provided with a detachable sealing end cover.

5. The utility tunnel through-wall hole waterproof system structure of claim 4, characterized in that: the other is located the piping lane structure wall is inboard the corridor calandria, its inside is provided with the drainage hole bolt.
