Abstract
The invention discloses a construction hanging basket for reinforcing a hyperbolic structure and a working method, relates to the technical field of hanging baskets, solves the problem of high maintenance and construction difficulty of the traditional hyperbolic structure, improves the working efficiency and the construction safety, and adopts the following specific scheme: including hanging flower basket, fixed flexible arm and first electro-magnet, the second electro-magnet that sets up at the hanging flower basket lateral part, the hanging flower basket passes through the haulage rope and is connected with the hoist engine that is located the structure top, flexible arm level sets up the lateral part at the hanging flower basket, first electro-magnet, second electro-magnet set up in the both sides of structure wall relatively, and first electro-magnet, second electro-magnet are connected with the hoist engine through a haulage rope respectively, the fixed one end that sets up at flexible arm near the structure of first electro-magnet for make the hanging flower basket be close to in the structure through the absorption between with the second electro-magnet.
Description
Technical Field
The invention relates to the technical field of hanging baskets, in particular to a construction hanging basket for reinforcing a hyperbolic structure and a working method.
Background
The hyperbolic structure such as cooling tower can appear the condition such as the surface looseness of urceolus concrete drops, reinforcing bar corrosion through long-time use, need consolidate the section of thick bamboo wall to the situation that appears, and the mode of consolidating usually has to reject loose, the rust removal of concrete reinforcing bar, supplyes the reinforcing bar, increases the concrete protective layer.
The inventor finds that a scaffold cannot be erected due to a special hyperbolic shape in construction (taking an example of physical engineering, the total height is 70m, the radius of the lower end at the ground level is 27.44m, the height of the finest part in the middle is 55.5m, the radius is 14.44m, and the radius of the highest part is 15.6 m), if a hanging basket is adopted for construction, the finest part of the middle barrel wall has a horizontal distance (about 1.2 m) from a vertical hanging basket, direct construction cannot be performed, the radius of the lower part is far larger than the radius of the highest part, so that the hanging basket cannot be continuously lowered, and if a spider man is adopted for construction, reinforcement materials are inconvenient to transport, and the whole construction difficulty is high.
Disclosure of Invention
Aiming at the defects in the prior art, the invention aims to provide a construction hanging basket for reinforcing a hyperbolic structure and a working method thereof.
In order to achieve the purpose, the invention is realized by the following technical scheme:
the construction hanging basket comprises a hanging basket body, a telescopic arm, a first electromagnet and a second electromagnet, wherein the telescopic arm is fixedly arranged on the side portion of the hanging basket body, the hanging basket body is connected with a winch located at the top of a structure through a traction rope, the telescopic arm is horizontally arranged on the side portion of the hanging basket body, the first electromagnet and the second electromagnet are oppositely arranged on two sides of the wall of the structure, the first electromagnet and the second electromagnet are respectively connected with the winch through the traction rope, the first electromagnet is fixedly arranged at one end, close to the structure, of the telescopic arm, and the hanging basket body is close to the structure through adsorption between the first electromagnet and the second electromagnet.
As a further implementation mode, the traction ropes on the hanging basket, the first electromagnet and the second electromagnet are connected with the same winch to move synchronously.
As a further implementation manner, the areas and the heights from the ground of the first electromagnet and the second electromagnet are the same.
As a further implementation manner, the traction rope consists of a steel wire rope and a cable, and the steel wire rope is used for drawing the hanging basket, the first electromagnet and the second electromagnet; the cable is used for providing electric power support for the work of the telescopic arm, the first electromagnet and the second electromagnet.
As a further implementation mode, rollers are rotatably arranged on one sides, close to the structure, of the first electromagnet and one side, close to the structure, of the second electromagnet.
As a further implementation, the roller is made of an insulating material.
In a further implementation, the rollers are one-way rollers, and the traveling direction is the height direction of the structure.
As a further implementation mode, the telescopic arms are electric telescopic arms, at least two telescopic arms are arranged, the two telescopic arms are distributed vertically and are parallel to each other, and the hanging basket is guaranteed to be in a vertical state through the telescopic arms.
In a second aspect, the invention provides a working method of a construction hanging basket for reinforcing a hyperbolic structure, which comprises the following steps:
installing the hanging basket and the winch in place, and oppositely placing the first electromagnet and the second electromagnet on the inner side and the outer side of the structure wall;
synchronously lowering the hanging basket, the first electromagnet and the second electromagnet, wherein the hanging basket is close to a structure due to the attraction between the first electromagnet and the second electromagnet in the lowering process, and construction is carried out after the hanging basket is lowered to a designated position;
after the construction is finished, the winch works to enable the hanging basket, the first electromagnet and the second electromagnet to synchronously move to the next designated position again, the construction is carried out, the processes are repeated until the construction of all positions of the structure to be constructed is finished, and the hanging basket, the first electromagnet and the second electromagnet are recovered.
As a further implementation mode, the telescopic arm can be adjusted in telescopic length all the time in the whole lifting process of the hanging basket.
The beneficial effects of the invention are as follows:
(1) According to the invention, through the arrangement of the telescopic arm, the first electromagnet and the second electromagnet, the hanging basket can be close to a structure and can keep a vertical state to do lifting motion, the problems that a scaffold cannot be erected, the spider man operation surface is small, the construction is dangerous and the hanging basket cannot be constructed are effectively solved, the hanging basket is not influenced by the structure curve, and the working efficiency and the safety are greatly improved.
(2) The first electromagnet and the second electromagnet have the same area and height and synchronously move up and down along with the hanging basket, so that the first electromagnet and the second electromagnet are effectively prevented from being staggered in the moving process, the effective adsorption between the first electromagnet and the second electromagnet is ensured, and the hanging basket can effectively approach to a structure in the lifting process.
(3) The roller is rotatably arranged on one side of the first electromagnet and one side of the second electromagnet close to the wall of the cooling tower, so that the friction damage of the first electromagnet and the second electromagnet is avoided, the traction of the first electromagnet and the second electromagnet is facilitated, the traction force is prevented from being increased due to overlarge friction force, and the problem of cable damage caused by overlarge traction force is avoided.
(4) The roller is of a one-way wheel structure, the advancing direction is the height direction of the structure, and the deflection of the relative position caused by the rotation and the swing of the roller in the lifting process of the first electromagnet and the second electromagnet is effectively avoided.
(5) The telescopic arm of the invention is fixedly arranged at the side part of the hanging basket, not only can adjust the verticality of the hanging basket and ensure the construction safety, the hanging basket can be limited, the stability of the hanging basket in use is greatly improved, and the hanging basket is effectively prevented from shaking during high-altitude operation.
(6) The hanging basket is provided with at least two telescopic arms, the two telescopic arms are vertically distributed and are parallel to each other, the verticality of the hanging basket can be effectively adjusted through different telescopic lengths of the two telescopic arms, and the construction safety is greatly improved.
Drawings
The accompanying drawings, which are incorporated in and constitute a part of this specification, are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate exemplary embodiments of the invention and together with the description serve to explain the invention and not to limit the invention.

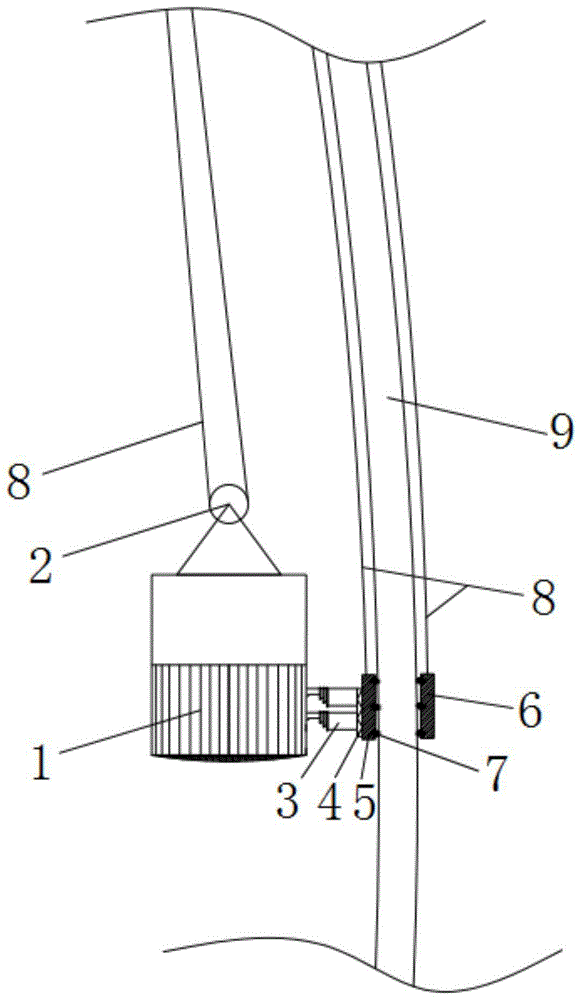

FIG. 1 is a schematic front view of a construction basket for hyperbolic structure reinforcement in an operating state according to one or more embodiments of the present invention;
FIG. 2 is a schematic top view of a construction basket for hyperbolic structure reinforcement in an operational state according to one or more embodiments of the present disclosure;
FIG. 3 is a schematic representation of a multi-span operation of a construction basket for hyperbolic structure reinforcement according to one or more embodiments of the present disclosure;
in the figure: the mutual spacing or size is exaggerated to show the position of each part, and the schematic diagram is only used for illustration;
wherein, 1, hanging basket; 2. a pulley; 3. a telescopic arm; 4. a mounting seat; 5. a first electromagnet; 6. a second electromagnet; 7. a roller; 8. a hauling rope; 9. cooling the tower wall; 10. and (5) connecting a hinge.
Detailed Description
It is to be understood that the following detailed description is exemplary and is intended to provide further explanation of the invention as claimed. Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs.
As introduced in the background technology, due to the special shape of a hyperbola, a scaffold cannot be erected in construction, if a hanging basket is adopted for construction, the thinnest part of the middle cylinder wall is further away from the vertical hanging basket by a horizontal distance, direct construction cannot be achieved, the radius of the lower part is far larger than the radius of the highest part, so that the hanging basket cannot be descended continuously, and if a spider man is adopted for construction, reinforcement materials are inconvenient to transport, and the whole construction difficulty is large.
Example 1
In a typical embodiment of the present invention, as shown in fig. 1 to 3, a construction hanging basket for reinforcing a hyperbolic structure is provided, and the structure of the present embodiment is described by taking a cooling tower as an example, and includes a hanging basket 1, a telescopic arm 3 and an electromagnet, wherein the telescopic arm 3 is horizontally arranged, one end of the telescopic arm 3 is fixedly arranged at a side portion of the hanging basket 1, and the other end is fixedly provided with the electromagnet, and the hanging basket 1 is close to a cooling tower wall 9 by an adsorption effect of the electromagnet.
The telescopic arm 3 is fixedly arranged on the side part of the hanging basket 1, can adjust the verticality of the hanging basket 1, guarantees construction safety, can also play a role in limiting the hanging basket 1, greatly improves the stability of the hanging basket 1 during use, and effectively avoids the hanging basket 1 from shaking during high-altitude operation.
Be equipped with pulley 2 on the hanging flower basket 1, pulley 2 realizes the hoist and mount of hanging flower basket 1 with the cooperation of haulage rope 8, and wherein, the top of the tower that is used for the hoist engine that haulage rope 8 receive and releases to fix and set up at the cooling tower.
The telescopic arm 3 is of an electric telescopic arm structure, the telescopic arm 3 is at least provided with two telescopic arms, the number of the telescopic arms 3 can be two or more, the specific number of the telescopic arms needs to be selected according to actual requirements, and excessive limitation is not performed here.
Specifically, when two telescopic arms 3 are arranged, the two telescopic arms 3 are horizontally distributed up and down and are parallel to each other, so that the verticality of the hanging basket 1 can be adjusted through different telescopic amounts of the two telescopic arms 3; when four telescopic arms 3 are arranged, every two telescopic arms 3 are vertically and horizontally distributed and are parallel to each other.
The arrangement of the electromagnet can enable the hanging basket 1 to be close to the cooling tower wall 9 and not to be influenced by a structure curve, the arrangement of the telescopic arm 3 can enable the hanging basket 1 to be kept in a vertical state all the time by changing the telescopic length of the telescopic arm, and the construction comfort and safety are guaranteed.
Specifically, the electro-magnet divide into first electro-magnet 5 and second electro-magnet 6, the fixed mount pad 4 that is equipped with in one end that flexible arm 3 is close to cooling tower wall 9, first electro-magnet 5 is fixed to be set up on mount pad 4, second electro-magnet 6 sets up and is located the opposite side of cooling tower wall 9 with first electro-magnet 5 relatively, first electro-magnet 5 sets up the both sides at cooling tower wall 9 with second electro-magnet 6 relatively promptly, it makes hanging flower basket 1 be close to in cooling tower wall 9 through the absorption between first electro-magnet 5 and the second electro-magnet 6.
The areas and heights of the first electromagnet 5 and the second electromagnet 6 (the heights are the heights of the first electromagnet 5 and the second electromagnet 6 from the ground) are the same, so that the stability of mutual attraction between the first electromagnet 5 and the second electromagnet 6 is ensured as much as possible, and the adsorption strength of the first electromagnet 5 and the second electromagnet 6 can be controlled by controlling the current in actual use, so that sufficient strong adsorption force is provided, and the wall thickness is adaptive to different wall thicknesses.
The first electromagnet 5 and the second electromagnet 6 are respectively provided with a traction rope 8, the first electromagnet 5 and the second electromagnet 6 are respectively dragged through the respective traction ropes 8, and the traction ropes 8 on the first electromagnet 5 and the second electromagnet 6 are also collected and released by using windlasses on the top of the cooling tower.
Wherein, hanging flower basket 1, first electro-magnet 5, haulage rope 8 on the second electro-magnet 6 all drives through same hoist engine, under haulage rope 8's effect, not only can make first electro-magnet 5 and second electro-magnet 6 follow hanging flower basket 1 and be synchronous elevating movement, can also avoid first electro-magnet 5 and second electro-magnet 6 to take place the dislocation at the removal in-process, in order to guarantee the effective absorption between first electro-magnet 5 and the second electro-magnet 6, make hanging flower basket 1 can be at the effectual cooling tower wall 9 that is close to of lift in-process.
It can be understood that the hauling ropes 8 on the hanging basket 1, the first electromagnet 5 and the second electromagnet 6 can also be different winches, and at this time, synchronous operation of the winches needs to be ensured, and no matter how the winches are arranged, only the hanging basket 1, the first electromagnet 5 and the second electromagnet 6 are required to be lifted synchronously, and specific limitation is not required here.
The traction rope 8 consists of a steel wire rope and a cable, wherein the steel wire rope is used for drawing the hanging basket 1, the first electromagnet 5 and the second electromagnet 6; the cable is used for providing electric support for the work of the telescopic arm 3, the first electromagnet 5 and the second electromagnet 6.
It is understood that the adsorption capacity of the first electromagnet 5 and the second electromagnet 6 can be changed according to the change current, and can be specifically adjusted according to the wall thickness of the actual cooling tower wall 9, which is not limited herein too much.
Because the surface of the cooling tower wall 9 is not smooth, in order to reduce the friction between the first electromagnet 5, the second electromagnet 6 and the cooling tower wall 9, the rollers 7 are arranged on the first electromagnet 5 and the second electromagnet 6, so that the first electromagnet 5 and the second electromagnet 6 are prevented from being damaged due to friction.
Specifically, the rollers 7 are rotatably arranged on the sides of the first electromagnet 5 and the second electromagnet 6 close to the cooling tower wall 9, so that the friction between the first electromagnet 5 and the cooling tower wall 9 and the friction between the second electromagnet 6 and the cooling tower wall 9 are reduced through the rollers 7.
Because first electro-magnet 5, second electro-magnet 6 have magnetism, gyro wheel 7 is made by insulating material, for example selects for use rubber gyro wheel or the gyro wheel that the cladding has the insulating layer, need guarantee gyro wheel 7 promptly and have insulating ability, and in the same way, the gyro wheel structure that has insulating ability should also be selected for use to the pivot to avoid magnetism to the influence of gyro wheel 7, guarantee that gyro wheel 7 can effectively rotate.
The arrangement of the roller 7 not only avoids the friction damage of the first electromagnet 5 and the second electromagnet 6, but also facilitates the traction of the first electromagnet 5 and the second electromagnet 6, avoids the traction force due to the excessive increase of the friction force, and prevents the cable damage problem caused by the excessive traction force.
It should be noted that the roller 7 needs to use a one-way wheel structure, and the traveling direction is the height direction of the structure, but a universal wheel structure cannot be adopted, so that the relative position deflection caused by the rotation of the universal wheel in the lifting process of the first electromagnet 5 and the second electromagnet 6 is avoided.
It can be understood that the starting and stopping control of the winch can be controlled by an operator in the hanging basket 1, a remote control device is needed at the moment, a matched operator can be reserved on the top of the tower, and similarly, the control of the telescopic boom 3 and the electromagnet is also the same, the specific control mode can be selected according to actual requirements, and excessive limitation is not needed.
Through the setting of flexible arm 3, first electro-magnet 5, second electro-magnet 6 for hanging flower basket 1 can be close to under guaranteeing the vertical state in the structure, does not receive the curved influence of structure, has effectively solved the scaffold and has set up the problem that the degree of difficulty is big, spider people operation face is little, construction danger and the unable construction of hanging flower basket, has improved work efficiency greatly.
In other embodiments, a plurality of baskets 2 (as shown in fig. 3) may be arranged side by side, adjacent baskets 2 are hinged by connecting hinges 10, specifically, the side plates between adjacent baskets 2 are removed, the connecting hinges 10 between adjacent baskets 2 are fixedly arranged on a connecting plate, and both ends of the connecting plate are respectively fixedly connected with the bottom plates of adjacent baskets 2, so that an operator can shuttle between baskets 2 to perform multi-span operation.
It should be noted that, when multi-span operation is performed, it is necessary to ensure that adjacent baskets 2 are at the same height.
Example 2
In another exemplary embodiment of the present invention, a method for operating a construction basket for reinforcing a hyperbolic structure is provided, which includes:
before construction, a construction hanging basket and a winch are installed in place, and the hanging basket 1, the first electromagnet 5 and the second electromagnet 6 are respectively pulled by using a pulling rope 8, so that the pulling ropes 8 on the hanging basket 1, the first electromagnet 5 and the second electromagnet 6 are driven by the same winch;
the first electromagnet 5 and the second electromagnet 6 are oppositely arranged on the inner side and the outer side of the cooling tower wall 9, and the heights of the first electromagnet 5 and the second electromagnet 6 are ensured to be the same;
the hanging basket 1, the first electromagnet 5 and the second electromagnet 6 are lowered, so that the hanging basket 1, the first electromagnet 5 and the second electromagnet 6 move synchronously, in the lowering process, the hanging basket 1 is close to the cooling tower wall 9 due to attractive force between the first electromagnet 5 and the second electromagnet 6, construction is carried out after the hanging basket 1 is lowered to a designated position, meanwhile, the telescopic length of the telescopic arm 3 needs to be adjusted constantly in the lowering process, the verticality of the hanging basket 1 is guaranteed, and the problem that personnel fall due to the fact that the hanging basket 1 is inclined is solved;
after the construction is finished, the winch works to enable the hanging basket 1, the first electromagnet 5 and the second electromagnet 6 to synchronously move to the next designated position again, the construction is carried out, the processes are repeated until the construction of all positions of the structure to be constructed is finished, and the hanging basket 1, the first electromagnet 5 and the second electromagnet 6 are recovered.
The recovery directions of the hanging basket 1, the first electromagnet 5 and the second electromagnet 6 are determined according to the distance from the ground and the top end of the structure, and for example, when the distance between the hanging basket 1 and the ground is smaller than the distance between the hanging basket 1 and the top end of the structure, a lowering recovery mode is adopted.
It should be noted that the telescopic arm 3 needs to be adjusted in length at any time during the whole process of lifting the basket 1, so as to ensure that the basket 1 is vertical at any time.
The above description is only a preferred embodiment of the present invention and is not intended to limit the present invention, and various modifications and changes may be made by those skilled in the art. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (10)
1. The utility model provides a construction hanging flower basket for hyperbola structures is consolidated, a serial communication port, including hanging flower basket, fixed flexible arm and first electro-magnet, the second electro-magnet that sets up at the hanging flower basket lateral part, the hanging flower basket passes through the haulage rope and is connected with the hoist engine that is located the structures top, flexible arm level sets up the lateral part at the hanging flower basket, first electro-magnet, second electro-magnet set up in the both sides of structures wall relatively, and first electro-magnet, second electro-magnet are connected with the hoist engine through a haulage rope respectively, the fixed one end that sets up near structures at flexible arm of first electro-magnet for make the hanging flower basket be close to in structures through the absorption between with the second electro-magnet.
2. The construction basket for hyperbolic structure reinforcement as claimed in claim 1, wherein the pulling ropes of the basket, the first electromagnet and the second electromagnet are connected with a same winch to move synchronously.
3. The construction basket for reinforcing the hyperbolic structure, as recited in claim 1, wherein the first electromagnet and the second electromagnet have the same area and height from the ground.
4. The construction hanging basket for reinforcing the hyperbolic structure, as recited in claim 1, wherein the traction rope is composed of a steel wire rope and a cable, the steel wire rope is used for traction of the hanging basket, the first electromagnet and the second electromagnet; the cable is used for providing electric power support for the work of the telescopic arm, the first electromagnet and the second electromagnet.
5. The construction hanging basket for reinforcing the hyperbolic structure, according to claim 1, is characterized in that rollers are rotatably arranged on one sides, close to the structure, of the first electromagnet and the second electromagnet.
6. A construction basket for hyperbolic structure reinforcement according to claim 5, wherein the rollers are made of insulating material.
7. A construction basket for the reinforcement of hyperbolic structures as claimed in claim 5, wherein the rollers are one-way rollers and the direction of travel is the height direction of the structure.
8. The construction hanging basket for reinforcing the hyperbolic structure as claimed in claim 1, wherein the telescopic arms are at least two electric telescopic arms, and the two telescopic arms are distributed up and down and parallel to each other so as to ensure that the hanging basket is vertical by the telescopic arms.
9. A working method of a construction basket for reinforcement of hyperbolic structures as claimed in any one of claims 1 to 8, characterized in that it comprises the following steps:
installing the hanging basket and the winch in place, and oppositely placing the first electromagnet and the second electromagnet on the inner side and the outer side of the wall of the structure;
synchronously lowering the hanging basket, the first electromagnet and the second electromagnet, wherein the hanging basket is close to a structure due to the attraction between the first electromagnet and the second electromagnet in the lowering process, and construction is carried out after the hanging basket is lowered to a designated position;
after the construction is finished, the winch works to enable the hanging basket, the first electromagnet and the second electromagnet to synchronously move to the next designated position again, the construction is carried out, the processes are repeated until the construction of all positions of the structure to be constructed is finished, and the hanging basket, the first electromagnet and the second electromagnet are recovered.
10. The construction method according to claim 9, wherein the telescopic length is adjusted at the moment of telescopic arm lifting and lowering the gondola.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202211267307.9A CN115467507B (en) | 2022-10-17 | 2022-10-17 | Construction hanging basket for reinforcing hyperbolic structure and working method |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202211267307.9A CN115467507B (en) | 2022-10-17 | 2022-10-17 | Construction hanging basket for reinforcing hyperbolic structure and working method |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN115467507A true CN115467507A (en) | 2022-12-13 |
| CN115467507B CN115467507B (en) | 2024-01-19 |
Family
ID=84336871
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202211267307.9A Active CN115467507B (en) | 2022-10-17 | 2022-10-17 | Construction hanging basket for reinforcing hyperbolic structure and working method |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN115467507B (en) |
Citations (5)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US20100051766A1 (en) * | 2008-08-28 | 2010-03-04 | Golfcar Network, Inc. | Golf car and mounting system for a display device incorporated therein |
| CN107389795A (en) * | 2017-09-05 | 2017-11-24 | 李亮 | Construction wall hollowing and sound insulation detection means |
| CN111519890A (en) * | 2020-05-06 | 2020-08-11 | 于振海 | Multifunctional hanging basket for urban construction |
| CN211447723U (en) * | 2019-09-23 | 2020-09-08 | 山西汾西矿业（集团）有限责任公司 | Safety device of outer wall hanging basket frame |
| CN211899580U (en) * | 2020-02-17 | 2020-11-10 | 中国建筑第五工程局有限公司 | Hanging basket for building construction |
-
2022
- 2022-10-17 CN CN202211267307.9A patent/CN115467507B/en active Active
Patent Citations (5)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US20100051766A1 (en) * | 2008-08-28 | 2010-03-04 | Golfcar Network, Inc. | Golf car and mounting system for a display device incorporated therein |
| CN107389795A (en) * | 2017-09-05 | 2017-11-24 | 李亮 | Construction wall hollowing and sound insulation detection means |
| CN211447723U (en) * | 2019-09-23 | 2020-09-08 | 山西汾西矿业（集团）有限责任公司 | Safety device of outer wall hanging basket frame |
| CN211899580U (en) * | 2020-02-17 | 2020-11-10 | 中国建筑第五工程局有限公司 | Hanging basket for building construction |
| CN111519890A (en) * | 2020-05-06 | 2020-08-11 | 于振海 | Multifunctional hanging basket for urban construction |
Also Published As
| Publication number | Publication date |
|---|---|
| CN115467507B (en) | 2024-01-19 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN109823963A (en) | A kind of hanging device of assembled architecture prefabricated components | |
| CN106698208A (en) | Hoisting equipment and hoisting method for external transportation of super high-rise building | |
| CN218201897U (en) | Sliding and hoisting construction device | |
| CN108466937A (en) | A kind of Multifunctional container carrying implement | |
| CN215666803U (en) | Semi-automatic pipeline lifting device | |
| CN212374757U (en) | Tower crane stable in installation | |
| CN207903864U (en) | A kind of side slope protection material lifting device | |
| CN115467507A (en) | Construction hanging basket for reinforcing hyperbolic structure and working method | |
| CN208561488U (en) | A kind of erecting equipment for Multifunctional container carrying implement | |
| CN217949100U (en) | Quick-moving water suction pump device | |
| CN206815943U (en) | A kind of pole upside-down mounting group founds lifting device | |
| CN214942249U (en) | Novel indoor wall construction device | |
| CN104549834A (en) | Dual-cantilever basket assembly for automatically spraying inner wall of oil tank | |
| CN208500169U (en) | A kind of Multifunctional container haulage equipment | |
| CN2487720Y (en) | Lift tower crane | |
| CN214995832U (en) | Rail crane ship capable of horizontally and vertically walking for high-altitude suspension construction of building | |
| CN217102685U (en) | Novel assembly type building construction hoisting fine adjustment device | |
| CN214989878U (en) | Automatic crane for construction site | |
| CN217894899U (en) | Pipeline mobile device for hydraulic engineering | |
| CN219771592U (en) | Vertical lifting device for overhauling hydropower station | |
| CN218290242U (en) | Lifting equipment for building construction | |
| CN220011874U (en) | Outer wall protection device for hoisting building outer wall | |
| CN221856149U (en) | Guide rope type hanging basket | |
| CN107558752A (en) | A kind of automatic dabbing machine of facade | |
| CN217708623U (en) | Double-crane arm frame bridge crane |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| GR01 | Patent grant | ||
| GR01 | Patent grant |
