Abstract
The invention discloses a production process of a ceramic refrigerating sheet, which comprises the steps of vibrating screen, tabletting, sintering and cutting, wherein a vibrating screen die is arranged in a vibrating frame of a vibrating screen machine, and copper particles correspondingly enter each concave die set of the vibrating screen die through vibration; a plurality of concave modules matched with the positions and the sizes of the copper particles of the single ceramic chip are arranged in the vibrating screen die, and each concave die is internally provided with a through hole; placing a vibrating screen die with copper particles after vibrating screen on a ceramic substrate for fixing, then coating the copper particles on the ceramic substrate through a blanking machine, wherein a steel needle matched with a through hole on the vibrating screen die is arranged on a lower pressing plate of the blanking machine, and the steel needle penetrates through the through hole to push out the copper particles and coating the copper particles on the ceramic substrate; finally sintering and cutting to obtain a single finished product. According to the invention, a plurality of ceramic refrigerating sheets can be coated with copper simultaneously by adopting the die, and the mechanical operation is utilized, so that the time and the labor are saved, the quality is stable, the number of workers is reduced, and the working efficiency is improved.
Description
Technical Field
The invention relates to the field of ceramic refrigerating sheets, in particular to a production process of a ceramic refrigerating sheet.
Background
At present, the ceramic refrigerating sheet is also called a thermoelectric refrigerating sheet, does not need any refrigerant, can continuously work, does not have a pollution source, does not have a rotating part, does not have a reversing effect, does not have a sliding part, is a solid sheet, and has no vibration, noise and long service life during working, and is simple to install. The refrigerator has two functions, namely, the refrigerator can refrigerate and heat, the refrigerating efficiency is generally not high, but the heating efficiency is very high, and the refrigerating efficiency is always more than 1. Thus, the use of one piece can replace separate heating and cooling systems. The copper coating of the existing ceramic refrigerating plate adopts manual single operation, which is time-consuming and labor-consuming, and the quality cannot be efficiently unified.
Disclosure of Invention
The invention aims to solve the technical problem of providing a production process of ceramic refrigerating sheets, which can simultaneously coat a plurality of ceramic refrigerating sheets with copper by adopting a die, and has the advantages of time and labor saving, stable quality, reduction of staff and improvement of working efficiency by utilizing mechanized operation.
The technical scheme adopted for solving the technical problems is as follows: the production process of ceramic refrigerating sheet includes the steps of vibrating screen, tabletting, sintering and cutting,
1. manufacturing a vibrating screen die: the vibrating screen die comprises a rectangular main body, a plurality of concave modules matched with the positions and the sizes of copper particles of the single ceramic chip are arranged in the rectangular main body, a through hole is formed in each concave die, and the through hole penetrates through the whole rectangular main body;
2. vibrating screen: fixing a plurality of vibrating screen molds in a vibrating frame of a vibrating screen machine, and enabling copper particles to correspondingly enter each concave module of the vibrating screen mold through vibration;
3. tabletting: placing a vibrating screen die with copper particles on a ceramic substrate for fixation, and then coating the copper particles on the ceramic substrate through a blanking machine, wherein a lower pressing plate is arranged on the blanking machine, a steel needle matched with a through hole on the vibrating screen die is arranged on the lower pressing plate, and the steel needle penetrates through the through hole to push out the copper particles and coating the copper particles on the ceramic substrate;
4. sintering, namely stacking the ceramic substrate coated with copper particles in 3-5 layers of brackets, and placing the brackets into a sintering box for sintering;
5. cutting, namely cutting the sintered ceramic substrate to obtain a single finished product.
Preferably, the sieving machine comprises a motor base and two vibrating frames, wherein two sieving dies can be placed in the vibrating frames.
Preferably, the blanking machine comprises a base, a lower air cylinder and a lower pressing plate, wherein steel needles on the lower pressing plate penetrate through holes through the lower air cylinder, and copper particles are pushed out and coated on the ceramic substrate.
As one preferable mode, 16-54 concave modules matched with the positions and the sizes of the copper particles of the single ceramic chip are arranged in the rectangular main body, and the groove depth of each concave module is 0.3mm.
The invention is a current transduction piece, can finish the high-precision temperature control through the control of the input current, and in addition, the temperature detection and control method can simply finish the remote control, program control and computer control, thus being convenient for forming an automatic control system. The thermal inertia of the product is very small, the refrigerating and heating time is very fast, and the maximum temperature difference can be achieved when the power is electrified for less than one minute under the condition that the hot end dissipates heat and the cold end is empty. The efficiency of a single refrigerating element pair of the product is very small, but the refrigerating elements are combined into a pile, and if the refrigerating system is combined by a method of connecting the piles in series and in parallel, the efficiency can be very high, so that the refrigerating efficiency can be in the range of a few milliwatts to a last ten thousand watts. The product temperature difference range is large, and can be completed from the positive temperature of 90 ℃ to the negative temperature of 130 ℃.
The ceramic refrigerating plate copper-clad machine has the beneficial effects that a plurality of ceramic refrigerating plates can be coated with copper simultaneously by adopting the die, and the machine is time-saving and labor-saving, has stable quality, reduces staff and improves working efficiency.
Drawings

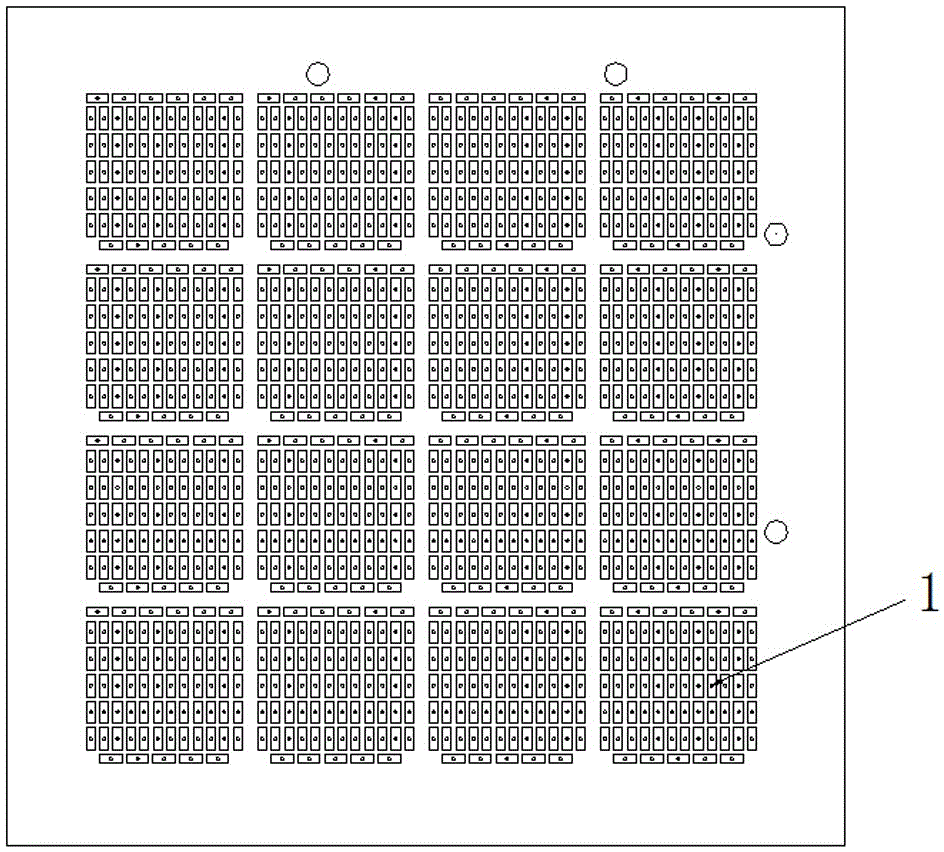

Fig. 1 is a schematic structural diagram of a vibrating screen mold according to an embodiment of the invention.
Fig. 2 is a schematic structural diagram of a female die set according to an embodiment of the present invention.
Fig. 3 is a schematic structural view of a sieving machine according to an embodiment of the present invention.
Fig. 4 is a schematic front view of a blanking machine according to an embodiment of the present invention.
Fig. 5 is a schematic left view of a blanking machine according to an embodiment of the present invention.
1, a concave module; 2. a female die; 3. a through hole; 4. a vibration frame; 5. a lower pressing plate; 6. a base; 7. a pressing cylinder; 8. a working platform; 9. and a motor base.
The invention is further described below with reference to the accompanying drawings.
Detailed Description
Example 1: the production process of ceramic refrigerating sheet includes the steps of vibrating screen, tabletting, sintering and cutting,
1. manufacturing a vibrating screen die: as shown in fig. 1 and 2, the vibrating screen die comprises a rectangular main body, 16 concave die sets 1 matched with the positions and the sizes of copper particles of a single ceramic chip are arranged in the rectangular main body, a through hole 3 is arranged in each concave die 2, the through hole 3 penetrates through the whole rectangular main body, and the groove depth of each concave die is 0.3mm;
2. vibrating screen: a plurality of vibrating screen dies are fixed in a vibrating frame 4 of a vibrating screen machine, as shown in fig. 3, the vibrating screen machine comprises a motor base 9 and two vibrating frames 4, two vibrating screen dies can be placed in the vibrating frames 4, and copper particles correspondingly enter each female die set 1 of the vibrating screen dies through vibration;
3. tabletting: placing a vibrating screen die with copper particles on a ceramic substrate for fixation, and then placing the ceramic substrate on a working platform 8 of a blanking machine, wherein the blanking machine comprises a base 6, a lower air cylinder 7 and a lower pressing plate 5, steel needles matched with through holes 3 on the vibrating screen die are arranged on the lower pressing plate 5, and the steel needles on the lower pressing plate 5 penetrate through the through holes 3 through the lower air cylinder 7 to push out the copper particles to be covered on the ceramic substrate as shown in fig. 4 and 5;
4. stacking the ceramic substrate coated with copper particles in the 3 layers of brackets, and placing the ceramic substrate into a sintering box for sintering;
5. cutting, namely cutting the sintered ceramic substrate to obtain a single finished product.
In the invention, the control systems are arranged in the bases of the vibrating screen machine and the blanking machine, and a series of related parameters can be set.
Example 2: the second production process of the ceramic refrigerating sheet comprises the steps of vibrating screen, tabletting, sintering and cutting, and the specific process steps are as follows,
1. manufacturing a vibrating screen die: the vibrating screen die comprises a rectangular main body, 24 concave die sets 1 matched with the positions and the sizes of copper particles of the single ceramic chip are arranged in the rectangular main body, through holes 3 are formed in each concave die 2, the through holes 3 penetrate through the whole rectangular main body, and the groove depth of each concave die is 0.3mm;
4. and sintering, namely stacking the ceramic substrate coated with the copper particles in the 4 layers of brackets, and putting the ceramic substrate into a sintering box for sintering.
The other steps are the same as in example 1.
Claims (4)
1. The production process of the ceramic refrigerating sheet comprises the steps of vibrating screen, tabletting, sintering and cutting, and is characterized in that: the specific process steps are as follows,
1. manufacturing a vibrating screen die: the vibrating screen die comprises a rectangular main body, a plurality of female die groups (1) matched with the positions and the sizes of copper particles of the single ceramic chip are arranged in the rectangular main body, through holes (3) are formed in each female die (2), and the through holes (3) penetrate through the whole rectangular main body;
2. vibrating screen: fixing a plurality of vibrating screen dies in a vibrating frame (4) of a vibrating screen machine, and enabling copper particles to correspondingly enter each female die set (1) of the vibrating screen dies through vibration;
3. tabletting: placing a vibrating screen die with copper particles on a ceramic substrate for fixation, and then coating the copper particles on the ceramic substrate through a blanking machine, wherein a lower pressing plate (5) is arranged on the blanking machine, a steel needle matched with a through hole (3) on the vibrating screen die is arranged on the lower pressing plate (5), and the steel needle penetrates through the through hole (3) to push out the copper particles and coating the copper particles on the ceramic substrate;
4. sintering, namely stacking the ceramic substrate coated with copper particles in 3-5 layers of brackets, and placing the brackets into a sintering box for sintering;
5. cutting, namely cutting the sintered ceramic substrate to obtain a single finished product.
2. The process for producing ceramic refrigerating sheets according to claim 1, wherein: the sieving machine
The vibrating screen comprises a motor base (9) and two vibrating frames (4), wherein two vibrating screen dies can be placed in the vibrating frames (4).
3. The process for producing ceramic refrigerating sheets according to claim 1, wherein: the blanking machine
The copper particle pushing device comprises a base (6), a pressing cylinder (7) and a pressing plate (5), wherein steel needles on the pressing plate (5) penetrate into through holes (3) through the pressing cylinder (7), and copper particles are pushed out to cover a ceramic substrate.
4. The process for producing ceramic refrigerating sheets according to claim 1, wherein: and 16-54 female die groups (1) matched with the positions and the sizes of the copper particles of the single ceramic chip are arranged in the rectangular main body, and the groove depth of each female die is 0.3mm.
