Abstract
The invention relates to the technical field of fountain systems, in particular to a circulating water system for fountain landscapes in outdoor parks, which comprises a waterproof pump, a fountain pipe, a water pumping pipe, a filter screen cylinder and a backflow pipeline, wherein the fountain pipe is communicated with a water outlet of the waterproof pump; according to the invention, when the filter screen cylinder is blocked, water can be pumped through the normally closed pumping pipe by the aid of the arranged piston structure, and meanwhile, the blocking valve structures are communicated, so that liquid in the fountain pipe is distributed into the backflow pipeline and is sprayed out from the side wall nozzle and the top nozzle, the filter screen cylinder is sprayed and dredged, and the filter screen cylinder can be automatically reset to an initial fountain state after being dredged, so that self-cleaning maintenance of the filter screen cylinder is realized.
Description
Technical Field
The invention relates to the technical field of fountain systems, in particular to a fountain landscape circulating water system for an outdoor park.
Background
The circulating water system of fountain landscape is formed from water pump and fountain pipe, etc. and utilizes the water pump to pump pool water and make it be fed into the fountain pipe to make it be jetted out to form fountain, then make it be circularly fallen back into the pool.
Disclosure of Invention
The invention aims to provide a circulating water system for fountain landscapes in outdoor parks, which aims to solve the problems in the background technology.
In order to achieve the purpose, the invention provides the following technical scheme: the utility model provides a circulating water system for fountain view in outdoor park, includes waterproof pump, fountain pipe, drinking-water pipe, filter screen section of thick bamboo and backflow pipeline, the fountain pipe with the fixed intercommunication of the delivery port of waterproof pump, the one end of drinking-water pipe is fixed with the mouth of pumping of waterproof pump and is communicate, the other end of drinking-water pipe passes through the sealed intercommunication of spiral fit with the filter screen section of thick bamboo, the one end and the fixed intercommunication of fountain pipe of backflow pipeline, the other end of backflow pipeline is provided with the butt joint structure that has elastic expansion function, butt joint structure is located the inside of drinking-water pipe, keeps away from the one end of waterproof pump position, the inside of backflow pipeline is provided with the stifled valve structure that has the trace function of leading to liquid, the outside of drinking-water pipe is provided with the piston structure that has the feed liquor function, piston structure can drive stifled valve structure on-off change, the inside of filter screen section of thick bamboo is provided with butt joint tubular construction, the butt joint coil structure can be in sealing fit with the butt joint structure, and when high-pressure liquid is introduced into the butt joint coil structure, the butt joint coil structure can be rotated in the internal spraying mode of the filter screen cylinder to dredge and clean the filter screen cylinder.
The piston structure comprises a pressure piston pipe, an inner wall convex edge, an upper supporting spring, a pressure sealing plug, an anti-rotating frame, an anti-rotating square hole, a connecting square shaft, a normally closed pumping pipe, a liquid inlet and a protective sieve bar, wherein the pressure piston pipe is fixedly communicated with the pumping pipe, the pressure piston pipe is in a round pipe shape, the inner wall convex edge is fixedly arranged at the surface position of the inner wall of the pressure piston pipe, the inner wall convex edge is in a circular ring shape and is cast with the pressure piston pipe in an integrated mode, the upper supporting spring is arranged inside the pressure piston pipe and is positioned above the inner wall convex edge, the pressure sealing plug is movably arranged inside the pressure piston pipe, the outer surface of the pressure sealing plug is in sealing contact with the surface of the inner wall of the pressure piston pipe, the upper supporting spring is positioned between the pressure sealing plug and the inner wall convex edge, and the anti-rotating frame is fixedly arranged at the position close to the upper position on the surface of the inner wall of the pressure piston pipe, an anti-rotation square hole penetrates through the center of the anti-rotation frame, the anti-rotation square hole is in a square hole shape, the connecting square shaft penetrates through the anti-rotation square hole, the cross section of the connecting square shaft is square, so that after the connecting square shaft is matched with the anti-rotation square hole, the connecting square shaft can only move in a telescopic mode and cannot rotate, and the lower end of the connecting square shaft is fixedly installed with the pressure sealing plug;
the one end and the fixed intercommunication of drinking-water pipe of normal close extraction tube, above-mentioned and the intercommunication position of drinking-water pipe are located between waterproof pump and the pressure piston pipe, the other end and the fixed intercommunication of pressure piston pipe of normal close extraction tube, under the natural state, the pressure seal stopper is sealed with the intercommunication mouth jam between normal close extraction tube and the pressure piston pipe, the inlet has been seted up to the outside intercommunication of pressure piston pipe, the inside fixed mounting of inlet has the protection sieve fence, the protection sieve fence can block the foreign matter.
The shutoff valve structure includes normally closed valve pipe, sealing plug stem and leads to the liquid micropore, normally closed valve pipe with the fixed intercommunication of backflow pipeline, normally closed valve pipe is the tube-shape, and upper portion seals, the lower part opening, the flexible activity of sealing plug stem sets up the inside at normally closed valve pipe, the surface of sealing plug stem and the inner wall surface sealing contact of normally closed valve pipe, lead to the liquid micropore and run through the inside of seting up at the sealing plug stem, when the sealing plug stem is closing the backflow pipeline interrupt, can keep micro-quantity intercommunication through the liquid micropore that leads to that sets up for backflow pipeline inside can circulate a small amount of liquid, the lower surface of sealing plug stem and the upper end fixed mounting who is connected the square shaft.
The butt joint structure comprises a telescopic cavity column, a cavity column support plate, a limiting convex ring, a telescopic inner tube, a limiting sealing ring, a sealing ring groove, an annular rubber ring, a sealing pressing ring, an ejection spring and a sealing rubber sheet, wherein the telescopic cavity column is in a circular tube shape and is fixedly installed in the water pumping tube, the cavity column support plate is fixedly installed on the outer surface of the telescopic cavity column, the telescopic cavity column is fixedly installed on the inner wall surface of the water pumping tube through the cavity column support plate, the limiting convex ring is fixedly installed on the inner wall surface of the telescopic cavity column and is in a circular ring shape, the telescopic inner tube is inserted through the ring center of the limiting convex ring, the limiting sealing ring is fixedly installed on the outer surface of the telescopic inner tube, the sealing ring groove is formed in the outer surface of the limiting sealing ring, the sealing ring groove is an annular groove, the annular rubber ring is sleeved in the sealing ring groove, and is in sealing contact with the inner wall surface of the telescopic cavity column, the outer surface position fixed mounting of flexible inner tube has sealed clamping ring, the outside of flexible inner tube is located to overlap between sealed clamping ring and the spacing bulge loop and establishes and install ejecting spring, one side surface position fixed mounting that ejecting spring was kept away from to sealed clamping ring has sealed film.
The butt joint rotary pipe structure comprises a butt joint pipe, a butt joint support plate, a rotary outer pipe, an annular wall groove, a sealing limiting ring, inner wall blades, a side wall nozzle and a top nozzle, wherein the butt joint pipe is fixedly arranged inside a filter screen cylinder;
the utility model discloses a spray jet nozzle, including rotatory outer tube, the inner wall fixed surface of rotatory outer tube installs the inner wall blade, the inner wall blade is heliciform circumference array evenly distributed, can have the water under high pressure to pass through in rotatory outer tube, and the rotatory outer tube of drive is rotatory, the outer wall fixed surface intercommunication of rotatory outer tube is provided with the lateral wall spout, the tip fixed surface intercommunication of rotatory outer tube is provided with the top spout, the lateral wall spout with the top spout all is the platykurtic, can make the blowout of liquid platykurtic, and wherein the both sides slope expansion of top spout increases and sprays sector area.
The utility model discloses a water pump, including waterproof pump, fountain pipe, filter screen cylinder, mounting panel, fountain pipe's inside fixed mounting has the center post, the fixed surface of the outer fixed mounting of center post has the connecting column board, the connecting column board with the inner wall fixed surface installation of fountain pipe, the upper end of fountain pipe is provided with presses the stream fill cap, it is bucket-shaped to press the stream fill cap, the center post alternates through the pressure stream fill cap, the upper end fixed surface position of center post installs the fender dish, the outside of center post is located the fender dish and presses and flows to establish between the fill cap and install the pressure spring, the outside surface and the tip surface of filter screen cylinder are equallyd divide and are do not seted up the filtration sieve mesh, lateral wall spout with the top spout all corresponds with the filtration sieve mesh.
Compared with the prior art, the invention has the beneficial effects that:
according to the invention, when the filter screen cylinder is blocked, water can be pumped through the normally closed pumping pipe by the aid of the arranged piston structure, and meanwhile, the blocking valve structure is communicated, so that liquid in the fountain pipe is distributed into the backflow pipeline and is sprayed out from the side wall nozzle and the top nozzle, the filter screen cylinder is sprayed and dredged, and the filter screen cylinder can be automatically reset to an initial fountain state after being dredged, so that self-cleaning maintenance of the filter screen cylinder is realized, and the filter screen cylinder can adapt to outdoor park environments with severe environments;
meanwhile, the rotating outer pipe can be driven to rotate when high-pressure water flow passes through the rotating outer pipe through the arranged inner wall blades, the side wall nozzles and the top nozzles are enabled to rotate, and scouring wave power of the side wall nozzles and the top nozzles during jet scouring is increased, so that the filter screen cylinder is cleaned more cleanly;
the butt joint coil structure and the butt joint structure can be in sealing fit, so that the filter screen cylinder, the butt joint coil structure and the butt joint structure in the filter screen cylinder can be disassembled and separated, and the filter screen cylinder is convenient to replace and maintain;
through the liquid micropore that leads to that sets up can keep the inside micro-liquid of backflow pipeline to flow through when the stifled valve structure seals to make inside the rotatory outer tube be in the malleation state under conventional state, avoid long-time lateral wall spout and top spout to be sealed by mud and block up when not opening.
Drawings

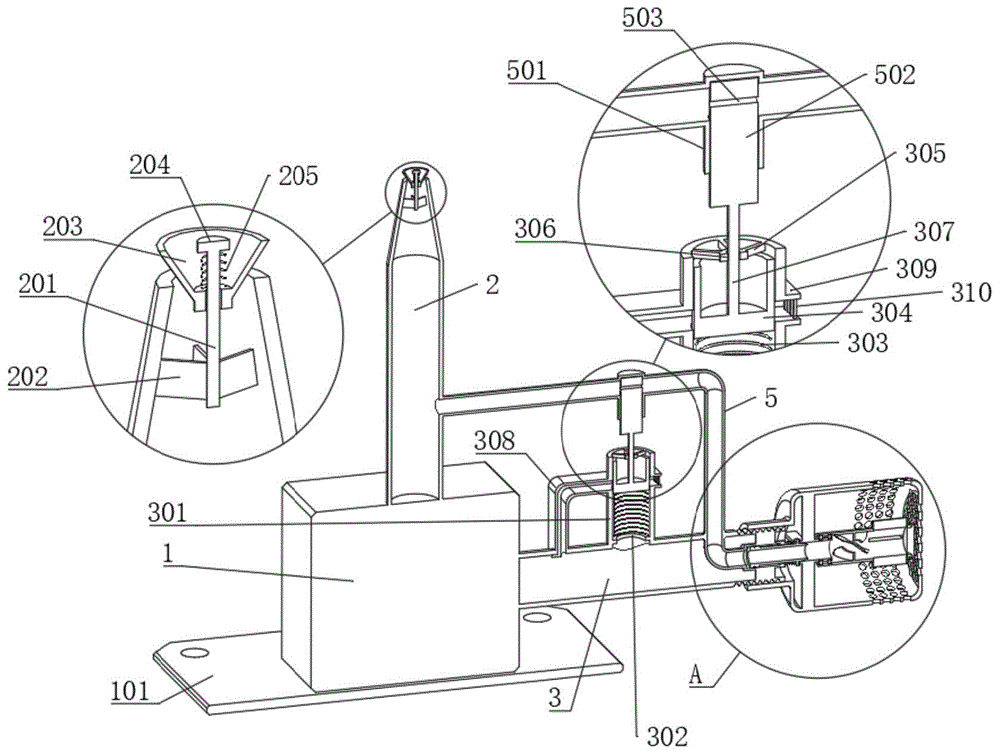

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of a half-section configuration of the present invention;
FIG. 3 is an enlarged view taken at A in FIG. 2;
FIG. 4 is a schematic view of a half-section of the present invention;
FIG. 5 is an enlarged view of FIG. 4 at B;
FIG. 6 is a schematic front view of the present invention;
FIG. 7 is a front view in half section of the present invention;
FIG. 8 is an enlarged view taken at C of FIG. 7 in accordance with the present invention;
FIG. 9 is an enlarged view taken at D of FIG. 7 in accordance with the present invention;
FIG. 10 is a top view of the present invention.
In the figure: 1. a waterproof pump; 2. a fountain tube; 3. a water pumping pipe; 4. a filter screen cylinder; 5. a return flow conduit; 301. a pressure piston tube; 302. the inner wall is provided with convex edges; 303. an upper supporting spring; 304. a pressure closure plug; 305. a rotation prevention frame; 306. an anti-rotation square hole; 307. connecting a square shaft; 308. normally closing the pumping pipe; 309. a liquid inlet; 310. a protective screen fence; 501. a normally closed valve tube; 502. sealing the plug core column; 503. liquid-passing micropores; 504. a telescopic cavity column; 505. a cavity column support plate; 506. a limit convex ring; 507. an inner tube is telescopic; 508. a limiting sealing ring; 509. sealing the ring groove; 510. an annular rubber ring; 511. sealing the pressure ring; 512. ejecting a spring; 513. sealing the rubber sheet; 401. butt-joint pipes; 402. butting the supporting plates; 403. rotating the outer tube; 404. an annular wall groove; 405. sealing the limit ring; 406. inner wall blades; 407. a sidewall spout; 408. a top spout; 101. mounting a plate; 201. a central column; 202. connecting the column plates; 203. a pressure flow bucket cap; 204. a catch tray; 205. a pressure spring; 409. and (5) filtering the sieve pores.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1 to 10, the present invention provides a technical solution: a circulating water system for fountain landscapes in outdoor parks comprises a waterproof water pump 1, a fountain pipe 2, a water pumping pipe 3, a filter screen cylinder 4 and a backflow pipeline 5, wherein the fountain pipe 2 is fixedly communicated with a water outlet of the waterproof water pump 1, the waterproof water pump 1 is a common water pump in the prior art and has waterproof capacity, one end of the water pumping pipe 3 is fixedly communicated with a water pumping port of the waterproof water pump 1, the other end of the water pumping pipe 3 is hermetically communicated with the filter screen cylinder 4 in a spiral matching manner, one end of the backflow pipeline 5 is fixedly communicated with the fountain pipe 2, the other end of the backflow pipeline 5 is provided with a butt joint structure with an elastic expansion function, the butt joint structure is positioned inside the water pumping pipe 3 and is far away from one end of the position of the waterproof water pump 1, the inside of the backflow pipeline 5 is provided with a block valve structure with a trace liquid passing function, and the outside of the water pumping pipe 3 is provided with a piston structure with a liquid inlet function, piston structure can drive the change of stifled valve structure switch, and the inside of filter screen section of thick bamboo 4 is provided with the butt joint coil structure, and the butt joint coil structure can with the sealed cooperation of butt joint structure, and the butt joint coil structure is inside when letting in high-pressure liquid, can spray rotatoryly in the inside of filter screen section of thick bamboo 4, dredges the clearance to a filter screen section of thick bamboo 4.
The piston structure comprises a pressure piston pipe 301, an inner wall convex rib 302, an upper support spring 303, a pressure closing plug 304, an anti-rotation bracket 305, an anti-rotation square hole 306, a connecting square shaft 307, a normally closed pumping pipe 308, a liquid inlet 309 and a protective sieve fence 310, wherein the pressure piston pipe 301 is fixedly communicated with the pumping pipe 3, the pressure piston pipe 301 is in a circular pipe shape, the inner wall convex rib 302 is fixedly arranged at the position of the inner wall surface of the pressure piston pipe 301, the inner wall convex rib 302 is in a circular ring shape and is integrally molded and cast with the pressure piston pipe 301, the upper support spring 303 is arranged inside the pressure piston pipe 301 and is positioned above the inner wall convex rib 302, the pressure closing plug 304 is movably arranged inside the pressure piston pipe 301, the outer surface of the pressure closing plug 304 is in sealing contact with the inner wall surface of the pressure piston pipe 301, the upper support spring 303 is positioned between the pressure closing plug 304 and the inner wall convex rib 302, the anti-rotation bracket 305 is fixedly arranged at the position close to the upper position of the inner wall surface of the pressure piston pipe 301, an anti-rotation square hole 306 penetrates through the center of the anti-rotation frame 305, the anti-rotation square hole 306 is in a square hole shape, the connecting square shaft 307 penetrates through the anti-rotation square hole 306, the cross section of the connecting square shaft 307 is square, so that after the connecting square shaft 307 is matched with the anti-rotation square hole 306, the connecting square shaft 307 only can move in a telescopic mode and cannot rotate, and the lower end of the connecting square shaft 307 is fixedly installed with the pressure sealing plug 304;
one end of the normally closed pumping pipe 308 is fixedly communicated with the pumping pipe 3, the communication position with the pumping pipe 3 is located between the waterproof pump 1 and the pressure piston pipe 301, the other end of the normally closed pumping pipe 308 is fixedly communicated with the pressure piston pipe 301, in a natural state, the pressure sealing plug 304 blocks and seals a communication port between the normally closed pumping pipe 308 and the pressure piston pipe 301, the outside of the pressure piston pipe 301 is communicated with and provided with a liquid inlet 309, a protection sieve fence 310 is fixedly installed inside the liquid inlet 309, and the protection sieve fence 310 can block foreign matters.
The stifled valve structure includes normally closed valve pipe 501, sealing plug stem 502 and logical liquid micropore 503, normally closed valve pipe 501 and the fixed intercommunication of backward flow pipeline 5, normally closed valve pipe 501 is the tube-shape, upper portion seals, the lower part opening, the flexible activity of sealing plug stem 502 sets up the inside at normally closed valve pipe 501, the surface of sealing plug stem 502 and the inner wall surface sealing contact of normally closed valve pipe 501, it runs through the inside of seting up at sealing plug stem 502 to lead to liquid micropore 503, sealing plug stem 502 is when 5 interrupt the backward flow pipeline and close, can keep micro-quantity intercommunication through the logical liquid micropore 503 that sets up, make the inside a small amount of liquid that can circulate of backward flow pipeline 5, the lower surface of sealing plug stem 502 and the upper end fixed mounting who is connected square shaft 307.
The butt joint structure comprises a telescopic cavity column 504, a cavity column support plate 505, a limit convex ring 506, a telescopic inner tube 507, a limit sealing ring 508, a sealing ring groove 509, an annular rubber ring 510, a sealing press ring 511, an ejection spring 512 and a sealing rubber sheet 513, wherein the telescopic cavity column 504 is in a round tube shape and is fixedly arranged inside the water pumping pipe 3, the cavity column support plate 505 is fixedly arranged on the outer surface position of the telescopic cavity column 504, the telescopic cavity column 504 is fixedly arranged on the inner wall surface of the water pumping pipe 3 through the cavity column support plate 505, the limit convex ring 506 is fixedly arranged on the inner wall surface position of the telescopic cavity column 504, the limit convex ring 506 is in an annular shape, the telescopic inner tube 507 penetrates through the ring center of the limit convex ring 506, the limit sealing ring 508 is fixedly arranged on the outer surface position of the telescopic inner tube 507, the sealing ring groove 509 is arranged on the outer surface of the limit sealing ring 508, the annular rubber ring 509 is arranged inside the sealing ring groove 509 in a sleeved mode, the annular rubber ring 510 is in sealing contact with the inner wall surface of the telescopic cavity column 504, the outer surface of the telescopic inner tube 507 is fixedly provided with a sealing press ring 511, the outer part of the telescopic inner tube 507 is positioned between the sealing press ring 511 and the limit convex ring 506 and is sleeved with an ejection spring 512, and the surface of one side of the sealing press ring 511, which is far away from the ejection spring 512, is fixedly provided with a sealing rubber sheet 513.
The butt joint rotary pipe structure comprises a butt joint pipe 401, a butt joint support plate 402, a rotary outer pipe 403, an annular wall groove 404, a sealing limit ring 405, inner wall blades 406, a side wall nozzle 407 and a top nozzle 408, wherein the butt joint pipe 401 is fixedly installed inside a filter screen cylinder 4, the butt joint support plate 402 is fixedly installed with the outer surface of the butt joint pipe 401, the butt joint pipe 401 is fixedly installed with the filter screen cylinder 4 through the butt joint support plate 402, the rotary outer pipe 403 is rotatably sleeved outside the butt joint pipe 401, the annular wall groove 404 is respectively formed in the outer wall surface of the butt joint pipe 401 and the inner wall surface of the rotary outer pipe 403, the sealing limit ring 405 is located in the annular wall groove 404 and is clamped between the butt joint pipe 401 and the rotary outer pipe 403, so that the butt joint pipe 401 and the rotary outer pipe 403 can only relatively rotate and cannot axially move, and meanwhile, a sealing effect is achieved, and water leakage between the butt joint pipe 401 and the rotary outer pipe 403 is avoided;
the inner wall surface of the rotating outer pipe 403 is fixedly provided with inner wall blades 406, the inner wall blades 406 are uniformly distributed in a spiral circumferential array manner, the rotating outer pipe 403 can be driven to rotate when high-pressure water flows through the rotating outer pipe 403, the outer wall surface of the rotating outer pipe 403 is fixedly communicated with a side wall nozzle 407, the end surface of the rotating outer pipe 403 is fixedly communicated with a top nozzle 408, the side wall nozzle 407 and the top nozzle 408 are both flat, liquid can be sprayed out in a flat manner, two sides of the top nozzle 408 are obliquely expanded, and the area of a spraying sector is increased.
When the water-saving fountain is used, the circulating water system is fixedly arranged in an outdoor park lake through the mounting plate 101, and when the water-saving fountain works normally, the waterproof water pump 1 operates to pump water through the water pumping pipe 3 and the filter screen cylinder 4 and then applies high pressure to water flow to be sprayed out of the fountain pipe 2, so that a fountain is formed;
when sludge or other impurities block the filter screen holes 409 of the filter screen cylinder 4, water flow cannot pass through the filter screen cylinder 4, negative pressure occurs in the interior of the water pumping pipe 3 under the pumping action of the waterproof pump 1, the pressure closing plug 304 moves downwards by utilizing negative pressure suction, when the pressure closing plug 304 moves downwards below a communication port between the normally closed pumping pipe 308 and the pressure piston pipe 301, water flow in lake water enters the normally closed pumping pipe 308 through the upper part of the liquid inlet 309 and the pressure piston pipe 301 and then enters the interior of the water pumping pipe 3, so that the waterproof pump 1 can finish pumping water, when the pressure closing plug 304 moves downwards, the sealing plug core column 502 is driven to move downwards through the connecting square shaft 307, so that the interior of the normally closed valve pipe 501 is communicated, high-pressure water flow in the fountain pipe 2 flows into the return flow pipe 5, enters the rotary outer pipe 403 through the normally closed valve pipe 501 and the telescopic inner pipe 507 and is sprayed out from the side wall nozzle 407 and the top nozzle 408, the filter screen holes 409 of the filter screen cylinder 4 are flushed and cleaned, the blockage is flushed away, when high-pressure water flow in the rotating outer pipe 403 passes through the inner wall blades 406, the inner wall blades 406 can be pushed, the rotating outer pipe 403 rotates at a high speed, so that the side wall nozzle 407 and the top nozzle 408 rotate, at the moment, the water flow sprayed out of the side wall nozzle 407 and the top nozzle 408 has rotating impact force, the flushing cleaning effect can be further improved, and meanwhile omission can be avoided;
the filter screen cylinder 4 can be detached from and installed on the water pumping pipe 3 through rotation, as shown in the structure of fig. 3, when detached, the telescopic inner pipe 507 can be separated from the butt joint pipe 401, when installed, the telescopic inner pipe 507 is inserted into the butt joint pipe 401, and at the moment, the sealing film 513 is tightly attached to the end surface of the butt joint pipe 401 under the elastic force of the ejection spring 512, so that the telescopic inner pipe 507 is hermetically connected with the butt joint pipe 401, and the filter screen cylinder 4 can be detached and installed conveniently;
in normal use, the sealing plug stem 502 stretches into the normally closed valve pipe 501, as shown in fig. 2, the normally closed valve pipe 501 is closed, when high-pressure water flow is injected into the fountain pipe 2, because the backflow pipeline 5 is communicated with the fountain pipe 2, the part of the pressure water flow in the fountain pipe 2 which is shunted to the backflow pipeline 5 can pass through the liquid passing micropores 503 and enter the telescopic inner pipe 507, and reach the rotary outer pipe 403 to enable the rotary outer pipe 403 to be in a positive pressure state in daily use, and the side wall nozzle 407 and the top nozzle 408 keep micro drainage, so that the side wall nozzle 407 and the top nozzle 408 can avoid blockage caused by foreign matters.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (10)
1. The utility model provides a circulating water system for fountain view of outdoor park, includes waterproof pump (1), fountain pipe (2), drinking-water pipe (3), filter screen section of thick bamboo (4) and backflow pipeline (5), fountain pipe (2) with the delivery port intercommunication of waterproof pump (1), the one end of drinking-water pipe (3) and the fixed intercommunication of the mouth that draws water of waterproof pump (1), the other end and the filter screen section of thick bamboo (4) intercommunication of drinking-water pipe (3), its characterized in that: the utility model discloses a water pump, including backflow pipeline (5), fountain pipe (2), the one end of backflow pipeline (5) and fountain pipe (2) intercommunication, the other end of backflow pipeline (5) is provided with the butt joint structure that has the flexible function of elasticity, butt joint structure is located the inside of drinking-water pipe (3), keeps away from the one end of waterproof pump (1) position, the inside of backflow pipeline (5) is provided with the stifled valve structure that has the trace and lead to the liquid function, the outside of drinking-water pipe (3) is provided with the piston structure that has the feed liquor function, piston structure can drive stifled valve structure on-off and change, the inside of filter screen section of thick bamboo (4) is provided with the butt joint coil structure, the butt joint coil structure can with the sealed cooperation of butt joint structure.
2. The circulating water system for fountain landscapes in outdoor parks as claimed in claim 1, wherein: the piston structure comprises a pressure piston pipe (301), an inner wall convex rib (302), an upper supporting spring (303), a pressure closing plug (304), an anti-rotating frame (305), an anti-rotating square hole (306), a connecting square shaft (307), a normally closed pumping pipe (308), a liquid inlet (309) and a protective sieve fence (310).
3. The circulating water system for fountain landscapes in outdoor parks as claimed in claim 2, wherein: pressure piston pipe (301) with the fixed intercommunication of drinking-water pipe (3), inner wall bead (302) fixed mounting is in the inner wall surface position of pressure piston pipe (301), it sets up in the inside of pressure piston pipe (301) to go up to prop spring (303), and is located the top of inner wall bead (302).
4. The circulating water system for fountain landscapes in outdoor parks as claimed in claim 2, wherein: pressure closing stopper (304) activity sets up the inside at pressure piston pipe (301), it is located between pressure closing stopper (304) and inner wall bead (302) to prop up spring (303), prevent that revolving rack (305) fixed mounting is close to the top position on the inner wall surface of pressure piston pipe (301), the central point of preventing revolving rack (305) puts to run through and has seted up and prevents changeing square hole (306), it alternates through preventing changeing square hole (306) to connect square shaft (307), the lower extreme and pressure closing stopper (304) fixed mounting of connecting square shaft (307).
5. The circulating water system for fountain landscapes in outdoor parks as claimed in claim 2, wherein: one end and drinking-water pipe (3) intercommunication of pipe (308) are taken out to the normal close, the other end and the fixed intercommunication of compression piston pipe (301) of pipe (308) are taken out to the normal close, inlet (309) have been seted up in the outside intercommunication of compression piston pipe (301), the inside fixed mounting of inlet (309) has protection sieve fence (310).
6. The circulating water system for fountain landscapes in outdoor parks as claimed in claim 1, wherein: the stifled valve structure includes normally closed valve pipe (501), sealing plug stem (502) and leads to liquid micropore (503), normally closed valve pipe (501) with backflow pipeline (5) intercommunication, sealing plug stem (502) activity sets up the inside at normally closed valve pipe (501), it runs through the inside of seting up at sealing plug stem (502) to lead to liquid micropore (503), the lower surface of sealing plug stem (502) and the upper end fixed mounting who is connected square shaft (307).
7. The circulating water system for fountain landscapes in outdoor parks as claimed in claim 1, wherein: the butt joint structure comprises a telescopic cavity column (504), a cavity column support plate (505), a limiting convex ring (506), a telescopic inner tube (507), a limiting sealing ring (508), a sealing ring groove (509), an annular rubber ring (510), a sealing press ring (511), an ejection spring (512) and a sealing rubber sheet (513).
8. The circulating water system for fountain landscapes in outdoor parks of claim 7, wherein: the telescopic cavity column (504) is fixedly arranged on the surface of the inner wall of the water pumping pipe (3) through a cavity column support plate (505), the limit convex ring (506) is fixedly arranged on the surface position of the inner wall of the telescopic cavity column (504), the telescopic inner pipe (507) penetrates through the limit convex ring (506), the position of the outer surface of the telescopic inner pipe (507) is fixedly provided with a limit sealing ring (508), the outer surface of the limit sealing ring (508) is provided with a sealing ring groove (509), the annular rubber ring (510) is sleeved in the sealing ring groove (509), the annular rubber ring (510) is in sealing contact with the inner wall surface of the telescopic cavity column (504), a sealing press ring (511) is fixedly arranged on the outer surface of the telescopic inner pipe (507), an ejection spring (512) is sleeved outside the telescopic inner pipe (507), and a sealing rubber sheet (513) is fixedly arranged on the surface position of the sealing press ring (511).
9. The circulating water system for fountain landscapes in outdoor parks as claimed in claim 1, wherein: the butt joint coil pipe structure comprises a butt joint pipe (401), a butt joint support plate (402), a rotary outer pipe (403), an annular wall groove (404), a sealing limiting ring (405), inner wall blades (406), a side wall nozzle (407) and a top nozzle (408).
10. The circulating water system for a fountain landscape of an outdoor park of claim 9, wherein: butt joint pipe (401) are through butt joint backup pad (402) and filter screen section of thick bamboo (4) fixed mounting, rotatory outer tube (403) are rotated the cover and are established in the outside of butt joint pipe (401), annular wall groove (404) have respectively been seted up with the inner wall surface of rotatory outer tube (403) to the outer wall surface of butt joint pipe (401), sealed spacing collar (405) are located above-mentioned annular wall groove (404), the inner wall fixed surface of rotatory outer tube (403) installs inner wall blade (406), inner wall blade (406) are heliciform circumference evenly distributed, the outer wall fixed surface intercommunication of rotatory outer tube (403) is provided with lateral wall spout (407), the tip fixed surface intercommunication of rotatory outer tube (403) is provided with top spout (408).
