Abstract
The invention discloses a food dryer, which belongs to the technical field of food processing and comprises a drying box, wherein the left wall and the right wall of an inner cavity of the drying box are both rotatably connected with supporting shafts, a drying cylinder is fixedly connected between the supporting shafts at two sides, a plurality of drying holes are uniformly distributed on the outer wall of the drying cylinder, the outer wall of the drying cylinder is provided with a control mechanism for feeding and discharging materials, and the inner wall of the drying box is provided with a driving mechanism for driving the drying cylinder to rotate; this scheme the cooperation through control mechanism can be convenient make the middle and upper unloading of drying cylinder, hot-blast venthole discharge through in the mixed drying post carries out the drying to the inside food of drying cylinder, can effectively improve food drying effect, drive the drying cylinder through actuating mechanism simultaneously and rotate, thereby make the continuous upset of inside food, can be so that food can both be even carry out the drying, the efficiency of drying has greatly been improved, follow-up mixed drying post drives food rotation direction and drying cylinder upset opposite direction, further improve the drying effect and the efficiency of food.
Description
Technical Field
The invention relates to the technical field of food processing, in particular to a food dryer.
Background
The food refers to various finished products and raw materials for people to eat or drink and the products which are both food and traditional Chinese medicinal materials according to the tradition, but do not include the products for treating. In the processing process of food, drying is an important step in food processing, the shelf life of the dried food can be prolonged, the moisture content of tissues can be reduced by storing the food by using a drying method, biological growth is effectively prevented, most enzymes are inactivated, the shelf life of the food is prolonged, and the food is favorably stored, wherein the drying condition is particularly important when the cereal nut food such as peanut, soybean and the like is stored.
However, at present, food to be dried is generally directly placed on a tray inside a drying machine, the food cannot be turned over, uneven drying of the food is easily caused, the food close to the lower portion is difficult to reach a drying state, the overall drying effect of the food is poor, a long time is required for completely drying the food, the drying efficiency is low, and the subsequent eating effect of part of the food is influenced due to the fact that the food is dried for too long time. Even if the food is turned over manually, the labor intensity is high, and the manual turning and drying are not uniform, so that the situation that partial food is not dried fully is easy to happen.
Therefore, it is necessary to provide a food dryer to solve the above technical problems.
Disclosure of Invention
The object of the present invention is to provide a food dryer to solve the above technical problems.
In order to achieve the purpose, the invention adopts the following technical scheme:
the food dryer comprises a drying box, wherein the left wall and the right wall of the inner cavity of the drying box are both rotatably connected with supporting shafts, a drying cylinder is fixedly connected between the supporting shafts at two sides, a plurality of drying holes are uniformly distributed on the outer wall of the drying cylinder, a control mechanism for feeding and discharging is arranged on the outer wall of the drying cylinder, the inner wall of the drying box is provided with a driving mechanism for driving the drying cylinder to rotate, the right wall of the drying box is rotatably connected with a hollow shaft movably penetrating through the right supporting shaft, the hollow shaft is communicated with a plurality of mixing and drying columns, the outer walls of the mixing and drying columns are provided with a plurality of air outlet holes, the outer wall of the drying box is provided with a hot air blower, the output end of the hot air blower is communicated with a first air outlet pipe and a second air outlet pipe, the first air outlet pipe is located inside the drying box and communicated with a plurality of exhaust hoppers, and one end, far away from the air heater, of the second air outlet pipe extends into the hollow shaft.
Further, control mechanism is including two extension boards of fixed connection in drying cylinder outer wall, two the one end that the extension board is close to all articulates there is electric telescopic handle, drying cylinder outer wall articulates there are two open-close plates, both sides electric telescopic handle's flexible end articulates respectively in the outer wall of two open-close plates.
Further, actuating mechanism is including fixed connection in the motor of drying cabinet inner chamber inner wall, motor output end fixed mounting has first gear, right side the fixed cover of back shaft outer wall has connect the third gear, the drying cabinet right side wall rotates and is connected with the connection bull stick, connect bull stick left end fixed mounting have simultaneously with the second gear of the first gear of both sides and third gear meshing adaptation.
Furthermore, the right end of the connecting rotating rod is fixedly connected with a first belt wheel, the outer wall of the right end of the hollow shaft is fixedly provided with a second belt wheel, and a belt is connected between the second belt wheel and the first belt wheel in a transmission manner.
Furthermore, the right wall of the drying box is communicated with an exhaust pipe, and an exhaust fan is fixedly mounted in the exhaust pipe.
Furthermore, the inside fixed mounting of blast pipe has the adsorption plate, be equipped with the drier in the adsorption plate, the intercommunication has the recovery tube between the input of blast pipe and air heater.
Furthermore, a plurality of auxiliary air holes are formed in the opening plate, and the auxiliary air holes are communicated with the inner cavity of the drying box and the inner cavity of the drying cylinder.
Further, the upper wall and the lower wall of the drying box are respectively communicated with an inlet pipe and a discharging pipe, and the inlet pipe is connected with a cover cap.
Compared with the prior art, the invention has the advantages that:
this scheme is through the cooperation of control mechanism can be convenient make the middle and upper unloading of drying cylinder, when the air heater will be hot-blast through the discharge of the fill of airing exhaust carries out the drying to the food in the drying cylinder of top, hot-blast inside that still enters into the hollow shaft through the second outlet duct, then reentrant each mix in the dry post and discharge from the venthole and carry out the drying to the inside food of drying cylinder, can effectual improvement to the drying effect of food, through mutually supporting with the outside fill of airing exhaust, can make the interior food drying's of drying cylinder more thorough, improve its drying effect. Simultaneously, the drying cylinder is driven to rotate through the driving mechanism, so that the food inside the drying cylinder can be continuously overturned, the food can be uniformly dried, the condition that the food below the drying cylinder cannot be completely dried due to the fact that the food is directly placed at present is avoided, the overall drying effect of the food is good, the drying efficiency is greatly improved, and the effect that the subsequent eating is influenced due to too long drying time of part of the food is also prevented. Follow-up still can stir the mixture through the rotation of mixing the drying column to the food in the drying cylinder, further drives the food in the drying cylinder and overturns, and the direction that mixes the drying column and drive food pivoted direction and drying cylinder upset is opposite, can further improve the drying effect and the efficiency of food.
Drawings
FIG. 1 is a schematic view of the internal structure of the drying box of the present invention;
FIG. 2 is an enlarged schematic view of the structure at A in FIG. 1;
FIG. 3 is an enlarged view of the structure at B in FIG. 1;
FIG. 4 is an enlarged view of the structure at C in FIG. 1;

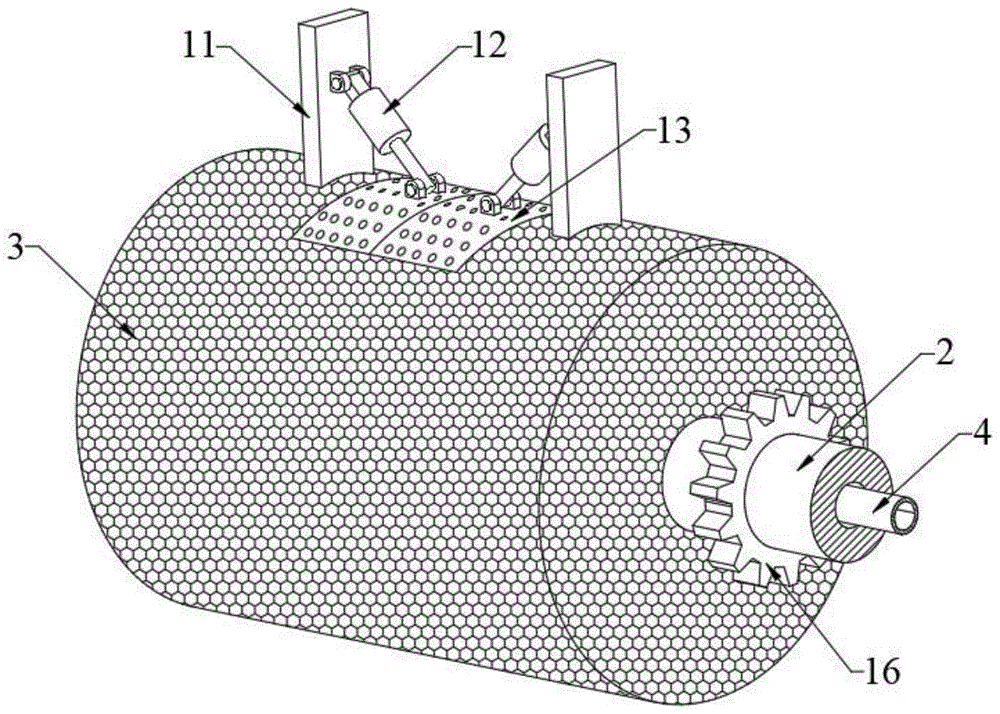

FIG. 5 is a schematic view of a dryer cartridge according to the present invention;
fig. 6 is a partial sectional structural view of the drying cylinder of the present invention.
The reference numbers in the figures illustrate:
1. a drying oven; 2. a support shaft; 3. a drying cylinder; 4. a hollow shaft; 5. mixing and drying the column; 6. an air outlet; 7. a hot air blower; 8. a first air outlet pipe; 9. a second air outlet pipe; 10. an exhaust funnel; 11. a support plate; 12. an electric telescopic rod; 13. opening and closing the board; 14. a motor; 15. a first gear; 16. a third gear; 17. connecting the rotating rod; 18. a second gear; 19. a first pulley; 20. a second pulley; 21. a belt; 22. an exhaust pipe; 23. an exhaust fan; 24. an adsorption plate; 25. a recovery pipe; 26. auxiliary air holes; 27. a feed pipe; 28. and (5) discharging the material pipe.
Detailed Description
The first embodiment is as follows:
referring to fig. 1-3 and 5-6, the food dryer comprises a drying box 1, wherein the left and right walls of the inner cavity of the drying box 1 are rotatably connected with supporting shafts 2, a drying cylinder 3 is fixedly connected between the supporting shafts 2 at two sides, a plurality of drying holes are uniformly distributed on the outer wall of the drying cylinder 3, a control mechanism for feeding and discharging materials is arranged on the outer wall of the drying cylinder 3, a driving mechanism for driving the drying cylinder 3 to rotate is arranged on the inner wall of the drying box 1, the right wall of the drying box 1 is rotatably connected with a hollow shaft 4 movably penetrating through the supporting shaft 2 at the right side, the hollow shaft 4 is communicated with a plurality of mixing drying columns 5, a plurality of air outlets 6 are arranged on the outer wall of the mixing drying columns 5, a hot air blower 7 is arranged on the outer wall of the drying box 1, the output end of the hot air blower 7 is communicated with a first air outlet pipe 8 and a second air outlet pipe 9, the first air outlet pipe 8 is arranged in the drying box 1 and communicated with a plurality of air exhaust hoppers 10, one end of the second air outlet pipe 9 far away from the hollow shaft of the hot air blower 7 extends to the inside of the drying box 4, the upper wall and the lower wall of the drying box 1 are respectively communicated with a feeding pipe 27 and a discharging pipe 28, and the feeding pipe 27 is connected with a cover cap. When using, will treat that dry food drops into in drying cylinder 3 through control mechanism's cooperation, then start hot-blast 7 with hot-blast food through first outlet duct 8 and exhaust funnel 10 discharge to the drying cylinder 3 in top and carry out the drying, hot-blast the inside that still enters into hollow shaft 4 through second outlet duct 9 of hot-blast air heater 7 simultaneously, then reentrant each mix in the dry post 5 and discharge from venthole 6 and carry out the drying to the inside food of drying cylinder 3, can effectual improvement be to the drying effect of food, through mutually supporting with outside exhaust funnel 10, can make the dry more thorough of food in the drying cylinder 3, improve its drying effect. Simultaneously, the drying cylinder 3 is driven to rotate through the driving mechanism, so that the food inside the drying cylinder can be continuously overturned, the food can be uniformly dried, the condition that the food below the drying cylinder cannot be completely dried due to the fact that the food is directly placed at present is avoided, the overall drying effect of the food is good, the drying efficiency is greatly improved, and meanwhile, the effect that the subsequent eating is influenced due to too long drying time of part of the food is also prevented.
Referring to fig. 1 and fig. 4-5, the control mechanism includes two support plates 11 fixedly connected to the outer wall of the drying cylinder 3, the two support plates 11 are hinged to one ends close to each other, the two electric telescopic rods 12 are hinged to the outer wall of the drying cylinder 3, the two opening plates 13 are hinged to the outer wall of the two opening plates 13, the two electric telescopic rods 12 are respectively hinged to the two ends of the opening plates 13, the opening plates 13 are provided with a plurality of auxiliary air holes 26, and the auxiliary air holes 26 are communicated with the inner cavity of the drying box 1 and the inner cavity of the drying cylinder 3. Start two electric telescopic handle 12 and drive opening plate 13 rotatory opening up, then will treat that dry food drops into the inlet pipe 27 of drying cabinet 1, during food passes through to enter into drying cylinder 3 between two opening plate 13 again, when dropping into food and finishing the back, rethread electric telescopic handle 12 drives opening plate 13 rotation each other and closes, throws material easy operation convenience.
Referring to fig. 1, the driving mechanism includes a motor 14 fixedly connected to the inner wall of the inner cavity of the drying box 1, a first gear 15 is fixedly installed at the output end of the motor 14, a third gear 16 is fixedly sleeved on the outer wall of the right supporting shaft 2, a connecting rotating rod 17 is rotatably connected to the right wall of the drying box 1, and a second gear 18 which is engaged with the first gear 15 and the third gear 16 on both sides and is fixed to the left end of the connecting rotating rod 17. The starting motor 14 drives the first gear 15 to rotate, so that the second gear 18 and the connecting rotating rod 17 are driven to rotate, the second gear 18 drives the supporting shaft 2 to rotate through the cooperation of the third gear 16, the drying cylinder 3 can be driven to rotate, the food inside the drying cylinder can be continuously overturned through the rotation of the drying cylinder 3, and the food inside the drying cylinder 3 can be uniformly dried.
Referring to fig. 1 and 3, a first belt pulley 19 is fixedly connected to the right end of the connecting rotating rod 17, a second belt pulley 20 is fixedly mounted on the outer wall of the right end of the hollow shaft 4, and a belt 21 is connected between the second belt pulley 20 and the first belt pulley 19 in a transmission manner. Also can drive first band pulley 19 when connecting bull stick 17 and rotate, the cooperation of rethread belt 21 and second band pulley 20 drives hollow shaft 4 and rotates, and hollow shaft 4 rotation direction is opposite with back shaft 2, hollow shaft 4 rotates and can drive mixed drying post 5 and rotate, the rotation of mixing drying post 5 on the one hand can stir the mixture to the food in the drying cylinder 3, further drive the food in the drying cylinder 3 and overturn, and it is opposite with the direction of 3 upsets of drying cylinder to drive food pivoted direction through mixing drying post 5, can further improve the drying effect and the efficiency of food, improve the save effect of food.
Referring to fig. 1, the right wall of the drying cabinet 1 is connected to an exhaust duct 22, and an exhaust fan 23 is fixedly installed in the exhaust duct 22. An adsorption plate 24 is fixedly arranged in the exhaust pipe 22, a drying agent is arranged in the adsorption plate 24, and a recovery pipe 25 is communicated between the exhaust pipe 22 and the input end of the hot air blower 7. The exhaust fan 23 is started to discharge the hot and humid air in the drying oven 1 to the exhaust pipe 22, the gas circulation effect in the drying oven 1 can be improved, thereby the drying effect of food can be improved, meanwhile, the hot and humid air entering the exhaust pipe 22 is dried through the adsorption plate 24, then the gas enters the air heater 7 through the recovery pipe 25, the heat is remained in the gas returning to the air heater 7, therefore, the air heater 7 can save part of energy when heating, the full-power operation is not needed all the time, the energy consumption is effectively saved, and the using effect of the device is improved.
The working principle is as follows: when using, at the beginning, the opening plate 13 on the drying cylinder 3 is just to inlet pipe 27 below up, starts two electric telescopic handle 12 and drives opening plate 13 rotatory opening up, then will treat during the food of drying drops into the inlet pipe 27 of drying cabinet 1, food passes through between two opening plate 13 and enters into drying cylinder 3, when dropping into food and finishing the back, rethread electric telescopic handle 12 drives opening plate 13 rotation and closes. Then start hot-blast air heater 7 and arrange each exhaust funnel 10 with hot-blast through first outlet duct 8 in, exhaust funnel 10 exhaust hot-blast food to in the drying cylinder 3 of top is dried, and hot-blast the still inside that enters into hollow shaft 4 through second outlet duct 9 of hot-blast air heater 7 simultaneously, then enters into each and mixes among the drying column 5 and discharges from venthole 6 to can dry the inside food of drying cylinder 3. Meanwhile, the motor 14 is started to drive the first gear 15 to rotate, so that the second gear 18 and the connecting rotating rod 17 are driven to rotate, the second gear 18 drives the supporting shaft 2 to rotate through the cooperation of the third gear 16, the drying cylinder 3 can be driven to rotate, and food can be continuously overturned and dried through the rotation of the drying cylinder 3.
Also can drive first band pulley 19 when connecting bull stick 17 and rotate, the cooperation of rethread belt 21 and second band pulley 20 drives hollow shaft 4 and rotates, and hollow shaft 4 rotation direction is opposite with back shaft 2, hollow shaft 4 rotates and can drive mixed drying post 5 and rotate, the rotation that mixes drying post 5 on the one hand can stir the mixture to the food in drying cylinder 3, further drive the food in drying cylinder 3 and overturn, and the direction that drives food pivoted direction and drying cylinder 3 upset through mixing drying post 5 is opposite.
The exhaust fan 23 is started to discharge the hot and humid air in the drying box 1 to the exhaust pipe 22, the hot and humid air entering the exhaust pipe 22 is dried through the adsorption plate 24, then the air enters the hot air blower 7 through the recovery pipe 25, and the heat remains in the air returning to the hot air blower 7, so that a part of energy can be saved when the hot air blower 7 heats, and the full-power operation is not needed. After drying, the opening plate 13 on the drying cylinder 3 is aligned to the position right above the discharging pipe 28 by rotating the lower part, and at the moment, the opening plate 13 is rotated and opened, so that the food can fall down through the discharging pipe 28 and be collected.
Claims (8)
1. Food desiccator, including the drying cabinet, its characterized in that: the wall all rotates about the drying cabinet inner chamber and is connected with the back shaft, both sides fixedly connected with drying cylinder between the back shaft, drying cylinder outer wall evenly distributed has a plurality of dry hole, drying cylinder's outer wall is equipped with the control mechanism who is used for business turn over material, drying cabinet's inner wall is provided with and is used for driving drying cylinder pivoted actuating mechanism, drying cabinet right side wall rotates and is connected with the activity and runs through the hollow shaft of right side back shaft, the hollow shaft intercommunication has a plurality of mixed dry post, mixed dry post outer wall has seted up a plurality of ventholes, the air heater is installed to the drying cabinet outer wall, air heater output intercommunication has first outlet duct and second outlet duct, first outlet duct is located inside the drying cabinet and the intercommunication has a plurality of hoppers of airing exhaust, the second outlet duct is kept away from the one end of air heater and is extended to inside the hollow shaft.
2. The food dryer of claim 1, wherein: control mechanism is including two extension boards of fixed connection in drying cylinder outer wall, two the one end that the extension board is close to all articulates there is electric telescopic handle, drying cylinder outer wall articulates there are two open-close plates, both sides electric telescopic handle's flexible end articulates respectively in the outer wall of two open-close plates.
3. The food dryer of claim 2, wherein: actuating mechanism is including fixed connection in the motor of drying cabinet inner chamber inner wall, motor output end fixed mounting has first gear, right side the fixed cover of back shaft outer wall has connect the third gear, drying cabinet right side wall rotates and is connected with the connection bull stick, connect bull stick left end fixed mounting simultaneously with the first gear of both sides and the second gear of third gear meshing adaptation.
4. The food dryer of claim 3, wherein: the right end of the connecting rotating rod is fixedly connected with a first belt wheel, the outer wall of the right end of the hollow shaft is fixedly provided with a second belt wheel, and a belt is in transmission connection between the second belt wheel and the first belt wheel.
5. The food dryer of claim 1, wherein: the drying cabinet right wall intercommunication has the blast pipe, fixed mounting has the air discharge fan in the blast pipe.
6. The food dryer of claim 5, wherein: an adsorption plate is fixedly arranged in the exhaust pipe, a drying agent is arranged in the adsorption plate, and a recovery pipe is communicated between the exhaust pipe and the input end of the air heater.
7. The food dryer of claim 2, wherein: a plurality of auxiliary air holes are formed in the opening plate and communicated with the inner cavity of the drying box and the inner cavity of the drying cylinder.
8. The food dryer of claim 1, wherein: the upper wall and the lower wall of the drying box are respectively communicated with an inlet pipe and a discharging pipe, and the inlet pipe is connected with a cover cap.
