Abstract
The invention discloses medical equipment disinfection equipment with a classification disinfection function in the related field of medical equipment, which comprises a disinfection equipment body, a connecting cavity, a main rotating roller, an auxiliary rotating roller, a clear water storage box, a cleaning solution storage box and an equipment storage box, wherein the front end surface of the disinfection equipment body is provided with the connecting cavity, the right side of the connecting cavity is provided with a motor storage groove, a second motor is fixedly connected in the motor storage groove, a fixed connecting ring is provided with a side connecting plate, the equipment storage box is fixedly connected between the side connecting plates, the right side of the disinfection equipment body is provided with the cleaning solution storage box, the left side of the disinfection equipment body is provided with the clear water storage box, the medical instrument washing machine is provided with the disinfection equipment body, the main rotating roller, the auxiliary rotating roller, the second motor, the second main rotating shaft, the cleaning brush, the washing liquid storage box, the clear water storage box, the first spray head and the second spray head, so that the effect of washing and then washing medical instruments in all directions can be achieved.
Description
Technical Field
The invention relates to the field related to medical equipment, in particular to medical equipment disinfection equipment with a classification disinfection function.
Background
The medical equipment refers to instruments, equipment, appliances, materials or other articles which are used for human bodies singly or in combination and also comprises required software, and the medical equipment is the most basic element of medical treatment, scientific research, teaching, institutions and clinical discipline work, namely comprises professional medical equipment and household medical equipment.
The problem that the cleaning and disinfecting effects of medical instruments are not complete in the prior art can cause the phenomenon that the surface of the cleaned medical instruments is polluted, and finally, the medical instruments are not clean and sanitary when a doctor uses the medical instruments for the next time.
The problem that a cleaning solution storage box and a clear water storage box cannot be regularly taken down to be cleaned by disinfection equipment in the prior art can be caused, the phenomenon that dirt is remained when the cleaning solution storage box and the clear water storage box are used for a long time can be caused, and finally, the problem that the quality of water for cleaning medical instruments is not clean and the medical instruments are not clean is caused.
The problem that drying is not carried out after cleaning of medical instruments exists in the prior art, the phenomenon that water stains are attached to the surfaces of the medical instruments can be caused, and finally bacteria are left on the surfaces of the medical instruments.
Disclosure of Invention
The present invention is directed to a medical instrument sterilizing apparatus having a classified sterilizing function to solve the problems set forth in the background art.
In order to achieve the purpose, the invention provides the following technical scheme:
the utility model provides a medical instrument disinfecting equipment with categorised disinfection function, includes disinfecting equipment body, connects the cavity, main live-rollers, vice live-rollers, clear water case, washing liquid case and apparatus case, the terminal surface has seted up before the disinfecting equipment body and has connected the cavity, it has seted up the motor storage tank to connect the cavity right side, fixedly connected with second motor in the motor storage tank, second motor output end fixedly connected with second main rotating shaft, second main rotating shaft outer periphery right side fixedly connected with first master gear, second main rotating shaft outer periphery left side fixedly connected with main live-rollers, first master gear rear side is connected with the second master gear through the meshing of the vice pivot of second, the vice pivot outer periphery fixedly connected with vice live-rollers of second, main live-rollers with the equal fixedly connected with of vice live-rollers outer periphery clean brush hair, the two sides of the connecting cavity are fixedly connected with fixed connecting rings, the fixed connecting rings are provided with side connecting plates, the instrument storage box is fixedly connected between the side connecting plates, the right side of the disinfection equipment body is provided with the washing liquid storage box, the left side of the disinfection equipment body is provided with the clear water storage box, the upper end surface of the connecting cavity is fixedly connected with a first connecting column, the lower end surface of the first connecting column is fixedly connected with a first connecting plate, the lower end surface of the first connecting plate is fixedly connected with a first spray head, the upper end surface of the first connecting plate is fixedly connected with a first fixed pipe, the front part of the first connecting column is provided with a second connecting column, the lower end surface of the second connecting column is fixedly connected with a second connecting plate, the lower end surface of the second connecting plate is fixedly connected with a second spray head, and the upper end surface of the second connecting plate is fixedly connected with a second fixed pipe, the medical instrument washing machine is provided with the disinfection equipment body, the main rotating roller, the auxiliary rotating roller, the second motor, the second main rotating shaft, the cleaning brush, the washing liquid storage box, the clear water storage box, the first spray head and the second spray head, so that the effect of washing and then washing medical instruments in all directions can be achieved.
As a further scheme of the invention: first T type groove has been seted up to disinfecting equipment body right-hand member face, sliding connection has first T template in first T type groove, first T template right-hand member face fixedly connected with washing liquid case, disinfecting equipment body left end face has seted up second T type groove, sliding connection has second T template in the second T type groove, second T template right-hand member face fixedly connected with clear water case, washing liquid case up end is through drawing liquid pump fixedly connected with first outer connecting pipe, the outer periphery fixedly connected with first cutting ferrule coupling of first outer connecting pipe, clear water case up end fixedly connected with second outer connecting pipe, the outer periphery fixedly connected with second cutting ferrule coupling of second outer connecting pipe is provided with first T type groove, first T template, second T type groove, second T template, first outer connecting pipe, The first clamping sleeve joint, the second outer connecting pipe and the second clamping sleeve joint can achieve the effect that the clean water storage box and the washing liquid storage box can be conveniently taken down to be washed.
As a still further scheme of the invention: the right side of the fixed connecting ring is provided with a compression groove, the inner end face of the compression groove is fixedly connected with a compression spring, the outer end of the compression spring is fixedly connected with a telescopic column, and the compression groove, the compression spring and the telescopic column are arranged to achieve the effect of conveniently taking down the instrument storage box.
As a still further scheme of the invention: the medical instrument drying device is characterized in that a first motor is fixedly connected to the rear side of the upper end face of the disinfecting device body, a first rotating shaft is fixedly connected to the output end of the first motor, rotating blades are fixedly connected to the outer circumferential face of the first rotating shaft, and the effect of drying the cleaned medical instrument can be achieved by the aid of the first motor, the first rotating shaft and the rotating blades.
As a still further scheme of the invention: the disinfection equipment comprises a disinfection equipment body, and is characterized in that a sewage tank is arranged in the disinfection equipment body, a water flowing hole is formed in the lower end face of the connecting cavity, a water outlet pipe is fixedly connected to the rear end face of the sewage tank, and the sewage tank, the water flowing hole and the water outlet pipe are arranged to achieve the effect of discharging washing and cleaning sewage.
As a still further scheme of the invention: first liquid feeding hole has been seted up to washing liquid case up end, first liquid feeding hole top is provided with first stopper seat, second liquid feeding hole has been seted up to clear water case up end, second liquid feeding hole top is provided with the second stopper seat, is provided with first stopper seat, first liquid feeding hole, second stopper seat and second liquid feeding hole and can reaches the effect that conveniently carries out the liquid feeding to washing liquid case and clear water case.
As a still further scheme of the invention: terminal surface left side articulates before the disinfecting equipment body has the chamber door, terminal surface fixedly connected with handle before the chamber door, terminal surface fixedly connected with observation window before the chamber door is provided with chamber door, handle and observation window and can reach the effect of looking over washing and abluent medical instrument.
As a still further scheme of the invention: terminal surface fixedly connected with supporting leg under the disinfecting equipment body, the supporting leg is provided with a plurality ofly, is provided with the effect that the supporting leg can reach and support the disinfecting equipment body.
As a still further scheme of the invention: terminal surface left side fixedly connected with warning light before the disinfecting equipment body, terminal surface right side fixedly connected with control button before the disinfecting equipment body is provided with warning light and control button and can reaches the effect of carrying out control when washing.
As a still further scheme of the invention: the first motor, the second motor and the external power supply are electrically connected, so that the first motor and the second motor can work normally.
Compared with the prior art, the invention has the beneficial effects that:
1. in the invention, a connecting cavity is arranged on the front end face of a disinfection equipment body, a motor storage tank is arranged on the right side of the connecting cavity, a second motor is fixedly connected in the motor storage tank, the output end of the second motor is fixedly connected with a second main rotating shaft, the right side of the outer circumferential surface of the second main rotating shaft is fixedly connected with a first main gear, the left side of the outer circumferential surface of the second main rotating shaft is fixedly connected with a main rotating roller, the rear side of the first main gear is connected with a second main gear through a second auxiliary rotating shaft in a meshing manner, the outer circumferential surface of the second auxiliary rotating shaft is fixedly connected with an auxiliary rotating roller, the outer circumferential surfaces of the main rotating roller and the auxiliary rotating roller are fixedly connected with cleaning bristles, both sides of the connecting cavity are fixedly connected with fixed connecting rings, the fixed connecting rings are provided with side connecting plates, instrument storage boxes are fixedly connected between the side connecting plates, the right side of the disinfection equipment body is provided with a cleaning solution storage box and the left side of the disinfection equipment body is provided with a clear water storage box, the second motor drives the second main rotating shaft to rotate so as to drive the first main gear to rotate, the second main rotating shaft drives the main rotating roller to rotate, the first main gear drives the second main gear to rotate so as to drive the auxiliary rotating roller to rotate, and the cleaning bristles fixedly connected to the outer circumferential surfaces of the main rotating roller and the auxiliary rotating roller respectively scrub the medical instrument.
2. In the invention, a first T-shaped groove is formed on the right end face of a disinfection equipment body, a first T-shaped plate is connected in the first T-shaped groove in a sliding manner, a cleaning solution storage box is fixedly connected on the right end face of the first T-shaped plate, a second T-shaped groove is formed on the left end face of the disinfection equipment body, a second T-shaped plate is connected in the second T-shaped groove in a sliding manner, a clear water storage box is fixedly connected on the right end face of the second T-shaped plate, a first outer connecting pipe is fixedly connected on the upper end face of the cleaning solution storage box through a liquid pump, a first sleeve joint is fixedly connected on the outer circumferential face of the first outer connecting pipe, a second outer connecting pipe is fixedly connected on the upper end face of the clear water storage box, a second sleeve joint is fixedly connected on the outer circumferential face of the second outer connecting pipe, the first T-shaped plate is moved out of the first T-shaped groove, the first sleeve joint and the first outer connecting pipe are dismantled, and the second T-shaped plate is moved out of the second T-shaped groove, the action that second cutting ferrule coupling and the outer connecting pipe of second demolishd has solved disinfecting equipment and can not regularly take off washing liquid case and clear water case and carry out abluent problem, has reached the effect of further reinforcing washing and sanitization degree.
3. According to the medical instrument storage box, the compression groove is formed in the right side of the fixed connecting ring, the compression spring is fixedly connected to the inner end face of the compression groove, the telescopic column is fixedly connected to the outer end of the compression spring, the side connecting plate is contacted with the telescopic column, the side connecting plate compresses the telescopic column, and then the compression spring is compressed.
4. According to the invention, the first motor is fixedly connected to the rear side of the upper end surface of the disinfection equipment body, the first rotating shaft is fixedly connected to the output end of the first motor, and the rotating blade is fixedly connected to the outer circumferential surface of the first rotating shaft, so that the action that the first motor drives the first rotating shaft to rotate and further drives the rotating blade to rotate is completed, the problem that the medical instrument is not dried after being cleaned is solved, and the effect of further enhancing the cleanliness of the medical instrument after being dried is achieved.
Drawings

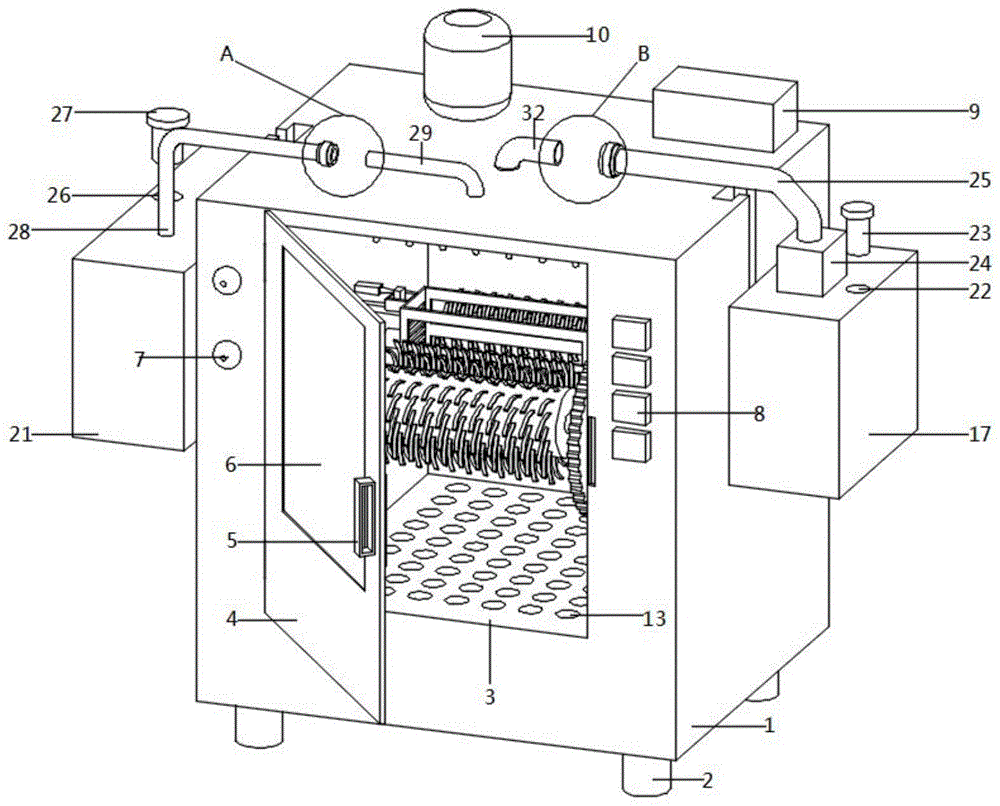

FIG. 1 is a schematic perspective view of the present invention;
FIG. 2 is an enlarged schematic view of FIG. 1 at A according to the present invention;
FIG. 3 is an enlarged view of the structure of FIG. 1 at B according to the present invention;
FIG. 4 is a cross-sectional view of a second main gear according to the present invention;
FIG. 5 is an enlarged view of the structure of FIG. 4 at C;
FIG. 6 is a schematic cross-sectional view of a second motor according to the present invention;
FIG. 7 is a schematic cross-sectional view of a first T-shaped plate according to the present invention;
FIG. 8 is a schematic cross-sectional view of a first motor according to the present invention;
FIG. 9 is a schematic cross-sectional view illustrating a first showerhead of the present invention.
In the figure: 1. a sterilizing device body; 2. supporting legs; 3. a connecting cavity; 4. a box door; 5. a handle; 6. an observation window; 7. a warning light; 8. a control button; 9. an external power supply; 10. a first motor; 11. a first rotating shaft; 12. a rotor blade; 13. a water flowing hole; 14. a sewage tank; 15. a water outlet pipe; 16. a first T-shaped groove; 17. a washing liquid storage box; 18. a first T-shaped plate; 19. a second T-shaped groove; 20. a second T-shaped plate; 21. a clear water storage box; 22. a first liquid adding hole; 23. a first plug seat; 24. a liquid pump; 25. a first outer connecting pipe; 26. a second liquid adding hole; 27. a second plug seat; 28. a second outer connecting tube; 29. a second stationary tube; 30. a second ferrule tube fitting; 31. a first ferrule tube fitting; 32. a first stationary tube; 33. a motor storage tank; 34. a second motor; 35. a second main rotating shaft; 36. a main rotating roller; 37. a first main gear; 38. a second main gear; 39. a second counter-rotating shaft; 40. a secondary rotating roller; 41. an instrument storage case; 42. a side connection plate; 43. fixing a connecting ring; 44. a compression groove; 45. a compression spring; 46. a telescopic column; 47. a first connecting column; 48. a first connecting plate; 49. a first nozzle; 50. a second connecting column; 51. a second connecting plate; 52. a second nozzle; 53. the bristles are cleaned.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1 to 9, in the embodiment of the present invention, a medical instrument disinfecting apparatus with a classified disinfecting function includes a disinfecting apparatus body 1, a connecting cavity 3, a main rotating roller 36, an auxiliary rotating roller 40, a clean water storing box 21, a cleaning solution storing box 17 and an instrument storing box 41, the connecting cavity 3 is formed on the front end surface of the disinfecting apparatus body 1, a motor storing slot 33 is formed on the right side of the connecting cavity 3, a second motor 34 is fixedly connected in the motor storing slot 33, an output end of the second motor 34 is fixedly connected with a second main rotating shaft 35, a first main gear 37 is fixedly connected to the right side of the outer circumferential surface of the second main rotating shaft 35, a main rotating roller 36 is fixedly connected to the left side of the outer circumferential surface of the second main rotating shaft 35, a second main gear 38 is engaged with the rear side of the first main gear 37 through a second auxiliary rotating shaft 39, an auxiliary rotating roller 40 is fixedly connected to the outer circumferential surface of the second auxiliary rotating shaft 39, cleaning bristles 53 are fixedly connected to the outer circumferential surfaces of the main rotating roller 36 and the auxiliary rotating roller 40, the invention is characterized in that fixed connecting rings 43 are fixedly connected to both sides of a connecting cavity 3, side connecting plates 42 are arranged on the fixed connecting rings 43, instrument storage boxes 41 are fixedly connected between the side connecting plates 42, a washing liquid storage box 17 is arranged on the right side of a disinfection equipment body 1, a clear water storage box 21 is arranged on the left side of the disinfection equipment body 1, a first connecting column 47 is fixedly connected to the upper end face of the connecting cavity 3, a first connecting plate 48 is fixedly connected to the lower end face of the first connecting column 47, a first spray nozzle 49 is fixedly connected to the lower end face of the first connecting plate 48, a first fixed pipe 32 is fixedly connected to the upper end face of the first connecting plate 48, a second connecting column 50 is arranged in front of the first connecting column 47, a second connecting plate 51 is fixedly connected to the lower end face of the second connecting column 50, a second spray nozzle 52 is fixedly connected to the lower end face of the second connecting plate 51, and a second fixed pipe 29 is fixedly connected to the upper end face of the second connecting plate 51 The main rotating roller 36, the auxiliary rotating roller 40, the second motor 34, the second main rotating shaft 35, the cleaning brush, the cleaning liquid storage box 17, the clear water storage box 21, the first spray nozzle 49 and the second spray nozzle 52 can achieve the effect of washing and then cleaning medical instruments in all directions.
Wherein, the right end face of the disinfection equipment body 1 is provided with a first T-shaped groove 16, the first T-shaped groove 16 is connected with a first T-shaped plate 18 in a sliding way, the right end face of the first T-shaped plate 18 is fixedly connected with a cleaning solution storage box 17, the left end face of the disinfection equipment body 1 is provided with a second T-shaped groove 19, the second T-shaped groove 19 is connected with a second T-shaped plate 20 in a sliding way, the right end face of the second T-shaped plate 20 is fixedly connected with a clear water storage box 21, the upper end face of the cleaning solution storage box 17 is fixedly connected with a first outer connecting pipe 25 through a liquid pump 24, the outer circumference of the first outer connecting pipe 25 is fixedly connected with a first cutting sleeve joint 31, the upper end face of the clear water storage box 21 is fixedly connected with a second outer connecting pipe 28, the outer circumference of the second outer connecting pipe 28 is fixedly connected with a second cutting sleeve joint 30, and the first T-shaped groove 16, the first T-shaped plate 18, the second T-shaped groove 19, the second T-shaped groove 20, the first outer connecting pipe 25, The first clamping sleeve joint 31, the second outer connecting pipe 28 and the second clamping sleeve joint 30 can achieve the effect of conveniently taking down the clean water storage box 21 and the cleaning solution storage box 17 for cleaning;
a compression groove 44 is formed in the right side of the fixed connecting ring 43, a compression spring 45 is fixedly connected to the inner end face of the compression groove 44, a telescopic column 46 is fixedly connected to the outer end of the compression spring 45, and the compression groove 44, the compression spring 45 and the telescopic column 46 are arranged to achieve the effect of conveniently taking down the instrument storage box 41;
the rear side of the upper end face of the disinfection equipment body 1 is fixedly connected with a first motor 10, the output end of the first motor 10 is fixedly connected with a first rotating shaft 11, the outer circumferential surface of the first rotating shaft 11 is fixedly connected with a rotating blade 12, and the first motor 10, the first rotating shaft 11 and the rotating blade 12 are arranged to achieve the effect of drying cleaned medical instruments;
a sewage tank 14 is arranged in the disinfection equipment body 1, a water flowing hole 13 is arranged on the lower end surface of the connecting cavity 3, a water outlet pipe 15 is fixedly connected on the rear end surface of the sewage tank 14, and the sewage tank 14, the water flowing hole 13 and the water outlet pipe 15 are arranged to achieve the effect of discharging the washing and cleaning sewage;
the upper end surface of the washing liquid storage box 17 is provided with a first liquid adding hole 22, a first plug seat 23 is arranged above the first liquid adding hole 22, the upper end surface of the clear water storage box 21 is provided with a second liquid adding hole 26, a second plug seat 27 is arranged above the second liquid adding hole 26, and the first plug seat 23, the first liquid adding hole 22, the second plug seat 27 and the second liquid adding hole 26 are arranged to achieve the effect of conveniently adding liquid to the washing liquid storage box 17 and the clear water storage box 21;
the left side of the front end face of the disinfection equipment body 1 is hinged with a box door 4, the front end face of the box door 4 is fixedly connected with a handle 5, the front end face of the box door 4 is fixedly connected with an observation window 6, and the box door 4, the handle 5 and the observation window 6 are arranged to achieve the effect of checking medical instruments which are being washed and cleaned;
the lower end surface of the disinfection equipment body 1 is fixedly connected with a plurality of supporting legs 2, and the disinfection equipment body 1 can be supported by the supporting legs 2;
the left side of the front end face of the disinfection equipment body 1 is fixedly connected with a warning lamp 7, the right side of the front end face of the disinfection equipment body 1 is fixedly connected with a control button 8, and the warning lamp 7 and the control button 8 are arranged to achieve the effect of controlling the washing time;
the first motor 10, the second motor 34 and the external power supply 9 are electrically connected to ensure that the first motor 10 and the second motor 34 can work normally.
The working principle of the invention is as follows: before the medical apparatus is washed and cleaned by the disinfection apparatus body 1, the medical apparatus is put into the apparatus storage box 41, and then the apparatus storage box 41 is clamped by the side connecting plates 42 at two sides of the apparatus storage box 41, the first step operation is firstly carried out, namely, the medical apparatus is washed, at this time, the second motor 34 is electrified by the external power supply 9, the second motor 34 drives the second main rotating shaft 35 to rotate and further drives the first main gear 37 to rotate, the second main rotating shaft 35 drives the main rotating roller 36 to rotate, the first main gear 37 drives the second main gear 38 to rotate and further drives the auxiliary rotating roller 40 to rotate, the cleaning bristles 53 fixedly connected to the outer circumferential surfaces of the main rotating roller 36 and the auxiliary rotating roller 40 respectively scrub the medical apparatus, meanwhile, the liquid pump 24 extracts the cleaning liquid in the cleaning liquid storage box 17, the cleaning liquid enters the first outer connecting pipe 25 under the action of pressure and further enters the first fixing pipe 32, at the moment, the cleaning solution is sprayed onto the outer surface of the medical instrument through the first spray nozzle 49, the cleaning bristles 53 clean the outer surface of the medical instrument, after the cleaning, the power supply of the liquid pump 24 is cut off, next, the second step of operation is performed, the clean water in the clean water storage box 21 enters the second fixed pipe 29 through the second external connecting pipe 28, the clean water is sprayed through the second spray nozzle 52, the clean water is sprayed onto the outer surface of the medical instrument, the operation is maintained for a period of time, after a person observes that no cleaning solution foam exists on the outer surface of the medical instrument and no cleaning solution foam remains on the cleaning bristles 53 through the observation window 6, the cleaning is performed, the effect that bacteria and dirt on the surface of the medical instrument are completely removed is achieved, in the two operation processes, the cleaning solution and the clean water flow into the sewage tank 14 through the water flowing hole 13 and then are discharged through the water outlet pipe 15, next, performing a third step of operation, energizing the first motor 10 through the external power supply 9, the first motor 10 driving the first rotating shaft 11 to rotate and further driving the rotating blade 12 to rotate, the rotating blade 12 drying the moisture on the outer surface of the medical instrument, thereby achieving the effect of drying the medical instrument and further enhancing the cleanliness, next performing a fourth step of operation, completing the contact between the side connecting plate 42 and the telescopic column 46, the side connecting plate 42 compressing the telescopic column 46 and further compressing the compression spring 45, achieving the effect that the medical instrument is not damaged when cleaning the medical instrument, when replacing, the instrument storage box 41 does not have the effect of being stuck and not taken out, after several times of washing and sterilization, completing the moving of the first T-shaped plate 18 out of the first T-shaped groove 16, and detaching the first ferrule tube connector 31 from the first outer connecting tube 25, the second T-shaped plate 20 is moved out of the second T-shaped groove 19 and the second ferrule tube fitting 30 and the second outer connecting tube 28 are removed, thereby further enhancing the cleaning and rinsing degree.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and the technical solutions and the inventive concepts thereof according to the present invention should be equivalent or changed within the scope of the present invention.

Claims (10)
1. The utility model provides a medical instrument disinfecting equipment with categorised disinfection function, includes disinfecting equipment body (1), connects cavity (3), main live-rollers (36), vice live-rollers (40), clear water case (21), washing liquid case (17) and apparatus case (41), its characterized in that: the disinfection equipment comprises a disinfection equipment body (1), wherein a connecting cavity (3) is formed in the front end face of the disinfection equipment body, a motor storage groove (33) is formed in the right side of the connecting cavity (3), a second motor (34) is fixedly connected in the motor storage groove (33), a second main rotating shaft (35) is fixedly connected at the output end of the second motor (34), a first main gear (37) is fixedly connected at the right side of the outer circumferential face of the second main rotating shaft (35), a main rotating roller (36) is fixedly connected at the left side of the outer circumferential face of the second main rotating shaft (35), a second main gear (38) is meshed with the rear side of the first main gear (37) through a second auxiliary rotating shaft (39), an auxiliary rotating roller (40) is fixedly connected at the outer circumferential face of the second auxiliary rotating shaft (39), and cleaning bristles (53) are fixedly connected with the outer circumferential face of the main rotating roller (36) and the auxiliary rotating roller (40), the cleaning device is characterized in that fixed connecting rings (43) are fixedly connected to both sides of the connecting cavity (3), side connecting plates (42) are arranged on the fixed connecting rings (43), the instrument storage boxes (41) are fixedly connected between the side connecting plates (42), the cleaning solution storage box (17) is arranged on the right side of the disinfecting device body (1), the clear water storage box (21) is arranged on the left side of the disinfecting device body (1), a first connecting column (47) is fixedly connected to the upper end face of the connecting cavity (3), a first connecting plate (48) is fixedly connected to the lower end face of the first connecting column (47), a first spray head (49) is fixedly connected to the lower end face of the first connecting plate (48), a first fixing pipe (32) is fixedly connected to the upper end face of the first connecting plate (48), and a second connecting column (50) is arranged in front of the first connecting column (47), the lower end face of the second connecting column (50) is fixedly connected with a second connecting plate (51), the lower end face of the second connecting plate (51) is fixedly connected with a second spray head (52), and the upper end face of the second connecting plate (51) is fixedly connected with a second fixing pipe (29).
2. The medical instrument disinfecting apparatus having a classifying disinfecting function according to claim 1, characterized in that: the disinfection equipment comprises a disinfection equipment body (1), a first T-shaped groove (16) is formed in the right end face of the disinfection equipment body (1), a first T-shaped plate (18) is connected in the first T-shaped groove (16) in a sliding manner, the right end face of the first T-shaped plate (18) is fixedly connected with a washing liquid storage box (17), a second T-shaped groove (19) is formed in the left end face of the disinfection equipment body (1), a second T-shaped plate (20) is connected in the second T-shaped groove (19) in a sliding manner, the right end face of the second T-shaped plate (20) is fixedly connected with a clear water storage box (21), a first outer connecting pipe (25) is fixedly connected to the upper end face of the washing liquid storage box (17) through a liquid pump (24), a first clamping sleeve pipe joint (31) is fixedly connected to the outer circumferential face of the first outer connecting pipe (25), a second outer connecting pipe (28) is fixedly connected to the upper end face of the clear water storage box (21), and the outer circumferential surface of the second outer connecting pipe (28) is fixedly connected with a second clamping sleeve joint (30).
3. The medical instrument disinfecting apparatus having a classifying disinfecting function according to claim 1, characterized in that: the right side of the fixed connecting ring (43) is provided with a compression groove (44), the inner end face of the compression groove (44) is fixedly connected with a compression spring (45), and the outer end of the compression spring (45) is fixedly connected with a telescopic column (46).
4. The medical instrument disinfecting apparatus having a classifying disinfecting function according to claim 1, characterized in that: disinfecting equipment body (1) up end rear side fixedly connected with first motor (10), first motor (10) output end fixedly connected with first pivot (11), the outer periphery fixedly connected with rotating vane (12) of first pivot (11).
5. The medical instrument disinfecting apparatus having a classifying disinfecting function according to claim 1, characterized in that: a sewage tank (14) is arranged in the disinfecting equipment body (1), a water flowing hole (13) is formed in the lower end face of the connecting cavity (3), and a water outlet pipe (15) is fixedly connected to the rear end face of the sewage tank (14).
6. The medical instrument disinfecting apparatus having a classifying disinfecting function according to claim 1, characterized in that: first liquid feeding hole (22) have been seted up to washing liquid case (17) up end, first liquid feeding hole (22) top is provided with first stopper seat (23), second liquid feeding hole (26) have been seted up to clear water case (21) up end, second liquid feeding hole (26) top is provided with second stopper seat (27).
7. The medical instrument disinfecting apparatus having a classifying disinfecting function according to claim 1, characterized in that: terminal surface left side articulates before disinfecting equipment body (1) has chamber door (4), terminal surface fixedly connected with handle (5) before chamber door (4), terminal surface fixedly connected with observation window (6) before chamber door (4).
8. The medical instrument disinfecting apparatus having a classifying disinfecting function according to claim 1, characterized in that: terminal surface fixedly connected with supporting leg (2) under disinfecting equipment body (1), supporting leg (2) are provided with a plurality ofly.
9. The medical instrument disinfecting apparatus having a classifying disinfecting function according to claim 1, characterized in that: terminal surface left side fixedly connected with warning light (7) before disinfecting equipment body (1), terminal surface right side fixedly connected with control button (8) before disinfecting equipment body (1).
10. The medical instrument disinfecting apparatus having a classifying disinfecting function according to claim 4, characterized in that: the first motor (10), the second motor (34) and the external power supply (9) are electrically connected.
