Abstract
The invention discloses a solar photovoltaic panel with an anti-explosion protective net on the surface, which comprises a bottom plate and an installation bin, wherein an installation cavity is formed in the installation bin, two sliding grooves are formed in the two sides of the inner side of the installation cavity, two sliding blocks are respectively connected in the two sliding grooves in a sliding manner, a photovoltaic panel body is fixedly connected between the two sliding blocks, the photovoltaic panel body comprises an aluminum alloy frame fixedly connected between the two sliding blocks, and the aluminum alloy frame is divided into a plurality of installation notches by a plurality of aluminum alloy plates. According to the photovoltaic panel, the protective screen is arranged in the photovoltaic panel body, the cavity is formed in the protective screen, the battery piece can be conveniently radiated, the radiating assembly is arranged in the mounting cavity, when the temperature of the temperature sensor reaches a threshold value, the first motor is started, the fan is driven to rotate, the temperature in the mounting cavity is reduced, the temperature condition of the working environment of the photovoltaic panel body is ensured, the potential safety hazard is further reduced, the phenomenon of explosion of the battery piece can be effectively avoided through double protection, and the protection performance is more comprehensive.
Description
Technical Field
The invention relates to the technical field of photovoltaic power generation, in particular to a solar photovoltaic panel with an anti-explosion protective net on the surface.
Background
The solar photovoltaic power generation system is a novel power generation system which directly converts solar radiation energy into electric energy by utilizing the photovoltaic effect of a solar cell semiconductor material, and has two modes of independent operation and grid-connected operation. The photovoltaic power generation system which operates independently needs a storage battery as an energy storage device and is mainly used in remote areas without a power grid and in regions with dispersed population, and the whole system has high manufacturing cost; in the area with the public power grid, the photovoltaic power generation system is connected with the power grid and operates in a grid-connected mode, a storage battery is omitted, the manufacturing cost can be greatly reduced, the photovoltaic power generation system has higher power generation efficiency and better environmental protection performance, photovoltaic power generation equipment is generally installed in remote areas, the environment is severe, the external protection measures of the existing photovoltaic panel are small, the resistance to severe weather is very poor, and the safety guarantee is greatly reduced.
To this, chinese utility model patent that the grant bulletin number is CN211606479U discloses a solar photovoltaic plate structure with protection device, and this structure includes the framework, the bottom fixedly connected with spring of framework inner chamber, the top fixedly connected with fly leaf of spring, the top of fly leaf is provided with the solar photovoltaic board, the guiding hole has all been seted up to the front side and the rear side of framework, the right side of framework inner chamber is provided with L type cardboard, the top of L type cardboard extends to the top of framework, the clear glass board has been placed at the top of solar photovoltaic board, the equal fixedly connected with connecting rod in front side and the rear side of L type cardboard.
This structure possesses protects the photovoltaic board, avoids the advantage that damages with the thing striking that falls, but only can protect the photovoltaic board outside, and the explosion mainly is caused because the during operation high temperature that takes place for the photovoltaic board at present, and this structure does not possess heat abstractor, protects not comprehensively.
Therefore, the solar photovoltaic panel with the anti-explosion protective net on the surface is provided for solving the problems.
Disclosure of Invention
The invention aims to provide a solar photovoltaic panel with an anti-explosion protective net on the surface, so as to solve the problems in the background technology.
In order to achieve the purpose, the invention provides the following technical scheme: a solar photovoltaic panel with an explosion-proof protective net on the surface comprises a bottom plate and an installation bin, wherein an installation cavity is formed in the installation bin, two sliding grooves are formed in two sides of the inner side of the installation cavity, two sliding blocks are respectively connected in the two sliding grooves in a sliding mode, a photovoltaic panel body is fixedly connected between the two sliding blocks and comprises an aluminum alloy frame fixedly connected between the two sliding blocks, the aluminum alloy frame is divided into a plurality of installation notches by a plurality of aluminum alloy plates, a battery piece is fixedly connected in each installation notch, the top surface of the battery piece is fixedly connected with foam, the top surface of the foam is fixedly connected with a glass panel, the top surface of each installation notch is fixedly connected with a protective net cover, the bottom surface of the aluminum alloy frame is fixedly connected with a backboard mesh surface, the backboard mesh surface is in contact with a backboard, a plurality of first springs are fixedly connected between the photovoltaic panel body and the bottom, the heat dissipation assembly comprises an opening formed in the bottom surface of the installation cavity, the top surface and the bottom surface in the opening are fixedly connected with two honeycomb plates respectively, a support is fixedly connected in the opening, and a fan is connected to the support in a rotating mode.
Preferably, the net surface of the protective net cover and the net surface of the back plate are both made of stainless steel meshes, the foam is made of EVA foam, and the back plate is made of TPT (thermoplastic vulcanizate) or TPE (thermoplastic elastomer).
Preferably, the installation cavity bottom surface is provided with heat dissipation transmission assembly, heat dissipation transmission assembly includes the first motor of rigid coupling in installation cavity bottom surface inside, first motor shaft department rigid coupling driving pulley, fan shaft department rigid coupling driven pulleys, the drive pulley and the driven pulleys go up the cup joint drive belt.
Preferably, installation cavity bottom surface rigid coupling control assembly, control assembly includes the flexible mobile jib of rigid coupling in the installation cavity bottom surface, flexible mobile jib top surface slides and cup joints flexible slave rod, flexible slave rod top surface rigid coupling temperature sensor, temperature sensor contact photovoltaic board body, flexible from a plurality of second springs of rigid coupling between pole bottom surface and the inside bottom surface of flexible mobile jib, temperature sensor controls first motor and opens and close.
Preferably, the top surface of the bottom plate is provided with a limiting sliding groove, the limiting sliding groove is in sliding connection with a limiting sliding block, the limiting sliding block is fixedly connected with a first hinge rod, the top surface of one side of the bottom plate is fixedly connected with a support, the side surface of the support is provided with an adjusting sliding groove, the adjusting sliding groove is in sliding connection with an adjusting sliding block, the adjusting sliding block is fixedly connected with a second hinge rod, the first hinge rod and the second hinge rod are respectively and rotatably connected to two ends of the installation bin, and the bottom surface of the bottom plate is fixedly connected with a plurality of.
Preferably, the support is provided with an angle adjusting assembly, the angle adjusting assembly comprises a screw rod connected in an adjusting sliding groove in a rotating mode, a nut is fixedly connected in the adjusting sliding block, the screw rod is meshed with the connecting nut, a motor cabin is arranged in the support, a second motor is fixedly connected in the motor cabin, and a second motor rotating shaft is fixedly connected with the screw rod.
Preferably, the top surface of the installation cavity is fixedly connected with a light-transmitting plate, a sealing rubber ring is fixedly connected between the light-transmitting plate and the installation cavity, and the top surface of the installation bin is provided with a plurality of drainage channels.
Preferably, the light-transmitting plate and the glass panel are made of tempered glass which is subjected to ultra-white tempering treatment and has light transmittance higher than ninety-one percent, and the inner side wall of the drainage channel is coated with a polytetrafluoroethylene coating.
Compared with the prior art, the invention has the beneficial effects that:
the photovoltaic panel body is internally provided with the back plate net surface which provides enough structural strength for the battery piece, the protective net cover is arranged, a cavity is formed in the protective net cover, the heat dissipation of the battery piece is convenient, the explosion caused by overhigh internal temperature is avoided, the heat dissipation assembly is arranged in the mounting cavity, when the temperature of the temperature sensor reaches a threshold value, the first motor is started, the fan is driven to rotate, the temperature in the mounting cavity is reduced, the temperature condition of the working environment of the photovoltaic panel body is ensured, the potential safety hazard is further reduced, the explosion phenomenon of the battery piece can be effectively avoided through double protection, meanwhile, a plurality of first springs are fixedly connected between the photovoltaic panel body and the bottom surface of the mounting cavity, the whole photovoltaic panel body can be damped through the springs, the mounting cavity is sealed through the light-transmitting plate, and the damage to the photovoltaic panel body caused by rain and snow permeating into the mounting cavity is avoided, meanwhile, accumulated water can be discharged in time through the drainage channel, and the protection performance is more comprehensive.
Drawings

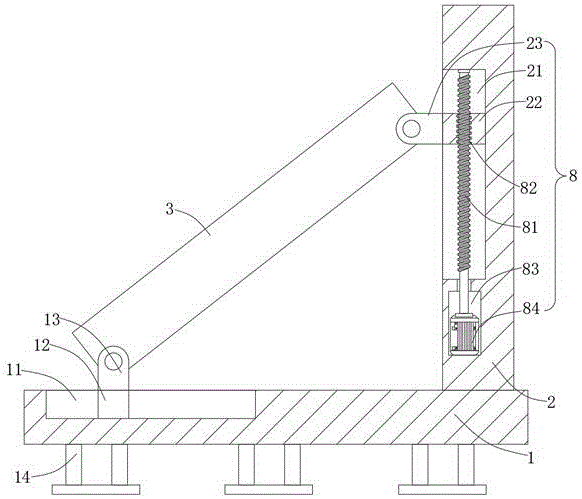

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is an enlarged structural view of the mounting bin of the present invention;
FIG. 3 is an enlarged structural view of a sectional structure of the installation bin of the present invention;
fig. 4 is an enlarged schematic view of an explosion structure at the photovoltaic panel body in the present invention.
In the figure: 1 a bottom plate, 11 limit chutes, 12 limit slide blocks, 13 first hinge rods, 14 ground buried plates, 2 supports, 21 adjusting chutes, 22 adjusting slide blocks, 23 second hinge rods, 3 mounting bins, 31 mounting cavities, 32 chutes, 33 slide blocks, 34 light-transmitting plates, 35 first springs, 36 drainage channels, 37 sealing rubber rings, 4 photovoltaic panel bodies, 41 aluminum alloy frames, 42 aluminum alloy plates, 43 mounting notches, 44 battery pieces, 45 foam cotton and 46 glass panels, 47 backboard, 48 protective net cover, 49 backboard screen surface, 5 heat dissipation component, 51 through hole, 52 honeycomb panel, 53 support, 54 fan, 6 heat dissipation transmission component, 61 first motor, 62 driving pulley, 63 driven pulley, 64 driving belt, 7 control component, 71 telescopic main rod, 72 telescopic auxiliary rod, 73 temperature sensor, 74 second spring, 8 angle adjusting component, 81 lead screw, 82 nut, 83 motor cabin and 84 second motor.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: the utility model provides a surface has explosion-proof protection network solar photovoltaic panel, including bottom plate 1 and installation storehouse 3, spacing spout 11 is seted up to 1 top surface of bottom plate, sliding connection limiting slide block 12 in the spacing spout 11, first hinge bar 13 of rigid coupling on the limiting slide block 12, 1 one side top surface rigid coupling support 2 of bottom plate, support 2 side is seted up and is adjusted spout 21, sliding connection adjusting slide block 22 in adjusting spout 21, rigid coupling second hinge bar 23 on the adjusting slide block 22, first hinge bar 13 and second hinge bar 23 rotate respectively and connect at 3 both ends in installation storehouse, 1 bottom surface rigid coupling of bottom plate is a plurality of buried plate 14. When the floor panel 14 is installed, the floor panel 1 is fixed by being buried in place.
Referring to fig. 1, the bracket 2 is provided with an angle adjusting assembly 8, the angle adjusting assembly 8 includes a screw rod 81 rotatably connected in the adjusting chute 21, a nut 82 is fixedly connected in the adjusting slider 22, the screw rod 21 is engaged with the connecting nut 82, a motor chamber 83 is arranged in the bracket 2, a second motor 84 is fixedly connected in the motor chamber 83, a rotating shaft of the second motor 84 is fixedly connected with the screw rod 81, the position of the adjusting slider 22 can be adjusted by starting the second motor 84, and the orientation angle of the mounting chamber 3 is adjusted, so that the use is convenient.
Referring to fig. 3-4, a mounting chamber 31 is formed in the mounting bin 3, two sliding grooves 32 are formed in two side positions of the inner side of the mounting chamber 31, two sliding blocks 33 are respectively slidably connected in the two sliding grooves 32, a photovoltaic panel body 4 is fixedly connected between the two sliding blocks 33, the photovoltaic panel body 4 includes an aluminum alloy frame 41 fixedly connected between the two sliding blocks 33, the aluminum alloy frame 41 is divided into a plurality of mounting notches 43 by a plurality of aluminum alloy plates 42, a battery sheet 44 is fixedly connected in the mounting notches 43, the top surface of the battery sheet 44 is fixedly connected with a foam 45, the top surface of the foam 45 is fixedly connected with a glass panel 46, the top surface of the mounting notches 43 is fixedly connected with a protective mesh cover 48, a back panel mesh surface 49 is fixedly connected at the bottom position in the aluminum alloy frame 41, the back panel mesh surface 49 contacts with a back panel 47, the protective mesh cover 48 and the back panel mesh surface 49 are both made of stainless steel mesh, the foam 45 is made of EVA, the back plate mesh surface 49 provides enough structural strength for the battery piece 44, and meanwhile, the protection mesh enclosure 48 is arranged, so that a cavity is formed in the protection mesh enclosure 48, the heat dissipation of the battery piece 44 is facilitated, and the condition that the internal temperature is too high to generate explosion is avoided.
Referring to fig. 3, a plurality of first springs 35 are fixedly connected between the photovoltaic panel body 4 and the bottom surface of the installation cavity 31, and the springs 35 can provide shock absorption for the whole photovoltaic panel body 4, so as to avoid the phenomenon that the photovoltaic panel body 4 is damaged when the device shakes.
Referring to fig. 3, a plurality of heat dissipation assemblies 5 are disposed on the bottom surface of the mounting cavity 31, each heat dissipation assembly 5 includes a through hole 51 disposed on the bottom surface of the mounting cavity 31, the top surface and the bottom surface of the through hole 51 are fixedly connected to two honeycomb panels 52, a support 53 is fixedly connected to the through hole 51, a fan 54 is rotatably connected to the support 53, a heat dissipation transmission assembly 5 is disposed on the bottom surface of the mounting cavity 31, the heat dissipation transmission assembly 5 includes a first motor 61 fixedly connected to the inside of the bottom surface of the mounting cavity 31, a driving pulley 62 is fixedly connected to a rotating shaft of the first motor 61, a driven pulley 63 is fixedly connected to a rotating shaft of the fan 54, a transmission belt 64 is sleeved on the driving pulley 62 and the driven pulley 63, a control assembly 7 is fixedly connected to the bottom surface of the mounting cavity 31, the control assembly 7 includes a telescopic main rod 71 fixedly connected to the bottom surface of the mounting cavity 31, the telescopic multiple second springs 74 fixedly connected between the bottom surface of the slave rod 72 and the bottom surface of the inside of the telescopic main rod 71, the temperature sensor 73 controls the first motor 61 to be turned on and off, when the temperature of the temperature sensor 73 reaches a threshold value, the first motor 61 can be started, the fan 54 is driven to rotate, the temperature of the installation cavity 31 is reduced, the temperature condition of the working environment of the photovoltaic panel body 4 is ensured, and the potential safety hazard is further reduced.
Referring to fig. 2, a transparent plate 34 is fixedly connected to the top surface of the installation cavity 31, a sealing rubber ring 37 is fixedly connected between the transparent plate 34 and the installation cavity 31, a plurality of drainage channels 36 are formed in the top surface of the installation bin 3, the transparent plate 34 and the glass panel 46 are made of tempered glass with ultra-white tempering treatment and light transmittance higher than ninety-one percent, a teflon coating is coated on the inner side wall of each drainage channel 36, the installation cavity 31 is sealed through the transparent plate 34, damage to the photovoltaic panel body 4 caused by rain and snow permeating into the installation cavity 31 is avoided, and meanwhile, accumulated water can be timely discharged through the drainage channels 36.
The working principle is as follows: when the floor-embedded type floor-mounted type floor-embedded type floor board is installed, the floor-embedded type floor board 1 can be fixed, the angle adjusting assembly 8 is arranged in the support 2, the position of the adjusting slide block 22 can be adjusted by starting the second motor 84, the orientation angle of the installation bin. The photovoltaic panel body 4 is internally provided with the back plate net surface 49, the back plate net surface 49 provides enough structural strength for the battery piece 44, the protective net cover 48 is arranged, a cavity is formed in the protective net cover 48, the heat dissipation of the battery piece 44 is convenient, the explosion caused by overhigh internal temperature is avoided, the heat dissipation component 5 is arranged in the installation cavity 31, when the temperature of the temperature sensor 73 reaches a threshold value, the first motor 61 is started, the fan 54 is driven to rotate, the temperature in the installation cavity 31 is reduced, the temperature condition of the working environment of the photovoltaic panel body 4 is ensured, the potential safety hazard is further reduced, the explosion phenomenon of the battery piece 44 can be effectively avoided through double protection, meanwhile, the plurality of first springs 35 are fixedly connected between the photovoltaic panel body 4 and the bottom surface of the installation cavity 31, the whole photovoltaic panel body 4 can be damped through the springs 35, and the installation cavity 31 is sealed through the light-transmitting plate 34, avoid rain and snow infiltration to cause destruction to photovoltaic board body 4 in the installation cavity 31, ponding can in time be discharged through drainage channel 36 simultaneously, and the barrier propterty is more comprehensive.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (8)
1. The utility model provides a surface has explosion-proof protection network solar photovoltaic panel, includes bottom plate (1) and installation storehouse (3), its characterized in that:
a mounting cavity (31) is formed in the mounting bin (3), two sliding grooves (32) are formed in two sides of the inner side of the mounting cavity (31), two sliding blocks (33) are respectively connected in the two sliding grooves (32) in a sliding manner, and a photovoltaic panel body (4) is fixedly connected between the two sliding blocks (33);
the photovoltaic panel body (4) comprises an aluminum alloy frame (41) fixedly connected between two sliding blocks (33), the aluminum alloy frame (41) is internally divided into a plurality of installation notches (43) by a plurality of aluminum alloy plates (42), the installation notches (43) are internally and fixedly connected with battery pieces (44), the top surfaces of the battery pieces (44) are fixedly connected with foam (45), the top surfaces of the foam (45) are fixedly connected with a glass panel (46), the top surfaces of the installation notches (43) are fixedly connected with a protective mesh cover (48), the bottom surfaces of the aluminum alloy frame (41) are fixedly connected with a backboard mesh surface (49), and the backboard mesh surface (49) is in contact with a backboard (47);
a plurality of first springs (35) of rigid coupling between photovoltaic board body (4) and installation cavity (31) bottom surface, a plurality of radiator unit (5) are seted up to installation cavity (31) bottom surface, radiator unit (5) are including seting up opening (51) at installation cavity (31) bottom surface, two honeycomb panels (52) of opening (51) inner top surface and bottom surface rigid coupling respectively, rigid coupling support (53) in opening (51), rotate connection fan (54) on support (53).
2. The solar photovoltaic panel with the explosion-proof protective net on the surface as claimed in claim 1 is characterized in that: the protective mesh cover (48) and the back plate mesh surface (49) are made of stainless steel meshes, the foam (45) is made of EVA foam, and the back plate (47) is made of TPT material or TPE material.
3. The solar photovoltaic panel with the explosion-proof protective net on the surface as claimed in claim 1 is characterized in that: installation cavity (31) bottom surface is provided with heat dissipation drive assembly (5), heat dissipation drive assembly (5) include first motor (61) of rigid coupling in installation cavity (31) bottom surface inside, first motor (61) pivot department rigid coupling driving pulley (62), fan (54) pivot department rigid coupling driven pulleys (63), cup joint drive belt (64) on driving pulley (62) and driven pulleys (63).
4. The solar photovoltaic panel with the explosion-proof protective net on the surface as claimed in claim 3 is characterized in that: installation cavity (31) bottom surface rigid coupling control assembly (7), control assembly (7) include flexible mobile jib (71) of rigid coupling in installation cavity (31) bottom surface, flexible mobile jib (71) top surface slides and cup joints flexible from pole (72), flexible from pole (72) top surface rigid coupling temperature sensor (73), temperature sensor (73) contact photovoltaic board body (4), flexible from a plurality of second springs (74) of rigid coupling between pole (72) bottom surface and flexible mobile jib (71) inside bottom surface, temperature sensor (73) control first motor (61) are opened and close.
5. The solar photovoltaic panel with the explosion-proof protective net on the surface as claimed in claim 1 is characterized in that: spacing spout (11) are seted up to bottom plate (1) top surface, sliding connection limiting slide block (12) in limiting spout (11), first hinge bar (13) of rigid coupling is gone up in limiting slide block (12), bottom plate (1) one side top surface rigid coupling support (2), support (2) side is seted up and is adjusted spout (21), sliding connection adjusting slide block (22) in adjusting spout (21), rigid coupling second hinge bar (23) are gone up in adjusting slide block (22), first hinge bar (13) and second hinge bar (23) rotate respectively and are connected at installing bin (3) both ends, a plurality of ground of bottom plate (1) bottom surface rigid coupling buries board (14).
6. The solar photovoltaic panel with the explosion-proof protective net on the surface as claimed in claim 5 is characterized in that: support (2) are provided with angle adjusting part (8), angle adjusting part (8) are including rotating lead screw (81) of connection in adjusting spout (21), rigid coupling nut (82) in adjusting block (22), lead screw (21) meshing coupling nut (82), set up motor storehouse (83) in support (2), rigid coupling second motor (84) in motor storehouse (83), rigid coupling lead screw (81) are located in second motor (84) pivot.
7. The solar photovoltaic panel with the explosion-proof protective net on the surface as claimed in claim 1 is characterized in that: installation cavity (31) top surface rigid coupling light-passing board (34), rigid coupling sealing rubber ring (37) between light-passing board (34) and installation cavity (31), a plurality of drainage canals (36) are seted up to installation storehouse (3) top surface.
8. The solar photovoltaic panel with the explosion-proof protective net on the surface as claimed in claim 7 is characterized in that: the light-transmitting plate (34) and the glass panel (46) are made of tempered glass which is subjected to ultra-white tempering treatment and has light transmittance higher than ninety-one percent, and the inner side wall of the drainage channel (36) is coated with a polytetrafluoroethylene coating.
