CN113081432A

CN113081432A - Humpback corrector

Info

Publication number: CN113081432A
Application number: CN202110463514.0A
Authority: CN
Inventors: 艾斯卡尔江·麦木提明
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-04-26
Filing date: 2021-04-26
Publication date: 2021-07-09

Abstract

The present application provides a hunchback corrector, comprising a chest frame, an adjustable strap installed on the chest frame, telescopic rods installed on both sides of the lower part of the chest frame, and installed between the bottoms of the two telescopic rods The waist fixing belt is installed on the adjustable strap; a tensioner is installed on the adjustable strap; an angle adjuster is installed between the telescopic rod and the chest frame. The hunchback corrector provided by the present application is easy to wear and can reduce interference with limbs during exercise.

Description

Humpback corrector

Technical Field

The utility model discloses the technical field of general medical care equipment, in particular to a humpback corrector.

Background

At present, people are particularly easy to cause health hazards such as cervical spondylosis, scapulohumeral periarthritis, humpback and the like when people face computers and work at desk for a long time due to poor sitting posture and standing posture, so that the people need to be prevented in advance.

The humpback corrector can be directed against and carry out the posture correction in all kinds of crowds, however at the in-process that uses, it has inconvenient wearing, and the wearing back travelling comfort is relatively poor, and the corrector easily produces with the human body and interferes, has influenced user's experience.

Disclosure of Invention

In view of the above-mentioned defects or shortcomings in the prior art, it is desirable to provide a kyphosis corrector which is convenient to wear, reduces interference between the exercise process and limbs, and has good experience.

The application provides a humpback corrector, which comprises a chest frame, adjustable straps arranged on the chest frame, telescopic rods arranged on two sides below the chest frame, and a waist fixing belt arranged between the bottoms of the two telescopic rods;

a tensioner is arranged on the adjustable back strap;

an angle adjuster is arranged between the telescopic rod and the chest frame.

According to the technical scheme provided by the embodiment of the application, the angle adjuster comprises a first connecting piece, a second connecting piece, a first screw rod, a nut and a spring;

the first connecting piece and the second connecting piece are both of a circular structure and are arranged along the vertical direction, a plurality of convex blocks are arranged on one side of the first connecting piece, which is close to the second connecting piece, along the radial direction, and a plurality of grooves are arranged on the second connecting piece, which correspond to the convex blocks;

the first connecting piece is provided with a first mounting hole, the second connecting piece is provided with a second mounting hole, and the first screw penetrates through the first mounting hole and the second mounting hole to be in threaded connection with the nut; the spring is arranged on the first screw and positioned between the nut and the second connecting piece;

the top of the first connecting piece is provided with a first connecting rod which is fixedly connected with the vertical fixing rod, and the bottom of the second connecting piece is provided with a second connecting rod which is hinged with the top of the telescopic rod.

According to the technical scheme that this application embodiment provided, the telescopic link is kept away from the pothook is installed to second connection piece one end, waist fixed band both sides are installed and are adjusted the knot, adjust buckle be equipped with be used for with pothook joint complex draw-in groove.

According to the technical scheme provided by the embodiment of the application, the vertical fixing rod is provided with threads, the vertical fixing rod is provided with the lifting adjusting assembly, and the lifting adjusting assembly is movably connected with the adjustable straps.

According to the technical scheme provided by the embodiment of the application, an adjustable neck strap is installed between the two vertical fixing rods.

According to the technical scheme that this application embodiment provided, install the gasbag on the horizontal beam, the gasbag intercommunication has the trachea, the trachea is kept away from the one end of gasbag is equipped with the emulsion ball.

According to the technical scheme provided by the embodiment of the application, the horizontal beam and the vertical fixing rods are hollow and communicated with each other, the side walls of the two vertical fixing rods are provided with first through holes, and one side of the horizontal beam, which is close to the air bag, is provided with a second through hole;

the air pipe comprises a first air pipe and a second air pipe; one ends of the first air pipe and the second air pipe are respectively inserted into the horizontal cross beam through the two first through holes and are communicated with the air bag through the second through holes; the latex ball is installed at the other end of each of the first air pipe and the second air pipe.

According to the technical scheme provided by the embodiment of the application, one side, far away from the air bag, of the horizontal cross beam is provided with a plurality of visual through holes.

According to the technical scheme provided by the embodiment of the application, the flexible sleeve is sleeved outside the telescopic rod.

The beneficial effect of this application lies in: in the use process, the length of the adjustable back belt is adjusted through the tensioner, so that the chest frame is placed at the chest position of a user, and the waist fixing belt is tied at the waist position; because chest frame below is equipped with the telescopic link, simultaneously the telescopic link with still install angle regulator between the chest frame, make adjustably the chest frame with the deflection angle and the length of telescopic link have reduced the interference between device and human body, and it is comparatively comfortable to dress.

Drawings

Other features, objects and advantages of the present application will become more apparent upon reading of the following detailed description of non-limiting embodiments thereof, made with reference to the accompanying drawings in which:

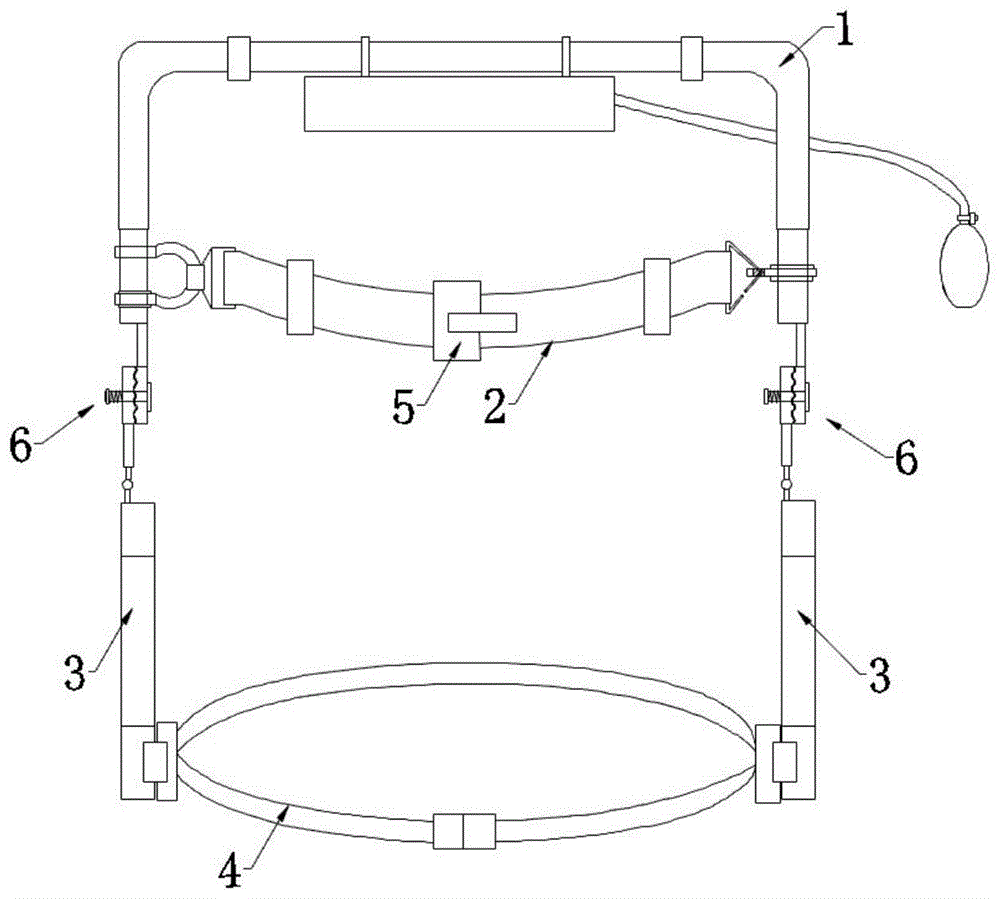

fig. 1 is a schematic structural diagram of a kyphosis corrector provided in the present application;

FIG. 2 is a schematic view of the mounting structure of the adjustable back strap 2 shown in FIG. 1;

fig. 3 is a front view of the angle adjuster 6 shown in fig. 1;

FIG. 4 is a schematic view of the adjustable neck strap 9 mounted between the vertical fixing rods 8 shown in FIG. 2;

fig. 5 is a schematic structural view of the air tube 20 shown in fig. 1 installed in the vertical fixing rod 8.

Reference numbers in the figures:

1. a chest frame; 2. adjustable braces; 3. a telescopic rod; 4. waist fixing belts; 5. a tensioner; 6. an angle adjuster; 7. a horizontal cross beam; 8. a vertical fixing rod; 9. an adjustable neck strap; 10. a first connecting piece; 11. a second connecting sheet; 12. a first screw; 13. a spring; 14. a nut; 15. a first connecting member; 16. a second connecting member; 17. a hook; 18. adjusting buckles; 19. an air bag; 20. an air tube; 21. latex balls; 22. a first through hole; 23. a second through hole; 24. a first air pipe; 25. a second air pipe; 26. a visible through hole; 27. a first threaded portion; 28. a second threaded portion; 29. a snap ring; 30. a first fastening nut; 31. connecting sheets; 32. a second fastening nut; 33. mounting holes; 34. buckling; 35. a snap ring; 36. and (4) a hinge.

Detailed Description

The present application will be described in further detail with reference to the following drawings and examples. It is to be understood that the specific embodiments described herein are merely illustrative of the relevant invention and not restrictive of the invention. It should be noted that, for convenience of description, only the portions related to the present invention are shown in the drawings.

It should be noted that the embodiments and features of the embodiments in the present application may be combined with each other without conflict. The present application will be described in detail below with reference to the embodiments with reference to the attached drawings.

Please refer to fig. 1, which illustrates a kyphosis corrector provided by the present application, comprising a chest frame 1, adjustable straps 2 installed on the chest frame 1, telescopic rods 3 installed at two sides below the chest frame 1, and a waist fixing strap 4 installed between the bottoms of the two telescopic rods 3;

a tensioner 5 is arranged on the adjustable back strap 2;

an angle adjuster 6 is arranged between the telescopic rod 3 and the chest frame 1.

The working principle is as follows: in the using process, the length of the adjustable back belt 2 is adjusted through the tensioner 5, so that the chest frame 1 is placed at the chest position of a user, and meanwhile, the waist fixing belt 4 is tied at the waist position, and the tensioner 5 is arranged on the adjustable back belt 2, so that the adjustable back belt 2 can be conveniently tensioned and is convenient to wear; simultaneously because chest frame 1 below is equipped with telescopic link 3, telescopic link 3 with still install angle modulation ware 6 between chest frame 1, make adjustably chest frame 1 with the deflection angle and the length of telescopic link 3 have reduced the interference between device and human body, and is comparatively comfortable after the dress.

In the preferred embodiment of the breast frame 1, the breast frame 1 comprises a horizontal beam 7 and vertical fixing rods 8 located at two sides below the horizontal beam 7.

Specifically, the chest frame 1 is of a U-shaped structure with a downward opening, and the horizontal cross beam 7 and the vertical fixing rod 8 are of an integrated structure.

In a preferred embodiment of the angle adjuster 6, as shown in fig. 3, the angle adjuster 6 includes a first connecting piece 10, a second connecting piece 11, a first screw 12, a nut 14, and a spring 13;

the first connecting piece 10 and the second connecting piece 11 are both of a circular structure and are arranged along the vertical direction, a plurality of convex blocks 12 are arranged on one side of the first connecting piece 10 close to the second connecting piece 11 along the radial direction, and a plurality of grooves 13 are arranged on the second connecting piece 11 corresponding to the convex blocks 12;

a first mounting hole is formed in the first connecting piece 10, a second mounting hole is formed in the second connecting piece 11, and the first screw 12 penetrates through the first mounting hole and the second mounting hole to be in threaded connection with the nut 14; the spring 13 is mounted on the first screw 12 and is located between the nut 14 and the second connecting piece 11;

the top of the first connecting piece 10 is provided with a first connecting rod 15 fixedly connected with the vertical fixing rod 8, and the bottom of the second connecting piece 11 is provided with a second connecting rod 16 hinged with the top of the telescopic rod 3.

Specifically, the second connecting rod 16 is hinged to the telescopic rod 3 through a hinge 36, and a rotating shaft of the hinge 36 is parallel to the first connecting plate 10, so that the telescopic rod 3 can rotate forwards or backwards.

Specifically, through the above structure, the chest frame 1 and the telescopic rod 3 can be adjusted to the adaptive position: that is, in the process of adjusting the first connecting rod 15 and the second connecting rod 16 to the adaptive angle, the first connecting piece 10 and the second connecting piece 11 can be driven to rotate relatively, because the first connecting piece 10 is provided with a plurality of projections 12 along the radial direction, and the second connecting piece 11 is correspondingly provided with a plurality of grooves 13 along the radial direction for accommodating the projections 12, when the first connecting piece 10 rotates relative to the second connecting piece 11, the projections 12 press the side walls of the corresponding grooves 13, the springs 13 are compressed under the action of force, when the projections 12 enter the other grooves 13, the springs 13 recover to the initial state under the action of the elastic force, and after the adjustment is completed, the nuts 14 can be screwed and fixed. Through the structure, the angle adjustment of the chest frame 1 and the telescopic rod 3 can be carried out according to the actual requirements of different crowds.

Meanwhile, because the second connecting rod 16 with the telescopic rod 3 is hinged, in the movement process, the chest frame 1 and the left and right deflection angles of the telescopic rod 3 can be automatically adjusted, so that the interference between the device and a human body is reduced, and the comfort of the user in movement after wearing is guaranteed.

In an embodiment of the telescopic rod 3, the telescopic rod 3 is far away from one end of the second connecting piece 11, a hook 17 is installed on one end of the second connecting piece, adjusting buckles 18 are installed on two sides of the waist fixing band 4, and a clamping groove used for being clamped and matched with the hook 17 is formed in each adjusting buckle 18.

Specifically, the adjusting buckle 18 is used for adjusting the length of the belt 4 to be fixed, and the waist fixing belt 4 is conveniently connected with the telescopic rod 3 by arranging a groove on the adjusting buckle 18.

Preferably, the hook 17 is provided with a mounting belt, and the mounting belt is fixedly mounted at one end of the telescopic rod 3 far away from the second connecting sheet 11 through a fastener.

In an embodiment of the vertical fixing rod 8, the vertical fixing rod 8 is provided with threads, and the vertical fixing rod 8 is provided with a lifting adjusting assembly movably connected with the adjustable back belt 2.

Specifically, a first threaded part 27 is arranged on the vertical fixing rod 8 at one side below the horizontal cross beam 7, and a second threaded part 28 is arranged on the vertical fixing rod 8 at the other side below the horizontal cross beam 7; the lifting adjusting assembly comprises a clamping ring 29 arranged on the first thread part 27, first fastening nuts 30 positioned on two sides of the clamping ring 29, a connecting piece 31 arranged on the second thread part 28 and second fastening nuts 32 positioned on two sides of the connecting piece 31;

as shown in fig. 2, a first insertion hole for inserting into the first threaded portion 27 is formed at an end portion of the snap ring 29, the first fastening nut 30 is screwed with the first threaded portion 27, and the two first fastening nuts 30 are respectively disposed at two sides of the first insertion hole;

the snap ring 29 is of a U-shaped structure, two ends of the snap ring 29 are inserted into the first thread portions 27, and after the snap ring is adjusted to be suitable for the lifting position, the snap ring 29 is fastened and fixed through two first fastening nuts 30 located on two sides of the snap ring.

As shown in fig. 2, the connecting piece 31 is provided with a mounting hole 33 and a second insertion hole for inserting into the second threaded portion 28, the second fastening nut 32 is in threaded connection with the second threaded portion 28, and the two second fastening nuts 32 are respectively disposed on two sides of the second insertion hole.

One end of the adjustable back strap 2 is provided with a buckle 34 which is used for being matched with the snap ring 29 in a clamping way; the other end of the adjustable back strap 2 is provided with a clamping ring 35 which is inserted into the mounting hole 33. Preferably, the snap ring 35 is a triangular structure, and a notch for inserting into the mounting hole 33 is formed in the snap ring 35.

Through the structure, the adjustable connecting piece 31 and the lifting position of the snap ring 29 are enabled to be adjusted, so that the adjustable back belt 2 can be suitable for different people, the applicability is increased, and meanwhile, the wearing comfort level is also improved.

Wherein, in the preferred embodiment of the vertical fixing rods 8, an adjustable neck strap 9 is installed between the two vertical fixing rods 8.

Preferably, as shown in fig. 5, one end of the adjustable neck strap 9 is movably connected with the snap ring 29, and the other end of the adjustable neck strap 9 is movably connected with the mounting hole 33.

Specifically, the adjustable neck strap 9 is provided with an adjusting buckle so as to adjust the length. Through setting up adjustable napestrap 9 for can share the support atress of waist and back, make more comfortable after the dress.

In a preferred embodiment of the horizontal beam 7, an air bag 19 is installed on the horizontal beam 7, the air bag 19 is communicated with an air tube 20, and an end of the air tube 20 away from the air bag 19 is provided with a latex ball 21.

Specifically, the horizontal cross beam 7 is provided with an installation frame which is a rectangular iron sheet; the mounting frame is provided with a chest frame cushion, and the air bag 19 is arranged on the chest frame cushion. The air bag 19 and the chest frame pad can be fixed into a whole by sewing and the like.

Preferably, the horizontal cross beam 7 and the vertical fixing rod 8 are sleeved with rubber sleeves; the air pipe 20 is installed between the rubber sleeve and the chest frame 1.

Specifically, when the chest frame 1 is used, the chest position of a user is adjusted, the latex ball 21 inflates the air bag 19, and one side, away from the horizontal cross beam 7, of the air bag 19 is in contact with the chest of the human body; the air bag 19 can provide correction supporting force for the chest position of a user, improves comfort, and has better wearing experience.

In a preferred embodiment of the horizontal beam 7, as shown in fig. 5, the horizontal beam 7 and the vertical fixing rods 8 are hollow and communicated with each other, the side walls of the two vertical fixing rods 8 are both provided with a first through hole 22, and one side of the horizontal beam 7 close to the airbag 19 is provided with a second through hole 23;

the air pipe 20 comprises a first air pipe 24 and a second air pipe 25; one ends of the first air pipe 24 and the second air pipe 25 are respectively inserted into the horizontal cross beam 7 through the two first through holes 22, and are communicated with the air bag 19 through the second through hole 23; the latex ball 21 is mounted at the other end of each of the first air pipe 24 and the second air pipe 25.

Specifically, by arranging the first air pipe 24 and the second air pipe 25 with the latex ball 21, a user can conveniently inflate the air bag 19 in the using process, the inflation efficiency is improved, and the inflation process is more convenient. Meanwhile, the horizontal cross beam 7 and the vertical fixing rods 8 are hollow, so that the first air pipe 24 and the second air pipe 25 can respectively penetrate through the two vertical fixing rods 8 to enter the horizontal cross beam 7 and are communicated with the air bag 19 through the second through holes 23 on the horizontal cross beam. In the above structure, on one hand, the horizontal cross beam 7 and the vertical fixing rod 8 can protect the first air pipe 24 and the second air pipe 25; on the other hand, the horizontal cross beam 7 and the vertical fixing rod 8 also provide limiting supports for the first air pipe 24 and the second air pipe 25, so that the first air pipe 24, the second air pipe 25 and the air bag 19 are prevented from interfering with a human body in the wearing and moving process of a user; meanwhile, with the structure, the communication structure on the air bag for communicating with the first air pipe 24 and the second air pipe 25 can be inserted into the second through hole 23, so that the structure is more compact.

In a preferred embodiment of the horizontal beam 7, a plurality of visible through holes 26 are formed on the side of the horizontal beam 7 away from the airbag 19. By arranging a plurality of the visual through holes, the first air pipe 24 and the second air pipe 25 can be conveniently and fixedly communicated with the air bag 19.

In a preferred embodiment of the telescopic rod 3, a flexible sleeve is sleeved outside the telescopic rod 3. Through setting up the flexible cover makes and avoids the flexible in-process of telescopic link 3 presss from both sides wounded skin, has all played the guard action to user and telescopic link 3 itself.

The above description is only a preferred embodiment of the application and is illustrative of the principles of the technology employed. It will be appreciated by a person skilled in the art that the scope of the invention as referred to in the present application is not limited to the embodiments with a specific combination of the above-mentioned features, but also covers other embodiments with any combination of the above-mentioned features or their equivalents without departing from the inventive concept. For example, the above features may be replaced with (but not limited to) features having similar functions disclosed in the present application.

Claims

1. A hunchback corrector is characterized in that: comprise a chest frame (1), an adjustable strap (2) installed on the chest frame (1), and a pair of straps installed on both sides below the chest frame (1). a telescopic rod (3), and a waist fixing belt (4) installed between the bottoms of the two telescopic rods (3);

A tensioner (5) is installed on the adjustable strap (2);

An angle adjuster (6) is installed between the telescopic rod (3) and the chest frame (1).

2. A hunchback corrector according to claim 1, characterized in that: the chest frame (1) comprises a horizontal beam (7) and vertical fixing rods ( 8).

3. The hunchback corrector according to claim 2, wherein the angle adjuster (6) comprises a first connecting piece (10), a second connecting piece (11), and a first screw (12) , nut (14) and spring (13);

The first connecting piece (10) and the second connecting piece (11) are both circular in structure and arranged in a vertical direction, and the first connecting piece (10) is close to the side of the second connecting piece (11). A plurality of protrusions (12) are provided along the radial direction, and the second connecting piece (11) is provided with a plurality of grooves (13) corresponding to the protrusions (12);

The first connecting piece (10) is provided with a first mounting hole, the second connecting piece (11) is provided with a second mounting hole, and the first screw (12) passes through the first mounting hole and the second mounting hole is threadedly connected with the nut (14); the spring (13) is mounted on the first screw (12) and located between the nut (14) and the second connecting piece (11) between;

A first connecting rod (15) for fixedly connecting with the vertical fixing rod (8) is installed on the top of the first connecting piece (10), and a bottom connecting piece (11) is installed on the bottom for connecting with the vertical fixing rod (8). A second connecting rod (16) hinged at the top of the telescopic rod (3).

The hunchback corrector according to claim 3, characterized in that: a hook (17) is installed at one end of the telescopic rod (3) away from the second connecting piece (11), and the waist fixing belt is provided with a hook (17). (4) Adjustment buckles (18) are installed on both sides, and the adjustment buckles (18) are provided with card slots for engaging and engaging with the hooks (17).

5. A hunchback corrector according to claim 2, characterized in that: the vertical fixing rod (8) is provided with a thread, and the vertical fixing rod (8) is provided with a lifting adjustment assembly, so The lift adjustment assembly is movably connected with the adjustable strap (2).

6 . The hunchback corrector according to claim 2 , wherein an adjustable neck strap ( 9 ) is installed between the two vertical fixing rods ( 8 ). 7 .

7. A hunchback corrector according to claim 2, characterized in that: an air bag (19) is installed on the horizontal beam (7), the air bag (19) is connected with a trachea (20), and the trachea (20) is connected to the air bag (19). (20) A latex ball (21) is provided at one end away from the airbag (19).

8 . The hunchback corrector according to claim 7 , wherein the horizontal beam ( 7 ) and the vertical fixing rod ( 8 ) are hollow inside and communicate with each other, and the two vertical fixing rods (8) First through holes (22) are opened on the side walls, and second through holes (23) are opened on the side of the horizontal beam (7) close to the airbag (19);

The trachea (20) includes a first trachea (24) and a second trachea (25); one end of the first trachea (24) and the second trachea (25) respectively pass through the two first through holes (22) ) is inserted into the horizontal beam (7), and communicated with the air bag (19) through the second through hole (23); the other ends of the first trachea (24) and the second trachea (25) Both are installed with the latex balls (21).

9 . The hunchback corrector according to claim 8 , wherein a plurality of visible through holes ( 26 ) are formed on the side of the horizontal beam ( 7 ) away from the air bag ( 19 ). 10 .
