Abstract

本发明涉及一种切割装置，更具体的说是一种悬挂夹紧式切割装置。一种悬挂夹紧式切割装置，包括竖柱、平柱、油缸I、勾杆和切割盘，所述平柱的后端滑动连接有勾杆，竖柱的上端固定连接在平柱的前端，竖柱与平柱之间垂直设置，油缸I的一端固定连接在平柱上，油缸I的另一端固定连接在勾杆上；竖柱的前侧设置有切割盘。所述悬挂夹紧式切割装置还包括凸头和T形座，勾杆的后部设置有凸头，竖柱后侧的上下两端均固定连接有T形座；两个T形座支撑在建筑墙外，凸头支撑在建筑墙内。所述悬挂夹紧式切割装置还包括导柱、矩形框和油缸II，竖柱前侧的上下两端均固定连接有导柱，矩形框的上下两端分别在前后方向上滑动连接在两个导柱上。

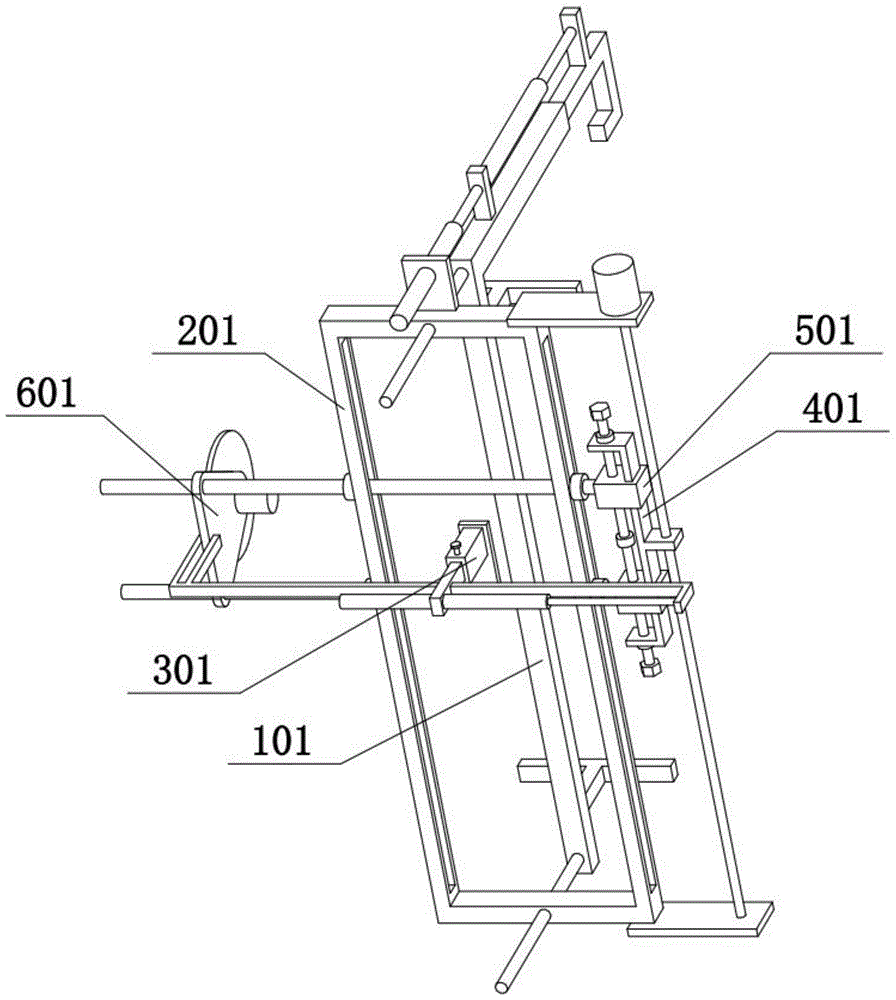

Figure 202110241634

The present invention relates to a cutting device, more particularly to a hanging clamping type cutting device. A suspension clamping type cutting device, comprising a vertical column, a flat column, an oil cylinder I, a hook rod and a cutting disc, the rear end of the flat column is slidably connected with a hook rod, and the upper end of the vertical column is fixedly connected to the front end of the flat column, The vertical column and the flat column are vertically arranged, one end of the oil cylinder I is fixedly connected to the flat column, and the other end of the oil cylinder I is fixedly connected to the hook rod; the front side of the vertical column is provided with a cutting disc. The hanging clamping cutting device also includes a convex head and a T-shaped seat, the rear part of the hook rod is provided with a convex head, and the upper and lower ends of the rear side of the vertical column are fixedly connected with the T-shaped seat; the two T-shaped seats are supported on the Outside the building wall, the protruding head is supported inside the building wall. The hanging clamping cutting device also includes a guide post, a rectangular frame and an oil cylinder II. The upper and lower ends of the front side of the vertical post are fixedly connected with the guide post, and the upper and lower ends of the rectangular frame are slidably connected to the two in the front and rear directions respectively. on the guide post.

Figure 202110241634

Description

Hanging clamping type cutting device
Technical Field
The invention relates to a cutting device, in particular to a suspended clamping type cutting device.
Background
The invention discloses a cutting device accessory, a cutting device and an optical fiber cutting method for a special optical fiber, and the application number is CN 201911344624.4. The cutting device accessory comprises a clamp, a visual observation device, a top breaker and an adjustable translation table; the clamp is arranged in a groove, parallel to the optical fiber placing direction, of a one-dimensional translation table of the cutting device in a releasable mode and used for clamping and locking one end of the optical fiber to be cut; the visual observation device is arranged on the lifting adjusting frame of the adjustable translation table and is used for observing the part to be cut of the optical fiber to be cut; the ejector comprises an ejector pressing block and an actuator for driving the ejector pressing block to apply ejecting pressure to the optical fiber to be cut; the jacking block is arranged at the moving part of the actuator and used for jacking and cutting the pre-cutting position of the optical fiber to be cut after the optical fiber to be cut is pre-cut by a cutter of the cutting device so as to break the optical fiber to be cut. The cutting end face of the optical fiber can be smooth without tailing by the scheme. But the device cannot be hung on the building outer wall of a roof to cut the building outer wall.
Disclosure of Invention
In order to overcome the defects of the prior art, the invention provides the hanging clamping type cutting device which has the beneficial effect that the hanging clamping type cutting device can be hung on the building outer wall of a roof to cut the building outer wall.
The technical scheme adopted by the invention for solving the technical problems is as follows:
a hanging clamping type cutting device comprises a vertical column, a flat column, an oil cylinder I, a hook rod and a cutting disc, wherein the hook rod is connected to the rear end of the flat column in a sliding mode;
the front side of the vertical column is provided with a cutting disc.
The hanging clamping type cutting device also comprises a raised head and a T-shaped seat, the raised head is arranged at the rear part of the hook rod, and the upper end and the lower end of the rear side of the vertical column are fixedly connected with the T-shaped seat;
the two T-shaped seats are supported outside the building wall, and the raised heads are supported inside the building wall.
The suspended clamping type cutting device further comprises guide pillars, a rectangular frame and oil cylinders II, the upper end and the lower end of the front side of each vertical pillar are fixedly connected with the guide pillars, the upper end and the lower end of each rectangular frame are respectively connected to the two guide pillars in a sliding mode in the front-back direction, the oil cylinders II are fixedly connected to the upper portions of the rectangular frames, and the rear ends of the oil cylinders II are fixedly connected to the upper portions of the flat pillars.
The suspended clamping type cutting device further comprises sliding holes, seat plates, a motor I, a lead screw, vertical bars, threaded hole plates, sliding blocks, round rods and limiting rings, wherein the sliding holes are formed in the left side and the right side of the rectangular frame, the upper end and the lower end of the right side of the rectangular frame are fixedly connected with the seat plates, the motor I is fixedly connected onto the seat plate located on the upper side, the lead screw is fixedly connected onto an output shaft of the motor I, one round rod is arranged above and below the round rods, the left end and the right end of each round rod respectively penetrate through the two sliding holes, the left end and the right end of each round rod are fixedly connected with the limiting rings, the two limiting rings on the same round rod are respectively attached to the left side and the right side of the rectangular frame, the sliding blocks are respectively fixedly connected to the right ends of the two round rods, the two sliding blocks are respectively arranged at the upper end and the lower end of the vertical bars, the threaded hole plates are fixedly connected to the right side of the vertical bars, and the lead screw is matched with the threaded hole plates through threads;
the cutting disc is arranged between the left parts of the two round rods.
Hang clamp type cutting device and still include the lug, keep off ring and double-threaded rod, the equal vertical sliding connection of two sliders is on the vertical retort, the equal fixedly connected with lug in upper and lower both ends of vertical retort, the upper and lower both ends of double-threaded rod are rotated respectively and are connected on two lugs, the equal fixedly connected with in upper and lower both ends of double-threaded rod keeps off the ring, two keep off the ring respectively with the outside laminating of two lugs, the screw thread of two parts about the double-threaded rod is to opposite, the double-threaded rod passes through the screw thread and cooperatees with two sliders.
Hang clamp type cutting device and still include translation seat and motor II, translation seat sliding connection is between the left part of two round bars about in the direction, fixedly connected with motor II on the translation seat, fixedly connected with cutting disc on motor II's the output shaft.
The suspended clamping type cutting device further comprises a hollow seat, a fastening screw, fork rods, a transverse moving rod, a solid column, an oil cylinder III and a convex plate, wherein the convex plate is fixedly connected to the middle of the round rod located on the lower side;
when the transverse moving rod moves left and right, the translation seat is driven to move left and right along the two round rods.
The suspended clamping type cutting device has the beneficial effects that:
the cutting tool can be hung on the building outer wall of a roof to cut the building outer wall, so that the condition that the building wall of a high building is not easy to cut is avoided.
Drawings
The invention is described in further detail below with reference to the accompanying drawings and specific embodiments.
FIG. 1 is a first schematic view of a suspended clamp type cutting apparatus;
FIG. 2 is a second schematic view of a suspended clamp type cutting apparatus;
FIG. 3 is a first schematic structural view of a vertical column;
FIG. 4 is a second schematic structural view of the upstand;
FIG. 5 is a schematic structural diagram of a rectangular frame;
FIG. 6 is a schematic structural view of the hollow seat;
FIG. 7 is a schematic structural view of the vertical bar, the slide block and the translation seat;
fig. 8 is a schematic structural view of the translation stage.
In the figure: a vertical post 101; a guide post 102; a flat column 103; an oil cylinder I104; a hook bar 105; a nose 106; a T-shaped seat 107; a rectangular frame 201; a slide hole 202; a cylinder II 203; a seat plate 204; a motor I205; a lead screw 206; a hollow base 301; a fastening screw 302; a fork shaft 303; a traverse bar 304; a solid column 305; a cylinder III 306; a convex plate 307; a vertical bar 401; a threaded orifice plate 402; a tab 403; a retainer ring 404; a double threaded rod 405; a slider 501; a round bar 502; a stop collar 503; a translation stage 601; a cutting disk 602; motor II 603.
Detailed Description
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "up", "down", "front", "back", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on those shown in the drawings, and are used only for convenience in describing the present invention and for simplicity in description, and do not indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and thus, are not to be construed as limiting the present invention. Furthermore, the terms "first", "second", etc. are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first," "second," etc. may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless otherwise specified.
The first embodiment is as follows:
the embodiment is described below with reference to fig. 1 to 8, and a suspended clamping type cutting device includes a vertical column 101, a flat column 103, an oil cylinder I104, a hook rod 105 and a cutting disc 602, wherein the hook rod 105 is slidably connected to the rear end of the flat column 103, the upper end of the vertical column 101 is fixedly connected to the front end of the flat column 103, the vertical column 101 and the flat column 103 are vertically arranged, one end of the oil cylinder I104 is fixedly connected to the flat column 103, and the other end of the oil cylinder I104 is fixedly connected to the hook rod 105;
the front side of the upstand 101 is provided with a cutting disc 602. When the cutting device needs to be hung on the building outer wall protruding from the top of a building, the rear part of the hook rod 105 is placed on the inner side of the building outer wall, the vertical column 101 is placed on the outer side of the building outer wall, then the oil cylinder I104 stretches and retracts to drive the hook rod 105 to slide on the flat column 103, the vertical column 101 and the hook rod 105 are driven to be clamped on the building outer wall protruding from the top of the building, the cutting device is hung on the top of the building, and the cutting disc 602 on the front side of the vertical column 101 is convenient to cut the building outer wall.
The second embodiment is as follows:
the embodiment is described below with reference to fig. 1 to 8, and the embodiment further describes the first embodiment, the suspended clamping type cutting device further includes a raised head 106 and a T-shaped seat 107, the raised head 106 is disposed at the rear part of the hook rod 105, and the upper and lower ends of the rear side of the vertical column 101 are fixedly connected with the T-shaped seat 107;
two T-shaped seats 107 are supported on the outside of the building wall and a nose 106 is supported within the building wall. The nose 106 can be pressed against the inner side of the wall, and the two T-shaped seats 107 can be pressed against the outer side of the building outer wall, so that the whole cutting device is stably fixed on the building outer wall with a convex roof.
The third concrete implementation mode:
the present embodiment is described below with reference to fig. 1 to 8, and the present embodiment further describes a second specific embodiment, the suspended clamp type cutting device further includes guide pillars 102, a rectangular frame 201, and an oil cylinder II203, the guide pillars 102 are fixedly connected to both upper and lower ends of the front side of the vertical pillar 101, the upper and lower ends of the rectangular frame 201 are respectively slidably connected to the two guide pillars 102 in the front-rear direction, the oil cylinder II203 is fixedly connected to the upper portion of the rectangular frame 201, and the rear end of the oil cylinder II203 is fixedly connected to the upper portion of the flat pillar 103.
The fourth concrete implementation mode is as follows:
the third embodiment is described below with reference to fig. 1 to 8, and further described, the suspended clamp type cutting device further includes a slide hole 202, a seat plate 204, a motor I205, a screw 206, a vertical bar 401, a threaded hole plate 402, a slider 501, a round bar 502, and a stop ring 503, the slide hole 202 is disposed on each of the left and right sides of the rectangular frame 201, the seat plate 204 is fixedly connected to each of the upper and lower ends of the right side of the rectangular frame 201, the motor I205 is fixedly connected to the seat plate 204 located on the upper side, the screw 206 is fixedly connected to the output shaft of the motor I205, one round bar 502 is disposed on each of the upper and lower sides, the two slide holes 202 are respectively passed through each of the left and right ends of each round bar 502, the stop ring 503 is fixedly connected to each of the left and right ends of each round bar 502, the two stop rings 503 on the same round bar 502 are respectively attached to the left and right sides of the rectangular frame 201, the slider 501 is fixedly connected to each of the right ends of the two round bars 502, the two sliding blocks 501 are respectively arranged at the upper end and the lower end of the vertical bar 401, the right side of the vertical bar 401 is fixedly connected with a threaded hole plate 402, and the screw rod 206 is matched with the threaded hole plate 402 through threads;
the cutting disc 602 is disposed between the left portions of the two circular rods 502. Hydro-cylinder II203 drives rectangle frame 201 and slides along two guide pillars 102 front and back when flexible, and then drives two round bar 502 back-and-forth movement, and then drives the cutting disc 602 back-and-forth movement that sets up between the left part of two round bar 502, control cutting disc 602 leaves or cuts into the building wall, motor I205 drives lead screw 206 and rotates, and then drives threaded hole board 402 and vertical retort 401 and reciprocate, and then drives two round bar 502 and reciprocate simultaneously, and then drives cutting disc 602 and reciprocate, it can cut the building wall to drive cutting disc 602 and reciprocate after cutting disc 602 cuts into the wall. The two limiting rings 503 on the round rod 502 are used for preventing the round rod 502 from moving left and right relative to the rectangular frame 201.
The fifth concrete implementation mode:
the following describes the present embodiment with reference to fig. 1 to 8, which further describes a fourth specific embodiment, the suspended clamp type cutting device further includes a protruding piece 403, a blocking ring 404, and a double-threaded rod 405, the two sliding blocks 501 are vertically and slidably connected to the vertical bar 401, the protruding piece 403 is fixedly connected to both upper and lower ends of the vertical bar 401, the upper and lower ends of the double-threaded rod 405 are respectively rotatably connected to the two protruding pieces 403, the blocking ring 404 is fixedly connected to both upper and lower ends of the double-threaded rod 405, the two blocking rings 404 are respectively attached to the outer sides of the two protruding pieces 403, the thread directions of the upper and lower portions of the double-threaded rod 405 are opposite, and the double-threaded rod 405 is engaged with the two sliding blocks 501 through threads. When the double-threaded rod 405 rotates, the two sliding blocks 501 are driven to move close to or away from each other, so that the distance between the two round rods 502 is adjusted, and the cutting discs 602 with different sizes can be mounted between the two round rods 502.
The sixth specific implementation mode:
the present embodiment is described below with reference to fig. 1 to 8, and the present embodiment further describes a fifth embodiment, the suspended clamp type cutting device further includes a translation seat 601 and a motor II603, the translation seat 601 is slidably connected between the left portions of the two round bars 502 in the left-right direction, the motor II603 is fixedly connected to the translation seat 601, and the cutting disc 602 is fixedly connected to an output shaft of the motor II 603. The translation seat 601 can move left and right between the left parts of the two round rods 502 to adjust the left and right positions of the cutting disc 602, and the motor II603 is used for driving the cutting disc 602 to rotate, so that the cutting disc 602 can cut the wall.
The seventh embodiment:
this embodiment will be described with reference to fig. 1 to 8, which further illustrate a sixth embodiment, the suspended clamping type cutting device further comprises a hollow seat 301, a fastening screw 302, fork rods 303, a transverse moving rod 304, a solid column 305, an oil cylinder III306 and a convex plate 307, wherein the convex plate 307 is fixedly connected to the middle of the round rod 502 located on the lower side, the hollow seat 301 is fixedly connected to the front side of the convex plate 307, the solid column 305 is inserted into the hollow seat 301, the fastening screw 302 is connected to the hollow seat 301 through threads, the fastening screw 302 is pressed on the solid column 305, the transverse moving rod 304 is transversely connected to the front portion of the solid column 305 in a sliding mode, the left portion of the transverse moving rod 304 is fixedly connected with the two fork rods 303, the two fork rods 303 are respectively located on the left side and the right side of the transverse moving seat 601, the oil cylinder III306 is fixedly connected to the front portion of the solid column 305, and the right end of the oil cylinder III306 is fixedly connected to the right end of the transverse moving rod 304;
when the traversing rod 304 moves left and right, the translation base 601 is driven to move left and right along the two round rods 502. After the fastening screw 302 is loosened, the solid column 305 can be conveniently detached from the hollow seat 301, so that the two fork rods 303 leave the translation seat 601, the oil cylinder III306 drives the transverse moving rod 304 to move left and right when stretching, the two fork rods 303 are driven to move left and right to drive the translation seat 601 and the cutting disc 602 to move left and right, and the left and right positions of the cutting disc 602 are adjusted.
It is to be understood that the above description is not intended to limit the present invention, and the present invention is not limited to the above examples, and that various changes, modifications, additions and substitutions which may be made by one of ordinary skill in the art within the spirit and scope of the present invention are also within the scope of the present invention.

Claims (2)

1.一种悬挂夹紧式切割装置，包括竖柱(101)、平柱(103)、油缸I(104)、勾杆(105)和切割盘(602)，其特征在于：所述平柱(103)的后端滑动连接有勾杆(105)，竖柱(101)的上端固定连接在平柱(103)的前端，竖柱(101)与平柱(103)之间垂直设置，油缸I(104)的一端固定连接在平柱(103)上，油缸I(104)的另一端固定连接在勾杆(105)上；1. A hanging clamping type cutting device, comprising a vertical column (101), a flat column (103), an oil cylinder I (104), a hook rod (105) and a cutting disc (602), characterized in that: the flat column The rear end of (103) is slidably connected with a hook rod (105), the upper end of the vertical column (101) is fixedly connected to the front end of the flat column (103), the vertical column (101) and the flat column (103) are vertically arranged, and the oil cylinder One end of the I (104) is fixedly connected to the flat column (103), and the other end of the oil cylinder I (104) is fixedly connected to the hook rod (105); 竖柱(101)的前侧设置有切割盘(602)；The front side of the vertical column (101) is provided with a cutting disc (602); 所述悬挂夹紧式切割装置还包括凸头(106)和T形座(107)，勾杆(105)的后部设置有凸头(106)，竖柱(101)后侧的上下两端均固定连接有T形座(107)；The hanging clamping type cutting device further comprises a convex head (106) and a T-shaped seat (107), a convex head (106) is provided at the rear of the hook rod (105), and the upper and lower ends of the rear side of the vertical column (101) are provided with a convex head (106). Both are fixedly connected with a T-shaped seat (107); 两个T形座(107)支撑在建筑墙外，凸头(106)支撑在建筑墙内；Two T-shaped seats (107) are supported outside the building wall, and the protruding head (106) is supported inside the building wall; 所述悬挂夹紧式切割装置还包括导柱(102)、矩形框(201)和油缸II(203)，竖柱(101)前侧的上下两端均固定连接有导柱(102)，矩形框(201)的上下两端分别在前后方向上滑动连接在两个导柱(102)上，矩形框(201)的上部固定连接有油缸II(203)，油缸II(203)的后端固定连接在平柱(103)的上部；The hanging clamping type cutting device further comprises a guide post (102), a rectangular frame (201) and an oil cylinder II (203). The upper and lower ends of the front side of the vertical post (101) are fixedly connected with the guide post (102). The upper and lower ends of the frame (201) are respectively slidably connected to the two guide posts (102) in the front and rear directions, the upper part of the rectangular frame (201) is fixedly connected with an oil cylinder II (203), and the rear end of the oil cylinder II (203) is fixed Connected to the upper part of the flat column (103); 所述悬挂夹紧式切割装置还包括滑孔(202)、座板(204)、电机I(205)、丝杠(206)、竖条(401)、螺纹孔板(402)、滑块(501)、圆杆(502)和限位环(503)，矩形框(201)的左右两侧均设置有滑孔(202)，矩形框(201)右侧的上下两端均固定连接有座板(204)，位于上侧的座板(204)上固定连接有电机I(205)，电机I(205)的输出轴上固定连接有丝杠(206)，圆杆(502)上下各设置有一个，每个圆杆(502)的左右两端分别穿过两个滑孔(202)，每个圆杆(502)的左右两端均固定连接有限位环(503)，同一圆杆(502)上的两个限位环(503)分别与矩形框(201)的左右两侧贴合，两个圆杆(502)的右端均固定连接有滑块(501)，两个滑块(501)分别设置在竖条(401)的上下两端，竖条(401)的右侧固定连接有螺纹孔板(402)，丝杠(206)通过螺纹与螺纹孔板(402)相配合；The hanging clamping type cutting device further comprises a sliding hole (202), a seat plate (204), a motor I (205), a lead screw (206), a vertical bar (401), a threaded hole plate (402), a sliding block ( 501), the round rod (502) and the limit ring (503), the left and right sides of the rectangular frame (201) are provided with sliding holes (202), and the upper and lower ends of the right side of the rectangular frame (201) are fixedly connected with seats A plate (204), a motor I (205) is fixedly connected to the seat plate (204) on the upper side, a lead screw (206) is fixedly connected to the output shaft of the motor I (205), and a round rod (502) is arranged up and down There is one, the left and right ends of each round rod (502) pass through two sliding holes (202) respectively, and the left and right ends of each round rod (502) are fixedly connected with a limit ring (503). The two limit rings (503) on the 502) are respectively attached to the left and right sides of the rectangular frame (201), the right ends of the two round rods (502) are fixedly connected with the sliders (501), and the two sliders ( 501) are respectively arranged at the upper and lower ends of the vertical bar (401), the right side of the vertical bar (401) is fixedly connected with a threaded orifice plate (402), and the lead screw (206) is matched with the threaded orifice plate (402) through threads; 所述切割盘(602)设置在两个圆杆(502)的左部之间；The cutting disc (602) is arranged between the left parts of the two round bars (502); 所述悬挂夹紧式切割装置还包括凸片(403)、挡环(404)和双螺纹杆(405)，两个滑块(501)均竖向滑动连接在竖条(401)上，竖条(401)的上下两端均固定连接有凸片(403)，双螺纹杆(405)的上下两端分别转动连接在两个凸片(403)上，双螺纹杆(405)的上下两端均固定连接有挡环(404)，两个挡环(404)分别与两个凸片(403)的外侧贴合，双螺纹杆(405)上下两部分的螺纹旋向相反，双螺纹杆(405)通过螺纹与两个滑块(501)相配合；The hanging clamping type cutting device further comprises a lug (403), a retaining ring (404) and a double threaded rod (405), and the two sliding blocks (501) are both vertically slidably connected to the vertical bar (401), and the vertical The upper and lower ends of the bar (401) are fixedly connected with tabs (403). The ends are fixedly connected with retaining rings (404), the two retaining rings (404) are respectively fitted with the outer sides of the two lugs (403), and the threads of the upper and lower parts of the double-threaded rod (405) (405) is matched with two sliders (501) through threads; 所述悬挂夹紧式切割装置还包括平移座(601)和电机II(603)，平移座(601)在左右方向上滑动连接在两个圆杆(502)的左部之间，平移座(601)上固定连接有电机II(603)，电机II(603)的输出轴上固定连接有切割盘(602)。The hanging clamping type cutting device further comprises a translation seat (601) and a motor II (603), the translation seat (601) is slidably connected between the left parts of the two round rods (502) in the left-right direction, and the translation seat ( 601) is fixedly connected with the motor II (603), and the output shaft of the motor II (603) is fixedly connected with a cutting disc (602). 2.根据权利要求1所述的一种悬挂夹紧式切割装置，其特征在于：所述悬挂夹紧式切割装置还包括空心座(301)、紧固螺丝(302)、叉杆(303)、横移杆(304)、实心柱(305)、油缸III(306)和凸板(307)，位于下侧的圆杆(502)的中部固定连接有凸板(307)，凸板(307)的前侧固定连接有空心座(301)，空心座(301)上插接有实心柱(305)，空心座(301)上通过螺纹连接有紧固螺丝(302)，紧固螺丝(302)压在实心柱(305)上，横移杆(304)横向滑动连接在实心柱(305)的前部，横移杆(304)的左部固定连接有两个叉杆(303)，两个叉杆(303)分别位于平移座(601)的左右两侧，实心柱(305)的前部固定连接有油缸III(306)，油缸III(306)的右端固定连接在横移杆(304)的右端；2. The hanging clamping type cutting device according to claim 1, wherein the hanging clamping type cutting device further comprises a hollow seat (301), a fastening screw (302), a fork rod (303) , traverse rod (304), solid column (305), oil cylinder III (306) and convex plate (307), the middle of the round rod (502) on the lower side is fixedly connected with convex plate (307), convex plate (307 A hollow seat (301) is fixedly connected to the front side of the ) is pressed on the solid column (305), the traverse rod (304) is slidably connected to the front of the solid column (305), and the left part of the traverse rod (304) is fixedly connected with two fork rods (303), two fork rods (303). The fork rods (303) are located on the left and right sides of the translation seat (601) respectively, the front part of the solid column (305) is fixedly connected to the oil cylinder III (306), and the right end of the oil cylinder III (306) is fixedly connected to the traverse rod (304). ) of the right end; 横移杆(304)左右移动时驱动平移座(601)沿着两个圆杆(502)左右移动。When the transverse rod (304) moves left and right, the translation seat (601) is driven to move left and right along the two round rods (502).
