Abstract
An environment-friendly purifying device belongs to the technical field of air purifying devices, and particularly relates to an environment-friendly purifying device. The invention provides environment-friendly purification equipment with good use effect. The invention comprises a spray tower, wherein the lower part of the spray tower is provided with an air inlet, an outlet at the upper end of the spray tower is connected with an inlet of a plasma incinerator through a pipeline, an outlet of the plasma incinerator is connected with an inlet of a carbon box through a second steam descaling control valve, a steam outlet is arranged on the pipeline between the outlet of the plasma incinerator and the second steam descaling control valve, and a third steam descaling control valve is arranged at the steam outlet.
Description
Technical Field
The invention belongs to the technical field of air purification equipment, and particularly relates to environment-friendly purification equipment.
Background
The environment-friendly purification equipment is necessary equipment in the production process of chemical enterprises, and plays an important role in protecting the environment. The structure of the existing environment-friendly purifying equipment needs to be further improved so as to meet higher requirements on environment-friendly standards.
Disclosure of Invention
The invention aims at the problems and provides the environment-friendly purifying equipment with good use effect.
In order to achieve the purpose, the invention adopts the following technical scheme that the device comprises a spray tower, wherein the lower part of the spray tower is provided with an air inlet, an outlet at the upper end of the spray tower is connected with an inlet of a plasma incinerator through a pipeline, an outlet of the plasma incinerator is connected with an inlet of a carbon box through a second steam descaling control valve, a steam outlet is arranged on the pipeline between the outlet of the plasma incinerator and the second steam descaling control valve, and a third steam descaling control valve is arranged at the steam outlet;
the carbon box is provided with a high-temperature steam inlet and a carbon box descaling steam outlet which are used for descaling carbon blocks in the carbon box;
a pipeline between an outlet at the upper end of the spray tower and an inlet of the plasma incinerator is connected with a descaling steam outlet of the carbon box through a first connecting pipe, a first steam descaling control valve is arranged on the first connecting pipe, and an air outlet is arranged at the lower end of the carbon box;
a carbon box descaling control valve is arranged on a pipeline between the outlet at the upper end of the spray tower and the inlet of the plasma incinerator, and the carbon box descaling control valve is arranged on a pipeline on the front side of the first connecting pipe and the pipeline connector.
Preferably, the air inlet is a transverse air inlet.
As another preferred scheme, the upper part of the inner side of the spray tower is provided with a drying filter screen, and a spray header is arranged below the drying filter screen.
As another preferred scheme, the spray header is connected with a water pump outlet at the outer side of the lower end of the spray tower through a pipeline, and the water pump outlet is connected with spray liquid at the inner side of the lower end of the spray tower through a pipeline.
As another preferred scheme, the air outlet at the lower end of the carbon box is a transverse air outlet, and the air outlet is connected with a chimney.
As another preferred scheme, a pipeline between an outlet at the upper end of the spray tower and an inlet of the plasma incinerator is connected with a reflux port at the lower part of the spray tower through a second connecting pipe, and a reflux control valve is arranged on the second connecting pipe; the interface of the second connecting pipe and the pipeline is arranged on the front side of the interface of the first connecting pipe and the pipeline and on the rear side of the carbon box descaling control valve.
As another preferable scheme, the second connecting pipe of the present invention is a flexible connecting pipe.
As another preferable scheme, the backflow port is a transverse backflow port and is arranged on the opposite side of the air inlet.
As another preferred scheme, the carbon box descaling steam outlet is a transverse outlet and is arranged on the same side of the air outlet.
As another preferable scheme, a high-temperature steam inlet control valve is arranged at a high-temperature steam inlet of the carbon box.
As another preferred scheme, the pipeline between the outlet at the upper end of the spray tower and the inlet of the plasma incinerator extends upwards, then is bent towards the side of the plasma incinerator, then is bent downwards to the lower part of the spray tower, then is bent towards the side of the plasma incinerator, then is bent upwards to the inlet of the plasma incinerator, and then is bent towards the inlet of the plasma incinerator and is connected with the inlet of the plasma incinerator.
As another preferred scheme, a rotary air inlet device is arranged at the inlet of the plasma incinerator.
As another preferable scheme, a secondary drying filter screen is arranged in the pipeline part of the pipeline between the upper end outlet of the spray tower and the inlet of the plasma incinerator, and the pipeline part is bent upwards to the inlet of the plasma incinerator.
As another preferred scheme, the middle part of the pipeline part between the outlet at the upper end of the spray tower and the inlet of the plasma incinerator, which is bent downwards to the lower part of the spray tower, is connected with the upper part of the spray tower through a hoop.
As another preferable mode, the carbon tank descaling control valve according to the present invention is disposed at a lower portion of a pipe portion of the pipe bent downward to a lower portion of the spray tower, and the first and second connecting pipes and pipe joints are disposed at a pipe portion of a lower end of the pipe bent toward the plasma incinerator side.
As another preferable mode, the plasma incinerator according to the present invention is disposed at the upper end of the carbon box.
As another preferable scheme, the outlet of the plasma incinerator and the inlet of the carbon box are arranged on the same side, and the outlet of the plasma incinerator and the inlet of the carbon box are arranged on the opposite side; the outlet of the plasma incinerator is connected with the upper end of a lower bent pipe, the lower end of the lower bent pipe is connected with the upper end of a connecting vertical pipe through a flange, the lower end of the connecting vertical pipe is connected with the upper end of an upper bent pipe through a flange, and the lower end of the upper bent pipe is connected with the inlet of a carbon box; the steam outlet is arranged in the middle of the lower bent pipe, and the second steam descaling control valve is arranged at the lower part of the connecting vertical pipe.
As another preferred scheme, the rotary air intake device comprises a connecting pipe, flanges are arranged at two ends of the connecting pipe, a fixed and non-rotating spiral blade structure is arranged in the connecting pipe, and the windward side of the spiral blade faces the axial direction of the pipeline.
As another preferred scheme, the drying filter screen adopts a white steel wire winding and rolling flattening structure.
As another preferred scheme, the secondary drying filter screen adopts a white steel wire winding group columnar structure.
As another preferred scheme, the carbon box comprises a shell, a fan is arranged in the shell, an inlet of the fan is connected with an outlet of the carbon box component through a damping connecting piece, an inlet of the carbon box component is connected with an inlet of the carbon box, and an outlet of the fan is connected with an outlet of the carbon box.
As another preferred scheme, the carbon box assembly comprises a plurality of carbon plates which are transversely arranged, adjacent carbon plates are connected through fasteners, an outer frame of each carbon plate is a closed outer frame, the carbon plates at two transverse ends are respectively connected with an inlet of the carbon box and one end of the damping connecting piece through a funnel-shaped connecting cover, and the large head end of the funnel-shaped connecting cover is connected with the carbon plates; the carbon plate is connected with the funnel-shaped connecting cover through a fastener; the shock absorption connecting piece adopts rubber flexible connection.
Secondly, a high-temperature steam inlet is arranged on a funnel-shaped connecting cover at the inlet side of the carbon box, a high-temperature steam outlet is arranged on a funnel-shaped connecting cover at the fan side, the high-temperature steam inlet on the funnel-shaped connecting cover is connected with the high-temperature steam inlet on the shell, a high-temperature steam inlet control valve is arranged at the high-temperature steam inlet on the shell, and the high-temperature steam outlet arranged on the funnel-shaped connecting cover is connected with a descaling steam outlet of the carbon box.
In addition, the lower end of the shell is provided with an adjustable foundation bolt.
The invention has the beneficial effects.
The carbon box is provided with the high-temperature steam inlet, the carbon box descaling steam outlet, the steam outlet and the first connecting pipe, which are used for descaling carbon blocks in the carbon box, so that the carbon box can be cleaned and descaled without replacing related parts, and the using effect of the carbon box is recovered. Therefore, the operation cost is reduced, and the production efficiency is improved.
The spray tower can filter or kill air pollutants and heavy metal particles, and the carbon box can adsorb and purify the air, so that the cleanliness of the discharged air can be effectively improved.
Drawings
The invention is further described with reference to the following figures and detailed description. The scope of the invention is not limited to the following expressions.

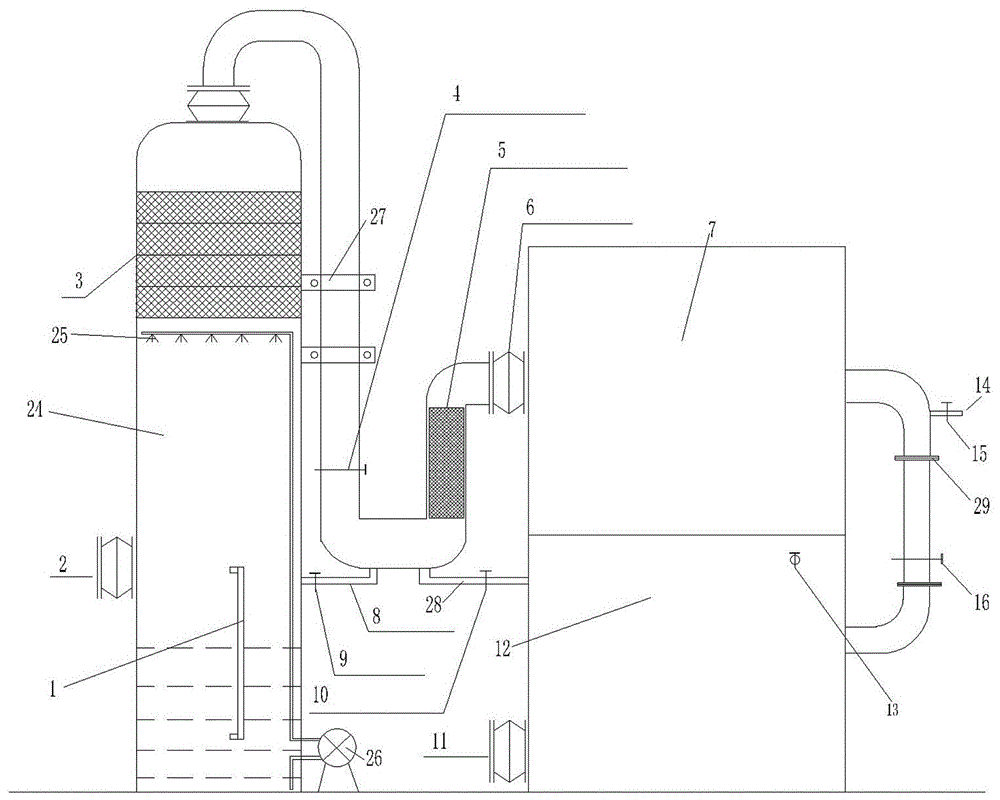

FIG. 1 is a schematic diagram of the present invention.
FIG. 2 is a side view showing the internal structure of the carbon tank of the present invention.
FIG. 3 is a top view of the internal structure of the carbon tank of the present invention.
In the figure, 1 is a liquid level meter, 2 is an air inlet, 3 is a drying filter screen, 4 is a carbon box descaling control valve, 5 is a secondary drying filter screen, 6 is a rotary air inlet device, 7 is a plasma incinerator, 8 is a second connecting pipe, 9 is a reflux control valve, 10 is a first steam descaling control valve, 11 is an air outlet, 12 is a carbon box, 13 is a high-temperature steam inlet control valve, 14 is a steam outlet, 15 is a third steam descaling control valve, 16 is a second steam descaling control valve, 17 is a flexible connection, 18 is a fan, 19 is a damping connection, 20 is a carbon box component, 21 is an adjustable anchor bolt, 22 is a motor of the fan, 23 is an outlet of the fan, 24 is a spray tower, 25 is a spray header, 26 is a water pump, 27 is a hoop, 28 is a first connecting pipe, 29 is a flange, and 30 is a funnel-shaped connecting cover.
Detailed Description
As shown in the figure, the device comprises a spray tower, wherein the lower part of the spray tower is provided with an air inlet, an outlet at the upper end of the spray tower is connected with an inlet of a plasma incinerator through a pipeline, an outlet of the plasma incinerator is connected with an inlet of a carbon box through a second steam descaling control valve, a steam outlet is arranged on the pipeline between the outlet of the plasma incinerator and the second steam descaling control valve, and a third steam descaling control valve is arranged at the steam outlet;
the carbon box is provided with a high-temperature steam inlet and a carbon box descaling steam outlet which are used for descaling carbon blocks in the carbon box;
a pipeline between an outlet at the upper end of the spray tower and an inlet of the plasma incinerator is connected with a descaling steam outlet of the carbon box through a first connecting pipe, a first steam descaling control valve is arranged on the first connecting pipe, and an air outlet is arranged at the lower end of the carbon box;
a carbon box descaling control valve is arranged on a pipeline between an outlet at the upper end of the spray tower and an inlet of the plasma incinerator, and the carbon box descaling control valve is arranged on a pipeline on the front side of a first connecting pipe and a pipeline connector;
carbon box descaling: closing the carbon box descaling control valve and the second steam descaling control valve, starting the plasma incinerator, inputting high-temperature steam into the carbon box, opening the first steam descaling control valve and the third steam descaling control valve, increasing the atom clearance when activated carbon atoms pass through high-temperature flowing steam, taking away some adsorbed pollutants after loosening and falling by airflow, entering the plasma incinerator for combustion, and then discharging the pollutants through a steam outlet;
the environment-friendly purification process comprises the following steps: opening a carbon box descaling control valve and a second steam descaling control valve, starting the plasma incinerator, closing a high-temperature steam inlet, and closing a first steam descaling control valve and a third steam descaling control valve; the collected polluted air is conveyed to a spray tower through a pipeline to be sprayed by water; waste gas enters the high-temperature plasma incinerator, air after plasma incineration is conveyed to the carbon box through a pipeline, pollutants in the polluted air are adsorbed through activated carbon and are discharged from the air outlet.
The air inlet is a transverse air inlet.
A drying filter screen is arranged at the upper part of the inner side of the spray tower, and a spray head is arranged below the drying filter screen. The spray headers can be uniformly distributed on the same plane (5-8 spray headers can be arranged). The vertical distance between the upper end of the spray tower and the lower end of the drying filter screen can be 10 cm. The spray headers are uniformly distributed on the same plane, so that the spraying is comprehensive and sufficient, the excessive water mist entering the plasma incinerator through the drying filter screen is reduced, and the energy consumption is increased.
The drying filter screen adopts a white steel wire winding and rolling flat structure (similar to a bowl brushing steel wire ball, but the volume is much larger, the white steel wire winding and rolling steel wire ball is pressed into a flat plate shape, and the density is determined according to the requirement). The impurity of the foam state that forms in the in-process of spraying is convenient for filter, reduces the formation of vapour fog form moisture.
The periphery of the drying filter screen is connected with the inner wall of the spray tower through a fastener. The drying filter screen can be arranged into a plurality of layers of vertical arrangement (generally 2-4 layers) according to the requirement. The drying filter screen is convenient to replace by connecting the fastening pieces. The thickness of one layer of the dry filter screen can be 15cm, and the diameter is 90 cm.
The spray header is connected with a water pump outlet at the outer side of the lower end of the spray tower through a pipeline, and the water pump outlet is connected with spray liquid at the inner side of the lower end of the spray tower through a pipeline (the spray liquid can be injected into the spray tower through a spray liquid injection pump).
The spray tower can be provided with a liquid level meter for detecting the amount of spray liquid.
And the air outlet at the lower end of the carbon box is a transverse air outlet, and the air outlet is connected with a chimney.
A pipeline between an outlet at the upper end of the spray tower and an inlet of the plasma incinerator is connected with a reflux port at the lower part of the spray tower through a second connecting pipe, and a reflux control valve is arranged on the second connecting pipe; the interface of the second connecting pipe and the pipeline is arranged on the front side of the interface of the first connecting pipe and the pipeline and on the rear side of the carbon box descaling control valve.
The second connecting pipe adopts a flexible connecting pipe.
The backflow port is a transverse backflow port and is arranged on the opposite side of the air inlet.
The carbon box descaling steam outlet is a transverse outlet and is arranged on the same side of the air outlet.
And a high-temperature steam inlet control valve is arranged at a high-temperature steam inlet of the carbon box.
The pipeline between the outlet at the upper end of the spray tower and the inlet of the plasma incinerator extends upwards, then is bent towards the side of the plasma incinerator, then is bent downwards to the lower part of the spray tower, is bent towards the side of the plasma incinerator, then is bent upwards to the inlet of the plasma incinerator, and then is bent towards the inlet of the plasma incinerator and is connected with the inlet of the plasma incinerator.
And a rotary air inlet device is arranged at the inlet of the plasma incinerator.
The rotary air inlet device comprises a connecting pipe, flanges are arranged at two ends of the connecting pipe, a fixed and non-rotating spiral blade structure is arranged in the connecting pipe, and the windward side of the spiral blade faces the axial direction of the pipeline (namely the structure of the spiral blade structure is similar to the arrangement mode of a fan impeller, and the blade is fixed. The flange is convenient for dismounting and connecting.
And a secondary drying filter screen is arranged in the pipeline part of the pipeline between the upper end outlet of the spray tower and the inlet of the plasma incinerator, which is bent upwards to the inlet of the plasma incinerator.
The secondary drying filter screen adopts a white steel wire winding group columnar structure (similar to a bowl brushing steel wire ball, but the volume is much larger, the secondary drying filter screen is columnar, and the density is determined according to the requirement). Facilitating the filtration of the remaining vapor bubbles.
The periphery of the secondary drying filter screen is connected with the inner wall of the pipeline through a fastener. The drying filter screen is convenient to replace by connecting the fastening pieces.
The middle part of the pipeline between the outlet at the upper end of the spray tower and the inlet of the plasma incinerator, which is bent downwards to the lower part of the spray tower, is connected with the upper part of the spray tower through a hoop.
The carbon box descaling control valve is arranged at the lower part of a pipeline part of the pipeline, which is bent downwards to the lower part of the spray tower, and the first connecting pipe and the pipeline interface and the second connecting pipe and the pipeline interface are arranged on the pipeline part of the lower end of the pipeline, which is bent towards the side of the plasma incinerator.
The plasma incinerator is arranged at the upper end of the carbon box.
The outlet of the plasma incinerator and the inlet of the carbon box are arranged on the same side and are opposite to the inlet of the plasma incinerator; the outlet of the plasma incinerator is connected with the upper end of a lower bent pipe, the lower end of the lower bent pipe is connected with the upper end of a connecting vertical pipe through a flange, the lower end of the connecting vertical pipe is connected with the upper end of an upper bent pipe through a flange, and the lower end of the upper bent pipe is connected with the inlet of a carbon box; the steam outlet is arranged in the middle of the lower bent pipe, and the second steam descaling control valve is arranged at the lower part of the connecting vertical pipe.
The carbon box comprises a shell, a fan is arranged in the shell, the inlet of the fan is connected with the outlet of the carbon box through a damping connecting piece, the inlet of the carbon box is connected with the inlet of the carbon box, and the outlet of the fan is connected with the outlet of the carbon box.
The outlet of the fan can be connected with the outlet of the carbon box through flexible connection.
The shock attenuation connecting piece accessible fastener links to each other with fan and carbon tank group spare respectively.
The carbon box component comprises a plurality of carbon blocks which are transversely arranged, adjacent carbon blocks are connected through fasteners, the outer frame of each carbon block is a closed outer frame (gas can only transversely pass through each carbon block and is discharged through a fan), the carbon blocks at two transverse ends are respectively connected with an inlet of the carbon box and one end of the damping connecting piece through a funnel-shaped connecting cover, and the large head end of the funnel-shaped connecting cover is connected with the carbon blocks; the carbon plate is connected with the funnel-shaped connecting cover through a fastener; the shock absorption connecting piece adopts rubber flexible connection. Can set up carbon plate number according to the user demand, the rubber flexible coupling is scalable, is convenient for adjust transverse dimension. And sealing structures and sealing pieces can be arranged at the joints of the outer rings of the carbon block plates and the joints of the carbon block plates and the outer rings of the funnel-shaped connecting covers.
Carbon block plates of dimensions 1 meter by 1 meter and thickness 10cm can be used.
The inlet side of carbon case leaks hopper-shaped connecting cover and sets up the high temperature steam import, sets up the high temperature steam export on the fan side hopper-shaped connecting cover, and the high temperature steam import that leaks on the hopper-shaped connecting cover links to each other with the high temperature steam import on the shell, and the high temperature steam import department on the shell is provided with the high temperature steam import control valve, and it links to each other with carbon case scale removal steam export to leak hopper-shaped connecting cover and set up the high temperature steam export.
And an adjustable foundation bolt is arranged at the lower end of the shell.
The invention can be used for removing harmful substances in mixed air containing various pollutants generated in the production process of production workshops of chemical enterprises,
the working process of the invention is explained below with reference to the drawings.
And (3) carbon box descaling control: firstly, closing a carbon box descaling control valve, a reflux control valve and a second steam descaling control valve, closing a spray tower water pump and a fan in a carbon box, starting the plasma incinerator, opening a high-temperature steam inlet control valve, opening a first steam descaling control valve and a third steam descaling control valve, enabling high-temperature steam to enter a carbon box component, increasing the atom clearance when active carbon atoms pass through high-temperature flowing steam, taking away some adsorbed pollutants after loosening and shedding by airflow, filtering moisture by a secondary drying filter screen, then passing through a rotary air inlet device, entering the high-temperature plasma incinerator, burning and then discharging through a steam outlet.
The environment-friendly purification process comprises the following steps: opening a carbon box descaling control valve, a reflux control valve (water drops can be generated in the running process of equipment, and a water drop reflux pipe refluxes the water drops into a spray tower to reduce the running load of the equipment) and a second steam descaling control valve, opening a spray tower water pump and a fan in the carbon box, starting the plasma incinerator, closing a high-temperature steam inlet control valve, and closing a first steam descaling control valve and a third steam descaling control valve. Through workshop exhaust gas collection system, the contaminated air who collects is carried to the spray column in through sealed pipeline and is intake water and spray for the acid and alkali class, heavy metal class and some chemical pollutants that contain in the clear away air are administered, are neutralized preliminarily, thereby get rid of in the abandonment most can hold the pollutant in aqueous.
The residual stubborn pollutant molecules flow through the pipeline under negative pressure, firstly enter the rotary air inlet device after being dried and filtered twice, so that the rotary air inlet device rotates directionally, the rotary waste gas enters the high-temperature plasma incinerator to be burnt at the high temperature of more than 1600 ℃, and the staying and burning time of the air in the combustion chamber of the plasma incinerator is longer than that of the air in a straight-through manner when the air passes through the high-temperature plasma incinerator in a rotating manner, so that the air is more fully burnt, and the effect after the burning is better than that of the straight-through type waste.
The air after high-temperature plasma combustion is conveyed to the activated carbon adsorption box through a sealed pipeline, and the pollutants in the polluted air are adsorbed and treated by the activated carbon, so that the pollutants in the waste gas are further purified. The activated carbon box is adsorbed and purified layer by layer (a plurality of carbon plates), and is discharged into the atmosphere layer by a fan and a gas outlet chimney.
It should be understood that the detailed description of the present invention is only for illustrating the present invention and is not limited by the technical solutions described in the embodiments of the present invention, and those skilled in the art should understand that the present invention can be modified or substituted equally to achieve the same technical effects; as long as the use requirements are met, the method is within the protection scope of the invention.
Claims (10)
1. An environment-friendly purification device comprises a spray tower, wherein the lower part of the spray tower is provided with an air inlet, an outlet at the upper end of the spray tower is connected with an inlet of a plasma incinerator through a pipeline, an outlet of the plasma incinerator is connected with an inlet of a carbon box through a second steam descaling control valve, a steam outlet is arranged on the pipeline between the outlet of the plasma incinerator and the second steam descaling control valve, and a third steam descaling control valve is arranged at the steam outlet;
the carbon box is provided with a high-temperature steam inlet and a carbon box descaling steam outlet which are used for descaling carbon blocks in the carbon box;
a pipeline between an outlet at the upper end of the spray tower and an inlet of the plasma incinerator is connected with a descaling steam outlet of the carbon box through a first connecting pipe, a first steam descaling control valve is arranged on the first connecting pipe, and an air outlet is arranged at the lower end of the carbon box;
a carbon box descaling control valve is arranged on a pipeline between an outlet at the upper end of the spray tower and an inlet of the plasma incinerator, and the carbon box descaling control valve is arranged on a pipeline on the front side of a first connecting pipe and a pipeline connector;
carbon box descaling: closing the carbon box descaling control valve and the second steam descaling control valve, starting the plasma incinerator, inputting high-temperature steam into the carbon box, opening the first steam descaling control valve and the third steam descaling control valve, increasing the atom clearance when activated carbon atoms pass through high-temperature flowing steam, taking away some adsorbed pollutants after loosening and falling by airflow, entering the plasma incinerator for combustion, and then discharging the pollutants through a steam outlet;
the environment-friendly purification process comprises the following steps: opening a carbon box descaling control valve and a second steam descaling control valve, starting the plasma incinerator, closing a high-temperature steam inlet, and closing a first steam descaling control valve and a third steam descaling control valve; the collected polluted air is conveyed to a spray tower through a pipeline to be sprayed by water; waste gas enters the high-temperature plasma incinerator, air after plasma incineration is conveyed to the carbon box through a pipeline, pollutants in the polluted air are adsorbed through activated carbon and are discharged from the air outlet.
2. The environmental protection purification equipment according to claim 1, wherein a drying filter screen is arranged at the upper part of the inner side of the spray tower, and a spray header is arranged below the drying filter screen; a pipeline between an outlet at the upper end of the spray tower and an inlet of the plasma incinerator is connected with a reflux port at the lower part of the spray tower through a second connecting pipe, and a reflux control valve is arranged on the second connecting pipe; the interface of the second connecting pipe and the pipeline is arranged on the front side of the interface of the first connecting pipe and the pipeline and on the rear side of the carbon box descaling control valve.
3. The environmental protection purification apparatus according to claim 1, wherein the pipe between the outlet at the upper end of the spray tower and the inlet of the plasma incinerator extends upward, then bends to the side of the plasma incinerator, then bends downward to the lower part of the spray tower, then bends to the side of the plasma incinerator, then bends upward to the inlet of the plasma incinerator, and then bends to the inlet of the plasma incinerator to connect with the inlet of the plasma incinerator.
4. The environmental protection purification apparatus according to claim 1, wherein a rotary air intake device is provided at the inlet of the plasma incinerator.
5. The environmental protection purification apparatus according to claim 2, wherein a secondary drying filter screen is disposed in a portion of the pipe between the outlet at the upper end of the spray tower and the inlet of the plasma incinerator, which portion is bent upward to the position of the inlet of the plasma incinerator.
6. The environmental protection purification apparatus according to claim 1, wherein the outlet of the plasma incinerator and the inlet of the carbon box are located at the same side, opposite to the inlet of the plasma incinerator; the outlet of the plasma incinerator is connected with the upper end of a lower bent pipe, the lower end of the lower bent pipe is connected with the upper end of a connecting vertical pipe through a flange, the lower end of the connecting vertical pipe is connected with the upper end of an upper bent pipe through a flange, and the lower end of the upper bent pipe is connected with the inlet of a carbon box; the steam outlet is arranged in the middle of the lower bent pipe, and the second steam descaling control valve is arranged at the lower part of the connecting vertical pipe.
7. The environmental protection purification apparatus according to claim 4, wherein the rotary air inlet device comprises a connecting pipe, flanges are arranged at two ends of the connecting pipe, a fixed helical blade structure is arranged in the connecting pipe, and the windward side of the helical blade faces the axial direction of the pipeline.
8. The environmental protection purification device of claim 5, wherein the drying filter screen is of a white steel wire winding and rolling flattened structure; the secondary drying filter screen adopts a white steel wire winding group columnar structure.
9. The environmental protection purification equipment of claim 1, wherein the carbon box comprises a housing, a fan is arranged in the housing, an inlet of the fan is connected with an outlet of the carbon box assembly through a shock absorption connecting piece, an inlet of the carbon box assembly is connected with an inlet of the carbon box, and an outlet of the fan is connected with an outlet of the carbon box;
the carbon box component comprises a plurality of carbon blocks which are transversely arranged, adjacent carbon blocks are connected through fasteners, the outer frame of each carbon block is a closed outer frame, the carbon blocks at two transverse ends are respectively connected with an inlet of the carbon box and one end of the damping connecting piece through funnel-shaped connecting covers, and the large head ends of the funnel-shaped connecting covers are connected with the carbon blocks; the carbon plate is connected with the funnel-shaped connecting cover through a fastener; the shock absorption connecting piece adopts rubber flexible connection.
10. The environmental protection purification apparatus according to claim 9, wherein the inlet funnel-shaped connecting cover of the carbon tank is provided with a high temperature steam inlet, the blower funnel-shaped connecting cover is provided with a high temperature steam outlet, the high temperature steam inlet on the funnel-shaped connecting cover is connected with the high temperature steam inlet on the outer shell, the high temperature steam inlet on the outer shell is provided with a high temperature steam inlet control valve, and the funnel-shaped connecting cover is provided with a high temperature steam outlet connected with the carbon tank descaling steam outlet.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202110110195.5A CN112807933B (en) | 2021-01-27 | 2021-01-27 | Environment-friendly purifying equipment |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202110110195.5A CN112807933B (en) | 2021-01-27 | 2021-01-27 | Environment-friendly purifying equipment |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN112807933A true CN112807933A (en) | 2021-05-18 |
| CN112807933B CN112807933B (en) | 2021-09-07 |
Family
ID=75859635
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202110110195.5A Active CN112807933B (en) | 2021-01-27 | 2021-01-27 | Environment-friendly purifying equipment |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN112807933B (en) |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN114018366A (en) * | 2021-10-29 | 2022-02-08 | 临涣焦化股份有限公司 | Liquid level meter capable of being automatically cleaned |
Citations (8)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JP2004223469A (en) * | 2003-01-27 | 2004-08-12 | Fuji Electric Systems Co Ltd | Method for regenerating activated carbon containing organic harmful substance and regenerating apparatus |
| US20070071657A1 (en) * | 2003-10-21 | 2007-03-29 | Masaaki Okubo | Method and apparatus for treating exhaust gas |
| CN108722119A (en) * | 2017-04-22 | 2018-11-02 | 佛山市洁灏环保科技有限公司 | A kind of system for process for producing reflectorized material exhaust gas |
| CN108939833A (en) * | 2018-09-29 | 2018-12-07 | 惠州市金山电子有限公司 | Spray exhaust gas environmental protection purifying equipment and its spraying exhaust gas environmental purification processing method |
| CN109550363A (en) * | 2018-11-30 | 2019-04-02 | 江苏宝华环保科技有限公司 | Bitumen flue gas processing system |
| CN209123588U (en) * | 2018-09-17 | 2019-07-19 | 杭州青仁环保科技有限公司 | A kind of new and effective lacquer spraying waste gas integrated treating device |
| CN110404342A (en) * | 2019-08-29 | 2019-11-05 | 东华工程科技股份有限公司 | A kind of complete processing equipment of original position thermal desorption exhaust gas |
| CN211650279U (en) * | 2019-12-05 | 2020-10-09 | 上海天晓环保工程有限公司 | Hazardous waste incineration flue gas pollutant removal integrated device |
-
2021
- 2021-01-27 CN CN202110110195.5A patent/CN112807933B/en active Active
Patent Citations (8)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JP2004223469A (en) * | 2003-01-27 | 2004-08-12 | Fuji Electric Systems Co Ltd | Method for regenerating activated carbon containing organic harmful substance and regenerating apparatus |
| US20070071657A1 (en) * | 2003-10-21 | 2007-03-29 | Masaaki Okubo | Method and apparatus for treating exhaust gas |
| CN108722119A (en) * | 2017-04-22 | 2018-11-02 | 佛山市洁灏环保科技有限公司 | A kind of system for process for producing reflectorized material exhaust gas |
| CN209123588U (en) * | 2018-09-17 | 2019-07-19 | 杭州青仁环保科技有限公司 | A kind of new and effective lacquer spraying waste gas integrated treating device |
| CN108939833A (en) * | 2018-09-29 | 2018-12-07 | 惠州市金山电子有限公司 | Spray exhaust gas environmental protection purifying equipment and its spraying exhaust gas environmental purification processing method |
| CN109550363A (en) * | 2018-11-30 | 2019-04-02 | 江苏宝华环保科技有限公司 | Bitumen flue gas processing system |
| CN110404342A (en) * | 2019-08-29 | 2019-11-05 | 东华工程科技股份有限公司 | A kind of complete processing equipment of original position thermal desorption exhaust gas |
| CN211650279U (en) * | 2019-12-05 | 2020-10-09 | 上海天晓环保工程有限公司 | Hazardous waste incineration flue gas pollutant removal integrated device |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN114018366A (en) * | 2021-10-29 | 2022-02-08 | 临涣焦化股份有限公司 | Liquid level meter capable of being automatically cleaned |
Also Published As
| Publication number | Publication date |
|---|---|
| CN112807933B (en) | 2021-09-07 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN210786823U (en) | Based on desulphurization unit for flue gas purification of thermal power plant | |
| CN205461614U (en) | Waste gas dust collecting equipment | |
| CN112807933B (en) | Environment-friendly purifying equipment | |
| CN106075949A (en) | A kind of small-sized house refuse low temperature pyrogenation kiln gas purifier | |
| CN209997395U (en) | Exhaust gas treatment system | |
| CN205832665U (en) | Small-sized house refuse low temperature pyrogenation kiln gas cleaning system | |
| CN207316958U (en) | A kind of air contaminant treatment flue gas waste heat recoverer | |
| CN211041019U (en) | Activated carbon adsorption desorption catalytic combustion equipment | |
| CN210097335U (en) | Device for cooling high-temperature organic waste gas | |
| CN214437757U (en) | Environment-friendly purification equipment for factory | |
| CN207856568U (en) | A kind of purifying processing device for generator discharge dust and gas | |
| CN207722543U (en) | A kind of exhaust gas harmful exhaust treatment and purification device | |
| CN215463231U (en) | Tail gas catalytic combustion system for anion resin workshop | |
| CN207169323U (en) | A kind of heavy duty detergent industrial waste high temperature incineration flue gas purifying equipment | |
| CN212731668U (en) | Boiler flue gas treatment and purification device | |
| CN2675231Y (en) | Combined type flue desulfurizing and dust-removing purifier | |
| CN209662937U (en) | A kind of aluminum melting furnace exhaust Wet purifier | |
| CN215388362U (en) | Boiler waste gas purification treatment device | |
| CN215427922U (en) | Combined waste gas treatment device | |
| CN210729028U (en) | A waste gas produces a smoke purification device for industrial equipment is last | |
| CN219502372U (en) | Ultra-clean treatment device for flue gas of electric furnace | |
| CN214389446U (en) | Exhaust gas purification treatment device | |
| CN214809429U (en) | Device for adsorbing dust through water circulation | |
| CN212999165U (en) | Comprehensive treatment device for dust-containing waste gas | |
| CN220609700U (en) | Fume purifier |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| CB03 | Change of inventor or designer information | ||
| CB03 | Change of inventor or designer information |
Inventor after: Li Wanzhong Inventor after: Li Wanjun Inventor before: Li Wanzhong |
|
| GR01 | Patent grant | ||
| GR01 | Patent grant | ||
| TR01 | Transfer of patent right | ||
| TR01 | Transfer of patent right |
Effective date of registration: 20211009 Address after: 121000 No. 9-131, second section of Chongqing Road, Guta District, Jinzhou City, Liaoning Province Patentee after: Li Wanjun Address before: 124000 room 106, complex building, South Park Street and west industry and Trade Road, Shuangtaizi District, Panjin City, Liaoning Province 2111020090140232 Patentee before: Panjin Zhongqi Weiye Ecological Technology Co.,Ltd. |
|
| TR01 | Transfer of patent right | ||
| TR01 | Transfer of patent right |
Effective date of registration: 20211026 Address after: 124000 Shuangtaizi District, Panjin City, Liaoning Province, South Park Street, West Industrial and Trade Road 2111020090140232 (within the park) Patentee after: PANJIN JIAHE SHENGSHI MEDICAL TECHNOLOGY Co.,Ltd. Address before: 121000 No. 9-131, second section of Chongqing Road, Guta District, Jinzhou City, Liaoning Province Patentee before: Li Wanjun |
|
| CP01 | Change in the name or title of a patent holder | ||
| CP01 | Change in the name or title of a patent holder |
Address after: 124000 Shuangtaizi District, Panjin City, Liaoning Province, South Park Street, West Industrial and Trade Road 2111020090140232 (within the park) Patentee after: Liaoning Jiahe Shengshi Pharmaceutical Technology Co.,Ltd. Address before: 124000 Shuangtaizi District, Panjin City, Liaoning Province, South Park Street, West Industrial and Trade Road 2111020090140232 (within the park) Patentee before: PANJIN JIAHE SHENGSHI MEDICAL TECHNOLOGY CO.,LTD. |
|
| PE01 | Entry into force of the registration of the contract for pledge of patent right | ||
| PE01 | Entry into force of the registration of the contract for pledge of patent right |
Denomination of invention: An environmentally friendly purification equipment Effective date of registration: 20230922 Granted publication date: 20210907 Pledgee: Panjin science and technology Financing Guarantee Co.,Ltd. Pledgor: Liaoning Jiahe Shengshi Pharmaceutical Technology Co.,Ltd. Registration number: Y2023980058449 |
