Abstract
The invention discloses a cleaning device convenient for cleaning doors and windows, which relates to the technical field of cleaning devices and comprises a mobile station, a sealing box, an adjusting mechanism, a water spraying mechanism, a cleaning mechanism, a drainage mechanism and a drying mechanism.
Description
Technical Field
The invention relates to the technical field of cleaning devices, in particular to a cleaning device convenient for cleaning doors and windows.
Background
In public places such as hospitals and schools, a lot of windows generally exist, the windows can accumulate a lot of dust when being used for a long time, so that the windows need to be cleaned by water, the windows are cleaned by adopting a manual mode currently, however, the manual cleaning speed is slow, the efficiency is low, and although devices capable of cleaning the windows are also available, the devices are not only complicated to operate, but also have the following disadvantages:
first, these cleaning devices do not allow for height and angle adjustment, which makes it difficult to clean windows that are tall or at different angles.
Secondly, the cleaning devices are difficult to collect the cleaned sewage in the cleaning process, and often water is splashed out, so that the environmental pollution is caused.
Thirdly, the cleaning devices do not dry the cleaned window, so that water stain and flower can be remained on the cleaned glass, and the light transmission effect is influenced.
Disclosure of Invention
The invention aims to provide a cleaning device convenient for cleaning doors and windows, which aims to overcome the defects caused in the prior art.
A cleaning device convenient for cleaning doors and windows comprises a mobile station, a seal box, an adjusting mechanism, a water spraying mechanism, a cleaning mechanism, a drainage mechanism and a drying mechanism;
the bottom of the moving platform is provided with a plurality of universal wheels, the front side of the moving platform is provided with a pull handle, the rear side of the moving platform is separated into two limiting grooves by a partition plate, a clear water tank and a sewage tank are respectively placed in the two limiting grooves, a base is arranged between the pull handle and the limiting grooves, the sealing box is positioned on the adjusting mechanism, mounting blocks are arranged on the periphery of the sealing box, vacuum suckers are arranged on the mounting blocks and electrically connected with the controller, and rubber pads are arranged on the inner side edges of the sealing box;
the adjusting mechanism is arranged on the base and is used for adjusting the height and the angle of the seal box;
the water spraying mechanism is positioned at the top end of the inside of the sealing box and is used for spraying water in the clean water tank to the door and window to be cleaned;
the cleaning mechanism is positioned in the sealed box and cleans the door and the window in a moving mode;
the drainage mechanism is positioned at the bottom of the seal box and is used for draining the generated sewage into the sewage box;
and the drying mechanism is positioned on the outer side of the seal box and is used for drying the cleaned door and window.
Preferably, adjustment mechanism includes first telescopic link, second telescopic link, pneumatic cylinder and mounting panel, first telescopic link vertical fixation is at the top of base, the tip of first telescopic link of second telescopic link vertical fixation, the mounting panel is fixed in the outside of seal box, the outside vertical fixation of mounting panel has the fixed block, the below of the tip of second telescopic link is articulated through the round pin axle with the ampere revolving plate, the pneumatic cylinder is fixed in the up end of second telescopic link, the tip of the piston rod of pneumatic cylinder is articulated through the round pin axle with the fixed block, first telescopic link, second telescopic link and pneumatic cylinder all with controller electric connection.
Preferably, the water spray mechanism includes sprinkler bead, connecting pipe one, connecting pipe two, connecting pipe three, limiting plate and water pump, the sprinkler bead is equipped with a plurality of and evenly distributed on the inside top of seal box, and all sprinkler beads are equallyd divide and do not are connected with one connecting pipe one, whole connecting pipe one connection has same connecting pipe two, the connecting pipe two is passed through connecting pipe three and is connected with the delivery port of water pump, the water pump is fixed in the top of clean water tank, the water inlet of water pump passes through the pipeline and is connected with clean water tank, water pump and controller electric connection, the limiting plate is fixed in the side of first telescopic link, connecting pipe three is fixed in the upper end of limiting plate.
Preferably, the cleaning mechanism comprises a movable box, two scraping plates, a screw rod, a first motor, a rolling brush and a second motor, the movable box is positioned in a sealing box, the scraping plates are fixed at the top of the movable box, the screw rod is provided with two screw rods and positioned between the movable box and the sealing box, one end of the screw rod is rotatably connected with the bottom end inside the sealing box, the other end of the screw rod penetrates through the top of the sealing box and is fixedly provided with a first belt pulley, the first motor is fixed at the outer side of the sealing box, an output shaft of the first motor is fixedly provided with two second belt pulleys, the two first belt pulleys are respectively connected with the second belt pulley through a first belt, the movable box is in threaded connection with the screw rod through a screw rod nut, the rolling brush is provided with two belt pulleys and is symmetrically arranged in the movable box, two ends of the rolling brush are respectively rotatably connected with the movable box through a rotating shaft, and third belt pulleys are respectively fixed, the utility model discloses a portable electronic device, including removal case, first motor, second motor, division board, apron, first motor, second pulley, first waterproof touch switch, first motor, second motor and waterproof touch switch, the removal case is equipped with the division board of "U" font between two round brushes, the second motor is fixed in the removal incasement portion and is arranged in the division board, the output shaft of second motor stretches out outside the division board and is equipped with two fourth belt pulleys, and two third belt pulleys are connected with the fourth belt pulley through the second belt respectively, the outside of removal case is equipped with the apron, the department of correspondence is equipped with the through-hole that supplies the round brush to stretch out on the apron, the inside bottom of removal case is equipped with first waterproof touch switch, the inside top of removal case is equipped.
Preferably, drainage mechanism includes guide plate, baffle-box and connecting pipe four, the guide plate slope sets up in the lower extreme of seal box one side inwards, the baffle-box is fixed in the bottom of seal box, the bottom of seal box is equipped with the intercommunicating pore of intercommunication baffle-box, the bottom of baffle-box is passed through connecting pipe four be connected with the sewage case, connecting pipe four is fixed in the lower extreme of limiting plate.
Preferably, the drying mechanism comprises a main pipe, two branch pipes and an air heater, the branch pipes are symmetrically arranged on the outer side of the sealing box, the sealing box is provided with an air inlet hole at a position corresponding to the branch pipes, the sealing box is provided with a plurality of air exhaust holes, the main pipe is arranged between the two branch pipes, the air heater is arranged at the top of the main pipe, the outer side of the sealing box is further provided with a buzzer, and the air heater and the buzzer are both electrically connected with the controller.
The invention has the following advantages:
1. set up the rubber pad through the edge at the seal box, when vacuum chuck adsorbs with the frame of window, seal box and glass laminating, lower extreme at the seal box inboard sets up the guide plate simultaneously, the guide plate closely laminates with glass, make sewage water conservancy diversion to the cushion box smoothly, thereby can prevent that wiper mechanism sewage spill from causing environmental pollution when wasing, the seal box provides a sealed environment for the stoving of air heater simultaneously, and then improved drying efficiency, prevent through the stoving of air heater that the glass after the washing becomes colored.
2. Through set up adjustment mechanism on the movable plate, adjust wiper mechanism's height and inclination under adjustment mechanism's effect to the washing of the door and window of the different height of better adaptation and angle requirement.
3. The bottom and the top of the sealing box are respectively provided with a first waterproof touch switch and a second waterproof touch switch, when the movable box contacts with the first waterproof touch switch and the second waterproof touch switch in the moving process, the first waterproof touch switch and the second waterproof touch switch can feed back information to the controller, when the movable box moves from the upper part to the lower part of the sealing box and contacts with the first waterproof touch switch, the output shaft of the first motor reverses, the second motor stops working and the air heater starts to start, when the movable box moves from the lower part to the upper part of the sealing box and contacts with the second waterproof touch switch, the first motor stops working, the air heater stops working and the buzzer starts to alarm, the first waterproof touch switch and the second waterproof touch switch are arranged to enable the controller to correspondingly control the first motor, the second motor, the air heater and the buzzer, and personnel operation is simplified.
Drawings

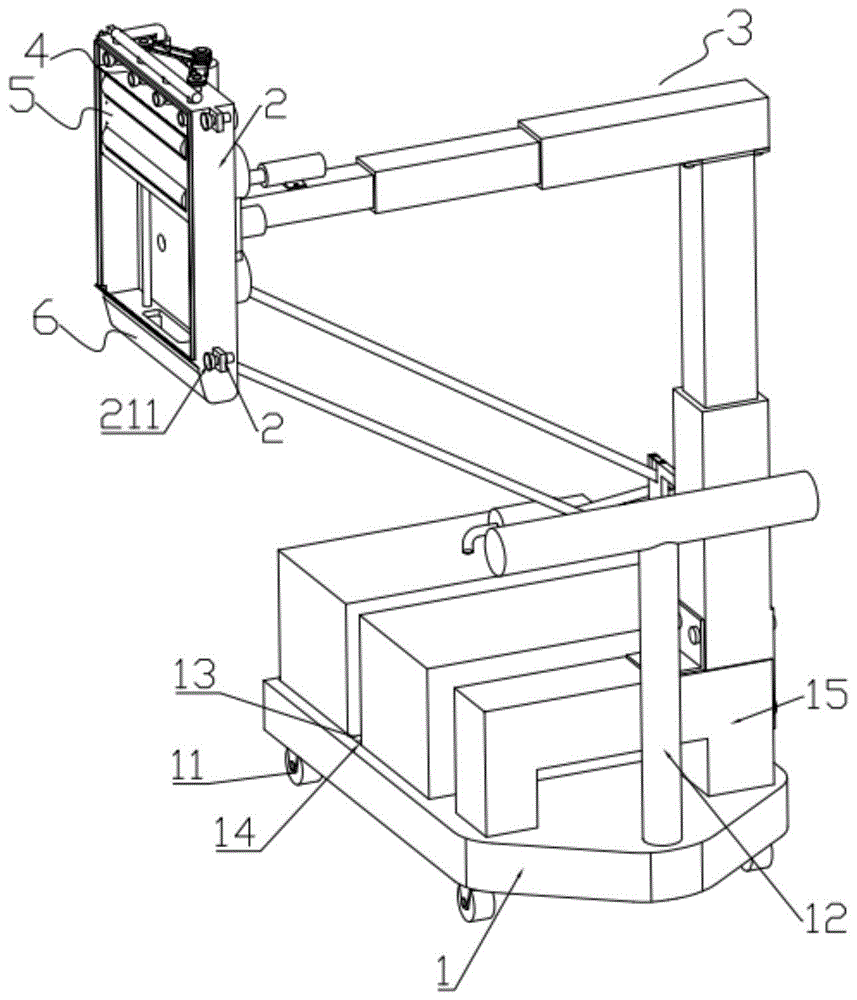

Fig. 1 and 2 are overall three-dimensional structural diagrams of the present invention.
Fig. 3 is a partial enlarged view of the invention at a in fig. 2.
Fig. 4 and 5 are schematic views showing the structure of the seal box of the present invention.
Fig. 6 is a schematic structural view of the mobile box of the present invention.
Wherein: 1. the device comprises a mobile platform, 11, a universal wheel, 12, a pull handle, 13, a partition board, 14, a limiting groove, 15, a base, 2, a seal box, 21, an installation block, 211, a vacuum chuck, 22, a rubber pad, 23, a communication hole, 24, an air inlet hole, 25, an air outlet hole, 3, an adjusting mechanism, 31, a first telescopic rod, 32, a second telescopic rod, 33, an installation plate, 331, a fixed block, 34, a hydraulic cylinder, 4, a water spraying mechanism, 41, a water spraying head, 42, a first connecting pipe, 43, a second connecting pipe, 44, a third connecting pipe, 45, a water pump, 46, a clean water tank, 47, a limiting plate, 5, a cleaning mechanism, 51, a mobile box, 511, a cover plate, 512, a through hole, 52, a scraping plate, 53, a screw rod, 531, a first belt pulley, 54, a first motor, 541, a second belt pulley, 542, a first belt, 55, a rolling brush, 551, a rotating shaft, 552, a third, The second motor 571, the fourth belt pulley, 572, the second belt 58, the first waterproof touch switch 59, the second waterproof touch switch 6, the drainage mechanism 61, the guide plate 62, the buffer tank 63, the connection pipe four, 64, the sewage tank 7, the drying mechanism 71, the branch pipe 72, the main pipe 73, the hot air blower 74 and the buzzer.
Detailed Description
The following detailed description of the embodiments of the present invention will be given in order to provide those skilled in the art with a more complete, accurate and thorough understanding of the inventive concept and technical solutions of the present invention.
As shown in fig. 1-6, the invention provides a cleaning device convenient for cleaning doors and windows, which comprises a mobile station 1, a sealing box 2, an adjusting mechanism 3, a water spraying mechanism 4, a cleaning mechanism 5, a drainage mechanism 6 and a drying mechanism 7;
the bottom of the mobile station 1 is provided with a plurality of universal wheels 11, the front side of the mobile station 1 is provided with a pull handle 12, the rear side of the mobile station 1 is divided into two limiting grooves 14 by a partition plate 13, the two limiting grooves 14 are respectively provided with a clear water tank 46 and a sewage tank 64, a base 15 is arranged between the pull handle 12 and the limiting grooves 14, the seal box 2 is positioned on the adjusting mechanism 3, the periphery of the seal box 2 is provided with a mounting block 21, the mounting block 21 is provided with a vacuum sucker 211, the vacuum sucker 211 is electrically connected with a controller, and the inner side edge of the seal box 2 is provided with a rubber pad 22;
the adjusting mechanism 3 is arranged on the base 15 and is used for adjusting the height and the angle of the seal box 2;
the water spraying mechanism 4 is positioned at the top end of the interior of the sealed box 2 and is used for spraying water in the clean water tank 46 to the door and window to be cleaned;
the cleaning mechanism 5 is positioned in the seal box 2 and cleans the door and window in a moving mode;
the drainage mechanism 6 is positioned at the bottom of the seal box 2 and is used for draining the generated sewage into the sewage tank 64;
and the drying mechanism 7 is positioned on the outer side of the seal box 2 and is used for drying the cleaned door and window.
In this embodiment, adjustment mechanism 3 includes first telescopic link 31, second telescopic link 32, pneumatic cylinder 34 and mounting panel 33, first telescopic link 31 vertical fixation is at the top of base 15, second telescopic link 32 vertical fixation is at the tip of first telescopic link 31, mounting panel 33 is fixed in the outside of seal box 2, the outside vertical fixation of mounting panel 33 has fixed block 331, the below of the tip of second telescopic link 32 is articulated through the round pin axle with ann commentaries on classics board 33, pneumatic cylinder 34 is fixed in the up end of second telescopic link 32, the tip of the piston rod of pneumatic cylinder 34 is articulated through the round pin axle with fixed block 331, first telescopic link 31, second telescopic link 32 and pneumatic cylinder 34 all with controller electric connection.
In this embodiment, water spray mechanism 4 includes sprinkler bead 41, connecting pipe 42, two 43 of connecting pipes, three 44 of connecting pipe, limiting plate 47 and water pump 45, 41 heads of water spray are equipped with a plurality of and evenly distributed on the inside top of seal box 2, and all sprinkler beads 41 are equallyd divide and do not are connected with one connecting pipe 42, whole connecting pipe 42 is connected with two 43 of same connecting pipe, two 43 of connecting pipes are connected with the delivery port of water pump 45 through three 44 of connecting pipe, water pump 45 is fixed in clear water tank 46's top, water pump 46's water inlet is passed through the pipeline and is connected with clear water tank 46, water pump 45 and controller electric connection, limiting plate 47 is fixed in the side of first telescopic link 31, connecting pipe three 44 is fixed in the upper end of limiting plate 47.
In this embodiment, the cleaning mechanism 5 includes a moving box 51, a scraping plate 52, a screw 53, a first motor 54, a rolling brush 55 and a second motor 57, the moving box 51 is located in the seal box 2, the scraping plate 52 is fixed on the top of the moving box 51, the screw 53 is provided with two and located between the moving box 51 and the seal box 2, one end of the screw 53 is rotatably connected with the bottom end inside the seal box 2, the other end of the screw 53 passes through the top of the seal box 2 and is fixed with a first belt pulley 531, the first motor 54 is fixed on the outer side of the seal box 2, two second belt pulleys 541 are fixed on an output shaft of the first motor 54, the two first belt pulleys 531 are respectively connected with the second belt pulleys 541 through a first belt 542, the moving box 51 is in threaded connection with the screw 53 through a screw nut, the rolling brush 55 is provided with two and symmetrically arranged in the moving box 51, two ends of the rolling brush 55 are respectively connected with the movable box 51 through a rotating shaft 551 in a rotating way, a third belt pulley 552 is respectively fixed on the rotating shaft 551 at the same end of the two rolling brushes 55, said moving box 51 is provided with a "u" -shaped spacer plate 56 between two rolling brushes 55, said second motor 57 is fixed inside the moving box 51 and is located in the spacer plate 56, the output shaft of the second motor 57 extends out of the isolation plate 56 and is provided with two fourth belt pulleys 571, the two third belt pulleys 552 are respectively connected with the fourth belt pulleys 571 through second belts 572, a cover plate 511 is arranged on the outer side of the movable box 51, a through hole 512 for the rolling brush 55 to extend out is arranged on the corresponding position of the cover plate 511, a first waterproof touch switch 58 is provided at the bottom end inside the moving box 51, a second waterproof touch switch 59 is provided at the top end inside the moving box 51, the first motor 54, the second motor 57 and the waterproof touch switch 58 are electrically connected with the controller.
In this embodiment, drainage mechanism 6 includes four 63 guide plate 61, buffer tank 62 and connecting pipe, the slope of guide plate 61 sets up in seal box 2 lower extreme on one side inwards, buffer tank 62 is fixed in the bottom of seal box 2, the bottom of seal box 2 is equipped with the intercommunicating pore 23 that communicates buffer tank 62, buffer tank 62's bottom is passed through four 63 connecting pipe and is connected with sewage case 64, four 63 connecting pipe are fixed in the lower extreme of limiting plate 47.
In this embodiment, the drying mechanism 7 includes a main pipe 72, two branch pipes 71 and a hot air blower 73, the two branch pipes 71 are symmetrically disposed on the outer side of the sealing box 2, the air inlet hole 24 is disposed at the corresponding position of the sealing box 2 and the branch pipes, a plurality of air outlet holes 25 are disposed on the sealing box 2, the main pipe 72 is disposed between the two branch pipes 71, the hot air blower 73 is disposed on the top of the main pipe 72, a buzzer 74 is further disposed on the outer side of the sealing box 2, and the hot air blower 73 and the buzzer 74 are both electrically connected to the controller.
The specific implementation mode and principle are as follows:
when the window needs to be cleaned, a user moves the moving platform 1 to the front of the window to be cleaned through the pull handle 12, the controller adjusts the first telescopic rod 31 to be lifted to a corresponding height, then the extended length of the second telescopic rod 32 is adjusted to a certain distance from the window to be cleaned, then the hydraulic cylinder 34 is controlled to enable the piston rod of the hydraulic cylinder 34 to drive the sealing box 2 to rotate to be parallel to the window to be cleaned, then the extended length of the second telescopic rod 32 is continuously adjusted to enable the sealing box 2 to be in contact with the window to be cleaned, the vacuum suction cups 211 on two sides of the sealing box 2 are started, the vacuum suction cups 211 tightly suck the frames on two sides of the window, at the moment, the rubber pads 22 on the inner side edge of the sealing box 2 tightly press against the glass of the window, meanwhile, the guide plate 61 tightly presses against the glass, then the controller controls the water pump 45 to pump water from the clean water tank through the, the water flows down along the glass, then the water pump 45 is closed, then the first motor 54 and the second motor 57 are started, the output shaft of the first motor 54 drives the moving box 51 to move downwards along the screw 53 through screw transmission, in the moving process of the moving box 51, the output shaft of the second motor 57 drives the rolling brushes 55 at two sides to rotate through belt transmission, the rotating rolling brushes 55 clean the surface of the window glass, in the cleaning process, the residual sewage on the glass is scraped by the scraping plate 52 at the top of the moving box 51 and enters the buffer box 62 along the glass through the guide plate 61, the sewage in the buffer box 62 enters the sewage box 64 through the connecting pipe four 63, when the moving box 51 contacts the first waterproof touch switch 58, at the moment, the output shaft of the first motor 54 rotates reversely, the second motor 57 stops working, the hot air heater 73 starts to start, the hot air generated by the hot air heater 73 enters the two branch pipes 71 through the main pipe 72 respectively, and then enters the inside of the sealing box 2 through the air inlet hole 24 communicated with the branch pipe 71 to dry the cleaned glass, in the process of drying the glass, the output shaft of the first motor 54 drives the movable box 51 to move to the initial position along the screw rod 53 through spiral transmission, when the movable box 51 is contacted with the second waterproof touch switch 59, at the moment, the first motor 54 stops working, the hot air fan 73 stops working, the buzzer 74 starts to give an alarm, then the vacuum chuck 211 stops adsorbing the frames on the two sides of the window, and after hearing that the buzzer 74 starts to give an alarm, a user adjusts the position of the sealing box 2 through the adjusting mechanism and then continues to repeat the operation.
The invention is described above with reference to the accompanying drawings, it is obvious that the specific implementation of the invention is not limited by the above-mentioned manner, and it is within the scope of the invention to adopt various insubstantial modifications of the inventive concept and solution of the invention, or to apply the inventive concept and solution directly to other applications without modification.
Claims (6)
1. The utility model provides a make things convenient for clear belt cleaning device of door and window which characterized in that: comprises a mobile station (1), a sealing box (2), an adjusting mechanism (3), a water spraying mechanism (4), a cleaning mechanism (5), a drainage mechanism (6) and a drying mechanism (7);
the bottom of the mobile platform (1) is provided with a plurality of universal wheels (11), the front side of the mobile platform (1) is provided with a pull handle (12), the rear side of the mobile platform (1) is divided into two limiting grooves (14) through a partition plate (13), a clear water tank (46) and a sewage tank (64) are respectively placed in the two limiting grooves (14), a base (15) is arranged between the pull handle (12) and the limiting grooves (14), the seal box (2) is positioned on the adjusting mechanism (3), mounting blocks (21) are arranged on the periphery of the seal box (2), vacuum suckers (211) are arranged on the mounting blocks (21), the vacuum suckers (211) are electrically connected with a controller, and the edge of the inner side of the seal box (2) is provided with a rubber pad (22);
the adjusting mechanism (3) is arranged on the base (15) and is used for adjusting the height and the angle of the seal box (2);
the water spraying mechanism (4) is positioned at the top end of the interior of the sealing box (2) and is used for spraying water in the clean water tank (46) to the door and window to be cleaned;
the cleaning mechanism (5) is positioned in the seal box (2) and cleans the door and window in a moving mode;
the drainage mechanism (6) is positioned at the bottom of the seal box (2) and is used for draining the generated sewage into a sewage tank (64);
and the drying mechanism (7) is positioned on the outer side of the sealing box (2) and is used for drying the cleaned door and window.
2. The cleaning device for facilitating the cleaning of the door and window as claimed in claim 1, wherein: the adjusting mechanism (3) comprises a first telescopic rod (31), a second telescopic rod (32), a hydraulic cylinder (34) and a mounting plate (33), the first telescopic rod (31) is vertically fixed at the top of the base (15), the second telescopic rod (32) is vertically fixed at the end part of the first telescopic rod (31), the mounting plate (33) is fixed on the outer side of the seal box (2), a fixing block (331) is vertically fixed on the outer side of the mounting plate (33), the lower part of the end part of the second telescopic rod (32) is hinged with the stabilizing plate (33) through a pin shaft, the hydraulic cylinder (34) is fixed on the upper end surface of the second telescopic rod (32), the end part of a piston rod of the hydraulic cylinder (34) is hinged with the fixed block (331) through a pin shaft, the first telescopic rod (31), the second telescopic rod (32) and the hydraulic cylinder (34) are all electrically connected with the controller.
3. The cleaning device for facilitating the cleaning of the door and window as claimed in claim 1, wherein: the water spraying mechanism (4) comprises a water spraying head (41), a first connecting pipe (42), a second connecting pipe (43), a third connecting pipe (44), a limiting plate (47) and a water pump (45), the water spray heads (41) are provided with a plurality of top ends which are uniformly distributed in the sealing box (2), all the water spray heads (41) are respectively connected with one first connecting pipe (42), all the first connecting pipes (42) are connected with the same second connecting pipe (43), the second connecting pipe (43) is connected with the water outlet of the water pump (45) through a third connecting pipe (44), the water pump (45) is fixed on the top of the clear water tank (46), the water inlet of the water pump (46) is connected with the clear water tank (46) through a pipeline, the water pump (45) is electrically connected with the controller, the limiting plate (47) is fixed on the side face of the first telescopic rod (31), and the third connecting pipe (44) is fixed at the upper end of the limiting plate (47).
4. The cleaning device for facilitating the cleaning of the door and window as claimed in claim 1, wherein: the cleaning mechanism (5) comprises a moving box (51), a scraping plate (52), a screw rod (53), a first motor (54), a rolling brush (55) and a second motor (57), the moving box (51) is positioned in the seal box (2), the scraping plate (52) is fixed at the top of the moving box (51), the screw rod (53) is provided with two screws and positioned between the moving box (51) and the seal box (2), one end of the screw rod (53) is rotatably connected with the bottom end inside the seal box (2), the other end of the screw rod (53) penetrates through the top of the seal box (2) and is fixed with a first belt pulley (531), the first motor (54) is fixed at the outer side of the seal box (2), two second belt pulleys (541) are fixed on an output shaft of the first motor (54), and the two first belt pulleys (531) are respectively connected with the second belt pulley (541) through a first belt (542), the movable box (51) is in threaded connection with a screw rod (53) by means of a screw rod nut, two rolling brushes (55) are arranged and symmetrically arranged in the movable box (51), two ends of each rolling brush (55) are respectively in rotary connection with the movable box (51) through a rotary shaft (551), third belt pulleys (552) are respectively fixed on the rotary shafts (551) at the same ends of the two rolling brushes (55), a U-shaped isolation plate (56) is arranged between the two rolling brushes (55) of the movable box (51), the second motor (57) is fixed in the movable box (51) and is positioned in the isolation plate (56), an output shaft of the second motor (57) extends out of the isolation plate (56) and is provided with two fourth belt pulleys (571), the two third belt pulleys (552) are respectively connected with the fourth belt pulley (571) through a second belt (572), and a cover plate (511) is arranged on the outer side of the movable box (51), the utility model discloses a portable electronic device, including apron (511), corresponding department is equipped with through-hole (512) that supply round brush (55) to stretch out on apron (511), the inside bottom of removal case (51) is equipped with first waterproof touch switch (58), the inside top of removal case (51) is equipped with second waterproof touch switch (59), first motor (54), second motor (57) and waterproof touch switch (58) all with controller electric connection.
5. The cleaning device for facilitating the cleaning of the door and window as claimed in claim 3, wherein: drainage mechanism (6) are including guide plate (61), baffle-box (62) and four (63) of connecting pipe, guide plate (61) slope sets up in seal box (2) lower extreme one side inwards, baffle-box (62) are fixed in the bottom of seal box (2), the bottom of seal box (2) is equipped with intercommunicating pore (23) of intercommunication baffle-box (62), the bottom of baffle-box (62) is passed through four (63) of connecting pipe be connected with sewage case (64), four (63) of connecting pipe are fixed in the lower extreme of limiting plate (47).
6. The cleaning device for facilitating the cleaning of the door and window as claimed in claim 1, wherein: drying mechanism (7) are including being responsible for (72), branch pipe (71) and air heater (73), branch pipe (71) are equipped with two and the symmetry locates the outside of seal box (2), seal box (2) are equipped with fresh air inlet (24) in the department of corresponding with the branch pipe, be equipped with a plurality of holes (25) of airing exhaust on seal box (2), be equipped with between two branch pipes (71) be responsible for (72), the top of being responsible for (72) is located in air heater (73), the outside of seal box (2) still is equipped with bee calling organ (74), air heater (73) and bee calling organ (74) all with controller electric connection.
