Abstract

The invention belongs to the technical field of motor part processing, and particularly relates to a motor rotor punching sheet processing device which comprises a supporting table, wherein the supporting table is placed on the ground, and four corners of the lower end surface of the supporting table are respectively and fixedly provided with supporting legs; the stamping mechanism is arranged above the support platform and comprises a stamping driving component and a stamping positioning component, wherein the stamping positioning component is provided with two stamping grooves with the same size and shape; the transverse conveying mechanism is fixedly arranged on the support table and used for driving the stamping positioning assembly to move in the horizontal direction, so that the two stamping grooves alternately move to the position right below the stamping driving assembly; control switch for control punching press drive assembly and horizontal transport mechanism open and close, overcome prior art not enough, utilize two punching press grooves to carry out the punching press in turn, the convenience is gone up unloading to the punching sheet, and operating space is big, and safe and reliable more has better practicality.

Description

Motor rotor punching sheet processing device
Technical Field
The invention belongs to the technical field of motor part processing, and particularly relates to a motor rotor punching sheet processing device.
Background
Generally, the current motor rotor punching sheet is manufactured by punching and processing a silicon steel sheet by a die. The punching device of the existing motor rotor punching sheet has the problem of inconvenience in feeding and discharging, a user needs to stretch a hand into the lower part of a punching head to feed and discharge materials, the operation space is small, and potential safety hazards exist.
Disclosure of Invention
The invention aims to provide a motor rotor punching sheet processing device which overcomes the defects of the prior art, utilizes two punching grooves to alternately punch, is convenient to feed and discharge punching sheets, has large operation space, is safer and more reliable, and has better practicability.
In order to solve the problems, the technical scheme adopted by the invention is as follows:
a motor rotor punching sheet processing device comprises
The supporting table is placed on the ground, and four corners of the lower end face of the supporting table are respectively and fixedly provided with supporting legs;
the stamping mechanism is arranged above the support platform and comprises a stamping driving component and a stamping positioning component, wherein the stamping positioning component is provided with two stamping grooves with the same size and shape;
the transverse conveying mechanism is fixedly arranged on the support table and used for driving the stamping positioning assembly to move in the horizontal direction, so that the two stamping grooves alternately move to the position right below the stamping driving assembly;
and the control switch is used for controlling the opening and closing of the stamping driving assembly and the transverse conveying mechanism.
Further, punching press drive assembly is including setting firmly the mounting panel in the workstation top, the pneumatic cylinder is installed to the up end of mounting panel, the flexible end of pneumatic cylinder runs through the mounting panel, and its bottom has set firmly the punching press head.
Furthermore, the punching positioning assembly comprises a movable plate, the upper end face of the movable plate is provided with two punching grooves, and a plurality of groups of elastic discharging assemblies are arranged in the punching grooves and used for jacking punched sheets.
Further, the discharging assembly comprises a discharging groove formed in the bottom end of the stamping groove, a top block is movably placed in the discharging groove, a mounting groove is formed in the lower portion of the discharging groove, a connecting spring is fixedly arranged in the mounting groove, a supporting block is fixedly arranged at the top end of the connecting spring, and the top end of the supporting block is fixedly connected with the top block.
Furthermore, elastic clamping blocks are fixedly arranged on the surfaces of the two sides of the supporting block, the elastic clamping blocks are of a hemispherical structure, and clamping grooves matched with the elastic clamping blocks are formed in the upper portions of the two sides of the mounting groove.
Further, an infrared receiver is installed on one side of the stamping groove, the infrared receiver is embedded in the upper surface of the moving block, an infrared generator is installed on the lower end face of the installing plate, and when the stamping groove moves to the position under the stamping head, the infrared generator is matched with the corresponding infrared receiver.
Further, still install the PLC controller in the control switch, the input and the infrared receiver electric connection of PLC controller, the output and the infrared generator electric connection of PLC controller.
Further, horizontal transport mechanism is including setting firmly at the workstation of brace table up end, along workstation length direction two sets of support bars that set firmly, set firmly the guide rail on the support bar and install the promotion cylinder in workstation one end, the flexible end of promotion cylinder and the one end fixed connection of movable plate, the movable plate overlap joint is on the support bar, and with guide rail sliding connection, the one end that the promotion cylinder was kept away from to the support bar has set firmly the fixed plate.
Further, the up end of workstation has set firmly the smooth backing plate in surface, the backing plate is located between two sets of support bars and the backing plate highly unanimous with the support bar.
Compared with the prior art, the invention has the following beneficial effects:
according to the motor rotor punching sheet processing device, the transverse conveying mechanism is designed to drive the two punching grooves on the moving plate to alternately perform punching operation, and the punching groove which is not located at the punching position performs feeding and discharging operation, so that feeding and discharging are facilitated, the operation space is larger, safety accidents are avoided, the punching efficiency can be improved, the punching sheet yield is improved, and the enterprise benefit is improved.
Drawings
Fig. 1 is a schematic structural diagram of a motor rotor punching sheet processing device.

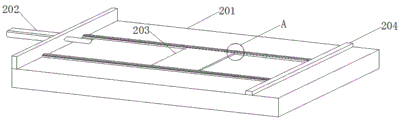

Fig. 2 is a schematic structural diagram of a transverse conveying mechanism in a motor rotor punching sheet processing device.
Fig. 3 is an enlarged structural schematic diagram of a position a in the motor rotor punching sheet processing device.
Fig. 4 is a schematic structural diagram of a punching drive assembly in a motor rotor punching sheet processing device.
Fig. 5 is a schematic structural diagram of a punching positioning assembly in a motor rotor punching sheet processing device.
Fig. 6 is a schematic structural diagram of a discharging assembly in a motor rotor punching sheet processing device.
In the figure: 1. a support table; 2. a transverse transport mechanism; 201. a work table; 202. a push cylinder; 203. a base plate; 204. a fixing plate; 205. a supporting strip; 206. a guide rail; 3. a stamping mechanism; 301. mounting a plate; 302. a hydraulic cylinder; 303. punching a head; 304. an infrared generator; 305. moving the plate; 306. punching a groove; 307. an infrared receiver; 308. a discharge chute; 309. a top block; 310. a support block; 311. mounting grooves; 312. a connecting spring; 313. an elastic clamping block; 314. a card slot; 4. and controlling the switch.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
As shown in FIGS. 1-6, the device for processing the rotor punching sheet of the motor comprises
The supporting table 1 is placed on the ground, and four corners of the lower end face of the supporting table 1 are respectively and fixedly provided with supporting legs;
the stamping mechanism 3 is arranged above the support table 1 and comprises a stamping driving component and a stamping positioning component, wherein the stamping positioning component is provided with two stamping grooves 306 with the same size and shape;
the transverse conveying mechanism 2 is fixedly arranged on the support table 1 and used for driving the stamping positioning assembly to move in the horizontal direction, so that the two stamping grooves 306 alternately move to the position right below the stamping driving assembly;
and the control switch 4 is used for controlling the opening and closing of the stamping driving assembly and the transverse conveying mechanism 2.
When the punching positioning assembly is used, one punching groove 306 of the punching positioning assembly is located right below the punching driving assembly, the other punching groove 306 is located outside the punching driving assembly, a user firstly places a punched piece to be punched into the punching groove 306 located outside the punching driving assembly, the transverse conveying mechanism 2 is started to enable the punching groove 306 filled with the punched piece to move to the position right below the punching driving assembly, the punching driving assembly is started to perform punching processing, meanwhile, the user can place the next punched piece to be punched into the punching groove 306 moving to the outside of the punching driving assembly, and the punching grooves 306 are repeatedly operated in such a way that one punched piece of the two punching grooves 306 is discharged and loaded until all punching processing is completed.
The stamping driving assembly comprises a mounting plate 301 fixedly arranged above the workbench 201, a hydraulic cylinder 302 is arranged on the upper end face of the mounting plate 301, the telescopic end of the hydraulic cylinder 302 penetrates through the mounting plate 301, and a stamping head 303 is fixedly arranged at the bottom of the hydraulic cylinder 302.
The punching positioning assembly comprises a moving plate 305 with two punching grooves 306 formed in the upper end face, and a plurality of groups of elastic discharging assemblies are arranged in the punching grooves 306 and used for jacking punched sheets.
The discharging assembly comprises a discharging groove 308 formed in the bottom end of the punching groove 306, a top block 309 is movably placed in the discharging groove 308, a mounting groove 311 is formed in the lower portion of the discharging groove 308, a connecting spring 312 is fixedly arranged in the mounting groove 311, a supporting block 310 is fixedly arranged at the top end of the connecting spring 312, and the top end of the supporting block 310 is fixedly connected with the top block 309.
In order to fix the punching sheet conveniently, elastic clamping blocks 313 are fixedly arranged on the surfaces of the two sides of the supporting block 310, the elastic clamping blocks 313 are of a hemispherical structure, and clamping grooves 314 matched with the elastic clamping blocks 313 are formed in the upper parts of the inner parts of the two sides of the mounting groove 311; after the punching sheet to be punched is placed in the punching groove 306, external force is applied to press down the top block 309 and the supporting block 310 until the elastic clamping blocks 313 on the two sides of the supporting block 310 are clamped in the clamping grooves 314, so that the punching sheet to be punched is positioned in the punching groove 306 and is prevented from deviating in the conveying process; during the stamping process, the stamping head 303 extrudes the stamping sheet to drive the supporting block 310 to move downwards, and when the stamping head 303 leaves the stamping sheet, the elastic clamping block 313 can be directly stamped out of the clamping groove 314 under the action of the restoring force of the connecting spring 312, so that the discharging is convenient.
For convenience in positioning, an infrared receiver 307 is installed on one side of the stamping groove 306, the infrared receiver 307 is embedded on the upper surface of the moving block, an infrared generator 304 is installed on the lower end surface of the installation plate 301, and when the stamping groove 306 moves to the position right below the stamping head 303, the infrared generator 304 is matched with the corresponding infrared receiver 307; a PLC controller is also installed in the control switch 4, the input end of the PLC controller is electrically connected with the infrared receiver 307, and the output end of the PLC controller is electrically connected with the infrared generator 304; when the infrared receiver 307 receives an infrared signal sent by the infrared generator 304 during the moving process of the moving plate 305, the signal is transmitted to the PLC controller, and then the PLC controller controls the pushing cylinder 202 to stop stretching, and at this time, the stamping head 303 is located right above the stamping groove 306 to be stamped.
The transverse conveying mechanism 2 comprises a workbench 201 fixedly arranged on the upper end surface of the support table 1, two groups of supporting bars 205 fixedly arranged along the length direction of the workbench 201, guide rails 206 fixedly arranged on the supporting bars 205, and a pushing cylinder 202 arranged at one end of the workbench 201, wherein the telescopic end of the pushing cylinder 202 is fixedly connected with one end of a moving plate 305, the moving plate 305 is lapped on the supporting bars 205 and is in sliding connection with the guide rails 206, and a fixing plate 204 is fixedly arranged at one end, far away from the pushing cylinder 202, of the supporting bars 205; the moving plate 305 is moved left and right along the guide rail 206 by pushing the cylinder 202.
In order to improve the stamping stability, a backing plate 203 with a smooth surface is fixedly arranged on the upper end surface of the workbench 201, the backing plate 203 is positioned between the two groups of support bars 205, the heights of the backing plate 203 and the support bars 205 are consistent, and the part of the moving plate 305 to be stamped is positioned on the backing plate 203 in the stamping process and provides support for the moving plate 305 in the stamping process.
It will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims (9)

1. The utility model provides a motor rotor punching processingequipment which characterized in that: comprises that
The supporting platform (1) is placed on the ground, and supporting legs are fixedly arranged at four corners of the lower end face of the supporting platform (1) respectively;
the stamping mechanism (3) is arranged above the support table (1) and comprises a stamping driving component and a stamping positioning component, wherein the stamping positioning component is provided with two stamping grooves (306) with the same size and shape;
the transverse conveying mechanism (2) is fixedly arranged on the supporting table (1) and is used for driving the stamping positioning assembly to move in the horizontal direction, so that the two stamping grooves (306) alternately move to the position right below the stamping driving assembly;
and the control switch (4) is used for controlling the opening and closing of the stamping driving assembly and the transverse conveying mechanism (2).
2. The motor rotor punching sheet processing device according to claim 1, characterized in that: punching press drive assembly is including setting firmly mounting panel (301) in workstation (201) top, pneumatic cylinder (302) are installed to the up end of mounting panel (301), mounting panel (301) are run through to the flexible end of pneumatic cylinder (302), and its bottom sets firmly punching press head (303).
3. The motor rotor punching sheet processing device as claimed in claim 2, characterized in that: the stamping positioning assembly comprises a moving plate (305) with two stamping grooves (306) formed in the upper end face, and a plurality of groups of elastic unloading assemblies are arranged in the stamping grooves (306) and used for jacking stamped sheets for completing stamping.
4. The motor rotor punching sheet processing device according to claim 3, characterized in that: the discharging assembly comprises a discharging groove (308) formed in the bottom end of a stamping groove (306), a top block (309) is movably placed in the discharging groove (308), a mounting groove (311) is formed in the lower portion of the discharging groove (308), a connecting spring (312) is fixedly arranged in the mounting groove (311), a supporting block (310) is fixedly arranged at the top end of the connecting spring (312), and the top end of the supporting block (310) is fixedly connected with the top block (309).
5. The motor rotor punching sheet processing device according to claim 4, characterized in that: elastic clamping blocks (313) are fixedly arranged on the surfaces of the two sides of the supporting block (310), the elastic clamping blocks (313) are of a hemispherical structure, and clamping grooves (314) matched with the elastic clamping blocks (313) are formed in the upper portions of the inner parts of the two sides of the mounting groove (311).
6. The motor rotor punching sheet processing device according to claim 3, characterized in that: an infrared receiver (307) is installed on one side of the stamping groove (306), the infrared receiver (307) is embedded on the upper surface of the moving block, an infrared generator (304) is installed on the lower end face of the installing plate (301), and when the stamping groove (306) moves to the position right below the stamping head (303), the infrared generator (304) is matched with the corresponding infrared receiver (307).
7. The motor rotor punching sheet processing device according to claim 6, characterized in that: still install the PLC controller in control switch (4), the input and infrared receiver (307) electric connection of PLC controller, the output and the infrared generator (304) electric connection of PLC controller.
8. The motor rotor punching sheet processing device according to any one of claims 3 to 6, characterized in that: horizontal transport mechanism (2) including set firmly workstation (201) at brace table (1) up end, along two sets of support bars (205) that workstation (201) length direction set firmly, set firmly guide rail (206) on support bar (205) and install promotion cylinder (202) at workstation (201) one end, the flexible end of promotion cylinder (202) and the one end fixed connection of moving plate (305), moving plate (305) overlap joint is on support bar (205), and with guide rail (206) sliding connection, the one end that promotes cylinder (202) was kept away from to support bar (205) has set firmly fixed plate (204).
9. The motor rotor punching sheet processing device according to claim 7, characterized in that: the up end of workstation (201) sets firmly smooth surface's backing plate (203), backing plate (203) are located between two sets of support bars (205) and the highly uniform of backing plate (203) and support bar (205).
