CN111977436A - Edge pressing device of textile printing and dyeing cloth applying magnetic force principle - Google Patents
Edge pressing device of textile printing and dyeing cloth applying magnetic force principle Download PDFInfo
- Publication number
- CN111977436A CN111977436A CN202010842178.6A CN202010842178A CN111977436A CN 111977436 A CN111977436 A CN 111977436A CN 202010842178 A CN202010842178 A CN 202010842178A CN 111977436 A CN111977436 A CN 111977436A
- Authority
- CN
- China
- Prior art keywords
- permanent magnet
- fixedly connected
- cloth
- edge pressing
- roller
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
Images
Classifications
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B65—CONVEYING; PACKING; STORING; HANDLING THIN OR FILAMENTARY MATERIAL
- B65H—HANDLING THIN OR FILAMENTARY MATERIAL, e.g. SHEETS, WEBS, CABLES
- B65H23/00—Registering, tensioning, smoothing or guiding webs
- B65H23/04—Registering, tensioning, smoothing or guiding webs longitudinally
- B65H23/34—Apparatus for taking-out curl from webs
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B65—CONVEYING; PACKING; STORING; HANDLING THIN OR FILAMENTARY MATERIAL
- B65H—HANDLING THIN OR FILAMENTARY MATERIAL, e.g. SHEETS, WEBS, CABLES
- B65H18/00—Winding webs
- B65H18/08—Web-winding mechanisms
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B65—CONVEYING; PACKING; STORING; HANDLING THIN OR FILAMENTARY MATERIAL
- B65H—HANDLING THIN OR FILAMENTARY MATERIAL, e.g. SHEETS, WEBS, CABLES
- B65H20/00—Advancing webs
- B65H20/02—Advancing webs by friction roller
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B65—CONVEYING; PACKING; STORING; HANDLING THIN OR FILAMENTARY MATERIAL
- B65H—HANDLING THIN OR FILAMENTARY MATERIAL, e.g. SHEETS, WEBS, CABLES
- B65H23/00—Registering, tensioning, smoothing or guiding webs
- B65H23/04—Registering, tensioning, smoothing or guiding webs longitudinally
- B65H23/26—Registering, tensioning, smoothing or guiding webs longitudinally by transverse stationary or adjustable bars or rollers
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B65—CONVEYING; PACKING; STORING; HANDLING THIN OR FILAMENTARY MATERIAL
- B65H—HANDLING THIN OR FILAMENTARY MATERIAL, e.g. SHEETS, WEBS, CABLES
- B65H2701/00—Handled material; Storage means
- B65H2701/10—Handled articles or webs
- B65H2701/19—Specific article or web
Landscapes
- Treatment Of Fiber Materials (AREA)
Abstract
The invention provides a magnetic force principle applied edge pressing device for textile printing and dyeing cloth, which relates to the field of textile printing and dyeing equipment and comprises a base, wherein two first mounting frames are fixedly connected to the top of the base, a cloth roller is hinged between the two mounting frames, a first guide roller and a second guide roller are arranged on one side of the cloth roller, the axial lines of the first guide roller and the second guide roller are parallel to the axial line of the cloth roller, and the second mounting frames are arranged on two sides of the first guide roller and the second guide roller. This use blank pressing device of weaving printing and dyeing cloth of magnetic force principle when beginning to roll up the system cloth and roll up, opens through first electro-magnet of PLC controller control and second electro-magnet, and at this moment, the magnetic pole that first electro-magnet is close to first permanent magnet one side is the same with the magnetic pole that first permanent magnet is close to one side of first electro-magnet for first permanent magnet moves towards the direction of keeping away from first electro-magnet, and the edge contact that the board and cloth were rolled up is rolled up to the blank pressing.
Description
Technical Field
The invention relates to the technical field of textile printing and dyeing equipment, in particular to a blank holder device for textile printing and dyeing cloth by applying a magnetic force principle.
Background
The finishing is typically performed on a single stand. According to the process requirements, some single machines can be connected in sequence to form a combination machine for continuous production. The common combination machine consists of padding, steaming, water washing, drying and other equipment, and is especially suitable for processing large-scale products. The dyeing and finishing of the fabric can be carried out in a rope form, and in an open width state. The rope-shaped processing efficiency is high, and the open width processing is not easy to generate creases. Dyeing and cleaning of wool and weft fabrics is generally carried out in rope form. Because knitted fabrics, wool fabrics, silk fabrics and synthetic fiber fabrics are easy to deform, tension is reduced as much as possible during dyeing and finishing, and loose equipment is adopted for processing.
Cloth after dyeing and finishing needs to carry out the batching operation, is about to the cloth batching circle roll form, gets my in-process at the batching, and the condition of unevenness can take place for the both sides limit that the cloth rolled needs to carry out the blank pressing operation, and current blank pressing device only can carry out the cloth blank pressing of single size, is difficult to satisfy the blank pressing of not unidimensional cloth.
Disclosure of Invention
Technical problem to be solved
Aiming at the defects of the prior art, the invention provides a blank holder device for textile printing and dyeing cloth by applying a magnetic force principle, which solves the problem that blank holders for cloth with different sizes are difficult to satisfy in the background technology.
(II) technical scheme
In order to achieve the purpose, the invention is realized by the following technical scheme: a selvage pressing device for textile printing and dyeing cloth by applying the magnetic force principle comprises a base, wherein two first mounting frames are fixedly connected with the top of the base, a cloth roller is hinged between the two mounting frames, a first guide roller and a second guide roller are arranged on one side of the cloth roller, the axes of the first guide roller and the second guide roller are parallel to the axis of the cloth roller, the two sides of the first guide roller and the second guide roller are respectively provided with a second mounting frame, the two ends of the first guide roller and the second guide roller are respectively hinged with the two second mounting frames, the bottom of the second mounting rack is fixedly connected with the base, the cloth roller is provided with a cloth body, the top of base just is located one side fixedly connected with driving motor of first mounting bracket, driving motor is connected with the cloth roller linkage, one side that first guide roll was kept away from to the cloth body is provided with blank pressing mechanism.
Preferably, the one end of cloth roller runs through first mounting bracket and the first gear of fixedly connected with, the top fixedly connected with driving motor of base, fixedly connected with second gear on driving motor's the output shaft, the external transmission of first gear and second gear is connected with the drive belt.
Preferably, the edge pressing mechanism comprises a slide rail, a slide seat, a moving plate, third mounting frames, a cross bar, a first spring mounting seat, a second spring mounting seat, a reset spring, a PLC (programmable logic controller), a first electromagnet, a second electromagnet, a first permanent magnet, a second permanent magnet, an edge pressing plate, an edge pressing roller, a sliding block and a bearing, wherein the slide rail is fixedly connected to the top of the base, the direction of the slide rail is perpendicular to the axis of the cloth roller, the slide seat is in sliding fit on the slide rail, the moving plate is fixedly connected to the top of the slide seat, the cross bar is arranged above the moving plate, the direction of the cross bar is parallel to the axis of the cloth roller, the length of the cross bar is greater than that of the cloth roller, the length of the moving plate is greater than that of the cross bar, the number of the upper third mounting frames is two, the two third mounting frames are fixedly connected to the two ends of the, the first electromagnet, the first permanent magnet, the second permanent magnet and the second electromagnet are sequentially arranged on the cross rod, the first electromagnet and the second electromagnet are arranged to be annular electromagnets, the first permanent magnet and the second permanent magnet are arranged to be annular magnets, the first electromagnet, the first permanent magnet, the second permanent magnet and the second electromagnet are same in size and shape, the first electromagnet and the second electromagnet are respectively and fixedly connected to two ends of the cross rod, a magnetic pole of one side, close to the second permanent magnet, of the first permanent magnet is same as a magnetic pole of one side, close to the first permanent magnet, of the second permanent magnet, the second permanent magnet is matched on the cross rod in a sliding mode, the number of the sliding blocks is two, the first permanent magnet and the second permanent magnet are respectively and fixedly connected to the two sliding blocks, the number of the edge pressing rollers is two, the shape of the edge pressing rollers is in an oblique cone shape, and a circular, the diameter of the circular through hole is larger than that of the sliding block, a bearing is fixedly connected in the circular through hole, the inner diameter of the bearing is equal to the outer diameter of the sliding block, the inner wall of the bearing is fixedly connected with the sliding block, the two edge pressing rollers are respectively hinged to the two connecting blocks through the bearing, the two edge pressing rollers are respectively arranged on the inner sides of the first permanent magnet and the second permanent magnet, the large-diameter side of the two edge pressing rollers faces the outer side, an edge pressing plate is fixedly connected to the outer side of the large-diameter end of the edge pressing roller, the edge pressing plate is annular, the inner diameter of the edge pressing plate is equal to the maximum diameter of the edge pressing roller, the first spring mounting seat is fixedly connected to the movable plate, the second spring mounting seat is fixedly connected to the top of the base, one end of the reset spring is fixedly connected with the first spring mounting seat, and the other end of the, the PLC controller is fixedly connected to the top of the moving plate and is electrically connected with the first electromagnet and the second electromagnet.
Preferably, the cross section of the cross bar is square.
Preferably, the centers of the first electromagnet and the second electromagnet are fixedly connected with a connecting block, a through hole matched with the cross rod is formed in the center of the connecting block, and the connecting block is welded with the cross rod through the through hole.
Preferably, reset spring's center is provided with the guide bar, the one end and the second spring mount pad fixed connection of guide bar, seted up on the first spring mount pad with guide bar assorted through-hole, the other end of guide bar pass first spring mount pad and with first mounting bracket fixed connection.
Preferably, the outer sides of the first permanent magnet and the second permanent magnet are fixedly connected with buffer layers, and the buffer layers are sponge layers.
Preferably, the thickness of the edge pressing plate is set to be two centimeters.
(III) advantageous effects
The invention provides a side pressing device for textile printing and dyeing cloth by applying a magnetic force principle. The method has the following beneficial effects:
1. the edge pressing device for textile printing and dyeing cloth applying the magnetic force principle controls the first electromagnet and the second electromagnet to be opened through the PLC when a cloth roll is rolled, at the moment, the magnetic pole of one side, close to the first permanent magnet, of the first electromagnet is the same as the magnetic pole of one side, close to the first electromagnet, of the first permanent magnet, so that the first permanent magnet moves towards the direction far away from the first electromagnet until the edge pressing plate is contacted with the edge of the cloth roll, meanwhile, the magnetic pole of one side, close to the second permanent magnet, of the second electromagnet is the same as the magnetic pole of one side, close to the second electromagnet, of the second permanent magnet, so that the second permanent magnet moves towards the direction far away from the second electromagnet until the edge pressing plate is contacted with the edge of the cloth roll, at the moment, the two edge pressing plates are respectively contacted and pressed with the edges on two sides of the cloth roll, and meanwhile, the reset spring provides a horizontal force for the edge pressing roll, so that the cloth can be corrected, finally obtain good blank pressing effect, and after the cloth is rolled up and is accomplished, provide the reversal of the current direction of first electro-magnet of PLC controller control and second electro-magnet, make the magnetic pole direction reversal of first electro-magnet and second electro-magnet, at this moment first permanent magnet can locate the motion to first electro-magnet until adsorbing with first electro-magnet, the second permanent magnet can locate the motion to second electro-magnet until adsorbing with the second electro-magnet, at the power off, accomplish the restoration of first permanent magnet and second permanent magnet, convenient next use, it is very convenient to use.
2. This use magnetic force principle's weaving printing and dyeing cloth's blank holder device, thereby control current size that can relax through the PLC controller adjusts two inside pressures of blank holder, can increase the dynamics that the electric current made the blank holder and strengthen when carrying out the blank holder to the less cloth of size, thereby guarantee the effect of blank holder, and when carrying out the blank holder to the great cloth of size, then can reduce the size of electric current, thereby prevent that too big pressure from leading to the edge of cloth to produce pincher trees, and is very convenient to use, excellent in use effect.
3. This use blank holder device of weaving printing and dyeing cloth of magnetic force principle, through the setting of buffer layer, when first permanent magnet moves until adsorbing to first electro-magnet department, can play certain cushioning effect, can improve life.
Drawings

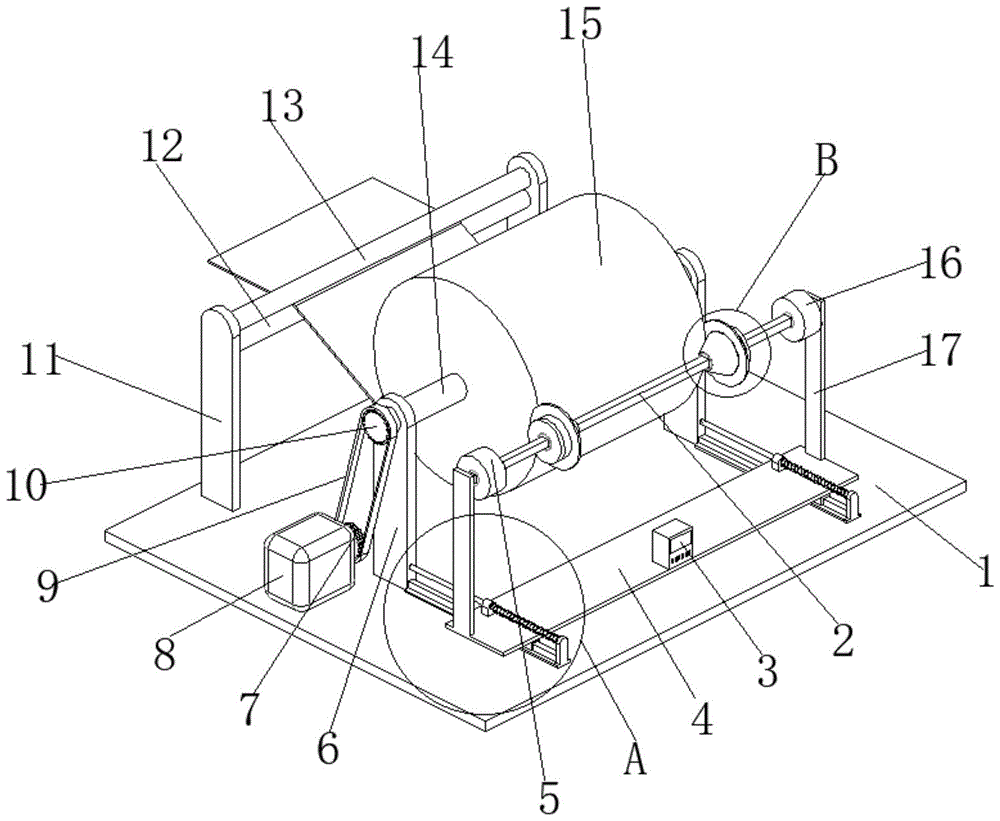

FIG. 1 is a perspective view of the structure of the present invention;
FIG. 2 is an enlarged view of the structure of FIG. 1 at A according to the present invention;
FIG. 3 is an enlarged view of the structure of FIG. 1 at B according to the present invention;
FIG. 4 is a schematic view of a cross bar according to the present invention.
In the figure: 1 base, 2 horizontal poles, 3PLC controllers, 4 movable plates, 5 first electro-magnets, 6 first mounting brackets, 7 second gears, 8 driving motors, 9 driving belts, 10 first gears, 11 second mounting brackets, 12 second guide rollers, 13 first guide rollers, 14 cloth rollers, 15 cloth bodies, 16 second electro-magnets, 17 third mounting brackets, 18 guide rods, 19 slide rails, 20 first spring mounting seats, 21 slide seats, 22 second spring mounting seats, 23 return springs, 24 buffer layers, 25 side pressing plates, 26 side pressing rollers, 27 bearings, 28 sliding blocks, 29 first permanent magnets, 30 second permanent magnets.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.
The embodiment of the invention provides a selvage pressing device for textile printing and dyeing cloth by applying a magnetic principle, which comprises a base 1, wherein the top of the base 1 is fixedly connected with two first mounting frames 6, a cloth roller 14 is hinged between the two mounting frames, one side of the cloth roller 14 is provided with a first guide roller 13 and a second guide roller 12, the axes of the first guide roller 13 and the second guide roller 12 are parallel to the axis of the cloth roller 14, the two sides of the first guide roller 13 and the second guide roller 12 are respectively provided with a second mounting frame 11, the two ends of the first guide roller 13 and the second guide roller 12 are respectively hinged with the two second mounting frames 11, the bottom of the second mounting frame 11 is fixedly connected with the base 1, the cloth roller 14 is provided with a cloth body 15, the top of the base 1 and one side of the first mounting frame 6 are fixedly connected with a driving motor 8, the driving motor 8 is linked with the cloth roller 14, and a side pressing mechanism is arranged on one side of the cloth body 15, which is far away from the first guide roller 13.
One end of the cloth roller 14 penetrates through the first mounting frame 6 and the first fixedly connected gear 10, the top fixedly connected with driving motor 8 of the base 1 is fixedly connected with the second gear 7 on an output shaft of the driving motor 8, and the first gear 10 and the second gear 7 are in transmission connection with a driving belt 9.
The edge pressing mechanism comprises a sliding rail 19, a sliding seat 21, a moving plate 4, a third mounting rack 17, a cross rod 2, a first spring mounting seat 20, a second spring mounting seat 22, a reset spring 23, a PLC (programmable logic controller) 3, a first electromagnet 5, a second electromagnet 16, a first permanent magnet 29, a second permanent magnet 30, an edge pressing plate 25, an edge pressing roller 26, a sliding block 28 and a bearing 27, wherein the sliding rail 19 is fixedly connected to the top of the base 1, the direction of the sliding rail 19 is vertical to the axis of the cloth roller 14, the sliding seat 21 is in sliding fit with the sliding rail 19, the moving plate 4 is fixedly connected to the top of the sliding seat 21, the cross rod 2 is arranged above the moving plate 4, the direction of the cross rod 2 is parallel to the axis of the cloth roller 14, the length of the cross rod 2 is greater than that of the cloth roller 14, the length of the moving plate 4 is greater than that of the cross rod 2, the number of the upper third mounting racks 17, the bottoms of the two third mounting frames 17 are fixedly connected with the moving plate 4, the first electromagnet 5, the first permanent magnet 29, the second permanent magnet 30 and the second electromagnet 16 are sequentially arranged on the cross bar 2, the first electromagnet 5 and the second electromagnet 16 are arranged into annular electromagnets, the first permanent magnet 29 and the second permanent magnet 30 are arranged into annular magnets, the first electromagnet 5, the first permanent magnet 29, the second permanent magnet 30 and the second electromagnet 16 are identical in size and shape, the first electromagnet 5 and the second electromagnet 16 are respectively and fixedly connected with the two ends of the cross bar 2, the magnetic pole of the first permanent magnet 29 close to the second permanent magnet 30 is identical to the magnetic pole of the second permanent magnet 30 close to the first permanent magnet 29, the sliding blocks 28 are in sliding fit with the cross bar 2, the number of the sliding blocks 28 is two, and the first permanent magnet 29 and the second permanent magnet 30 are respectively and fixedly connected with the two sliding blocks 28, the number of the edge pressing rollers 26 is two, the shape of the edge pressing rollers 26 is an oblique cone, a circular through hole is formed in the center of the edge pressing rollers 26, the diameter of the circular through hole is larger than that of the sliding block 28, the inside of the circular through hole is fixedly connected with a bearing 27, the inner diameter of the bearing 27 is equal to the outer diameter of the sliding block 28, the inner wall of the bearing 27 is fixedly connected with the sliding block 28, the two edge pressing rollers 26 are respectively hinged to the two connecting blocks through the bearing 27, the two edge pressing rollers 26 are respectively arranged on the inner sides of the first permanent magnet 29 and the second permanent magnet 30, the large-diameter side of the two edge pressing rollers 26 faces the outer side, the outer side of the large-diameter end of the edge pressing rollers 26 is fixedly connected with an edge pressing plate 25, the edge pressing plate 25 is annular, the inner diameter of the edge pressing plate 25 is equal to the maximum diameter of the edge pressing rollers 26, the first spring mounting seat 20 is fixedly connected, one end of a return spring 23 is fixedly connected with the first spring mounting seat 20, the other end of the return spring 23 is fixedly connected with the second spring mounting seat 22, the PLC controller 3 is fixedly connected to the top of the moving plate 4, and the PLC controller 3 is electrically connected with the first electromagnet 5 and the second electromagnet 16.
When a cloth roll is rolled, the PLC 3 controls the first electromagnet 5 and the second electromagnet 16 to be opened, at this time, the magnetic pole of one side of the first electromagnet 5 close to the first permanent magnet 29 is the same as the magnetic pole of one side of the first permanent magnet 29 close to the first electromagnet 5, so that the first permanent magnet 29 moves towards the direction far away from the first electromagnet 5 until the edge pressing plate 25 is contacted with the edge of the cloth roll, meanwhile, the magnetic pole of one side of the second electromagnet 16 close to the second permanent magnet 30 is the same as the magnetic pole of one side of the second permanent magnet 30 close to the second electromagnet 16, so that the second permanent magnet 30 moves towards the direction far away from the second electromagnet 16 until the edge pressing plate 25 is contacted with the edge of the cloth roll, at this time, the two edge pressing plates 25 are respectively contacted with the edges on two sides of the cloth roll to be pressed, and the reset spring 23 provides a horizontal force to the edge pressing roller 26, so that the cloth can be corrected by the oblique tapered edge pressing roller 26 when the cloth is rolled, finally, a good edge pressing effect is obtained, after the cloth is rolled, the PLC 3 is provided to control the current direction of the first electromagnet 5 and the current direction of the second electromagnet 16 to be reversed, so that the magnetic pole directions of the first electromagnet 5 and the second electromagnet 16 are reversed, at the moment, the first permanent magnet 29 can move towards the first electromagnet 5 until being adsorbed by the first electromagnet 5, the second permanent magnet 30 can move towards the second electromagnet 16 until being adsorbed by the second electromagnet 16, and when the power supply is disconnected, the resetting of the first permanent magnet 29 and the second permanent magnet 30 is completed, so that the next use is facilitated, and the use is very convenient.
Thereby adjust two inside pressure of blank pressing board 25 through the control current size that PLC controller 3 can be relaxed, can increase the electric current when carrying out the blank pressing to the less cloth of size and make the dynamics of blank pressing board 25 strengthen, thereby guarantee the effect of blank pressing, and when carrying out the blank pressing to the great cloth of size, then can reduce the size of electric current, thereby prevent that too big pressure from leading to the edge production pincher trees of cloth, and is very convenient to use, excellent in use effect.
Through the setting of buffer layer 24, when first permanent magnet 29 moves to first electro-magnet 5 department until adsorbing, can play certain cushioning effect, can improve life.
The cross section of the cross bar 2 is provided as a square.
The center fixedly connected with connecting block of first electro-magnet 5 and second electro-magnet 16, the through-hole with horizontal pole 2 assorted is seted up at the center of connecting block, and the connecting block passes through the through-hole and welds with horizontal pole 2.
The center of reset spring 23 is provided with guide bar 18, the one end and the second spring mount 22 fixed connection of guide bar 18, seted up on first spring mount 20 with guide bar 18 assorted through-hole, the other end of guide bar 18 pass first spring mount 20 and with first mounting bracket 6 fixed connection.
The buffer layer 24 is fixedly connected to the outer sides of the first permanent magnet 29 and the second permanent magnet 30, and the buffer layer 24 is a sponge layer.
The thickness of the bead plate 25 is set to two centimeters.
The working principle is as follows: when a cloth roll is rolled, the PLC 3 controls the first electromagnet 5 and the second electromagnet 16 to be opened, at this time, the magnetic pole of one side of the first electromagnet 5 close to the first permanent magnet 29 is the same as the magnetic pole of one side of the first permanent magnet 29 close to the first electromagnet 5, so that the first permanent magnet 29 moves towards the direction far away from the first electromagnet 5 until the edge pressing plate 25 is contacted with the edge of the cloth roll, meanwhile, the magnetic pole of one side of the second electromagnet 16 close to the second permanent magnet 30 is the same as the magnetic pole of one side of the second permanent magnet 30 close to the second electromagnet 16, so that the second permanent magnet 30 moves towards the direction far away from the second electromagnet 16 until the edge pressing plate 25 is contacted with the edge of the cloth roll, at this time, the two edge pressing plates 25 are respectively contacted with the edges on two sides of the cloth roll to be pressed, and the reset spring 23 provides a horizontal force to the edge pressing roller 26, so that the cloth can be corrected by the oblique tapered edge pressing roller 26 when the cloth is rolled, finally, a good edge pressing effect is obtained, after the cloth is rolled, the PLC 3 is provided to control the current direction of the first electromagnet 5 and the current direction of the second electromagnet 16 to be reversed, so that the magnetic pole directions of the first electromagnet 5 and the second electromagnet 16 are reversed, at the moment, the first permanent magnet 29 can move towards the first electromagnet 5 until being adsorbed by the first electromagnet 5, the second permanent magnet 30 can move towards the second electromagnet 16 until being adsorbed by the second electromagnet 16, and when the power supply is disconnected, the resetting of the first permanent magnet 29 and the second permanent magnet 30 is completed, so that the next use is facilitated, and the use is very convenient.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (8)
1. The utility model provides an use magnetic principle's blank holder device of weaving printing and dyeing cloth, includes base (1), its characterized in that: the cloth rolling machine is characterized in that two first mounting frames (6) are fixedly connected to the top of the base (1), a cloth roller (14) is hinged between the two mounting frames, a first guide roller (13) and a second guide roller (12) are arranged on one side of the cloth roller (14), the axes of the first guide roller (13) and the second guide roller (12) are parallel to the axis of the cloth roller (14), the second mounting frames (11) are arranged on the two sides of the first guide roller (13) and the second guide roller (12), the two ends of the first guide roller (13) and the two ends of the second guide roller (12) are hinged to the two second mounting frames (11), the bottom of the second mounting frame (11) is fixedly connected with the base (1), a cloth body (15) is arranged on the cloth roller (14), a driving motor (8) is fixedly connected to the top of the base (1) and one side of the first mounting frame (6), the cloth rolling machine is characterized in that the driving motor (8) is connected with the cloth roller (14) in a linkage mode, and a side pressing mechanism is arranged on one side, away from the first guide roller (13), of the cloth body (15).
2. A beading apparatus for textile printing and dyeing cloth according to claim 1, wherein: the one end of cloth roller (14) runs through first mounting bracket (6) and the first gear of fixedly connected with (10), the top fixedly connected with driving motor (8) of base (1), fixedly connected with second gear (7) on the output shaft of driving motor (8), the external transmission of first gear (10) and second gear (7) is connected with drive belt (9).
3. A beading apparatus for textile printing and dyeing cloth according to claim 2, wherein: the edge pressing mechanism comprises a sliding rail (19), a sliding seat (21), a moving plate (4), a third mounting frame (17), a cross rod (2), a first spring mounting seat (20), a second spring mounting seat (22), a reset spring (23), a PLC (programmable logic controller) (3), a first electromagnet (5), a second electromagnet (16), a first permanent magnet (29), a second permanent magnet (30), an edge pressing plate (25), an edge pressing roller (26), a sliding block (28) and a bearing (27), wherein the sliding rail (19) is fixedly connected to the top of the base (1), the direction of the sliding rail (19) is perpendicular to the axis of the cloth roller (14), the sliding seat (21) is matched with the sliding rail (19) in a sliding manner, the moving plate (4) is fixedly connected to the top of the sliding seat (21), the cross rod (2) is arranged above the moving plate (4), and the direction of the cross rod (2) is parallel to the axis of the cloth roller (14), the length of horizontal pole (2) is greater than the length of cloth roller (14), the length of movable plate (4) is greater than the length of horizontal pole (2), the quantity of going up third mounting bracket (17) sets up to two, and two third mounting bracket (17) fixed connection are at the both ends of horizontal pole (2), the bottom and the movable plate (4) fixed connection of two third mounting bracket (17), first electro-magnet (5), first permanent magnet (29), second permanent magnet (30), second electro-magnet (16) set gradually on horizontal pole (2), first electro-magnet (5) and second electro-magnet (16) set up to annular electro-magnet, first permanent magnet (29) and second permanent magnet (30) set up to annular magnet, the size shape of first electro-magnet (5), first permanent magnet (29), second permanent magnet (30), second electro-magnet (16) is the same, the first electromagnet (5) and the second electromagnet (16) are fixedly connected to two ends of the cross rod (2) respectively, the magnetic pole of one side, close to the second permanent magnet (30), of the first permanent magnet (29) is the same as the magnetic pole of one side, close to the first permanent magnet (29), of the second permanent magnet (30), the sliding blocks (28) are matched on the cross rod (2) in a sliding mode, the number of the sliding blocks (28) is two, the first permanent magnet (29) and the second permanent magnet (30) are fixedly connected to the two sliding blocks (28) respectively, the number of the edge pressing rollers (26) is two, the shape of the edge pressing rollers (26) is an oblique cone, a circular through hole is formed in the center of the edge pressing rollers (26), the diameter of the circular through hole is larger than that of the sliding blocks (28), a bearing (27) is fixedly connected to the inside of the circular through hole, and the inner diameter of the bearing (27, the inner wall of a bearing (27) is fixedly connected with a sliding block (28), two edge pressing rollers (26) are respectively hinged on two connecting blocks through the bearing (27), the two edge pressing rollers (26) are respectively arranged on the inner sides of a first permanent magnet (29) and a second permanent magnet (30), the large-diameter side of each edge pressing roller (26) faces to the outer side, an edge pressing plate (25) is fixedly connected to the outer side of the large-diameter end of each edge pressing roller (26), the edge pressing plate (25) is annular, the inner diameter of each edge pressing plate (25) is equal to the maximum diameter of each edge pressing roller (26), a first spring mounting seat (20) is fixedly connected to a first spring mounting seat (4), a second spring mounting seat (22) is fixedly connected to the top of a base (1), one end of a return spring (23) is fixedly connected with the first spring mounting seat (20), and the other end of the return spring (23) is fixedly connected with a second spring mounting seat (22), the PLC controller (3) is fixedly connected to the top of the moving plate (4), and the PLC controller (3) is electrically connected with the first electromagnet (5) and the second electromagnet (16).
4. A beading apparatus for textile printing and dyeing cloth according to claim 3, wherein: the cross section of the cross bar (2) is square.
5. The edge pressing device for textile printing and dyeing cloth according to claim 4, which is characterized in that: the center fixedly connected with connecting block of first electro-magnet (5) and second electro-magnet (16), the center of connecting block seted up with horizontal pole (2) assorted through-hole, the connecting block passes through the through-hole and welds with horizontal pole (2).
6. The edge pressing device for textile printing and dyeing cloth according to claim 4, which is characterized in that: the center of reset spring (23) is provided with guide bar (18), the one end and second spring mount pad (22) fixed connection of guide bar (18), seted up on first spring mount pad (20) with guide bar (18) assorted through-hole, the other end of guide bar (18) pass first spring mount pad (20) and with first mounting bracket (6) fixed connection.
7. A beading apparatus for textile printing and dyeing cloth according to claim 3, wherein: the outer sides of the first permanent magnet (29) and the second permanent magnet (30) are fixedly connected with buffer layers (24), and the buffer layers (24) are sponge layers.
8. A beading apparatus for textile printing and dyeing cloth according to claim 3, wherein: the thickness of the edge pressing plate (25) is set to be two centimeters.
