Abstract
The utility model relates to a sponge city house rainwater collection device, it is including seting up in the collection basin of house top surface, the drainage tube, the bottom surface slope setting in collection basin, the drainage tube sets up along vertical direction, it is connected with the pivot to rotate in the collection basin, the length direction setting of collection basin is followed in the pivot, fixedly connected with filter screen one in the pivot, the mounting groove has been seted up on the pipe wall of drainage tube, the mounting groove link up and rotates on the outer pipe wall of the inner chamber drainage tube of drainage tube and is connected with a plurality of dwangs, fixedly connected with V type division board on the dwang, be provided with on the drainage tube and be used. This application has the maintenance that improves to the environment, improves rainwater collection device's feature of environmental protection.
Description
Technical Field
The application relates to the field of urban rainwater collection and utilization, in particular to a sponge urban house rainwater collection device.
Background
In urban construction, the earth surface of a modern city is gradually hardened and covered by water-blocking materials such as buildings, concrete and the like, an ecological artificial desert and convenient traffic facilities are formed, and when smooth roads are laid, great negative effects are brought to the ecological environment of the city while convenience is brought to people's trip, and urban ' rain sickness ' is increasingly aggravated. Every time a rainy season comes, a large amount of rainwater cannot be discharged timely, urban waterlogging is caused, and the large amount of rainwater cannot be reasonably utilized, so that the urban waterlogging is very pity.
The traditional Chinese patent with publication number CN105887969A discloses a sponge urban house rainwater collecting device, which comprises a diversion trench and a collecting barrel, wherein the diversion trench is of a semicircular diversion trench structure, the diameter of the semicircular diversion trench is equal to that of a connecting pipe, the diversion trench is built along one side edge of a roof to ensure that rainwater can flow into the diversion trench, and the diversion trench is provided with a water outlet and is connected with a water inlet pipe of the collecting barrel through the connecting pipe; the collecting vessel is circular sealed container, and the collecting vessel sets up in 50mm department under the eave, and the collecting vessel top is equipped with the water inlet that has the filter screen, and the side is equipped with overflow mouth and delivery port, and the rainwater of collecting vessel inlet tube gets into the collecting vessel through the water inlet that has the filter screen, and the overflow mouth passes through pipeline and hose connection, and the delivery port passes through pipeline and hose connection and is equipped with the control valve.
Although above-mentioned rainwater collection device can carry out the collection of certain degree to the rainwater on the roof, but the guiding gutter is carrying out the in-process of drainage to the rainwater, often can carry the rubbish on roof in the rainwater, earth gets into in the guiding gutter, although these earth can be intercepted by the filter screen part, but these rubbish by the interception can not be cleared up in time, long-term accumulation can lead to the guiding gutter to be blockked up, finally influence the normal water conservancy diversion of guiding gutter, influence whole rainwater collection device's normal use, and the guiding gutter is blockked up not only can influence the normal discharge of roof rainwater, it can be rotten along with the long-term soaking of rainwater to block up the rubbish in the guiding gutter simultaneously, give off foul smell even, cause secondary pollution, consequently, above-mentioned rainwater collection device is unfavorable for the maintenance of environment, environmental protection.
Disclosure of Invention
In order to improve the maintenance to the environment, improve rainwater collection device's feature of environmental protection, this application provides a sponge city house rainwater collection device.
The application provides a pair of sponge city house rainwater collection device adopts following technical scheme:
a sponge city house rainwater collecting device comprises a catchment groove arranged on the top surface of a house, and a drainage tube fixedly connected on the wall surface of the house and communicated with the catchment groove, wherein the bottom surface of the catchment groove is inclined, the drainage tube is arranged along the vertical direction, the transverse section of the drainage tube is in a rectangular arrangement, the height of the drainage tube close to the opening at one end of the catchment groove is lower than the height of the bottom surface of the catchment groove, a rotating shaft is rotatably connected in the catchment groove and is arranged along the length direction of the catchment groove, a first filter screen is fixedly connected on the rotating shaft and is in an arc-surface arrangement, a first driving motor for driving the rotating shaft to rotate is arranged in the catchment groove, a mounting groove is arranged on the tube wall of the drainage tube, the mounting groove is communicated with the inner cavity of the drainage tube, the mounting groove is in a linear, the dwang is located the below of mounting groove inner chamber, the dwang sets up along the horizontal direction, fixedly connected with V type division board on the dwang, V type division board includes connecting plate one, connecting plate two, contained angle between connecting plate one and the connecting plate two is the acute angle setting, connecting plate two is rotatable to the inner chamber of drainage tube, connecting plate one is rotatable to be sheltered from in the notch of mounting groove, be provided with on the drainage tube and be used for driving dwang pivoted drive arrangement.
By adopting the technical scheme, rainwater on the top surface of the house flows into the water collecting groove and flows into the drainage tube under the action of gravity, in the process, garbage sundries carried by the rainwater can be intercepted by the first filter screen, the first filter screen can turn to clean the sundries in the rainwater under the drive of the rotating shaft, when the rainwater enters the drainage tube, the rainwater can flow into the V-shaped partition plate firstly, the rainwater can overflow the V-shaped partition plate to flow out along with the continuous increase of the rainwater amount in the V-shaped partition plate, the garbage and sundries carried by the rainwater can be intercepted by the V-shaped partition plate, when the sundries in the V-shaped partition plate are collected to a certain amount, the rotating shaft is rotated by the driving device, under the drive of the rotating shaft, the rotating shaft can drive the V-shaped partition plate to rotate, the second connecting plate is moved out of the drainage tube in a rotating manner, and along with the rotation of the V-shaped partition plate, the garbage in the V-shaped partition plate can be, topple over and make one rotation of connecting plate shelter from in the notch of mounting groove through drive arrangement once more after accomplishing, make two connecting plates filter the water in the drainage tube again, this kind of setting can avoid blockking up in the drainage tube at the in-process rubbish debris that collect the rainwater, can in time filter in time the rainwater in the drainage tube, the clearance, it is rotten to have solved the rubbish jam and soaked for a long time by the rainwater in the drainage tube, give off foul smell's problem, be favorable to improving the maintenance of rainwater collection device to the environment in collecting the process to the rainwater, be favorable to improving rainwater collection device's feature of environmental protection.
Preferably, drive arrangement includes driven sprocket, the chain of rotation meshing on driven sprocket, the drive sprocket on the drainage tube lateral wall of fixed connection on the dwang, driven sprocket, drive sprocket all set up along the pole body direction of perpendicular to dwang, the sprocket wheel face coplane on the different dwangs, fixedly connected with is used for driving sprocket pivoted driving motor two on the lateral wall of drainage tube.
Through adopting above-mentioned technical scheme, when needs rotate the dwang, start driving motor two, driving motor two drives drive sprocket and rotates, drives driven sprocket through the sprocket and rotates when drive sprocket rotates to drive the dwang and rotate, can drive V type division board when the dwang rotates and rotate.
Preferably, the driving device comprises a first bevel gear fixedly connected to the rotating rod, a driving rod rotatably connected to the outer side wall of the drainage tube, and a second bevel gear fixedly connected to the driving rod and rotatably engaged with the first bevel gear, the driving rod is arranged in the vertical direction, and a third driving motor fixedly connected to the drainage tube is used for driving the driving rod to rotate.
Through adopting above-mentioned technical scheme, when needs rotate V type division board, start driving motor three, driving motor three drives the actuating lever and rotates, thereby when the actuating lever rotates, makes the dwang rotate through bevel gear one and bevel gear two's normal running fit, can drive V type division board when the dwang rotates.
Preferably, the first connecting plate is fixedly connected with a bearing plate on the side wall far away from the second connecting plate, the bearing plate is arranged along the direction parallel to the plate surface of the first connecting plate, and the bearing plate can be rotationally attached to the pipe wall of the drainage pipe.
Through adopting above-mentioned technical scheme, accept the board and can carry out the shutoff to the clearance between connecting plate one and the mounting groove one, be favorable to improving the leakproofness between connecting plate one and the mounting groove inner tank wall, reduce the rainfall amount from the drainage tube pipe wall seepage.
Preferably, the side wall of the bearing plate is fixedly connected with an elastic pad, the elastic pad is annularly arranged on the outer side of the first connecting plate, and the elastic pad is extruded and abutted against the inner groove wall of the mounting groove.
Through adopting above-mentioned technical scheme, the setting of cushion can further carry out the shutoff to the clearance between connecting plate one and the mounting groove one, is favorable to improving the leakproofness between connecting plate one and the mounting groove inner tank wall, reduces the rainfall volume from the drainage tube pipe wall seepage.
Preferably, the second connecting plate is provided with a plurality of water permeable holes penetrating through the surface of the second connecting plate.
Through adopting above-mentioned technical scheme, the setting in the hole of permeating water can accelerate the trickling speed of rainwater in the drainage tube.
Preferably, fixedly connected with filter screen two on the connecting plate two, filter screen two sets up along the face direction that is on a parallel with connecting plate two, filter screen two shelters from in the hole of permeating water.
Through adopting above-mentioned technical scheme, the setting of filter screen two can intercept, filter the less rubbish of volume in the rainwater.
Preferably, the outer side wall of the drainage tube is fixedly connected with a receiving box for receiving sundries in the V-shaped isolation plate, and an opening of the receiving box faces the second connecting plate.
Through adopting above-mentioned technical scheme, accept the setting of box and can accept the recovery to rubbish in the V type division board, make rubbish, the debris recovery clearance in the V type division board more convenient.
To sum up, the application comprises the following beneficial technical effects:
1. by arranging the first filter screen, the V-shaped partition plate and the driving device, the effects of improving the environmental maintenance of the rainwater collecting device in the rainwater collecting process and improving the environmental protection performance of the rainwater collecting device can be achieved;
2. through the setting of the receiving box, the effect that the rubbish and the sundries in the V-shaped isolation plate can be recovered and cleaned more conveniently can be achieved.
Drawings

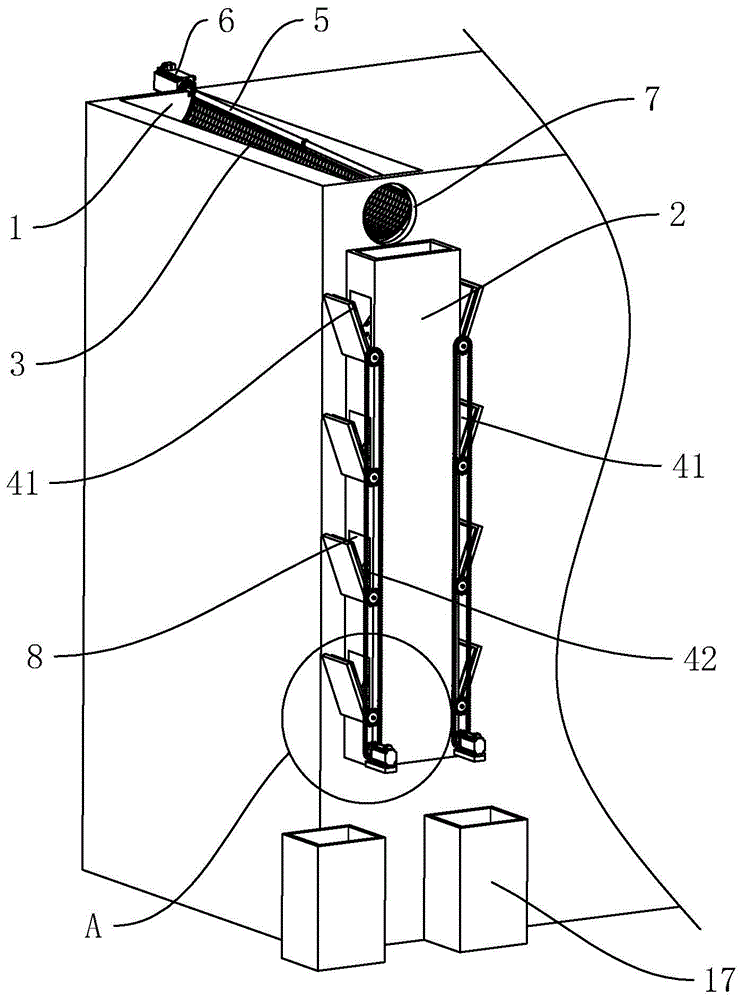

Fig. 1 is a schematic view of the overall structure of the collecting apparatus in embodiment 1.
Fig. 2 is a schematic view of an enlarged view at a in fig. 1.
Fig. 3 is a schematic view of a cross-section of a V-shaped separator plate.
Fig. 4 is a schematic structural view of a driving device in embodiment 2.
Description of reference numerals: 1. a water collecting tank; 2. a drainage tube; 3. a first filter screen; 4. a V-shaped isolation plate; 41. a first connecting plate; 42. a second connecting plate; 5. a rotating shaft; 6. driving a motor I; 7. a water outlet through hole; 8. mounting grooves; 9. rotating the rod; 10. a drive device; 101. a driven sprocket; 102. a drive sprocket; 103. a chain; 104. a first bevel gear; 105. a drive rod; 106. a second bevel gear; 11. a second driving motor; 12. an elastic pad; 13. a bearing plate; 14. water permeable holes; 15. a second filter screen; 16. driving a motor III; 17. a receiving box.
Detailed Description
The present application is described in further detail below with reference to figures 1-4.
The embodiment of the application discloses sponge city house rainwater collection device.
Example 1
Referring to fig. 1, the sponge city house rainwater collecting device comprises a water collecting tank 1 arranged on the top surface of a house and a drainage pipe 2 fixedly connected to the wall surface of the house and communicated with the water collecting tank 1. Wherein, a filter screen I3 and a V-shaped isolation plate 4 which are used for cleaning garbage and sundries carried by rainwater are respectively arranged in the water collecting tank 1 and the drainage tube 2.
Referring to fig. 1, a water collection tank 1 is provided along the length direction of the ceiling surface of the house and is located on one side of the ceiling surface, and the bottom surface of the water collection tank 1 is inclined.
Referring to fig. 1, a rotating shaft 5 is rotatably connected to a side wall of the water collecting tank 1 in the vertical direction, and the rotating shaft 5 is disposed in a cylindrical shape and is inclined in the length direction of the water collecting tank 1.
Referring to fig. 1, a first filter screen 3 is arranged in an arc surface shape, a side edge of one side of the first filter screen 3 is fixedly attached to a shaft body of a rotating shaft 5, the first filter screen 3 can be shielded above the bottom surface of the water collecting tank 1, and the net surface of the first filter screen 3 can be abutted to the bottom surface of the water collecting tank 1. When rainwater on the top surface of the house flows into the water collecting tank 1, a part of garbage carried by the rainwater is intercepted by the filter screen I3.
Referring to fig. 1, a first driving motor 6 for driving a rotating shaft 5 to rotate is fixedly connected in a water collection tank 1, and an output shaft of the first driving motor 6 is fixedly connected to an end surface of the rotating shaft 5 through a coupling. The filter screen I3 can be rotated and turned over to be discharged out of the water collecting tank 1 under the driving of the rotating shaft 5, and garbage intercepted on the filter screen I3 can be cleaned out of the water collecting tank 1 through the rotation of the filter screen I3.
Referring to fig. 1, a draft tube 2 is arranged in a vertical direction, and a cross section of the draft tube 2 is arranged in a rectangular shape. The height of the top opening of the drainage tube 2 is lower than that of the bottom surface of the water collecting tank 1, and the height of one end, close to the drainage tube 2, of the bottom surface of the water collecting tank 1 is lower than that of one end, far away from the drainage tube 2, of the bottom surface of the water collecting tank. A water outlet through hole 7 is formed in the wall of the water collecting groove 1, the top opening of the drainage tube 2 is located below the water outlet through hole 7, and rainwater entering the water collecting groove 1 can flow into the drainage tube 2 under the action of gravity.
Referring to fig. 1 and 2, a plurality of mounting grooves 8 have all been seted up on the both sides lateral wall of drainage tube 2 perpendicular to house wall, and the inner chamber of mounting groove 8 is the cuboid setting, and mounting groove 8 link up the inner chamber of drainage tube 2, and mounting groove 8 that is located on the homonymy lateral wall is linear arrangement along vertical direction.
Referring to fig. 1 and 2, rotate on the outer pipe wall of drainage tube 2 and be connected with a plurality of dwang 9, dwang 9 is cylindric setting and sets up along the horizontal direction, and dwang 9 is located the below of 8 inner chambers of mounting groove, and dwang 9 is corresponded to by every mounting groove 8, dwang 9 and the bottom surface parallel arrangement of mounting groove 8.
Referring to fig. 1 and 2, a driving device 10 for driving the rotating rod 9 to rotate is disposed on the drainage tube 2, and the driving device 10 includes a driven sprocket 101 fixedly connected to the rotating rod 9, a driving sprocket 102 rotatably connected to an outer side wall of the drainage tube 2, and a chain 103 rotatably engaged with the driven sprocket 101 and the driving sprocket 102.
Wherein, the driven sprocket 101 on every dwang 9 is provided with one, and driven sprocket 101, drive sprocket 102 all set up along the shaft body direction of perpendicular to dwang 9, and the wheel face of the driven sprocket 101 on different dwang 9 is located same vertical face. The outer side wall of the drainage tube 2 is fixedly connected with a second driving motor 11 for driving the driving chain wheel 102 to rotate, and an output shaft of the second driving motor 11 is fixedly connected to a wheel shaft where the driving chain wheel 103 is located through a coupler.
Referring to fig. 3, the V-shaped partition plate 4 includes a first connecting plate 41 and a second connecting plate 42, the first connecting plate 41 and the second connecting plate 42 are both rectangular, and an included angle formed between the first connecting plate 41 and the second connecting plate 42 is 60 degrees. The side wall of one side of the connecting plate 41 and the connecting plate 42 which are connected with each other is fixedly connected with the rotating rod 9.
Referring to fig. 3, the first connecting plate 41 can be rotated to block the opening of the mounting groove 8 by the rotating rod 9, and at this time, the second connecting plate 42 is rotated to the inner cavity of the drainage tube 2. When the first connecting plate 41 rotates to shield the notch of the mounting groove 8, the side wall of the first connecting plate 41 is abutted to the inner groove wall of the mounting groove 8.
Referring to fig. 3, the side wall of the first connecting plate 41 is fixedly connected with an elastic pad 12, and when the first connecting plate 41 rotates into the mounting groove 8, the elastic pad 12 is abutted against the inner wall of the mounting groove 8.
Referring to fig. 3, the first connecting plate 41 is fixedly connected with the bearing plate 13 on the side wall back to the second connecting plate 42, the bearing plate 13 is arranged in a cuboid shape, the bearing plate 13 is arranged along the direction parallel to the surface of the first connecting plate 41, and when the first connecting plate 41 rotates to block the notch of the mounting groove 8, the bearing plate 13 abuts against the pipe wall of the drainage pipe 2 in an attaching manner.
Referring to fig. 3, a plurality of holes 14 of permeating water have been seted up on the face of connecting plate two 42, and the inner chamber in hole 14 of permeating water is cylindric setting, and 14 equipartitions in the face of connecting plate two 42 in the hole of permeating water.
Referring to fig. 3, a second filter screen 15 is fixedly connected to the inner cavity of the water permeable hole 14, the second filter screen 15 is arranged along the direction parallel to the surface of the second connecting plate 42, and the second filter screen 15 is shielded from the inner cavity of the water permeable hole 14.
Referring to fig. 1 and 2, a receiving box 17 for receiving sundries in the V-shaped partition plate 4 is fixedly connected to the outer side wall of the drainage tube 2, an inner cavity of the receiving box 17 is rectangular, and an opening of the receiving box 17 is located on the upper surface of the receiving box 17 and faces the second connecting plate 42.
The implementation principle of the embodiment 1 is as follows: rainwater on the top surface of the house flows into the water collecting groove 1 and flows into the drainage tube 2 under the action of gravity, in the process, garbage sundries carried by the rainwater can be intercepted by the first filter screen 3, the first filter screen 3 can turn to clean the sundries in the water collecting groove 1 under the drive of the rotating shaft 5, when the rainwater enters the drainage tube 2, the rainwater firstly flows into the V-shaped partition plate 4, the rainwater can overflow the V-shaped partition plate 4 and flow out of the V-shaped partition plate 4 along with the continuous increase of the rainwater amount in the V-shaped partition plate 4, the garbage and sundries carried by the rainwater can be intercepted by the V-shaped partition plate 4, when the sundries in the V-shaped partition plate 4 are accumulated to a certain amount, the rotating rod 9 rotates through the rotating cooperation of the driving chain wheel 102 and the driven chain wheel 101, under the drive of the rotating rod 9, the rotating rod 9 can drive the V-shaped partition plate 4 to rotate, so that the second connecting plate 42 is moved out of the drainage tube 2, along with the rotation of V type division board 4, rubbish in the V type division board 4 alright pour out, through drive arrangement 10 again after accomplishing, make connecting plate 41 rotate and shelter from the notch in mounting groove 8, make connecting plate two 42 filter the water in drainage tube 2 again.
Example 2
Referring to fig. 4, the difference from embodiment 1 is that the driving means 10 includes a first bevel gear 104 fixedly connected to the rotating rod 9, a driving rod 105 rotatably connected to the outer sidewall of the drainage tube 2, and a plurality of second bevel gears 106 fixedly connected to the driving rod 105 and rotatably engaged with the first bevel gear 104.
Wherein, bevel gear 104 is provided with one on every dwang 9, and actuating lever 105 sets up along vertical direction, and fixedly connected with is used for driving actuating lever 105 pivoted driving motor three 16 on drainage tube 2, and driving motor three 16 passes through shaft coupling fixed connection in the tip of dwang 9.
The implementation principle of the embodiment 2 is as follows: when the V-shaped isolation plate 4 needs to be rotated, the driving motor III 16 is started, the driving motor III 16 drives the driving rod 105 to rotate, when the driving rod 105 rotates, the rotating rod 9 rotates through the rotating fit of the bevel gear I104 and the bevel gear II 106, and when the rotating rod 9 rotates, the V-shaped isolation plate 4 can be driven to rotate.
The above embodiments are preferred embodiments of the present application, and the protection scope of the present application is not limited by the above embodiments, so: all equivalent changes made according to the structure, shape and principle of the present application shall be covered by the protection scope of the present application.
Claims (8)
1. The utility model provides a sponge urban house rainwater collection device which characterized in that: comprises a water collection groove (1) arranged on the top surface of a house, and a drainage tube (2) fixedly connected on the wall surface of the house and communicated with the water collection groove (1), wherein the bottom surface of the water collection groove (1) is inclined, the drainage tube (2) is arranged along the vertical direction, the transverse cutting surface of the drainage tube (2) is in a rectangular arrangement, the drainage tube (2) is close to the height of the opening at one end of the water collection groove (1) and is lower than the height of the bottom surface of the water collection groove (1), a rotating shaft (5) is rotatably connected in the water collection groove (1), the rotating shaft (5) is arranged along the length direction of the water collection groove (1), a first filter screen (3) is fixedly connected on the rotating shaft (5), the first filter screen (3) is in an arc surface arrangement, a first driving motor (6) for driving the rotating shaft (5) to rotate is arranged in the water collection groove (1), and, the mounting groove (8) is communicated with the inner cavity of the drainage tube (2), the mounting grooves (8) are arranged in a straight line along the vertical direction, the outer pipe wall of the drainage pipe (2) is rotatably connected with a plurality of rotating rods (9), the rotating rod (9) is positioned below the inner cavity of the mounting groove (8), the rotating rod (9) is arranged along the horizontal direction, the rotating rod (9) is fixedly connected with a V-shaped isolation plate (4), the V-shaped isolation plate (4) comprises a first connecting plate (41) and a second connecting plate (42), an included angle between the first connecting plate (41) and the second connecting plate (42) is arranged in an acute angle, the second connecting plate (42) can rotate to the inner cavity of the drainage tube (2), the first connecting plate (41) can rotate to shield the notch of the mounting groove (8), the drainage tube (2) is provided with a driving device (10) for driving the rotating rod (9) to rotate.
2. The sponge urban house rainwater collection device of claim 1, characterized in that: drive arrangement (10) include driven sprocket (101), the rotation of fixed connection on dwang (9) connect drive sprocket (102) on drainage tube (2) lateral wall, rotate chain (103) that meshes on driven sprocket (101), drive sprocket (102), driven sprocket (101), drive sprocket (102) all set up along the pole body direction of perpendicular to dwang (9), and the sprocket wheel face coplane on different dwang (9), fixedly connected with is used for driving drive sprocket (102) pivoted driving motor two (11) on the lateral wall of drainage tube (2).
3. The sponge urban house rainwater collection device of claim 1, characterized in that: drive arrangement (10) include bevel gear one (104) on fixed connection dwang (9), rotate and connect actuating lever (105), a plurality of fixed connection on actuating lever (105) on drainage tube (2) lateral wall with bevel gear one (104) rotate engaged with bevel gear two (106), actuating lever (105) set up along vertical direction, fixedly connected with is used for driving actuating lever (105) pivoted driving motor three (16) on drainage tube (2).
4. The sponge urban house rainwater collection device of claim 1, characterized in that: fixedly connected with on the lateral wall of connecting plate two (42) is kept away from in connecting plate one (41) accepts board (13), accept board (13) and set up along the direction that is on a parallel with the face of connecting plate one (41), accept board (13) and rotate the laminating with the pipe wall of drainage tube (2).
5. The sponge urban house rainwater collection device of claim 4, characterized in that: an elastic pad (12) is fixedly connected to the side wall of the bearing plate (13), the elastic pad (12) is annularly arranged on the outer side of the first connecting plate (41), and the elastic pad (12) is in extrusion contact with the inner groove wall of the mounting groove (8).
6. The sponge urban house rainwater collection device of claim 1, characterized in that: and the second connecting plate (42) is provided with a plurality of water permeable holes (14) which penetrate through the surface of the second connecting plate (42).
7. The sponge urban house rainwater collection device of claim 1, characterized in that: fixedly connected with filter screen two (15) on connecting plate two (42), filter screen two (15) set up along the face direction that is on a parallel with connecting plate two (42), filter screen two (15) shelter from in hole (14) of permeating water.
8. The sponge urban house rainwater collection device of claim 1, characterized in that: the outer side wall of the drainage tube (2) is fixedly connected with a receiving box (17) used for receiving sundries in the V-shaped isolation plate (4), and an opening of the receiving box (17) faces to the second connecting plate (42).
