CN111888211A

CN111888211A - Department of neurology migraine headache treatment device

Info

Publication number: CN111888211A
Application number: CN202010882776.6A
Authority: CN
Inventors: 巩凤超; 时倩
Original assignee: Second Affiliated Hospital of Shandong First Medical University
Current assignee: Second Affiliated Hospital of Shandong First Medical University
Priority date: 2020-08-28
Filing date: 2020-08-28
Publication date: 2020-11-06

Abstract

The invention discloses a migraine therapeutic device in neurology, which belongs to the technical field of medical instruments and comprises a therapeutic chair, wherein the top of the therapeutic chair is fixedly connected with a chair back, the middle of the chair back is rotatably connected with a massage screw rod, the outer wall of the massage screw rod is in threaded connection with a lifting sleeve, the side wall of the lifting sleeve is fixedly connected with a connecting rod, the end part of the connecting rod is fixedly connected with an inner cover, the outer wall of the inner cover is rotatably connected with an outer cover, the inner part of the inner cover is fixedly connected with a massage claw, the end part of the massage claw is fixedly connected with a massage ball, the inner wall of the inner cover is fixedly connected with a massage rod, the end part of the massage rod is rotatably connected with a side ball, the inner wall of the inner cover is provided with a guide slideway, the inner wall of the outer cover is slidably connected with a, the operation is simple.

Description

Department of neurology migraine headache treatment device

Technical Field

The invention relates to the technical field of medical instruments, in particular to a migraine treatment device for neurology.

Background

Migraine is a common chronic neurovascular disease, and the traditional Chinese medicine theory of meridians and collaterals has a sentence of a name that 'the circulation is smooth and the pain is not painful', which means that the body is normal when the meridians of the human body are smooth, the pain or the discomfort can not be felt, and the pain or the disease can be caused by the unsmooth meridians. At present, acupuncture, physiotherapy and prescription medicine are the more accepted treatment methods for treating migraine, the most useful massage is for daily care of migraine, and the most useful massage can help patients to relieve pains.

Based on the technical scheme, the invention designs a neurology migraine treatment device to solve the problems.

Disclosure of Invention

The invention aims to provide a migraine treatment device for neurology, which aims to solve the problems that the patient is massaged by hands in the background technology, the massage is strenuous, the existing massager has a single massage mode, only can massage the part, and the relieving effect is not obvious.

In order to achieve the purpose, the invention provides the following technical scheme:

the utility model provides a department of neurology migraine headache treatment device, includes the treatment chair, treatment chair top fixedly connected with back of the chair, it is connected with the massage screw to rotate in the middle of the back of the chair, massage screw outer wall threaded connection has the lift cover, lift cover lateral wall fixedly connected with connecting rod, connecting rod tip fixedly connected with inner cover, inner cover outer wall rotates and is connected with the dustcoat, the inside fixedly connected with massage claw of inner cover, massage claw tip fixedly connected with massage ball, inner cover inner wall fixedly connected with massage pole, massage pole tip rotates and is connected with the side ball, the direction slide has been seted up to inner cover inner wall, outer cover inner wall sliding connection has the neck pole, the neck pole is located slide with it sliding fit in the direction, inner cover top fixed mounting has drive assembly.

Preferably, the front wall of the chair back is fixedly connected with armrests, and the top of the treatment chair is fixedly connected with a soft pad.

Preferably, a movement groove is formed in the middle of the chair back, a massage screw rod is rotatably connected in the middle of the movement groove, and a massage motor is fixedly mounted at the top of the chair back.

Preferably, the two sides of the motion groove are provided with limiting slideways, the side wall of the lifting sleeve is fixedly connected with limiting plates, and the limiting plates are positioned in the limiting slideways and are in sliding fit with the limiting slideways.

Preferably, the connecting rod is a bent square rod, a movable sliding groove is formed in the middle of the outer cover, and the connecting rod is located in the movable sliding groove and is in sliding fit with the movable sliding groove.

Preferably, the massage claws are elastic claws, and the inner wall of the inner cover is fixedly connected with an infrared lamp strip.

Preferably, massage pole and neck pole are the telescopic link, the inside equal fixedly connected with expanding spring of telescopic link, massage ball and side ball are the rubber ball.

Preferably, the direction slide is the curvilinear figure, dustcoat inner wall fixedly connected with connecting block, the polymerization slide has been seted up in the middle of the connecting block, neck pole bottom fixedly connected with slider, the slider is located the polymerization slide and with it sliding fit, fixedly connected with tightens up the spring between slider and the slide.

Preferably, the inner wall of the outer cover is fixedly connected with a protruding strip plate, a contact rolling ball is arranged in the middle of the protruding strip plate, and the contact rolling ball is positioned on the outer side of the inner cover and is in contact with the inner cover.

Preferably, the driving assembly comprises a half gear fixedly mounted on the outer wall of the inner cover, an arc-shaped rack is fixedly connected in the middle of the outer cover, and the half gear is meshed with the arc-shaped rack.

Compared with the prior art, the invention has the beneficial effects that:

the multifunctional massage head disclosed by the invention has the advantages that large-area massage on the top of the head is realized through the massage claws, massage on two sides of the head is realized through the massage rods, massage on the back neck is realized through the neck rods, and the infrared lamp belt is used for assisting physiotherapy to promote blood circulation, so that the nervous tension and fatigue of the head are comprehensively relieved through various massages, the headache is favorably eliminated, the use is convenient, and the operation is simple.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to the drawings without creative efforts.

FIG. 1 is a schematic rear view structural view of the present invention;

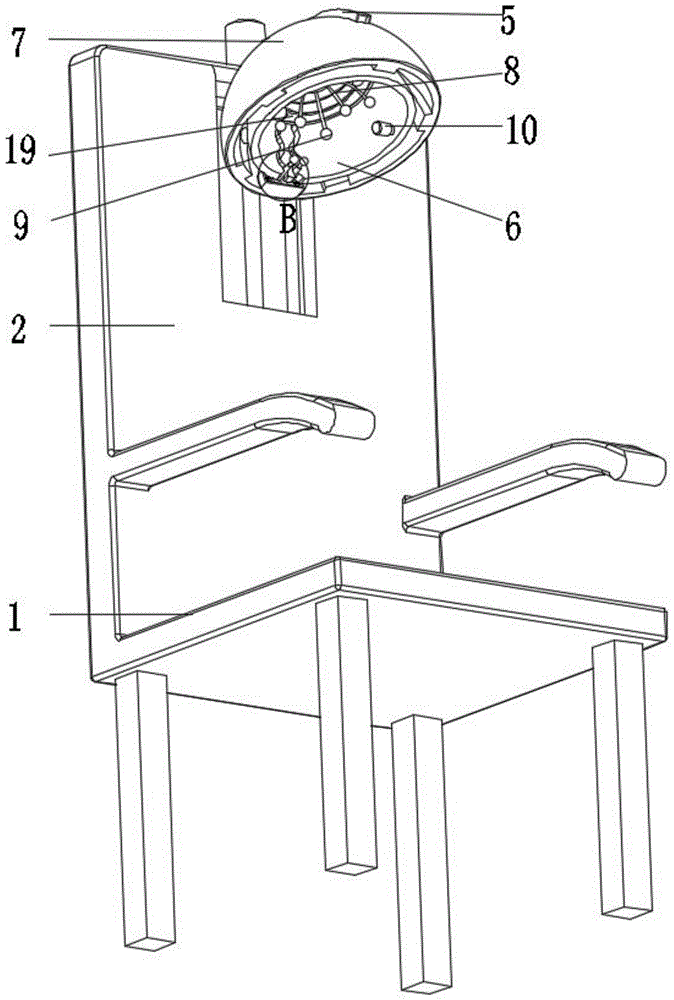

FIG. 2 is a front view of the present invention;

FIG. 3 is a side view partially in section of the present invention;

FIG. 4 is an enlarged view of part A of the present invention;

FIG. 5 is an enlarged view of the part B of the present invention.

In the drawings, the components represented by the respective reference numerals are listed below:

1-treatment chair, 2-chair back, 3-massage screw rod, 4-lifting sleeve, 5-connecting rod, 6-inner cover, 7-outer cover, 8-massage claw, 9-massage ball, 10-massage rod, 11-side ball, 12-guide slideway, 13-neck rod, 14-motion groove, 15-massage motor, 16-limit slideway, 17-limit plate, 18-moving slideway, 19-infrared lamp belt, 20-connecting block, 21-polymerization slideway, 22-sliding block, 23-tightening spring, 24-contact rolling ball, 25-half gear and 26-arc rack.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-5, the present invention provides a technical solution:

the utility model provides a department of neurology migraine headache treatment device, including treatment chair 1, treatment chair 1 top fixedly connected with back of the chair 2, it is connected with massage screw 3 to rotate in the middle of the back of the

chair

2, 3 outer wall threaded connection of massage screw have lifting

sleeve

4, 4 lateral wall fixedly connected with connecting rod 5 of lifting sleeve, 5 end fixedly connected with inner covers 6 of connecting rod, 6 outer walls of inner covers rotate and are connected with

dustcoat

7, 6 inside fixedly connected with massage claw 8 of inner cover, 8 end fixedly connected with massage ball 9 of massage claw, 6 inner wall fixedly connected with massage pole 10 of inner cover, 10 end fixedly connected with side ball 11 of massage pole, guide slide 12 has been seted up to 6 inner walls of inner cover, 7 inner wall sliding connection of dustcoat has neck pole 13, neck pole 13 is located guide slide 12 interior with it sliding fit, 6 top fixed mounting.

Wherein, the front wall of the chair back 2 is fixedly connected with an armrest, and the top of the treatment chair 1 is fixedly connected with a soft cushion. A moving groove 14 is arranged in the middle of the chair back 2, a massage screw rod 3 is rotatably connected in the middle of the moving groove 14, and a massage motor 15 is fixedly arranged at the top of the chair back 2. Limiting slide ways 16 are arranged on two sides of the moving groove 14, a limiting plate 17 is fixedly connected to the side wall of the lifting sleeve 4, and the limiting plate 17 is located in the limiting slide ways 16 and is in sliding fit with the limiting slide ways. The connecting rod 5 is a bent square rod, a moving sliding groove 18 is formed in the middle of the outer cover 7, and the connecting rod 5 is located in the moving sliding groove 18 and is in sliding fit with the moving sliding groove. The massage claws 8 are elastic claws, and the inner wall of the inner cover 6 is fixedly connected with an infrared lamp strip 19.

Wherein, massage pole 10 and neck pole 13 are the telescopic link, the inside equal fixedly connected with expanding spring of telescopic link, and massage ball 9 and side ball 11 are the rubber ball. The guide slide way 12 is in a curve shape, the inner wall of the outer cover 7 is fixedly connected with a connecting block 20, a polymerization slide way 21 is arranged in the middle of the connecting block 20, the bottom of the neck rod 13 is fixedly connected with a slide block 22, the slide block 22 is positioned in the polymerization slide way 21 and is in sliding fit with the polymerization slide way, and a tightening spring 23 is fixedly connected between the slide block 22 and the slide way. The inner wall of the outer cover 7 is fixedly connected with a projecting strip plate, a contact rolling ball 24 is arranged in the middle of the projecting strip plate, and the contact rolling ball 24 is positioned outside the inner cover 6 and is in contact with the inner cover. The driving assembly comprises a half gear 25 fixedly arranged on the outer wall of the inner cover 6, an arc-shaped rack 26 is fixedly connected in the middle of the outer cover 7, and the half gear 25 is meshed with the arc-shaped rack 26.

One specific application of this embodiment is: according to the invention, a person sits on the treatment chair 1, the back leans against the chair back 2, then the massage motor 15 is switched on to drive the massage screw rod 3 to rotate, the lifting sleeve 4 is driven to move up and down, the inner cover 6 is lowered to cover the head of a patient, then the massage motor 15 is switched on to drive the massage screw rod 3 to rotate forward and backward, the inner cover 6 is driven to move up and down, the massage claws 8 are driven to move up and down on the head of the patient, the massage claws 8 are opened when moving down, and the massage balls 9 move down to realize the simulated hand-grasping massage.

Carry out ruddiness through the inside infrared lamp area 19 of switch-on to patient's head and shine, promote head blood circulation, play the effect of alleviating pain, inner cover 6 reciprocates simultaneously, drives massage pole 10 and also reciprocates, and its side ball 11 pastes at patient temple position, reciprocates the in-process at it, plays the effect of reciprocal massage.

The inner cover 6 moves up and down and the outer cover 7 also moves up and down, meanwhile, a driving motor communicated with the half gear 25 drives the half gear 25 to rotate, an arc-shaped rack 26 meshed with the half gear is driven to move back and forth, and meanwhile, the contact rolling ball 24 rolls on the outer surface of the inner cover 6 to limit the distance between the inner cover and the outer cover and reduce friction force; when the outer cover 7 moves around the inner cover 6, the neck rod 13 moves up and down along the guide slideway 12 and moves back and forth under the action of the guide slideway 12, and the ball at the end of the neck rod 13 acts on the back neck of a patient to play a role of pressing and massaging up and down, so that fatigue and nervous tension are relieved, and headache is eliminated.

The multifunctional massage head disclosed by the invention has the advantages that large-area massage on the top of the head is realized through the massage claws 8, massage on two sides of the head is realized through the massage rods 10, massage on the back neck is realized through the neck rod 13, physiotherapy is assisted through the infrared lamp strip 19, blood circulation is promoted, various massages can relieve nervous tension and fatigue of the head in an all-around manner, headache is favorably eliminated, the use is convenient, and the operation is simple.

In the description herein, references to the description of "one embodiment," "an example," "a specific example" or the like are intended to mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The preferred embodiments of the invention disclosed above are intended to be illustrative only. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and the practical application, to thereby enable others skilled in the art to best utilize the invention. The invention is limited only by the claims and their full scope and equivalents.

Claims

1. A neurological migraine treatment apparatus, comprising: comprises a treatment chair (1), the top of the treatment chair (1) is fixedly connected with a chair back (2), the middle of the chair back (2) is rotatably connected with a massage screw (3), the outer wall of the massage screw (3) is connected with a lifting sleeve (4) through threads, the side wall of the lifting sleeve (4) is fixedly connected with a connecting rod (5), the end part of the connecting rod (5) is fixedly connected with an inner cover (6), the outer wall of the inner cover (6) is rotatably connected with an outer cover (7), the inner part of the inner cover (6) is fixedly connected with a massage claw (8), the end part of the massage claw (8) is fixedly connected with a massage ball (9), the inner wall of the inner cover (6) is fixedly connected with a massage rod (10), the end part of the massage rod (10) is rotatably connected with a side ball (11), the inner wall of the inner cover (6) is provided with, neck pole (13) are located guide slide (12) and sliding fit with it, inner cover (6) top fixed mounting has drive assembly.

2. The neurological migraine headache treatment apparatus of claim 1, wherein: the front wall of the chair back (2) is fixedly connected with armrests, and the top of the treatment chair (1) is fixedly connected with a soft pad.

3. The neurological migraine headache treatment apparatus of claim 1, wherein: a movement groove (14) is formed in the middle of the chair back (2), a massage screw rod (3) is rotatably connected in the middle of the movement groove (14), and a massage motor (15) is fixedly mounted at the top of the chair back (2).

4. A neurological migraine headache treatment apparatus according to claim 3, wherein: spacing slide (16) have been seted up to the both sides of motion groove (14), lifting sleeve (4) lateral wall fixedly connected with limiting plate (17), limiting plate (17) are located spacing slide (16) and with it sliding fit.

5. The neurological migraine headache treatment apparatus of claim 1, wherein: the connecting rod (5) is a bent square rod, a moving sliding groove (18) is formed in the middle of the outer cover (7), and the connecting rod (5) is located in the moving sliding groove (18) and is in sliding fit with the moving sliding groove.

6. The neurological migraine headache treatment apparatus of claim 1, wherein: the massage claws (8) are elastic claws, and the inner wall of the inner cover (6) is fixedly connected with an infrared lamp strip (19).

7. The neurological migraine headache treatment apparatus of claim 1, wherein: massage pole (10) and neck pole (13) are the telescopic link, the inside equal fixedly connected with expanding spring of telescopic link, massage ball (9) and side ball (11) are the rubber ball.

8. The neurological migraine headache treatment apparatus of claim 1, wherein: direction slide (12) are the curvilinear figure, dustcoat (7) inner wall fixedly connected with connecting block (20), polymerization slide (21) have been seted up in the middle of connecting block (20), neck pole (13) bottom fixedly connected with slider (22), slider (22) are located polymerization slide (21) and sliding fit with it, fixedly connected with tightens up spring (23) between slider (22) and the slide.

9. The neurological migraine headache treatment apparatus of claim 1, wherein: the inner wall of the outer cover (7) is fixedly connected with a protruding strip plate, a contact rolling ball (24) is installed in the middle of the protruding strip plate, and the contact rolling ball (24) is located on the outer side of the inner cover (6) and is in contact with the inner cover.

10. The neurological migraine headache treatment apparatus of claim 1, wherein: the driving assembly comprises a half gear (25) fixedly installed on the outer wall of the inner cover (6), an arc-shaped rack (26) is fixedly connected to the middle of the outer cover (7), and the half gear (25) is meshed with the arc-shaped rack (26).
