Abstract
The invention discloses a carpet hair cleaning device for hotel rooms, which comprises a vehicle body, wherein an installation cavity is formed in the vehicle body, a traveling wheel is rotatably connected to the bottom of the vehicle body, a rotating mechanism is arranged in the installation cavity, a first transmission belt is connected between the rotating mechanism and a rotating shaft of the traveling wheel in a transmission manner, a cleaning mechanism is arranged at the bottom of the vehicle body, two first transmission wheels are rotatably connected to the vehicle body, a second transmission belt is connected between one first transmission wheel and the rotating mechanism in a transmission manner, a third transmission belt is connected between the other first transmission wheel and the cleaning mechanism in a transmission manner, a first installation frame is fixedly installed at the bottom of the vehicle body, a compression mechanism is arranged in the first installation frame, and the compression mechanism penetrates through the side wall of the first installation frame and is rotatably connected with the side wall of the traveling. The carpet cleaning device is reasonable in structural design, can quickly clean hair adhered to a carpet, is convenient to clean, is high in cleaning efficiency, and guarantees the lodging experience of guests.
Description
Technical Field
The invention relates to the technical field of cleaning equipment, in particular to a carpet and hair cleaning device for hotel rooms.
Background
A hotel, which is defined as a business establishment providing a safe and comfortable space for a user to have a short-term rest or sleep, is generally an organization providing guests with an organization of taking a rest and a diet, and particularly, a hotel providing guests with services such as a room, a restaurant and a comprehensive service facility by using its building as a certificate, thereby obtaining economic benefits.
Among the prior art, the carpet can be laid in some hotel rooms, when guest's lodging, have many hairs to drop on the carpet, the hair can be stained with the carpet and is stuck together, hotel's cleanup crew is when cleaning the room, be difficult to clear up the hair on the carpet with the broom, can influence guest's lodging and experience, if the cleanup crew clears up out hair by one with the hand, its cleaning efficiency is low, and working strength is high, for this reason we have designed a hotel room carpet hair cleaning device and have solved above problem.
Disclosure of Invention
The invention aims to solve the problems that in the prior art, a carpet is laid in a hotel room, a lot of hairs fall on the carpet when a guest stays in the hotel, the hairs can be adhered to the carpet, the hotel cleaner is difficult to clean the hairs on the carpet with a broom when cleaning the room, the lodging experience of the guest can be influenced, and if the cleaner cleans the hairs one by one with hands, the cleaning efficiency is low and the working strength is high.
In order to achieve the purpose, the invention adopts the following technical scheme:
a carpet hair cleaning device for hotel rooms comprises a vehicle body, wherein a mounting cavity is formed in the vehicle body, a traveling wheel is connected to the bottom of the vehicle body in a rotating mode, a rotating mechanism is arranged in the mounting cavity, a first transmission belt is connected between the rotating mechanism and a rotating shaft of the traveling wheel in a transmission mode, a cleaning mechanism is arranged at the bottom of the vehicle body, two first transmission wheels are connected to the vehicle body in a rotating mode, a second transmission belt is connected between one first transmission wheel and the rotating mechanism in a transmission mode, a third transmission belt is connected between the other first transmission wheel and the cleaning mechanism in a transmission mode, a first mounting frame is fixedly mounted at the bottom of the vehicle body, a compression mechanism is arranged in the first mounting frame, the compression mechanism penetrates through the side wall of the first mounting frame and is connected with the side wall of the traveling wheel in a rotating mode, a suction mechanism is arranged on the side wall of the first mounting frame, extends into, the top of first installing frame is equipped with air outlet mechanism, air outlet mechanism runs through the automobile body and extends to its outside.
Preferably, slewing mechanism includes the motor of fixed mounting in the installation intracavity, the terminal fixed mounting of output shaft of motor has second drive wheel and third drive wheel, first drive belt transmission is connected between the axis of rotation of second drive wheel and walking wheel, second drive belt transmission is connected between third drive wheel and first drive wheel.
Preferably, clearance mechanism is including rotating the frizzle of connection on bottom of the car body, fixed mounting has the fourth drive wheel on the rotation axis of frizzle, third drive belt transmission is connected between first drive wheel and fourth drive wheel, the bottom fixed mounting of car body has the collection frame, fixed mounting has clean scraper blade in the collection frame, the tip of clean scraper blade extends to in the frizzle.
Preferably, compression mechanism includes the mounting panel of fixed mounting in first installing frame, sliding connection has the piston in the first installing frame, a plurality of first springs of fixedly connected with between the lateral wall of mounting panel and the lateral wall of piston, the lateral wall fixedly connected with stay cord of piston, the stay cord runs through the lateral wall of first installing frame and rotates with the lateral wall of walking wheel and be connected.
Preferably, inhale the mechanism including running through the intake pipe of fixed mounting on first installing frame lateral wall, the other end of intake pipe extends to and collects in the frame and rather than inside intercommunication each other, fixed mounting has the second installing frame in the intake pipe, sliding connection has the slide bar in the second installing frame, fixedly connected with second spring between the lateral wall of slide bar and the inside wall of second installing frame, the slide bar is located the outer one end fixed mounting of second installing frame and has the baffle, the lateral wall of baffle offsets tightly with the tip of intake pipe.
Preferably, the mechanism of giving vent to anger is including running through the outlet duct of fixed mounting on first installing frame top, fixed mounting has the installation piece in the outlet duct, sliding connection has the connecting rod on the installation piece, the bottom fixed mounting of connecting rod has the closing plate with outlet duct inside wall sliding connection, fixedly connected with third spring between the bottom of installation piece and the top of closing plate.
Compared with the prior art, the invention has the beneficial effects that:
1. through the first drive wheel, the second drive belt, the third drive belt, clearance mechanism and slewing mechanism's setting, when the hand automobile body of operator cleans the carpet, the motor rotates and drives the third drive wheel and rotate, the third drive wheel drives first drive wheel through the second drive belt and rotates, first drive wheel drives the fourth drive wheel through the third drive belt and rotates, the fourth drive wheel drives the frizzle and rotates, when the frizzle rotates, convolute the hair on the carpet on the frizzle, the cleaning scraper blade in the collection frame will convolute in the hair on the frizzle scrapes into the collection frame, the clearance to the hair on the carpet has been realized, make the carpet keep clean, the clearance is convenient, high cleaning efficiency, guarantee guest's accommodation experience.
2. Through compression mechanism, inhale the setting of mechanism and mechanism of giving vent to anger, when clearing up the hair on the carpet to collecting in the frame, the motor drives the second drive wheel and rotates, the second drive wheel drives the walking wheel through first drive belt and rotates, the walking wheel drives the piston through the stay cord and reciprocates to slide in first installing frame under the effect of first spring elasticity, when the piston slides right, the air drives in the hair inhales first installing frame through the intake pipe, when the piston removes left, pass through the outlet duct with the air in the first installing frame and impress, so reciprocal, collect in inhaling first installing frame with the hair in the collecting frame, the convenience carries out centralized processing to the hair.
In conclusion, the novel carpet cleaning device is reasonable in structural design, can quickly clean hair adhered to a carpet, is convenient to clean, is high in cleaning efficiency, and guarantees the lodging experience of guests.
Drawings

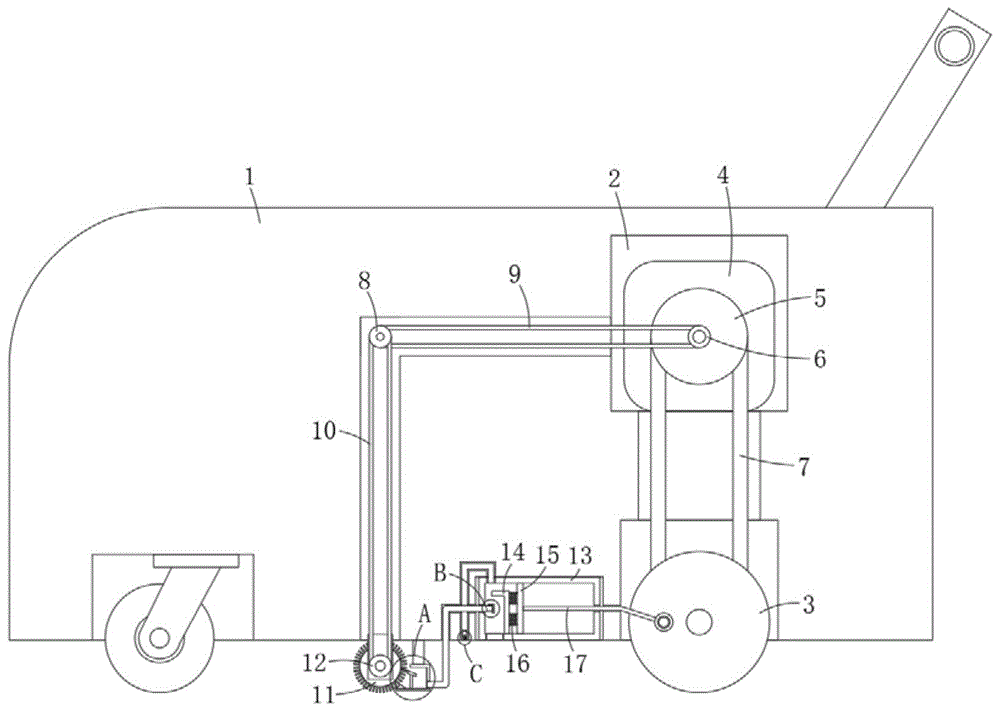

FIG. 1 is a schematic structural view of a carpet hair cleaning device for hotel rooms according to the present invention;
FIG. 2 is an enlarged view of the structure at A in FIG. 1;
FIG. 3 is an enlarged view of the structure at B in FIG. 1;
fig. 4 is an enlarged view of the structure at C in fig. 1.
In the figure: the device comprises a vehicle body 1, a mounting cavity 2, a traveling wheel 3, a motor 4, a second transmission wheel 5, a third transmission wheel 6, a first transmission belt 7, a first transmission wheel 8, a second transmission belt 9, a third transmission belt 10, a hair curling device 11, a fourth transmission wheel 12, a first mounting frame 13, a mounting plate 14, a piston 15, a first spring 16, a pull rope 17, a collecting frame 18, a cleaning scraper 19, an air inlet pipe 20, a second mounting frame 21, a second spring 22, a sliding rod 23, a baffle 24, an air outlet pipe 25, a mounting block 26, a connecting rod 27, a sealing plate 28 and a third spring 29.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
Referring to fig. 1-4, a carpet hair cleaning device for hotel rooms comprises a vehicle body 1, wherein a mounting cavity 2 is formed in the vehicle body 1, a traveling wheel 3 is rotatably connected to the bottom of the vehicle body 1, a rotating mechanism is arranged in the mounting cavity 2, a first transmission belt 7 is connected between the rotating mechanism and a rotating shaft of the traveling wheel 3 in a transmission manner, the rotating mechanism comprises a motor 4 fixedly installed in the mounting cavity 2, a second transmission wheel 5 and a third transmission wheel 6 are fixedly installed at the tail end of an output shaft of the motor 4, the first transmission belt 7 is connected between the second transmission wheel 5 and the rotating shaft of the traveling wheel 3 in a transmission manner, and a second transmission belt 9 is connected between the third transmission wheel 6 and a first transmission wheel;
the bottom of the vehicle body 1 is provided with a cleaning mechanism, the cleaning mechanism comprises a hair curler 11 rotationally connected to the bottom of the vehicle body 1, a fourth driving wheel 12 is fixedly arranged on a rotating shaft of the hair curler 11, a third driving belt 10 is in transmission connection between a first driving wheel 8 and the fourth driving wheel 12, a collecting frame 18 is fixedly arranged at the bottom of the vehicle body 1, a cleaning scraper 19 is fixedly arranged in the collecting frame 18, the end part of the cleaning scraper 19 extends into the hair curler 11, through the arrangement of the first driving wheel 8, a second driving belt 9, the third driving belt 10, the cleaning mechanism and a rotating mechanism, when an operator holds the vehicle body 1 to clean a carpet, the motor 4 rotates to drive the third driving wheel 6 to rotate, the third driving wheel 6 drives the first driving wheel 8 to rotate through the second driving belt 9, the first driving wheel 8 drives the fourth driving wheel 12 to rotate through the third driving belt 10, the fourth driving wheel 12 drives the hair curler 11, when the hair curler 11 rotates, the hair on the carpet is wound on the hair curler 11, and the hair wound on the hair curler 11 is scraped into the collection frame 18 by the cleaning scraper 19 in the collection frame 18, so that the hair on the carpet is cleaned, the carpet is kept clean, the cleaning is convenient, the cleaning efficiency is high, and the lodging experience of guests is ensured;
the trolley body 1 is rotatably connected with two first driving wheels 8, a second driving belt 9 is connected between one first driving wheel 8 and a rotating mechanism in a transmission mode, a third driving belt 10 is connected between the other first driving wheel 8 and a cleaning mechanism in a transmission mode, a first mounting frame 13 is fixedly mounted at the bottom of the trolley body 1, a compression mechanism is arranged in the first mounting frame 13, the compression mechanism penetrates through the side wall of the first mounting frame 13 and is rotatably connected with the side wall of the travelling wheel 3, the compression mechanism comprises a mounting plate 14 fixedly mounted in the first mounting frame 13, a piston 15 is slidably connected in the first mounting frame 13, a plurality of first springs 16 are fixedly connected between the side wall of the mounting plate 14 and the side wall of the piston 15, a pull rope 17 is fixedly connected with the side wall of the piston 15, and the pull rope 17 penetrates through the side wall of the first mounting frame 13 and is rotatably connected;
the side wall of the first mounting frame 13 is provided with a suction mechanism, the suction mechanism extends into the cleaning mechanism and is communicated with the inside of the cleaning mechanism, the suction mechanism comprises an air inlet pipe 20 which penetrates through and is fixedly mounted on the side wall of the first mounting frame 13, the other end of the air inlet pipe 20 extends into the collection frame 18 and is communicated with the inside of the collection frame, a second mounting frame 21 is fixedly mounted on the air inlet pipe 20, a sliding rod 23 is connected in the second mounting frame 21 in a sliding mode, a second spring 22 is fixedly connected between the side wall of the sliding rod 23 and the inner side wall of the second mounting frame 21, one end, located outside the second mounting frame 21, of the sliding rod 23 is fixedly mounted with a baffle plate 24, and the side wall of the;
the top of the first mounting frame 13 is provided with an air outlet mechanism, the air outlet mechanism penetrates through the vehicle body 1 and extends to the outside of the vehicle body, the air outlet mechanism comprises an air outlet pipe 25 which penetrates through and is fixedly mounted on the top of the first mounting frame 13, a mounting block 26 is fixedly mounted in the air outlet pipe 25, a connecting rod 27 is connected on the mounting block 26 in a sliding manner, a sealing plate 28 which is connected with the inner side wall of the air outlet pipe 25 in a sliding manner is fixedly mounted at the bottom end of the connecting rod 27, a third spring 29 is fixedly connected between the bottom of the mounting block 26 and the top of the sealing plate 28, through the arrangement of a compression mechanism, a suction mechanism and the air outlet mechanism, when hair on a carpet is cleaned into the collecting frame 18, the motor 4 drives the second driving wheel 5 to rotate, the second driving wheel 5 drives the traveling wheel 3 to rotate through the first driving belt 7, the traveling wheel 3 drives, when piston 15 slided right, the air drives the hair and inhales in first installing frame 13 through intake pipe 20, when piston 15 moved left, passes through the outlet duct 25 with the air in first installing frame 13 and impresses, so reciprocal, will collect the hair in the frame 18 and inhale and collect in first installing frame 13, conveniently carry out centralized processing to the hair, handle control automobile body 1 on the handheld automobile body 1 of sanitizer moves on the carpet, clears up the carpet.
The invention can be illustrated by the following operating modes:
when the hair on the carpet of a room needs to be cleaned, firstly, a cleaner places the device on the carpet, a motor 4 is started, the motor 4 drives a second driving wheel 5 to rotate, the second driving wheel 5 drives a traveling wheel 3 to rotate through a first driving belt 7, so that a vehicle body 1 moves on the carpet, an operator holds the vehicle body 1 to clean the carpet, the motor 4 drives a third driving wheel 6 to rotate, the third driving wheel 6 drives a first driving wheel 8 to rotate through a second driving belt 9, the first driving wheel 8 drives a fourth driving wheel 12 to rotate through a third driving belt 10, the fourth driving wheel 12 drives a hair curler 11 to rotate, when the hair curler 11 rotates, the hair on the carpet is wound on the hair curler 11, a cleaning scraper 19 in a collecting frame 18 scrapes the hair wound on the hair curler 11 into the collecting frame 18, and when the hair on the carpet is cleaned in the collecting frame 18, motor 4 drives the rotation of second drive wheel 5, second drive wheel 5 drives walking wheel 3 through first drive belt 7 and rotates, walking wheel 3 drives piston 15 through stay cord 17 and reciprocates in first installing frame 13 under the effect of first spring 16 elasticity, when piston 15 slides right, the air drives in the hair inhales first installing frame 13 through intake pipe 20, when piston 15 moves left, impress the air in first installing frame 13 through outlet duct 25, so reciprocal, will collect and collect in the frame 18 hair inhales first installing frame 13.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and the technical solutions and the inventive concepts thereof according to the present invention should be equivalent or changed within the scope of the present invention.
Claims (6)
1. The utility model provides a hotel room carpet hair cleaning device, includes automobile body (1), its characterized in that, installation cavity (2) have been seted up on automobile body (1), the bottom of automobile body (1) is rotated and is connected with walking wheel (3), be equipped with slewing mechanism in installation cavity (2), the transmission is connected with first drive belt (7) between the axis of rotation of slewing mechanism and walking wheel (3), the bottom of automobile body (1) is equipped with clearance mechanism, the last rotation of automobile body (1) is connected with two first drive wheels (8), and the transmission is connected with second drive belt (9) between one of them first drive wheel (8) and the slewing mechanism, and the transmission is connected with third drive belt (10) between another one first drive wheel (8) and the clearance mechanism, the bottom fixed mounting of automobile body (1) has first installing frame (13), be equipped with compression mechanism in first installing frame (13), compressing mechanism runs through the lateral wall of first installing frame (13) and rotates with the lateral wall of walking wheel (3) and be connected, the lateral wall of first installing frame (13) is equipped with inhales the mechanism, inhale the mechanism and extend to clearance mechanism in and communicate each other rather than inside, the top of first installing frame (13) is equipped with air outlet mechanism, air outlet mechanism runs through automobile body (1) and extends to its outside.
2. The carpet hair cleaning device for hotel rooms as defined in claim 1, wherein the rotating mechanism comprises a motor (4) fixedly installed in the installation cavity (2), a second driving wheel (5) and a third driving wheel (6) are fixedly installed at the tail end of an output shaft of the motor (4), the first driving belt (7) is in transmission connection between the rotating shafts of the second driving wheel (5) and the traveling wheel (3), and the second driving belt (9) is in transmission connection between the third driving wheel (6) and the first driving wheel (8).
3. The hotel room carpet hair cleaning device according to claim 1, wherein the cleaning mechanism comprises a hair curler (11) rotatably connected to the bottom of the vehicle body (1), a fourth transmission wheel (12) is fixedly mounted on a rotating shaft of the hair curler (11), the third transmission belt (10) is in transmission connection between the first transmission wheel (8) and the fourth transmission wheel (12), a collecting frame (18) is fixedly mounted at the bottom of the vehicle body (1), a cleaning scraper (19) is fixedly mounted in the collecting frame (18), and the end of the cleaning scraper (19) extends into the hair curler (11).
4. The carpet hair cleaning device for hotel rooms according to claim 1, wherein the compression mechanism comprises a mounting plate (14) fixedly mounted in a first mounting frame (13), a piston (15) is slidably connected in the first mounting frame (13), a plurality of first springs (16) are fixedly connected between the side wall of the mounting plate (14) and the side wall of the piston (15), a pull rope (17) is fixedly connected to the side wall of the piston (15), and the pull rope (17) penetrates through the side wall of the first mounting frame (13) and is rotatably connected with the side wall of the traveling wheel (3).
5. The carpet and hair cleaning device for hotel rooms as defined in claim 4, wherein the suction mechanism comprises an air inlet pipe (20) which penetrates through and is fixedly installed on the side wall of the first installation frame (13), the other end of the air inlet pipe (20) extends into the collection frame (18) and is communicated with the interior of the collection frame, a second installation frame (21) is fixedly installed on the air inlet pipe (20), a sliding rod (23) is connected in the second installation frame (21) in a sliding manner, a second spring (22) is fixedly connected between the side wall of the sliding rod (23) and the inner side wall of the second installation frame (21), a baffle (24) is fixedly installed at one end of the sliding rod (23) which is located outside the second installation frame (21), and the side wall of the baffle (24) is abutted against the end of the air inlet pipe (20).
6. The carpet hair cleaning device for hotel rooms as defined in claim 5, wherein the air outlet mechanism comprises an air outlet pipe (25) fixedly installed on the top of the first installation frame (13) in a penetrating manner, an installation block (26) is fixedly installed in the air outlet pipe (25), a connection rod (27) is slidably connected onto the installation block (26), a sealing plate (28) slidably connected with the inner side wall of the air outlet pipe (25) is fixedly installed at the bottom end of the connection rod (27), and a third spring (29) is fixedly connected between the bottom of the installation block (26) and the top of the sealing plate (28).
