CN111700521A - A multi-purpose combined grill with double-sided infrared gas heating barbecue machine at the same time - Google Patents

Abstract

The invention relates to a multi-purpose combined grill with double-sided infrared gas heating a barbecue machine at the same time. It is characterized in that the grill is composed of an upper grill bar, a lower grill bar, and a pair of symmetrically arranged grill vertical bars, and the upper grill bar has a plurality of openings from top to bottom along the length direction. Transparent pass-through slots, with a clip spring on the inner side of each pass-through slot; there are transparent bamboo stick holes corresponding to the number of pass-through slots from the top surface of the lower crossbar of the grill along the length direction to the top down. The two ends of the lower crossbar of the grill along the length direction are positioned with a pair of grill vertical bars with a symmetrical structure; the upper ends of the grill vertical bars are respectively positioned on the grill upper horizontal bar, and the extending section of the grill upper horizontal bar is provided with a handle, The grill is equipped with at least one horizontal shelf and a pair of grill clips. The present invention has simple structure, does not need to flip the food during the grilling process, has high grilling efficiency, can adapt to grilling various types of food, is clean and hygienic during the grilling process, and can give full play to the performance of the matched grilling machine.

Description

A multi-purpose combined grill with double-sided infrared gas heating barbecue machine at the same time

technical field

The invention relates to the field of barbecue machines, in particular to a multi-purpose combined grill with double-sided infrared gas heating the barbecue machine at the same time.

Background technique

Barbecue food is a very popular food. There are charcoal barbecues, electric barbecues and infrared gas barbecues among the barbecues used in the existing barbecued food. But these barbecue machines have one feature in common: when heating the food, the heat source is always facing the side of the food. In order to grill the food well, the food to be grilled must be turned repeatedly. Otherwise the food will be cooked on one side and raw on the other side or burnt on one side. On the other hand, in the traditional barbecue method, in addition to the fact that the heat source is always facing one side of the food, and the heat source is generally below the food, there will inevitably be the following problems: 1. Repeatedly tumbling grilled food requires additional power consumption, Either install a set of tumbling mechanism or keep turning it by hand, which is time-consuming and energy-consuming, complicated in structure and high in cost; 2. During the process of repeatedly tumbling baked food, heat is conducted from the surface of the food to the interior of the food. , which makes that when the heat on the surface of the food is transferred to a certain depth in the food, the surface of the heated food turns back to the heat source. The outside air releases heat, and the heat that has been absorbed in the food is transferred to the inside at a slower rate. This makes the energy not used effectively, and the barbecue speed is slow and time-consuming; 3. There are various types of barbecue machines, most of the heat sources are below the food, and some are separated by a layer of metal mesh between the food and the heat source. , which makes the water and oil stains in the food drip down on the heat source during the barbecue process to produce smoke and oil fume, which will adhere to the food while the oil smoke is flying all over the sky and pollutes the air, which is not environmentally friendly, so the baked food is very easy to eat for a long time. It can cause cancer and seriously affect food hygiene and human health, which has been confirmed by modern medical science. Fourth, the use of electric barbecue grills is often inconvenient for street barbecue stalls to connect electrodes, which makes many street stall owners difficult. In order to solve the above problems existing in the prior art, the inventor invented a double-sided infrared gas simultaneous heating barbecue machine. The main subject of the invention.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a barbecue machine that can make a double-sided infrared gas heating at the same time better, the structure is simple, the food does not need to be turned over during the barbecue process, the barbecue efficiency is high, and it can be adapted to roast a variety of foods. It is a multi-purpose combined grill that is clean and hygienic during the barbecue process. In order to achieve the above objects, the present invention is achieved through the following technical solutions. A multi-purpose combined grill with double-sided infrared gas heating a barbecue machine at the same time is characterized in that the grill is composed of an upper grill bar, a grill lower horizontal bar, and a pair of symmetrically arranged grill vertical bars. The top surface of the cross bar on the grill along the length direction is provided with a plurality of transparent sign-over slots from top to bottom, the cross-sectional shape of which is a downward concave shape, and the inner side of each over-sign slot is provided with a sign spring; The top surface of the lower crossbar of the grill along the length direction is provided with transparent bamboo stick holes corresponding to the number of over-sign slots, and its cross-sectional shape is an equilateral angle steel shape with sharp corners facing upwards to facilitate the grilling. Oil droplets and water droplets are drained in time during the manufacturing process, and a pair of symmetrical grill vertical bars are positioned at both ends of the lower grill bar along the length direction; the upper ends of the grill vertical bars are respectively positioned on the grill upper horizontal bar A non-conductive grill handle is provided on the extension of the other end of the cross bar on the grill, and the shape of the outer edge of the cross section of the grill vertical bar is the same as the two ends of the furnace mouth of the grill along the length direction. Set up the main positive tongue or the main positive concave to match, for the main grill to place the food to be grilled in the center of the hearth; in order to match the grilling of foods with different properties, the grill is equipped with at least one horizontal shelf And a pair of grilling mesh clips, correspondingly a pair of symmetrically structured grill vertical rods are provided with a corresponding number of shelf positioning ear holes, and two pairs of mesh clips are opened along the length direction on the lower cross rod of the grill tenon holes; the horizontal shelf is welded by a plurality of warp rods and two weft rods, and the two ends of the weft rods are bent with shelf installation hooks so that the horizontal shelf can be installed on the grill through the positioning ear holes of the shelf; so The grilling mesh clip is welded by steel wires, the lower end is provided with two pairs of grilling mesh clip lower tenon, the upper end is provided with two pairs of grilling mesh clip upper tenon and corresponding grilling mesh clip pressing handle, the grilling mesh clip lower tenon Inserted into the tenon hole of the mesh clip, the tenon on the grilling mesh clip is inserted into the downward concave groove of the cross-section of the cross bar on the grill by pressing down the grilling mesh clip-pressing handle.

Further, in order to make full use of energy and save energy when grilling different quantities of food with different characters and the same character at a time, the barbecue machine matched with the present invention is provided with a short and shallow hearth, a long shallow hearth, and a long and deep hearth, thus the described A multi-purpose combined grill with double-sided infrared gas heating a barbecue machine at the same time is characterized in that the corresponding matching multi-purpose combined grill includes a short and shallow grill, a long and shallow grill, and a long and deep grill, and correspondingly matched with a short horizontal layer racks, long horizontal racks and short and shallow grilling mesh clips, long and shallow grilling mesh clips, and long and deep grilling mesh clips.

Further, the above-mentioned multi-purpose combined grill of a double-sided infrared gas heating barbecue machine is characterized in that all the grills except the grill handle are made of stainless steel and welded by a sheet metal process.

From the above technical solutions, it can be seen that due to the simple structure of the present invention, the food does not need to be flipped during the grilling process, the grilling efficiency is high, it can be adapted to grilling various types of food, and the grilling process is clean and hygienic, and is applied to a double-sided infrared It can be used for better performance in the barbecue machine heated by gas at the same time.

In order to better illustrate the present invention, further description will now be given in conjunction with the accompanying drawings and implementations of specific embodiments.

Description of drawings

FIG. 1 is a three view of a short and shallow grill according to a specific embodiment (1) of the present invention.

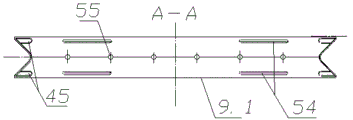

FIG. 2 is a cross-sectional view taken along line A-A of FIG. 1 .

Figure 3 is a short horizontal shelf matched to Figure 1 .

FIG. 4 is a three-dimensional view of a long-shallow grill according to a specific embodiment (2) of the present invention.

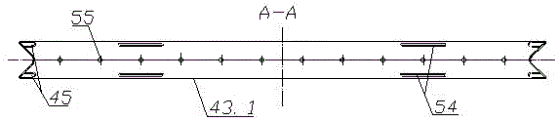

FIG. 5 is a cross-sectional view taken along line A-A of FIG. 4 .

FIG. 6 is a three-dimensional view of the long and shallow grilling mesh clip matched with FIG. 4 .

FIG. 7 is a three view of the long and deep grill according to the specific embodiment (3) of the present invention.

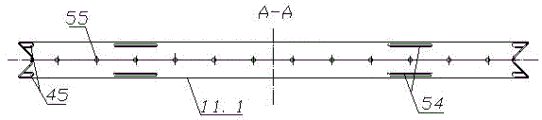

FIG. 8 is a cross-sectional view taken along line A-A of FIG. 7 .

FIG. 9 is a three view of the long deep roasting mesh clip matching FIG. 7 .

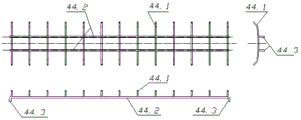

Figure 10 is a long horizontal shelf matched with a long shallow grill and a long deep grill.

11 is a front view of a double-sided infrared gas simultaneous heating barbecue machine matched with the present invention, which is respectively provided with two short and shallow hearths, one long and shallow hearth, and one long and deep hearth.

FIG. 12 is a left side view of FIG. 11 .

FIG. 13 is a plan view of FIG. 11 .

Fig. 14 is a specific application of the three embodiments of the present invention to the four furnace chambers of the barbecue machine shown in Fig. 11 to grill short skewers respectively with short and shallow grills, and the long and shallow grills, the long and deep grills and the short and shallow grills are equipped with horizontal racks for grilling. A-A sectional view of FIG. 13 when making stick-shaped foods such as corn, sweet potatoes, eggplants, etc.

Fig. 15 shows that three embodiments of the present invention are specifically applied to the four furnace chambers of the barbecue machine shown in Fig. 11 to grill short meat skewers with short and shallow grills respectively. A-A sectional view of FIG. 13 when the deep grill is for grilling long skewers and the short and shallow grill is equipped with a horizontal shelf for grilling stick-shaped foods such as corn, sweet potatoes, etc.

Fig. 16 is the specific application of the three embodiments of the present invention to the four furnace chambers of the barbecue machine shown in Fig. 11 respectively using short and shallow grills to grill short skewers, and the long and shallow grills are equipped with horizontal racks to grill long stick-shaped foods such as corn , sweet potatoes, eggplants, long and deep grills with net clips for grilling long, flat and wide foods such as whole fish, flat duck and short and shallow grills with horizontal racks for grilling stick-shaped foods such as corn, sweet potatoes, etc. Figure 13 A-A sectional view .

FIG. 17 is an enlarged view of part E of FIG. 16 .

FIG. 18 is an enlarged view of a portion F of FIG. 16 .

In the picture: 1-rack shell; 2-rack feet; 3-sink drawer; 4-tool drawer; 5-gas external interface; 6-front air hole net; 7-feeding operation box; 8-support plate; 9- Short and shallow grill; 9.1- Short and shallow grill lower rail; 9.2- Short and shallow grill upper rail; 9.3- Short and shallow grill vertical rod; 10- Flat pan surround plate; 11- Long and deep grill; Lower grill bar; 11.2-long and deep grill upper bar; 11.3-long and deep grill vertical bar; 12- seasoning box; 13- sauce cup; 14- countertop; 15- square pan; 16- short shallow hearth Mouth; 17-long shallow hearth mouth; 18-grill right-angle main positive tongue; 19-long deep hearth mouth; 20-circumferential bar; 21-feeding operation net; 22-tool hanging rod; 23-middle partition ;24-operation box hook;25-right short furnace gas valve;26-right long furnace lower gas valve;27-right long furnace upper gas valve;28-plate boiler gas valve;29-left long furnace gas valve;30 - Left short oven gas valve; 31- Long and deep roasting net clip; 31.1- Long and deep roasting net clip lower tenon; 31.2- Long and deep roasting net clamping handle; 31.3- Long and deep roasting net clip upper tenon; 32- Resistance Thermal gap; 33-right long upper infrared gas burner; 34-right short infrared gas burner; 35-plate pot infrared gas burner; 36-left long infrared gas burner; 37-left short infrared gas burner; 38 - Air holes on the side of the flat pan; 39- Rear air hole net; 40- Short horizontal shelf; 40.1- Short horizontal shelf warp rod; 40.2- Short horizontal shelf weft rod; 40.3- Short shelf installation hook; Inner reinforcing pipe; 42-right long and lower infrared gas burner; 43-long and shallow grill; 43.1-long and shallow grill lower rail; 43.2-long and shallow grill upper rail; 43.3-long and shallow grill vertical rod 44 - Long horizontal shelf; 44.1 - Long horizontal shelf warp rod; 44.2 - Long horizontal shelf weft rod; 44.3 - Long shelf mounting hook; 45 - Shelf positioning ear hole; Meat skewers; 48-short skewers; 49-long sticks; 50-pan handle; 51-sewage; 52-stove block; 53-pass slot; 54-net clip tenon hole; 55- Over-sign hole; 56- Long and shallow grilling mesh clip; 56.1- Long and shallow grilling mesh clip lower tenon; 56.2- Long and shallow grilling mesh clamping handle; 56.3- Long and shallow grilling mesh clip upper tenon; 57- Grill handle.

Detailed ways

Figures 1 to 13 show three specific embodiments of the short-shallow grill, the long-shallow grill, and the long-deep grill of the present invention. The short and shallow grill 9 is composed of an upper cross bar 9.2 of the short and shallow grill, a lower cross bar 9.1 of the short and shallow grill, and a pair of symmetrically arranged vertical bars 9.3 of the short and shallow grill. Similarly, the long and shallow grill 43 is composed of a long and shallow grill. The upper cross bar 43.2, the lower cross bar 43.1 of the long and shallow grill, and a pair of symmetrically arranged vertical bars 43.3 of the long and shallow grill are composed. Similarly, the long and deep grill 11 is composed of the long and deep grill upper cross bar 11.2, the long and deep grill The lower cross bar 11.1 and a pair of symmetrically arranged long and deep grill vertical bars 11.3 are composed of a plurality of transparent pass-through slots 53 opened from the top surface of the upper cross bars along the length direction to top to bottom of all the grills. Its cross-sectional shape is a downward concave shape, and the inner side of each pass slot 53 is provided with a clip spring 46; The bamboo stick holes 55 corresponding to the number of the sticking grooves have a cross-sectional shape of an equilateral angle steel with sharp corners facing upwards, so as to drain oil droplets and water droplets in time during the roasting process. A pair of grill vertical rods with symmetrical structure are positioned at both ends; the upper ends of the grill vertical rods are respectively positioned on the grill upper cross rod, and a non-conductive grill is provided on the extension section of the other end of the grill upper horizontal rod. The grill handle 57, the cross-sectional shape of all the grill vertical bars is an equilateral angle steel shape with sharp corners facing inward. In order to match with the main grill, the food to be grilled is placed in the center of the hearth; in order to match the grilling of foods with different properties, each of the short shallow grills 9 is equipped with two short horizontal shelves 40. Each long and shallow grill 43 is equipped with two long horizontal racks 44 and a pair of long and shallow grilling mesh clips 56, and correspondingly there are two layers of rack positioning ear holes in each pair of symmetrical grill vertical bars. 45. There are two pairs of mesh clip tenon holes 54 on the lower crossbars of all grills along the length direction; the long/short horizontal shelf 44/40 is welded by multiple warp bars and two weft bars, Both ends are bent with long/short shelf mounting hooks 44.3/40.3, so that the horizontal shelf can be installed on the grill through the shelf positioning ear holes 45; There are two pairs of long-deep/shallow grilling mesh clips lower tenon 31.1/56.1, and two pairs of long-deep/shallow grilling mesh clip upper tenon 31.3/56.3 on the upper end and corresponding long-deep/shallow grilling mesh clamping handle 31.2/ 56.2. Insert the lower tenon of the grilling mesh clip into the tenon hole 54 of the mesh clip, and the upper tenon of the grilling mesh clip is inserted into the downward concave groove of the cross-section of the crossbar on the grill by pressing down the grilling mesh clipping handle ( See Figure 17 and Figure 18 for details). Except for the grill handle 57, the multi-purpose combined grill shown above is made of stainless steel by welding through a sheet metal process.

From the above specific embodiments and examples, it can be seen that the present invention has a simple structure, does not need to flip the food during the grilling process, has high grilling efficiency, can be adapted to grill foods of various shapes, and is clean and hygienic during the grilling process. In a barbecue machine with double-sided infrared gas heating at the same time, the machine can exert better performance.

The specific implementation manner described above is only one of them. All changes and modifications made according to the scope of the patent application of the present invention belong to the scope covered by the present invention.

Claims (3)

1. A multi-purpose combined grill of a double-sided infrared gas heating barbecue machine at the same time, characterized in that the grill is composed of a grill upper cross bar, a grill lower cross bar, and a pair of symmetrically arranged grill vertical bars, The top surface of the crossbar on the grill along the length direction is provided with a plurality of transparent sign slots from top to bottom, the cross-sectional shape of which is a downward concave shape, and the inner side of each sign slot is provided with a clip. springs; the top surface of the lower crossbar of the grill along the length direction is provided with transparent bamboo stick holes corresponding to the number of the sign slots, and its cross-sectional shape is an equilateral angle steel shape with sharp corners upward, so A pair of symmetrical grill vertical bars are positioned at both ends of the lower grill bar along the length direction; the upper ends of the grill vertical bars are respectively positioned on the grill upper horizontal bar, and the other end of the grill upper horizontal bar There is a non-conductive grill handle on the extension of the grill, and the shape of the outer edge of the cross section of the grill vertical bar is in phase with the two ends of the furnace mouth of the grill along the length direction. The grill is equipped with at least one horizontal shelf and a pair of grilling mesh clips, and correspondingly a pair of symmetrically structured grill vertical bars are provided with a corresponding number of shelf positioning ear holes. The horizontal bar is provided with two pairs of mesh clip tenon holes along the length direction; the horizontal layer frame is welded by a plurality of warp bars and two weft bars, and the two ends of the weft bars are bent with layer frame installation hooks to facilitate the horizontal layer. The rack is mounted on the grill through the positioning ear holes of the layer rack; the grilling mesh clip is welded by steel wires, and its lower end is provided with two pairs of grilling mesh clip lower tenons, and the upper end is provided with two pairs of grilling mesh clip upper tenons and corresponding The grilling mesh clamps the handle, the lower tenon of the grilling mesh clip is inserted into the tenon hole of the mesh clip, and the upper tenon of the grilling mesh clip is pressed into the grill by pressing down on the grilling mesh. in the glyph slot. 2. The multi-purpose combined grill of a double-sided infrared gas simultaneous heating barbecue machine according to claim 1, characterized in that the corresponding matching multi-purpose combined grill includes a short shallow grill, a long shallow grill, a long deep grill The corresponding matching is a short horizontal shelf, a long horizontal shelf and a short and shallow grilling mesh clip, a long and shallow grilling mesh clip, and a long and deep grilling mesh clip. 3. A kind of multi-purpose combined grill with double-sided infrared gas heating barbecue machine at the same time according to claim 2, characterized in that all the grills except the grill handle are made of stainless steel and welded by sheet metal process .
