The invention discloses a control method of a clothing treatment agent management system. The management system includes an intelligent terminal and a washing device. The control method includes: the intelligent terminal receives the clothing treatment agent selected by a user to fill in, and the management system according to the clothes treatment agent of the washing device. consumption, update the inventory of the replenished clothing treatment agent, the management system in the present invention can not only update the total inventory of clothing treatment agents in the family, but also update the inventory of different brands of clothing treatment agents in the family in detail. , it is convenient for users to know the inventory of different clothing treatment agents in the family. Users can purchase corresponding clothing treatment agents in advance according to the inventory of different clothing treatment agents, so as to prevent the user from not knowing when the inventory of a certain clothing treatment agent in the family is insufficient. It affects the washing of some household clothes and brings inconvenience to users.

Description

A kind of control method of laundry treatment agent management system

technical field

The invention belongs to the technical field of household appliances, and in particular relates to a control method of a clothing treatment agent management system.

Background technique

The washing machine is an essential household appliance in people's daily life. Due to its high utilization rate and frequent consumption of detergent and washing powder, it is necessary to frequently purchase detergents and softeners or other clothing treatment agents. In order not to affect the family For laundry, users generally buy new laundry treatment agents when the household laundry treatment agents are insufficient to prevent the laundry treatment agents from being used up. However, in the high-paced modern life, people have a large workload and a lot of family affairs, and they often do not know the remaining amount of clothing treatment agent in the family.

In addition, there are various kinds of clothing treatment products. Users can purchase different clothing treatment agents according to actual needs. Different clothing treatment agents can be used to care for different clothes. We previously provided a solution to detect the inventory. However, only the total inventory of the household can be detected, and it cannot be detailed into different categories of clothing treatment agents. Therefore, there is a situation in which the household still has clothing treatment agents in stock, but there are no clothing treatment agent products of the brand currently required by the user. , so there are still situations that affect the normal care of the family.

In view of this, the present invention is proposed.

SUMMARY OF THE INVENTION

The technical problem to be solved by the present invention is to overcome the deficiencies of the prior art and provide a control method for a clothing treatment agent management system, which can not only update the total household clothing treatment agent inventory, but also update the clothing of different types of brands in the household in detail. The inventory of treatment agents is convenient for users to know the inventory of different clothing treatment agents in the family. Users can purchase corresponding clothing treatment agents in advance according to the inventory of different clothing treatment agents to prevent the shortage of a certain clothing treatment agent in the family. , the user is not aware of it, which affects the washing of some household clothes and brings inconvenience to the user.

In order to solve the above-mentioned technical problems, the basic conception of the technical scheme adopted in the present invention is:

A control method for a clothes treatment agent management system, the management system includes an intelligent terminal and a washing device, the control method includes: the intelligent terminal receives the clothes treatment agent selected by a user to fill in, and the management system is based on the consumption of the clothes treatment agent of the washing device, The stock amount of the replenished laundry treatment agent is updated.

In the above solution, the management system can update the inventory of different brands of clothing treatment agents in the family in detail, so that the user can know the inventory of different clothing treatment agents in the family. It prevents the user from not knowing when the inventory of a certain clothing treatment agent in the family is insufficient, which affects the washing of some household clothes and brings inconvenience to the user.

Preferably, the washing device includes a storage box, and when the storage box is empty, the storage box is replenished with a laundry treatment agent, and the management system detects the consumption of the laundry treatment agent in the washing device in each subsequent washing event, and determines according to the The consumption amount updates the inventory amount of the laundry treatment agent selected by the user to be replenished.

In the above solution, when the storage box is empty, the laundry treatment agent is replenished into the storage box, and the later consumption of the washing device is the replenished laundry treatment agent, and the management system directly updates the laundry treatment selected by the user. agent inventory.

In another case, when there is remaining laundry treatment agent in the storage box, and the storage box is replenished with laundry treatment agent, the management system first updates the inventory of the remaining laundry treatment agent, and then updates the user-selected amount of laundry treatment agent. Inventory of laundry treatments.

In this solution, because there is residual laundry treatment agent in the storage box, when washing clothes later, the washing device will consume the remaining laundry treatment agent first. Therefore, it is necessary to update the inventory of the remaining laundry treatment agent in the storage box first, and then update the user selection. Inventory of laundry conditioners.

Preferably, the management system determines whether the laundry treatment agent selected by the user is the same as the remaining laundry treatment agent in the storage box. If they are the same, the management system updates the laundry treatment agent selected by the user according to the consumption of the laundry treatment agent of the washing device in each subsequent washing event. The stock amount of the laundry treatment agent, otherwise, the management system first updates the stock amount of the remaining laundry treatment agent in the storage box, and updates the laundry treatment agent selected by the user after the remaining laundry treatment agent is consumed.

Preferably, the management system detects the remaining amount of the clothes treatment agent in the storage box before replenishing the new clothes treatment agent, and in subsequent washing events, the management system accumulates the consumption of the clothes treatment agent, and determines whether the accumulated consumption is less than the Remaining amount, if the determination result is yes, update the stock amount of the clothes treatment agent remaining in the storage box, otherwise, update the stock amount of the clothes treatment agent selected by the user.

The above solution can accurately grasp the switching update node of the previous laundry treatment agent and the replenished laundry treatment agent, so as to ensure the accuracy of the inventory update process.

Preferably, the washing device includes a detection device, and the detection device determines whether the storage box is an empty box by detecting the liquid level or weight of the laundry treatment agent in the storage box, and detects the remaining amount of the laundry treatment agent in the storage box;

Preferably, the detection device also detects the liquid level or weight change of the laundry treatment agent in the storage box during the washing process to determine the consumption of the laundry treatment agent.

In the above solution, one detection device can complete multiple tasks, saving physical structure, and further, the detection device is also used to detect whether the clothing treatment agent has been replenished, and when it is detected that the user has replenished the clothing treatment agent, the washing device Or the smart terminal prompts the user to select the replenished laundry treatment agent, so as to ensure the progress of the inventory update task.

Preferably, the management system includes a merchant server, the merchant server stores information on the clothes treatment agent purchased by the user, the smart terminal connects to the merchant server to obtain the information about the clothes treatment agent purchased by the user, and displays the clothes treatment agent purchased by the user. agent to receive the laundry treatment agent selected by the user.

In the above solution, the user connects to the merchant server through the network and chooses to purchase the clothes treatment agent, the merchant server can save the information of the clothes treatment agent purchased by the user, and the smart terminal connects to the merchant server to obtain the clothes treatment agent purchased by the user, which can then be displayed through the display interface. display, and receive the laundry treatment agent that is quickly selected by the user. The process is automatic and does not require user participation, with a high degree of intelligence and a good user experience.

Preferably, the merchant server stores order information for the user to purchase the clothing treatment agent, and the smart terminal obtains information of each clothing treatment agent in the order information, displays each clothing treatment agent separately, and receives the clothing treatment agent selected by the user to fill in.

Preferably, a plurality of clothing treatment agent status bars are displayed on the display interface of the smart terminal, each status bar represents a type of clothing treatment agent purchased by the user, and the smart terminal detects that a certain status bar is triggered, and determines the replenished clothing treatment agent The laundry treatment agent represented by this status bar.

In the above solution, various types of laundry treatment agents are represented by means of multiple status bars, and the user selects the laundry treatment agent in a simple and convenient manner, which only needs to be touched.

Preferably, when new order information is generated on the merchant server, the management system updates the inventory of each laundry treatment agent according to the purchase amount of each laundry treatment agent in the order information.

In the above solution, if the user purchases a new laundry treatment agent, the management system updates the inventory of each laundry treatment agent, thereby comprehensively ensuring the accuracy of the inventory of each laundry treatment agent.

Preferably, the status bar displays the stock amount of the corresponding laundry treatment agent, and when new order information is generated on the merchant server, the status bar corresponding to the laundry treatment agent product in the order information simultaneously displays the updated stock amount.

In the above solution, the corresponding inventory information is synchronized on the status bar, which is helpful for the user to obtain the inventory information of each clothing treatment agent, and it is convenient for the user to make an early purchase decision.

Preferably, the management system updates the inventory of each clothing treatment agent, and monitors whether the remaining amount of each clothing treatment agent is lower than a corresponding threshold. If it is detected that the inventory of a certain clothing treatment agent is lower than the corresponding threshold, the smart terminal will prompt the user. Purchase the corresponding clothes treatment agent, or the merchant server automatically places an order to purchase the corresponding clothes treatment agent.

After adopting the above-mentioned technical scheme, the present invention has the following beneficial effects compared with the prior art:

In the present invention, the management system includes an intelligent terminal and a washing device, the intelligent terminal receives the replenished clothing treatment agent selected by the user, and the management system updates the inventory of the replenished clothing treatment agent according to the consumption of the clothing treatment agent in the washing device, The management system in the present invention can not only update the total household inventory of clothing treatment agents, but also update the inventory of different types of household clothing treatment agents in detail, so that the user can know the inventory of different clothing treatment agents in the family. Corresponding clothing treatment agents can be purchased in advance according to the inventory of different clothing treatment agents to prevent users from being unaware when the inventory of a certain clothing treatment agent in the family is insufficient, which affects the washing of some household clothes and brings inconvenience to users.

The specific embodiments of the present invention will be described in further detail below with reference to the accompanying drawings.

Description of drawings

The accompanying drawings, as a part of the present invention, are used to provide further understanding of the present invention, and the exemplary embodiments of the present invention and their descriptions are used to explain the present invention, but do not constitute an improper limitation of the present invention. Obviously, the drawings in the following description are only some embodiments, and for those of ordinary skill in the art, other drawings can also be obtained from these drawings without any creative effort. In the attached image:

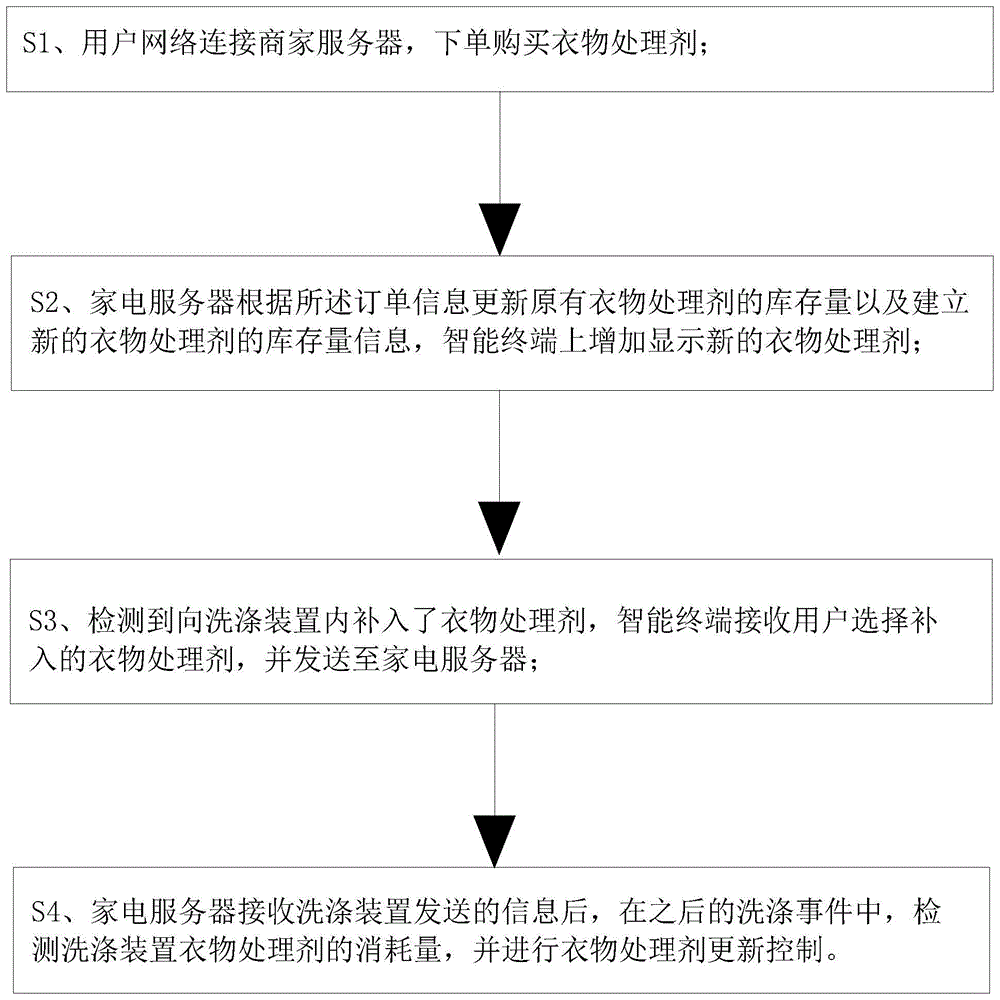

Fig. 1 is a preferred control step diagram of the management system of the present invention.

It should be noted that these drawings and written descriptions are not intended to limit the scope of the present invention in any way, but to illustrate the concept of the present invention to those skilled in the art by referring to specific embodiments.

Detailed ways

In order to make the purposes, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and the following embodiments are used to illustrate the present invention , but are not intended to limit the scope of the present invention.

In the description of the present invention, it should be noted that the terms "upper", "lower", "front", "rear", "left", "right", "vertical", "inner", "outer", etc. The indicated orientation or positional relationship is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation or a specific orientation. construction and operation, and therefore should not be construed as limiting the invention.

In the description of the present invention, it should be noted that the terms "installed", "connected" and "connected" should be understood in a broad sense, unless otherwise expressly specified and limited, for example, it may be a fixed connection or a detachable connection Connection, or integral connection; it can be mechanical connection or electrical connection; it can be directly connected or indirectly connected through an intermediate medium. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

The present invention provides a control method of a clothing treatment agent management system. The management system includes an intelligent terminal and a washing device. The control method includes: the intelligent terminal receives the clothing treatment agent selected by a user to fill in, and the management system according to the clothes treatment agent of the washing device consumption, and update the stock amount of the replenished laundry treatment agent. The management system of the present invention can update the inventory of different brands of clothing treatment agents in the family in detail, so that the user can know the inventory of different clothing treatment agents in the family, and the user can purchase corresponding clothes in advance according to the inventory of different clothing treatment agents. The treatment agent prevents the user from not knowing when the inventory of a certain clothing treatment agent in the family is insufficient, which affects the washing of some household clothes and brings inconvenience to the user.

Example 1

In this embodiment, the washing device includes an automatic delivery system, the automatic delivery system has a storage box, and the storage box is used to store the laundry treatment agent. During washing, the automatic delivery system absorbs the laundry treatment agent from the storage box and puts it into the storage box. in the washing tub.

Wherein, when the storage box is empty, the storage box is replenished with laundry treatment agent, and the management system detects the consumption of the laundry treatment agent of the washing device in each washing event after that, and updates the user's choice of replenishment according to the consumption amount. Inventory of laundry conditioners. Because when the storage box is empty, the laundry treatment agent will be replenished into the storage box, and the laundry treatment agent will be consumed by the washing device later, and the management system will directly update the inventory of the laundry treatment agent selected by the user. .

In another case, when there is remaining laundry treatment agent in the storage box, and new laundry treatment agent is replenished into the storage box, the management system first updates the inventory of the remaining laundry treatment agent, and then updates the user The stock amount of the selected laundry treatment agent. In this case, because there is remaining laundry treatment agent in the storage box, when washing clothes in the later stage, the washing device will consume the remaining laundry treatment agent first, so it is necessary to update the remaining laundry treatment agent in the storage box first. The inventory amount of the clothes treatment agent is updated, and the inventory amount of the clothes treatment agent selected by the user is updated. Of course, there are also opinions that after replenishing the new clothing treatment agent, the remaining clothing treatment agent and the later replenished clothing treatment agent will dissolve in each other, and the actual consumption is the mixture of the two. However, in this embodiment, the remaining clothing is updated first. The inventory of the treatment agent and the inventory of the clothes treatment agent added after the update is the best scientific update plan, which can ensure that the inventory of both clothes treatment agents is updated without omission: for example, update first The newly replenished laundry treatment agent, when the user keeps refilling the new laundry treatment agent in the later period, the management system will not update the original remaining laundry treatment agent, but in fact the original remaining laundry treatment agent has been used up. , but the management system also shows that there is inventory, which is obviously unscientific.

Preferably, the management system determines whether the laundry treatment agent selected by the user is the same as the remaining laundry treatment agent in the storage box. If they are the same, the management system updates the laundry treatment agent selected by the user according to the consumption of the laundry treatment agent of the washing device in each subsequent washing event. The stock amount of the laundry treatment agent, otherwise, the management system first updates the stock amount of the remaining laundry treatment agent in the storage box, and updates the laundry treatment agent selected by the user after the remaining laundry treatment agent is consumed.

Preferably, the management system detects the remaining amount of the clothes treatment agent in the storage box before replenishing the new clothes treatment agent, and in subsequent washing events, the management system accumulates the consumption of the clothes treatment agent, and determines whether the accumulated consumption is less than the Remaining amount, if the determination result is yes, update the stock amount of the clothes treatment agent remaining in the storage box, otherwise, update the stock amount of the clothes treatment agent selected by the user.

The above solution can accurately grasp the switching update node of the previous laundry treatment agent and the replenished laundry treatment agent, so as to ensure the accuracy of the inventory update process.

Embodiment 2

In the second embodiment, in order to support the functions in the first embodiment, a detection device is provided on the washing device, and the detection device determines whether the storage box is empty by detecting the liquid level or weight of the laundry treatment agent in the storage box, and detects The remaining amount of laundry treatment agent in the storage box; if the detection device is a liquid level gauge, it is determined whether the storage box is empty by detecting the liquid level of the storage box, and the remaining amount of the remaining laundry treatment agent in the storage box is detected.

Preferably, the detection device also detects the liquid level or weight change of the laundry treatment agent in the storage box during the washing process to determine the consumption of the laundry treatment agent.

In the above solution, one detection device can complete multiple tasks, saving physical structure, and further, the detection device is also used to detect whether the clothing treatment agent has been replenished, and when it is detected that the user has replenished the clothing treatment agent, the washing device Or the smart terminal prompts the user to select the replenished laundry treatment agent, so as to ensure the progress of the inventory update task.

Wherein, when the detection device is a liquid level timer, when the liquid level detected by the liquid level meter rises, it is determined that the user has replenished the laundry treatment agent, and then the washing device sends the replenishment signal to the server, which is forwarded to the intelligent terminal through the server, or The washing device is directly sent to the smart terminal, and after the smart terminal receives the signal, it prompts the user to select the added laundry treatment agent.

Embodiment 3

In the third embodiment, the management system includes a merchant server, and the merchant server stores information on the clothes treatment agent purchased by the user, and the smart terminal connects to the merchant server to obtain the information about the clothes treatment agent purchased by the user, and displays the information about the clothes treatment agent purchased by the user. Each laundry treatment agent is used to receive the added laundry treatment agent selected by the user.

In the above solution, the user connects to the merchant server through the network and chooses to purchase the clothes treatment agent, the merchant server can save the information of the clothes treatment agent purchased by the user, and the smart terminal connects to the merchant server to obtain the clothes treatment agent purchased by the user, which can then be displayed through the display interface. display, and receive the laundry treatment agent that is quickly selected by the user. The process is automatic and does not require user participation, with a high degree of intelligence and a good user experience. Preferably, the smart terminal is connected to the merchant server, and the user can purchase the laundry treatment agent through the smart terminal.

The merchant server stores order information for the user to purchase the clothing treatment agent, and the intelligent terminal obtains information of each clothing treatment agent in the order information, displays each clothing treatment agent respectively, and receives the clothing treatment agent selected by the user to fill in.

Preferably, a plurality of clothing treatment agent status bars are displayed on the display interface of the smart terminal, each status bar represents a type of clothing treatment agent purchased by the user, and the smart terminal detects that a certain status bar is triggered, and determines the replenished clothing treatment agent The laundry treatment agent represented by this status bar.

In the above solution, various types of laundry treatment agents are represented by means of multiple status bars, and the user selects the laundry treatment agent in a simple and convenient manner, which only needs to be touched.

Preferably, when new order information is generated on the merchant server, the management system updates the inventory of each laundry treatment agent according to the purchase amount of each laundry treatment agent in the order information.

In the above solution, if the user purchases a new laundry treatment agent, the management system updates the inventory of each laundry treatment agent, thereby comprehensively ensuring the accuracy of the inventory of each laundry treatment agent.

Preferably, the status bar displays the stock amount of the corresponding laundry treatment agent, and when new order information is generated on the merchant server, the status bar corresponding to the laundry treatment agent product in the order information simultaneously displays the updated stock amount.

In the above solution, the corresponding inventory information is synchronized on the status bar, which is helpful for the user to obtain the inventory information of each clothing treatment agent, and it is convenient for the user to make an early purchase decision.

When there is new laundry treatment agent information in the order information, a new status bar is established on the display interface of the smart terminal, and the status bar represents the new laundry treatment agent. In order to improve the recognition degree, the status bar displays the corresponding laundry treatment agent information, such as the manufacturer's brand information, and even the packaging information, such as bottles, bags, etc. Further, when the order contains both large and small packages, the status bar also displays the information of each package, such as : XX brand detergent 0.5KG Y bottle. The display method is obvious, and is for the display of order information, which makes it easier for users to integrate and accept.

Embodiment 4

In the fourth embodiment, a different solution from the third embodiment is provided: the intelligent terminal identifies each clothing treatment agent by scanning the identification information on the packaging of each clothing treatment agent, displays each clothing treatment agent separately, and receives the supplementary information selected by the user. Laundry conditioner. In this solution, it is not necessary for the smart terminal to connect to the merchant's server to obtain the information of the clothes treatment agent, and the corresponding information of the clothes treatment agent can be obtained only by scanning the product code on the clothes treatment agent through the smart terminal. , and the clothes treatment agent is displayed through the operation interface, and the user can select the added clothes treatment agent on the operation interface.

Embodiment 5

This implementation 5 describes the specific control process in detail.

Regarding the network structures of the management system: preferably, it includes a server, a washing device and an intelligent terminal, and the server is respectively connected to the washing device and the intelligent terminal in communication. Of course, the washing device can also be directly connected to the intelligent terminal. The server may be a merchant server, or a server independent of the merchant server, and the server updates the inventory of each laundry treatment agent.

The control process of each part is as follows:

Preferably, the server is a server independent of the merchant server, hereinafter referred to as a home appliance server, the home appliance server is connected to the merchant server, and according to the information on the clothing treatment agent purchased by the user on the merchant server, the inventory information of each clothing treatment agent is established respectively. , and the purchase amount of the clothes treatment agent in the purchase order is used as the initial inventory, and the inventory of each clothes treatment agent is updated according to the consumption of the washing device. According to the purchase amount of the newly purchased clothes treatment agent in the order information, the inventory amount of each clothes treatment agent is updated. Of course, the merchant server and the home appliance server can be the same server.

The washing device is connected in communication with the server, and the washing device uploads the consumption of the laundry treatment agent to the server, and the server updates the inventory.

Intelligent terminal, the user accepts the clothing treatment agent selected by the user, the intelligent terminal is connected to the server in communication, the intelligent terminal sends the information of the clothing treatment agent selected by the user to the server, and the server determines the clothing that needs to be updated according to the clothing treatment agent selected by the user. treatment agent, and perform an update operation.

The smart terminal needs to display the clothing treatment agent products for the user to choose the supplementary clothing treatment agent. Preferably, the smart terminal can connect to the merchant server or the home appliance server to obtain the clothing treatment agent information, and then display it to the user for the user to choose. It is as simple as that. convenient.

In this way, an application scenario is that after the user replenishes the laundry treatment agent into the washing device, the user selects the replenished clothing treatment agent on the intelligent terminal, and the intelligent terminal sends the user's selection result to the server, and the server can determine that the user has replenished Then, in the later washing process, the washing device uploads the consumption of the clothes treatment agent to the server, and the server can directly update the inventory of the clothes treatment agent selected by the user or update the inventory of the remaining clothes treatment agent. , and then update the inventory of the laundry treatment agent selected by the user.

In order to prevent the user from forgetting to select the laundry treatment agent on the smart terminal after filling in the laundry treatment agent, the following detailed design is carried out:

The washing device detects the replenishment event of the laundry treatment agent replenished by the user. For example, the washing device is provided with the detection device in the second embodiment; when it is detected that the laundry treatment agent is replenished in the washing device, it sends information to the server, and the server forwards it to Intelligent terminal, after receiving the information, the intelligent terminal prompts the user to select the added laundry treatment agent; of course, the washing device can also be directly connected to the intelligent terminal, and the information is directly sent to the intelligent terminal. After receiving the information, the intelligent terminal directly displays the status The interface of the bar receives user selections, and the process is carried out automatically, which is convenient for the user.

Regarding the process of updating the inventory: the server stores the inventory of each laundry treatment agent, and after receiving the laundry treatment agent consumption uploaded by the washing device, the previous inventory of the corresponding laundry treatment agent on the server directly subtracts the aforementioned Consumption is the realization of the updated inventory. The intelligent terminal communicates with the server to update the inventory data displayed on the status bar.

Referring to FIG. 1, a preferred control method for the management system in this embodiment is provided, including the following steps:

S1. The user connects to the merchant server through the network, and places an order to purchase the clothing treatment agent;

S2, the home appliance server updates the inventory of the original clothing treatment agent and establishes the inventory information of the new clothing treatment agent according to the order information, and adds and displays the new clothing treatment agent on the smart terminal;

S3. It is detected that the laundry treatment agent is replenished into the washing device, and the intelligent terminal receives the clothes treatment agent selected by the user and sends it to the home appliance server;

S4. After receiving the information sent by the washing apparatus, the home appliance server detects the consumption of the laundry treatment agent of the washing apparatus in a subsequent washing event, and performs update control of the laundry treatment agent.

Embodiment 6

In the sixth embodiment, the management system updates the inventory of each clothing treatment agent, and monitors whether the remaining amount of each clothing treatment agent is lower than the corresponding threshold. The user is prompted to purchase the corresponding clothes treatment agent, or the merchant server automatically places an order to purchase the corresponding clothes treatment agent.

The management system includes a merchant server and a washing device or a home appliance server connected in communication with the washing device. The home appliance server updates the inventory of each clothing treatment agent in the household according to the consumption of the clothes treatment agent of the washing device. When the amount is insufficient, the merchant server is triggered to generate an order for purchasing the laundry treatment agent. The merchant's server automatically generates an order for purchasing the clothes treatment agent, and the merchant actively mails the clothes treatment agent product to the user. The user can participate or not in this process, which greatly facilitates the user.

The washing device detects the dosage of the clothing treatment agent; the washing device uploads the detection result to the home appliance server, and the home appliance server subtracts the dosage of the clothing treatment agent from the last updated inventory to obtain the current inventory of the corresponding clothing treatment agent.

In each washing event, the washing device uploads the dosage of the laundry treatment agent to the home appliance server, and the home appliance server updates the inventory after receiving the information sent by the washing device.

In order to update the inventory of the household laundry treatment agent, it is also necessary to know the initial inventory, and the home appliance server updates the inventory of the household laundry treatment agent according to the initial inventory and the consumption of the washing device. The initial stock quantity can be obtained from the purchase order of the laundry treatment agent.

In order to prevent the user from being unaware of the insufficient inventory of laundry treatment agents in the home and affecting household laundry, when the management system detects that the inventory of household laundry treatment agents is insufficient, the washing device and/or the smart terminal will prompt the user, and the user can Buy clothes treatment agent in time to prevent it from affecting subsequent laundry.

The management system automatically or pre-receives automatic purchase parameters set by the user, and the merchant server and the washing device/home appliance server execute an automatic purchase process of the laundry treatment agent according to the automatic purchase parameters.

In the above solution, the user sets the purchase parameters, and the management system automatically executes the purchase process according to the parameter information set by the user.

Preferably, the automatic purchase parameter includes a repurchase limit, and when the inventory of a certain clothing treatment agent updated by the home appliance server is lower than the repurchase limit, the merchant server is triggered to generate a purchase order for the corresponding clothing treatment agent;

Or, the repurchase limit is a value automatically determined by the management system according to the consumption speed of the laundry treatment agent in the household.

In the above solution, the management system automatically determines the repurchase limit according to the consumption rate of the laundry treatment agent in the household, and the repurchase limit satisfies that after the order is placed and before the delivery date of the laundry treatment agent, the household has enough laundry treatment agent, and no will run out.

Preferably, the automatic purchase parameters further include category and brand parameters of the laundry treatment agent, that is, the user selects the laundry treatment agent to be repurchased from the laundry treatment agents displayed on the smart terminal, and the merchant server selects the laundry treatment agent according to the selected laundry treatment agent. The category and brand parameters of determine the category and brand of laundry treatment agent in the order.

In the above solution, the user presets the clothes treatment agent to be purchased, and the merchant server determines the clothes treatment agent product in the later order according to the user's selection.

Preferably, the automatic purchase parameter further includes a purchase amount parameter, and the management system determines the purchase amount information in the order according to the purchase amount parameter;

Or, the management system analyzes the consumption rate of the laundry treatment agent in the user's home, and determines the purchase amount information according to the consumption rate.

In the above solution, the management system analyzes the consumption rate of the user's household laundry treatment agent, and the larger the consumption rate, the larger the determined purchase amount.

Furthermore, the management system should receive the postal information set by the user, including postal address, contact information, and the like.

The management system includes an intelligent terminal, the merchant server generates an order and sends it to the intelligent terminal, and the intelligent terminal receives the operation of the user selecting to confirm or cancel the order.

The above solution is an optional solution, which is set for users with different habits. In this solution, the user also participates in the automatic purchase activity.

Preferably, after the management system has set the duration T, if the user does not receive the confirmation of the order, the merchant server automatically cancels the order;

Preferably, the duration T is 12-36 hours.

In the above solution, if the user has not confirmed the order for a long time, the order is automatically cancelled in consideration of the user's needs.

It should be noted that the laundry treatment agents defined in the present invention include detergents, softeners, antibacterial agents, etc. that can be put into the washing chamber to clean and sterilize the laundry during washing.

The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention in any form. Although the present invention has been disclosed above with preferred embodiments, it is not intended to limit the present invention. Within the scope of the technical solution of the present invention, personnel can make some changes or modifications to equivalent examples of equivalent changes by using the above-mentioned technical content, but any content that does not depart from the technical solution of the present invention, according to the present invention. Any simple modifications, equivalent changes and modifications made to the above embodiments in the technical essence still fall within the scope of the solution of the present invention.

Claims (10)

1. A control method for a clothing treatment agent management system, the management system comprising an intelligent terminal and a washing device, wherein the control method comprises: the intelligent terminal receives a clothing treatment agent selected by a user to fill in, the management system according to the washing device clothes The consumption of the treatment agent is updated, and the stock amount of the replenished laundry treatment agent is updated. 2 . The control method of a clothing treatment agent management system according to claim 1 , wherein the washing device comprises a storage box, and when the storage box is empty, the clothing treatment agent is replenished into the storage box, and the management The system updates the inventory amount of the laundry treatment agent selected by the user according to the consumption amount of the laundry treatment agent of the washing device in each subsequent washing event. 3 . The control method of a laundry treatment agent management system according to claim 2 , wherein when there is remaining laundry treatment agent in the storage box, and new laundry treatment agent is added into the storage box, the The management system first updates the remaining inventory of the laundry treatment agent, and then updates the inventory of the laundry treatment agent selected by the user. 4. The control method of a clothing treatment agent management system according to claim 2 or 3, wherein the management system determines whether the clothing treatment agent selected by the user is the same as the remaining clothing treatment agent in the storage box, and if they are the same, Then the management system updates the inventory of the laundry treatment agent selected by the user according to the consumption of the laundry treatment agent of the washing device in each subsequent washing event; After the remaining laundry treatment agent is consumed, the laundry treatment agent selected by the user is updated. 5 . The control method of a laundry treatment agent management system according to claim 4 , wherein the management system detects the remaining amount of laundry treatment agent in the storage box before replenishing new laundry treatment agent, and in a subsequent washing event. 6 . , the management system accumulates the consumption of laundry treatment agent, determines whether the accumulated consumption is less than the remaining amount, if the determination result is yes, then updates the remaining inventory of laundry treatment agent in the storage box, otherwise, updates the user-selected Inventory of laundry treatments. 6. The control method of a laundry treatment agent management system according to any one of claims 1-5, wherein the washing device comprises a detection device, and the detection device detects the liquid level or weight of the laundry treatment agent in the storage box Determine whether the storage box is an empty box, and detect the remaining amount of laundry treatment agent in the storage box; Preferably, the detection device also detects the liquid level or weight change of the laundry treatment agent in the storage box during the washing process to determine the consumption of the laundry treatment agent. 7. The control method of a clothing treatment agent management system according to any one of claims 1-6, wherein the management system comprises a merchant server, and the merchant server stores information on the clothes treatment agent purchased by the user, The smart terminal is connected to the merchant server to obtain information on the clothes treatment agent purchased by the user, and displays each clothes treatment agent purchased by the user, so as to receive the clothes treatment agent selected by the user to fill in; Preferably, the merchant server stores order information for the user to purchase the clothing treatment agent, and the smart terminal obtains information of each clothing treatment agent in the order information, displays each clothing treatment agent separately, and receives the clothing treatment agent selected by the user to fill in. 8 . The method for controlling a clothing treatment agent management system according to claim 7 , wherein a plurality of clothing treatment agent status bars are displayed on the display interface of the smart terminal, and each status bar represents a type of clothing purchased by the user. 9 . Treatment agent, the smart terminal detects that a certain status bar is triggered, and determines that the replenished clothes treatment agent is the clothes treatment agent represented by the status bar. 9 . The method for controlling a clothing treatment agent management system according to claim 7 , wherein when new order information is generated on the merchant server, the management system is based on the purchase amount of each clothing treatment agent in the order information. 10 . , update the inventory of each clothing treatment agent; Preferably, the status bar displays the stock amount of the corresponding laundry treatment agent, and when new order information is generated on the merchant server, the status bar corresponding to the laundry treatment agent product in the order information simultaneously displays the updated stock amount. 10 . The control method of a laundry treatment agent management system according to claim 1 , wherein the management system updates the inventory of each laundry treatment agent, and monitors whether the remaining amount of each laundry treatment agent is low. 11 . At the corresponding threshold, if the monitored inventory of a certain clothing treatment agent is lower than the corresponding threshold, the smart terminal prompts the user to purchase the corresponding clothing treatment agent, or the merchant server automatically places an order to purchase the corresponding clothing treatment agent.

Images
