CN111645165A - Edge sealing treatment method for artificial board - Google Patents

Abstract

The invention relates to a method for edge-sealing of wood-based panels, which mainly includes the following steps: material preparation, clamping treatment, glue spraying operation, and strip-sticking operation. , a clamping device and a sticking device, the present invention can solve the following problems existing in the edge sealing of the existing wood-based panels. It is attached to the edge of the glued wood-based panel for pressing, and the quality of the edge-sealing of the wood-based panel varies, and the workload of the laborers is heavy, which reduces the production efficiency of the plywood; b The existing wood-based panels When the edge banding equipment seals the edge of the wood-based panel, the edge-sealing strip cannot be stably attached to the edge of the wood-based panel, and the edge-sealing strip often falls off, which affects the production efficiency of the wood-based panel, wastes raw materials, and can improve the wood-based panel. Efficiency and effectiveness of edge sealing.

Description

A kind of wood-based panel edge sealing treatment method

technical field

The invention relates to the technical field of production and processing of wood-based panels, in particular to a method for edge-sealing treatment of wood-based panels.

Background technique

Wood-based panels are made of wood or other non-wood plants as raw materials, separated into various unit materials by certain mechanical processing, and glued with or without adhesives and other additives. Fiberboard and other three categories of products, the edge sealing processing around the edge of the wood-based panel is also the surface processing of the wood-based panel. After the edge-sealing of the wood-based panel, the moisture resistance, water resistance, heat resistance, wear resistance and dimensional stability of the board are improved or improved. , and play the role of decoration and beautification, thus expanding its application range and improving its practical value.

However, the existing wood-based panel edge sealing has the following problems: a. When the traditional wood-based panel is edge-sealed, it is necessary to manually apply glue on the edge of the wood-based panel, and then attach the edge band to the glue-coated wood-based panel edge. For lamination, the quality of artificial panel edge sealing varies, and the workload of laborers is heavy, which reduces the production efficiency of plywood; b When the existing wood-based panel edge sealing equipment seals the wood-based panel, the The edge strip cannot be stably attached to the edge of the wood-based panel, and the edge-sealing strip often falls off, which affects the production efficiency of the wood-based panel, wastes raw materials, and improves the efficiency and effect of the wood-based panel edge sealing.

SUMMARY OF THE INVENTION

In order to solve the above problems, the present invention provides a method for edge sealing of wood-based panels, which can solve the above-mentioned problems in edge sealing of wood-based panels.

In order to achieve the above-mentioned purpose, the present invention adopts the following technical scheme to realize: a kind of wood-based panel edge sealing treatment method mainly comprises the following steps:

Step 1, material preparation, prepare the edge sealing glue and rolled edge sealing strip required for edge sealing of wood-based panels to obtain wood-based panel edge sealing glue and wood-based panel rolled edge sealing strips;

Step 2: Clamping processing, clamping the wood-based panels that need to be edge-sealed by the clamping device to obtain the wood-based panels that have been clamped;

Step 3, glue spraying operation, transfer the edge sealing glue obtained in step 1 into the glue spraying device, and carry out glue spraying operation on the clamped wood-based panel obtained in step 2 through the glue spraying device, so as to obtain the artificial board completed by glue spraying. plate;

Step 4, sticking operation, attach the wood-based panel roll edge banding obtained in step 1 to the edge of the glue-sprayed wood-based panel obtained in step 3 through a bar-sticking device to obtain a wood-based panel with edge sealing completed. .

The wood-based panel edge sealing equipment used in the above steps includes a bottom plate, a glue spraying device, a clamping device and a sticking device.

The clamping device includes a No. 1 motor, a No. 1 threaded rod, a U-shaped sliding plate, an L-shaped plate, a No. 2 motor, a rotating disc, a semi-circular ring plate, a driven hemispherical plate, a power inclined rod, and a power round rod. , driven round rod, clamping plate and clamping suction cup, the back side of the bottom plate is symmetrically provided with a chute, a U-shaped sliding plate is installed in the chute, and a sliding plate is provided on the U-shaped sliding plate Thread groove, a No. 1 motor is installed on the outer wall of the lower left end of the back of the bottom plate, a No. 1 threaded rod is installed at the output end of the No. 1 motor, and the No. 1 threaded rod is installed in the sliding thread groove by thread engagement, and the U-shaped sliding plate is installed at the upper end There is an L-shaped plate, a No. 2 motor is installed on the L-shaped plate, a rotating disc is installed at the output end of the No. 2 motor, a semi-circular ring plate is installed at the front end of the upper part of the rotating disc, and a power inclined rod is installed on the outer wall of the rear end of the rotating disc. , A power round rod is installed on the inner wall of the upper end of the power inclined rod, a driven round rod is installed at the middle end of the front side of the L-shaped plate through a bearing, a driven hemispherical plate is installed at the rear end of the driven round rod, and a clamp is installed at the front end of the driven round rod. There are even grooves on the clamping plate, a clamping suction cup is installed in the groove, and a clamping mechanism is installed at the upper end of the L-shaped plate. The mutual cooperation between the power inclined rod and the power round rod enables the driven hemispherical plate to drive the driven round rod to rotate 90 degrees, and the semi-circular ring plate can position the driven hemispherical plate, ensuring that the artificial board is in Stability when gluing and applying edge strips.

The clamping mechanism includes a No. 3 motor, a No. 2 threaded rod, a sliding round rod, a flat plate, a connecting round rod, a square plate, a pressing suction cup, a two-way cylinder, a positioning rod and a positioning gear. A sliding round rod is installed symmetrically on the upper left and right sides. A flat plate is installed on the sliding round rod by sliding fit. The flat plate is provided with a clamping thread groove. The middle of the upper end of the L-shaped plate is installed with a No. 3 motor, and the output end of the No. 3 motor passes through the L-shaped plate. The No. 2 threaded rod is installed on the plate, and the No. 2 threaded rod is installed in the clamping threaded groove by threaded engagement. The middle end of the flat plate is installed with a connecting round rod through a bearing, and the rear end of the connecting round rod is installed with a square plate. There are square grooves evenly opened, abutting suction cups are installed in the square grooves, a positioning gear is installed at the front end of the connecting rod, a two-way cylinder is installed on the outer wall of the front end of the flat plate at the upper end of the positioning gear, and a positioning rod is installed at the output end of the two-way cylinder, and the No. 3 motor passes through The No. 2 threaded rod drives the pressing suction cup on the flat plate to move, so that the pressing suction cup and the clamping suction cup can hold the wood-based panel stably.

The sticking device includes a No. 4 motor, a No. 3 threaded rod, a clamping plate, a No. 1 cylinder, a straight plate, a pressing telescopic rod, a pressing spring rod, an L-shaped plate, a No. 2 cylinder and a pressing sliding plate. The middle end of the bottom plate is provided with a card slot, a card plate is installed in the card slot by sliding fit, a moving thread groove is formed on the card plate, a No. 4 motor is installed on the inner wall of the left end of the card slot, and a No. threaded rod, and the No. 3 threaded rod is installed in the moving thread groove by thread engagement, the right end of the card plate is installed with a smoothing mechanism, the left end of the card plate is installed with a No. 1 cylinder, the output end of the No. The abutting telescopic rods are evenly installed from left to right, the abutting spring rods are evenly installed at the middle end of the straight plate, the L-shaped plates are installed on the upper ends of the abutting spring rods and the abutting telescopic rods, and the L-shaped plate is provided with an abutting groove, which can be used to press A tight sliding plate is installed in the tight groove by sliding fit, the No. 2 cylinder is installed on the inner wall of the rear end of the tight groove, and the output end of the No. 2 cylinder is connected to the tight sliding plate, the tight sliding plate and the L-shaped plate A sticking mechanism is installed on the top, and the card plate is slowly moved by the No. 4 motor and the No. 3 threaded rod, so that the sticking mechanism and the leveling mechanism on the card board can slowly attach and smooth the edge banding operation. , to ensure the stability of the edge band attached.

The sticking mechanism includes sticking round rods, No. 3 cylinders, power rods, sliding rods, arc-shaped plates and rubber plates. The sticking round rods are installed on the upper ends of the sliding plates and L-shaped plates through bearings. There is a circular groove on the sticking round rod, the outer wall of the sticking round rod is evenly provided with sliding holes along its circumferential direction, the No. 3 cylinder is installed on the inner wall of the circular groove, and the output end of the No. Its circumferential direction is evenly provided with inclined grooves, and a sliding rod is installed in the inclined groove by sliding fit, and the sliding rod is installed in the sliding hole by sliding fit, and the outer end of the sliding rod is installed with an arc plate, A rubber plate is installed on the upper part, and the arc-shaped plate can stably clamp the inner wall of the rolled edge banding through the mutual cooperation between the power rod, the sliding rod, the arc-shaped plate and the rubber plate.

The leveling mechanism includes a No. 4 air cylinder, a backing plate, a smoothing telescopic rod, a smoothing spring rod, a U-shaped plate, a smoothing roller, a No. 5 cylinder, a U-shaped plate, a No. 5 motor and a cutting knife. No. 4 cylinder is installed on the right end of the card plate, and a backing plate is installed on the output end of the No. 4 cylinder. The front and rear ends of the backing plate are evenly installed with leveling telescopic rods from left to right. A U-shaped plate is installed on the upper end of the spring rod and the leveling telescopic rod. A leveling roller is installed between the inner walls of the left and right ends of the U-shaped plate through pins. The right side of the U-shaped plate is installed with a No. 5 cylinder, and the output end of the No. 5 cylinder A U-shaped plate is installed, and the No. 5 motor is installed on the outer wall of the right end of the U-shaped plate. The output end of the No. 5 motor is installed with a cutting knife through the U-shaped plate. The rebound effect of the smoothing spring rod makes the smoothing roller stable. It is tightly pressed against the edge band, so that the edge band will not shift and fall off.

The glue spraying device includes a No. 6 air cylinder, a long strip, a No. 6 motor, a No. 4 threaded rod, a glue spray plate, a glue filling cylinder, a glue inlet, a No. 7 air cylinder, a propelling circular plate and a sealing ring. The left end of the bottom plate is provided with a flat groove, a No. 6 cylinder is installed on the front side of the left end of the bottom plate, and a long strip is installed at the output end of the No. 6 cylinder, and the long strip is installed in the flat groove by sliding fit. The strip groove, the glue spray plate is installed in the long strip slot by sliding fit, the glue spray plate is provided with a glue spray thread groove, the No. 6 motor is installed on the upper end of the long strip, and the No. , and the No. 4 threaded rod is installed in the glue spraying thread groove by threaded engagement, the glue spraying plate is installed with a glue filling cylinder, a glue inlet is installed in the middle of the upper end of the glue filling cylinder, and No. 7 is installed on the inner wall of the left end of the glue filling cylinder Cylinder, the output end of the No. 7 cylinder is equipped with a push rod, and a seal ring is installed on the outer wall of the push plate along its circumferential direction, and the seal ring and the inner wall of the glue filling cylinder are used in cooperation with each other, so that the edge of the wood-based panel can be sprayed comprehensively. glue job.

As a preferred technical solution of the present invention, semi-circular grooves are evenly opened on the driven hemispherical plate along its circumferential direction, strip-shaped grooves are evenly opened between the semi-circular grooves on the driven hemispherical plate, and the power oblique rod and the power round rod are uniformly opened. Both are used in conjunction with the strip groove, and the semi-circular ring plate and the semi-circular groove are used in cooperation with each other, so that the driven hemispherical plate can drive the driven round rod to rotate 90 degrees, and the semi-circular ring plate can position the driven hemispherical plate. The operation ensures the stability of the wood-based panel when gluing and attaching edge strips.

As a preferred technical solution of the present invention, the upper end of the positioning rod is a straight rod, the lower end is a cambered rod, the inner wall of the cambered rod is evenly provided with gear grooves, and the gear groove and the positioning gear cooperate with each other When used, the positioning rod and the positioning gear can perform stable positioning operation on the connecting rod.

As a preferred technical solution of the present invention, support rods are evenly installed at the lower end of the bottom plate, which provides a stable working environment for edge sealing of the wood-based panel.

As a preferred technical solution of the present invention, the power plate is of a regular prism structure, which can drive the arc-shaped plate to stably clamp the rolled edge strip.

The beneficial effects of the present invention are:

1. The present invention can solve the following problems when the existing wood-based panel is edge-sealed, a, when the traditional wood-based panel is edge-sealed, it is necessary to manually apply glue on the edge of the wood-based panel, and then the edge band is attached to the glue-coated edge. The edge of the wood-based panel is pressed together, and the quality of the edge-sealing of the wood-based panel varies, and the workload of the laborers is very heavy, which reduces the production efficiency of the plywood; b The existing wood-based panel edge sealing equipment seals the wood-based panel. When the edge is cut, the edge band cannot be stably attached to the edge of the wood-based panel, and the edge band often falls off, which affects the production efficiency of the wood-based panel, wastes raw materials, and improves the efficiency and effect of the wood-based panel edge sealing.

2. The clamping device and clamping mechanism designed by the present invention enable the positioning rod and the positioning gear to perform the positioning operation on the connecting round rod through the mutual cooperation between the two-way cylinder, the positioning rod and the positioning gear, and ensure the safety of the square plate. The stability of the abutting sucker when clamping the wood-based panel, and the No. 3 motor drives the abutting sucker on the flat plate to move through the No. 2 threaded rod, so that the abutting sucker and the clamping sucker can stably clamp the wood-based panel. , through the cooperation between the No. 2 motor, the rotating disc, the semi-circular ring plate, the driven hemispherical plate, the power inclined rod, and the power round rod, the driven hemispherical plate can drive the driven round rod to rotate 90 degrees, In addition, the semi-circular ring board can perform positioning operations on the driven hemispherical board, which ensures the stability of the wood-based board during gluing and edge-sealing.

3. The sticking device, sticking mechanism and smoothing mechanism designed by the present invention drive the clamping plate to move slowly through the No. 4 motor and the No. 3 threaded rod, so that the sticking mechanism and the smoothing mechanism on the clamping plate can slowly seal the edge. The strip is attached and smoothed to ensure the stability of the edge strip. By pressing the spring rod, the rolled edge strip clamped on the sticking mechanism is pressed against the outer edge of the wood-based panel, which can adapt to the The change of the radius of the roll edge strip when the roll edge strip is attached, through the mutual cooperation between the power rod, the sliding rod, the arc plate and the rubber plate, the arc plate can make the inner wall of the roll edge strip. Stable clamping operation, through the rebound effect of the smoothing spring rod, the smoothing roller can be stably pressed on the edge banding strip, so that the edge banding strip will not shift or fall off. The No. 5 motor drives the cutting The cutter rotates to cut off the pasted edge banding, which facilitates the subsequent attachment of the edge banding.

Description of drawings

The present invention will be further described below in conjunction with the accompanying drawings and embodiments.

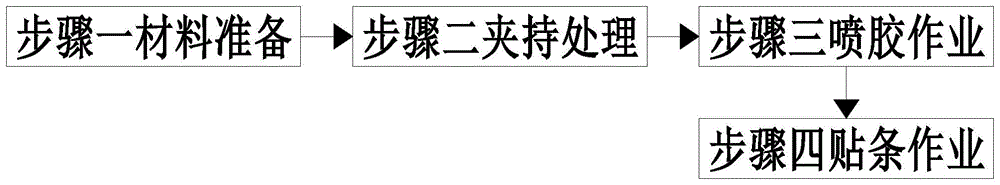

Fig. 1 is the working flow chart of the present invention;

Fig. 2 is the structural representation of the wood-based panel edge banding equipment of the present invention;

Fig. 3 is the partial sectional view of Fig. 2 of the present invention;

Fig. 4 is the sectional view of the glue spraying device of the present invention;

Fig. 5 is the sectional view of the sticking device of the present invention;

Fig. 6 is the partial structure schematic diagram of the sticking device of the present invention;

FIG. 7 is a partial structural schematic diagram of the clamping device of the present invention.

Detailed ways

The embodiments of the present invention are described in detail below with reference to the accompanying drawings, but the present invention can be implemented in many different ways as defined and covered by the claims.

As shown in Figure 1 to Figure 7, a method for edge sealing of wood-based panels mainly includes the following steps:

Step 1, material preparation, prepare the edge sealing glue and rolled edge sealing strip required for edge sealing of wood-based panels to obtain wood-based panel edge sealing glue and wood-based panel rolled edge sealing strips;

Step 2, clamping process, the wood-based panels that need to be edge-sealed are clamped by the clamping device 3 to obtain the wood-based panels that have been clamped;

Step 3, glue spraying operation, transfer the edge sealing glue obtained in step 1 to glue spraying device 2, and spray glue the man-made board obtained in step 2 and complete the clamping through glue spraying device 2, and obtain glue spraying completed. man-made panels;

Step 4, sticking operation, by sticking device 4, the man-made panel roll edge banding obtained in step 1 is attached to the edge of the wood-based panel obtained in step plate.

The wood-based panel edge-sealing equipment used in the above steps includes a bottom plate 1, a glue spraying device 2, a clamping device 3 and a sticking device 4. The left end of the bottom plate 1 is provided with a glue spraying device 2, and the middle end of the bottom plate 1 is provided with a clip. Holder device 3 and sticker device 4.

The clamping device 3 includes a No. 1 motor 3a, a No. 1 threaded rod 3b, a U-shaped sliding plate 3c, an L-shaped plate 3d, a No. 2 motor 3e, a rotating disc 3f, a semicircular ring plate 3g, and a driven hemispherical plate. 3h, the power inclined rod 3i, the power round rod 3j, the driven round rod 3k, the clamping plate 3m and the clamping suction cup 3n, the rear side of the bottom plate 1 is symmetrically provided with a chute, and the chute is fitted by sliding. A U-shaped sliding plate 3c is installed, a sliding thread groove is formed on the U-shaped sliding plate 3c, a No. The No. threaded rod 3b is installed in the sliding thread groove by means of threaded engagement, the upper end of the U-shaped sliding plate 3c is installed with an L-shaped plate 3d, the L-shaped plate 3d is installed with a No. 2 motor 3e, and the output end of the No. 2 motor 3e is installed with a rotating Disc 3f, a semi-circular ring plate 3g is installed at the upper front end of the rotating disc 3f, a power inclined rod 3i is installed on the outer wall of the rear end of the rotating disc 3f, and a power circular rod 3j is installed on the inner wall of the upper end of the power inclined rod 3i, and the L-shaped plate A driven round rod 3k is installed at the middle end of the front side of the 3d through a bearing, a driven hemispherical plate 3h is installed at the rear end of the driven round rod 3k, a clamping plate 3m is installed at the front end of the driven round rod 3k, and the clamping plate 3m is evenly opened. There is a groove, a clamping suction cup 3n is installed in the groove, and a clamping mechanism 31 is installed on the upper end of the L-shaped plate 3d.

The driven hemispherical plate 3h is evenly provided with semicircular grooves along its circumferential direction, and the driven hemispherical plate 3h is evenly provided with strip-shaped grooves between the semicircular grooves. The grooves are used together, and the semicircular ring plate 3g and the semicircular grooves are used in cooperation with each other.

The clamping mechanism 31 includes a No. 3 motor 31a, a No. 2 threaded rod 31b, a sliding round rod 31c, a flat plate 31d, a connecting round rod 31e, a square plate 31f, a pressing suction cup 31g, a two-way cylinder 31h, a positioning rod 31i and a positioning rod 31f. Gear 31j, on the inner wall of the upper end of the L-shaped plate 3d, a sliding round rod 31c is installed symmetrically on the left and right sides. The No. 3 motor 31a is installed in the middle of the upper end of 3d. The output end of the No. 3 motor 31a is installed with a No. 2 threaded rod 31b through the L-shaped plate 3d. A connecting rod 31e is installed at the middle end through a bearing, a square plate 31f is installed at the rear end of the connecting rod 31e, a square groove is evenly opened on the square plate 31f, a pressing suction cup 31g is installed in the square groove, and a front end of the connecting rod 31e is installed. The positioning gear 31j, the outer wall of the front end of the flat plate 31d is located on the upper end of the positioning gear 31j, and a two-way cylinder 31h is installed, and the output end of the two-way cylinder 31h is installed with a positioning rod 31i.

The upper end of the positioning rod 31i is a straight rod, and the lower end is a cambered rod. The inner wall of the cambered rod is evenly provided with gear grooves, and the gear grooves and the positioning gear 31j cooperate with each other.

During the specific operation, the No. 1 motor 3a drives the No. 1 threaded rod 3b to rotate, and the No. 1 threaded rod 3b drives the U-shaped sliding plate 3c to move to a suitable wood-based panel clamping position by means of thread engagement. Place it flat on the clamping suction cup 3n, the No. 3 motor 31a drives the No. 2 threaded rod 31b to rotate, the No. 2 threaded rod 31b drives the flat plate 31d to move to the rear end through thread engagement, and the flat 31d drives the square plate 31f to the rear end to move to the rear end. The two-way air cylinder 31h drives the positioning rod 31i to move outwards by pressing the suction cup 31g on the surface of the wood-based panel, so that the positioning rod 31i releases the positioning operation on the positioning gear 31j.

The sticking device 4 includes a No. 4 motor 4a, a No. 3 threaded rod 4b, a clamping plate 4c, a No. 1 cylinder 4d, a straight plate 4e, a pressing telescopic rod 4f, a pressing spring rod 4g, an L-shaped plate 4h, a No. The cylinder 4i is pressed against the sliding plate 4j. The middle end of the bottom plate 1 is provided with a card slot. The card slot is installed with a card plate 4c by sliding fit. The card plate 4c is provided with a moving thread groove. The No. 4 motor 4a is installed, the output end of the No. 4 motor 4a is installed with a No. 3 threaded rod 4b, and the No. 3 threaded rod 4b is installed in the moving thread groove by means of threaded engagement, and the right end of the clamping plate 4c is installed with a smoothing mechanism 42. A No. 1 cylinder 4d is installed at the left end of the plate 4c, a straight plate 4e is installed at the output end of the No. 1 cylinder 4d, a pressing telescopic rod 4f is evenly installed at the front and rear ends of the straight plate 4e from left to right, and a pressing spring rod 4g is evenly installed at the middle end of the straight plate 4e. , an L-shaped plate 4h is installed on the upper end of the abutting spring rod 4g and the abutting telescopic rod 4f, and a pressing groove is provided on the L-shaped plate 4h, and a pressing sliding plate 4j is installed in the pressing groove by sliding fit. The No. 2 cylinder 4i is installed on the inner wall of the rear end of the groove, and the output end of the No. 2 cylinder 4i is connected to the abutting sliding plate 4j, and a sticking mechanism 41 is installed on both the pressing sliding plate 4j and the L-shaped plate 4h.

The sticking mechanism 41 includes a sticking round rod 411, a No. 3 cylinder 412, a power rod 413, a sliding rod 414, an arc-shaped plate 415 and a rubber plate 416, and the abutting sliding plate 4j and the upper end of the L-shaped plate 4h. The sticking round rod 411 is installed through the bearing, the sticking round rod 411 is provided with a circular groove, the outer wall of the sticking round rod 411 is evenly provided with sliding holes along its circumferential direction, and the inner wall of the circular groove is installed with a No. 3 cylinder 412. A power rod 413 is installed at the output end of the No. 4 cylinder 412. The power rod 413 is evenly provided with a chute along its circumferential direction. A sliding rod 414 is installed in the chute by sliding fit, and the sliding rod 414 is installed by sliding fit. In the sliding hole, an arc-shaped plate 415 is installed on the outer end of the sliding rod 414 , and a rubber plate 416 is installed on the arc-shaped plate 415 .

The power rod 413 is a regular prism structure.

During the specific work, the artificial board roll edge banding is manually sleeved on the outer wall of the rubber plate 416, the No. 2 cylinder 4i drives the pressing sliding plate 4j to move to a suitable clamping position, and the No. 3 cylinder 412 drives the power rod 413 outward. The power rod 413 drives the sliding rod 414 to slide to the outer end, and the sliding rod 414 drives the arc plate 415 to move to the outer end, so that the rubber plate 416 is pressed against the inner wall of the man-made panel rolled edge band.

The smoothing mechanism 42 includes a No. 4 cylinder 42a, a backing plate 42b, a smoothing telescopic rod 42c, a smoothing spring 42d rod, a U-shaped plate 42e, a smoothing roller 42f, a No. 5 cylinder 42g, a U-shaped plate 42h, a fifth The No. 4 motor 42i and the cutting knife 42j, the No. 4 cylinder 42a is installed on the right end of the card plate 4c, and the No. The rod 42c and the middle end of the backing plate 42b are evenly installed with a smoothing spring 42d rod, and a U-shaped plate 42e is installed on the upper end of the smoothing spring 42d rod and the smoothing telescopic rod 42c. A smoothing roller 42f is installed on the shaft, a No. 5 cylinder 42g is installed on the right side of the U-shaped plate 42e, a U-shaped plate 42h is installed at the output end of the No. 5 cylinder 42g, and a No. 5 motor 42i is installed on the outer wall of the right end of the U-shaped plate 42h. The output end of the motor 42i is provided with a cutting blade 42j through the U-shaped plate 42h.

The glue spraying device 2 includes a No. 6 air cylinder 2a, a long strip 2b, a No. 6 motor 2c, a No. 4 threaded rod 2d, a glue spraying plate 2e, a glue filling cylinder 2f, a glue inlet 2g, a No. 7 air cylinder 2h, and a propeller. The circular plate 2i and the sealing ring 2j, the left end of the bottom plate 1 is provided with a flat groove, the No. 6 cylinder 2a is installed on the front side of the left end of the bottom plate 1, the output end of the No. 6 cylinder 2a is installed with a long strip 2b, and the long strip 2b passes It is installed in the flat groove by sliding fit, the long strip 2b is provided with a long groove, the glue spraying plate 2e is installed in the long groove by sliding fit, and the glue spraying plate 2e is provided with a glue spraying thread groove, which is long. The No. 6 motor 2c is installed on the upper end of the strip 2b, and the No. 4 threaded rod 2d is installed at the output end of the No. 6 motor 2c, and the No. 4 threaded rod 2d is installed in the glue spraying thread groove by thread engagement, and is installed on the glue spraying plate 2e. There is a glue filling cylinder 2f, a glue inlet 2g is installed in the middle of the upper end of the glue filling cylinder 2f, a No. 7 cylinder 2h is installed on the inner wall of the left end of the glue filling cylinder 2f, and a push rod is installed at the output end of the No. 7 cylinder 2h, which pushes the outer wall of the circular plate 2i. A sealing ring 2j is installed on the top along its circumferential direction, and the sealing ring 2j and the inner wall of the glue filling cylinder 2f are used in cooperation with each other.

During the specific work, the No. 1 motor 3a drives the No. 1 threaded rod 3b to rotate, and the No. 1 threaded rod 3b drives the U-shaped sliding plate 3c to move to a suitable position for glue spraying of wood-based panels through thread engagement, and transports the edge sealing glue to the glue filling. In the cylinder 2f, the No. 6 cylinder 2a drives the long strip 2b to move to a suitable glue spraying position, and the No. 7 cylinder 2h drives the propulsion disc 2i to push the propulsion disc 2i to move, so that the edge sealing glue is sprayed on the edge of the wood-based panel. The motor 2c drives the No. 4 threaded rod 2d to rotate, and the No. 4 threaded rod 2d drives the glue spraying plate 2e to move from the upper end to the lower end, so that the edge of the wood-based panel is evenly sprayed with edge sealing glue.

The No. 1 motor 3a drives the No. 1 threaded rod 3b to rotate, the No. 1 threaded rod 3b drives the U-shaped sliding plate 3c to move to a suitable rotation position of the wood-based panel by means of thread engagement, and the No. 2 motor 3e drives the rotating disc 3f to rotate, and the rotating circle The disc 3f drives the semicircular ring plate 3g and the power inclined rod 3i to rotate, so that when the power rod 3j on the power inclined rod 3i rotates into the strip groove on the driven hemispherical plate 3h, the power circular rod 3j drives the driven hemispherical plate. 3h rotates 90 degrees, so that the artificial board clamped by the abutting suction cup 31g and the clamping suction cup 3n rotates 90 degrees, the No. 1 motor 3a drives the No. 1 threaded rod 3b to rotate, and the No. 1 threaded rod 3b drives U through thread engagement. The type sliding plate 3c is moved to the appropriate position where the wood-based panel is attached to the edge band.

The No. 1 air cylinder 4d drives the straight plate 4e to move upward, so that the opening of the wood-based panel roll-shaped edge banding is pressed against the outer wall of the lower end of the wood-based panel. The smoothing roller 42f moves to a suitable smoothing position, the No. 4 motor 4a drives the No. 3 threaded rod 4b to rotate, and the No. 3 threaded rod 4b drives the clamping plate 4c to move slowly by means of thread engagement, and the clamping plate 4c drives the artificial board to roll. The edge-banding strip moves slowly, so that the wood-based panel roll-shaped edge-banding strip is attached to the edge of the wood-based panel that has been sprayed with the edge-sealing glue. After the edge banding strip is attached, the No. 5 air cylinder 42g drives the U-shaped plate 42h to move upward to a suitable cutting position, and the No. 5 motor 42i drives the cutting knife 42j to rotate, so that the cutting knife 42j rolls the wood-based panel to seal. The edge strips are cut off, the No. 5 cylinder 42g drives the U-shaped plate 42h to move to the starting position, the No. 1 cylinder 4d drives the straight plate 4e to move to the starting position, and the No. 6 motor 2c drives the glue spraying plate 2e through the No. 4 threaded rod 2d to move to the starting position. At the starting position, the No. 4 motor 4a drives the clamping plate 4c to move to the starting position through the No. 3 threaded rod 4b.

The No. 1 motor 3a drives the No. 1 threaded rod 3b to rotate, the No. 1 threaded rod 3b drives the U-shaped sliding plate 3c to move to a suitable rotation position of the wood-based panel by means of thread engagement, and the No. 2 motor 3e drives the rotating disc 3f to rotate, and the rotating circle The disc 3f drives the semicircular ring plate 3g and the power inclined rod 3i to rotate, so that when the power rod 3j on the power inclined rod 3i rotates into the strip groove on the driven hemispherical plate 3h, the power circular rod 3j drives the driven hemispherical plate. 3h rotate 90 degrees, so that the artificial board clamped against the suction cup 31g and the clamping suction cup 3n is rotated 90 degrees, the glue spraying device 2 continues to spray glue on the edge of the wood-based board, and the sticking device 4 and sticking mechanism 41 continue to The operation of attaching the edge banding strip to the edge of the wood-based panel is repeated, and stable edge-sealing treatment can be performed on the edge of the wood-based panel.

The foregoing has shown and described the basic principles, main features and advantages of the present invention. Those skilled in the art should understand that the present invention is not limited by the above-mentioned embodiments, and the descriptions in the above-mentioned embodiments and the description are only to illustrate the principle of the present invention, without departing from the spirit and scope of the present invention, the present invention will also There are various changes and modifications which fall within the scope of the claimed invention. The claimed scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. a wood-based panel edge sealing treatment method, is characterized in that: mainly comprise the following steps: Step 1, material preparation, prepare the edge sealing glue and rolled edge sealing strip required for edge sealing of wood-based panels to obtain wood-based panel edge sealing glue and wood-based panel rolled edge sealing strips; Step 2, clamping process, by clamping device (3) to clamp the wood-based panels that need to be edge-sealed to obtain the wood-based panels that have been clamped; In step 3, glue spraying operation, the edge sealing glue obtained in step 1 is transported into glue spraying device (2), and glue spraying operation is performed on the clamped wood-based panel obtained in step 2 through glue spraying device (2), Get the glue-sprayed wood-based panel; Step 4, sticking operation, by sticking device (4), the wood-based panel roll-shaped edge banding obtained in step 1 is attached to the edge of the wood-based panel obtained by spraying glue in step 3, and the edge sealing is completed. man-made panels; The wood-based panel edge-sealing equipment used in the above steps includes a base plate (1), a glue spraying device (2), a clamping device (3) and a sticking device (4), and the left end of the base plate (1) is provided with glue spraying The device (2), the middle end of the bottom plate (1) is provided with a clamping device (3) and a sticking device (4); The clamping device (3) comprises a No. 1 motor (3a), a No. 1 threaded rod (3b), a U-shaped sliding plate (3c), an L-shaped plate (3d), a No. 2 motor (3e), a rotating disc (3f), semicircular ring plate (3g), driven hemispherical plate (3h), power inclined rod (3i), power round rod (3j), driven round rod (3k), clamping plate (3m) and clamp Holding the suction cup (3n), the back side of the bottom plate (1) is symmetrically provided with a chute, a U-shaped sliding plate (3c) is installed in the chute, and the U-shaped sliding plate (3c) is provided with Sliding the threaded groove, a No. 1 motor (3a) is installed on the outer wall of the lower left end at the rear of the bottom plate (1), a No. 1 threaded rod (3b) is installed at the output end of the No. 1 motor (3a), and the No. 1 threaded rod (3b) passes through the thread The L-shaped plate (3d) is installed on the upper end of the U-shaped sliding plate (3c), the second motor (3e) is installed on the L-shaped plate (3d), and the output of the second motor (3e) A rotating disc (3f) is installed at the end of the rotating disc (3f), a semi-circular ring plate (3g) is installed at the front end of the upper part of the rotating disc (3f), and a power inclined rod (3i) is installed on the outer wall of the rear end of the rotating disc (3f). (3i) A power round rod (3j) is installed on the inner wall of the upper end, a driven round rod (3k) is installed on the middle end of the front side of the L-shaped plate (3d) through a bearing, and a driven round rod (3k) is installed at the rear end of the driven round rod (3k). The hemispherical plate (3h), the front end of the driven rod (3k) is installed with a clamping plate (3m), the clamping plate (3m) is evenly provided with grooves, and a clamping suction cup (3n) is installed in the groove, L-shaped A clamping mechanism (31) is installed on the upper end of the plate (3d); The clamping mechanism (31) includes a No. 3 motor (31a), a No. 2 threaded rod (31b), a sliding round rod (31c), a flat plate (31d), a connecting round rod (31e), a square plate (31f), Abut the suction cup (31g), the two-way air cylinder (31h), the positioning rod (31i) and the positioning gear (31j), and a sliding round rod (31c) is symmetrically installed on the inner wall of the upper end of the L-shaped plate (3d). A flat plate (31d) is installed on the rod (31c) by sliding fit, a clamping thread groove is formed on the flat plate (31d), and a No. 3 motor (31a) is installed in the middle of the upper end of the L-shaped plate (3d). ) The output end is installed with a No. 2 threaded rod (31b) through the L-shaped plate (3d), and the No. 2 threaded rod (31b) is installed in the clamping threaded groove by means of threaded engagement, and the middle end of the flat plate (31d) Pass through the bearing A connecting rod (31e) is installed, and a square plate (31f) is installed at the rear end of the connecting rod (31e). A positioning gear (31j) is installed at the front end of the round rod (31e), a two-way cylinder (31h) is installed on the upper end of the positioning gear (31j) on the outer wall of the front end of the flat plate (31d), and a positioning rod (31i) is installed at the output end of the two-way cylinder (31h). ; The sticking device (4) includes a No. 4 motor (4a), a No. 3 threaded rod (4b), a clamping plate (4c), a No. 1 air cylinder (4d), a straight plate (4e), and a pressing telescopic rod (4f) , abutting the spring rod (4g), the L-shaped plate (4h), the No. 2 cylinder (4i) and the abutting sliding plate (4j). A card plate (4c) is installed in a matching manner, a moving thread groove is formed on the card plate (4c), a No. 4 motor (4a) is installed on the inner wall of the left end of the card groove, and a No. 3 threaded rod is installed at the output end of the No. 4 motor (4a). (4b), and the No. 3 threaded rod (4b) is installed in the moving thread groove by means of threaded engagement, the right end of the clamping plate (4c) is installed with a smoothing mechanism (42), and the left end of the clamping plate (4c) is installed with a No. 1 cylinder ( 4d), a straight plate (4e) is installed at the output end of the No. 1 cylinder (4d), the front and rear ends of the straight plate (4e) are evenly installed with abutting telescopic rods (4f) from left to right, and the middle end of the straight plate (4e) is evenly installed with abutting rods. Tighten the spring rod (4g), the upper ends of the abutting spring rod (4g) and the abutting telescopic rod (4f) are installed with an L-shaped plate (4h), and an abutting groove is provided on the L-shaped plate (4h). The abutting sliding plate (4j) is installed in a sliding fit manner, the No. 2 cylinder (4i) is installed on the inner wall of the rear end of the abutting groove, and the output end of the No. 2 cylinder (4i) is connected to the pressing sliding plate (4j), A sticking mechanism (41) is installed on both the abutting sliding plate (4j) and the L-shaped plate (4h); The sticking mechanism (41) includes a sticking round rod (411), a No. 3 cylinder (412), a power rod (413), a sliding rod (414), an arc plate (415) and a rubber plate (416), The upper ends of the abutting sliding plate (4j) and the L-shaped plate (4h) are installed with a sticking round rod (411) through a bearing, a circular groove is formed on the sticking round rod (411), and the sticking round rod (411) Sliding holes are evenly opened on the outer wall along its circumferential direction, a No. 3 cylinder (412) is installed on the inner wall of the circular groove, a power rod (413) is installed on the output end of the No. 3 cylinder (412), and the power rod (413) is along its circumference. The inclined grooves are evenly opened in the direction, and a sliding rod (414) is installed in the inclined groove by means of sliding fit, and the sliding rod (414) is installed in the sliding hole by means of sliding fitting, and the outer end of the sliding rod (414) is installed with a an arc-shaped plate (415), and a rubber plate (416) is installed on the arc-shaped plate (415); The smoothing mechanism (42) includes a No. 4 cylinder (42a), a backing plate (42b), a smoothing telescopic rod (42c), a smoothing spring (42d) rod, a U-shaped plate (42e), a smoothing roller ( 42f), the No. 5 cylinder (42g), the U-shaped plate (42h), the No. 5 motor (42i) and the cutting knife (42j). A backing plate (42b) is installed at the output end of the air cylinder (42a), a leveling telescopic rod (42c) is evenly installed at the front and rear ends of the backing plate (42b) from left to right, and a leveling spring is evenly installed at the middle end of the backing plate (42b). (42d) rod, a U-shaped plate (42e) is installed on the upper end of the smoothing spring (42d) rod and the smoothing telescopic rod (42c), and a smoothing plate (42e) is installed between the inner walls of the left front and rear ends of the U-shaped plate (42e) through a pin shaft The No.5 cylinder (42g) is installed on the right side of the flat roller (42f) and the U-shaped plate (42e), and the U-shaped plate (42h) is installed at the output end of the No.5 cylinder (42g), and the U-shaped plate (42h) is installed on the outer wall of the right end There is a No. 5 motor (42i), and a cutting knife (42j) is installed at the output end of the No. 5 motor (42i) through the U-shaped plate (42h). 2. A method for edge sealing of wood-based panels according to claim 1, characterized in that: the glue spraying device (2) comprises a No. 6 cylinder (2a), a long strip (2b), a No. 6 motor (2c), No. 4 threaded rod (2d), glue spraying plate (2e), glue filling cylinder (2f), glue inlet (2g), No. 7 air cylinder (2h), advancing circular plate (2i) and sealing ring (2j), all The left end of the bottom plate (1) is provided with a flat groove, a No. 6 cylinder (2a) is installed on the front side of the left end of the bottom plate (1), and a long strip (2b) is installed at the output end of the No. 6 cylinder (2a), and the long strip ( 2b) It is installed in the flat groove by sliding fit, the long strip (2b) is provided with a long groove, and the glue spraying plate (2e) and the glue spraying plate (2e) are installed in the long groove by sliding fitting. A glue-spraying thread groove is provided on the upper end, a No. 6 motor (2c) is installed on the upper end of the long strip (2b), a No. 4 threaded rod (2d) is installed at the output end of the No. 6 motor (2c), and the No. 4 threaded rod (2d) It is installed in the glue spraying thread groove by thread engagement, the glue spraying plate (2e) is installed with a glue filling cylinder (2f), and the glue filling cylinder (2f) is installed with a glue inlet (2g) in the middle of the upper end. 2f) No. 7 cylinder (2h) is installed on the inner wall of the left end, a push rod is installed at the output end of the No. 7 cylinder (2h), and a sealing ring (2j) is installed on the outer wall of the push plate (2i) along its circumferential direction, and The sealing ring (2j) and the inner wall of the glue filling cylinder (2f) are used in cooperation with each other. 3. A method for edge sealing of wood-based panels according to claim 1, characterized in that: the driven hemispherical plate (3h) is evenly provided with semicircular grooves along its circumferential direction, and the driven hemispherical plate (3h) is located between the semicircular grooves. A strip groove is evenly opened between the two, the power inclined rod (3i) and the power round rod (3j) are used in cooperation with the strip groove, and the semicircular ring plate (3g) and the semicircular groove are used in cooperation with each other. 4. A method for edge sealing of wood-based panels according to claim 1, wherein the upper end of the positioning rod (31i) is a straight rod, the lower end is a cambered rod, and the inner wall of the cambered rod is evenly provided with gears slot, and the gear slot and the positioning gear (31j) cooperate with each other. 5. A method for edge sealing of wood-based panels according to claim 1, characterized in that a support rod (11) is evenly installed at the lower end of the bottom plate (1). 6. A method for edge sealing of wood-based panels according to claim 1, characterized in that: the power rod (413) is a regular prism structure.
