Abstract

The invention discloses a design structure of an assembled decorative integrated sound-insulation fireproof wall body in the field of architectural decoration construction, which comprises a decorative partition board, a top slide rail and a ground slide rail, wherein the decorative partition board is sleeved between the top slide rail and the ground slide rail, and a plurality of decorative partition boards are spliced left and right to form a partition wall; decorate partition plate and include the limit bone basis, the inside central point in limit bone basis puts and is equipped with the fire prevention sound insulation cotton, and the cotton inside and outside both sides of fire prevention sound insulation are equipped with the gypsum board layer, and the edge cover of gypsum board layer is on the limit bone basis. The invention does not need to arrange a partition wall keel frame, only depends on self bearing, can carry out batch production, and can transport the decorative partition wall boards processed by factories to the site for assembly, compared with the traditional gypsum board partition wall, the invention realizes the assembly type installation on the construction site, integrates the functions of decoration and partition wall, has diversified decoration effect, and has the advantages of stability, moisture resistance, heat preservation, sound insulation and the like.

Description

Assembled decorates integrative sound insulation fire wall body design structure
Technical Field
The invention relates to the field of architectural decoration construction, in particular to a design structure of an assembled decoration integrated sound insulation fireproof wall body.
Background
Inside the building, partition boards are often used to separate the internal space, and architectural decoration partition walls are a kind of wall body for separating the internal space of the building, and the existing architectural decoration partition walls are divided into board partition walls, skeleton partition walls, block type partition walls, movable partition walls, etc.
These architectural decoration partition walls themselves have more defects, can't satisfy the demand of assembled job site, for example: the supporting plates of the plate partition wall are generally divided into types of composite wall plates, single-material plates, hollow plates and the like, the large area of the partition wall is a sandwich plate, the partition wall bears the load only through the plates, and is easily influenced by load, temperature change, long time and timeliness, the safety is low, and the fireproof requirement is not met; the framework partition board has the advantages of complex work, poor sound insulation effect, lowest strength, lowest surface density and least practicability; once the block type partition wall is built into a wall body, the block type partition wall cannot be disassembled and adjusted, and a decorative surface structure is required to be treated on the basis of the block type partition wall, so that the construction difficulty is increased, and the space is not saved; the sound insulation effect of activity partition wall is not good, and can't satisfy the fire prevention requirement.
The above-mentioned drawbacks are worth solving.
Disclosure of Invention
In order to overcome the defects of the prior art, the invention provides a design structure of an assembled decorative integrated sound-insulation fireproof wall body.
The technical scheme of the invention is as follows:
the design structure of the assembled decoration integrated sound insulation fireproof wall body is characterized by comprising a decoration partition board, a top slide rail and a ground slide rail, wherein the decoration partition board is sleeved between the top slide rail and the ground slide rail, and a plurality of decoration partition boards are spliced left and right to form partition walls;
decorate partition plate and include the limit bone basis, the inside central point in limit bone basis puts and is equipped with the fire prevention sound insulation cotton, the cotton inside and outside both sides of fire prevention sound insulation are equipped with the gypsum board layer, the edge cover of gypsum board layer is in on the limit bone basis.
The invention according to the scheme is characterized in that the decorative partition board is provided with a veneer layer on one side surface or two side surfaces.
The invention according to the above scheme is characterized in that the top slide rail and the ground slide rail are respectively fixed on an application building structure through steel nails.
The decorative partition board is characterized in that steel ball rollers are arranged at the bottom of the side frame foundation, and the bottom of the decorative partition board is in contact with the ground sliding rail through the steel ball rollers.
The invention according to the scheme is characterized in that the cross section of the top sliding rail and the cross section of the ground sliding rail are both U-shaped, the upper end of the decorative partition board is sleeved in the concave cavity of the top sliding rail, and the lower end of the decorative partition board is sleeved in the concave cavity of the ground sliding rail.
The invention according to the scheme is characterized in that two adjacent decorative partition boards are spliced through square pipes.
Furthermore, the side of square pipe is equipped with inside sunken inner groovy, the inner groovy with the first arch cooperation of limit bone basis one side is connected.
Furthermore, the self-tapping screw passes through one side of the square pipe and fixes the square pipe on the side bone foundation, and the other side of the square pipe is connected with the other side bone foundation of the decorative partition plate in a clamping manner.
Furthermore, the square tube is clamped in the middle clamping position of the side bone foundation.
Furthermore, the cross section of the square tube is trapezoidal, and the self-tapping screw penetrates through the long bottom edge of the square tube and is fixedly connected with the side bone foundation.
The invention according to the scheme is characterized in that the gypsum board layer comprises an inner gypsum board layer and an outer gypsum board layer, and the inner gypsum board layer and the outer gypsum board layer are respectively clamped on an inner clamping position and an outer clamping position of the side bone foundation.
The invention according to the scheme is characterized in that the side frame foundation comprises a plurality of buckle type sectional materials which are connected end to end, and the buckle type sectional materials are buckled and connected with the fireproof sound insulation cotton and the gypsum board layer.
Further, buckle formula section bar includes the mainboard, the medial surface of mainboard is equipped with the baffle, gypsum board layer is located on the screens in the baffle outside.
Furthermore, a plurality of reinforcing grooves are formed in the outer side of the partition plate, and the gypsum board layer is in contact connection with the reinforcing grooves.
Furthermore, the outside of mainboard is equipped with the stereotype board, both sides the interval each other between the stereotype board.
According to the scheme, the partition wall keel frame does not need to be arranged like a framework partition wall during manufacturing, but the partition wall plate can bear the load, the mass production can be carried out in a factory, the aluminum profile framework, the fireproof material, the sound insulation material and the putty-free material are integrated, and the produced decorative partition wall plate is transported to a construction site for assembly; the invention is an assembly type construction structure, which integrates a partition wall and a decorative surface, has the characteristics of light weight, economy, environmental protection, high strength, heat insulation, fire prevention, high accuracy, shock resistance, sound insulation and the like, is compared with the traditional gypsum board partition wall, realizes the assembly type installation of a construction site, integrates the functions of decoration and the partition wall, has diversified decoration effects, and has the advantages of stability, moisture resistance, heat preservation, sound insulation and the like.
Drawings

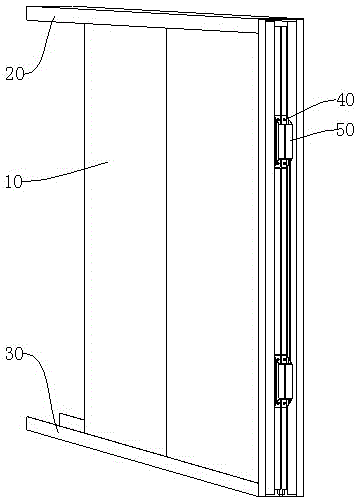

FIG. 1 is a schematic structural diagram of the present invention.
FIG. 2 is a schematic structural diagram of the edge bone foundation of the present invention.
Fig. 3 is a schematic view of the top connection of the present invention.
FIG. 4 is a schematic view of the bottom connection of the present invention.
Fig. 5 is a top sectional view of the splice.
Fig. 6 is a schematic structural view of the snap-in profile.
Fig. 7 is a schematic structural view of a square tube.
Fig. 8 is a diagram illustrating an application of the present invention.
In the figure, 10, decorative partition panels; 11. a snap-in profile; 111. a first separator; 112. a second separator; 113. a main board; 114. shaping plates; 115. a reinforcing groove; 116. a first protrusion; 12. a finishing layer; 13. fireproof sound insulation cotton; 14. a gypsum board; 20. a top slide rail; 30. a ground rail; 40. self-tapping screw; 50. a square tube; 51. an inner groove; 60. steel ball rollers; 70. steel chain riveting; 80. building structures are applied.
Detailed Description
The invention is further described with reference to the following figures and embodiments:
as shown in fig. 1 to 8, a structure of an assembled decorative integrated sound-proof and fire-proof wall includes a decorative partition wall board 10, a top rail 20 and a bottom rail 30. The top slide rail 20 and the ground slide rail 30 are fixed on the application building structure 80 at the installation position, the decorative partition board 10 processed in the factory is directly assembled between the top slide rail 20 and the ground slide rail 30, and the decorative partition boards 10 are spliced left and right to form the whole partition wall structure.
Decorative partition plate
The decorative partition board 10 comprises a side frame foundation, fireproof sound insulation cotton 13 and a gypsum board layer.
1. Side bone foundation
As shown in fig. 2 to 6, the edge frame foundation includes a plurality of end-to-end fastening type sections 11, the fastening type sections 11 are fastened with the fireproof sound insulation cotton 13 and the gypsum board layer, and the edge frame foundation constitutes a supporting structure of the whole decorative partition board 10.
As shown in fig. 2, in the present embodiment, the side frame foundation includes four snap-in type profiles 11, including one snap-in type profile 11 in the vertical direction and one snap-in type profile 11 in the left-right direction, and the four snap-in type profiles 11 are connected end to form a rectangular state. In other embodiments, the snap-in type profiles 11 with different numbers and lengths can be selected according to specific requirements, so that the snap-in type profiles are connected end to form the side frame foundation.
The snap-in type section bar 11 comprises a main plate 113, and the left side and the right side of the main plate 113 are of symmetrical structures.
Preferably, the medial surface of mainboard 113 is equipped with a plurality of baffles, and the gypsum board layer is located the screens in the baffle outside. The outside of baffle is equipped with a plurality of strengthening grooves 115, and the gypsum board layer is connected with strengthening groove 115 contact, and strengthening groove 115 has increased the frictional force between gypsum board layer and buckle formula section bar 11, is that the firm degree that both combine promotes 5%. A first partition board 111 and a second partition board 112 are arranged at one end of the inner side surface of the main board 113, a first clamping position B is formed on the outer side of the first partition board 111, and a second clamping position C is formed between the outer side of the second partition board 112 and the first partition board 111.
Preferably, the outer side of the main plate 113 is provided with a shaping plate 114, and the shaping plates 114 on the left and right sides are spaced from each other to form a middle position clamping position a. The cavity D is formed between the shaping plate 114 and the main plate 113, so that the material cost of the snap-fit type section bar 11 can be saved, and the supporting strength of the snap-fit type section bar 11 can be increased.
In this embodiment, the middle of the main plate 113 is provided with a first protrusion 116 protruding outward, so that the connection between the snap-in type profile 11 and other structures can be more stable through the first protrusion 116.
2. Fireproof sound insulation cotton
The fireproof sound insulation cotton 13 is located in the center of the inner side of the side frame foundation. In this embodiment, the fireproof and soundproof cotton 13 is located between the left and right second partition boards 112.
3. Gypsum board layer
The gypsum board layer is positioned at the inner side and the outer side of the fireproof sound insulation cotton 13, and the edge of the gypsum board layer is sleeved on the side bone foundation.
Preferably, the gypsum board layer includes inner and outer gypsum boards 14, which meet the fire and sound insulation requirements of the decorative partition panel 10. The gypsum boards 14 of the inner layer and the outer layer are respectively clamped on the inner clamping position and the outer clamping position of the side bone foundation, namely: the outer gypsum board 14 is located in the first position B outside the first partition 111, and the inner gypsum board 14 is located in the second position C between the first partition 111 and the second partition 112.
4. Finishing layer
The decorative partition wall panel 10 is provided with a finishing layer 12 on one side surface or both side surfaces thereof to achieve a decorative effect. The characteristics of the facing layer 12 material can reduce the construction process of putty scraping, and the facing latex paint can be directly smeared; in addition, the finishing effect can be achieved through other finishing materials, such as wall cloth, wallpaper, wood facing and the like which are directly replaced and installed.
The material of the facing layer 12 can provide a variety of choices, and the choice can be set according to the effect requirement, for example, the facing of the partition wall is white latex paint, and the sea base cloth material can be selected as the facing material. The sea-based cloth has the advantages of being capable of being coated for many times, a putty coating process can be omitted, the sea-based cloth is matched with the emulsion paint for use, the expressive force of the emulsion paint can be greatly improved, more textures and shapes are provided for the wall surface, meanwhile, the defects that the traditional emulsion paint is lack of texture and monotony are overcome, and the texture of the concave-convex texture is emphasized.
5. Square tube
As shown in fig. 1, 5 and 7, when a plurality of decorative partition boards 10 are required to be spliced, two adjacent decorative partition boards 10 on the left and right are spliced through a square pipe 50. The square pipe 50 makes the polylith decorate partition plate 10 and form wholly as the connection anchor, has improved holistic intensity and assembled installation, and has controlled and has decorated the concatenation gap between the partition plate 10.
In this embodiment, one side of the square tube 50 is clamped in the middle clamping position a between the shaping plates 114 on the left and right sides of the snap-in type section bar 11, and the tapping screw 40 passes through the square tube 50 and fixes the square tube 50 on the side frame foundation (the snap-in type section bar 11); the other side of the square tube 50 is clamped into the middle clamping position A clamped with the edge bone base (the clamping type section bar 11) of the other decorative partition wall plate 10. The splicing of the left and right decorative partition boards 10 is realized through the buckle type section bars 11.
Preferably, the side of the square tube 50 is provided with an inward concave inner groove 51, and the inner groove 51 is connected with the first protrusion 116 on one side of the edge bone foundation (the snap-in type section bar 11) in a matching manner.
Preferably, the cross section of the square tube 50 is trapezoidal, the tapping screw 40 penetrates through the long bottom edge of the square tube 50 and is fixedly connected with the side frame foundation (the buckle type section bar 11), and the fixing position of the tapping screw 40 is located at the part of the long bottom edge protruding out of the short bottom edge, so that the installation of the tapping screw 40 during construction is facilitated.
Two, sky slide rail and ground slide rail
The top slide rail 20 and the bottom slide rail 30 are of a structure with symmetrical upper and lower positions.
Preferably, the top slide rail 20 and the ground slide rail 30 are respectively fixed on the applied building structure 80 through steel nails 70, which can ensure the stability and connection strength of the top slide rail 20 and the ground slide rail 30. In this embodiment, the cross-section of the top slide rail 20 and the cross-section of the ground slide rail 30 are both U-shaped, the upper end of the decorative partition board 10 is sleeved in the concave cavity of the top slide rail 20, and the lower end of the decorative partition board 10 is sleeved in the concave cavity of the ground slide rail 30.
Preferably, the bottom of the side frame foundation is provided with a steel ball roller 60 (preferably, an outer hexagon bolt type steel ball roller), and the decorative partition wall plate 10 is in contact with the ground rail 30 through the steel ball roller 60. Since the decorative partition board 10 is influenced by its own weight and has a large friction coefficient with the ground rail 30, the smooth degree of sliding between the decorative partition board and the ground rail can be increased by adding the steel ball rollers 60, and the installation and construction on site are facilitated.
The invention relates to a design structure of an assembled decorative integrated sound-insulation fireproof wall, which comprises the following mounting methods:
1. fixed top slide rail and ground slide rail
A ground slide rail is fixedly arranged at the position where the partition wall needs to be installed through a steel strip nail; and then the position of the top slide rail is positioned through the upward projection position of the ground slide rail, and the top slide rail is fixed on the application building structure 80 through the steel nails, so that the positions of the top slide rail and the ground slide rail are consistent.
2. Customized decorative partition plate
Customizing a required decorative partition board in a factory, respectively loading fireproof sound insulation cotton 13 and a gypsum board 14 into clamping positions corresponding to the buckle type section bars 11, laying a wire tube in the decorative partition board in advance, and reserving positions of a switch and a socket to form the customized decorative partition board; in addition, the decorative layer is manufactured according to the required decorative effect.
If two decorate partition wall board about needs are assembled, then fix square pipe in the side of decorating partition wall board through self-tapping nail, as connecting the anchor for two decorate partition wall boards and link into an integrated entity, guarantee the planarization of partition wall.
3. Installation decoration partition plate
According to the positions of the ground sliding rail and the top sliding rail, the decorative partition board is pushed in from one end between the ground sliding rail and the top sliding rail, and the steel ball roller can guarantee the decorative partition board to be smoothly pushed and pulled in the ground sliding rail under the action of external pushing force.
All the decorative partition boards are installed in place to form a complete partition with decorative performance.
The invention has the following advantages:
1. the invention can be processed into decorative partition boards in factories, and then the installation of the top slide rail and the ground slide rail is finished in a construction site, and the assembly type installation of the whole partition wall structure is realized, so that the site construction is convenient, the construction procedures are reduced, the construction time is shortened, the construction materials are saved, and the later maintenance, the disassembly and the modification are convenient.
2. The invention adopts the buckle type section bar as the side frame foundation, the fireproof sound insulation cotton is filled in the side frame foundation, the double-layer gypsum board is used for reinforcing, the surface of the decorative partition wall board is selected according to the requirement (such as sea base cloth material), the surface structure is not required to be decorated and finished on the partition wall foundation, the indoor effective space is saved by 5 percent, and the whole partition wall has the characteristics of environmental protection, fire prevention, ventilation, mildew resistance, no falling, cracking resistance, good decorative effect, scrubbing resistance, high strength, heat insulation, high accuracy, shock resistance and sound insulation.
3. The top slide rail and the ground slide rail are fixed with the building foundation structure through the steel nails, the top slide rail and the ground slide rail limit the decorative partition plate, the decorative partition plate is convenient to slide and mount, meanwhile, the top slide rail and the ground slide rail can bear the gravity of the decorative partition plate, and the structural stability of the whole partition wall is good.
4. Two adjacent decoration partition plates are connected and anchored through square pipes, so that the whole smoothness of the decoration partition plates is ensured, the whole strength and the assembling installation are improved, and the splicing gap between the decoration partition plates is controlled.
It will be understood that modifications and variations can be made by persons skilled in the art in light of the above teachings and all such modifications and variations are intended to be included within the scope of the invention as defined in the appended claims.
The invention is described above with reference to the accompanying drawings, which are illustrative, and it is obvious that the implementation of the invention is not limited in the above manner, and it is within the scope of the invention to adopt various modifications of the inventive method concept and technical solution, or to apply the inventive concept and technical solution to other fields without modification.

Claims (10)

1. The design structure of the assembled decoration integrated sound insulation fireproof wall body is characterized by comprising a decoration partition board, a top slide rail and a ground slide rail, wherein the decoration partition board is sleeved between the top slide rail and the ground slide rail, and a plurality of decoration partition boards are spliced left and right to form partition walls;
decorate partition plate and include the limit bone basis, the inside central point in limit bone basis puts and is equipped with the fire prevention sound insulation cotton, the cotton inside and outside both sides of fire prevention sound insulation are equipped with the gypsum board layer, the edge cover of gypsum board layer is in on the limit bone basis.
2. The structure of claim 1, wherein the decorative partition board is provided with a finishing layer on one or both surfaces.
3. The structure as claimed in claim 1, wherein the bottom of the side frame foundation is provided with steel ball rollers, and the bottom of the decorative partition wall board is in contact with the ground rail through the steel ball rollers.
4. The design structure of the assembled decorative integrated sound-proof and fireproof wall body as claimed in claim 1, wherein two adjacent decorative partition boards are spliced through a square pipe.
5. The design structure of the assembled decorative integrated sound-proof and fireproof wall body according to claim 4, wherein a self-tapping screw penetrates through one side of the square pipe and fixes the square pipe on the side rib foundation, and the other side of the square pipe is clamped with the side rib foundation of the other decorative partition plate.
6. The design structure of the assembled decorative integrated sound-proof and fireproof wall body as claimed in claim 5, wherein the cross section of the square tube is trapezoidal, and the self-tapping screw penetrates through the long bottom edge of the square tube and is fixedly connected with the side frame foundation.
7. The structure of claim 1, wherein the gypsum board layer comprises an inner layer of gypsum board and an outer layer of gypsum board, and the inner layer of gypsum board and the outer layer of gypsum board are respectively clamped on the inner clamping position and the outer clamping position of the side frame foundation.
8. The structure of claim 1, wherein the side frame foundation comprises a plurality of end-to-end snap-fit profiles, and the snap-fit profiles are connected with the fireproof and sound-proof cotton and the gypsum board layer in a snap-fit manner.
9. The structure as claimed in claim 8, wherein the snap-in section comprises a main board, a partition board is disposed on the inner side of the main board, and the gypsum board layer is located on the position where the partition board is located.
10. The structure of claim 9, wherein the partition board has a plurality of reinforcing grooves on the outer side thereof, and the gypsum board layer is in contact with the reinforcing grooves.
CN202010234243.7A 2020-03-30 2020-03-30 Assembled decorates integrative sound insulation fire wall body design structure Pending CN111236496A (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
CN202010234243.7A CN111236496A (en) 2020-03-30 2020-03-30 Assembled decorates integrative sound insulation fire wall body design structure

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
CN202010234243.7A CN111236496A (en) 2020-03-30 2020-03-30 Assembled decorates integrative sound insulation fire wall body design structure

Publications (1)

Publication Number Publication Date
CN111236496A true CN111236496A (en) 2020-06-05

Family

ID=70862365

Family Applications (1)

Application Number Title Priority Date Filing Date
CN202010234243.7A Pending CN111236496A (en) 2020-03-30 2020-03-30 Assembled decorates integrative sound insulation fire wall body design structure

Country Status (1)

Country Link
CN (1) CN111236496A (en)

Cited By (7)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN111945990A (en) * 2020-08-05 2020-11-17 湖南恒信新型建材有限公司 Integrated wallboard for decoration of building wall
CN112081275A (en) * 2020-09-24 2020-12-15 德泰建设有限公司 Modular construction and installation method for gypsum board partition wall for building ceiling decoration
CN112282109A (en) * 2020-11-02 2021-01-29 深圳千里马装饰集团有限公司 Integrative sound insulation fireproof wall structure is decorated to assembled
CN112443056A (en) * 2020-11-15 2021-03-05 深圳千里马装饰集团有限公司 Swift connection structure in partition wall bottom
CN112459297A (en) * 2020-11-15 2021-03-09 深圳千里马装饰集团有限公司 Partition wall structure
CN112459298A (en) * 2020-11-15 2021-03-09 深圳千里马装饰集团有限公司 Assembled steel frame partition wall bottom quick connect structure
NL2029432B1 (en) * 2021-01-20 2022-06-24 China Architecture Design & Research Group Co Ltd Prefabricated medical wall and medical unit assembling method

Cited By (7)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN111945990A (en) * 2020-08-05 2020-11-17 湖南恒信新型建材有限公司 Integrated wallboard for decoration of building wall
CN112081275A (en) * 2020-09-24 2020-12-15 德泰建设有限公司 Modular construction and installation method for gypsum board partition wall for building ceiling decoration
CN112282109A (en) * 2020-11-02 2021-01-29 深圳千里马装饰集团有限公司 Integrative sound insulation fireproof wall structure is decorated to assembled
CN112443056A (en) * 2020-11-15 2021-03-05 深圳千里马装饰集团有限公司 Swift connection structure in partition wall bottom
CN112459297A (en) * 2020-11-15 2021-03-09 深圳千里马装饰集团有限公司 Partition wall structure
CN112459298A (en) * 2020-11-15 2021-03-09 深圳千里马装饰集团有限公司 Assembled steel frame partition wall bottom quick connect structure
NL2029432B1 (en) * 2021-01-20 2022-06-24 China Architecture Design & Research Group Co Ltd Prefabricated medical wall and medical unit assembling method

Similar Documents

Publication Publication Date Title
CN111236496A (en) Assembled decorates integrative sound insulation fire wall body design structure
US2317634A (en) Building construction
US3309826A (en) Resiliently mounted dry wall partition for building structures
RU2522359C2 (en) Element of multilayer light-weight construction panel, and its manufacturing method
CA1102085A (en) Insulated closure panel
US20080053031A1 (en) Assembling and Arrangement Flat Element Consisting of One or Several Elements
CN210177866U (en) Wall keel
CN112144791B (en) Building unit combined type heat-insulation and decoration integrated exterior wall cladding and installation method
US2302047A (en) Building construction
CN213626396U (en) Building unit combined heat-preservation and decoration integrated exterior wall cladding
CN204225267U (en) A kind of light weight board building systems
CN211949058U (en) Assembled decorates integrative sound insulation fire wall body design structure
CN111075056A (en) Multifunctional light steel keel and partition wall
CN110397158A (en) A kind of boxboard steel construction assembled architecture system
CN211257647U (en) Integrated wallboard convenient to disassemble and assemble
RU55804U1 (en) RESIDENTIAL FRAME BUILDING, BUILDING FRAME AND BUILDING WALL
KR20180096002A (en) Drywall
CN216340370U (en) Island-shaped keel-based glass fiber sound absorption ceiling
CN112523394A (en) Light steel keel partition wall
RU218347U1 (en) block module
RU189434U1 (en) PANEL FRONT HEATING
RU218496U1 (en) Modular Building Panel
CN220353293U (en) Wall wave shaped stone dry hanging structure
WO2004059098A1 (en) Fast-construction wall panels
CN214696263U (en) Novel sound insulation partition wall

Legal Events

Date Code Title Description
PB01 Publication
PB01 Publication
SE01 Entry into force of request for substantive examination
SE01 Entry into force of request for substantive examination
