Abstract
本发明公开了锥度缩管机夹料机构，包括输送组件、夹持组件和支撑底座，所述支撑底座的顶部固定安装有输送组件，所述输送组件的顶部滑动连接有夹持组件，本发明通过设置了开口方向相反的二号导向槽与一号导向槽，在夹持气缸的拉力下，以及一号导向槽和二号导向槽的限位作用下，两个夹持调节杆同时沿一号导向槽滑动，并且在一号导向槽作用下，两个夹持头共同向中间收拢，其可以夹持矩形工件，也可以夹持柱形工件，并且在两个夹持头共同夹持下，即使固定不同直径的柱形工件，其也能保证的圆心始终同一位置，无需针对不同直径的工件进行调整，便于锥度缩管机的加工。
The invention discloses a material clamping mechanism of a tapered tube shrinking machine, comprising a conveying component, a clamping component and a support base, a conveying component is fixedly installed on the top of the supporting base, and a clamping component is slidably connected to the top of the conveying component. By setting the No. 2 guide groove and the No. 1 guide groove with opposite opening directions, under the pulling force of the clamping cylinder and the limiting action of the No. 1 guide groove and the No. 2 guide groove, the two clamping adjustment rods move along a The No. 1 guide groove slides, and under the action of the No. 1 guide groove, the two clamping heads are folded together toward the middle, which can clamp a rectangular workpiece or a cylindrical workpiece, and under the joint clamping of the two clamping heads , Even if cylindrical workpieces of different diameters are fixed, it can ensure that the center of the circle is always at the same position, and there is no need to adjust the workpieces of different diameters, which is convenient for the processing of the tapered tube shrinking machine.
Description
Technical Field
The invention belongs to the technical field of taper pipe reducing machines, and particularly relates to a clamping mechanism of a taper pipe reducing machine.
Background
The pipe reducing machine is a forming process for expanding and reducing the diameter of the end part of a pipe blank, in order to improve the firmness and the attractiveness of the pipe frame, the end of a steel pipe is usually reduced, and the other end of the steel pipe is inserted while the end of the steel pipe is reduced, so that the pipe reducing machine is used, and a material clamping mechanism is required to clamp and fix materials in the working process of the taper pipe reducing machine;
traditional tapering draw machine clamping mechanism can not effectually carry out the centre gripping to the material in test process to carry out the centre gripping to the mounting fixture who adopts the bench vice form fixed, to some control work pieces, can't be to it with the processing mouth centre of a circle of work piece centre of a circle and tapering draw machine, consequently can't be applicable to the work piece of different shapes, need design a tapering draw machine clamping mechanism that can be applicable to different structural shapes to this.
The invention content is as follows:
the invention aims to provide a material clamping mechanism of a taper pipe reducing machine to solve the problems in the prior art.
In order to solve the above problems, the present invention provides a technical solution:
the clamping mechanism of the taper pipe reducing machine comprises a conveying assembly, a clamping assembly and a supporting base, wherein the top of the supporting base is fixedly provided with the conveying assembly, the top of the conveying assembly is slidably connected with the clamping assembly, the conveying assembly comprises a first fixed side plate, a second fixed side plate, a conveying cylinder, limiting slide rods, movable slide blocks, a connecting block and a conveying slide plate, one fixed end of the top of the supporting base is fixedly provided with the first fixed side plate, one end of the top of the supporting base, which is far away from the first fixed side plate, is fixedly connected with the second fixed side plate, one side of the first fixed side plate, which is far away from the second fixed side plate, is fixedly provided with the conveying cylinder, two limiting slide rods are fixedly connected between the first fixed side plate and the second fixed side plate, the outer side of each limiting slide rod is slidably connected with two movable slide blocks, and the top of each movable slide block is provided with the conveying slide plate, the bottom of carrying the slide fixedly connected with connecting block, carry the piston rod and the connecting block fixed connection of cylinder.
Preferably, the clamping assembly comprises a fixed seat, a clamping cylinder, a fixed chute, a first guide groove, a clamping adjusting rod, a connecting and fixing plate, an adjusting sliding plate, a second guide groove, an installing head and a clamping head, the fixed chute is fixedly installed at the top of the conveying sliding plate, the bottom of the fixed chute is symmetrically provided with the first guide grooves, the first guide grooves form a splayed structure, the clamping adjusting rod is slidably connected inside the first guide groove, the adjusting sliding plate is slidably connected inside the fixed chute, the second guide grooves are symmetrically formed at the bottom of the adjusting sliding plate, the second guide grooves form a splayed structure, the clamping adjusting rod penetrates through the middle part of the second guide groove and is slidably connected with the second guide groove, the installing head is fixedly connected outside the clamping adjusting rod and above the adjusting sliding plate, and a clamping head is fixedly arranged on one side of the mounting head.
Preferably, the opening direction of the second guide groove is opposite to the opening direction of the first guide groove.
Preferably, the connecting block is located between the two moving sliders.
Preferably, a fixing seat is fixedly mounted at one end, close to the first fixing side plate, of the top of the conveying sliding plate, a clamping cylinder is fixedly mounted at one side of the fixing seat, the output end of the clamping cylinder is fixedly connected with a connecting and fixing plate, and one side of the connecting and fixing plate is fixedly connected with an adjusting sliding plate.
Preferably, the adjacent sides of the two clamping heads are provided with grooves of V-shaped structures.
Preferably, the bottom of the clamping adjusting rod is connected with the conveying sliding plate in a sliding mode.
Preferably, the two limiting slide bars are on the same horizontal plane.
The invention has the beneficial effects that: according to the taper pipe reducing machine, the second guide groove and the first guide groove which are opposite in opening direction are arranged, under the pulling force of the clamping cylinder and the limiting action of the first guide groove and the second guide groove, the two clamping adjusting rods simultaneously slide along the first guide groove, under the action of the first guide groove, the two clamping heads are folded towards the middle together, the two clamping heads can clamp rectangular workpieces and cylindrical workpieces, and under the common clamping action of the two clamping heads, even if the cylindrical workpieces with different diameters are fixed, the circle centers of the two clamping heads can be always at the same position, the adjustment of the workpieces with different diameters is not needed, and the taper pipe reducing machine can be conveniently machined.
Description of the drawings:
for ease of illustration, the invention is described in detail by the following detailed description and the accompanying drawings.

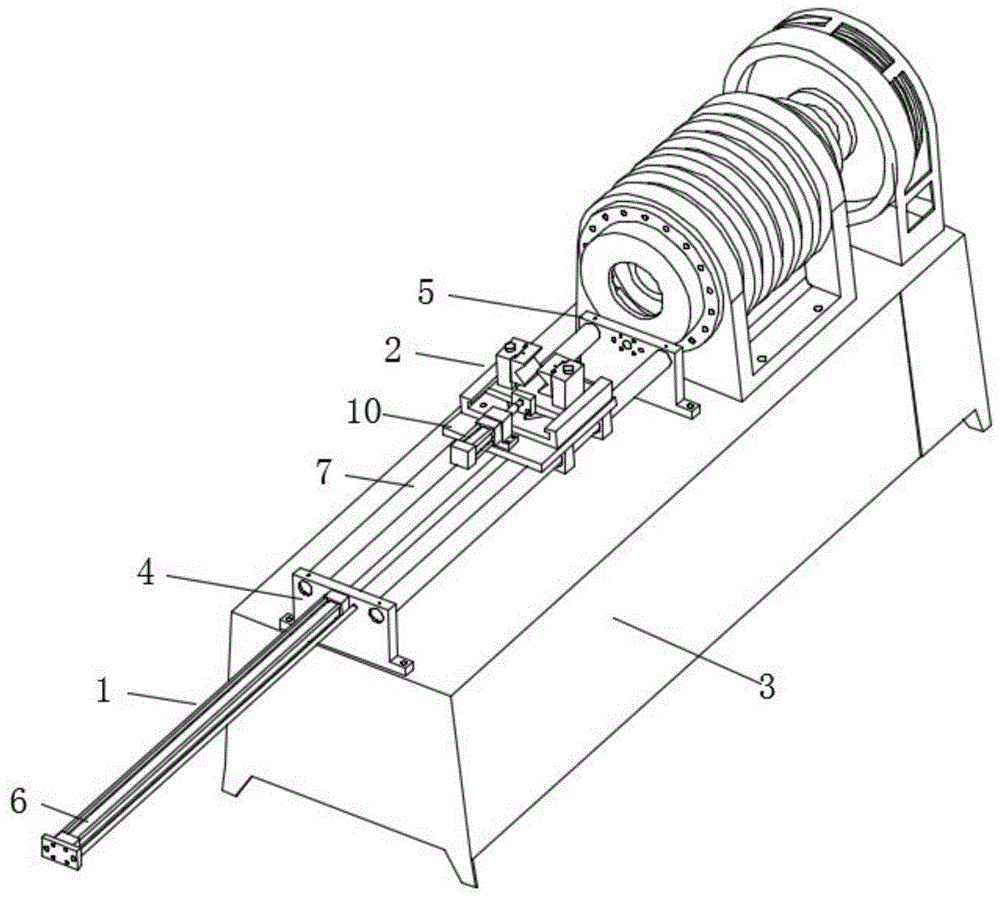

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of a clamping assembly according to the present invention;
FIG. 3 is a front view of the clamping assembly of the present invention;
fig. 4 is a schematic structural view of the fixed chute of the present invention.
In the figure: 1. a delivery assembly; 2. a clamping assembly; 3. a support base; 4. a first fixed side plate; 5. a second fixed side plate; 6. a conveying cylinder; 7. a limiting slide bar; 8. moving the slide block; 9. connecting blocks; 10. a conveying sliding plate; 11. a fixed seat; 12. a clamping cylinder; 13. fixing the chute; 14. a first guide groove; 15. clamping the adjusting rod; 16. connecting the fixed plate; 17. adjusting the sliding plate; 18. a second guide groove; 19. a mounting head; 20. a clamping head.
The specific implementation mode is as follows:
as shown in fig. 1 to 4, the following technical solutions are adopted in the present embodiment:
example (b):
the material clamping mechanism of the taper pipe reducing machine comprises a conveying assembly 1, a clamping assembly 2 and a supporting base 3, wherein the top of the supporting base 3 is fixedly provided with the conveying assembly 1, the top of the conveying assembly 1 is slidably connected with the clamping assembly 2, the conveying assembly 1 comprises a first fixed side plate 4, a second fixed side plate 5, a conveying cylinder 6, a limiting slide rod 7, a movable slide block 8, a connecting block 9 and a conveying slide plate 10, one fixed end of the top of the supporting base 3 is fixedly provided with the first fixed side plate 4, one end of the top of the supporting base 3, far away from the first fixed side plate 4, is fixedly connected with the second fixed side plate 5, one side of the first fixed side plate 4, far away from the second fixed side plate 5, is fixedly provided with the conveying cylinder 6, two limiting slide rods 7 are fixedly connected between the first fixed side plate 4 and the second fixed side plate 5, and the outer side of each limiting slide rod 7 is slidably connected with two movable slide blocks 8, the top of the movable sliding block 8 is provided with a conveying sliding plate 10, the bottom of the conveying sliding plate 10 is fixedly connected with a connecting block 9, and a piston rod of the conveying cylinder 6 is fixedly connected with the connecting block 9.
Wherein, the clamping component 2 comprises a fixed seat 11, a clamping cylinder 12, a fixed chute 13, a first guide groove 14, a clamping adjusting rod 15, a connecting fixed plate 16, an adjusting sliding plate 17, a second guide groove 18, an installing head 19 and a clamping head 20, the top of the conveying sliding plate 10 is fixedly provided with the fixed chute 13, the bottom of the fixed chute 13 is symmetrically provided with two first guide grooves 14, the two first guide grooves 14 form an 'eight' shaped structure, the inside of the first guide groove 14 is slidably connected with the clamping adjusting rod 15, the inside of the fixed chute 13 is slidably connected with the adjusting sliding plate 17, the bottom of the adjusting sliding plate 17 is symmetrically provided with two second guide grooves 18, the two second guide grooves 18 form an 'eight' shaped structure, the clamping adjusting rod 15 passes through the middle part of the second guide groove 18, and the clamping adjusting rod 15 is slidably connected with the second guide grooves 18, the outer side of the clamping adjusting rod 15 is fixedly connected with a mounting head 19 above the adjusting sliding plate 17, and one side of the mounting head 19 is fixedly provided with a clamping head 20.
The opening direction of the second guide groove 18 is opposite to the opening direction of the first guide groove 14, so that the distance between the two clamping adjusting rods 15 can be conveniently adjusted by adjusting the dislocation of the sliding plate 17 and the fixed sliding chute 13.
Wherein, the connecting block 9 is positioned between the two movable sliding blocks 8, so as to facilitate the conveying sliding plate 10 to be pushed to slide by the conveying cylinder 6.
Wherein, the top of carrying slide 10 is close to one end fixed mounting of a fixed curb plate 4 has fixing base 11, one side fixed mounting of fixing base 11 has centre gripping cylinder 12, centre gripping cylinder 12's output fixedly connected with connection fixed plate 16, one side and the regulation slide 17 fixed connection of connection fixed plate 16 are convenient for promote through centre gripping cylinder 12 and adjust slide 17 and slide.
Wherein, two the recess of "V" style of calligraphy structure is all seted up to the adjacent one side of clamping head 20, the centre gripping work piece of being convenient for.
The bottom of the clamping adjusting rod 15 is connected with the conveying sliding plate 10 in a sliding manner, so that the clamping adjusting rod 15 can be clamped movably.
Wherein, two spacing slide bar 7 are on same horizontal plane, are convenient for centre gripping subassembly 2 horizontal slip.
The using state of the invention is as follows: firstly, a workpiece to be processed is placed between two clamping heads 20, then the clamping cylinder 12 drives the adjusting slide plate 17 to pull backwards through the connecting fixing plate 16, and as the adjusting slide plate 17 is in sliding connection with the conveying slide plate 10, and the bottom of the fixed chute 13 is symmetrically provided with two first guide grooves 14 with a splayed structure, the opening direction of the second guide groove 18 is opposite to the opening direction of the first guide groove 14, and the grip adjusting lever 15 is slidably coupled with the first guide groove 14 and the second guide groove 18, respectively, so that, when the adjusting slide 17 is slid backward, under the limiting action of the first guide groove 14 and the second guide groove 18, the clamping adjusting rod 15 slides along the first guide groove 14, and under the action of the first guide groove 14, the two clamping heads 20 are folded towards the middle, so as to fix the workpiece, the conveying air cylinder 6 then pushes the conveying sliding plate 10 forward, so that the workpiece is conveyed into the taper pipe reducing machine.
