Abstract
The invention discloses a semi-automatic glass edge grinding machine which comprises a workbench and a synchronous motor, wherein a mounting plate is arranged on the workbench, and the synchronous motor is arranged on one side of the mounting plate. The semi-automatic glass edge grinding machine has high working efficiency, reduces the labor intensity of workers, ensures that the edge grinding force and angle of each piece of glass after edge grinding are consistent, and improves the glass edge grinding quality.
Description
Technical Field
The invention belongs to the technical field of edge grinding equipment, and particularly relates to a semi-automatic edge grinding machine for display screen glass.
Background
Generally, the edging of display screen glass is that manual operation glass carries out the edging on abrasive band edging machine, the glass that its process will carry out the edging for the manual work generally is placed on the workstation, then the manual work makes glass flange reason and abrasive band contact friction with the abrasive band contact with edging, though the production degree of freedom of manual operation edging is great, but owing to carry out the edge sharpness of edging and have the burr to have the damage to operative employee easily, and the size of manual work power during the operation can not unified control, lead to the edging quality inconsistent at glass flange reason, influence the whole quality of edging, still there are operative employee's intensity of labour great simultaneously, shortcomings such as production efficiency is not high.
Disclosure of Invention
Aiming at the defects in the prior art, the invention provides a semi-automatic glass edge grinding machine.
The invention aims to be realized by the following technical scheme:
the semi-automatic glass edge grinding machine comprises a workbench and a synchronous motor, wherein the workbench is provided with a mounting plate, the synchronous motor is arranged on one side of the mounting plate, two ends of the mounting plate are provided with supporting seats, the supporting seats are provided with bearings, the bearings are provided with rotating shafts, the rotating shafts are provided with synchronous driving wheels, the synchronous driving wheels are connected through synchronous driving belts, the synchronous driving wheels are provided with synchronous driving belts, the rotating shafts are connected with the output end of the synchronous motor, two sides of the synchronous driving belts are provided with linear guide rails, the linear guide rails are provided with sliding blocks, the sliding blocks are provided with fixed plates, the synchronous driving belts are fixedly connected with the bottoms of the fixed plates, the fixed plates are provided with lifting tables, the lifting tables are provided with clamping and reversing units, the mounting plate, the abrasive belt is arranged above the synchronous transmission belt.
Further, the clamping reversing unit comprises a supporting plate, a first clamping block, a second clamping block and a positioning column, positioning columns are arranged at two ends of the supporting plate, positioning holes are formed in the first clamping block and the second clamping block, the first clamping block and the second clamping block are arranged on the positioning columns through the positioning holes, threaded holes are formed in two sides of the first clamping block and the second clamping block, the threaded holes are perpendicular to the positioning columns in arrangement direction, the bottoms of the threaded holes are communicated with the positioning holes, positioning bolts are arranged in the threaded holes, the first clamping block and the second clamping block are provided with two inclined planes, and the inclined planes on the first clamping block and the second clamping block are parallel to each other.
Further, the lifting platform adopts a precise manual lifting platform, and the model of the precise manual lifting platform adopts a LY104SSJ60M lifting platform.
Furthermore, the output end of the synchronous motor is provided with a first belt pulley, a second belt pulley is arranged on a rotating shaft on one supporting seat, the first belt pulley and the second belt pulley are provided with a conveying belt, and the synchronous motor drives the synchronous driving wheel to rotate through belt transmission.
Furthermore, the cross section of the first clamping block and the second clamping block along the direction perpendicular to the threaded hole is in a diamond shape.
Furthermore, the positioning bolts on the first clamping block and the second clamping block are connected through elastic reinforcing ropes.
Furthermore, two groups of clamping and reversing units are arranged on the lifting platform and arranged in parallel.
Furthermore, baffles are arranged at two ends of the linear guide rail, and a photoelectric sensor is arranged between the baffles.
Furthermore, the outside of the synchronous driving wheel is provided with a protective shell.
Furthermore, two ends of the sliding block are provided with dustproof organ covers.
Compared with the prior art, the invention has the beneficial effects that:
the semi-automatic edge grinding machine for glass can simultaneously carry out edge grinding processing on a plurality of pieces of glass, the plurality of pieces of glass are neatly placed on the clamping and reversing unit, the glass to be processed is fixed by the first clamping block and the second clamping block, the positioning bolt is screwed, the positioning bolt is abutted against the positioning column, the first clamping block and the second clamping block fix the plurality of pieces of glass on the supporting plate, the glass is obliquely arranged on the supporting plate due to the inclined surfaces arranged on the first clamping plate and the second clamping plate, so that the edge of the glass to be ground is exposed, the height of the lifting table is adjusted until the upper edge of the glass rubs against the surface of a sand belt on the sand belt machine, the height of the lifting table can be adjusted in the edge grinding processing engineering, so that the purpose of adjusting the edge grinding angle of the glass is achieved, the glass is fixed on the clamping and reversing unit, the synchronous motor and the sand belt, the synchronous transmission belt drives the fixed plate and the lifting platform, under the matching of the linear guide rail and the sliding block, the fixed plate and the lifting platform do reciprocating linear motion on the linear guide rail, after the glass is ground by an angle, the positioning bolt is screwed out, the first clamping block and the second clamping block are rotated by 180 degrees, and then the positioning bolt is screwed, so that the edge of the other upper edge of the glass can be ground.
The semi-automatic glass edge grinding machine has high working efficiency, reduces the labor intensity of workers, ensures that the edge grinding force and angle of each piece of edge-ground glass are consistent, and improves the edge grinding quality of the glass; and novel structure, the cost is with low costs, is worth further using widely.
Drawings

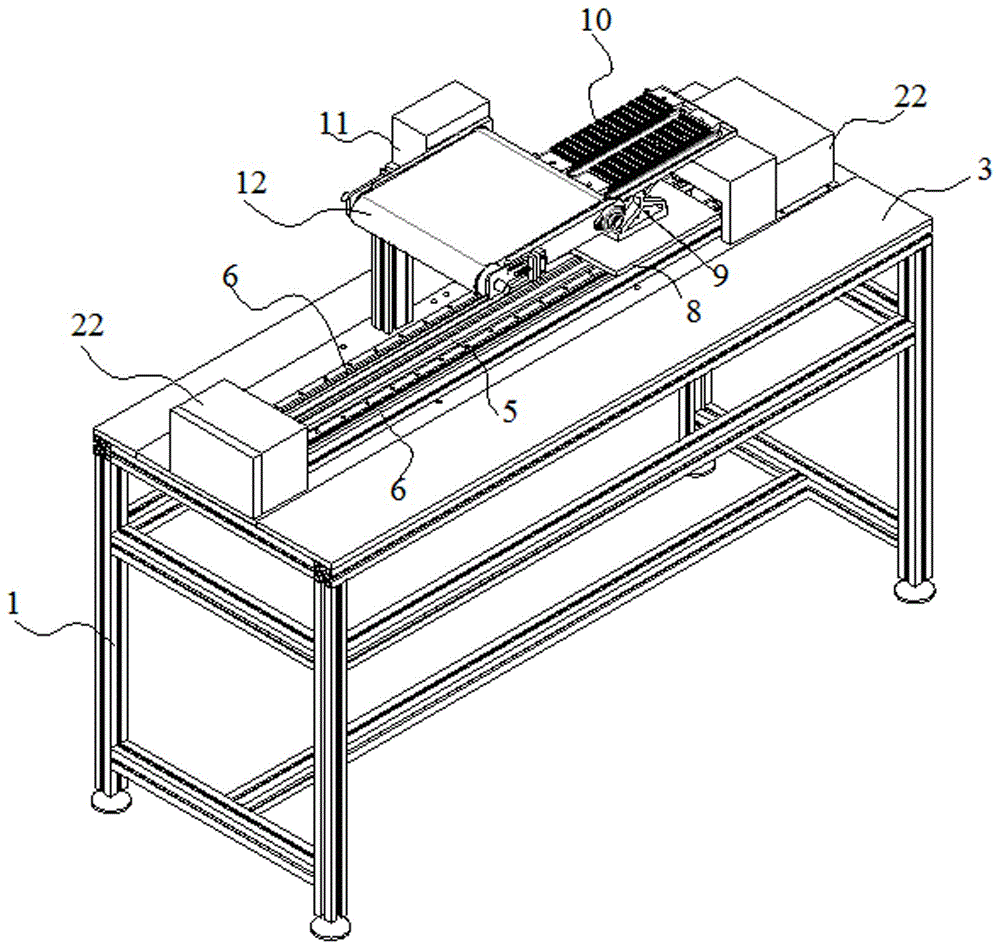

FIG. 1 is a schematic three-dimensional structure diagram of the semi-automatic glass edge grinding machine.
FIG. 2 is a schematic side view of the semi-automatic glass edge grinding machine according to the present invention.
Fig. 3 is a schematic top view of the glass semi-automatic edge grinding machine according to the present invention.
FIG. 4 is a schematic view of an assembly structure of the synchronous motor and the rotating shaft according to the present invention.
Fig. 5 is an enlarged schematic view of the part a of the present invention.
FIG. 6 is a schematic three-dimensional structure diagram of the clamping and reversing unit and the lifting table of the present invention.
FIG. 7 is a schematic front view of the clamping and reversing unit and the lifting table of the present invention.
FIG. 8 is a schematic side view of the gripping and reversing unit and the lifting table of the present invention.
FIG. 9 is a schematic top view of the gripping and reversing unit and the lifting platform of the present invention.
FIG. 10 is a schematic structural view of the support seat of the present invention.
In the drawings:
1. the automatic glass cleaning machine comprises a workbench, 2. a synchronous motor, 3. an installation plate, 4. a support seat, 5. a synchronous transmission belt, 6. a linear guide rail, 7. a sliding block, 8. a fixing plate, 9. a lifting table, 10. a clamping reversing unit, 11. an abrasive belt machine, 12. an abrasive belt, 13. a support plate, 14. a first clamping block, 15. a second clamping block, 16. a positioning hole, 17. a positioning column, 18. a threaded hole, 19, a positioning bolt, 20. an inclined surface, 21. an elastic reinforcing rope, 22. a protective shell, 23. a first belt pulley, 24. a second belt pulley, 25. a conveying belt, 26. a rotating shaft, 27. glass and 28. the synchronous transmission wheel.
Detailed Description
The present invention will be further described with reference to the following embodiments. Wherein the showings are for the purpose of illustration only and are shown by way of illustration only and not in actual form, and are not to be construed as limiting the present patent; to better illustrate the embodiments of the present invention, some parts of the drawings may be omitted, enlarged or reduced, and do not represent the size of an actual product; it will be understood by those skilled in the art that certain well-known structures in the drawings and descriptions thereof may be omitted.
As shown in fig. 1-10, a semi-automatic edge grinding machine for glass is provided, which comprises a workbench 1 and a synchronous motor 2, wherein a mounting plate 3 is arranged on the workbench 1, the synchronous motor 2 is arranged on one side of the mounting plate 3, two ends of the mounting plate 3 are provided with supporting seats 4, bearings are arranged on the supporting seats 4, a rotating shaft 26 is arranged on each bearing, a synchronous driving wheel 28 is arranged on each rotating shaft 26, the synchronous driving wheels 28 are connected through a synchronous driving belt 5, a synchronous driving belt 5 is arranged on each synchronous driving wheel 28, the rotating shaft 26 is connected with an output end of the synchronous motor 2, linear guide rails 6 are arranged on two sides of each synchronous driving belt 5, a sliding block 7 is arranged on each linear guide rail 6, a fixing plate 8 is arranged on each sliding block 7, the synchronous driving belts 5 are fixedly connected with, the lifting platform 7 is provided with a clamping and reversing unit 10, the mounting plate 3 is provided with an abrasive belt machine 11, the abrasive belt machine 11 comprises an abrasive belt 12, and the abrasive belt 12 is arranged above the synchronous transmission belt 5. The belt sander 11 is a small belt sander 11, and the outer width of the belt sander 11 is 360 MM 350 MM 60 MM.
As a further improvement of the above embodiment, the clamping and reversing unit 10 includes a support plate 13, a first clamping block 14, a second clamping block 15 and positioning posts 17, the positioning posts 17 are disposed at two ends of the support plate 13, positioning holes 16 are disposed on the first clamping block 14 and the second clamping block 15, the first clamping block 14 and the second clamping block 15 are disposed on the positioning posts 17 through the positioning holes 16, threaded holes 18 are disposed at two sides of the first clamping block 14 and the second clamping block 15, the direction of the threaded holes 18 is perpendicular to the positioning posts 17, the bottoms of the threaded holes 18 are communicated with the positioning holes 16, positioning bolts 19 are disposed in the threaded holes 18, the first clamping block 14 and the second clamping block 15 are provided with two inclined surfaces 20, the inclined surfaces 20 on the first clamping block 14 and the second clamping block 15 are parallel to each other, and the first clamping block 14 and the second clamping block 15 with different angles of the inclined surfaces 20 are replaced, the edge grinding angle of the upper edge of the glass 27 can be indirectly adjusted.
As a further improvement of the above embodiment, the lifting table 7 is a precision manual lifting table 7, and the height of the lifting and lowering adjustment can be adjusted according to actual needs during the edging process, so as to adjust the distance between the upper edge of the glass 27 and the abrasive belt 12, thereby achieving a predetermined edging angle of the glass 27, and the model of the precision manual lifting table 7 is LY104SSJ 60M.
As a further improvement of the above embodiment, the output end of the synchronous motor 2 is provided with a first belt pulley 23, a second belt pulley 24 is provided on a rotating shaft 26 on one of the supporting seats 4, the first belt pulley 23 and the second belt pulley 24 are provided with a conveying belt 25, and the synchronous motor 2 drives a synchronous transmission wheel 28 to rotate through belt transmission.
As a further improvement of the above embodiment, the cross section of the first clamping block 14 and the second clamping block 15 along the direction perpendicular to the threaded hole 18 is a diamond shape.
As a further improvement of the above embodiment, during the edging process of the glass 27, the upper edge of the glass 27 rubs against the abrasive belt 12, so as to further fix the glass 27, and the glass 27 is prevented from slipping out, therefore, an elastic reinforcing rope 21 is provided, and the first clamping block 14 and the second clamping block 15 are connected through the elastic reinforcing rope 21 by the positioning bolts 19.
As a further improvement of the above embodiment, two sets of clamping and reversing units 10 are arranged on the lifting table 7, the two sets of clamping and reversing units 10 are arranged in parallel, or even more than two sets of clamping and reversing units 10 can be arranged as required, so as to increase the number of the edge-polished glass 27.
As a further improvement of the above embodiment, the linear guide 6 is provided with baffles at two ends, and a photoelectric sensor is arranged between the baffles, so as to prevent the clamping and reversing unit 10 from accidentally colliding with the protective casing 22.
As a further improvement of the above embodiment, the protective casing 22 is arranged outside the synchronous transmission wheel 28, so as to further ensure the safety of workers, and the two ends of the sliding block are provided with dustproof organ covers.
The semi-automatic glass edge grinding machine can simultaneously carry out edge grinding processing on a plurality of pieces of glass 27, the plurality of pieces of glass 27 are neatly placed on the clamping and reversing unit 10, the glass 27 to be processed is fixed by the first clamping block 14 and the second clamping block 15, the positioning bolt 19 is screwed, the first clamping block 14 and the second clamping block 15 fix the plurality of pieces of glass 27 on the supporting plate 13 after the positioning bolt 19 is abutted against the positioning post 17, the inclined surfaces 20 are arranged on the first clamping block and the second clamping block, so that the glass 27 is obliquely arranged on the supporting plate 13, the edge of the glass 27 to be ground is exposed, the height of the lifting table 7 is adjusted until the upper edge of the glass 27 rubs against the surface of the abrasive belt 12 on the abrasive belt machine 11, the height of the lifting table 7 can be adjusted in the process of edge grinding processing, the angle for adjusting the edge grinding of the glass 27 is achieved, the glass 27 is fixed on the clamping and reversing unit 10, the synchronous motor 2 and the abrasive belt machine 11 are started, the synchronous transmission belt 5 drives the fixing plate 8 and the lifting platform 7, under the matching of the linear guide rail 6 and the sliding block 7, the fixing plate 8 and the lifting platform 7 do reciprocating linear motion on the linear guide rail 6, after the glass 27 is ground for an angle, the positioning bolt 19 is screwed out, the first clamping block 14 and the second clamping block 15 are rotated for 180 degrees, the positioning bolt 19 is screwed, and then the other upper edge of the glass 27 can be ground.
The semi-automatic glass edge grinding machine has high working efficiency, reduces the labor intensity of workers, ensures that the edge grinding force and angle of each piece of glass 27 after edge grinding are consistent, and improves the edge grinding quality of the glass 27; and novel structure, the cost is with low costs, is worth further using widely.
It should be understood that the above examples are only for clearly illustrating the technical solutions of the present invention, and are not intended to limit the embodiments of the present invention. Other variations and modifications will be apparent to persons skilled in the art in light of the above description. And are neither required nor exhaustive of all embodiments. Any modification, equivalent replacement, and improvement made within the spirit and principle of the present invention should be included in the protection scope of the claims of the present invention.
Claims (10)
1. A semi-automatic glass edge grinding machine comprises a workbench and a synchronous motor, wherein the workbench is provided with a mounting plate, the synchronous motor is arranged on one side of the mounting plate, it is characterized in that two ends of the mounting plate are provided with supporting seats, the supporting seats are provided with bearings, a rotating shaft is arranged on the bearing, a synchronous driving wheel is arranged on the rotating shaft, a synchronous driving belt is arranged on the synchronous driving wheel, the rotating shaft is connected with the output end of the synchronous motor, linear guide rails are arranged on two sides of the synchronous transmission belt, the linear guide rail is provided with a slide block, the slide block is provided with a fixed plate, the synchronous transmission belt is fixedly connected with the bottom of the fixed plate, the belt sander is characterized in that a lifting table is arranged on the fixed plate, a clamping and reversing unit is arranged on the lifting table, a belt sander is arranged on the mounting plate, the belt sander comprises an abrasive belt, and the abrasive belt is arranged above the synchronous transmission belt.
2. The semi-automatic edge grinding machine for glass according to claim 1, wherein the clamping and reversing unit comprises a supporting plate, a first clamping block, a second clamping block and positioning columns, the positioning columns are arranged at two ends of the supporting plate, positioning holes are formed in the first clamping block and the second clamping block, the first clamping block and the second clamping block are arranged on the positioning columns through the positioning holes, threaded holes are formed in two sides of the first clamping block and the second clamping block respectively, the threaded holes are arranged in the direction perpendicular to the positioning columns, the bottoms of the threaded holes are communicated with the positioning holes, positioning bolts are arranged in the threaded holes, the first clamping block and the second clamping block are provided with two inclined planes, and the inclined planes on the first clamping block and the second clamping block are parallel to each other.
3. The semi-automatic glass edging machine according to claim 1, wherein said lifting table is a precision manual lifting table.
4. The semi-automatic glass edge grinding machine according to claim 1, wherein the output end of the synchronous motor is provided with a first belt pulley, a second belt pulley is arranged on a rotating shaft of one of the supporting bases, a conveying belt is arranged on the first belt pulley and the second belt pulley, and the synchronous motor drives the synchronous transmission wheel to rotate through belt transmission.
5. The semi-automatic glass edging machine according to claim 2, wherein the first clamping block and the second clamping block have a diamond-shaped cross section along a direction perpendicular to the threaded hole.
6. The semi-automatic glass edge grinding machine according to claim 2, wherein the positioning bolts on the first clamping block and the second clamping block are connected through an elastic reinforcing rope.
7. The semi-automatic glass edge grinding machine according to any one of claims 1 to 6, wherein two groups of clamping and reversing units are arranged on the lifting table and arranged in parallel.
8. The semi-automatic glass edging machine according to claim 7, wherein baffles are provided at both ends of the linear guide rail, and a photoelectric sensor is provided between the baffles.
9. The semi-automatic glass edging machine according to claim 8, wherein the synchronous transmission wheels are externally provided with a protective shell.
10. The semi-automatic glass edging machine according to claim 9, wherein the two ends of the slide block are provided with dust-proof organ covers.
