Abstract
The invention relates to a mobile dr flashboard device which comprises a main air bag, an inflation pressure pump and a plug, wherein the main air bag is connected with the plug; the main air bag consists of an organ type lifting device, a middle air cushion and a silica gel soft pillow; the left end and the right end of the middle air cushion are respectively provided with an organ type lifting device, and the organ type lifting devices are in an organ shape in a filling state; the upper surface of the middle air cushion is provided with a silica gel soft pillow and an air pump mounting opening, and the bottom of the air pump mounting opening is provided with an air cushion inflation hole and a lifting device inflation hole; an inflation pressure pump is arranged in the air pump mounting opening; a display screen is arranged on the inflating pressure pump, five operation buttons are arranged below the display screen, and a switch button is arranged on the right side of each operation button; an air inlet and an air outlet are formed in the back of the inflating pressure pump, a power socket is formed in the left side of the inflating pressure pump, and a plug is connected to the power socket. Its advantages are: reducing possible secondary injury after the operation of the patient.
Description
Technical Field
The invention relates to the technical field of radiation diagnosis, in particular to a mobile dr flashboard device.
Background
DR (direct Digital Radiography) refers to a new technology for directly performing Digital Radiography under the control of a computer, i.e., an amorphous silicon flat panel detector is adopted to convert X-ray information penetrating a human body into Digital signals, and an image is reconstructed by the computer and a series of image post-processing is performed. The DR system mainly comprises an X-ray generating device, a direct conversion flat panel detector, a system controller, an image monitor, an image processing workstation and the like. The DR adopts a digital technology, so that various image post-processing can be performed according to clinical requirements, such as an automatic image processing technology, an edge enhancement definition technology, an amplification roaming technology, image splicing, window width and window level adjustment of an interest area, distance, area and density measurement and other rich functions. In addition, because of the wide dynamic range of the DR technology, the X-ray photon detection efficiency (DQE) is high, the exposure latitude is very wide, and even if the exposure condition is slightly poor, a good image can be obtained. The DR breaks through the concept of the traditional X-ray image, realizes the conversion from an analog X-ray image to a digital X-ray image by people's somnolence, and has greater superiority compared with a cr (computer radio) system.
At present, when a postoperative patient is shot by using a bedside X-ray machine, the patient needs to be manually lifted and put into a mobile DR flat panel detector; however, this method may affect the wound of the patient who is originally operated, and may split; while the pattern of the terminal position of the catheter in the patient's body may change.
Chinese patent documents: CN109938762A, published: 20190628, a portable DR system is disclosed, comprising a DR lifting device, an integral DR head, and a probe assembly. DR elevating gear includes the stand and sets up the base in the stand bottom, is provided with in the stand and rotates the wheel and twine the connecting device on rotating the wheel. The integrated DR machine head is arranged on the pulley through a horizontal transverse supporting arm; the side surface of the upright post is provided with an upright post plugboard, the detector assembly is arranged on an upright post plugboard arranged on the side surface of the upright post through the upright post plugboard, and the detector assembly comprises a supporting frame and a drawer arranged in the supporting frame; still include folding bed subassembly, folding bed subassembly includes first support frame, second support frame and folding bed board.
Chinese patent documents: CN201426728, published date: 20100324, discloses a medical X-ray movable bedside machine protection device, which comprises a pair of upright posts, a fixed protection curtain, a middle cross beam, a pair of lifting upright posts, a curtain type protection curtain, an upper cross beam, a pair of side supporting rods, a slide rail, a pulley, four locking hand wheels, a pair of lifting protection curtains, a lower cross beam, six fastening nuts and four universal casters; the stand be equipped with universal caster, the lift stand is inserted in the stand and can go up and down, locking hand wheel installs on the stand, two round pin axle beds have been welded to the upper end different positions of lift stand, the round pin axle has been welded to the one end of collateral branch vaulting pole, and insert the round pin axle in the round pin axle bed, the collateral branch vaulting pole can be followed the round pin axle center and rotated 0 ~ 180, the protection curtain that goes up and down is installed on the collateral branch vaulting pole, and can reciprocate along with the lift stand, the slide rail is installed at the entablature downside, curtain formula protection curtain is by pulley and.
However, no report is known about a mobile dr flashboard device of the present invention.
Disclosure of Invention
The invention aims to provide a mobile dr flashboard device.
In order to achieve the purpose, the invention adopts the technical scheme that:
a mobile dr flashboard device comprises a main body air bag (1), an inflating pressure pump (2) and a plug (3); the main air bag (1) consists of an organ type lifting device (11), a middle air cushion (12) and a silica gel soft pillow (13); the left end and the right end of the middle air cushion (12) are respectively provided with an organ type lifting device (11), and the organ type lifting devices (11) are in an organ shape in a filling state; a silica gel soft pillow (13) and an air pump mounting port (14) are arranged on the upper surface of the middle air cushion (12), and an air cushion inflation hole (15) and a lifting device inflation hole (16) are arranged at the bottom of the air pump mounting port (14);
an inflation pressurization pump (2) is arranged in the air pump mounting opening (14); a display screen (21) is arranged on the inflating and pressurizing pump (2), five operation buttons (22) are arranged below the display screen (21), and a switch button (23) is arranged on the right side of each operation button (22); an air inlet (24) and an air outlet (25) are arranged behind the inflating and pressurizing pump (2), and a power socket (26) is arranged on the left side of the inflating and pressurizing pump (2); the power socket (26) is connected with a plug (3).
The main air bag (1) is made of transparent materials.
The main air bag (1) is of an integrally formed structure.
The organ type lifting devices (11) at the left end and the right end of the middle air cushion (12) are communicated through a conduit, and are lifted simultaneously during air intake and fall simultaneously during air exhaust.
The organ type lifting device (11) and the middle air cushion (12) are relatively independent, and air inlet and air outlet are not interfered with each other.
The invention has the advantages that:
1. the movable dr is arranged in the plate, so that possible secondary injury of a patient after operation is reduced.
2. The movable dr flashboard is simple to operate and convenient to use, and the whole process can be finished by one person.
Drawings

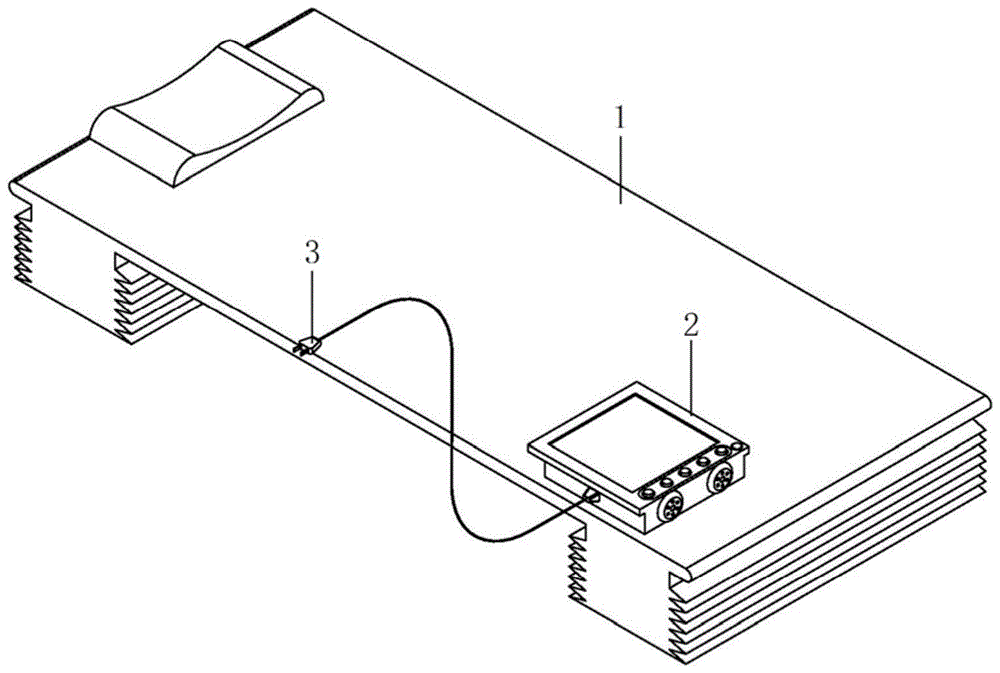

Fig. 1 is a schematic structural diagram of a mobile dr flashboard device in a filling state.
FIG. 2 is a schematic diagram of a main body air bag structure of the mobile dr flashboard equipment.
FIG. 3 is a schematic diagram of a pneumatic booster pump for a mobile dr flashboard apparatus.
Fig. 4 is a schematic diagram of a pneumatic booster pump and plug combination for a mobile dr patch panel installation.
Fig. 5 is a schematic structural diagram of a mobile dr flashboard device in a natural state.
Fig. 6 is a schematic diagram of a mobile dr board plugging device.
Detailed Description
The invention is further described with reference to the following examples and with reference to the accompanying drawings.
The reference numerals and components referred to in the drawings are as follows:
1. main air bag
11. Organ type lifting device
12. Middle air cushion
13. Silica gel soft pillow
14. Air pump mounting port
15. Air cushion inflation hole
16. Air inflation hole of lifting device
2. Inflating pressure pump
21. Display screen
22. Operating button
23. Switch button
24. Air inlet
25. Air outlet
26. Power socket
3. Plug with a locking mechanism
4. Bedside X-ray machine
5. Mobile DR flat panel detector
6. Hospital bed
Example 1
Referring to fig. 1, fig. 1 is a schematic structural diagram of a mobile dr patch board device in an inflated state according to this embodiment. The mobile dr flashboard equipment comprises a main air bag (1), an inflating pressure pump (2) and a plug (3);
referring to fig. 2, fig. 2 is a schematic structural diagram of a main airbag of a mobile dr patch board device according to this embodiment. The main air bag (1) consists of an organ type lifting device (11), a middle air cushion (12) and a silica gel soft pillow (13); the left end and the right end of the middle air cushion (12) are respectively provided with an organ type lifting device (11), and the organ type lifting devices (11) are in an organ shape in a filling state; a silica gel soft pillow (13) and an air pump mounting port (14) are arranged on the upper surface of the middle air cushion (12), and an air cushion inflation hole (15) and a lifting device inflation hole (16) are arranged at the bottom of the air pump mounting port (14);
referring to fig. 3, fig. 3 is a schematic structural view of an inflation pressurization pump of the mobile dr flashboard equipment according to the embodiment. An inflation pressurization pump (2) is arranged in the air pump mounting opening (14); a display screen (21) is arranged on the inflating and pressurizing pump (2), five operation buttons (22) are arranged below the display screen (21), and a switch button (23) is arranged on the right side of each operation button (22); an air inlet (24) and an air outlet (25) are arranged behind the inflating and pressurizing pump (2), and a power socket (26) is arranged on the left side of the inflating and pressurizing pump (2);
referring to fig. 4, fig. 4 is a schematic diagram of a combination of a pneumatic pressure pump and a plug of the mobile dr flashboard equipment according to the embodiment. The power socket (26) is connected with a plug (3).
The main air bag (1) is made of transparent materials.
The main air bag (1) is of an integrally formed structure.
The organ type lifting devices (11) at the left end and the right end of the middle air cushion (12) are communicated through a conduit, and are lifted simultaneously during air intake and fall simultaneously during air exhaust.
The organ type lifting device (11) and the middle air cushion (12) are relatively independent, and air inlet and air outlet are not interfered with each other.
Example 2
Referring to fig. 5 and fig. 6, fig. 5 is a schematic structural diagram of a mobile dr circuit board inserting apparatus of this embodiment in a natural state, and fig. 6 is a schematic usage diagram of the mobile dr circuit board inserting apparatus of this embodiment.
The use process and the method of the mobile dr flashboard equipment are as follows:
when the medical operation bed is used, the mobile dr inserting plate equipment in a natural state is placed on a hospital bed (6), a patient after operation lies on the main body air bag (1), and the head of the patient is rested on the silica gel soft pillow (13); then the plug (3) is inserted into the power supply, the switch button (23) is pressed, and the inflating pressure pump (2) is turned on; firstly, the middle air cushion (12) is inflated by an inflating pressure pump (2), and a patient can be supported after the middle air cushion is inflated to a certain pressure; then, the organ type lifting devices (11) are inflated, and the organ type lifting devices (11) at the left end and the right end of the middle air cushion (12) are lifted simultaneously when the inflation is carried out; when reaching a certain height, inserting the mobile DR flat panel detector (5) at the bottom of the middle air cushion (12); then scanning the patient by using a bedside X-ray machine; the movable dr plate inserting device reduces possible secondary injury formed after the operation of a patient.
The foregoing is only a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, various modifications and additions can be made without departing from the principle of the present invention, and these should also be considered as the protection scope of the present invention.
Claims (5)
1. The movable dr flashboard equipment is characterized by comprising a main air bag (1), an inflating pressure pump (2) and a plug (3);
the main air bag (1) consists of an organ type lifting device (11), a middle air cushion (12) and a silica gel soft pillow (13); the left end and the right end of the middle air cushion (12) are respectively provided with an organ type lifting device (11), and the organ type lifting devices (11) are in an organ shape in a filling state; a silica gel soft pillow (13) and an air pump mounting port (14) are arranged on the upper surface of the middle air cushion (12), and an air cushion inflation hole (15) and a lifting device inflation hole (16) are arranged at the bottom of the air pump mounting port (14);
an inflation pressurization pump (2) is arranged in the air pump mounting opening (14); a display screen (21) is arranged on the inflating and pressurizing pump (2), five operation buttons (22) are arranged below the display screen (21), and a switch button (23) is arranged on the right side of each operation button (22); an air inlet (24) and an air outlet (25) are arranged behind the inflating and pressurizing pump (2), and a power socket (26) is arranged on the left side of the inflating and pressurizing pump (2); the power socket (26) is connected with a plug (3).
2. The mobile dr plate inserting equipment as claimed in claim 1, wherein the main body air bag (1) is made of transparent material.
3. The mobile dr plate inserting apparatus as claimed in claim 1, wherein the main body air bag (1) is of an integral structure.
4. The mobile dr plate inserting apparatus as claimed in claim 1, wherein the organ type lifting devices (11) at the left end and the right end of the middle air cushion (12) are communicated through a conduit, and the organ type lifting devices are lifted simultaneously when air is supplied and fall simultaneously when air is discharged.
5. The mobile dr board inserting equipment as claimed in claim 1, wherein the organ type lifting device (11) and the middle air cushion (12) are relatively independent, and air inlet and air outlet are not interfered with each other.
