CN109894919B - Intelligent numerical control center sweeps collecting device convenient to clearance - Google Patents
Intelligent numerical control center sweeps collecting device convenient to clearance Download PDFInfo
- Publication number
- CN109894919B CN109894919B CN201910307190.4A CN201910307190A CN109894919B CN 109894919 B CN109894919 B CN 109894919B CN 201910307190 A CN201910307190 A CN 201910307190A CN 109894919 B CN109894919 B CN 109894919B
- Authority
- CN
- China
- Prior art keywords
- numerical control
- spring
- seat
- machining center
- fixedly connected
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Electrical Discharge Machining, Electrochemical Machining, And Combined Machining (AREA)
Abstract
The invention discloses intelligent numerical control center scrap collecting equipment convenient to clean, which comprises a numerical control machining center, wherein a chain ring is installed on the outer side of an operating platform, an active seat is fixedly connected to the left side of the chain ring, a driven seat is slidably connected to the inside of the numerical control machining center, a connecting plate is movably connected to the right side of the driven seat through a clamping hook, an outer spring and an inner spring are installed between the connecting plate and the active seat, a magnet is fixedly connected to the inside of a telescopic pipe, and a protective cover is fixedly connected to the top of the active seat. Spring layer staggered arrangement between outer spring and the inner spring constitutes a collection net, and inside is provided with magnet, but the adsorbed sweeps, strengthens collecting the effect, and the initiative seat is at the pivoted in-process, and the spring can all pass through once with the central region of numerical control machining center, does not exist and collects the dead angle, has collected the sweeps after, only needs to lift even board again after even board and the driven seat separation off even board, can take out the sweeps in the spring, and the clearance operation is also simple swift.
Description
Technical Field
The invention belongs to the technical field of intelligent numerical control machining, and particularly relates to intelligent numerical control center scrap collecting equipment convenient to clean.
Background
The numerical control machining center is an automatic machine tool consisting of mechanical equipment and a numerical control system, has stronger comprehensive machining capacity, integrates functions of milling, boring, drilling and the like on one equipment, can realize operations of automatic milling, tool changing and the like, is more and more intelligent along with the development of numerical control technology, and is one of the most widely applied machining equipment at present.
The numerical control center generally adopts a closed structure to prevent scraps generated in the processing process from splashing to hurt other people, and a scrap collecting box is cleaned after the processing is finished, the scraps in the processing center are swept together by using a scraping brush in the conventional method for collecting scraps in an intelligent numerical control processing center, but the scraps are often adhered to the scraping plate and the brush, particularly the brush, no matter the brush or the steel wire brush is difficult to completely clean the scraps adhered to the inside, in the process of collecting and cleaning the scraps, part of the scraps fall off from the scraping brush to cause incomplete cleaning of the scraps in the numerical control center, the scraps are required to be collected and cleaned again after cleaning and scraping, time and labor are wasted, and part of the numerical control processing center blows the scraps together by adopting a blowing method, but in the blowing process, the wind force is large, and the scraps are easy to scatter around, and the cleaning is difficult to completely clean, the cleaning needs to be repeated, and the working efficiency is low.
Therefore, in view of the above, research and improvement are performed on the existing structure and defects, and an intelligent numerical control center scrap collecting device convenient to clean is provided, so as to achieve the purpose of higher practical value.
Disclosure of Invention
In order to solve the technical problems, the invention provides the intelligent numerical control center waste chip collecting equipment convenient to clean, so as to solve the problems that when waste chips in a numerical control machining center are collected and cleaned, the waste chips are difficult to clean, and waste time and labor are wasted in waste chip collection.
The invention relates to a purpose and an effect of intelligent numerical control center scrap collecting equipment convenient to clean, which are achieved by the following specific technical means:
an intelligent numerical control center scrap collecting device convenient to clean comprises a numerical control machining center, an operating platform is fixedly connected inside the numerical control machining center, a chain ring is arranged on the outer side of the operating platform, a driving motor corresponding to the chain ring is arranged in the operating platform, the left side of the chain ring is fixedly connected with a driving seat, the interior of the numerical control machining center is connected with a driven seat in a sliding manner, the right side of the driven seat is movably connected with a connecting plate through a clamping hook, the top of the driven seat is movably inserted with a button corresponding to the clamping hook, an outer spring is arranged between the connecting plate and the driving seat, an inner spring is arranged between the connecting plate and the driving seat and positioned in the outer spring, even between board and the initiative seat and the internally mounted of innerspring has flexible pipe, the inside fixedly connected with magnet of flexible pipe, the top of initiative seat just is located the outside fixedly connected with safety cover of operation panel.
Furthermore, the bottom of the outer side of the operating platform is provided with a groove corresponding to the chain ring and the driving seat.
Furthermore, the connection relationship between the hook and the driven seat is a movable hinge joint, a torsional spring is arranged on the hinge shaft, and when the button is pressed, the hook rotates, so that the driven seat is separated from the connecting plate.
Further, the connection relationship between the connecting plate 8 and the extension tube 12 is a threaded connection, and the connecting plate 8 can be detached from the extension tube 12.
Furthermore, outer spring and interior spring are fine and close compression spring, and the interval between the interior spring layer is less than the interval between the outer spring layer, and at the rotatory in-process of initiative seat along the operation panel, collect the sweeps of bigger size through the outer spring, collect the sweeps of smaller size through the interior spring, do not cut the sweeps and all pass through the magnet and adsorb in the inside of spring.
Further, the safety cover comprises a plurality of straps, the connection relation of safety cover and numerical control machining center is sliding connection, set up the spout that corresponds with the safety cover on numerical control machining center's the bottom plate, avoid processing the sweeps to fall into the chain ring on setting up the safety cover.
Compared with the prior art, the invention has the following beneficial effects:
1. through spring coupling between initiative seat and the driven seat, spring layer staggered arrangement between outer spring and the inner spring constitutes a three-dimensional collection net and collects the sweeps, and inside is provided with magnet, can adsorb the sweeps, further strengthens the collection clearance effect of sweeps, drives the initiative seat through the chain link and rotates, and initiative seat is at the pivoted in-process, and the spring can all pass through once with the central region of numerical control machining center to get up the sweeps is whole, collects the simple high efficiency of clearance.
2. On the sweeps that avoids processing to produce through setting up the safety cover fell the chain link, through setting up the spring structure, made the initiative seat at the rotation in-process, flexible spring can collect the sweeps in all areas, does not have the collection dead angle, and need not to make a round trip to clear up repeatedly, has collected the sweeps after, only needs to lift even board again after even board and the driven seat separation, can take out the sweeps in the spring, subsequent clearance operation is also simple swift.
Drawings

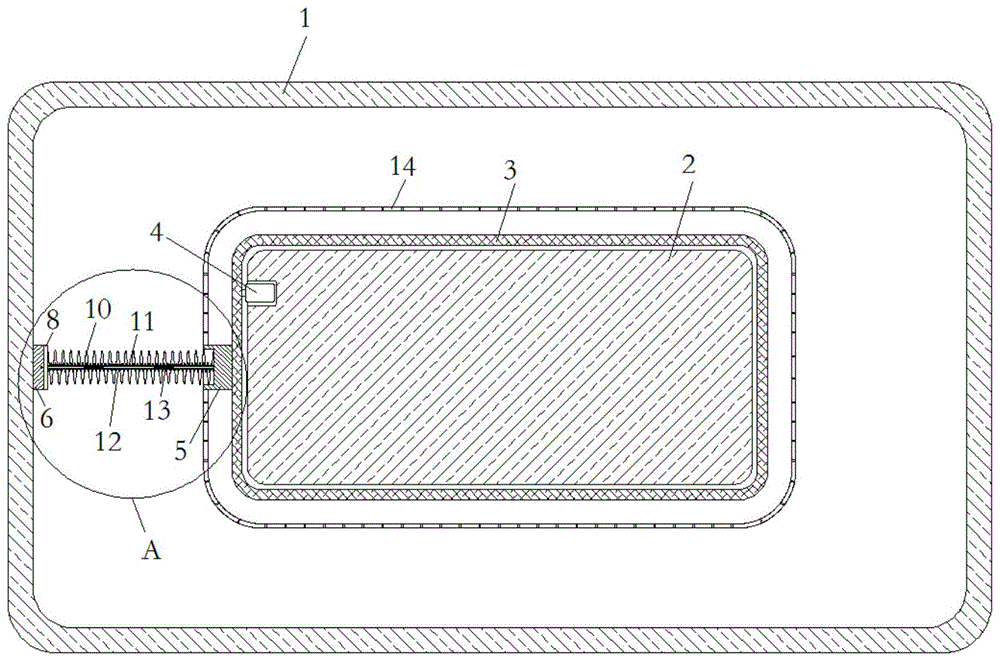

FIG. 1 is a front cross-sectional view of the structure of the present invention;
FIG. 2 is an enlarged view of portion A of FIG. 1 in accordance with the present invention;
FIG. 3 is a front sectional view of the connecting structure of the driving seat and the driven seat of the present invention;
FIG. 4 is a left side sectional view of the connection structure of the driving seat and the console of the present invention.
In the figure: 1-a numerical control machining center, 2-an operation table, 3-a chain ring, 4-a driving motor, 5-a driving seat, 6-a driven seat, 7-a clamping hook, 8-a connecting plate, 9-a button, 10-an outer spring, 11-an inner spring, 12-a telescopic pipe, 13-a magnet and 14-a protective cover.
Detailed Description
Reference will now be made in detail to the embodiments of the present invention, examples of which are illustrated in the accompanying drawings and described below. While the invention will be described in conjunction with the exemplary embodiments, it will be understood that the description is not intended to limit the invention to the exemplary embodiments. On the contrary, the invention is intended to cover not only the exemplary embodiments, but also various alternative, modified, equivalent and other embodiments, which may be included within the spirit and scope of the invention as defined by the appended claims.
Example (b):
as shown in figures 1 to 4:
the invention provides an intelligent numerical control center scrap collecting device convenient to clean, which comprises a numerical control machining center 1, wherein the inside of the numerical control machining center 1 is fixedly connected with an operating platform 2, the outer side of the operating platform 2 is provided with a chain ring 3, the inside of the operating platform 2 is provided with a driving motor 4 corresponding to the chain ring 3, the left side of the chain ring 3 is fixedly connected with a driving seat 5, the inside of the numerical control machining center 1 is slidably connected with a driven seat 6, the right side of the driven seat 6 is movably connected with a connecting plate 8 through a clamping hook 7, the top of the driven seat 6 is movably inserted with a button 9 corresponding to the clamping hook 7, an outer spring 10 is arranged between the connecting plate 8 and the driving seat 5, an inner spring 11 is arranged between the connecting plate 8 and the driving seat 5 and positioned in the outer spring 10, a telescopic pipe 12 is arranged between the connecting plate 8 and the driving seat 5 and in the inner spring 11, and a magnet 13 is fixedly connected, a protective cover 14 is fixedly connected to the top of the active seat 5 and positioned outside the operation table 2.
Wherein, the bottom of the outer side of the operating platform 2 is provided with a groove corresponding to the chain ring 3 and the driving seat 5.
Wherein, the connection relationship between the hook 7 and the driven seat 6 is a movable hinge joint, and the hinge joint is provided with a torsion spring, when the button 9 is pressed, the hook 7 rotates, so that the driven seat 6 is separated from the connecting plate 8.
Wherein, the connection relationship between the connecting plate 8 and the extension tube 12 is a threaded connection, and the connecting plate 8 can be detached from the extension tube 12.
Wherein, outer spring 10 and interior spring 11 are compact compression spring, and the interval between the interior spring 11 spring layer is less than the interval between the outer spring 10 spring layer, and at the rotatory in-process of initiative seat 5 along operation panel 2, collect the sweeps of bigger size through outer spring 10, collect the sweeps of smaller size through interior spring 11, do not cut the sweeps and all adsorb in the inside of spring through magnet 13.
Wherein, the safety cover 14 comprises a plurality of straps, and the connection relation of safety cover 14 and numerical control machining center 1 is sliding connection, offers the spout that corresponds with safety cover 14 on the bottom plate of numerical control machining center 1, avoids processing the sweeps to fall into on the chain ring 3 through setting up safety cover 14.
The specific use mode and function of the embodiment are as follows:
in the invention, the driving seat 5 is connected with the driven seat 6 into a whole through the connecting plate 8 and the clamping hook 7, the outer spring 10 and the inner spring 11 are arranged between the driving seat 5 and the connecting plate 8, the outer spring 10 and the inner spring 11 are both compression springs which are not easy to bend and deform, the gap between the spring layers is small, as the distance between the spring layers of the inner spring 11 is smaller than that between the spring layers of the outer spring 10, and the spring layers of the inner spring 11 and the outer spring 10 are mutually staggered to form a three-dimensional separation net, therefore, when the driving motor 4 is started, the driving seat 5 rotates along with the chain ring 3, the outer spring 10 collects larger scraps, the inner spring 11 collects smaller scraps, and the scraps are fixed in the spring under the suction action of the magnet 13, after the driving seat 5 rotates for a circle, the scraps in the numerical control machining center 1 are completely collected under the scraping and blocking action of the spring and the adsorption action of the magnet 13, the clearance is collected to the sweeps simple high-efficient, and has collected the sweeps after, only need press button 9, even board 8 separates with from the base 6, then will link board 8 to lift off, just can take out two springs and flexible pipe 12 to clear up the sweeps, subsequent clearance operation is also simple swift.
The technical solutions of the present invention or similar technical solutions designed by those skilled in the art based on the teachings of the technical solutions of the present invention are all within the scope of the present invention to achieve the above technical effects.
Claims (4)
1. The utility model provides an intelligence numerical control center sweeps collecting device convenient to clearance which characterized in that: this intelligent numerical control center sweeps collecting device convenient to clearance, including numerical control machining center (1), the inside fixedly connected with operation panel (2) of numerical control machining center (1), chain ring (3) are installed in the outside of operation panel (2), the internally mounted of operation panel (2) has driving motor (4) that correspond with chain ring (3), the left side fixedly connected with of chain ring (3) moves seat (5), the inside sliding connection of numerical control machining center (1) has driven seat (6), the right side of driven seat (6) has even board (8) through trip (7) swing joint, the top activity of driven seat (6) is pegged graft and is had button (9) that correspond with trip (7), install outer spring (10) between even board (8) and the driving seat (5) and be located the internally mounted of outer spring (10) and have interior spring (11), even between board (8) and initiative seat (5) and the internally mounted of innerspring (11) has flexible pipe (12), the inside fixedly connected with magnet (13) of flexible pipe (12), the top of initiative seat (5) just is located outside fixedly connected with safety cover (14) of operation panel (2).
2. The intelligent numerical control center scrap collecting device convenient to clean as claimed in claim 1, wherein: the bottom in operation panel (2) outside is seted up with link (3) and the recess that corresponds of driving seat (5), the link relation of trip (7) and driven seat (6) is the activity hinge joint, and installs the torsional spring on the articulated shaft.
3. The intelligent numerical control center scrap collecting device convenient to clean as claimed in claim 1, wherein: the outer spring (10) and the inner spring (11) are compact compression springs, and the distance between the spring layers of the inner spring (11) is smaller than the distance between the spring layers of the outer spring (10).
4. The intelligent numerical control center scrap collecting device convenient to clean as claimed in claim 1, wherein: the protective cover (14) is composed of a plurality of narrow plates, the protective cover (14) is in sliding connection with the numerical control machining center (1), and a sliding groove corresponding to the protective cover (14) is formed in the bottom plate of the numerical control machining center (1).
