CN109374932B - Pin clamping device of capacitance detection system - Google Patents
Pin clamping device of capacitance detection system Download PDFInfo
- Publication number
- CN109374932B CN109374932B CN201811249454.7A CN201811249454A CN109374932B CN 109374932 B CN109374932 B CN 109374932B CN 201811249454 A CN201811249454 A CN 201811249454A CN 109374932 B CN109374932 B CN 109374932B
- Authority
- CN
- China
- Prior art keywords
- adjusting
- groove
- fixedly connected
- inner cavity
- spring
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Classifications
-
- G—PHYSICS
- G01—MEASURING; TESTING
- G01R—MEASURING ELECTRIC VARIABLES; MEASURING MAGNETIC VARIABLES
- G01R1/00—Details of instruments or arrangements of the types included in groups G01R5/00 - G01R13/00 and G01R31/00
- G01R1/02—General constructional details
- G01R1/04—Housings; Supporting members; Arrangements of terminals
- G01R1/0408—Test fixtures or contact fields; Connectors or connecting adaptors; Test clips; Test sockets
- G01R1/0425—Test clips, e.g. for IC's
Landscapes
- Physics & Mathematics (AREA)
- General Physics & Mathematics (AREA)
- Measurement Of Resistance Or Impedance (AREA)
Abstract
The invention relates to a pin clamping device of a capacitance detection system, which relates to the detection field and comprises a base, an adjusting block and a driving mechanism, wherein an adjusting groove with an upward opening is arranged in the base, an adjusting mechanism is arranged on one side outside the adjusting groove, an inner cavity is arranged in the adjusting block, the adjusting block on one side in the adjusting groove is fixedly connected with the side wall of the adjusting groove, the adjusting block on the other side in the adjusting groove is fixedly connected with the adjusting mechanism, clamping mechanisms are symmetrically arranged at the upper position in the inner cavity, the lower position in the inner cavity is in sliding connection with a linkage mechanism, the lower end position of the clamping mechanism is movably connected with one end of the linkage mechanism, the upper end of the driving mechanism is movably connected with the linkage mechanism, when the device is used for measuring the capacitance value of a capacitor, the device can adapt to pins with different lengths and diameters, and does not need a measurer to fix, the measuring efficiency is improved, and the measuring error caused by the contact of the hand with the capacitor pins is avoided.
Description
Technical Field
The invention belongs to the field of detection, and particularly relates to a pin clamping device of a capacitance detection system.
Background
The capacitance value of electric capacity is the physical quantity that shows the electric capacity power is held to the condenser, and the electric capacity is in process of production, and the quality personnel of producing the line generally can be with the capacitance value parameter of certain frequency spot check electric capacity, after the electric capacity passes through the high temperature test cooling, also need measure its capacitance value and judge whether the electric capacity passes through the high temperature test.
In the prior art, when the capacitance values of the capacitors in batches are measured, a measurer generally fixes pins of the capacitors and the input end of a measuring instrument by hands and then measures the capacitors.
Disclosure of Invention
The present invention is directed to a pin clamping device of a capacitive sensing system, which is used to solve all or one of the problems of the related art.
In order to solve the technical problems, the invention adopts the technical scheme that: a pin clamping device of a capacitance detection system comprises a base, an adjusting block and a driving mechanism, wherein an adjusting groove with an upward opening is formed in the base, a button is arranged on the upper surface of the base, an adjusting mechanism is arranged on one side outside the adjusting groove, a rectangular through groove is formed in the bottom of the adjusting groove, the adjusting block is in sliding connection with the adjusting groove, an inner cavity is formed in the adjusting block, the adjusting block on one side inside the adjusting groove is fixedly connected with the side wall of the adjusting groove, the adjusting block on the other side inside the adjusting groove is fixedly connected with the adjusting mechanism, a jack for inserting a capacitor pin is formed in the top of the inner cavity, a clamping mechanism is symmetrically arranged at the upper position inside the inner cavity, the lower position inside the inner cavity is in sliding connection with a linkage mechanism, the lower end position of the clamping mechanism is movably connected with one end of the linkage mechanism, and the driving mechanism is located at, the upper end of the driving mechanism is movably connected with the linkage mechanism, the lower end of the driving mechanism is connected with the rectangular through groove in a sliding mode, and the linkage mechanism is electrically connected with the button and the clamping mechanism.
Furthermore, the clamping mechanism comprises a conductive end and a rotating column, the rotating column is symmetrically arranged at a position close to the upper part in the inner cavity, an annular guide groove is arranged at the middle position of the rotating column, a buffer cavity is arranged at the middle position of the top end of the rotating column, the position of the rotating column close to the bottom end is rotatably connected with the rotating shaft, a T-shaped end is arranged on the bottom end surface of the conductive end and is slidably connected with the buffer cavity, a pressure sensor is arranged at the bottom of the buffer cavity, the stressed end surface of the pressure sensor is fixedly connected with one end of a first spring, the other end of the first spring is fixedly connected with the end surface of the T-shaped end, two ends of the rotating shaft are fixedly connected with the front side wall and the rear side wall of the inner cavity, the annular guide groove is slidably connected with the annular guide column, a tension spring is sleeved on the annular guide column, and one end of, the other end of the tension spring is fixedly connected with the outer surface of the rotating column, the conductive end head inside the adjusting block on the left side inside the adjusting groove is electrically connected with the positive electrode of the power supply, and the conductive end head inside the adjusting block on the right side inside the adjusting groove is electrically connected with the negative electrode of the power supply.
Furthermore, the linkage mechanism comprises a driving block, a locking rod and a hauling rope, a sliding hole is arranged in the middle of the driving block, side plates are symmetrically arranged on the front side and the rear side of the left end and the right end of the driving block, a second spring is symmetrically arranged on the lower end face of the driving block, fixed pulleys are symmetrically arranged on the left side and the right side of the lower position of the driving block, cavities are symmetrically arranged on the left side and the right side of the outer part of the sliding hole, the side plates are slidably connected with side grooves formed in the front side wall and the rear side wall of the inner cavity, one end of the second spring is fixedly connected with the lower end face of the driving block, the other end of the second spring is fixedly connected with the bottom of the inner cavity, two ends of a rotating shaft of the fixed pulleys are fixedly connected with the front side wall and the rear side wall of the inner cavity, one end of the hauling rope is hinged, the front end of the locking rod is movably connected with the driving mechanism, the bottom end face of the locking rod is fixedly connected with one end of a third spring, the other end of the third spring is fixedly connected with the bottom of the cavity, the bottom of the cavity is fixedly connected with the electromagnet, and the electromagnet is electrically connected with the pressure sensor.
Furthermore, the driving mechanism comprises a sliding rod, a threaded rod and an adjusting screw rod, a sliding cavity is arranged right below the inner cavity, wing plate grooves are symmetrically arranged on the left side and the right side of the sliding cavity, a threaded hole with a downward opening is arranged below the inside of the sliding rod, a threaded through hole with an upward opening is arranged above the inside of the sliding rod, the threaded hole is communicated with the threaded through hole, locking grooves are symmetrically arranged on the left side and the right side of the position, close to the upper end face, of the sliding rod, the sliding rod is slidably connected with the sliding hole, the locking grooves are movably connected with the locking rods, wing plates are symmetrically arranged on the left side and the right side of the bottom end of the sliding rod, the wing plates are slidably connected with the wing plate grooves, a fourth spring is sleeved on the part, located in the sliding cavity, of the sliding rod, the upper end of the fourth spring is fixedly connected with the upper side wall of the, adjusting screw and screw hole threaded connection, adjusting screw's lower extreme passes the logical groove of rectangle and adjusting screw's lower extreme and leads to groove sliding connection with the rectangle, and adjusting screw's axis position is equipped with circular through-hole, threaded rod and screw thread through-hole threaded connection, the upper end of threaded rod and the brace table fixed connection who is used for supporting the condenser pin, the lower extreme and the circular through-hole sliding connection of threaded rod.
Furthermore, the adjusting mechanism comprises an adjusting rod and a screw rod, an adjusting cavity is arranged at the right side position outside the adjusting groove, rectangular plates are symmetrically arranged on the front and rear side walls of the right side adjusting block in the adjusting groove, rectangular grooves which are connected with the rectangular plates in a sliding manner are arranged on the front and rear side walls of the adjusting groove, the rectangular plate is fixedly connected with the adjusting block, a threaded hole is arranged in the rectangular plate, the screw rod is in threaded connection with the threaded hole, the left end of the screw rod is connected with the left side wall of the rectangular groove through a bearing, the right end of the screw rod penetrates through the right side wall of the rectangular groove and is in key connection with the driven wheel, the right end of the adjusting rod is positioned at the right side of the base, the right end of the adjusting rod penetrates through the left side wall and the right side wall of the adjusting cavity, the adjusting rod is connected with the left side wall and the right side wall of the adjusting cavity through bearings, the part of the adjusting rod, which is positioned in the adjusting cavity, is in key connection with the driving wheel, and the driving wheel is meshed with the driven wheel.
Furthermore, the circle center of the annular guide column and the circle center of the annular guide groove are coincided with the circle center of the rotating shaft.
Furthermore, the central axis of the sliding hole coincides with the central axis of the insertion hole.
Furthermore, a rubber layer is arranged on the upper surface of the support platform.
Furthermore, the base upper surface is equipped with the scale, the scale is parallel with the top edge of adjustment tank opening part, the side towards the scale is equipped with the pointer on the regulating block on the inside right side of adjustment tank.
Furthermore, the pointer is fixedly connected to the center position, close to the upper surface, of the corresponding adjusting block, and a connecting line between a zero scale line of the graduated scale and the circle center of the jack on the upper end surface of the other adjusting block is parallel to the left edge of the base.
The invention has the beneficial effects that: according to the pin clamping device of the capacitance detection system, before capacitance is measured, the center distance between two jacks is adjusted through the adjusting mechanism, so that the center distance is equal to the pin distance of a capacitor, then the driving mechanism is properly adjusted according to the pin length, when the pins are inserted into the jacks, the driving mechanism can normally drive the linkage mechanism, when the capacitance is measured, after the capacitor is inserted into the jacks, the linkage mechanism is driven to move through the driving mechanism, the driving mechanism is further driven to be in close contact with the pins, a measurement power supply is connected with the capacitor, and measurement is completed.
Drawings
The contents of the drawings and the reference numerals in the drawings are briefly described as follows:

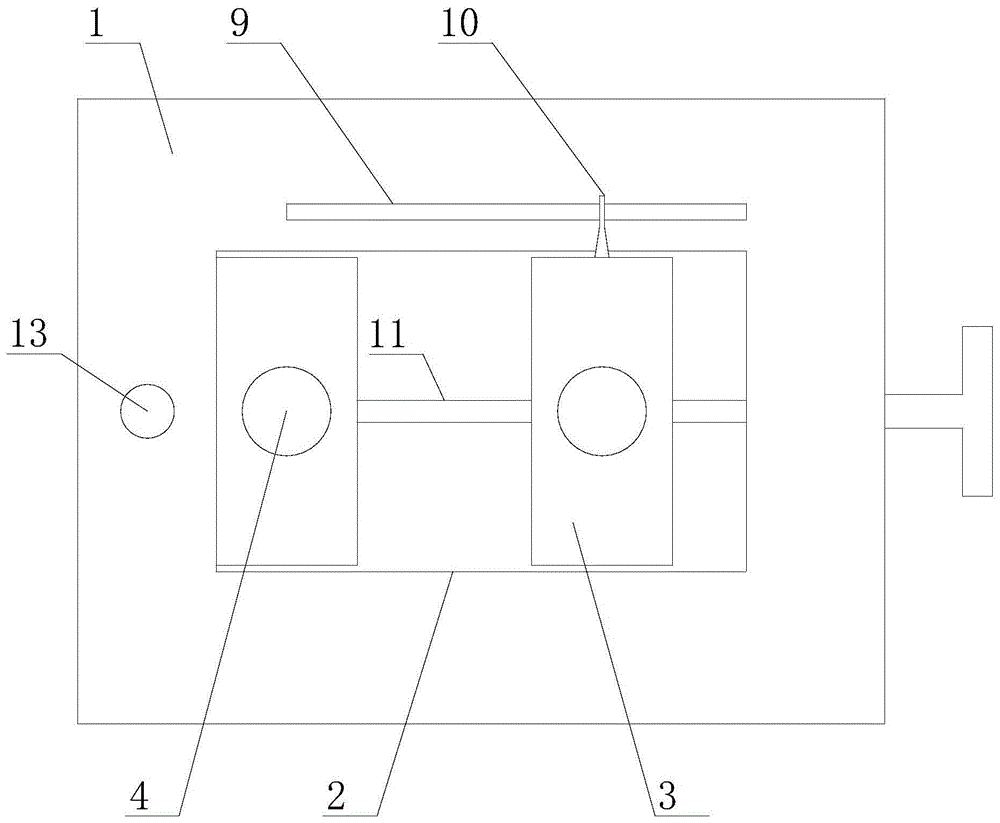

FIG. 1 is a top view of an embodiment of the present invention;
FIG. 2 is a top cross-sectional view of an embodiment of the present invention;
FIG. 3 is a cross-sectional view taken along line A-A of FIG. 2;
FIG. 4 is a side cross-sectional view of an adjustment block of an embodiment of the present invention;
FIG. 5 is a schematic structural view of the clamping mechanism of FIG. 4;
FIG. 6 is a schematic structural view of the securing mechanism of FIG. 4;
FIG. 7 is a top view of the drive block of FIG. 5;
fig. 8 is a schematic view of the structure of the driving mechanism in fig. 4.
Wherein, 1-base, 2-regulating groove, 3-regulating block, 4-jack, 5-clamping mechanism, 6-linkage mechanism, 7-driving mechanism, 8-regulating mechanism, 9-scale, 10-pointer, 11-rectangular through groove, 12-inner cavity, 13-button, 14-detection sample, 51-conductive end, 52-buffer cavity, 53-first spring, 54-pressure sensor, 55-rotating column, 56-annular guide groove, 57-annular guide column, 58-tension spring, 59-rotating shaft, 61-driving block, 62-fixed pulley, 63-second spring, 64-sliding hole, 65-side groove, 66-locking rod, 67-third spring, 68-electromagnet, 69-cavity, 610-hauling rope, 611-side plate, 71-sliding rod, 72-threaded rod, 73-threaded through hole, 74-supporting table, 75-locking groove, 76-fourth spring, 77-wing plate, 78-sliding cavity, 79-wing plate groove, 710-adjusting screw, 711-circular through hole, 712-threaded hole, 81-adjusting rod, 82-adjusting cavity, 83-driving wheel, 85-threaded rod, 86-rectangular plate, 87-threaded hole, 88-rectangular groove and 89-limiting plate.
Detailed Description
The following embodiments are provided to describe the embodiments of the present invention, and to further describe the detailed description of the embodiments of the present invention, such as the shapes, configurations, mutual positions and connection relationships of the components, the functions and operation principles of the components, the manufacturing processes and operation methods, etc., so as to help those skilled in the art to more fully, accurately and deeply understand the inventive concept and technical solutions of the present invention.
As shown in fig. 1 to 8, a pin clamping device of a capacitance detection system comprises a base 1, an adjusting block 3 and a driving mechanism 7, wherein an adjusting groove 2 with an upward opening is formed in the base 1, a button 13 is arranged on the upper surface of the base 1, an adjusting mechanism 8 is arranged on one side outside the adjusting groove 2, a rectangular through groove 11 is formed in the bottom of the adjusting groove 2, the adjusting block 3 is slidably connected with the adjusting groove 2, an inner cavity 12 is formed in the adjusting block 3, the adjusting block 3 on one side inside the adjusting groove 2 is fixedly connected with the side wall of the adjusting groove 2, the adjusting block 3 on the other side inside the adjusting groove 2 is fixedly connected with the adjusting mechanism 8, a jack 4 for inserting a capacitor pin is formed in the top of the inner cavity 12, a clamping mechanism 5 is symmetrically arranged at the upper position inside the inner cavity 12, and a linkage mechanism 6 is slidably connected at the lower position inside the inner cavity 12, the lower end position of fixture 5 and the one end swing joint of link gear 6, actuating mechanism 7 is located the below position of inner chamber 12, and the upper end and the link gear 6 swing joint of actuating mechanism 7, the lower extreme and the rectangular through groove 11 sliding connection of actuating mechanism 7, link gear 6 is connected with button 13 and fixture 5 electricity.
In this embodiment, the clamping mechanism 5 includes a conductive terminal 51 and a rotating column 55, the rotating column 55 is symmetrically disposed at a position close to the upper portion inside the inner cavity 12, an annular guide groove 56 is disposed at a middle position of the rotating column 55, a buffer cavity 52 is disposed at a middle position of the top end of the rotating column 55, a position of the rotating column 55 close to the bottom end is rotatably connected to a rotating shaft 59, a T-shaped terminal is disposed on the bottom end surface of the conductive terminal 51, the T-shaped terminal is slidably connected to the buffer cavity 52, a pressure sensor 54 is disposed at the bottom of the buffer cavity 52, a stressed end surface of the pressure sensor 54 is fixedly connected to one end of a first spring 53, the other end of the first spring 53 is fixedly connected to an end surface of the T-shaped terminal, two ends of the rotating shaft 59 are fixedly connected to front and rear side walls of the inner cavity 12, and the annular guide groove 56 is, the annular guide post 57 is sleeved with a tension spring 58, one end of the tension spring 58 is fixedly connected with the side wall of the inner cavity 12, the other end of the tension spring 58 is fixedly connected with the outer surface of the rotating post 55, the conductive end 51 inside the adjusting block 3 on the left side inside the adjusting groove 2 is electrically connected with the positive electrode of a power supply, the conductive end 51 inside the adjusting block 3 on the right side inside the adjusting groove 2 is electrically connected with the negative electrode of the power supply, when the pin of the capacitor is gradually inserted into the inner cavity 12 through the jack 4, the pin needs to be gradually clamped and fixed, and after the pin is completely inserted into the inner cavity 12, the pin is completely fixed and connected with the power supply to be measured. When the capacitor pin is completely inserted into the inner cavity 12, the clamping mechanism 5 is driven by the linkage mechanism 6 to make the conductive terminal 51 in the clamping mechanism 5 and the pin of the capacitor tightly contact and connect and realize the electrical connection with the measurement power supply, thereby completing the process of measuring the capacitance value.
In this embodiment, the linkage mechanism 6 includes a driving block 61, a locking lever 66 and a pulling rope 610, a sliding hole 64 is disposed in the middle of the driving block 61, side plates 611 are symmetrically disposed on the front and rear sides of the left and right ends of the driving block 61, a second spring 63 is symmetrically disposed on the lower end surface of the driving block 61, fixed pulleys 62 are symmetrically disposed on the left and right sides of the lower position of the driving block 61, cavities 69 are symmetrically disposed on the left and right sides of the outside of the sliding hole 64, the side plates 611 are slidably connected with side grooves 65 disposed on the front and rear side walls of the inner cavity 12, one end of the second spring 63 is fixedly connected with the lower end surface of the driving block 61, the other end of the second spring 63 is fixedly connected with the bottom of the inner cavity 12, the two ends of the rotating shaft of the fixed pulley 62 are fixedly connected with the front and rear side walls of the inner cavity 12, one end of the pulling rope 610 is hinged with the side end surface of, the bottom end of the locking rod 66 is slidably connected with the cavity 69, the front end of the locking rod 66 is movably connected with the driving mechanism 7, the bottom end face of the locking rod 66 is fixedly connected with one end of a third spring 67, the other end of the third spring 67 is fixedly connected with the bottom of the cavity 69, the bottom of the cavity 69 is fixedly connected with an electromagnet 68, and the electromagnet 68 is electrically connected with the pressure sensor 54. Because the clamping mechanism 5 needs to obtain power for providing fixing and capacitance pins from the outside, the only power of the device is the acting force for pushing the driving mechanism 7 to move downwards after the capacitance pins are inserted into the inner cavity 12, through the linkage mechanism 6, when the capacitance pins are inserted into the inner cavity 12, the locking rod 66 of the linkage mechanism 6 is positioned in the driving mechanism 7 and is in the same motion state as the driving mechanism 7, at this time, on one hand, the acting force for fixing the capacitance pins is provided for the clamping mechanism 5, on the other hand, energy is stored for the second spring 63, after capacitance measurement is completed, the linkage mechanism 6 is separated from the driving mechanism 7, and under the action of the spring force stored by the second spring 63 in the linkage mechanism 6, the fixing mechanism 5 releases the capacitance pins. The linkage mechanism 6 mainly functions to provide power for clamping and releasing the pins for the clamping mechanism 5.
In this embodiment, the driving mechanism 7 includes a sliding rod 71, a threaded rod 72 and an adjusting screw rod 710, a sliding cavity 78 is disposed under the inner cavity 12, vane grooves 79 are symmetrically disposed on the left and right sides of the sliding cavity 78, a threaded hole 712 with a downward opening is disposed under the sliding rod 71, a threaded through hole 73 with an upward opening is disposed above the inside of the sliding rod 71, the threaded hole 712 is communicated with the threaded through hole 73, locking grooves 75 are symmetrically disposed on the left and right sides of the sliding rod 71 near the upper end surface, the sliding rod 71 is slidably connected with the sliding hole 64, the locking grooves 75 are movably connected with the locking rod 66, vanes 77 are symmetrically disposed on the left and right sides of the bottom end of the sliding rod 71, the vanes 77 are slidably connected with the vane grooves 79, a fourth spring 76 is sleeved on a portion of the sliding rod 71 located in the sliding cavity 78, and the upper end of the fourth spring 76 is fixedly connected with the upper side wall of the sliding cavity 78, the lower end of the fourth spring 76 is fixedly connected with the upper end surface of the wing plate 77, the adjusting screw 710 is in threaded connection with the threaded hole 712, the lower end of the adjusting screw 710 passes through the rectangular through groove 11 and the lower end of the adjusting screw 710 is in sliding connection with the rectangular through groove 11, a circular through hole 711 is arranged at the central axis position of the adjusting screw 710, the threaded rod 72 is in threaded connection with the threaded through hole 73, the upper end of the threaded rod 72 is fixedly connected with the support table 74 for supporting the pins of the capacitor, the lower end of the threaded rod 72 is in sliding connection with the circular through hole 711, and in addition, because the length of the pins of the capacitor is different, since the capacitor is inserted into the cavity 12, the driving force for driving the linkage mechanism 6 is required to be obtained from the insertion process, if it is desired to obtain sufficient driving force, the means for obtaining the driving force should be adapted to the pin length of the capacitor, which, by means of the driving mechanism 7, the linkage mechanism 6 can be provided with enough driving force on the basis of adapting to different pin lengths.
In this embodiment, the adjusting mechanism 8 includes an adjusting rod 81 and a screw rod 85, an adjusting cavity 82 is arranged at the right side position outside the adjusting groove 2, a rectangular plate 86 is symmetrically arranged on the front and rear side walls of a right adjusting block 3 inside the adjusting groove 2, rectangular grooves 88 slidably connected with the rectangular plate 86 are arranged on the front and rear side walls of the adjusting groove 2, the rectangular plate 86 is fixedly connected with the adjusting block 3, a threaded hole 87 is arranged inside the rectangular plate 86, the screw rod 85 is in threaded connection with the threaded hole 87, the left end of the screw rod 85 is connected with the left side wall of the rectangular groove 88 through a bearing, the right end of the screw rod 85 passes through the right side wall of the rectangular groove 88 and is connected with a driven wheel key, the right end of the adjusting rod 81 is located at the right side of the base 1, the right end of the adjusting rod 81 passes through the left and right side walls of the adjusting cavity 82, the adjusting rod 81 is connected with the left and right, the driving wheel 83 is meshed with the driven wheel, and the distance between the capacitor pins is different, so that the whole clamping device can measure capacitors of different types by adapting to the change of the distances between the capacitor pins of different types through the adjusting mechanism.
In this embodiment, the center of the circular guide post 57 and the center of the circular guide groove 56 both coincide with the center of the rotating shaft 59, so that the rotating post 55 normally slides on the circular guide post 57, and the circular guide post 57 plays a role of positioning, guiding and supporting the rotating post 55.
In this embodiment, the central axis of the sliding hole 64 coincides with the central axis of the insertion hole 4, so that the capacitor pin can be smoothly inserted into the inner cavity 12.
In this embodiment, the supporting platform 74 is provided with a rubber layer on the upper surface, and since the top end of the capacitor pin contacts the supporting platform 74 after being inserted into the inner cavity 12, the rubber layer protects the top end of the capacitor pin.
In this embodiment, base 1 upper surface is equipped with scale 9, scale 9 is parallel with the top edge of 2 openings of adjustment tank, be equipped with pointer 10 towards the side of scale 9 on the regulating block 3 on the inside right side of adjustment tank 2, conveniently adjust the distance between two regulating blocks 3 through scale 9 and pointer 10, make the distance between the regulating block 3 adapt to the interval of electric capacity pin.
In addition, the pointer 10 is fixedly connected to the corresponding adjusting block 3 at the center position close to the upper surface, and a connecting line between a zero scale line of the graduated scale 9 and the circle center of the jack 4 on the upper end surface of the other adjusting block 3 is parallel to the left edge of the base 1, so that a measurer can conveniently observe the distance when adjusting the distance between the adjusting blocks 3.
The working process and principle are as follows: before measuring the capacitance value of the capacitor, firstly, the center distance of the jacks 4 is adjusted according to the pin pitch of the detection sample 14, and the adjustment process comprises the following steps: the adjusting rod 81 is manually rotated, the adjusting rod 81 drives the driven wheel to rotate through the driving wheel 83, the lead screw 85 is further driven to rotate, due to the fact that the lead screw is in threaded connection with the threaded hole 87, the corresponding adjusting block 3 is further driven to move on the rectangular groove 88 through the rectangular plate 86, the position of the pointer 10 on the graduated scale 9 is observed at the moment, and when the distance between the scale on the graduated scale 9 pointed by the pointer 10 and the pin of the detection sample 14 is equal, the adjusting rod 81 stops rotating. After the test sample 14 is inserted into the inner cavity 12 through the insertion hole 4, the following situations may occur during the insertion of the pin of the test sample 14: when the pin of the test specimen 14 is completely inserted into the inner cavity 12, after the pin of the test specimen 14 contacts the support 74, the adjustment screw 710 drives the sliding rod 71 to move downward in the sliding cavity 78 against the elastic force of the fourth spring 76, and the wing 77 moves in the wing groove 79, so as to ensure that the sliding rod 71 does not rotate, during the downward movement of the sliding rod 71, since the locking rod 66 is located in the locking groove 75, the sliding rod 77 drives the driving block 61 to move along the side groove 65 toward the lower portion of the inner cavity 12 against the pushing force of the second spring 63, and since the driving block 61 moves downward, the pulling rope 610 tends to be in a loose state, at this time, under the pulling force of the tension spring 58, the rotating column 55 rotates upward along the annular guide column 57, when the conductive tip 51 starts to clamp the pin, the conductive tip 51 compresses the first spring 53, at this time, the pressure value of the pressure sensor 54 increases with the compression of the first spring 53, when the pin is completely inserted into the cavity 12, the pressure value sensed by the pressure sensor 54 is inconvenient to maintain, when measuring the capacitance, in order to ensure that the conductive terminal 51 is in close contact with the pin and ensure the stability of the power-on, and simultaneously, the pressure of the conductive terminal 51 on the pin cannot be overlarge and damage to the pin can be caused by overlarge pressure, therefore, the pressure sensor 54 is provided with a threshold value, when the detection sample 14 is completely inserted into the cavity 12, if the threshold value sensed by the pressure sensor 54 does not exceed the pressure threshold value, the pressure of the conductive terminal 51 on the pin of the detection sample 14 is insufficient, at this time, the adjusting screw 710 is screwed to drive the sliding rod 71 to move downwards, at this time, the conductive terminal is driven by the linkage mechanism 6 to apply pressure on the pin of the detection sample 14, when the applied pressure reaches the threshold value of the pressure sensor 54, the adjusting screw 710 is, if the threshold sensed by pressure sensor 54 exceeds the pressure threshold, then adjusting screw 710 is reversed until the pressure sensed by pressure sensor 54 reaches the threshold; when the pins of the detection sample 14 are completely inserted into the inner cavity 12, the pins still cannot touch the supporting table 74, at this time, the threaded rod 72 is rotated, the threaded rod 72 drives the supporting table 74 to touch the pins, at this time, the linkage mechanism 6 still cannot move downwards, so that the clamping mechanism 5 cannot clamp and fix the pins, at this time, the detection sample 14 is taken out, the supporting table is further lifted upwards by the threaded rod 72 for a proper distance, then the detection sample 14 is inserted into the inner cavity 12 again, the clamping mechanism 5 clamps the pins, and at this time, the pressure of the pressure sensor 54 is adjusted by the adjusting screw rod 710. After the adjustment is completed, the pin of the capacitor to be measured is inserted into the inner cavity 12 through the jack 4 for measurement, after the measurement is completed, the button 14 is pressed, the electromagnet 68 is electrified to generate magnetic force, suction force is generated on the locking rod 66, the locking rod is enabled to overcome the elastic force of the third spring 67 and move towards the direction close to the electromagnet 68, when the locking rod 66 is completely separated from the locking groove 75, the driving block 61 is driven to move towards the upper part of the inner cavity 12 under the pulling force of the second spring 63, so that the conductive end head 51 releases the pin of the capacitor, at the moment, the measured capacitor is taken out after the button 13 is released, when the button 13 is released, the electromagnet 68 is de-electrified, the locking rod 66 is contacted with the surface of the sliding rod 71 under the pushing force of the third spring 67, after the capacitor is taken out, the sliding rod 71 moves upwards under the elastic force of the fourth spring 76, in the moving process, when the locking groove 75 is opposite to the, the locking bar 66 is moved into the locking groove 75 by the third spring 67, and after completion, the next capacitor is measured.
Based on the above, with the pin clamping device of the capacitance detection system of the present invention, before the capacitance value is measured, the center distance between the two jacks is adjusted by the adjusting mechanism, so that the center distance is equal to the pin distance of the capacitance, then the driving mechanism is properly adjusted according to the pin length, so that the driving mechanism can normally drive the linkage mechanism when the pin is inserted into the jack, and when the capacitance value is measured, after the capacitance is inserted into the jack, the linkage mechanism is driven by the driving mechanism to move, so as to drive the driving mechanism to be in close contact with the pin, so that the measurement power supply is connected with the capacitance, and the measurement is completed.
The invention has been described in an illustrative manner, and it is to be understood that the invention is not limited to the precise form disclosed, and that various insubstantial modifications of the inventive concepts and solutions, or their direct application to other applications without such modifications, are intended to be covered by the scope of the invention. The protection scope of the present invention shall be subject to the protection scope defined by the claims.
Claims (9)
1. The utility model provides a pin clamping device of electric capacity detecting system which characterized in that: comprises a base (1), an adjusting block (3) and a driving mechanism (7), wherein an adjusting groove (2) with an upward opening is formed in the base (1), a button (13) is arranged on the upper surface of the base (1), an adjusting mechanism (8) is arranged on one side of the outside of the adjusting groove (2), a rectangular through groove (11) is formed in the bottom of the adjusting groove (2), the adjusting block (3) is in sliding connection with the adjusting groove (2), an inner cavity (12) is formed in the adjusting block (3), the adjusting block (3) on one side of the inside of the adjusting groove (2) is fixedly connected with the side wall of the adjusting groove (2), the adjusting block (3) on the other side of the inside of the adjusting groove (2) is fixedly connected with the adjusting mechanism (8), a jack (4) for inserting a capacitor pin is formed in the top of the inner cavity (12), and a clamping mechanism (5) is symmetrically arranged above the inside of the inner cavity (12, the lower position inside the inner cavity (12) is connected with the linkage mechanism (6) in a sliding manner, the lower end position of the clamping mechanism (5) is movably connected with one end of the linkage mechanism (6), the driving mechanism (7) is positioned at the lower position of the inner cavity (12), the upper end of the driving mechanism (7) is movably connected with the linkage mechanism (6), the lower end of the driving mechanism (7) is connected with the rectangular through groove (11) in a sliding manner, and the linkage mechanism (6) is electrically connected with the button (13) and the clamping mechanism (5);
the clamping mechanism (5) comprises a conductive end (51) and a rotating column (55), the inner cavity (12) is symmetrically provided with the rotating column (55) at a position close to the upper part, the middle position of the rotating column (55) is provided with an annular guide groove (56), the middle position of the top end of the rotating column (55) is provided with a buffer cavity (52), the position of the rotating column (55) close to the bottom end is rotatably connected with a rotating shaft (59), the bottom end face of the conductive end (51) is provided with a T-shaped end, the T-shaped end is slidably connected with the buffer cavity (52), the bottom of the buffer cavity (52) is provided with a pressure sensor (54), the stressed end face of the pressure sensor (54) is fixedly connected with one end of a first spring (53), the other end of the first spring (53) is fixedly connected with the end face of the T-shaped end, the two ends of the rotating shaft (59) are fixedly connected with the front and back side walls of, the annular guide groove (56) is connected with the annular guide column (57) in a sliding mode, a tension spring (58) is sleeved on the annular guide column (57), one end of the tension spring (58) is fixedly connected with the side wall of the inner cavity (12), the other end of the tension spring (58) is fixedly connected with the outer surface of the rotating column (55), a conductive end head (51) inside the adjusting block (3) on the left side inside the adjusting groove (2) is electrically connected with the positive electrode of a power supply, and a conductive end head (51) inside the adjusting block (3) on the right side inside the adjusting groove (2) is electrically connected with the negative electrode of the power supply.
2. The pin holder assembly of claim 1, wherein: the linkage mechanism (6) comprises a driving block (61), a locking rod (66) and a traction rope (610), wherein a sliding hole (64) is formed in the middle position of the driving block (61), side plates (611) are symmetrically arranged on the front side and the rear side of the left end and the right end of the driving block (61), second springs (63) are symmetrically arranged on the lower end face of the driving block (61), fixed pulleys (62) are symmetrically arranged on the left side and the right side of the lower position of the driving block (61), cavities (69) are symmetrically arranged on the left side and the right side of the outer portion of the sliding hole (64), the side plates (611) are slidably connected with side grooves (65) formed in the front side wall and the rear side wall of an inner cavity (12), one end of each second spring (63) is fixedly connected with the lower end face of the driving block (61), the other end of each second spring (63) is fixedly connected with the bottom of the inner cavity (12), and two ends of a, one end of the traction rope (610) is hinged to the side end face of the driving block (61), the other end of the traction rope (610) penetrates through the fixed pulley (62) and is hinged to the outer surface of the rotating column (55), the bottom end of the locking rod (66) is in sliding connection with the cavity (69), the front end of the locking rod (66) is movably connected with the driving mechanism (7), the bottom end face of the locking rod (66) is fixedly connected with one end of the third spring (67), the other end of the third spring (67) is fixedly connected with the bottom of the cavity (69), the bottom of the cavity (69) is fixedly connected with the electromagnet (68), and the electromagnet (68) is electrically connected with the pressure sensor (54).
3. The pin holder assembly of claim 2, wherein: actuating mechanism (7) includes slide bar (71), threaded rod (72) and adjusting screw (710), be equipped with slide chamber (78) under inner chamber (12), the left and right sides symmetry in slide chamber (78) is equipped with pterygoid lamina groove (79), the inside below position of slide bar (71) is equipped with screw hole (712) that the opening is decurrent, and the inside top position of slide bar (71) is equipped with ascending screw through-hole of opening (73), screw hole (712) are linked together with screw through-hole (73), the bilateral symmetry that slide bar (71) are close to the up end position is equipped with locking groove (75), slide bar (71) and slide hole (64) sliding connection, locking groove (75) and check lock lever (66) swing joint, the left and right sides symmetry of slide bar (71) bottom is equipped with pterygoid lamina (77), pterygoid lamina (77) and pterygoid lamina groove (79) sliding connection, the utility model discloses a capacitor pin's structure, including slide bar (71), slide bar (78), the partial cover that slide bar (71) is located slide chamber (78) has fourth spring (76), the upper end of fourth spring (76) and the last lateral wall fixed connection in slide chamber (78), the lower extreme of fourth spring (76) and the up end fixed connection of pterygoid lamina (77), adjusting screw (710) and screw hole (712) threaded connection, the lower extreme of adjusting screw (710) passes rectangle through groove (11) and adjusting screw (710) the lower extreme and rectangle through groove (11) sliding connection, the axis position of adjusting screw (710) is equipped with circular through-hole (711), threaded rod (72) and screw hole (73) threaded connection, the upper end of threaded rod (72) and the brace table (74) fixed connection who is used for supporting capacitor pin, the lower extreme and circular through-hole (711) sliding connection of threaded rod (72).
4. The pin holder assembly of claim 1, wherein: the adjusting mechanism (8) comprises an adjusting rod (81) and a screw rod (85), an adjusting cavity (82) is arranged at the right side position outside the adjusting groove (2), rectangular plates (86) are symmetrically arranged on the front side wall and the rear side wall of an adjusting block (3) at the right side inside the adjusting groove (2), the front side wall and the rear side wall of the adjusting groove (2) are provided with rectangular grooves (88) which are in sliding connection with the rectangular plates (86), the rectangular plates (86) are fixedly connected with the adjusting block (3), threaded holes (87) are formed in the rectangular plates (86), the screw rod (85) is in threaded connection with the threaded holes (87), the left end of the screw rod (85) is connected with the left side wall of the rectangular grooves (88) through a bearing, the right end of the screw rod (85) penetrates through the right side wall of the rectangular grooves (88) and is connected with a driven wheel key, the right end of the adjusting rod (81) is positioned at the right side of the base (1), adjust pole (81) and adjust the left and right sides lateral wall in chamber (82) and pass through the bearing and be connected, adjust the part that pole (81) is located and adjust chamber (82) inside and drive wheel (83) key-type connection, drive wheel (83) and driven wheel meshing.
5. The pin holder assembly of claim 1, wherein: the circle center of the annular guide column (57) and the circle center of the annular guide groove (56) are coincided with the circle center of the rotating shaft (59).
6. The pin holder assembly of claim 2, wherein: the central axis of the sliding hole (64) is superposed with the central axis of the jack (4).
7. The pin holder assembly of claim 3, wherein: the upper surface of the support table is provided with a rubber layer.
8. The pin holder assembly of claim 1, wherein: the adjustable scale is characterized in that a graduated scale (9) is arranged on the upper surface of the base (1), the graduated scale (9) is parallel to the upper edge of the opening of the adjusting groove (2), and a pointer (10) is arranged on the adjusting block (3) on the right side in the adjusting groove (2) and faces the side face of the graduated scale (9).
9. The pin holder assembly of claim 8, wherein: the pointer (10) is fixedly connected to the center position, close to the upper surface, of the corresponding adjusting block (3), and a connecting line between a zero scale mark of the graduated scale (9) and the circle center of the jack (4) on the upper end face of the other adjusting block (3) is parallel to the left edge of the base (1).
