Abstract
The invention discloses a tea leaf cleaning device with a quick air drying function for processing tea products, which comprises a support frame and a water storage tank, wherein a power shaft is installed at the left end of the support frame, baffle belts are installed on the front side and the rear side of a partition plate, the water storage tank is positioned on the right side of the power shaft, an air blower is installed on the front surface of the water storage tank, bearings are embedded on the front inner side and the rear inner side of the support frame, a pressing plate is installed above the water storage tank, an air drying box is installed at the right end of the support frame, connecting plates are welded on the left inner side and the right inner side of the air drying box, an air drying fan is installed at the lower end of the air drying box. This tea belt cleaning device is used in tea product processing with quick air-dry function has solved present tea product processing and has caused the damage to tealeaves quality easily when wasing tealeaves, influences the taste of tealeaves and can't in time carry out air-dried problem to the moisture on tealeaves surface.
Description
Technical Field
The invention relates to the technical field of tea production, in particular to a tea cleaning device with a quick air drying function for tea product processing.
Background
With the continuous improvement of the level of people, health preservation gradually becomes a daily concern in life, tea leaves are tea making plants containing various trace elements, a lot of tea leaves need to be cleaned in order to ensure the quality during production, the currently used tea leaf cleaning methods are various, there are many disadvantages, such as that most tea washing devices soak the tea leaves or increase the washing speed of the tea leaves by stirring, but the quality of the tea leaves is damaged by the soaking or stirring, the invention aims to provide a tea leaf cleaning device for processing tea products, which has a quick air drying function and solves the problems in the background art.
Disclosure of Invention
The invention aims to provide a tea leaf cleaning device with a quick air drying function for tea product processing, and aims to solve the problems that the existing tea leaf cleaning device for tea product processing provided in the background art is easy to damage the quality of tea leaves, influences the taste of the tea leaves and cannot air-dry the moisture on the surface of the tea leaves in time when the tea leaves are cleaned.
In order to achieve the purpose, the invention provides the following technical scheme: a tea cleaning device with a quick air drying function for processing tea products comprises a support frame and a water storage tank, wherein a power shaft is installed at the left end of the support frame, the rear end of the power shaft is connected with a motor, a conveying belt is arranged on the outer side of the power shaft, partition plates are installed on the outer surface of the conveying belt at equal intervals, baffle belts are installed on the front side and the rear side of each partition plate, the water storage tank is located on the right side of the power shaft, a blocking block is installed at the lower end of the rear surface of the water storage tank, supporting rods are arranged on the left side and the right side of the upper end of the water storage tank, a supporting shaft penetrates through the outer side of each supporting rod, a blower is installed on the front surface of the water storage tank, a gas conveying pipe is installed at the output end of the blower, a gas outlet is formed in the upper surface of, and the right side surface of storage water tank is connected with water delivery board, the air-dry case is installed to the right-hand member of support frame, and the upper end of air-dry case is provided with the driving shaft, the outer surface paste of driving shaft has the cotton that absorbs water, the connecting plate has all been welded to the inside surface about the air-dry case, and the internally mounted of connecting plate has the spring, the wiper blade is installed to the outer end of spring, and the below of wiper blade is provided with the water receiving board, the outer end below of water receiving board is provided with the water receiving case, the air-dry fan is installed to the lower extreme of air-dry case, and the below of air-dry case is provided with the collecting box, the below.
Preferably, the surface of the conveying belt is of a honeycomb structure, the conveying belt is connected with the power shaft in a meshing manner, and the power shaft and the conveying belt form a linkage structure.
Preferably, the partition plates are arranged on the conveying belt at equal intervals, the height of each partition plate is equal to the interval between the upper surface of the conveying belt and the lower surface of the pressing plate, and the length of each partition plate is equal to the interval between the inner walls of the baffle belts.
Preferably, the air outlets are distributed at equal intervals on the air conveying pipes, the air conveying pipes are of an L-shaped structure, and the air conveying pipes are arranged at equal intervals in the water storage tank.
Preferably, the pressing rod and the water storage tank form a rotating structure, the vertical section of the water storage tank is of a trapezoidal structure, and the water storage tank is in threaded connection with the blocking block.
Preferably, the vertical section of the pressing plate is of a V-shaped structure, the width of the pressing plate is not smaller than that of the partition plate, and the pressing plate is parallel to the conveying belt in the water storage tank.
Preferably, the water delivery plate is arranged obliquely, the upper surface of the water delivery plate is of a groove-shaped structure, and the water delivery plate penetrates through the right wall of the water storage tank.
Preferably, the absorbent cotton is arranged symmetrically about the center of the upper end of the air drying box, the absorbent cotton is of a rotating structure on the air drying box, and the rotating directions of the absorbent cotton are opposite.
Preferably, the wiper blade is extending structure on the connecting plate, and the wiper blade closely laminates with the cotton that absorbs water to wiper blade and the cotton contact site that absorbs water are the curved surface structure, and the vertical cross-section of wiper blade is "T" type structure moreover.
Preferably, the number of the steering shafts is 3, the central connecting line between the 3 steering shafts and the power shaft is in a trapezoidal structure, and the height of the upper surface of the power shaft is not higher than that of the upper surface of the supporting shaft.
Compared with the prior art, the invention has the beneficial effects that: the tea cleaning device with the rapid air drying function for tea product processing solves the problems that the existing tea cleaning device for tea product processing is easy to damage the quality of tea leaves when cleaning the tea leaves, the taste of the tea leaves is affected, and the moisture on the surface of the tea leaves cannot be dried in time;
the tea leaf washing machine is provided with the conveying belt, and the tea leaves are driven by the conveying belt to enter the water storage tank to be washed, so that the soaking time of the tea leaves in water can be greatly reduced, and the problem that the tea leaf quality is influenced due to the fact that the tea leaves are soaked in water for a long time is solved;
the air drying box is arranged, the water of the white tea surface is firstly absorbed by the water absorbing cotton before the tea leaves enter the air drying box, and then the tea leaves are air-dried by the air drying fan, so that the air drying effect of the air drying fan on the tea leaves is ensured, the air drying efficiency is improved, the operation intensity of the air drying fan on the tea leaves is reduced, and the quality of the tea leaves is ensured;
the tea leaf cleaning machine is provided with the air blowing machine, air enters the water storage tank through the air outlet in the upper surface of the air conveying pipe under the action of the air blowing machine, and water in the water storage tank is boiled under the action of the air, so that the water impacts tea leaves on the conveying belt, the cleaning quality of the tea leaves is ensured, meanwhile, the damage to the tea leaves caused by a stirring and cleaning method is avoided, the tea leaf cleaning effect is further ensured, and the quality of the tea leaves is also ensured;
the pressing plate is arranged, tea leaves on the conveying belt are limited in a square formed by the partition plate and the blocking belt through the pressing plate, and the tea leaves are prevented from falling into the water storage tank after being impacted by water, so that the safety of the tea leaf cleaning process is guaranteed;
the water scraping plate is arranged, the absorbent cotton is extruded through the water scraping plate, and water in the absorbent cotton is discharged, so that the water absorption effect of the absorbent cotton is ensured;
the water conveying plate is arranged, water falling on the honeycomb conveying belt is conveyed to the water storage tank through the water conveying plate, water is prevented from being scattered, meanwhile, water is recycled, and the cleaning cost is saved.
Drawings

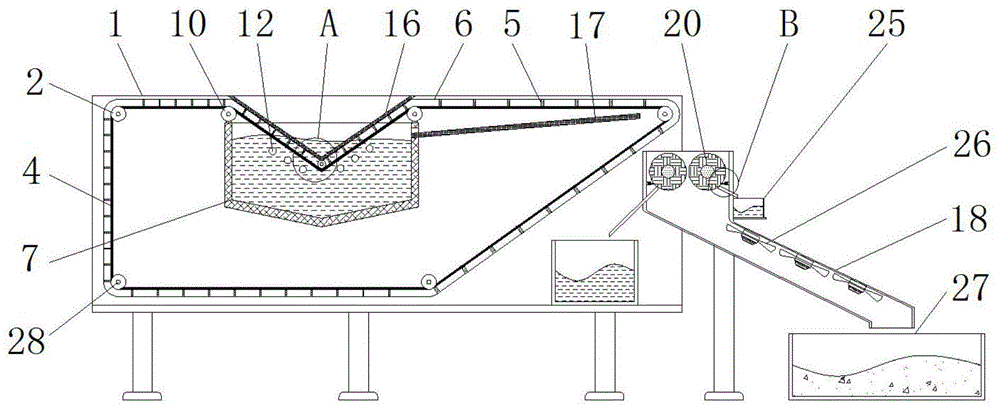

FIG. 1 is a schematic front sectional view of the present invention;
FIG. 2 is a schematic top view of the present invention;
FIG. 3 is a schematic diagram of a right side view cross-sectional structure of the water storage tank of the present invention;
FIG. 4 is a schematic view of a connecting structure of a conveying belt and a pressing rod according to the present invention;
FIG. 5 is an enlarged view of the structure at A in FIG. 1 according to the present invention;
FIG. 6 is an enlarged view of the structure at B in FIG. 1 according to the present invention.
In the figure: 1. a support frame; 2. a power shaft; 3. a motor; 4. a conveyor belt; 5. a partition plate; 6. blocking a belt; 7. a water storage tank; 8. blocking; 9. a support bar; 10. a support shaft; 11. a gas blower; 12. a gas delivery pipe; 13. an air outlet; 14. a bearing; 15. a pressing lever; 16. pressing a plate; 17. a water conveyance board; 18. an air drying box; 19. a drive shaft; 20. absorbent cotton; 21. a connecting plate; 22. a spring; 23. a wiper blade; 24. a water receiving plate; 25. a water receiving tank; 26. air drying fan; 27. a collection box; 28. a steering shaft.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-6, the present invention provides a technical solution: a tea cleaning device with a quick air drying function for processing tea products comprises a support frame 1, a power shaft 2, a motor 3, a conveying belt 4, a partition plate 5, a baffle belt 6, a water storage tank 7, a blocking block 8, a support rod 9, a support shaft 10, an air blower 11, an air conveying pipe 12, an air outlet 13, a bearing 14, a pressing rod 15, a pressing plate 16, a water conveying plate 17, an air drying box 18, a driving shaft 19, absorbent cotton 20, a connecting plate 21, a spring 22, a water scraping plate 23, a water receiving plate 24, a water receiving box 25, an air drying fan 26, a collecting box 27 and a steering shaft 28, wherein the power shaft 2 is installed at the left end of the support frame 1, the motor 3 is connected to the rear end of the power shaft 2, the conveying belt 4 is arranged on the outer side of the power shaft 2, the partition plates 5 are installed on the outer surface of the conveying belt 4 at equal intervals, the surface of the conveying, the power shaft 2 and the conveyor belt 4 form a linkage structure, the conveyor belt 4 with a honeycomb structure facilitates water in the water storage tank 7 to clean tea leaves on the surface of the water storage tank and discharge the cleaned water, baffle belts 6 are installed on the front side and the rear side of the partition plate 5, the water storage tank 7 is located on the right side of the power shaft 2, a blocking block 8 is installed at the lower end of the rear surface of the water storage tank 7, support rods 9 are arranged on the left side and the right side of the upper end of the water storage tank 7, a support shaft 10 penetrates through the outer side of each support rod 9, a blower 11 is installed on the front surface of the water storage tank 7, a gas pipe 12 is installed at the output end of the blower 11, a gas outlet 13 is formed in the upper surface of the gas pipe 12, bearings 14 are inlaid in the front inner side and the rear inner side surfaces of the support frame 1, pressing rods 15 are installed on, the vertical section of the pressing plate 16 is of a V-shaped structure, the width of the pressing plate 16 is not smaller than that of the partition plate 5, the pressing plate 16 and the conveying belt 4 inside the water storage tank 7 are parallel to each other, tea leaves on the conveying belt 4 are prevented from falling into the water storage tank 7, the air drying box 18 is installed at the right end of the support frame 1, the upper end of the air drying box 18 is provided with a driving shaft 19, the water absorbing cotton 20 is symmetrically arranged about the center of the upper end of the air drying box 18, the water absorbing cotton 20 is of a rotating structure on the air drying box 18, the rotating directions of the water absorbing cotton 20 are opposite, water of the tea leaves is absorbed through the water absorbing cotton 20, the phenomenon that the tea leaves are blocked at the upper end of the air drying box 18 is avoided, the water absorbing cotton 20 is adhered to the outer surface of the driving shaft 19, the connecting plates 21 are welded on the left inner side surface and the right inner side surface of the air drying box, a water receiving plate 24 is arranged below the water scraping plate 23, a water receiving tank 25 is arranged below the outer end of the water receiving plate 24, an air drying fan 26 is mounted at the lower end of the air drying tank 18, a collecting tank 27 is arranged below the air drying tank 18, steering shafts 28 are arranged below the power shaft 2, the number of the steering shafts 28 is 3, a central connecting line between the 3 steering shafts 28 and the power shaft 2 is in a trapezoidal structure, the height of the upper surface of the power shaft 2 is not higher than that of the upper surface of the supporting shaft 10, and the conveying belt 4 can stably rotate;
as shown in fig. 1 and 5, the partition plates 5 are arranged on the conveyer belt 4 at equal intervals, the height of each partition plate 5 is equal to the interval between the upper surface of the conveyer belt 4 and the lower surface of the pressing plate 16, and the length of each partition plate 5 is equal to the interval between the inner walls of the baffle belts 6, so that the tea leaves on the conveyer belt 4 cannot fall off from the conveyer belt 4 due to the impact of water or the buoyancy of the water, the water conveying plate 17 is arranged obliquely, the upper surface of the water conveying plate 17 is of a groove-shaped structure, and the water conveying plate 17 penetrates through the right wall of the water storage tank 7, so that the water falling off the conveyer belt 4 can be collected and reused; as shown in fig. 3 and 5, the air outlets 13 are distributed at equal intervals on the air delivery pipes 12, the air delivery pipes 12 are in an L-shaped structure, the air delivery pipes 12 are arranged at equal intervals inside the water storage tank 7, air is injected into the water storage tank 7 through the air delivery pipes 12, so that water in the water storage tank 7 impacts tea leaves on the conveying belt 4, the tea leaves are cleaned more cleanly, the pressing rod 15 and the water storage tank 7 form a rotating structure, the vertical section of the water storage tank 7 is in a trapezoidal structure, the water storage tank 7 is in threaded connection with the blocking block 8, the friction force between the conveying belt 4 and the pressing rod 15 is reduced through the rotation of the pressing rod 15, the drainage of water inside the water storage tank 7 is facilitated through the trapezoidal structure, and the blocking block 8 is installed on the water storage tank 7 through the threaded connection, so that the firmness of connection between the blocking block 8 and the water storage tank 7 is;
like in fig. 6 wiper 23 be extending structure on connecting plate 21, and wiper 23 closely laminates with cotton 20 that absorbs water, and wiper 23 is the curved surface structure with cotton 20 contact site that absorbs water, and wiper 23's vertical cross-section is "T" type structure moreover, extrudes the inside moisture of cotton 20 that absorbs water through wiper 23, has guaranteed the ability of the absorption moisture of cotton 20 that absorbs water, has avoided wiper 23 to cause the phenomenon of damage to cotton 20 that absorbs water through wiper 23 is flexible on connecting plate 21.
The working principle is as follows: when the tea cleaning device with the quick air drying function is used for processing tea products, firstly, the electric energy is supplied to the motor 3 with the model of Y90S-2, the air blower 11 with the model of CZ-550W and the air drying fan 26 through the external power supply to enable the tea cleaning device to operate, then tea to be cleaned is placed at the left end of the conveying belt 4 and is driven to rotate through the motor 3 connected with the power shaft 2, so that the conveying belt 4 drives the tea to move, the tea enters the water storage tank 7 along with the conveying belt 4, the conveying belt 4 is pressed through the pressing rod 15, the conveying belt 4 is in a V-shaped structure in the water storage tank 7, the pressing rod 15 and the water storage tank 7 form a rotating structure, so that the friction force between the pressing rod 15 and the conveying belt 4 is reduced, the damage to the conveying belt 4 is reduced, the service life of the conveying belt 4 is prolonged, the phenomenon that the tea on the surface of the conveying belt 4 is accumulated when the tea enters the water storage, the phenomenon that tea leaves fall from two sides of the conveying belt 4 is avoided through the action of the baffle belt 6, the pressing plate 16 is arranged in parallel with the conveying belt 4 in the water storage tank 7, the distance between the pressing plate 16 and the surface of the conveying belt 4 is equal to the height of the partition plate 5, so that the tea leaves on the conveying belt 4 are prevented from falling into the water storage tank 7, the tea leaves at the upper end of the conveying belt 4 are cleaned through the water in the water storage tank 7, the air is continuously introduced into the water through the air outlet 13 on the surface of the air delivery pipe 12 through the operation of the air blower 11, the water is boiled, the tea leaves on the surface of the conveying belt 4 are washed by the water in the water storage tank 7, the cleaning quality of the tea leaves is improved, the conveying belt 4 is of a honeycomb structure, when the conveying belt 4 comes out of the water storage tank 7, the water can be timely discharged, meanwhile, the falling water is received through the, the conveyer belt 4 moves in a trapezoidal structure under the action of the power shaft 2 and the steering shaft 28, so that tea leaves can fall into the air drying box 18 from the right end of the conveyer belt 4, the tea leaves are driven to rotate by the motor 3 connected with the driving shaft 19, the absorbent cotton 20 rotates, water on the surfaces of the tea leaves is preliminarily absorbed by the absorbent cotton 20 and then falls into the air drying box 18, the absorbent cotton 20 is extruded by the water scraping plate 23, so that the water in the absorbent cotton 20 can be timely discharged, the discharged water flows into the water receiving box 25 under the action of the water receiving plate 24 and is collected, meanwhile, the water scraping plate 23 and the connecting plate 21 form a telescopic structure under the action of the spring 22, so that the phenomenon that the absorbent cotton 20 is damaged by the water scraping plate 23 is avoided, the safety of the absorbent cotton 20 is ensured, the tea leaves falling into the air drying box 18 slide at the lower end of the air drying box 18 under the action of gravity, air-dry it through air-drying fan 26 when sliding, the tealeaves after the air-dry falls to be collected by unifying in falling into collecting box 27, and whole process easy operation does not have the great article of hardness and tealeaves and produces the collision, has guaranteed the quality of tealeaves, and this is this tea cleaning device for tea product processing with quick air-dry function's application method.
The standard parts used in the invention can be purchased from the market, the special-shaped parts can be customized according to the description of the specification and the accompanying drawings, the specific connection mode of each part adopts conventional means such as bolts, rivets, welding and the like mature in the prior art, the machinery, parts and equipment adopt conventional models in the prior art, and the circuit connection adopts the conventional connection mode in the prior art, and the details are not described, and the content not described in detail in the specification belongs to the prior art known by persons skilled in the art.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that various changes in the embodiments and/or modifications of the invention can be made, and equivalents and modifications of some features of the invention can be made without departing from the spirit and scope of the invention.
Claims (10)
1. The utility model provides a tea belt cleaning device is used in tea product processing with air-dry function fast, includes support frame (1) and storage water tank (7), its characterized in that: the left end of support frame (1) is installed power shaft (2), and the rear end of power shaft (2) is connected with motor (3), the outside of power shaft (2) is provided with conveyer belt (4), and the surface of conveyer belt (4) is equidistant installs baffle (5), keep off area (6) are all installed to both sides around baffle (5), storage water tank (7) are located the right side of power shaft (2), and the rear surface lower extreme of storage water tank (7) installs sprue (8), the upper end left and right sides of storage water tank (7) all is provided with bracing piece (9), and the outside of bracing piece (9) runs through there is back shaft (10), the front surface mounting of storage water tank (7) has drum machine (11), and the output of drum machine (11) installs gas-supply pipe (12), gas outlet (13) have been seted up to the upper surface of gas-supply pipe (12), the water-saving air-drying device is characterized in that bearings (14) are inlaid on the front inner side surface and the rear inner side surface of the support frame (1), a pressing rod (15) is installed on the inner side of each bearing (14), a pressing plate (16) is installed above the water storage tank (7), a water conveying plate (17) is connected to the right side surface of the water storage tank (7), an air-drying box (18) is installed at the right end of the support frame (1), a driving shaft (19) is arranged at the upper end of the air-drying box (18), water absorbing cotton (20) is pasted on the outer surface of the driving shaft (19), connecting plates (21) are welded on the left inner side surface and the right side surface of the air-drying box (18), springs (22) are installed inside the connecting plates (21), water scraping plates (23) are installed at the outer ends of the springs (22), water receiving plates (24) are arranged below the, an air drying fan (26) is installed at the lower end of the air drying box (18), a collecting box (27) is arranged below the air drying box (18), and a steering shaft (28) is arranged below the power shaft (2).
2. The tea leaf washing apparatus for processing tea products having a quick air-drying function according to claim 1, wherein: the surface of the conveying belt (4) is of a honeycomb structure, the conveying belt (4) is connected with the power shaft (2) in a meshing mode, and the power shaft (2) and the conveying belt (4) form a linkage structure.
3. The tea leaf washing apparatus for processing tea products having a quick air-drying function according to claim 1, wherein: the baffle plates (5) are arranged on the conveying belt (4) at equal intervals, the height size of the baffle plates (5) is equal to the interval size between the upper surface of the conveying belt (4) and the lower surface of the pressing plate (16), and the length size of the baffle plates (5) is equal to the interval size between the inner walls of the baffle belts (6).
4. The tea leaf washing apparatus for processing tea products having a quick air-drying function according to claim 1, wherein: the air outlets (13) are distributed at equal intervals on the air conveying pipes (12), the air conveying pipes (12) are of an L-shaped structure, and the air conveying pipes (12) are arranged at equal intervals in the water storage tank (7).
5. The tea leaf washing apparatus for processing tea products having a quick air-drying function according to claim 1, wherein: the pressing rod (15) and the water storage tank (7) form a rotating structure, the vertical section of the water storage tank (7) is of a trapezoidal structure, and the water storage tank (7) is in threaded connection with the plugging block (8).
6. The tea leaf washing apparatus for processing tea products having a quick air-drying function according to claim 1, wherein: the vertical section of the pressing plate (16) is of a V-shaped structure, the width of the pressing plate (16) is not smaller than that of the partition plate (5), and the pressing plate (16) is parallel to the conveying belt (4) in the water storage tank (7).
7. The tea leaf washing apparatus for processing tea products having a quick air-drying function according to claim 1, wherein: the water delivery plate (17) is obliquely arranged, the upper surface of the water delivery plate (17) is of a groove-shaped structure, and the water delivery plate (17) penetrates through the right wall of the water storage tank (7).
8. The tea leaf washing apparatus for processing tea products having a quick air-drying function according to claim 1, wherein: the water absorption cotton (20) is symmetrically arranged relative to the center of the upper end of the air drying box (18), the water absorption cotton (20) is of a rotating structure on the air drying box (18), and the rotating directions of the water absorption cotton (20) are opposite.
9. The tea leaf washing apparatus for processing tea products having a quick air-drying function according to claim 1, wherein: the water scraping plate (23) is of a telescopic structure on the connecting plate (21), the water scraping plate (23) is tightly attached to the absorbent cotton (20), the contact part of the water scraping plate (23) and the absorbent cotton (20) is of a curved surface structure, and the vertical section of the water scraping plate (23) is of a T-shaped structure.
10. The tea leaf washing apparatus for processing tea products having a quick air-drying function according to claim 1, wherein: the number of the steering shafts (28) is 3, the central connecting line of the steering shafts (28) and the power shaft (2) is of a trapezoidal structure, and the height of the upper surface of the power shaft (2) is not higher than that of the upper surface of the supporting shaft (10).
