Abstract

The invention relates to a massage device, in particular to a body-building massage device. The technical problem is as follows: provides a body-building massage device which can enable people to exercise a plurality of parts in a limited time and can achieve a better body-building effect. The technical scheme of the invention is as follows: a body-building massage device comprises a bottom plate, an L-shaped rod, a sliding sleeve, a connecting rod, an upper straight rod, a swing rod, a rotary disc, an upper sliding shaft and the like; bottom plate top right side is equipped with E type pole, and E type pole top is equipped with the sliding sleeve, and the sliding is equipped with L type pole on the sliding sleeve, and L type pole top front side rotation type is connected with the connecting rod, and the left side upper portion rotary type of E type pole is connected with a word pole and carousel. According to the invention, the handle is swung up and down by a person to drive the L-shaped rod to move left and right, so that the protruding part of the cam is driven to continuously push the backrest, and the abdomen of the person can be exercised while the arm of the person is exercised; by repeatedly stepping on the front pedal and the rear pedal leftwards, the legs of people are repeatedly bent and stretched, so that the muscles of the legs are exercised.

Description

Body-building massage equipment
Technical Field
The invention relates to a massage device, in particular to a body-building massage device.
Background
Today, because the life rhythm is too fast, people are often in "sub-health" state, consequently body-building becomes the activity that a wide acceptance was favored, more and more people realize the importance of healthy, the health position that most fitness equipment can take exercise at present is comparatively single, can't let people take exercise the muscle of each position simultaneously, consequently, people need use various equipment of taking exercise to different positions, can consume more time like this, but most people work busy, the time is limited, if people can only take exercise the muscle of single position, the body-building effect can worsen.
Disclosure of Invention
In order to overcome the defects that the common body-building equipment needs to spend more time and has poorer body-building effect due to single exercise part, the technical problem is as follows: provides a body-building massage device which can enable people to exercise a plurality of parts in a limited time and can achieve a better body-building effect.
The technical scheme of the invention is as follows: a body-building massage device comprises a bottom plate, L-shaped rods, a sliding sleeve, a connecting rod, an upper straight rod, a swinging rod, a rotary disc, an upper sliding shaft, a pull rod, a handle, an E-shaped rod, a cam, a first supporting rod, a backup plate, a backrest, a cushion, a supporting rod, a Z-shaped rod and a first spring, wherein the E-shaped rod is arranged on the right side of the top of the bottom plate, the sliding sleeve is arranged on the top of the E-shaped rod, the L-shaped rod is arranged on the sliding sleeve in a sliding manner, the front side of the top of the L-shaped rod is connected with the connecting rod in a rotating manner, the upper portion of the left side of the E-shaped rod is connected with the upper straight rod and the rotary disc in a rotating manner, the upper straight rod is positioned below the rotary disc, the lower end of the connecting rod is connected with the upper straight rod in a rotating manner, the left portion of the front side and the right portion of the rear side of the rotary disc are both, the pull rod lower extreme is equipped with the handle, the top right side of bottom plate is connected with first branch, the top rotary type of first branch is connected with the cam, the cam is located the rear side of L type pole, cam and L type pole sliding type are connected, bottom plate top right side is equipped with four bracing pieces, be equipped with the cushion on four bracing pieces, the people model has been placed on the cushion, the people model is located the handle below, the bracing piece right side middle part of the rightmost side is connected with first spring, first spring right-hand member is connected with Z type pole, Z type pole is located L type pole lower part left, Z type pole top is equipped with the back, the back top is equipped with the backup plate.
Further, still including preceding pedal, back pedal, the pouring weight, the dead lever, fixed cover, the guide arm, the swinging arms, second branch, next word pole and gliding axle, all be equipped with two dead levers around the bottom plate top left side, the dead lever upper end is equipped with fixed cover, all slidingtype is equipped with the guide arm between two fixed covers of front and back both sides, the right-hand member rotary type of the guide arm in the place ahead is connected with preceding pedal, the right-hand member rotary type of the guide arm at rear is connected with back pedal, back pedal and preceding pedal bottom all are connected with the pouring weight, bottom plate top left side is equipped with second branch, second branch upper portion rotary type is equipped with the swinging arms, both parts all are connected with the gliding axle about the swinging arms, the left end of guide arm is connected with next word pole, the gliding axle is located next word pole, and the.
Furthermore, the foldable support is characterized by further comprising ratchets, return springs and pawls, wherein the ratchets are uniformly arranged on the right side of the top of the bottom plate and are located below the first springs, the return springs are connected to the front sides of the left portions of the Z-shaped rods, the pawls are connected to the return springs, and the pawls are matched with the ratchets.
When people are in fitness, firstly, people can sit on the cushion to lean against the backrest, then people can hold the handles at the front side and the rear side by hands to swing up and down, so that the swing rod drives the rotary table to rotate, the upper sliding shaft slides in the upper linear rod, the connecting rod is driven to move left and right through the upper linear rod, the connecting rod moves left and right to drive the L-shaped rod to move left and right, the sliding sleeve plays a guiding role on the L-shaped rod, the L-shaped rod moves left and right to drive the cam to rotate, when the cam rotates to enable the protruding part of the cam to be in contact with the backrest, the cam drives the backrest to move left, the backrest moves left to enable the back of people to be supported, the backrest drives the Z-shaped rod to move left, the first spring is compressed accordingly, when the cam rotates to enable the protruding part of the cam not to be in contact with the backrest, the first spring, the back moves right and makes people's back put down, so relapse through holding up people's back or put down, can extrude people's abdominal muscle, be equivalent to do the sit up, temper the abdominal muscle, after healthy and perfect, people can stop the handle of swing front and back both sides, from the cushion from top to bottom after that can, so make people can also temper the belly when tempering the arm, hold two birds with one stone.
When people need to exercise legs, people can put two feet on the right sides of the front pedal and the rear pedal, when people use feet to pedal the front pedal leftwards, the front pedal moves leftwards to drive the front guide rod to move leftwards, the front guide rod moves leftwards to drive the front lower slide shaft to move upwards through the front lower linear rod, the lower slide shaft slides in the next linear rod to drive the swinging rod to rotate anticlockwise, the rear lower linear rod is driven to move rightwards through the rear lower slide shaft, the rear lower linear rod moves rightwards to drive the rear pedal to move rightwards through the rear guide rod, when the front pedal moves to the leftmost side, people can pedal the left and the rear pedal, the rear pedal moves leftwards to drive the rear guide rod to move leftwards, the rear guide rod moves leftwards to drive the rear lower linear rod to move leftwards, the swinging rod is driven to rotate through the rear lower slide shaft, and the front guide rod is driven to move rightwards through the front lower linear rod, the guide arm of front side moves the right and moves the preceding step board of drive and moves, so relapse, people's shank bends repeatedly and stretches for the muscle of shank obtains taking exercise, takes exercise the back that finishes, and people stop to step on preceding step board or back step board left, and then from the cushion from top to bottom can, so make people can temper a plurality of positions in limited time, and the pouring weight makes preceding step board and back step board remain vertical state throughout, puts the foot when making things convenient for people to build body.
When people do not want to exercise the abdomen, people can firstly move the pawl upwards to enable the pawl not to be matched with the ratchet, then move the pawl leftwards, enable the return spring to rotate along with the pawl, enable the pawl to move leftwards through the Z-shaped rod to enable the backrest to move leftwards, when the backrest moves leftwards and is not contacted with the protruding portion of the cam any more, people can stop moving the pawl leftwards, enable the return spring to reset along with the pawl, enable the pawl to be matched with the ratchet again, then people can sit on the seat cushion and place feet on the right sides of the front pedal plate and the rear pedal plate to do leg exercise, when people want to exercise the abdomen, people can firstly move the ratchet upwards to enable the pawl not to be matched with the ratchet any more, then move the pawl rightwards, enable the return spring to rotate along with the pawl, enable the pawl to move rightwards through the Z-shaped rod to move the, people can stop moving the pawl rightwards, the return spring resets accordingly, then the pawl is matched with the ratchet again, then people can sit on the seat cushion, the handles on the front side and the rear side of the seat cushion swing to do abdominal exercise, and therefore people can select whether to do abdominal exercise according to self needs.
The beneficial effects are that: according to the invention, the handle is swung up and down by a person to drive the L-shaped rod to move left and right, so that the protruding part of the cam is driven to continuously push the backrest, and the abdomen of the person can be exercised while the arm of the person is exercised; the front pedal and the rear pedal are repeatedly stepped leftwards, so that the legs of people are repeatedly bent and stretched, and the muscles of the legs are exercised; through the cooperation of ratchet and pawl, adjust the back position for people can select whether to temper the belly according to self demand, so people can temper a plurality of positions in limited time.
Drawings

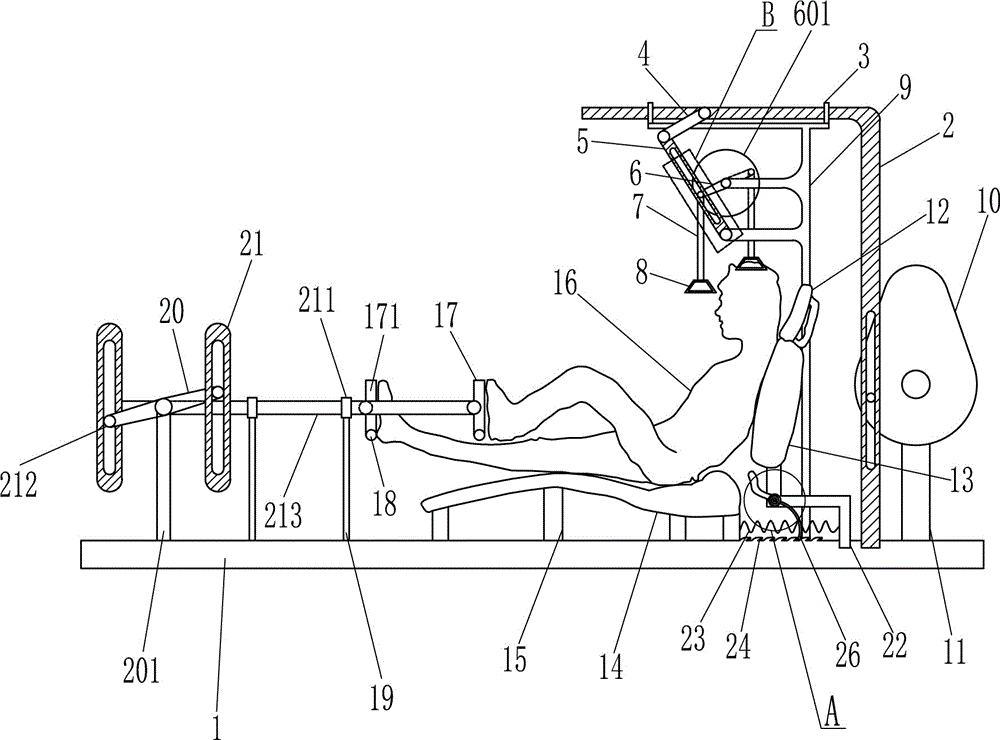

Fig. 1 is a schematic front view of the present invention.
Fig. 2 is an enlarged schematic view of a portion a of fig. 1 according to the present invention.
Fig. 3 is an enlarged schematic structural view of a portion B of fig. 1 according to the present invention.
Part names and serial numbers in the figure: the device comprises a base plate 1, a 2L-shaped rod, a 3 sliding sleeve, a 4 connecting rod, a 5 upper straight rod, a 6 swing rod, a 601 rotating disc, a 602 upper sliding shaft, a 7 pull rod, an 8 grip, a 9E-shaped rod, a 10 cam, a 11 first supporting rod, a 12 backup plate, a 13 backrest, a 14 cushion, a 15 supporting rod, a 16-person model, a 17 front pedal, a 171 rear pedal, an 18 weight, a 19 fixing rod, a 20 swing rod, a 201 second supporting rod, a 21 lower straight rod, a 211 fixing sleeve, a 212 lower sliding shaft, a 213 guide rod, a 22Z-shaped rod, a 23 first spring, 24 ratchets, a 25 return spring and a 26 pawl.
Detailed Description
The preferred embodiments of the present invention will be described in detail with reference to the accompanying drawings.
Example 1
A body-building massage device is disclosed, as shown in fig. 1-3, comprising a bottom plate 1, an L-shaped rod 2, a sliding sleeve 3, a connecting rod 4, a top-shaped rod 5, a swing rod 6, a rotary plate 601, an upper sliding shaft 602, a pull rod 7, a handle 8, an E-shaped rod 9, a cam 10, a first supporting rod 11, a backup plate 12, a backrest 13, a cushion 14, a supporting rod 15, a Z-shaped rod 22 and a first spring 23, wherein the top right side of the top of the bottom plate 1 is provided with the E-shaped rod 9, the top of the E-shaped rod 9 is provided with the sliding sleeve 3, the sliding sleeve 3 is provided with the L-shaped rod 2 in a sliding manner, the front side of the top of the L-shaped rod 2 is rotatably connected with the connecting rod 4, the upper part of the left side of the E-shaped rod 9 is rotatably connected with the top-shaped rod 5 and the rotary plate 601, the top-shaped rod 5 is positioned below the rotary plate 601, the lower end of the connecting rod 4 is, go up sliding shaft 602 and be located last word pole 5, go up sliding shaft 602 and last word pole 5 sliding type cooperation, the equal rotary type in pendulum rod 6 outside of both sides is connected with pull rod 7 around, the pull rod 7 lower extreme is equipped with handle 8, the top right side of bottom plate 1 is connected with first bracing piece 11, the top rotary type of first bracing piece 11 is connected with cam 10, cam 10 is located the rear side of L type pole 2, cam 10 and L type pole 2 sliding type are connected, 1 top right side of bottom plate is equipped with four bracing pieces 15, be equipped with cushion 14 on four bracing pieces 15, people's model 16 has been placed on cushion 14, people's model 16 is located handle 8 below, the bracing piece 15 right side middle part of rightmost side is connected with first spring 23, first spring 23 right-hand member is connected with Z type pole 22, Z type pole 22 is located L type pole 2 lower part left, Z type pole 22 top is equipped with back 13, back 13 top is equipped.
Example 2
A body-building massage device is disclosed, as shown in fig. 1-3, comprising a bottom plate 1, an L-shaped rod 2, a sliding sleeve 3, a connecting rod 4, a top-shaped rod 5, a swing rod 6, a rotary plate 601, an upper sliding shaft 602, a pull rod 7, a handle 8, an E-shaped rod 9, a cam 10, a first supporting rod 11, a backup plate 12, a backrest 13, a cushion 14, a supporting rod 15, a Z-shaped rod 22 and a first spring 23, wherein the top right side of the top of the bottom plate 1 is provided with the E-shaped rod 9, the top of the E-shaped rod 9 is provided with the sliding sleeve 3, the sliding sleeve 3 is provided with the L-shaped rod 2 in a sliding manner, the front side of the top of the L-shaped rod 2 is rotatably connected with the connecting rod 4, the upper part of the left side of the E-shaped rod 9 is rotatably connected with the top-shaped rod 5 and the rotary plate 601, the top-shaped rod 5 is positioned below the rotary plate 601, the lower end of the connecting rod 4 is, go up sliding shaft 602 and be located last word pole 5, go up sliding shaft 602 and last word pole 5 sliding type cooperation, the equal rotary type in pendulum rod 6 outside of both sides is connected with pull rod 7 around, the pull rod 7 lower extreme is equipped with handle 8, the top right side of bottom plate 1 is connected with first bracing piece 11, the top rotary type of first bracing piece 11 is connected with cam 10, cam 10 is located the rear side of L type pole 2, cam 10 and L type pole 2 sliding type are connected, 1 top right side of bottom plate is equipped with four bracing pieces 15, be equipped with cushion 14 on four bracing pieces 15, people's model 16 has been placed on cushion 14, people's model 16 is located handle 8 below, the bracing piece 15 right side middle part of rightmost side is connected with first spring 23, first spring 23 right-hand member is connected with Z type pole 22, Z type pole 22 is located L type pole 2 lower part left, Z type pole 22 top is equipped with back 13, back 13 top is equipped.
The novel horizontal type stepping motor is characterized by further comprising a front pedal 17, a rear pedal 171, a weight 18, fixing rods 19, fixing sleeves 211, a guide rod 213, a swinging rod 20, a second supporting rod 201, a next horizontal type rod 21 and a lower sliding shaft 212, two fixing rods 19 are arranged on the front side and the rear side of the left side of the top of the base plate 1, the fixing sleeves 211 are arranged at the upper ends of the fixing rods 19, the guide rod 213 is arranged between the two fixing sleeves 211 on the front side and the rear side in a sliding mode, the front pedal 17 is connected with the right end of the guide rod 213 on the front side in a rotating mode, the rear pedal 171 is connected with the right end of the guide rod 213 on the rear side in a rotating mode, the weight 18 is connected with the bottom of the rear pedal 171 and the front pedal 17, the second supporting rod 201 is arranged on the left side of the top of the base plate 1, the swinging rod 20 is arranged on the upper portion in a rotating mode, the.
Example 3
A body-building massage device is disclosed, as shown in fig. 1-3, comprising a bottom plate 1, an L-shaped rod 2, a sliding sleeve 3, a connecting rod 4, a top-shaped rod 5, a swing rod 6, a rotary plate 601, an upper sliding shaft 602, a pull rod 7, a handle 8, an E-shaped rod 9, a cam 10, a first supporting rod 11, a backup plate 12, a backrest 13, a cushion 14, a supporting rod 15, a Z-shaped rod 22 and a first spring 23, wherein the top right side of the top of the bottom plate 1 is provided with the E-shaped rod 9, the top of the E-shaped rod 9 is provided with the sliding sleeve 3, the sliding sleeve 3 is provided with the L-shaped rod 2 in a sliding manner, the front side of the top of the L-shaped rod 2 is rotatably connected with the connecting rod 4, the upper part of the left side of the E-shaped rod 9 is rotatably connected with the top-shaped rod 5 and the rotary plate 601, the top-shaped rod 5 is positioned below the rotary plate 601, the lower end of the connecting rod 4 is, go up sliding shaft 602 and be located last word pole 5, go up sliding shaft 602 and last word pole 5 sliding type cooperation, the equal rotary type in pendulum rod 6 outside of both sides is connected with pull rod 7 around, the pull rod 7 lower extreme is equipped with handle 8, the top right side of bottom plate 1 is connected with first bracing piece 11, the top rotary type of first bracing piece 11 is connected with cam 10, cam 10 is located the rear side of L type pole 2, cam 10 and L type pole 2 sliding type are connected, 1 top right side of bottom plate is equipped with four bracing pieces 15, be equipped with cushion 14 on four bracing pieces 15, people's model 16 has been placed on cushion 14, people's model 16 is located handle 8 below, the bracing piece 15 right side middle part of rightmost side is connected with first spring 23, first spring 23 right-hand member is connected with Z type pole 22, Z type pole 22 is located L type pole 2 lower part left, Z type pole 22 top is equipped with back 13, back 13 top is equipped.
The novel horizontal type stepping motor is characterized by further comprising a front pedal 17, a rear pedal 171, a weight 18, fixing rods 19, fixing sleeves 211, a guide rod 213, a swinging rod 20, a second supporting rod 201, a next horizontal type rod 21 and a lower sliding shaft 212, two fixing rods 19 are arranged on the front side and the rear side of the left side of the top of the base plate 1, the fixing sleeves 211 are arranged at the upper ends of the fixing rods 19, the guide rod 213 is arranged between the two fixing sleeves 211 on the front side and the rear side in a sliding mode, the front pedal 17 is connected with the right end of the guide rod 213 on the front side in a rotating mode, the rear pedal 171 is connected with the right end of the guide rod 213 on the rear side in a rotating mode, the weight 18 is connected with the bottom of the rear pedal 171 and the front pedal 17, the second supporting rod 201 is arranged on the left side of the top of the base plate 1, the swinging rod 20 is arranged on the upper portion in a rotating mode, the.
The folding type folding table is characterized by further comprising ratchets 24, return springs 25 and pawls 26, the ratchets 24 are uniformly arranged on the right side of the top of the bottom plate 1, the ratchets 24 are located below the first springs 23, the return springs 25 are connected to the front side of the left portion of the Z-shaped rod 22, the pawls 26 are connected to the return springs 25, and the pawls 26 are matched with the ratchets 24.
When people are in fitness, firstly, people can sit on the seat cushion 14 to lean against the backrest 13, then people can hold the grips 8 on the front side and the rear side by hands to swing up and down, so that the swing rod 6 drives the rotary table 601 to rotate, the upper sliding shaft 602 slides in the upper straight rod 5, so that the upper straight rod 5 drives the connecting rod 4 to move left and right, the connecting rod 4 moves left and right to drive the L-shaped rod 2 to move left and right, the sliding sleeve 3 guides the L-shaped rod 2, the L-shaped rod 2 moves left and right to drive the cam 10 to rotate, when the cam 10 rotates to enable the convex part of the cam 10 to be in contact with the backrest 13, the cam 10 drives the backrest 13 to move left, the backrest 13 moves left to enable the back of people to be supported, the backrest 13 drives the Z-shaped rod 22 to move left, the first spring 23 is compressed, and when the cam 10 rotates to enable the convex part of the cam 10 not to be in contact, z type pole 22 moves right and drives back 13 and move right, back 13 moves right and makes people's back put down, so relapse through holding up or putting down people's back, can extrude people's belly muscle, be equivalent to doing sit up, temper the abdominal muscle, after healthy and perfect, people can stop swing the grip 8 of both sides around, after that from the cushion 14 from top to bottom can, so make people can also temper the belly when taking exercise the arm, kill two birds with one stone.
When people need to exercise legs, people can put two feet on the right sides of the front pedal 17 and the rear pedal 171, when people use feet to pedal the front pedal 17 leftwards, the front pedal 17 moves leftwards to drive the front guide rod 213 to move leftwards, the front guide rod 213 moves leftwards to drive the front lower sliding shaft 212 to move upwards through the front lower linear rod 21, the lower sliding shaft 212 slides in the lower linear rod 21 to drive the swinging rod 20 to rotate anticlockwise, the rear lower linear rod 21 is driven to move rightwards through the rear lower sliding shaft 212, the rear lower linear rod 21 moves rightwards to drive the rear pedal 171 to move rightwards through the rear guide rod 213, when the front pedal 17 moves to the leftmost, people can pedal the rear pedal 171 leftwards, the rear pedal 171 moves leftwards to drive the rear guide rod 213 to move leftwards, the rear guide rod 213 moves leftwards to drive the rear lower linear rod 21 to move leftwards, therefore, the lower sliding shaft 212 at the rear side drives the swinging rod 20 to rotate, the next straight rod 21 at the front side drives the guide rod 213 at the front side to move rightwards, the guide rod 213 at the front side moves rightwards to drive the front pedal 17 to move rightwards, and the legs of people repeatedly bend and stretch to exercise the muscles of the legs, after the exercise is finished, people stop stepping on the front pedal 17 or the rear pedal 171 leftwards, and then go down from the cushion 14, so that people can exercise multiple parts in a limited time, the weight 18 enables the front pedal 17 and the rear pedal 171 to always keep a vertical state, and feet can be put on conveniently when people exercise.
When a person does not want to exercise the abdomen, the person can first move the pawl 26 upward so that the pawl 26 is no longer engaged with the ratchet 24, then move the pawl 26 leftward, the return spring 25 rotates therewith, the pawl 26 moves leftward to move the backrest 13 leftward through the Z-shaped rod 22, when the backrest 13 moves leftward to be no longer in contact with the protruding portion of the cam 10, the person can stop moving the pawl 26 leftward, the return spring 25 resets accordingly, then engage the pawl 26 with the ratchet 24 again, then the person can sit on the seat cushion 14, place both feet on the right sides of the front pedal 17 and the rear pedal 171 for leg exercise, when the person wants to exercise the abdomen, the person can first move the pawl 26 upward so that the pawl 26 is no longer engaged with the ratchet 24, then move the pawl 26 rightward, the return spring 25 rotates therewith, the pawl 26 moves rightward through the Z-shaped rod 22 to move the backrest 13 rightward, when the backrest 13 moves rightwards to be contacted with the protruding part of the cam 10, people can stop moving the pawl 26 rightwards, the return spring 25 is reset, then the pawl 26 is matched with the ratchet 24 again, then people can sit on the seat cushion 14, and swing the grips 8 on the front side and the rear side to do abdominal exercise, so that people can select whether to do abdominal exercise according to self needs.
While the present invention has been described with reference to exemplary embodiments, it is to be understood that the invention is not limited to the disclosed exemplary embodiments. The scope of the following claims is to be accorded the broadest interpretation so as to encompass all such modifications and equivalent structures and functions.

Claims (3)

1. The utility model provides a body-building massage equipment, comprising a base plate, L type pole, the sliding sleeve, the connecting rod, last word pole, the pendulum rod, carousel and E type pole, bottom plate top right side is equipped with E type pole, E type pole top is equipped with the sliding sleeve, the sliding formula is equipped with L type pole on the sliding sleeve, L type pole top front side rotation formula is connected with the connecting rod, the left side upper portion rotary type of E type pole is connected with a word pole and carousel, last word pole is located the carousel below, connecting rod lower extreme rotary type is connected with last word pole, the front side left part and the rear side right part of carousel all are connected with the pendulum rod, characterized by: the chair also comprises an upper sliding shaft, a pull rod, a handle, a cam, a first supporting rod, a backup plate, a backrest, a cushion, supporting rods, a Z-shaped rod and a first spring, wherein the left part of the front side of the oscillating bar is connected with the upper sliding shaft which is positioned in the upper straight rod and is in sliding fit with the upper straight rod, the outer sides of the oscillating bars at the front side and the rear side are rotatably connected with the pull rod, the lower end of the pull rod is provided with the handle, the right side of the top of the bottom plate is connected with the first supporting rod, the top of the first supporting rod is rotatably connected with the cam, the cam is positioned at the rear side of the L-shaped rod and is in sliding connection with the L-shaped rod, the right side of the top of the bottom plate is provided with four supporting rods, the cushion is arranged on the four supporting rods, a human model is placed on the cushion and is positioned below the handle, the middle part of, the top of the Z-shaped rod is provided with a backrest, and the top of the backrest is provided with a backup plate.
2. The fitness massage device of claim 1, wherein: still including preceding pedal, back pedal, the pouring weight, the dead lever, fixed cover, the guide arm, the swinging arms, second branch, next word pole and gliding axle, all be equipped with two dead levers around the bottom plate top left side, the dead lever upper end is equipped with fixed cover, equal slidingtype is equipped with the guide arm between two fixed covers of front and back both sides, the right-hand member rotary type of the guide arm in the place ahead is connected with preceding pedal, the right-hand member rotary type of the guide arm at rear is connected with back pedal, back pedal and preceding pedal bottom all are connected with the pouring weight, bottom plate top left side is equipped with second branch, second branch upper portion rotary type is equipped with the swinging arms, both parts all are connected with the gliding axle about the swinging arms, the left end of guide arm is connected with next word pole, the gliding axle is located next word pole.
3. The fitness massage device of claim 2, wherein: the ratchet is evenly arranged on the right side of the top of the bottom plate and located below the first spring, the return spring is connected to the front side of the left portion of the Z-shaped rod, the pawl is connected to the return spring, and the pawl is matched with the ratchet.
