CN108888476B

CN108888476B - Medical hand-cranking type leg rehabilitation equipment

Info

Publication number: CN108888476B
Application number: CN201810559547.3A
Authority: CN
Inventors: 张海萍; 惠晓丽; 刘惊涛; 李丹; 曾小敏
Original assignee: First Affiliated Hospital of Medical College of Xian Jiaotong University
Current assignee: First Affiliated Hospital of Medical College of Xian Jiaotong University
Priority date: 2018-06-02
Filing date: 2018-06-02
Publication date: 2020-05-26
Anticipated expiration: 2038-06-02
Also published as: CN108888476A

Abstract

The invention belongs to the technical field of medical rehabilitation equipment, and relates to medical hand-cranking type leg rehabilitation equipment. The invention aims to provide a medical hand-cranking type leg rehabilitation device which can be used for the leg rehabilitation of a patient by the patient. In order to solve the technical problems, the invention provides medical hand-cranking type leg rehabilitation equipment which comprises a machine base, straight chair legs, arc chair legs, a seat plate, a fixing plate, a sliding rod, a sliding plate, a connecting block, a foot placing plate, a first swing base, a first support, an eccentric wheel, a first small chain wheel, a middle chain wheel, a second small chain wheel, a first chain, a second support, a rotating shaft, a large chain wheel, a crank, a grab handle, a second chain, a second swing base, an electric push rod and a hinge base. The invention can drive the legs of the patient to move through the movement of the arms of the patient, and can massage the soles of the feet when the legs of the patient move, thereby preventing the feet from being paralyzed.

Description

Medical hand-cranking type leg rehabilitation equipment

Technical Field

The invention belongs to the technical field of medical rehabilitation equipment, and relates to medical hand-cranking type leg rehabilitation equipment.

Background

Recovery is generally performed in four stages after leg surgery:

in the first period: in the early stage of rehabilitation training, namely 1-2 weeks after injury, the injured limb is swollen and painful, the broken end of the fracture is unstable, and the injured limb is easy to displace again. Therefore, the main purpose of functional exercise is to promote blood circulation of the affected limb, to facilitate the subsidence of swelling and to stabilize the fracture. The patient can perform isometric contraction of muscles of quadriceps muscles of injured limbs, namely, rhythmic contraction and relaxation of the muscles, namely, the normal tightening and loosening, on the premise of keeping the joints still, and the muscular atrophy or adhesion can be prevented through isometric contraction of the muscles. The medicine is taken 4-5 times a day, and each time is about 5 minutes, so that the patient does not feel tired in legs. In combination with the active dorsal extension and plantar flexion of the ankle joint of the affected limb, the family members can massage the sole of the affected foot. The above movements do not interfere with the fixation of the fracture, do not facilitate the healing of the fracture, and especially do not do the internal and external rotation of the lower limbs. In this period of rehabilitation training, the upper and lower joints should not move except for the fracture in principle, and other parts of the body should move normally. The force should be gradual and violence cannot be used. In addition, patients and family members pay special attention to observe the swelling condition of the affected limb and the blood circulation condition of the affected limb periphery, such as the condition of persistent swelling and pain of the lower leg, numbness, coolness and pallor of toes, severe pain of the passively moving toes and the like, and need to find a doctor to perform appropriate treatment in time, which is tens of millions of people who cannot feel like tigers. And in the second stage, in the middle stage of rehabilitation training, namely 2-4 weeks after injury, the patient needs to go to a hospital for rechecking in addition to continuously doing the functional exercises, and the movement of the unfixed joint at the proximal end and the distal end of the fracture and the movement of the upper joint and the lower joint at the fracture part are gradually recovered according to the rechecking result so as to prevent the mobility of the joint adjacent to the joint from being reduced. The conditional patients can go to the hospital regularly and perform functional exercise with physical therapy under the guidance of the rehabilitation teacher. The rehabilitation training in this stage is carried out on the premise that the patient needs to go to a hospital for reexamination, and the external fixator (plaster or brace) is removed in due time according to the opinion of the attending physician to carry out the next rehabilitation training. For example, in the case of severe comminuted unstable fracture or multiple fracture, the rehabilitation training time without load bearing period should be properly prolonged according to the clinical X-ray radiography condition.

And in the third period, namely 5-6 weeks after the injury, the X-ray film is required to be reviewed, the range and the force of the movement can be further expanded according to the X-ray result, the active joint flexion and extension movement is gradually increased from one joint to a plurality of joints, the muscular atrophy is prevented, and the joint stiffness is avoided. According to the condition of fracture, the patient can hold the double-crutch lower bed to move, particularly the knee joint and the hip joint on the affected side, but the injured limb is strictly prevented from bearing load.

In the fourth stage, in the later stage of rehabilitation training, the fracture has already reached clinical healing or has been removed for external fixation, bony callus has formed at the time, X-ray examination has been developed, and the skeleton has a certain supporting force, but most of the bones have dysfunction such as joint mobility reduction and muscular atrophy of adjacent joints. The aim of the rehabilitation at this stage is to recover the joint mobility of the affected joint, strengthen the muscle strength and recover the limb function. The rehabilitation training is mainly started by the active movement and the weight-bearing exercise of the injured joints, so that the joints can be quickly restored to the normal movement range and the normal strength of the limbs. The rehabilitation can be carried out in the recovery period and simultaneously the physical therapy, gait training and the like can be matched. In a word, the aim of rehabilitation is to promote the recovery of the body function after fracture and prevent the occurrence of complications and secondary symptoms through targeted training. The principle of rehabilitation is progressive, with primary initiative and secondary complement. Gradual progression means that the amount and the amplitude of each activity gradually increase from small to large and from weak to strong; active as active and passive as auxiliary means that the muscle activity training of each joint is mainly that the patient stretches and bends, and is assisted by other people.

In the shank of fourth phase resumes the in-process, the fracture has reached clinical healing or has got rid of the external fixation, the skeleton has had certain support and has dug the supporting power, resume this moment and need the activity of the key small range of shank, activity patient shank is because articular joint activity degree descends in earlier stage, dysfunction such as muscular atrophy, make the patient can not oneself carry out limbs function recovery activity, need the manual auxiliary patient of medical personnel to resume, medical personnel can make medical personnel's arm ache for patient's activity shank for a long time, and it is relatively more time to occupy medical personnel, consequently need a patient can oneself carry out the medical treatment of shank recovery usefulness with rocking type shank rehabilitation equipment urgently.

Disclosure of Invention

(1) Technical problem to be solved

The invention aims to overcome the defects that medical staff can feel aching pain on arms of the medical staff when the medical staff moves legs for a long time, and the medical staff takes up time, and the technical problem to be solved by the invention is to provide a medical hand-operated leg rehabilitation device which can be used for the patients to perform leg rehabilitation by themselves.

(2) Technical scheme

In order to solve the technical problems, the invention provides medical hand-cranking type leg rehabilitation equipment, which comprises a machine base, straight chair legs, arc chair legs, a seat plate, a fixing plate, sliding rods, sliding plates, a connecting block, a foot placing plate, a first swinging seat, a first support, an eccentric wheel, a first small chain wheel, a middle chain wheel, a second small chain wheel, a first chain, a second support, a rotating shaft, a large chain wheel, a crank, a grab handle, a second chain, a second swinging seat, an electric push rod and a hinged seat, wherein the straight chair legs and the arc chair legs are fixed on the right side above the machine base, the straight chair legs are positioned on the right side of the arc chair legs, the seat plate is fixedly connected above the straight chair legs and the arc chair legs, the fixing plate is fixedly connected above the right sides of the arc chair legs, the two sliding rods are obliquely fixed below the fixing plate, the sliding plates are provided with two sliding holes, the two sliding rods respectively penetrate through the two sliding holes on the sliding plates and are, the first swing seat is positioned on the right sides of the two slide bars and is fixedly connected on the machine base, a first support is hinged on the first swing seat, the eccentric wheel is rotatably connected with the front side of the first support, the bottom of the foot placing plate is contacted with the outer ring of the eccentric wheel, a first small chain wheel is fixedly connected with the front side of the eccentric wheel, a middle chain wheel is rotatably connected with the front side above the first support, a second small chain wheel is fixedly connected with the front side of the middle chain wheel, the first small chain wheel is connected with the second small chain wheel through a first chain, the right end of the second support is fixedly connected with the left side above the left side of the first support, a rotating shaft is rotatably connected with the left side of the second support, a large chain wheel is fixedly connected on the rotating shaft, the large chain wheel is positioned on the front side of the second support, the large chain wheel is connected with the middle chain wheel through a second chain, a crank is fixedly connected with the front end and, articulated on the second swing seat have electric putter, electric putter's telescopic link is articulated with articulated seat, and articulated seat fixed connection is in the front side of first support.

Preferably, the foot plate comprises a first binding band, an upper eye-splice, a second binding band and a lower eye-splice, wherein the rear side of the foot placing plate is fixedly connected with the first binding band, the other end of the first binding band is connected with the upper eye-splice, the front side of the foot placing plate is fixedly connected with the second binding band, the other end of the second binding band is connected with the lower eye-splice, and the upper eye-splice is matched with the lower eye-splice.

Preferably, still including spring and massage button head pole, it has a plurality of cylinder recesses to open on the sole, all is connected with a spring in every cylinder recess, and the upper end of every spring all is connected with a massage button head pole.

Preferably, the anti-abrasion device further comprises a roller support and an anti-abrasion roller, two roller supports are fixedly connected below the foot placing plate, the two roller supports are respectively rotatably connected with the anti-abrasion roller, and the two anti-abrasion rollers are in contact with the eccentric wheel.

Preferably, the seat is provided with a sliding groove in the left side above the seat, the sliding block is connected in the sliding groove in a sliding mode, the upper portion of the sliding block is fixedly connected with the backrest, the seat is fixedly connected with the L-shaped support in the left side, the nut is fixedly connected to the upper end of the L-shaped support, the nut is matched in the nut with the ball head screw, the ball head screw is matched with the ball head clamping seat, and the ball head clamping seat is fixed to the left side of the backrest.

The working principle is as follows: during the use, the patient sits on the seat, put the foot on putting the sole, both hands hold the grab handle of both sides respectively, wave both sides crank through the grab handle, the crank drives big sprocket through the pivot and rotates, big sprocket passes through the second chain and drives well sprocket, well sprocket drives the rotation of the little sprocket of second, the rotation of first sprocket is driven through first chain to the little sprocket of second, the eccentric wheel that is connected with first sprocket rotates thereupon, the eccentric wheel rotates and pushes up and puts the sole and move down, slide with putting the sole and being connected has played the function of direction through the slide bar.

The ankle of the patient can be fixed through the matching of the upper insert buckle and the lower insert buckle, and the movement of the foot which is not recovered is prevented.

The patient can prevent to put on the sole board by light foot, can massage the arch of the foot face through putting the massage button head pole on the sole board.

When the eccentric wheel rotates, the eccentric wheel is in contact with the two anti-abrasion rollers, the eccentric wheel drives the two anti-abrasion rollers to rotate, the eccentric wheel is prevented from rubbing the foot placing plate, and a patient can use the device more conveniently.

The backrest can be adjusted to move back and forth by screwing the ball screw left and right, so that a patient can lean against the backrest.

(3) Advantageous effects

The invention can drive the legs of the patient to move through the movement of the arms of the patient, and the patient can adjust the restoring force by himself to avoid over restoring the joint mobility of the affected joint through the self restoration of the patient, and can massage the soles of the feet when the legs of the patient move to prevent the feet from being paralyzed.

Drawings

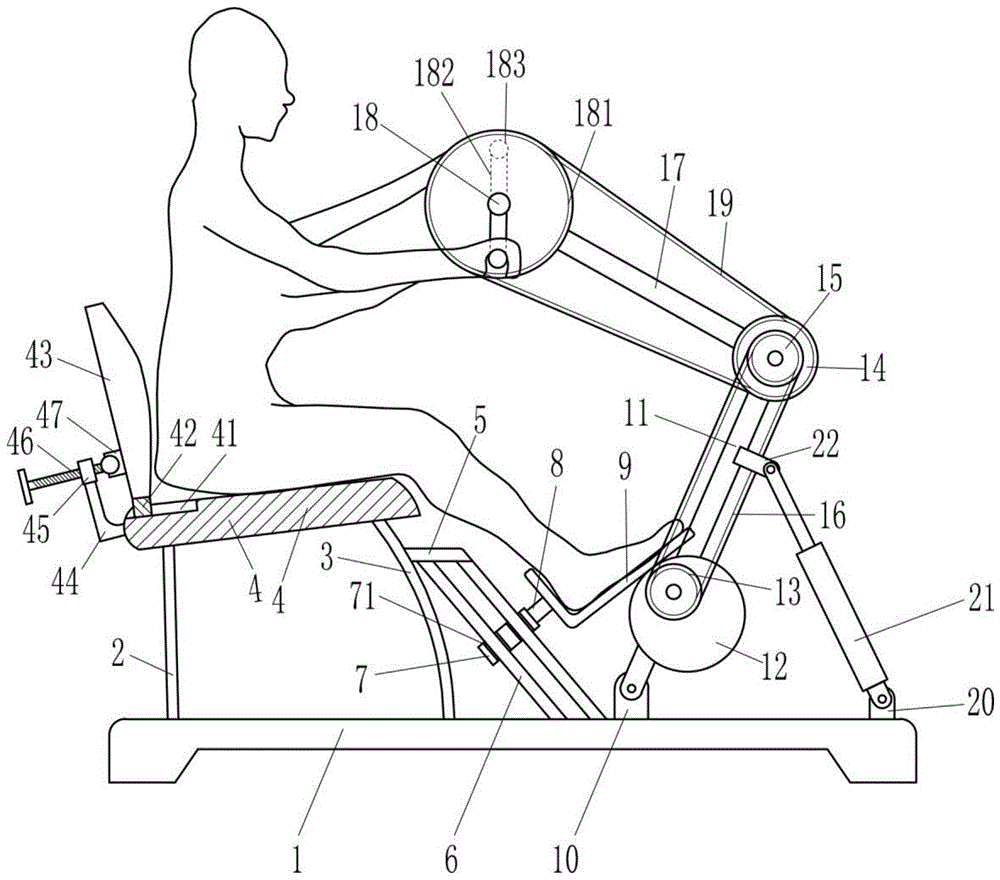

Fig. 1 is a schematic front view of the present invention.

Fig. 2 is a schematic perspective view of the foot rest plate according to the present invention.

Fig. 3 is a schematic front view of the foot rest according to the present invention.

Fig. 4 is a schematic front view of the foot rest according to the present invention.

The labels in the figures are: 1-machine base, 2-straight chair leg, 3-arc chair leg, 4-seat plate, 5-fixing plate, 6-sliding rod, 7-sliding plate, 71-sliding hole, 8-connecting block, 9-foot placing plate, 10-first swinging seat, 11-first support, 12-eccentric wheel, 13-first small chain wheel, 14-middle chain wheel, 15-second small chain wheel, 16-first chain, 17-second support, 18-rotating shaft, 181-large chain wheel, 182-crank, 183-grab handle, 19-second chain, 20-second swinging seat, 21-electric push rod, 22-hinged seat, 91-first bandage, 92-upper inserting buckle, 93-second bandage, 94-lower inserting buckle, 95-cylindrical groove, 96-spring, 97-massage round-head rod, 98-roller bracket, 99-anti-abrasion roller, 41-chute, 42-slider, 43-backrest, 44-L-shaped bracket, 45-nut, 46-ball-head screw and 47-ball-head clamping seat.

Detailed Description

The invention is further described below with reference to the figures and examples.

Example 1

A medical hand-rocking type leg rehabilitation device is shown in figures 1-4 and comprises a machine base 1, straight chair legs 2, arc chair legs 3, a seat plate 4, a fixing plate 5, sliding rods 6, sliding plates 7, a connecting block 8, a foot placing plate 9, a first swing seat 10, a first support 11, an eccentric wheel 12, a first small chain wheel 13, a middle chain wheel 14, a second small chain wheel 15, a first chain 16, a second support 17, a rotating shaft 18, a large chain wheel 181, a crank 182, a grab handle 183, a second chain 19, a second swing seat 20, an electric push rod 21 and a hinge seat 22, wherein the straight chair legs 2 and the arc chair legs 3 are fixed on the right side above the machine base 1, the straight chair legs 2 are positioned on the right side of the arc chair legs 3, the seat plate 4 is fixedly connected above the straight chair legs 2 and the arc chair legs 3, the fixing plate 5 is fixedly connected above the right side of the arc chair legs 3, the two sliding rods 6 are obliquely fixed below the fixing plate 5, and the sliding plates 71 are, two sliding rods 6 respectively pass through two sliding holes 71 on a sliding plate 7 to be fixed with a machine base 1, the right side of the sliding plate 7 is fixedly connected with a foot placing plate 9 through a connecting block 8, a first swing seat 10 is positioned at the right side of the two sliding rods 6 and is fixedly connected with the machine base 1, a first support 11 is hinged on the first swing seat 10, an eccentric wheel 12 is rotatably connected with the front side of the first support 11, the bottom of the foot placing plate 9 is contacted with the outer ring of the eccentric wheel 12, the front side of the eccentric wheel 12 is fixedly connected with a first small chain wheel 13, a middle chain wheel 14 is rotatably connected with the front side above the first support 11, the front side of the middle chain wheel 14 is fixedly connected with a second small chain wheel 15, the first small chain wheel 13 is connected with the second small chain wheel 15 through a first chain 16, the left side above the first support 11 is fixedly connected with the right end of the second support 17, the left side of the second support, big sprocket 181 is located the front side of second support 17, big sprocket 181 passes through second chain 19 with well sprocket 14 and is connected, both ends are one crank 182 of fixedly connected with respectively around pivot 18, be connected with grab handle 183 on the crank 182, second swing seat 20 is located the right side of first swing seat 10 and fixes on frame 1, it has electric putter 21 to articulate on second swing seat 20, electric putter 21's telescopic link is articulated with articulated seat 22, articulated seat 22 fixed connection is in the front side of first support 11.

Still including first bandage 91, go up eye-splice 92, second bandage 93 and lower eye-splice 94, put foot board 9 rear side fixedly connected with first bandage 91, the other end of first bandage 91 is connected with eye-splice 92, puts foot board 9 front side fixedly connected with second bandage 93, the second bandage 93 other end is connected with eye-splice 94 down, goes up eye-splice 92 and the cooperation of eye-splice 94 down.

The foot placing plate 9 is provided with a plurality of cylindrical grooves 95, each cylindrical groove 95 is internally connected with a spring 96, and the upper end of each spring 96 is connected with a massage round-head rod 97.

The foot placing plate is characterized by further comprising roller supports 98 and anti-abrasion rollers 99, the two roller supports 98 are fixedly connected below the foot placing plate 9, the two roller supports 98 are respectively rotatably connected with one anti-abrasion roller 99, and the two anti-abrasion rollers 99 are in contact with the eccentric wheel 12.

Still including slider 42, back 43, L shape support 44, nut 45, bulb screw rod 46 and bulb cassette 47, open on the left of 4 tops of seat has spout 41, the interior sliding type of spout 41 is connected with slider 42, slider 42's top fixedly connected with back 43, seat 4 left side fixedly connected with L shape support 44, L shape support 44's upper end fixedly connected with nut 45, nut 45 fit in has bulb screw rod 46, bulb screw rod 46 and the cooperation of bulb cassette 47, bulb cassette 47 fixes the left side at back 43.

The working principle is as follows: when the patient sits on the seat plate 4, feet are placed on the foot placing plate 9, two hands respectively hold the handles 183 on two sides, the handles 183 on two sides are shaken by the handles 183, the crank 182 drives the large chain wheel 181 to rotate through the rotating shaft 18, the large chain wheel 181 drives the middle chain wheel 14 through the second chain 19, the middle chain wheel 14 drives the second small chain wheel 15 to rotate, the second small chain wheel 15 drives the first chain wheel to rotate through the first chain 16, the eccentric wheel 12 connected with the first chain wheel rotates along with the first chain wheel, the eccentric wheel 12 rotates to push the foot placing plate 9 to move downwards, and the sliding plate 7 connected with the foot placing plate 9 plays a role in guiding through the sliding rod 6.

The patient's ankle is secured against movement of the foot that has not yet recovered by the cooperation of the upper and

lower buckles

92, 94.

The patient can light the foot and prevent putting on foot board 9, can massage the arch of the foot face through putting the massage button head pole 97 on the foot board 9.

When the eccentric wheel 12 rotates, the eccentric wheel 12 contacts with the two anti-abrasion rollers 99, the eccentric wheel 12 drives the two anti-abrasion rollers 99 to rotate, the eccentric wheel 12 is prevented from rubbing the foot placing plate 9, and the use of a patient is more labor-saving.

The backrest 43 can be adjusted to move forward and backward by screwing the ball screw 46 left and right, so that the patient can lean against the backrest 43.

The above examples are merely representative of preferred embodiments of the present invention, and the description thereof is more specific and detailed, but not to be construed as limiting the scope of the present invention. It should be noted that, for those skilled in the art, various changes, modifications and substitutions can be made without departing from the spirit of the present invention, and these are all within the scope of the present invention. Therefore, the protection scope of the present patent shall be subject to the appended claims.

Claims

1. A medical hand-operated leg rehabilitation device is characterized by comprising a machine base (1), straight chair legs (2), arc chair legs (3), a seat plate (4), a fixing plate (5), a sliding rod (6), a sliding plate (7), a connecting block (8), a foot placing plate (9), a first swing seat (10), a first support (11), an eccentric wheel (12), a first small chain wheel (13), a middle chain wheel (14), a second small chain wheel (15), a first chain (16), a second support (17), a rotating shaft (18), a large chain wheel (181), a crank (182), a grab handle (183), a second chain (19), a second swing seat (20), an electric push rod (21) and a hinged seat (22), wherein the straight chair legs (2) and the arc chair legs (3) are fixed on the right side above the machine base (1), the straight chair legs (2) are positioned on the right side of the arc chair legs (3), the seat plate (4) is fixedly connected above the straight chair legs (2) and the arc chair legs (3), a fixing plate (5) is fixedly connected above the right side of the arc chair leg (3), two sliding rods (6) are obliquely fixed below the fixing plate (5), two sliding holes (71) are formed in the sliding plate (7), the two sliding rods (6) respectively penetrate through the two sliding holes (71) in the sliding plate (7) to be fixed with the machine base (1), the right side of the sliding plate (7) is fixedly connected with a foot placing plate (9) through a connecting block (8), a first swinging seat (10) is positioned on the right sides of the two sliding rods (6) and fixedly connected to the machine base (1), a first support (11) is hinged to the first swinging seat (10), an eccentric wheel (12) is rotatably connected with the front side of the first support (11), the bottom of the foot placing plate (9) is contacted with the outer ring of the eccentric wheel (12), a first small chain wheel (13) is fixedly connected to the front side of the eccentric wheel (12), a middle chain wheel (14) is rotatably connected with the front, the front side of the middle chain wheel (14) is fixedly connected with a second small chain wheel (15), the first small chain wheel (13) is connected with the second small chain wheel (15) through a first chain (16), the upper part of the left side of the first support (11) is fixedly connected with the right end of the second support (17), the left side of the second support (17) is rotatably connected with a rotating shaft (18), the rotating shaft (18) is fixedly connected with a large chain wheel (181), the large chain wheel (181) is positioned at the front side of the second support (17), the large chain wheel (181) is connected with the middle chain wheel (14) through a second chain (19), the front end and the rear end of the rotating shaft (18) are respectively and fixedly connected with a crank (182), the crank (182) is connected with a grab handle (183), the second swinging seat (20) is positioned at the right side of the first swinging seat (10) and fixed on the machine base (1), the second swinging seat (20) is hinged with an electric push rod (21), and a telescopic rod of the electric push, the hinged seat (22) is fixedly connected to the front side of the first bracket (11).

2. The medical hand-cranking type leg rehabilitation device according to claim 1, further comprising a first bandage (91), an upper eye-splice (92), a second bandage (93) and a lower eye-splice (94), wherein the first bandage (91) is fixedly connected to the rear side of the foot placing plate (9), the upper eye-splice (92) is connected to the other end of the first bandage (91), the second bandage (93) is fixedly connected to the front side of the foot placing plate (9), the lower eye-splice (94) is connected to the other end of the second bandage (93), and the upper eye-splice (92) is matched with the lower eye-splice (94).

3. The medical hand-cranking leg rehabilitation device as claimed in claim 2, further comprising a spring (96) and a massage round-head rod (97), wherein a plurality of cylindrical grooves (95) are formed in the foot placing plate (9), a spring (96) is connected in each cylindrical groove (95), and the upper end of each spring (96) is connected with a massage round-head rod (97).

4. The medical hand-cranking leg rehabilitation equipment as claimed in claim 3, further comprising a roller bracket (98) and an anti-wear roller (99), wherein two roller brackets (98) are fixedly connected below the foot placing plate (9), an anti-wear roller (99) is rotatably connected to each of the two roller brackets (98), and the two anti-wear rollers (99) are in contact with the eccentric wheel (12).

5. The medical hand-cranking type leg rehabilitation equipment as claimed in claim 1, further comprising a sliding block (42), a backrest (43), an L-shaped support (44), a nut (45), a ball head screw (46) and a ball head clamping seat (47), wherein a sliding groove (41) is formed in the left side above the seat plate (4), the sliding block (42) is connected to the sliding groove (41) in an inner sliding mode, the backrest (43) is fixedly connected to the upper portion of the sliding block (42), the L-shaped support (44) is fixedly connected to the left side of the seat plate (4), the nut (45) is fixedly connected to the upper end of the L-shaped support (44), the ball head screw (46) is matched to the nut (45) in the inner matching mode, the ball head screw (46) is matched with the ball head clamping seat (47), and the ball head clamping seat (47).
