Abstract
The invention discloses a movable domestic sewage treatment device capable of preventing blockage, which comprises a base, wherein a plurality of travelling mechanisms are arranged on the lower side wall of the base, a sewage treatment box is arranged on the upper side wall of the base, a sewage treatment area, a clean water area and an oil discharge area are arranged in the sewage treatment box, the clean water area and the oil discharge area are positioned at the inner bottom of the sewage treatment box, a first partition plate and a second partition plate are arranged between the sewage treatment area and the clean water area as well as between the sewage treatment area and the oil discharge area, a third partition plate is arranged between the clean water area and the oil discharge area, and the upper side of the third partition plate penetrates through the second partition plate and is fixedly connected with the lower side wall of the first partition plate. According to the invention, scum left after sewage treatment is carried out above the first partition board in the besland is pushed out, so that the phenomenon that the scum blocks a primary filter screen to influence the treatment of domestic sewage is avoided, and meanwhile, grease in the scum is adsorbed and then extruded out for centralized treatment, so that the sewage treatment process is accelerated, and the device has a simple structure, and is convenient and practical.
Description
Technical Field
The invention relates to the technical field of sewage treatment, in particular to a movable domestic sewage treatment device capable of preventing blockage.
Background
Domestic sewage is wastewater discharged in daily life of residents and mainly comes from residential buildings and public buildings, such as houses, institutions, schools, hospitals, shops, public places, industrial enterprise toilets and the like. The pollutants contained in the domestic sewage are mainly organic matters and a large number of pathogenic microorganisms. Bacteria and pathogens propagate in large quantities by taking organic matters in the domestic sewage as nutrition, which can cause epidemic infectious diseases, so the domestic sewage must be treated before being discharged, the domestic sewage contains various impurities, and the domestic sewage is easy to block when being filtered, thereby influencing the process of treating the domestic sewage.
Disclosure of Invention
The invention aims to solve the problem that the domestic sewage in the prior art contains various impurities and is easy to be blocked when being filtered, so that the treatment process of the domestic sewage is influenced, and provides a mobile domestic sewage treatment device for preventing blockage.
In order to achieve the purpose, the invention adopts the following technical scheme:
a movable domestic sewage treatment device capable of preventing blockage comprises a base, wherein a plurality of travelling mechanisms are arranged on the lower side wall of the base, a sewage treatment box is arranged on the upper side wall of the base, a sewage treatment area, a clean water area and an oil discharge area are arranged in the sewage treatment box, the clean water area and the oil discharge area are positioned at the inner bottom of the sewage treatment box, a first partition plate and a second partition plate are arranged between the sewage treatment area and the clean water area as well as between the sewage treatment area and the oil discharge area, a third partition plate is arranged between the clean water area and the oil discharge area, the upper side of the third partition plate penetrates through the second partition plate and is fixedly connected with the lower side wall of the first partition plate, a crushing box is arranged on the upper side wall of the sewage treatment box and is communicated with the inside of the sewage treatment area, an inlet pipe is inserted into the upper side wall of the crushing box, two crushing rods are arranged in the crushing box, and mutually meshed crushing teeth are arranged on the, the crushing box is characterized in that two mounting openings are formed in the inner walls of two sides of the crushing box, a bearing is arranged in each mounting opening, a rotating rod is arranged at one end of each crushing rod, one end of each rotating rod, far away from the crushing rod, is inserted into the bearing, a first motor is arranged on the upper side wall of the sewage treatment box, belt pulleys are sleeved on the two rotating rods, which are close to the first motor, a first belt is sleeved between the two belt pulleys, the driving end of the first motor penetrates through the outer wall of one side of the crushing box and is fixedly connected with one end of one rotating rod, far away from the crushing rod, a second motor and a supporting plate are further arranged on the upper side wall of the base, a rotating shaft is inserted in the supporting plate and sleeved with a rotating wheel, a second belt is sleeved between the rotating shaft and the driving end of the second motor, and a fixing plate is arranged on the side wall, close to the second motor, the lower side wall of the fixed plate is provided with a sliding groove, a first L-shaped plate is connected in the sliding groove in a sliding manner, a connecting rod is connected between the rotating wheel and the first L-shaped plate in a rotating manner, one end, far away from the fixed plate, of the first L-shaped plate penetrates through the side wall of the sewage treatment box and extends to the inside of a sewage treatment area, a push plate is connected with the side wall of the sewage treatment box, an oil absorption layer is arranged on one side, far away from the first L-shaped plate, of the sewage treatment box, a slag outlet is formed in one side, far away from the fixed plate, of the sewage treatment box, a second L-shaped plate is connected in the slag outlet in a rotating manner, one end of the second L-shaped plate is matched with the size of the slag outlet, a cavity is formed in the second L-shaped plate, two loop bars are arranged in the cavity, a spring is, the spring is located between the upper side inner wall of slide and cavity, the slide is kept away from the one end of second L template and is rotated and be connected with the third L template, the one end that the slide was kept away from to the third L template is equipped with perpendicular decurrent turn-ups.
Preferably, each walking mechanism is a universal wheel with a brake device.
Preferably, all be equipped with the spacing groove on the both sides inner wall of spout, the one end both sides lateral wall that first L template is located the spout all is equipped with the limiting plate, every the limiting plate all is located one of them spacing inslot and the inner wall sliding connection of spacing groove.
Preferably, a clamping groove matched with the flanging in size is formed in one side, close to the third L-shaped plate, of the upper side wall of the sewage treatment box.
Preferably, first installing port and placing port have been seted up to the last lateral wall of first baffle, primary filter screen has been installed to first installing port in, place and seted up the spacing groove on the both sides inner wall of port.
Preferably, all be equipped with the extension board on the one end both sides lateral wall that the third L template was kept away from to the second L template, one side that the second L template is close to first baffle is equipped with the stripper plate, the one end that the third L template was kept away from to the second L template and the size phase-match of placing the mouth, the size phase-match of extension board and spacing groove.
Preferably, a second mounting opening and a communicating opening are formed in the upper side wall of the second partition plate, a secondary filter screen is arranged in the second mounting opening, and the communicating opening is communicated with the inside of the placing opening.
Preferably, the junction of first L template and sewage treatment case, the junction of second L template and slag notch and placing the mouth all are equipped with the sealing layer.
In the invention, domestic sewage enters a crushing box through a feeding pipe, a first motor is started, two crushing rods are driven to mutually mesh and rotate through a rotating rod and a first belt, large impurities in the domestic sewage are crushed and then flow into a sewage treatment area for sewage filtration, the domestic sewage is filtered by a primary filter screen in the sewage treatment area, then the impurities with larger particles are left above a first partition plate and flow into a clear water area after being filtered by a secondary filter screen, the impurities in the domestic sewage are more, when slag removal is required to be performed on the upper side of the first partition plate, the discharge of the domestic sewage is closed, a second motor is started, a rotating wheel is driven to rotate through a second belt, one end of a connecting rod is driven to do circular motion along with the rotation of the rotating wheel, the other end of the connecting rod can pull a first L-shaped plate to do left-right reciprocating motion, so that scum above the first partition plate can be pushed to the upper side of a second L-shaped, simultaneously the oil absorption layer adsorbs the grease in the dross, upwards stimulate third L template and make the turn-ups break away from the draw-in groove, rotate toward the outside and make the one end of third L template rotate from the slag notch, the slag notch is plugged up to the other end of third L template, the outer wall of sewage treatment case can be derived to the dross of lateral wall on the third L template, the push pedal continues the motion, extrude with the stripper plate, the grease in the oil absorption layer falls to the oil drainage district along with the extrusion, carry out centralized processing. According to the invention, scum left after sewage treatment is carried out above the first partition board in the besland is pushed out, so that the phenomenon that the scum blocks a primary filter screen to influence the treatment of domestic sewage is avoided, and meanwhile, grease in the scum is adsorbed and then extruded out for centralized treatment, so that the sewage treatment process is accelerated, and the device has a simple structure, and is convenient and practical.
Drawings

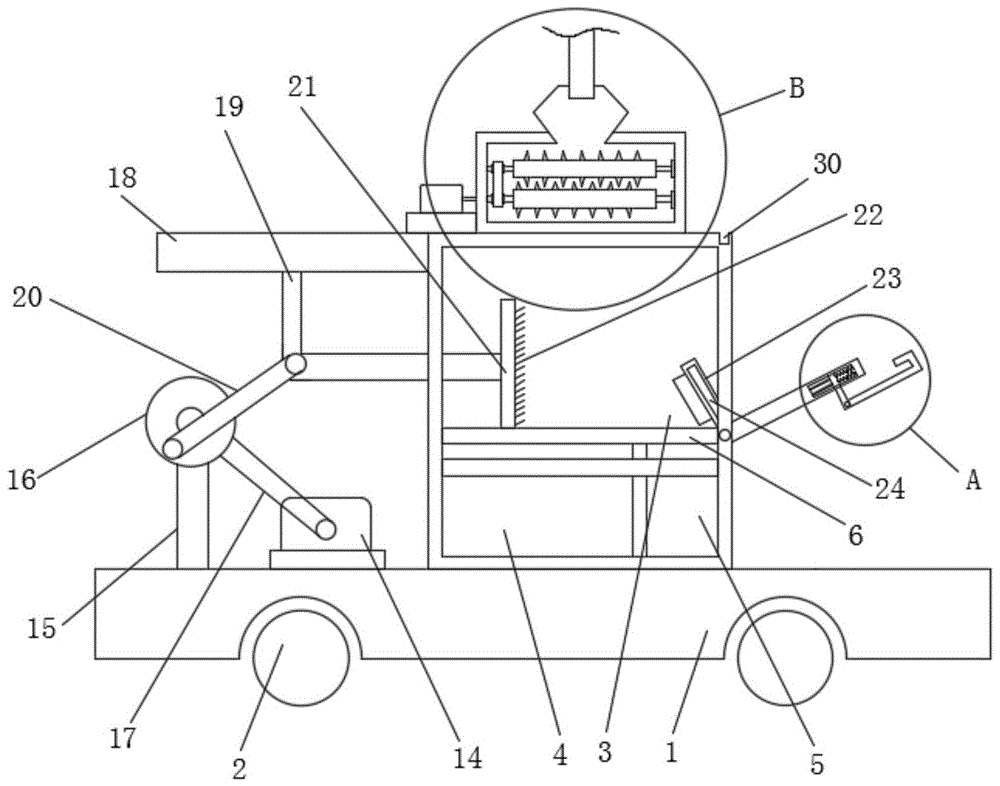

FIG. 1 is a schematic structural diagram of a mobile anti-clogging domestic sewage treatment apparatus according to the present invention;
FIG. 2 is an enlarged schematic structural view of a part B of a mobile anti-clogging domestic sewage treatment apparatus according to the present invention;
FIG. 3 is an enlarged schematic structural view of a portion A of a mobile anti-clogging domestic sewage treatment apparatus according to the present invention;
FIG. 4 is a schematic structural view of a side view of a joint between a fixed plate and a first L-shaped plate of the mobile domestic sewage treatment device for preventing blockage according to the present invention;
FIG. 5 is a schematic top view of a partition plate of a mobile anti-clogging sewage treatment apparatus according to the present invention.
In the figure: the device comprises a base 1, universal wheels 2, a sewage treatment area 3, a clean water area 4, an oil discharge area 5, a first clapboard 6, a crushing box 7, a feeding pipe 8, a crushing rod 9, a bearing 10, a belt pulley 11, a first belt 12, a first motor 13, a second motor 14, a support plate 15, a rotating wheel 16, a second belt 17, a fixing plate 18, a first L-shaped plate 19, a connecting rod 20, a push plate 21, an oil absorption layer 22, a second L-shaped plate 23, an extension plate 24, a loop bar 25, a spring 26, a sliding plate 27, a third L-shaped plate 28, a flanging 29, a clamping groove 30, a primary filter screen 31, a placing opening 32, a limiting groove 33, a sliding groove 34 and a limiting plate 35.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, are merely for convenience in describing the present invention and simplifying the description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.
Referring to fig. 1-5, a mobile domestic sewage treatment device for preventing blockage, comprising a base 1, wherein a plurality of running mechanisms are arranged on the lower side wall of the base 1, each running mechanism is a universal wheel 2 with a brake device, the movement of the sewage treatment device is facilitated through the universal wheel 2, the applicability is wider, the stability of the treatment device is ensured through the brake device, a sewage treatment tank is arranged on the upper side wall of the base 1, a sewage treatment zone 3, a clean water zone 4 and an oil discharge zone 5 are arranged in the sewage treatment tank, the clean water zone 4 and the oil discharge zone 5 are positioned at the inner bottom of the sewage treatment tank, a first partition plate 6 and a second partition plate are arranged between the sewage treatment zone 3 and the clean water zone 4 as well as the oil discharge zone 5, a third partition plate is arranged between the clean water zone 4 and the oil discharge zone 5, the upper side of the third partition plate penetrates through the second partition plate and is fixedly connected with the lower side wall of the first partition plate 6, a crushing tank 7, the crushing box 7 is communicated with the inside of the sewage treatment area 3, a feeding pipe 8 is inserted into the upper side wall of the crushing box 7, two crushing rods 9 are arranged in the crushing box 7, the outer walls of the two crushing rods 9 are provided with mutually meshed crushing teeth, two mounting ports are respectively formed in the inner walls of two sides of the crushing box 7, a bearing 10 is respectively arranged in each mounting port, one end of each crushing rod 9 is provided with a rotating rod, one end of each rotating rod, far away from the crushing rods 9, is inserted into the bearing, the rotating rods and the crushing rods 9 are limited through the bearings, the rotating stability is ensured, the upper side wall of the sewage treatment box is provided with a first motor 13, belt pulleys 11 are respectively sleeved on the two rotating rods, close to the first motor 13, a first belt 12 is commonly sleeved between the two belt pulleys 11, the driving end of the first motor 13 penetrates through the outer wall of one side of the crushing box 7 and is fixedly connected with one end, far away from the crushing rods 9, of, domestic sewage enters the crushing box 7 through the feeding pipe 8, the first motor 13 is started, the two crushing rods 9 are driven to rotate in an intermeshing manner through the rotating rod and the first belt 12, large impurities in the domestic sewage are crushed and then flow into the sewage treatment area 3 for sewage filtration, the domestic sewage is filtered by the primary filter screen 31 in the sewage treatment area 3, then the impurities with large particles are left above the first partition plate 6, the upper side wall of the base 1 is also provided with the second motor 14 and the support plate 15, the support plate 15 is inserted with the rotating shaft, the rotating shaft is sleeved with the rotating wheel, the second belt 17 is sleeved between the rotating shaft and the driving end of the second motor 14, the side wall of the sewage treatment box close to the second motor 14 is provided with the fixing plate 18, the lower side wall of the fixing plate 18 is provided with the sliding groove 34, the sliding groove 34 is connected with the first L-shaped plate 19 in the sliding groove 34 in a sliding way, and the, the side walls of two sides of one end of the first L-shaped plate 19, which is positioned in the sliding groove, are provided with limiting plates 35, each limiting plate 35 is positioned in one limiting groove and is in sliding connection with the inner wall of the limiting groove, when the first L-shaped plate 19 slides in the sliding groove 34, the first L-shaped plate 19 is prevented from being separated from the sliding groove 34 through the matching of the limiting plates 35 and the limiting plates, the rotating wheel 16 and the first L-shaped plate 19 are rotatably connected with a connecting rod 20, one end of the first L-shaped plate 19, which is far away from the fixing plate 18, penetrates through the side wall of the sewage treatment box and extends to the inside of the sewage treatment area 3 and is connected with a push plate 21, one side of the push plate 21, which is far away from the first L-shaped plate 19, is provided with an oil absorption layer 22, one side of the sewage treatment box, which is far away from the fixing plate 18, is provided with, a cavity is arranged in the second L-shaped plate 23, two loop bars 25 are arranged in the cavity, each loop bar 25 is sleeved with a spring 26, the outer wall of the second L-shaped plate 23 is provided with a sliding groove, the sliding groove is connected with a sliding plate 27 in a sliding way, one end of the sliding plate 27 is positioned in the sliding groove and sleeved on the two loop bars 25, the spring 26 is positioned between the sliding plate 27 and the upper inner wall of the cavity, one end of the sliding plate 27 far away from the second L-shaped plate 23 is rotatably connected with a third L-shaped plate 28, one end of the third L-shaped plate 28 far away from the sliding plate 27 is provided with a vertical downward flanging 29, one side of the upper side wall of the sewage treatment box close to the third L-shaped plate 28 is provided with a clamping groove 30 matched with the size of the flanging 29, the third L-shaped plate 28 is pulled upwards, the sliding plate 27 slides upwards on the loop bars 25, the flanging 29 is placed in the clamping groove 30, the second L-shaped plate 23 is, closing the discharge of domestic sewage, starting the second motor 14, driving the rotating wheel 16 to rotate through the second belt 17, driving one end of the connecting rod 20 to do circular motion along with the rotation of the rotating wheel 16, driving the other end of the connecting rod 20 to pull the first L-shaped plate 19 to do left-right reciprocating motion, pushing the floating slag above the first partition plate 6 to the upper side of the second L-shaped plate 23 above the placing opening 32, simultaneously absorbing oil layer 22 absorbing grease in the floating slag, the upper side wall of the first partition plate 6 is provided with a first mounting opening and the placing opening 32, the first mounting opening is internally provided with a primary filter screen 31, the inner walls of the two sides of the placing opening 32 are provided with limiting grooves 33, the side walls of the two sides of one end of the second L-shaped plate 23 far away from the third L-shaped plate 28 are both provided with extension plates 24, one side of the second L-shaped plate 23 near the first partition plate 6 is provided with an extrusion plate, one end of the second L-shaped plate, the extension plate 24 is matched with the limiting groove 33 in size, so that the sealing performance of the second L-shaped plate 23 and the extension plate 24 on the connection between the placing port 32 and the limiting groove 33 is ensured, the upper side wall of the second partition plate is provided with a second mounting port and a communicating port, a secondary filter screen is arranged in the second mounting port, the communicating port is communicated with the inside of the placing port 32, the connecting part of the first L-shaped plate 19 and the sewage treatment box and the connecting part of the second L-shaped plate 23 and the slag outlet and the placing port 32 are respectively provided with a sealing layer, the leakage phenomenon during sewage treatment is avoided by arranging the sealing layers, the ordered operation of sewage treatment is ensured, when scum and grease treatment is carried out, the third L-shaped plate 28 is pulled upwards to separate the flanging 29 from the clamping groove, the third L-shaped plate 28 rotates outwards to enable one end of the third L-shaped plate 28 to rotate away from the slag outlet, the scum on the upper side wall of the third L-shaped plate 28 can be led out of the outer, the push plate 21 continues to move and is extruded with the extrusion plate, and the grease in the oil absorption layer 22 falls into the oil discharge area 5 along with the extrusion, so that the centralized processing of the grease is carried out.
In the invention, domestic sewage enters a crushing box 7 through a feeding pipe 8, a first motor 13 is started, two crushing rods 9 are driven to mutually engage and rotate through a rotating rod and a first belt 12, large impurities in the domestic sewage are crushed and then flow into a sewage treatment area 3 for sewage filtration, the domestic sewage is filtered by a primary filter screen 31 in the sewage treatment area 3, then the large-particle impurities are left above a first partition plate 6 and flow into a clear water area 4 after being filtered by a secondary filter screen, the impurities in the domestic sewage are more, when the slag removal needs to be carried out above the first partition plate 6, the discharge of the domestic sewage is closed, a second motor 14 is started, a rotating wheel 16 is driven to rotate through a second belt 17, one end of a connecting rod 20 is driven to do circular motion along with the rotation of the rotating wheel 16, the other end of the connecting rod 20 can pull a first L-shaped plate 19 to do left-right reciprocating motion, and the scum above the first partition plate 6 can be pushed to the upper side of a second L-shaped plate 23 above a placing opening 32, simultaneously, the oil absorption layer 22 absorbs grease in the scum, the third L-shaped plate 28 is upwards pulled to separate the flanging 29 from the clamping groove, one end of the third L-shaped plate 28 is rotated away from the slag hole toward the outer side, the slag hole is blocked by the other end of the third L-shaped plate 28, the scum on the upper side wall of the third L-shaped plate 28 can be led out of the outer wall of the sewage treatment box, the push plate 21 continues to move and is extruded with the extrusion plate, and the grease in the oil absorption layer 22 falls into the oil discharge area 5 along with the extrusion and is subjected to centralized treatment.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and the technical solutions and the inventive concepts thereof according to the present invention should be equivalent or changed within the scope of the present invention.
Claims (5)
1. The utility model provides a portable domestic sewage treatment device who prevents to block up, includes base (1), its characterized in that, the lower lateral wall of base (1) is equipped with a plurality of running gear, be equipped with sewage treatment case on the last lateral wall of base (1), be equipped with sewage treatment district (3), clear water district (4) and oil extraction district (5) in the sewage treatment case, clear water district (4) and oil extraction district (5) are located the interior bottom of sewage treatment case, be equipped with first baffle (6) and second baffle between sewage treatment district (3) and clear water district (4) and oil extraction district (5), be equipped with the third baffle between clear water district (4) and oil extraction district (5), the upside of third baffle runs through the lower lateral wall fixed connection of second baffle and first baffle (6), the last lateral wall of sewage treatment case is equipped with smashes case (7), smashes case (7) and the inside intercommunication in sewage treatment district (3), an inlet pipe (8) is inserted into the upper side wall of the crushing box (7), two crushing rods (9) are arranged in the crushing box (7), mutually meshed crushing teeth are arranged on the outer walls of the two crushing rods (9), two mounting ports are formed in the inner walls of the two sides of the crushing box (7), a bearing (10) is arranged in each mounting port, a rotating rod is arranged at one end of each crushing rod (9), one end, far away from the crushing rods (9), of each rotating rod is inserted into the bearing, a first motor (13) is arranged on the upper side wall of the sewage treatment box, belt pulleys (11) are sleeved on the two rotating rods, a first belt (12) is sleeved between the two belt pulleys (11), and the driving end of the first motor (13) penetrates through the outer wall of one side of the crushing box (7) and is fixedly connected with one end, far away from the crushing rods (9), of one rotating rod, the side wall still is equipped with second motor (14) and backup pad (15) on base (1), it is equipped with the pivot to insert in backup pad (15), the cover is equipped with the runner in the pivot, the common cover is equipped with second belt (17) between the drive end of pivot and second motor (14), be equipped with fixed plate (18) on the side wall that sewage treatment box is close to second motor (14), spout (34) have been seted up to the lower side wall of fixed plate (18), sliding connection has first L template (19) in spout (34), it is connected with connecting rod (20) to rotate between runner (16) and first L template (19), the one end that fixed plate (18) were kept away from in first L template (19) runs through the inside that the lateral wall of sewage treatment box extended to sewage treatment district (3) and is connected with push pedal (21), one side that first L template (19) were kept away from in push pedal (21) is equipped with oil absorption layer (22), a slag hole is arranged on one side of the sewage treatment box far away from the fixed plate (18), a second L-shaped plate (23) is rotationally connected in the slag hole, one end of the second L-shaped plate (23) is matched with the size of the slag outlet, a cavity is arranged in the second L-shaped plate (23), two loop bars (25) are arranged in the cavity, each loop bar (25) is sleeved with a spring (26), the outer wall of the second L-shaped plate (23) is provided with a sliding groove, a sliding plate (27) is connected in the sliding groove in a sliding way, one end of the sliding plate (27) is positioned in the sliding groove and sleeved on the two loop bars (25), the spring (26) is located between the slide plate (27) and the upper inner wall of the cavity, one end of the sliding plate (27) far away from the second L-shaped plate (23) is rotatably connected with a third L-shaped plate (28), one end, far away from the sliding plate (27), of the third L-shaped plate (28) is provided with a vertically downward flanging (29);
a first mounting opening and a placing opening (32) are formed in the upper side wall of the first partition plate (6), a primary filter screen (31) is arranged in the first mounting opening, and limiting grooves (33) are formed in the inner walls of the two sides of the placing opening (32);
the side walls of two sides of one end, far away from the third L-shaped plate (28), of the second L-shaped plate (23) are respectively provided with an extension plate (24), one side, close to the first partition plate (6), of the second L-shaped plate (23) is provided with an extrusion plate, one end, far away from the third L-shaped plate (28), of the second L-shaped plate (23) is matched with the size of the placement opening (32), and the extension plates (24) are matched with the size of the limiting grooves (33);
the second installing port and the communicating port are formed in the upper side wall of the second partition plate, a secondary filter screen is arranged in the second installing port, and the communicating port is communicated with the inside of the placing port (32).
2. The mobile anti-clogging domestic sewage treatment unit according to claim 1, wherein each of said traveling mechanisms is a universal wheel (2) with a brake.
3. The movable domestic sewage treatment device for preventing blockage according to claim 1, wherein the inner walls of the two sides of the chute (34) are provided with limiting grooves, the side walls of the two sides of one end of the first L-shaped plate (19) in the chute are provided with limiting plates (35), and each limiting plate (35) is positioned in one of the limiting grooves and is in sliding connection with the inner wall of the limiting groove.
4. The movable domestic sewage treatment device for preventing blockage according to claim 1, wherein a clamping groove (30) matched with the size of the flanging (29) is formed in one side, close to the third L-shaped plate (28), of the upper side wall of the sewage treatment tank.
5. The mobile anti-clogging domestic sewage treatment device according to claim 1, wherein the joints of the first L-shaped plate (19) and the sewage treatment tank and the joints of the second L-shaped plate (23) and the slag outlet and the placing port (32) are provided with sealing layers.
