Abstract

The invention discloses a compressor assembly, an outdoor unit and an air conditioner. The compressor assembly includes a compressor and a wrapping layer, and the wrapping layer wraps the casing of the compressor; the wrapping layer includes a sound-absorbing layer and a wrapping layer. A sound insulation layer; the sound absorption layer and the sound insulation layer are sequentially covered on the surface of the casing, and the sound absorption layer is attached to the casing; the sound absorption layer and/or the sound insulation layer comprise foamed materials. By attaching the wrapping layer to the casing, the invention increases the damping of the casing vibration and reduces the vibration frequency of the compressor; the sound absorbing layer and the sound insulating layer can absorb and block the compressor vibration at the same time; the sound absorbing layer and the sound insulating layer can also simultaneously Blocks and absorbs the sound produced by compressor vibration.

Description

Compressor components, outdoor units and air conditioners

technical field

The present invention relates to the technical field of air conditioners, in particular to a compressor assembly, an outdoor unit and an air conditioner.

Background technique

There is a compressor installed in the outdoor unit of the air conditioner. Due to the working nature of the compressor, vibration will inevitably occur during its operation. The vibration of the compressor is transmitted through the compressor itself and the components connected to the compressor to generate noise. , causing noise pollution to the environment around the compressor.

SUMMARY OF THE INVENTION

The main purpose of the present invention is to provide a compressor assembly, an outdoor unit and an air conditioner aimed at reducing the transmission of noise generated by the compressor.

In order to achieve the above object, the compressor assembly proposed by the present invention includes a compressor and a wrapping layer, the compressor is installed in the casing, and the wrapping layer wraps the casing of the compressor; the wrapping layer includes A sound-absorbing layer and a sound-insulating layer; the sound-absorbing layer and the sound-insulating layer are sequentially covered on the surface of the shell, and the sound-absorbing layer is attached to the shell; the sound-absorbing layer and/or the sound-insulating layer include foamed materials.

Preferably, the sound absorbing layer and/or the sound insulating layer comprise fluid pockets, and/or colloidal elastomers.

Preferably, the sound absorbing layer and/or the sound insulating layer includes a noise reduction carrier, and the noise reduction carrier has several independent accommodation spaces, and each accommodation space accommodates noise reduction particles, noise reduction powder and noise reduction fluid. one or more of.

Preferably, the compressor assembly further includes a mounting post for installing the compressor; a mounting plate is provided on the casing, and the compressor is suspended on the mounting post through the mounting plate.

Preferably, the air outlet pipe of the compressor is communicated with the air outlet of the compressor, and the wrapping layer wraps the air outlet pipe.

Preferably, the air intake pipe of the compressor communicates with the air inlet of the compressor, and the wrapping layer wraps the air intake pipe.

Preferably, the compressor assembly further includes a gas-liquid separator, the gas outlet of the gas-liquid separator is communicated with the air inlet of the compressor, and the wrapping layer wraps the gas-liquid separator.

Preferably, the compressor assembly further includes a four-way valve communicating with the air outlet of the compressor, and the wrapping layer wraps the four-way valve.

The present invention also provides an outdoor unit, the outdoor unit includes a compressor assembly and a casing, and the compressor assembly is installed in the casing;

Wherein, the compressor assembly includes a compressor and a wrapping layer, the compressor is installed in the casing, and the wrapping layer is wrapped on the casing of the compressor; the wrapping layer includes a sound-absorbing layer and a sound-insulating layer; The sound absorbing layer and the sound insulating layer are sequentially covered on the surface of the casing, and the sound absorbing layer is attached to the casing; the sound absorbing layer and/or the sound insulating layer include foamed materials.

Preferably, the middle partition plate of the outdoor unit is installed in the casing; between the compressor and the side wall of the casing, and between the compressor and the middle partition plate, elastic is filled One or more of powders, elastic particles, fluid bags, colloidal elastomers.

The present invention also provides an air conditioner, the air conditioner includes a compressor assembly, the compressor assembly includes a compressor and a wrapping layer, the compressor is installed in the casing, and the wrapping layer wraps the compressor on the shell of the shell; the wrapping layer includes a sound-absorbing layer and a sound-insulating layer; the sound-absorbing layer and the sound-insulating layer are sequentially covered on the surface of the shell, and the sound-absorbing layer is attached to the shell; the sound-absorbing layer and/ Or the sound insulation layer includes a foamed material.

The present invention also provides an air conditioner, the air conditioner includes an outdoor unit and an indoor unit, the outdoor unit and the indoor unit are connected by a refrigerant pipe, and the outdoor unit and the indoor unit form a refrigerant circulation system;

Wherein, the outdoor unit includes a casing, a compressor and a wrapping layer, the compressor is installed in the casing, and the wrapping layer is wrapped on the casing of the compressor; the wrapping layer includes a sound-absorbing layer, a sound-insulating layer The sound-absorbing layer and the sound-insulating layer are sequentially covered on the surface of the casing, and the sound-absorbing layer is attached to the casing; the flame-retardant layer is covered on the sound-absorbing layer and/or the sound insulating layer superior.

In the present invention, by attaching the wrapping layer to the casing, the resistance to be overcome by the compression component of the compressor body to drive the casing to vibrate is increased, which is equivalent to increasing the damping of the casing vibration, thus reducing the frequency of the compressor vibration. ; When the vibration of the shell is transmitted to the sound insulation layer and the sound absorption layer, the wrapping layer converts the vibration energy into one or more of kinetic energy, thermal energy or potential energy, so that both the sound absorption layer and the sound insulation layer can absorb and block the compressor vibration at the same time. ; In the same way, the sound-absorbing layer and the sound-insulating layer can also block and absorb the sound generated by the vibration of the compressor at the same time, so that the wrapping layer reduces the noise generated by the compressor body from the sound source and the sound itself, effectively reducing the compressor body. The generated noise is conducive to reducing noise pollution; at the same time, by setting the sound insulation layer on the outside of the sound absorption layer, after the sound wave passes through the sound absorption layer, the sound wave blocked by the sound insulation layer and returned by the sound absorption layer is absorbed again by the sound absorption layer. transmission of sound waves.

Description of drawings

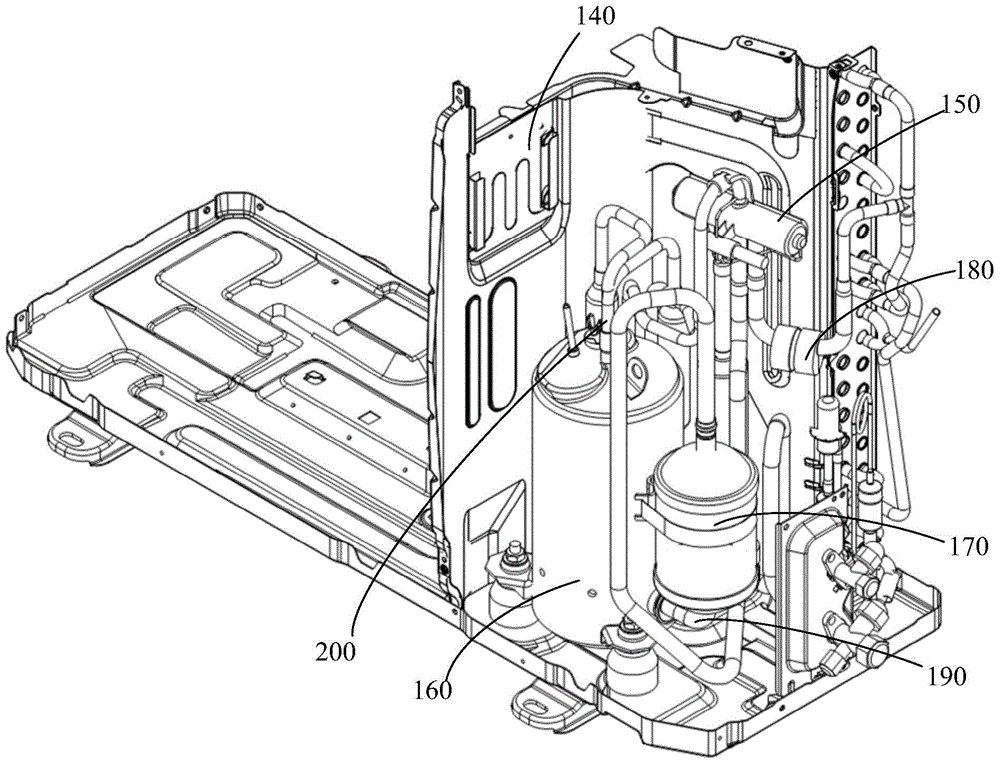

1 is a schematic structural diagram of an embodiment of an outdoor unit according to the present invention;

Fig. 2 is the partial structure schematic diagram of the outdoor unit of the present invention;

3 is a schematic structural diagram of another embodiment of the outdoor unit of the present invention;

Fig. 4 is the partial enlarged view of A place in Fig. 3;

Fig. 5 is a partial enlarged view at B in Fig. 4;

Figure 6 is a comparison diagram of the noise curve of the outdoor unit corresponding to Table 1;

Figure 7 is a comparison diagram of the noise curve of the outdoor unit corresponding to Table 2;

Figure 8 is a comparison diagram of the noise curve of the outdoor unit corresponding to Table 3;

FIG. 9 is a comparison diagram of the noise curve of the outdoor unit corresponding to Table 4.

Description of reference numbers:

label name label name 110 Chassis 120 Heat Exchanger 130 Exhaust grill 140 middle partition 150 Four-way valve 160 compressor 161 case 170 Gas-liquid separator 180 throttle valve 190 Intake pipe 200 Outlet tube 210 wrapping layer 211 elastic powder

The realization, functional characteristics and advantages of the present invention will be further described with reference to the accompanying drawings in conjunction with the embodiments.

Detailed ways

The technical solutions of the present invention will be further described below with reference to the accompanying drawings and specific embodiments. It should be understood that the specific embodiments described herein are only used to explain the present invention, but not to limit the present invention.

The compressor assembly proposed by the present invention includes a compressor 160 and a wrapping layer, and the wrapping layer wraps the casing 151 of the compressor 160 . The wrapping layer includes a sound absorbing layer and a sound insulating layer. The sound absorbing layer and the sound insulating layer sequentially cover the surface of the casing 151 , and the sound absorbing layer is attached to the casing 151 . The sound absorbing layer and/or the sound insulating layer includes a foamed material.

The outdoor unit is well known to everyone. In order for the reader to understand the solution more conveniently, in the following embodiment, the application of the compressor assembly in the outdoor unit is taken as a specific embodiment to describe the solution in detail. It should be understood that the compressor assembly can not only be used in an outdoor unit, but also in a mobile air conditioner, that is, an integrated unit.

The present invention provides an outdoor unit. The present invention mainly adopts the following solutions to reduce vibration and noise of the compressor 160 of the indoor unit. First, a sound-absorbing layer and a sound-insulating layer are arranged on the surface of the casing 151 of the compressor 160, so that the air transmitted from the casing 151 of the compressor 160 is transmitted. Vibration and noise due to vibration are greatly weakened; among them, the materials of the sound-absorbing layer and the sound-insulating layer have been obtained through many designs and repeated experiments, which have significant vibration and noise reduction effects, which will be described in the following examples. The working principle is described in detail; in addition, a mounting post extending upward from the bottom plate of the outdoor unit is provided, and only the bottom of the mounting post is in contact with the bottom plate, and then the compressor 160 is suspended on the mounting post so that the casing 151 of the compressor 160 is suspended, so that the compressor 160 is suspended in the air. The vibration generated by 160 needs to be transmitted through the installation column; the installation column is set to be made of vibration damping material, so that the vibration energy of the compressor 160 is reduced to the greatest extent when passing through the installation column; at the same time, the sound absorption layer and/or sound insulation The flame retardant layer is arranged on the layer, so that the sound-absorbing material and the sound-insulating material are not easily ignited by the outside world, which is beneficial to eliminate the potential safety hazard of burning the sound-absorbing material and the sound-insulating material, and makes the work of the wrapping layer 210 more stable and reliable.

1 to 5, FIG. 1 is a schematic structural diagram of an embodiment of an outdoor unit of the present invention; FIG. 2 is a partial structural schematic diagram of an outdoor unit of the present invention; FIG. 3 is a structural schematic diagram of another embodiment of the outdoor unit of the present invention; It is a partial enlarged view at A in Figure 3.

In the embodiment of the present invention, the outdoor unit includes a casing 110 , a compressor 160 and a wrapping layer 210 , the compressor 160 is installed in the casing 110 , and the wrapping layer 210 wraps the casing of the compressor 160 151; the wrapping layer 210 includes a sound absorbing layer, a sound insulating layer and a flame retardant layer; the sound absorbing layer and the sound insulating layer are sequentially covered on the surface of the casing 151, and the sound absorbing layer is attached to the casing 151, The flame retardant layer covers the sound absorbing layer and/or the sound insulating layer.

Specifically, in this embodiment, the compressor 160 is a hermetic compressor 160, and the compressor 160 includes a casing 151, and an electric structural assembly and a compression structural assembly disposed inside the casing 151, wherein the electric structural assembly can generate The driving force, the compression structure assembly is connected to the above-mentioned electric structure assembly, and the fluid can be sucked, compressed and discharged. The casing 151 is a cylindrical casing 151 , an air outlet is formed at one end of the casing 151 , and an air inlet is formed on the side wall of the casing 151 . After the wrapping layer 210 wraps the casing 151, the air inlet and the air outlet are communicated with the outside through a refrigerant pipe. The chassis 110 includes a box body, a top cover, a face frame and a bottom plate, and the face frame is provided with an air outlet grille 130 . The casing 110 is provided with components such as a heat exchanger 120 , a wind wheel, a motor, an electric control board, and a compressor 160 . Wherein, the arrangement of the wind wheel corresponding to the air outlet grill is beneficial to increase the flow of the gas, so that the heat exchanger 120 can exchange heat with the surrounding air in time.

There are many ways for the wrapping layer 210 to wrap the casing 161 , such as through glue, silica gel, or foamed material.

The sound absorbing layer is used to absorb the noise generated by the compressor 160 due to vibration, the sound insulation layer is used to block the transmission of the noise, and the flame retardant layer is used to prevent the outdoor unit from catching fire due to the high temperature outside. The wrapping layer further includes a waterproof layer, which is used to prevent water from eroding the shell 151 , the sound-absorbing layer, the sound-insulating layer, and the flame-retardant layer. When the noise generated by the vibration of the compressor 160 is transmitted, the sound absorbing layer absorbs part of the sound energy, the sound insulating layer blocks the transmission of the sound, bounces the sound waves back to the sound absorbing layer, and the sound absorbing layer absorbs part of the sound energy again. After the collision, it bounces again, and so on until the energy of the sound wave is exhausted. During this process, the energy of the sound wave penetrating the soundproof layer gradually decreases as it penetrates the flame retardant layer and the waterproof layer, so that the sound wave passing through the wrapping layer 210 is small.

Among them, regarding the relationship between the flame-retardant layer, the sound-absorbing layer and the sound-insulating layer, the flame-retardant layer can be parallel to the sound-insulating layer, and then covered on the sound-insulating layer, that is, the outermost layer, and of course, can also be covered on the sound-absorbing layer, that is It is arranged between the sound-absorbing layer and the sound-insulating layer. Of course, in some embodiments, the flame retardant layer can also be provided on the upper part of the sound absorbing layer and the sound insulating layer, that is, to prevent fire from burning the materials of the sound absorbing layer and the sound insulating layer from the upper part.

In the present invention, by attaching the wrapping layer 210 to the casing 151, the resistance that the compression assembly of the compressor 160 body needs to overcome to drive the casing 151 to generate vibration increases, which is equivalent to increasing the vibration damping of the casing 151, which can reduce the The frequency of the vibration of the small compressor 160; when the vibration of the casing 151 is transmitted to the sound insulation layer and the sound absorption layer, the wrapping layer 210 converts the vibration energy into one or more of kinetic energy, thermal energy or potential energy, so that the sound absorption layer and the sound insulation layer Both can absorb and block the vibration of the compressor 160 at the same time; similarly, the sound-absorbing layer and the sound-insulating layer can also block and absorb the sound generated by the vibration of the compressor 160 at the same time, so that the wrapping layer 210 reduces the body of the compressor 160 from the sound source and the sound itself. The generated noise effectively reduces the noise generated by the body of the compressor 160, which is conducive to reducing noise pollution; at the same time, by disposing the sound insulation layer on the outside of the sound absorption layer, the sound waves are blocked by the sound insulation layer after passing through the sound absorption layer. The returned sound waves are absorbed by the sound-absorbing layer again, thus effectively reducing the transmission of sound waves.

The sound absorbing layer and/or the sound insulating layer includes a foamed material.

Further, on the basis of the above embodiments, the sound insulating layer and/or the sound absorbing layer include foamed materials.

Specifically, in this embodiment, both the sound insulating layer and the sound absorbing layer may be foamed materials, and of course one of them may be foamed materials. The foamed material can be combined with the elastic powder 211 or with the elastic particles. Foaming material, elastic particles and elastic powder 211 can be separately arranged. It can also be mixed, that is, during the foaming process of the foamed material, an appropriate amount of elastic powder 211 and elastic particles are added to it, so that the elastic powder 211 and elastic particles are included in the foamed material, so that the formed foamed material not only It has the function of sound absorption and sound insulation.

The foaming material in this embodiment is made of isocyanate and polyether as the main raw materials. Under the action of various auxiliary agents such as foaming agent, catalyst, flame retardant, etc., it is mixed by special equipment and foamed on site by high-pressure spraying. High polymer. There are two types of polyurethane foams: soft foam and hard foam. In this embodiment, it is a soft foam, and the soft foam has an open-cell structure. The foamed material can be adhered to the surface of the casing 151 of the compressor 160 and tightly fixed with the casing 151 . At the same time, after the foam material wraps the compressor 160, the compressor 160 and the foam material form a whole, which can be easily moved, installed and disassembled.

The foam material itself is soft and elastic, which can convert the vibration energy of the compressor 160 into the elastic potential energy of the foam material; in addition, the foam material has an open-cell structure, and the vibration of the compressor 160 will be transmitted along the extension direction of the open-cell structure, During the vibration transmission process, the hole wall continuously consumes the vibration energy through repeated elastic deformation and restoration, and the foam material in contact with the casing 151 will vibrate to a certain extent during the vibration reduction process, so that the compressor 160 will be vibrated to a certain extent. The energy of the vibration is converted into one or more of kinetic energy, potential energy or thermal energy; at the same time, the elastic powder 211 and elastic particles contained in the foam material are also repeatedly elastically deformed and restored, converting the vibration energy into potential energy, thermal energy Or one or more of the kinetic energy, the energy of the vibration is continuously consumed so that the vibration is continuously weakened; in the same way, due to the vibration of the compressor 160 casing 151, the sound generated by the vibration of the foamed material, in the sound wave transmission. During the process, its energy will also be converted into heat or potential energy, so that the volume of the sound that can be transmitted is low.

Referring to Table 2 and Figure 7, the sound absorbing and/or sound insulating layers include data tables and data graphs for foamed materials. Among them, ① indicates the noise level of the outdoor unit when the metal is bare; ③ indicates the noise level of the outdoor unit when the sound-absorbing layer and/or sound insulation layer includes foam materials; ⑤ indicates when the sound-absorbing layer and/or sound insulation layer includes foam materials and rubber powder The noise level of the outdoor unit; Figure 7 is a comparison diagram of the noise curve of the outdoor unit corresponding to Table 2.

Table 2 Sound-absorbing and/or sound-insulating layers include foamed material or foamed material and rubber powder

1/3 octave (Hz) ① ⑧ ③-① ⑤ ⑤-① 20 6.42 2.51 -3.90 5.56 -0.86 25 10.66 2.73 -7.94 9.13 -1.53 32 7.03 8.34 1.30 10.73 3.70 40 22.48 23.02 0.54 23.53 1.06 50 22.36 11.98 -10.38 12.22 -10.14 63 9.92 9.40 -0.53 9.75 -0.17 80 57.60 25.15 -32.45 21.42 -36.18 100 41.93 26.36 -15.57 24.10 -17.83 125 33.20 32.11 -1.09 33.82 0.62 160 34.11 31.37 -2.74 29.63 -4.48 200 47.61 39.53 -8.07 31.34 -16.27 250 39.64 36.44 -3.20 35.18 -4.46 315 38.26 36.20 -2.06 33.44 -4.81 400 42.24 38.38 -3.86 34.71 -7.53 500 41.78 42.84 1.06 36.65 -5.13 630 46.09 41.66 -4.43 37.94 -8.15 800 49.87 40.94 -8.93 39.17 -10.70 1000 50.29 42.24 -8.05 37.12 -13.16 1250 48.90 41.31 -7.59 35.70 -13.20 1600 46.53 41.30 -5.23 35.86 -10.68 2000 46.38 37.60 -8.79 33.49 -12.89 2500 48.89 33.61 -15.28 30.44 -18.45 3150 43.70 31.30 -12.40 28.79 -14.92 4000 42.33 28.33 -14.01 25.54 -16.79 5000 39.24 27.07 -12.17 22.06 -17.18 6300 37.41 23.19 -14.22 18.35 -19.07 8000 35.93 24.40 -11.54 16.54 -19.40 10000 31.57 24.86 -6.71 13.42 -18.16 12500 27.48 22.06 -5.43 8.02 -19.46 16000 32.19 36.76 4.57 13.55 -18.64 20000 32.10 35.46 3.36 1.96 -30.14

Further, on the basis of the above-mentioned embodiment, referring to FIG. 4 and FIG. 5 , FIG. 5 is a partial enlarged view of B in FIG. 4 . The sound insulation layer and/or the sound absorption layer includes elastic powder 211 and/or elastic particles.

Specifically, in this embodiment, both the sound insulation layer and the sound absorption layer can be elastic particles, elastic powder 211 or a mixture of elastic particles and elastic powder 211. Of course, in some embodiments, the sound insulation layer and the sound absorption layer can be mixed into one layer , this layer can be called a noise reduction layer, that is, the noise reduction layer has both the function of sound absorption and sound insulation. The elastic particles may include one or more of perlite particles, vermiculite particles, rubber particles, and silica gel particles. The elastic powder 211 may include one or more of perlite powder, vermiculite powder, rubber powder, and silica gel powder. Whether it is between particles or between powder particles and powder particles, there are gaps. When sound passes through the particle layer or powder layer, the sound wave will bypass the particles or powder and propagate in the channel formed by the above-mentioned gap connection. , in the process of sound wave propagation, its energy is absorbed by powder or particle, powder or particle converts the ability of sound wave into one or more of potential energy, kinetic energy or thermal energy. Due to the large number of particles and powders, there are many channels through which the sound waves can be transmitted, so that the sound waves are in full contact with the particles, which is beneficial to increase the attenuation efficiency of the sound wave energy, thereby effectively reducing the transmission of noise. There is mutual extrusion and deformation between the elastic particles and the elastic powder 211 , so that the elastic particles and powder are pressed and fitted with the casing 151 , so that the elastic powder 211 and the particles are closely fitted with the casing 151 . When the electric structure assembly and the compression structure assembly drive the casing 151 to vibrate, the resistance that the drive casing 151 needs to overcome to generate vibration increases, which increases the damping of the vibration of the casing 151, so that the frequency of the compressor 160 vibration can be reduced; , the vibration of the housing 151 is transmitted through the elastic particles and powder in contact with it, and the vibration will drive the particles and powder to vibrate during the transmission process between the particles or between the powders, so that the particles and the powder are deformed, so that the particles and the powder are The friction occurs between them, and even the particles and powders are displaced, so that the energy of vibration is converted into kinetic energy, potential energy (including elastic potential energy) and thermal energy, which effectively attenuates the energy of vibration and reduces the vibration caused by transmission. noise.

Referring to Table 1 and Figure 6, the sound absorbing layer and/or the sound insulating layer includes a data table and data graph of the rubber powder. Among them, ① represents the noise level of the outdoor unit when the metal is bare; ② represents the noise level of the outdoor unit when the sound-absorbing layer and/or the sound-insulating layer includes rubber powder. In particular, considering that the noise of the outdoor unit of the inverter air conditioner is generally larger than the heating noise, the comparison data for this time is the heating noise. The test conditions are in the semi-anechoic room, the outdoor unit is outside the semi-anechoic room, and the indoor unit is inside the semi-anechoic room. The test conditions are 3°C for the outdoor side and 20°C for the indoor side.

Table 1 Sound-absorbing and/or sound-insulating layers include rubber powder

1/3 octave (Hz) ① ② ②-① 20 6.42 15.02 8.61 25 10.66 16.58 5.91 32 7.03 17.56 10.52 40 22.48 19.38 -3.10 50 22.36 19.01 -3.35 63 9.92 20.51 10.59 80 57.60 31.43 -26.18 100 41.93 22.72 -19.22 125 33.20 23.97 -9.23 160 34.11 26.85 -7.27 200 47.61 30.86 -16.74 250 39.64 34.03 -5.61 315 38.26 35.70 -2.56 400 42.24 33.69 -8.54 500 41.78 35.57 -6.21 630 46.09 36.64 -9.45 800 49.87 36.38 -13.49 1000 50.29 37.87 -12.42 1250 48.90 37.68 -11.22 1600 46.53 36.33 -10.20 2000 46.38 34.75 -11.63 2500 48.89 32.34 -16.55 3150 43.70 30.39 -13.31 4000 42.33 27.79 -14.54 5000 39.24 24.99 -14.25 6300 37.41 20.55 -16.86 8000 35.93 16.96 -18.98 10000 31.57 14.31 -17.26 12500 27.48 12.96 -14.53 16000 32.19 26.49 -5.69 20000 32.10 28.52 -3.58

Further, on the basis of the above embodiments, the sound-absorbing layer and/or the sound-insulating layer includes a fluid bag.

Specifically, in this embodiment, the fluid bag can serve as a sound-absorbing layer and/or a sound-insulating layer alone, and at this time, the fluid bag wraps the casing 151 of the compressor 160 . The fluid bag can also be combined with the elastic powder 211 and the elastic particles. The fluid bag can be arranged on the side of the elastic powder 211 and/or the particle layer away from the shell 151, or between the elastic powder 211 and/or the particle layer. The fluid bag is composed of a flexible wrapping layer and the fluid inside the wrapping layer. For example, liquid and gas are contained in the plastic bag. When the fluid bag wraps the casing 151 , the plastic bag is attached to the casing 151 . The fluid can be a gas, of course, a liquid is preferred, and the liquid can be a solution. In other embodiments, the fluid bag can also be combined with foam materials to reduce vibration and noise of the compressor 160 .

The casing 151 is in contact with the wrapping layer, and the wrapping layer transmits the vibration of the casing 151 to the fluid in the wrapping layer, and the fluid deforms, vibrates or flows under the vibration of the compressor 160 . The deformation of the fluid can absorb the energy of vibration and the energy of sound waves generated by the vibration of the compressor 160. The deformation of the fluid includes the compression of the fluid or the avoidance of the fluid molecules when the force is applied. At this time, the energy of the vibration and the energy of the sound are absorbed. Converted into potential energy; the vibration or flow of the fluid converts the vibration energy of the compressor 160 and the energy of the sound wave due to the vibration to the kinetic energy of the fluid. During the movement of the fluid, the kinetic energy is converted into heat energy and released.

Referring to Table 3 and Figure 8, the sound absorbing and/or sound insulating layers include data tables and data graphs for fluid pockets. Among them, ① indicates the noise level of the outdoor unit when the metal is bare; ④ indicates the noise level of the outdoor unit when the sound-absorbing layer and/or sound insulation layer includes a water bag; ⑥ indicates the outdoor unit when the sound-absorbing layer and/or sound insulation layer includes a water bag and rubber powder Figure 8 is a comparison diagram of the noise curve of the outdoor unit corresponding to Table 3.

Table 3 Sound-absorbing layer and/or sound-insulating layer including water bag or water bag and rubber powder

1/3 octave (Hz) ① ④ ④-① ⑥ ⑥-① 20 6.42 3.36 -3.05 15.56 9.14 25 10.66 2.09 -8.57 17.27 6.61 32 7.03 7.60 0.57 19.06 12.03 40 22.48 23.18 0.70 20.90 -1.58 50 22.36 12.56 -9.80 20.17 -2.19 63 9.92 9.49 -0.44 19.88 9.95 80 57.60 23.41 -34.19 28.68 -28.92 100 41.93 26.35 -15.58 21.86 -20.08 125 33.20 32.82 -0.38 24.27 -8.94 160 34.11 30.39 -3.73 27.39 -6.72 200 47.61 39.62 -7.98 30.60 -17.00 250 39.64 35.47 -4.17 34.60 -5.04 315 38.26 36.69 -1.57 37.93 -0.33 400 42.24 38.69 -3.54 34.69 -7.55 500 41.78 43.01 1.24 34.68 -7.10 630 46.09 43.48 -2.61 37.07 -9.02 800 49.87 41.00 -8.88 37.07 -12.80 1000 50.29 41.75 -8.54 38.43 -11.86 1250 48.90 41.65 -7.25 37.29 -11.62 1600 46.53 41.64 -4.89 36.64 -9.89 2000 46.38 37.59 -8.79 34.91 -11.47 2500 48.89 33.20 -15.70 32.64 -16.26 3150 43.70 31.02 -12.68 30.84 -12.87 4000 42.33 28.39 -13.95 28.16 -14.18 5000 39.24 27.20 -12.04 24.75 -14.49 6300 37.41 23.39 -14.02 21.21 -16.21 8000 35.93 24.67 -11.27 18.93 -17.00 10000 31.57 24.88 -6.69 17.49 -14.08 12500 27.48 22.03 -5.46 16.26 -11.23 16000 32.19 36.27 4.09 31.56 -0.63 20000 32.10 35.01 2.91 32.82 0.72

Further, on the basis of the above embodiments, the sound-absorbing layer and/or the sound-insulating layer includes a colloidal elastomer.

Specifically, in this embodiment, the colloidal elastomer may be one or more of flour dough, rubber mud, jelly, silica gel, and silicone rubber (a mixture of silica gel material and rubber material). Of course, the colloidal elastomer can also be used in combination with the elastic powder 211 and/or the elastic particles, and there are various combinations. The elastic powder 211 and/or the elastic particles can be arranged outside the colloidal elastomer, or can be arranged in the colloidal elastic body. Inside the elastomer. When the elastic powder 211 and/or the elastic particles can be arranged inside the colloidal elastomer, during the molding process of the colloidal elastomer, the elastic powder 211 and/or the elastic particles are added therein, and after the colloidal elastomer is molded and cured , the elastic powder 211 and/or elastic particles are encapsulated therein. Of course, in some embodiments, the colloidal elastomer can also be mixed with a foamed material, and the raw material of the colloidal elastomer is added to the foamed material during the foaming process. During the molding process of the foamed material, the colloidal elastomer Also solidified.

In this embodiment, the jelly-like elastic body is deformed or vibrated under the vibration of the compressor 160 . The deformation of the colloidal elastomer can absorb the vibration energy of the compressor 160 and the energy of the sound waves generated by the vibration of the compressor 160. The deformation of the colloidal elastomer includes that the colloidal elastomer is compressed or the colloidal elastomer molecules are under stress. At this time, the energy of vibration and the energy of sound are converted into potential energy; the vibration of the colloidal elastomer converts the energy of the vibration of the compressor 160 and the energy of the sound wave due to the vibration to the kinetic energy of the vibration of the colloidal elastomer , the colloidal elastomer converts kinetic energy into heat energy and releases it during the vibration process.

Referring to Table 4 and Figure 9, the sound absorbing and/or sound insulating layers include data tables and data graphs for colloidal elastomers. Among them, ① indicates the noise level of the outdoor unit when the metal is bare; ⑦ indicates the noise level of the outdoor unit when the sound-absorbing layer and/or sound insulation layer includes silica gel; ⑨ indicates the noise level of the outdoor unit when the sound-absorbing layer and/or sound insulation layer includes silica gel and rubber powder noise level. FIG. 9 is a comparison diagram of the noise curve of the outdoor unit corresponding to Table 4.

Table 4 Sound-absorbing and/or sound-insulating layers consist of silica gel or silica gel and rubber powder

1/3 octave (Hz) ① ⑦ ⑦-① ⑨ ⑨-① 20 6.42 16.69 10.27 15.99 9.58 25 10.66 17.92 7.26 17.03 6.37 32 7.03 18.91 11.88 19.58 12.55 40 22.48 20.55 -1.92 20.41 -2.07 50 22.36 20.73 -1.63 19.32 -3.04 63 9.92 19.81 9.89 19.06 9.13 80 57.60 28.56 -29.05 29.36 -28.24 100 41.93 22.15 -19.78 22.08 -19.85 125 33.20 25.41 -7.79 25.45 -7.75 160 34.11 29.57 -4.54 28.83 -5.28 200 47.61 30.44 -17.17 30.53 -17.08 250 39.64 39.30 -0.34 37.09 -2.55 315 38.26 36.26 -2.00 36.52 -1.74 400 42.24 35.24 -6.99 34.94 -7.30 500 41.78 40.01 -1.77 35.07 -6.71 630 46.09 38.00 -8.09 38.22 -7.87 800 49.87 36.50 -13.37 36.29 -13.59 1000 50.29 39.24 -11.05 38.46 -11.83 1250 48.90 37.89 -11.02 37.43 -11.48 1600 46.53 36.69 -9.84 36.76 -9.78 2000 46.38 35.36 -11.02 35.18 -11.20 2500 48.89 32.51 -16.38 32.46 -16.43 3150 43.70 30.95 -12.75 30.75 -12.95 4000 42.33 28.34 -14.00 28.10 -14.24 5000 39.24 24.83 -14.41 24.66 -14.58 6300 37.41 21.45 -15.96 21.31 -16.10 8000 35.93 19.35 -16.58 19.00 -16.94 10000 31.57 18.40 -13.18 17.47 -14.10 12500 27.48 16.66 -10.82 16.21 -11.28 16000 32.19 33.66 1.48 32.45 0.27 20000 32.10 34.72 2.62 33.56 1.46

Further, on the basis of the above-mentioned embodiment, the sound-absorbing layer and/or the sound-insulating layer includes a noise reduction carrier, and the noise reduction carrier has several independent accommodation spaces, and each accommodation space accommodates noise reduction particles, One or more of noise-reducing powder and noise-reducing fluid.

Specifically, in this embodiment, the noise reduction carrier is a cotton wool fabric, and several spacers are arranged in the noise reduction carrier to divide the noise reduction carrier into several independent spaces. A filler is provided in each accommodation space, and the filler includes one or more of the above-mentioned noise-reducing particles, noise-reducing powder and noise-reducing fluid. The noise reduction particles can be one or more of perlite particles, vermiculite particles, rubber particles and silica gel particles; the noise reduction powder can be one or more of perlite powder, vermiculite powder, rubber powder and silica gel powder kind.

In this embodiment, the spacer may include a transverse piece and a longitudinal piece, and the transverse piece and the longitudinal piece are alternately arranged to divide the noise reduction carrier into several small independent spaces that are independent of each other. A filler is placed in each independent space, and after the filler is placed, a certain gap is left, so that the filler in the independent space can move in a small range, so that the filler is evenly arranged in the independent space. It can make the filling in the independent space better muffle the sound. In this embodiment, by dividing the spacer into several independent spaces, the arrangement and layout of the fillers are more diversified, which is conducive to filling fillers of different materials for different positions to achieve the best noise reduction effect; Of course, if the same fillers are provided in each independent space, the noise reduction of the compressor 160 by the air conditioner wrapping layer 210 can be made more uniform, thereby achieving a better noise reduction effect.

Further, on the basis of the above-mentioned embodiment, the outdoor unit further includes an installation column, and the installation column is connected to the bottom of the cabinet 110 . The casing 151 is provided with a mounting plate, and the compressor 160 is suspended on the mounting column through the mounting plate.

The mounting plate is a triangular plate, and a mounting hole is opened in the middle of the triangular plate. The housing 151 passes through the mounting hole and is fixedly connected with the mounting plate around the mounting hole, and can be fixed by welding. The casing 151 is a cylindrical casing 151, and the end of the casing 151 away from the bottom of the chassis 110 is provided with the air outlet of the compressor 160. In order to facilitate the access of the compressor 160 to the refrigerant circulation system, the end with the air outlet of the compressor 160 is set at the end of the compressor 160. the opening of the chassis 110 . The mounting plate is connected to the end of the casing 151 where the air outlet of the compressor 160 is opened. Along the height direction of the chassis 110 , three mounting posts are arranged corresponding to the three corners of the triangular plate. One end of the mounting posts is fixedly connected to the bottom of the chassis 110 , and the other end is connected to the corner of the mounting plate. The connection method between the mounting post and the mounting plate can be welding, snap-fit, etc., preferably a threaded connection, so that the mounting and dismounting of the mounting plate and the mounting post are very convenient.

The mounting posts in the above embodiments are hard elastic members. The hard elastic member can be hard rubber, hard plastic, etc.; it can also be a metal column covered with an elastic material, such as a rubber sleeve, cotton wool fabric and other elastic damping materials. In this embodiment, by setting the mounting post as a hard elastic member, when the vibration passes through the mounting post, the vibration can be more absorbed and blocked, thereby helping to reduce the generation and transmission of noise.

In this embodiment, by arranging the compressor 160 on the added mounting post, the vibration of the vibration source of the compressor 160 needs to pass through the casing 151 of the compressor 160, the mounting plate, the mounting post, and the chassis in sequence. 110, and then it is transmitted, so that the vibration of the compressor 160 is gradually reduced, which is conducive to reducing the transmission of vibration, which in turn is conducive to reducing the generation and transmission of noise. The opening makes the installation and disassembly between the compressor 160 and the casing 110 very convenient.

Further, on the basis of the above embodiments, the flame retardant layer includes an organic flame retardant layer and/or an inorganic flame retardant layer. The material of the inorganic flame retardant layer can be antimony trioxide (must be used in conjunction with organic flame retardant materials), magnesium hydroxide, aluminum hydroxide (can be used separately, mixed with resin when the amount is large, and the amount is equivalent), inorganic One or more of phosphorus-based (eg, phosphates include ammonium phosphate, ammonium nitrate, etc.), boron-based flame retardant materials (hydrated zinc borate), and metal halides (eg, antimony halides). The material of the organic flame retardant layer can be organic halide (mainly bromide, such as: decabromodiphenyl acid (DBDPO), tetrabromobisphenol A (TBBPA), brominated polystyrene (BPS), etc.), organic phosphorus Compounds (can be divided into two types of inorganic phosphorus and halogenated phosphorus, halogen-free phosphorus is mainly phosphoric acid such as triphenyl (TPP), etc.), one or more of nitrogen series (eg, trimeric nitrogen ammonia, etc.).

Further, on the basis of the above-mentioned embodiment, the outdoor unit further includes a middle partition plate 140 , and the middle partition plate 140 is installed in the cabinet 110 . Noise reduction materials are filled between the compressor 160 and the side wall of the casing 110 and between the compressor 160 and the middle partition plate 140 .

The compressor assembly further includes an air outlet pipe 200 , the air outlet pipe 200 communicates with the air outlet of the compressor 160 , and the wrapping layer 210 wraps the air outlet pipe 200 .

The compressor assembly further includes a gas-liquid separator 170 , an air outlet of the gas-liquid separator 170 communicates with an air inlet of the compressor 160 , and the wrapping layer 210 wraps the gas-liquid separator 170 .

The compressor assembly further includes an air intake pipe 190 , the air intake pipe 190 communicates with the air inlet of the compressor 160 , and the wrapping layer 210 wraps the air intake pipe 190 .

The compressor assembly further includes a four-way valve 150 , an air outlet of the compressor 160 is communicated with the four-way valve 150 , and the wrapping layer 210 wraps the four-way valve 150 .

The compressor assembly further includes a throttle valve 180 , the throttle valve 180 communicates with the four-way valve 150 , and the wrapping layer 210 wraps the throttle valve 180 .

Specifically, in this embodiment, the noise reduction material includes one or more of elastic powder 211 , elastic particles, foamed material, fluid bag, and colloidal elastomer. That is, the storage space enclosed by the casing 110 and the middle partition plate 140 is filled with noise reduction materials, and the compressor 160 is buried. Of course, in some embodiments, the noise reduction material may connect the four-way valve 150 , the gas-liquid separator 170 , and the throttle valve 180 connected to the compressor 160 , and the four-way valve 150 and the gas-liquid separator 170 connected to the compressor 160 . and the refrigerant pipes of the throttle valve 180 are buried.

Specifically, a heat exchanger 120, a middle baffle 140, a compressor 160, a gas-liquid separator 170, a four-way valve 150 and a throttle valve 180 are provided in the chassis 110, wherein the air inlet of the compressor 160 passes through the air inlet pipe 190 is communicated with the gas-liquid separator 170, the air outlet of the compressor 160 is communicated with the four-way valve 150 through the air outlet pipe 200, the air inlet of the gas-liquid separator 170 is communicated with the four-way valve 150, and the four-way valve 150 is communicated with the four-way valve 150 through the refrigerant pipe. The heat exchanger 120 is in communication. The refrigerant flows out from the compressor 160 and flows into the heat exchanger 120 through the four-way valve 150. After the refrigerant flows through the heat exchanger 120, after being throttled by the throttle valve 180, it enters the gas-liquid separator 170 through the four-way valve 150. After flowing out from the gas-liquid separator 170, it flows into the compressor 160 through the return pipe.

The present invention also provides an outdoor unit, the outdoor unit includes a compressor assembly, and the specific structure of the compressor assembly refers to the above-mentioned embodiments. Since the outdoor unit adopts all the technical solutions of all the above-mentioned embodiments, it also has the above-mentioned embodiments. All the beneficial effects brought by the technical solution will not be repeated here. Wherein, the compressor assembly is installed in the casing of the outdoor unit. The outdoor unit includes a casing 110, a compressor 160 and a wrapping layer 210, the compressor 160 is installed in the casing 110, and the wrapping layer 210 wraps on the casing 151 of the compressor 160; the wrapping layer 210 includes a sound absorbing layer, a sound insulating layer and a flame retardant layer; the sound absorbing layer and the sound insulating layer are sequentially covered on the surface of the casing 151, the sound absorbing layer is attached to the casing 151, and the flame retardant layer is covered on the surface of the casing 151. on the sound absorbing layer and/or the sound insulating layer.

The present invention also provides an air conditioner, which includes a compressor assembly. The specific structure of the compressor assembly refers to the above-mentioned embodiments. Since the outdoor unit adopts all the technical solutions of all the above-mentioned embodiments, it also has the above-mentioned embodiments. All the beneficial effects brought by the technical solution will not be repeated here. Among them, the air conditioner is a wall-mounted split air conditioner, a floor split air conditioner, or a mobile air conditioner.

It should be noted that the technical solutions of the various embodiments of the present invention can be combined with each other, but must be based on the realization by those skilled in the art. When the combination of technical solutions is contradictory or cannot be realized, it should be considered that this technical solution The combination does not exist and does not fall within the protection scope claimed by the present invention.

The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the scope of the present invention. Any equivalent structural transformation made by using the contents of the description and the accompanying drawings of the present invention, or directly or indirectly applied to other related technical fields, will not limit the scope of the invention. Similarly, it is included in the scope of patent protection of the present invention.

Claims (11)

1. The compressor assembly is characterized by comprising a compressor and a wrapping layer, wherein the compressor is arranged in a case, and the wrapping layer wraps a shell of the compressor; the wrapping layer comprises a sound absorption layer and a sound insulation layer; the sound absorption layer and the sound insulation layer sequentially cover the surface of the shell, and the sound absorption layer is attached to the shell; the sound absorbing layer and/or the sound insulating layer comprise a foam material;

the foaming material has an open cell structure; the sound absorbing layer and/or the sound insulating layer comprise elastic powder and/or elastic particles; the elastic powder and/or elastic particles are located in the foaming material;

the middle partition board is arranged in the case; noise reduction materials are filled between the compressor and the side wall of the case and between the compressor and the middle partition plate, the noise reduction materials comprise one or more of elastic powder and elastic particles, and the elastic powder and the elastic particles can displace.

2. The compressor assembly of claim 1, wherein the sound absorbing layer and/or the sound insulating layer comprises a fluid bag, and/or a gel-like elastomer.

3. The compressor assembly of claim 1, wherein the sound absorption layer and/or the sound insulation layer comprises a noise reduction carrier having a plurality of separate receiving spaces, each receiving one or more of noise reduction particles, noise reduction powder, and noise reduction fluid therein.

4. The compressor assembly of claim 1, further comprising a mounting post for mounting the compressor; the shell is provided with a mounting plate, and the compressor is suspended on the mounting column through the mounting plate.

5. The compressor assembly of any one of claims 1 to 4, wherein the compressor outlet duct is in communication with the compressor outlet port, and the wrapping layer surrounds the outlet duct.

6. The compressor assembly of any one of claims 1 to 4, wherein the inlet duct of the compressor is in communication with an air inlet of the compressor, and the wrapping layer wraps the inlet duct.

7. The compressor assembly of any one of claims 1 to 4, further comprising a gas-liquid separator having an outlet in communication with an inlet of the compressor, the wrap surrounding the gas-liquid separator.

8. The compressor assembly of any one of claims 1 to 4, further comprising a four-way valve in communication with the compressor air outlet, the wrap surrounding the four-way valve.

9. An outdoor unit comprising a casing and a compressor assembly as claimed in any one of claims 1 to 8, said compressor assembly being mounted within said casing.

10. The outdoor unit of claim 9, wherein a middle partition of the outdoor unit is installed in the cabinet; one or more of foaming materials, fluid bags and colloidal elastomers are filled between the compressor and the side wall of the case and between the compressor and the middle partition plate.

11. An air conditioner comprising a cabinet and a compressor assembly as claimed in claims 1 to 8.
