Abstract
本发明公开了一种筒型结构与群桩组合式风力机地基基础，包括筒型钢壁和设置在其顶部的混凝土顶盖，混凝土顶盖上浇筑有多个沿其径向设置的预应力梁、多个联系梁和预应力连接段，预应力连接段垂直设置在混凝土顶盖的中心处，多个预应力梁沿预应力连接段的周向均布在其外围，在相邻的两个预应力梁之间均设有联系梁，每个联系梁的中部均预埋有导管，导管内设有打入地基的钢管桩，钢管桩和导管之间灌注有高强砂浆。本发明既具有筒型基础抗水平力、竖向力强的优势，也具备了桩基础抗地基液化好的优势。同时，结构可实现陆上批量预制、筒型结构海上浮运，降低了海上施工时间、以及施工的难度。因此该种风力机地基基础具有很高的经济性。
The invention discloses a combined wind turbine foundation with a cylindrical structure and group piles, which comprises a cylindrical steel wall and a concrete top cover arranged on the top of the concrete top cover, and a plurality of prestressed beams arranged radially along the concrete top cover are poured , multiple connecting beams and prestressed connecting sections, the prestressed connecting section is vertically arranged at the center of the concrete roof, and multiple prestressed beams are evenly distributed on the periphery of the prestressed connecting section along the circumference of the prestressed connecting section. There are connecting beams between the beams, and a conduit is pre-buried in the middle of each connecting beam, and steel pipe piles driven into the foundation are arranged in the conduit, and high-strength mortar is poured between the steel pipe pile and the conduit. The invention not only has the advantages of strong resistance to horizontal force and vertical force of the cylindrical foundation, but also has the advantage of good resistance to ground liquefaction of the pile foundation. At the same time, the structure can be prefabricated in batches on land, and the cylindrical structure can be floated at sea, which reduces the construction time and difficulty of construction at sea. Therefore, this kind of wind turbine foundation has high economic efficiency.
Description
Technical field
The present invention relates to the offshore wind power foundation pattern, is in traditional single pile, many pile foundations development out, a kind of novel marine windmill Toft foundation structure pattern that compound cylindrical structure is combined with a clump of piles.
Background technology
Global energy day is becoming tight now, and wind energy has been subject to various countries energy development person's favor as green clean reproducible energy.The whole world can be developed the wind energy total amount and is about 20,000,000,000 kW according to statistics, is ten times that water power can be developed total amount.Wind Power Development is swift and violent in recent years, and its market every year is all increasing with 40% speed, expects the year two thousand twenty, and world's wind-powered electricity generation total installation of generating capacity will reach 12.6 hundred million kW, account for 12% of world's aggregate demand.Have than landlocked offshore wind farm that distinguished and admirable attitude is good, not land occupation, annual utilization hours advantages of higher.With regard to China, the coastal waters wind energy resources is estimated to reach 7.5 hundred million kW, is 3 times of land wind energy resources, and the offshore wind farm exploitation certainly will become the emphasis of Future in China power exploi-tation.
Because maritime environment is complicated, and the wind energy conversion system foundation mainly bears huge moment load, causes the complicated and expenditure of construction of the structural stress state of marine windmill foundation to remain high.At present, the marine windmill foundation mainly contains three kinds of patterns, and is as follows respectively: single-pile foundation, many pile foundations and gravity type foundation.Common are High-Rise Pile Cap Foundation, tripod basis etc. in many pile foundations.In recent years, University Of Tianjin has proposed a kind of novel marine windmill Toft foundation structure, is referred to as compound bucket foundation, and has successfully built model machine in marine site, Qidong, Jiangsu, and operation conditions is good.
Along with the progress of wind energy conversion system manufacturing technology, the marine windmill capacity is increasing.What application was maximum at present is single-pile foundation, increases with capacity, and the diameter of single pile is increasing, and 3MW wind energy conversion system single-pile foundation stake diameter has arrived 4.5m, even larger.The increase of stake diameter is all had higher requirement for marine guidance piling equipment and offshore construction.High-Rise Pile Cap Foundation has at China's Donghai Bridge marine wind electric field and uses, but the long offshore construction duration that its marine concreting brings overcomes without effective way at present.The long construction period will raise the expense of offshore construction, and the construction period that increases whole engineering.The tripod basis belongs to a kind of of jacket basis, and expenditure of construction is all higher usually.Gravity type foundation is built on the batholith usually, and is high to the requirement for bearing capacity of ground, so its scope of application is less.Compound bucket foundation is stronger to the applicability of soft foundation.Because it belongs to the shallow foundation type, in low earthquake intensity area territory, the type basis is more applicable, but in the high earthquake intensity zone, earthquake liquefaction may bring impact to its safety.
Summary of the invention
The present invention provides a kind of cylindrical structure and clump of piles combined type marine windmill foundation for solving the technical problem that exists in the known technology.
The technical scheme that the present invention takes for the technical problem that exists in the solution known technology is: a kind of cylindrical structure and clump of piles combined wind machine foundation, comprise cartridge type steel wall and the concrete top cover that is arranged on its top, build a plurality of along its prestressed girder that radially arranges on the described concrete top cover, a plurality of contact beams and prestressing force linkage section, described prestressing force linkage section is vertically set on the center of described concrete top cover, a plurality of described prestressed girders circumferentially are distributed on its periphery along described prestressing force linkage section, between two adjacent described prestressed girders, be equipped with described contact beam, the middle part of each described contact beam all is embedded with conduit, be provided with the steel pipe pile of squeezing into ground in the described conduit, be perfused with high-strength mortar between described steel pipe pile and the described conduit.
Be provided with a plurality of subdivision plates in the described cartridge type steel wall, all described subdivision plates are arranged in described cartridge type steel pars intramuralis with cellular.
Advantage and good effect that the present invention has are: both had bucket foundation horizontal force resistant, advantage that vertical force is strong, also possessed the good advantage of the anti-foundation liquefaction of pile foundation.Simultaneously, structure can realize that land batch is prefabricated, the marine transportation by driving of cylindrical structure, has reduced the difficulty of offshore construction time and construction.Therefore this kind wind energy conversion system foundation has very high economy.The invention solves that a diameter is excessive, offshore concrete builds and causes long, problems such as the jacket underlying price is high, the regional foundation liquefaction of high earthquake intensity of construction period, and have the advantages that offshore construction is simple, rolled steel dosage is few, economic benefit is high, being applicable to the ground top layer has certain thickness soft foundation.And the unit unit capacity is larger, and advantage is more obvious.
Description of drawings

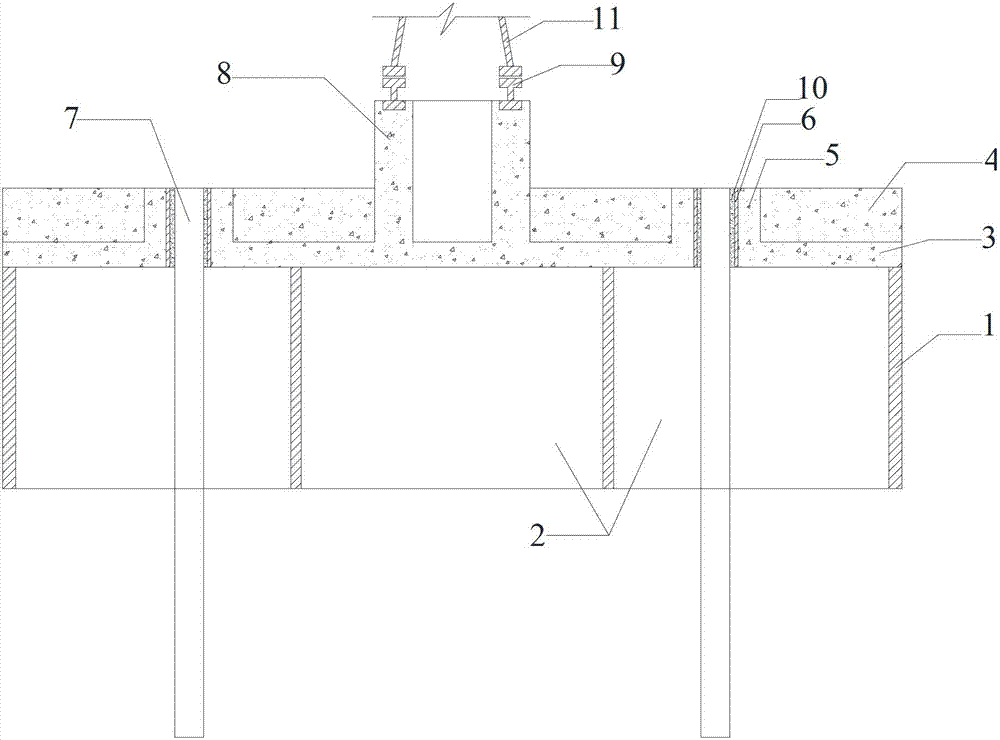

Fig. 1 cylindrical structure and clump of piles combined type marine windmill foundation longitudinal plan.
Fig. 2 cylindrical structure and clump of piles combined type marine windmill foundation top view.
Among the figure: 1, cartridge type steel wall; 2, subdivision plate; 3, concrete cover; 4, prestressed girder; 5, contact beam; 6, conduit; 7, steel pipe pile; 8, prestressing force linkage section; 9, flange; 10, high-strength mortar; 11, blower fan tower barrel.
The specific embodiment
For further understanding summary of the invention of the present invention, Characteristic, hereby exemplify following examples, and cooperate accompanying drawing to be described in detail as follows:
See also Fig. 1～Fig. 2, a kind of cylindrical structure and clump of piles combined wind machine foundation, comprise polygon or and be arranged on the concrete top cover 3 at its top, concrete top cover 3 closely is connected with cartridge type steel wall 1; Cartridge type steel wall 1 inside is provided with a plurality of subdivision plates 2 with cellular layout, the center of concrete top cover 3 is provided with perpendicular prestressing force linkage section 8, around prestressing force linkage section 8, be provided with a plurality of prestressed girders 4 that radially arrange along concrete top cover 3, all prestressed girders 4 are distributed on the periphery of prestressing force linkage section 8, between two adjacent prestressed girders, be equipped with contact beam 5, institute's beam 5 of being related is evenly arranged along hoop, and prestressed girder 4, contact beam 5, concrete cover 3, prestressing force linkage section 8 are built and be connected to an integral body; The linking beam middle part is embedded with conduit 6, is provided with the steel pipe pile 7 of squeezing into ground in the conduit 6, is perfused with high-strength mortar 10 between steel pipe pile 7 and the conduit 6, is connected to an integral body by high-strength mortar 10 between steel pipe pile 7 and the conduit 6; Prestressing force linkage section top is embedded with flange 9, and the basis is connected with blower fan tower barrel 11 by flange 9.
In the present embodiment, cylinder external diameter 30m, steel wall thickness 30mm, height 8m; The thick 0.5m of concrete top cover; Prestressing force deck-molding 1.2m, wide 0.6m; Link deck-molding 1.2m, wide 1.2m; Conduit wall thickness 20mm, internal diameter 0.62m; Prestressing force linkage section height 6m, external diameter 10m, wall thickness 0.8m; Steel pipe pile diameter 0.6m, wall thickness 40mm, the long 50m of stake.
The Specific construction process on above-mentioned basis: 1) polygon or circular steel wall and subdivision dividing plate are prefabricated; 2) concrete top cover, prestressed girder, contact beam, prestressing force linkage section are prefabricated, wherein contact pre-buried conduit in the beam; 3) mode of employing transportation by driving is transported to the designated mounting place with cylindrical structure; 4) adopt gravity to drown oneself and with negative pressure technique cylindrical structure is sunk to ground, and guarantee that top cover and ground are in contact with one another; 5) by contact beam upper conduit, steel pipe pile is squeezed into ground; 6) after steel pipe pile is squeezed into the precalculated position, high-strength mortar is poured in steel pipe pile and the conduit gap, make it become an integral body; 7) basis installs, and blower fan is installed in lifting.
The present invention combines the advantage of bucket foundation and pile foundation, and adopts land fabrication agent structure, sea to drive piles fast, has shortened the offshore construction duration, has improved economic benefit.
Although the above is described the preferred embodiments of the present invention by reference to the accompanying drawings; but the present invention is not limited to the above-mentioned specific embodiment; the above-mentioned specific embodiment only is schematic; be not restrictive; those of ordinary skill in the art is under enlightenment of the present invention; not breaking away from the scope situation that aim of the present invention and claim protect, can also make a lot of forms, these all belong within protection scope of the present invention.
Claims (2)
1. a cylindrical structure and clump of piles combined wind machine foundation, it is characterized in that, comprise cartridge type steel wall and the concrete top cover that is arranged on its top, build a plurality of along its prestressed girder that radially arranges on the described concrete top cover, a plurality of contact beams and prestressing force linkage section, described prestressing force linkage section is vertically set on the center of described concrete top cover, a plurality of described prestressed girders circumferentially are distributed on its periphery along described prestressing force linkage section, between two adjacent described prestressed girders, be equipped with described contact beam, the middle part of each described contact beam all is embedded with conduit, be provided with the steel pipe pile of squeezing into ground in the described conduit, be perfused with high-strength mortar between described steel pipe pile and the described conduit.
2. according to claim 1, it is characterized in that, be provided with a plurality of subdivision plates in the described cartridge type steel wall, all described subdivision plates are arranged in described cartridge type steel pars intramuralis with cellular.
