Abstract
本发明涉及一种蜂巢式包装预灌封西林瓶，其由巢盒、蜂巢板、西林瓶、里层盖纸、外层封口纸组成，所述蜂巢板上设有若干槽孔，所述西林瓶对应装配在各槽孔中，装满西林瓶的整个蜂巢板放置在巢盒中，所述里层盖纸覆盖在巢盒中西林瓶上，外层封口纸覆盖在巢盒上，边缘与巢盒上沿粘合固定。所述蜂巢板上的槽孔的数量、位置、间距有规律排列；所述西林瓶经过清洗、烘干、灭菌，集成装配在蜂巢板和巢盒中，成为蜂巢式包装预灌封西林瓶。本发明构造合理，其将西林瓶的清洗、烘干、灭菌作业集中在蜂巢式包装过程中，其使用方便，药品制造商可直接进行灌装作业。
The invention relates to a honeycomb packaging pre-filled vial, which is composed of a nest box, a honeycomb plate, a vial, an inner layer of cover paper, and an outer layer of sealing paper. The honeycomb plate is provided with a number of slots. The bottles are correspondingly assembled in each slot, and the entire honeycomb board filled with vials is placed in the nest box, the inner layer of cover paper is covered on the vials in the nest box, the outer layer of sealing paper is covered on the nest box, and the edges are aligned with the nest box. The upper edge of the nest box is glued and fixed. The number, position, and spacing of the slots on the honeycomb board are regularly arranged; the vials are cleaned, dried, and sterilized, and integrated into the honeycomb board and the nest box to become honeycomb-packaged pre-filled vials . The invention has a reasonable structure, concentrates the washing, drying and sterilizing operations of the vials in the honeycomb packaging process, is convenient to use, and the drug manufacturer can directly perform the filling operation.
Description
Technical field
The present invention relates to the medical drugs packaging material, specifically a kind of cell type is packed pre-embedding cillin bottle.
Background technology
At present, the cillin bottle that generally uses on the domestic and international market is cillin bottle in bulk, even be packaged product, its manner of packing, packaging quantity are also more mixed and disorderly, the supply of cillin bottle does not form the unitizing pattern, no matter this uses domestic equipment or expensive import sophisticated equipment for pharmacy corporation, realize that the full-automation of whole production is very difficult.
In addition, maker is when making XiLin bottled medicine, and cillin bottle will be through just carrying out the can medicine after cleaning, the tunnel oven.This is for pharmacy corporation, and equipment, technology investment before the can are huge, and be very difficult for middle-size and small-size pharmaceutical factory.
Summary of the invention
Technical matters to be solved by this invention is to overcome above-mentioned the deficiencies in the prior art, provides a kind of structure reasonable, easy to use, can directly carry out the cell type of can operation and pack pre-embedding cillin bottle.
The technical scheme that the present invention solves the problems of the technologies described above employing is: a kind of cell type is packed pre-embedding cillin bottle, it is characterized in that: it is comprised of nest box, honeycomb boards, cillin bottle, nexine lid paper, outer sealing paper, described honeycomb boards is provided with some slotted eyes, described cillin bottle oral area up, correspondence is assemblied in each slotted eye, the whole honeycomb boards of filling cillin bottle is placed in the nest box, described nexine lid paper covers in the nest box on the cillin bottle, outer sealing paper covers on the nest box, and the edge is adhesively fixed on edge and the nest box.
The quantity of the slotted eye on the honeycomb boards of the present invention, position, the regular arrangement of spacing; Described cillin bottle is through cleaning, dry, sterilizing, and integrated being assemblied in honeycomb boards and the nest box becomes cell type and pack pre-embedding cillin bottle, is applicable to radiopharmacy direct automatic sterilized can when making pre-embedding XiLin bottled medicine.Against existing technologies, the present invention constructs rationally, and its cleaning with cillin bottle, oven dry, sterilization operation concentrate in the cell type packaging process, become the gauge member that independently is suitable for the automation can.Be a kind of desirable pre-embedding cillin bottle Medical Packing Materials, can realize separately complete independently of cleaning, sterilization and can operation.And the sterilization after pre-embedding cillin bottle can preserve for a long time, pharmacy corporation is can at any time.It is easy to use, radiopharmacy can directly be carried out the sterile filling operation, greatly simplified radiopharmacy when making pre-embedding cillin bottle medicine, cillin bottle will through the technological process that cleans, tunnel oven just can carry out the can medicine afterwards, also reduce equipment investment.
Description of drawings
The invention will be further described below in conjunction with accompanying drawing.

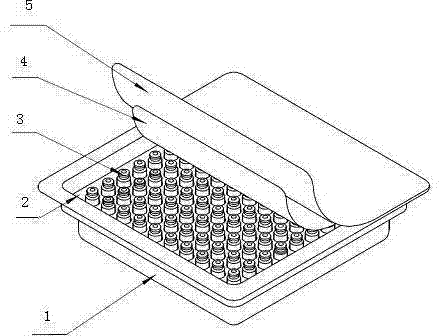

Fig. 1 is that the present invention forms structural representation.
Fig. 2 is decomposing schematic representation of the present invention.
Fig. 3 is the schematic top plan view of honeycomb boards of the present invention.
Fig. 4 is that the A-A of Fig. 3 is to scheme drawing.
1. nest boxes among the figure, 2. honeycomb boards, 3. cillin bottle, 4. nexine lid paper, 5. outer sealing paper.
The specific embodiment
Can find out that from Fig. 1, Fig. 2 a kind of cell type is packed pre-embedding cillin bottle, it is comprised of nest box 1, honeycomb boards 2, cillin bottle 3, nexine lid paper 4, outer sealing paper 5.Described honeycomb boards 2 is provided with some slotted eyes, described cillin bottle 3 oral areas up, correspondence is assemblied in each slotted eye, the whole honeycomb boards 2 of filling cillin bottle 3 is placed in the nest box 1, described nexine lid paper 4 covers all cillin bottle upper opening portions in the nest box, outer sealing paper 5 covers on the nest box 1, along being adhesively fixed, finishes sealing on edge and the nest box 1.
Cillin bottle of the present invention is the cillin bottle through cleaning, drying, sterilize.Integrated being assemblied in honeycomb boards and the nest box becomes independently product.
The quantity of the slotted eye on the honeycomb boards of the present invention, position, the regular arrangement of spacing, the internal-and external diameter of slotted eye, pitch of holes etc. are the standard value of design, become the gauge member that can adapt to automation cleaning, packing, can.For example, vertically be provided with 10 row slotted eyes on the described honeycomb boards 2, laterally be provided with 10 row slotted eyes, every row are equipped with 10 slotted eyes, and the internal-and external diameter of slotted eye, pitch of holes equate.As shown in Figure 3, Figure 4.The internal diameter of described slotted eye, the degree of depth and cillin bottle external diameter and highly corresponding are to be suitable for the assembling of cillin bottle.Can realize easily like this cleaning, the automation of packing, can.Be applicable to radiopharmacy direct automation can when making pre-embedding XiLin bottled medicine.The used plug of cillin bottle, the product that aluminium lid is respectively independent packaging.Be the product through cleaning, sterilization, respectively independent packaging.Pharmacy corporation can directly carry out sterile filling and get final product when in use.
The present invention cleans, the cillin bottle after the oven dry is placed in the slotted eye of honeycomb boards, is spaced from each other between each cillin bottle bottle, effectively solves between the bottle problems such as fragmentation that mutual collision friction causes, cut; Also prevent from simultaneously putting between the bottle too intensive cause press close to the position halfway problem of sterilizing.
Nest box of the present invention is hard plastics, and cillin bottle is placed in honeycomb boards and the nest box, and accurate positioning efficiently solves the glass breakage that cillin bottle causes owing to factors such as shaking, carry, fall in transportation.
The present invention constructs rationally, and its cleaning with cillin bottle, oven dry, sterilization operation concentrate in the cell type packaging process, become the gauge member that independently is suitable for the automation can.Easy to use, radiopharmacy can directly be carried out the can operation, has greatly simplified radiopharmacy when making pre-embedding cillin bottle medicine, and cillin bottle will through the technological process that cleans, tunnel oven just can carry out the can medicine afterwards, also reduce equipment investment.
Claims (3)
1. a cell type is packed pre-embedding cillin bottle, it is characterized in that: it is comprised of nest box, honeycomb boards, cillin bottle, nexine lid paper, outer sealing paper, described honeycomb boards is provided with some slotted eyes, described cillin bottle oral area up, correspondence is assemblied in each slotted eye, and the whole honeycomb boards of filling cillin bottle is placed in the nest box, and described nexine lid paper covers in the nest box on the cillin bottle, outer sealing paper covers on the nest box, and the edge is adhesively fixed on edge and the nest box.
2. cell type according to claim 1 is packed pre-embedding cillin bottle, it is characterized in that: described cillin bottle is the cillin bottle through cleaning, drying, sterilize.
3. cell type according to claim 1 is packed pre-embedding cillin bottle, it is characterized in that: vertically be provided with 10 row slotted eyes on the described honeycomb boards, laterally be provided with 10 row slotted eyes, every row are equipped with 10 slotted eyes, and the internal-and external diameter of slotted eye, pitch of holes equate.
