Abstract

The invention discloses a stackable double-face tie wire forming device, which belongs to the technical field of tie wire production facilities and is used for improving the stability, the adjustable function and the productivity of a conventional automatic tie wire machine. The technical scheme provided by the invention is that: a supporting frame is additionally arranged at the front end and the rear end of the equipment; two production lines are fixedly arranged in the supporting frames in parallel; upper and lower parallel guide rails are arranged between the supporting frames on one side of a fixed plate and a moving plate of each production line and are positioned outside the supporting frames; the moving plate is sleeved on the guide rails, is in sliding fit with the guide rails and is provided with a guide rail locking device; a moving plate bracket which is parallel to the guide rails is arranged outside the other side of the moving plate and is provided with a rack; a gear is arranged on the side face of the moving plate and is engaged with the rack; the moving plate is provided with a moving plate adjusting handle; and the moving plate adjusting handle is connected with a gear shaft. The device has the advantages of rational structure, convenience in adjustment, no mutual influence of the production lines, high stability and stackable layout and is worthy of being promoted in the same industry.

Description

A kind of can stacking double sided button silk shaped device
Technical field
The present invention relates to a kind of moulding facility of processing the button silk, belong to button silk production facility technical field.
Background technology
The button silk is the binding piece that begins in recent years be used to building the usefulness such as building concrete member framework of steel reinforcement and refuse bag, utilizes this part can form quickly and easily tight and difficult loosening bundling head, so obtain the favor of industries such as building, wide market future is arranged.In order to adapt to the demand in enormous quantities of make-up silk, the process equipment that exploitation can be carried out automated production is very important, China Patent No. " ZL200610048245.7 " discloses a kind of forming machine for screw thread, this forming machine for screw thread has solved the automation issues that the moulding of button silk is produced technically, but following deficiency is arranged in the production process:
1. adopt three production line parallel modes, every line production can not be controlled separately, and three line torsion wire mechanisms adopt same air cylinder driven, requires manufacturing, the assembly precision height of transmission mechanism, and adjustment difficulty is large;
2. three production lines adopt up and down parallel arrangement, and vertical range is short between three lines, and the phase reciprocity interferes mat when detaining the silk blanking after the moulding;
3. this equipment is separately fixed at two lateral bending silk parts on quiet plate and the moving plate for adapting to the processing of different length specification button silk, will adjust moving the slab integral slip during adjustment, and adjustment will reach time-consuming, the effort of the accuracy that needs;
4. the alignment wire feeder of this equipment can only carry out alignment in vertical direction, therefore still has the part metals silk to have the phenomenon of elbow, has directly affected silk;
5. the equipment center of gravity is at the front equipment end face, poor stability, and it is large to take working space in real work.
Summary of the invention
Technical problem to be solved by this invention provides a kind of on the basis of original forming machine for screw thread, can overcome that above not enough rational in infrastructure, convenient of original forming machine for screw thread adjusted, production line is independent of each other, good stability can stacking double sided button silk shaped device.
The technical scheme that solves the problems of the technologies described above is:
A kind of can stacking double sided button silk shaped device, it comprises two button silk bending production lines, the left and right sides curved silk parts, thread plate parts are arranged in every production line, drive deceleration component, left and right sides vertical forming parts, left and right horizontal profiled part, left and right sides push-down head parts, cut-out parts, wire feed parts, vertical alignment parts, its improvements are: the front and back end at equipment has increased support frame, article two, production line is parallel is fixedly mounted in the support frame, article two, production line provides power by a motor, forms a production unit; Up and down two closed slides are installed between the support frame of the quiet plate of every production line and moving plate one side, guide rail is positioned at the support frame outside, moving sleeve-board is contained on the guide rail, moving plate and guide rail are for slidably cooperating, at moving plate guide rail locking apparatus is arranged, moving board mount with guide rail parallel is installed in the opposite side outside of moving plate, on the moving board mount tooth bar is installed, moving plate side is equipped with gear, gear and tooth bar are meshed, moving plate regulating handle is installed on the moving plate, and moving plate regulating handle is connected with gear shaft.
Above-mentioned can stacking double sided button silk shaped device, the vertical alignment parts rear portion of described every production line has increased horizontal alignment parts.
Above-mentioned can stacking double sided button silk shaped device, add traction wheel between described aligning mechanism and the bending mechanism, traction wheel is positioned at up and down both sides wiry, two-sided traction wheel all is connected with electromagnetic clutch.
Above-mentioned can stacking double sided button silk shaped device, described shut-off mechanism is positioned at before the shaping mechanism, cuts off parts and is installed in the wire below.
Above-mentioned can stacking double sided button silk shaped device, the described production unit that is made of the front and back support frame has a plurality of, their up and down overlapping placements, support frame has respectively detent and positioning convex up and down, detent and positioning convex be corresponding and coupling mutually.
Usefulness of the present invention is:
1. increased support frame in the front and back end of equipment, two parallel being fixedly mounted in the support frame of production line form a production unit, have greatly increased equipment fastness and stability;
2. move sleeve-board and be contained on the guide rail, by rotating the moving plate regulating handle driven gear and the relative motion of adjusting tooth bar on the moving plate, slide at moving panel guide thereby realize moving plate, reach the accurately adjustable of button filament length degree;
3. increase horizontal alignment parts, made alignment better effects if wiry, avoided the impact of elbow wire on producing;
4. adopt stacked structures greatly to have saved floor space, significantly improve productivity ratio and economic benefit.
The present invention has obtained the effect of highly significant by above improvement, and quality and quantity that the button silk is produced have all obtained greatly improving, and the demand of satisfying the market has been made very large contribution, are worth promoting in the same industry.
Description of drawings

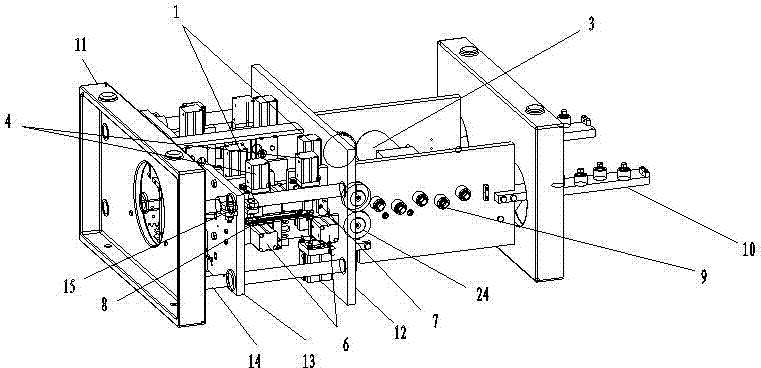

Fig. 1 is structural representation of the present invention;
Fig. 2 is front view of the present invention;
Fig. 3 is top view of the present invention;
Fig. 4 is upward view of the present invention
Fig. 5 is stacked state figure of the present invention.
Mark is as follows among the figure: the left and right sides curved silk parts 1, thread plate parts 2, drive deceleration component 3, left and right sides vertical forming parts 4, left and right horizontal profiled part 5, left and right sides push-down head parts 6, cut off parts 7, wire feed parts 8, vertical alignment parts 9, horizontal alignment parts 10, support frame 11, quiet plate 12, moving plate 13, guide rail 14, guide rail locking apparatus 15, moving board mount 16, tooth bar 17, gear 18, moving plate regulating handle 19, seal wire horizontal sliding cylinder 20, press down guide block 21, lower platen 22, electromagnetic clutch 23, wire feed driving wheel 24.
The specific embodiment
The present invention adopts stacking double sided button silk shaped device in order to enhance productivity, and minute two production lines guarantee and can work simultaneously that also can work independently simultaneously, production efficiency is high.Institute takes up space when working in order to reduce button silk shaped device, adopts many forming machine stackable configurations, and the stability that locating slot guarantees the work of button silk machine is set on the support frame, and does not interfere apart from blanking after guaranteeing the moulding of button silk between two equipment up and down.
The left and right sides curved silk parts 1, thread plate parts 2 are arranged in every production line of the present invention, drive deceleration component 3, left and right sides vertical forming parts 4, left and right horizontal profiled part 5, left and right sides push-down head parts 6, cut-out parts 7, wire feed parts 8, vertical alignment parts 9, horizontal alignment parts 10, support frame 11.
Show among the figure, two parallel being fixedly mounted in the support frame 11 of production line, two production lines provide power by a motor, form a production unit.
Show among the figure, up and down two closed slides 14 are installed between the support frame 11 of the quiet plate 12 of every production line and moving plate 13 1 sides, and guide rail 14 is positioned at support frame 11 outsides, and moving plate 13 is sleeved on the guide rail 14, moving plate 13 can slide along guide rail 14, at moving plate 13 guide rail locking apparatus 15 is arranged.The moving board mount 16 parallel with guide rail 14 is installed in the opposite side outside of moving plate 13, and moving board mount 16 can prevent that guide rail 14 is subject to moment of torsion.On the moving board mount 16 tooth bar 17 is installed, moving plate 13 sides are equipped with gear 18, and gear 18 and tooth bar 17 are meshed, and moving plate regulating handle 19 is installed on the moving plate 13, and moving plate regulating handle 19 is connected with gear shaft.By rotating moving plate regulating handle 19 driven gears 18 on the moving plate 13 and adjust the relative motion of tooth bar 17, thereby realize that moving plate 13 slides at moving panel guide 14, the rear locking guide rail locking apparatus 15 that puts in place finally realizes that the length of button thread is adjustable.
Show among the figure, at the wire feed end horizontal alignment parts 10 and vertical alignment parts 9 be installed, respectively to wiry vertically and horizontal direction carry out alignment.
Wire needs to carry out bending and cut-out after alignment, need to realize wire feed action wiry in first being processed, therefore need to add haulage gear between aligning mechanism and bending mechanism.Because realize two-sided working alone, so two-sided traction wheel all is connected with electromagnetic clutch 23, can allow not stall of motor, the connection by PLC control electromagnetic clutch 23 is controlled stopping, turning of wire feed driving wheel 24 with disconnecting.
When carrying out bending, also tackle wire and cut off.After the wire wire feed puts in place, wire need to carry out customized cut-off, therefore cuts off parts 7 and is installed in before the shaping mechanism, interferes in order not make between the mechanism, wire need to be begun from below to cut off, prevent from forming cylinder and cut off between the cylinder producing interference.
Show among the figure, in order to save more space to production unit, button silk machine can be designed to stack, the support frame 11 of button silk machine is designed to the very high trench structure of intensity, on support frame 11, positioning convex is arranged, the below has detent, and the positioning convex of button silk machine was placed and got final product below the detent of button silk machine was aimed at above only need allowing when stacking the placement.

Claims (3)

  1. One kind can stacking double sided button silk shaped device, it comprises two button silk bending production lines, the left and right sides curved silk parts (1) are arranged in every production line, thread plate parts (2), drive deceleration component (3), left and right sides vertical forming parts (4), left and right horizontal profiled part (5), left and right sides push-down head parts (6), cut off parts (7), wire feed parts (8), vertical alignment parts (9), it is characterized in that: increased support frame (11) in the front and back end of equipment, article two, production line is parallel is fixedly mounted in the support frame (11), article two, production line provides power by a motor, forms a production unit; Up and down two closed slides (14) are installed between the quiet plate (12) of every production line and the support frame (11) of moving plate (13) one sides, guide rail (14) is positioned at support frame (11) outside, moving plate (13) is sleeved on the guide rail (14), moving plate (13) and guide rail (14) are for slidably cooperating, at moving plate (13) guide rail locking apparatus (15) is arranged, opposite side outside at moving plate (13) is equipped with the moving board mount (16) parallel with guide rail (14), on the moving board mount (16) tooth bar (17) is installed, moving plate (13) side is equipped with gear (18), gear (18) and tooth bar (17) are meshed, moving plate regulating handle (19) is installed on the moving plate (13), and moving plate regulating handle (19) is connected with gear shaft.
  2. 2. according to claim 1 can stacking double sided button silk shaped device, it is characterized in that: vertical alignment parts (9) rear portion of described every production line has increased horizontal alignment parts (10).
  3. 3. according to claim 1 and 2 can stacking double sided button silk shaped device, it is characterized in that: the described production unit that is made of front and back support frame (11) has a plurality of, their up and down overlapping placements, support frame (11) has respectively detent and positioning convex up and down, and detent and positioning convex be corresponding and coupling mutually.
