Abstract
The invention discloses a ball mill, which comprises a transmission mechanism and a rotary pair, wherein a small belt pulley connected with a speed regulating motor and a large belt pulley form a first belt transmission mechanism through a first belt, a plurality of ball milling tanks are symmetrically arranged on a rotary table which is connected with the large belt pulley through a central main shaft and coaxially operates, a rotating shaft of each ball milling tank and the rotary table form the rotary pair, the lower parts of the rotating shafts are connected with planetary belt pulleys, the planetary belt pulleys and the central belt pulley connected with a machine base through a second belt form a second belt transmission mechanism, the central main shaft and the rotating shafts are hollow shafts, the ball milling tanks are communicated with the rotating shafts, the rotating shafts are communicated with the central main shaft in a connecting way, and the lower end of the central main shaft is provided with a discharge port.
Description
Technical field
The present invention relates to crushing mechanical equipment, relate in particular to a kind of suitable need ball mill of running continuously.
Background technology
Ultramicro grinding is a nearly new and high technology that developed rapidly in 20 years; Can be processed into micron even nano level micro mist to raw material, obtain using widely in many fields such as chemical industry, medicine, food, agricultural chemicals, cosmetics, dyestuff, coating, electronics, Aero-Space.
Superfine communication technique has machinery mill, airflow milling etc. multiple, and wherein ball mill is the legacy equipment that is used for ultramicro grinding, is characterized in that comminution ratio is big; Simple in structure, Mechanical Reliability is strong, and wearing part is checked easily and changed; Technical maturity, advantage such as adaptability is strong, and product granularity is little.But ball mill is to belong to stand alone type, step plant equipment, can't be connected with other equipment on the production line on its structure, is difficult to realize the requirement of working continuously on the production technology.
Summary of the invention
To the shortcoming of prior art, the purpose of this invention is to provide a kind of ball mill, can adapt to working continuously of production line.
To achieve these goals, technical scheme of the present invention is: a kind of ball mill comprises transmission mechanism and rotary pair; Wherein, The small belt pulley that connects with buncher constitutes first belt gear through first belt and big belt pulley, connect through central principal axis with big belt pulley and the rotating disk of coaxial running on symmetric arrangement a plurality of ball grinders are arranged, the rotating shaft of each ball grinder all constitutes rotary pair with rotating disk; And the bottom of rotating shaft is connected with planetary belt; This planetary belt constitutes second belt gear through second belt with the center belt wheel that connects with support again, and described central principal axis and rotating shaft are hollow shaft, communicate between described ball grinder and the rotating shaft; Connection communicates between rotating shaft and the central principal axis, and the lower end of central principal axis is provided with discharging opening.
Preferably, above ball grinder, set into materials device, this feeding device is the circle that the can rotate around the axis cavity device that gathers materials, and its top is provided with a cylindrical feeding mouth, and the bottom is respectively equipped with corresponding cylindrical discharging opening and connects with each ball grinder and communicates.
Preferably, an end that connects with ball grinder in said rotating shaft sets out the material screen plate.
Preferably, communicate through drawing mechanism connection between said rotating shaft and the central principal axis, this drawing mechanism is provided with cavity, and the part that is connected with drawing mechanism at central principal axis is distributed with blow tank.
Preferably, the tapping channel of pan feeding passage in the feeding device and said drawing mechanism all tilts the angle setting certain.
Compared with prior art, the present invention had both kept the advantage of planetary ball mill in the prior art, had realized pan feeding again simultaneously and had gone out package integral, and realized the continuity of production technology, and resource uses manpower and material resources sparingly.
Description of drawings
Below in conjunction with accompanying drawing the present invention is done further detailed description.

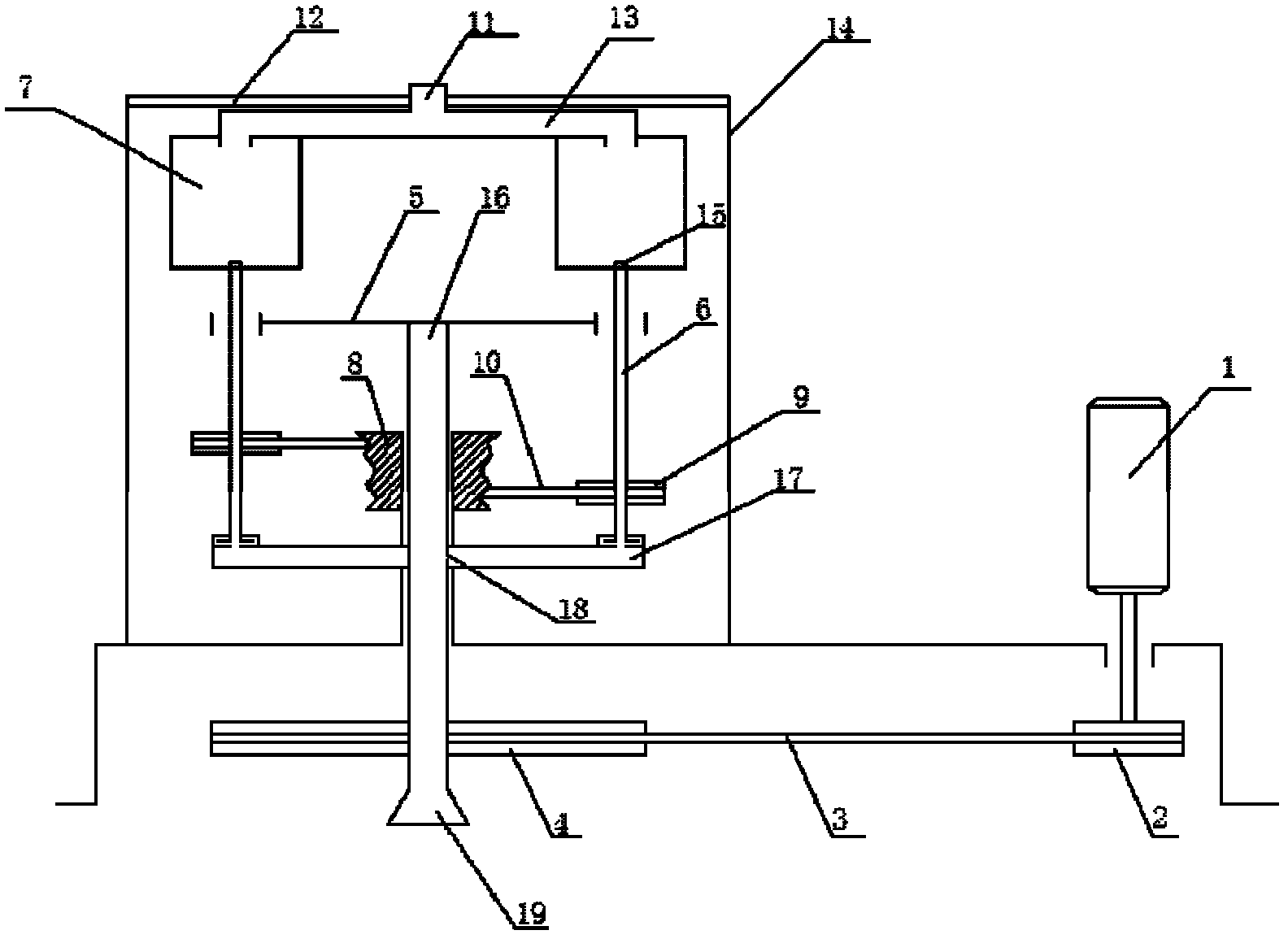

Fig. 1 is a structural representation of the present invention.
The specific embodiment
See also Fig. 1; Ball mill of the present invention comprises transmission mechanism and rotary pair; Wherein, the small belt pulley that connects with buncher 12 constitutes first belt gear through first belt 3 and big belt pulley 4, connects through central principal axis 16 with big belt pulley 4 that symmetric arrangement has a plurality of ball grinders 7 on the rotating disk 5 of also coaxial running; The rotating shaft 6 of each ball grinder 7 all constitutes rotary pair with rotating disk 5; And the bottom of rotating shaft 6 is connected with planetary belt 9, and this planetary belt 9 constitutes second belt gear through second belt 10 with the center belt wheel that connects with support 8 again, and central principal axis 16 is hollow shaft with rotating shaft 6; Rotating shaft 6 is used to connect ball grinder 7 and drawing mechanism 17, with the cavity of the powder conveying in the ball grinder 7 to drawing mechanism 17; One end of ball grinder 7 is nested with feeding device 13; Make it both can accomplish the rotation of self; Can drive feeding device revolution again, rotating shaft 6 is connected with ball grinder 7 the other end be provided with discharging sieve plate 15, be used to separate and pulverize the powder accomplished and the powder of pulverizing completion; Communicate between ball grinder 7 and the rotating shaft 6, connect between rotating shaft 6 and the central principal axis 16 and communicate, the lower end of central principal axis 16 is provided with discharging opening 19.Above ball grinder 7, set into materials device 13; This feeding device 13 is a circle that the can rotate around the axis cavity device that gathers materials; Its top is provided with a cylindrical feeding mouth 11, so that be connected with other process equipments, the bottom is respectively equipped with corresponding cylindrical discharging opening and communicates with each ball grinder 7 connection; Feeding device 13 drives revolution by ball grinder 7, and material gets into ball grinder 7 through feeding device 13 under centrifugal action; Cover 12 is set above feeding device 13, throws away because of centrifugal force is excessive to prevent feeding device 13; Communicate through a drawing mechanism 17 connections between rotating shaft 6 and the central principal axis 16, this drawing mechanism 17 is provided with cavity, and the part that is connected with drawing mechanism 17 at central principal axis 16 is distributed with blow tank 18; The angle setting that the pan feeding passage in the feeding device 13 and the tapping channel of drawing mechanism 17 all tilt certain; To make things convenient for flowing of material and powder.
During work, after buncher started, rotating disk 5 just can rotate, and ball grinder 7 just begins to do planetary motion simultaneously.Feeding device 13 is via mill jar 7 drive revolution.Mill ball in the ball grinder forms very big high-frequency percussion, frictional force to material under the effect of inertia force, material is carried out quick fine grinding.
The raw material particle gets into feeding device 13 by feeding mouth 11; Particle is thrown to feeding device 13 under action of centrifugal force a side falls in the mill jar 7; Particle filters out the powder of pulverizing completion by discharging sieve plate 15 after the ball grinder micro mist is broken, this powder is carried through rotating shaft 6, enters into drawing mechanism 17.Afterwards, export by the blow tank on the central principal axis 16 18, enter in the cavity of central principal axis 16, finally be transported to discharging opening 19 via the material powder of drawing mechanism 17.
The ball milling of can pulverizing continuously of the present invention integrates charging, ball mill grinding, discharging, can adapt to the requirement of working continuously in the production, has shortened the production cycle, has saved human and material resources.
Claims (5)
1. a ball mill comprises transmission mechanism and rotary pair, wherein; The small belt pulley that connects with buncher constitutes first belt gear through first belt and big belt pulley; Connect through central principal axis with big belt pulley and the rotating disk of coaxial running on symmetric arrangement a plurality of ball grinders are arranged, the rotating shaft of each ball grinder all constitutes rotary pair with rotating disk, and the bottom of rotating shaft is connected with planetary belt; This planetary belt constitutes second belt gear through second belt with the center belt wheel that connects with support again; It is characterized in that described central principal axis and rotating shaft are hollow shaft, communicate between described ball grinder and the rotating shaft; Connection communicates between rotating shaft and the central principal axis, and the lower end of central principal axis is provided with discharging opening.
2. ball mill according to claim 1; It is characterized in that; Above ball grinder, set into materials device; This feeding device is the circle that the can rotate around the axis cavity device that gathers materials, and its top is provided with a cylindrical feeding mouth, and the bottom is respectively equipped with corresponding cylindrical discharging opening and connects with each ball grinder and communicates.
3. ball mill according to claim 1 is characterized in that, an end that connects with ball grinder in said rotating shaft sets out the material screen plate.
4. ball mill according to claim 1 is characterized in that, communicates through drawing mechanism connection between said rotating shaft and the central principal axis, and this drawing mechanism is provided with cavity, and the part that is connected with drawing mechanism at central principal axis is distributed with blow tank.
5. ball mill according to claim 4 is characterized in that, the angle setting that the pan feeding passage in the said feeding device and the tapping channel of said drawing mechanism all tilt certain.
