Abstract

The utility model discloses a chain type centrifugal crusher. The chain type centrifugal crusher comprises a rack, wherein a barrel of which the top is sealed by a top cover and the bottom is open is fixed on the rack; a feed opening is formed in the top cover; a rotating shaft driven by a power device is arranged in the barrel; the rotating shaft is connected with a material throwing device which can rotate with the rotating shaft so that materials falling on the rotating shaft from the feed opening can be thrown into the inner wall of the barrel; and a beating device which can rotate with the rotating shaft for beating the falling materials is arranged below the material throwing device. The chain type centrifugal crusher is simple in structure, high in crushing speed and good in crushing effect.

Description

The chain type centrifugal crusher
Technical field
The utility model relates to a kind of disintegrating machine, is specifically related to a kind of chain type centrifugal crusher.
Background technology
In daily production process, especially in the chemical products production process, often use the raw material of schistose granular, the raw material of these schistose granulars balling-up bulk that easily hardens, all hardness is not high to be the raw material of ball bulk, is knocked, clashes into or roll easy fragmentation.For the ease of using, need to be the raw material fragmentation of ball bulk, the crumbling method that adopts at present mostly adopts the mode of manually knocking or rolling, and causes production efficiency not high.Therefore, be necessary very much to design the high disintegrating machine of a kind of crushing efficiency.
The utility model content
The technical problems to be solved in the utility model is to provide the high chain type centrifugal crusher of a kind of crushing efficiency.
In order to solve the problems of the technologies described above, the utility model provides a kind of chain type centrifugal crusher of following structure, comprise frame, its design feature is to be connected with on described frame the top by the cylindrical shell of top cover sealing and its bottom-open, top cover is provided with charging aperture, be provided with the rotating shaft that is driven by power set in cylindrical shell, be connected with in rotating shaft when rotating with rotating shaft and can fall the material-throwing device that material on it is thrown to cylinder inboard wall by charging aperture, the material-throwing device below is provided with the beating unit that can impact the material of whereabouts when rotating with rotating shaft.
Described material-throwing device comprises that the end face pressed on ring of feed throwing disc is furnished with many convex tendons for being connected feed throwing disc with rotating shaft.
The end face of described feed throwing disc is provided with the low inside and high outside conical surface.
Described beating unit is many chains.
Described many chains are set to many groups in groups, and every group is comprised of two chains that are oppositely arranged at least, and described many group chains from top to bottom set gradually.
In described many group chains, the two adjacent groups chain is crisscross arranged.
In described many group chains, uppermost one group of chain is connected on the bottom surface of material-throwing device, and all the other each groups are connected in rotating shaft.
Described cylinder inboard wall bottom is connected with axle bed by the brace summer that the interval arranges, and the lower end of rotating shaft is rotatably connected on axle bed, and the upper end of rotating shaft is rotatably connected on top cover, and rotating shaft is connected with power set power by the upper end of exposing top cover.
The utility model course of work is as follows: the material of ball bulk enters in cylindrical shell from charging aperture, after falling on the High Rotation Speed material-throwing device, thrown to cylinder inboard wall under centrifugal action, the material of ball bulk is subject to clashing into and just can be broken into fritter, in material dropping process, can be subject to impacting of chain and further fragmentation.That is to say, after the material of ball bulk enters disintegrating machine, first through clashing into again through impacting, the crushing effect that has obtained.
In sum, the utility model has the advantage of: simple in structure, broken speed is fast, and crushing effect is good.
Description of drawings
Below in conjunction with accompanying drawing, the specific embodiment of the present utility model is described in further detail:
Fig. 1 is structural representation of the present utility model;

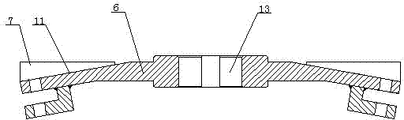

Fig. 2 is the structural representation of the material-throwing device shown in Fig. 1;
Fig. 3 is the top view of Fig. 2.
The specific embodiment
As shown in Figure 1, the chain type centrifugal crusher comprises frame 1, is connected with the top on frame 1 by the cylindrical shell 2 of top cover 3 sealings and its bottom-open, and the open end of cylindrical shell 2 is blanking port, is connected with wearing layer 12 on the inwall of cylindrical shell 2, and top cover 3 is provided with charging aperture 14.Cylindrical shell 2 inwall bottoms are connected with axle bed 8 by the brace summer 9 that the interval arranges, the lower end of rotating shaft 4 is rotatably connected on axle bed 8, the upper end of rotating shaft 4 is rotatably connected on top cover 3, rotating shaft 4 upper ends pass top cover 3, connect belt pulley on rotating shaft 4 traversing through end, frame 1 is equipped with power set, and power set are motor 10, belt pulley also is housed on the axle of motor 10, and rotating shaft 4 is connected with motor 10 power by belt.Be connected with material-throwing device in rotating shaft 4, can will throw to cylindrical shell 2 inwalls by the material that charging aperture 14 is fallen on it when material-throwing device rotates with rotating shaft 4; As Fig. 1, Fig. 2 and shown in Figure 3, described material-throwing device comprises for being connected feed throwing disc 6 with rotating shaft 4, the end face pressed on ring of feed throwing disc 6 is furnished with many convex tendons 7, and the end face of feed throwing disc 6 is provided with the low inside and high outside conical surface 11, and feed throwing disc 6 is provided with the axis hole 13 that is connected for rotating shaft 4.
As shown in Figure 1, be provided with the beating unit that can impact the material that falls when rotating with rotating shaft below material-throwing device, beating unit is the chain 5 that many energy rotate with rotating shaft 4.Described many chains 5 are set to many groups in groups, every group is comprised of two chains 5 that are oppositely arranged at least, the from top to bottom interval setting successively of described many group chains, the two adjacent groups chain preferably is crisscross arranged, uppermost one group of chain is connected on the bottom surface of material-throwing device, and all the other each groups are connected in rotating shaft 4.

Claims (8)

1. chain type centrifugal crusher, comprise frame (1), it is characterized in that being connected with on described frame (1) top by the cylindrical shell (2) of top cover (3) sealing and its bottom-open, top cover (3) is provided with charging aperture (14), be provided with the rotating shaft (4) that is driven by power set in cylindrical shell (2), be connected with in rotating shaft (4) when rotating with rotating shaft (4) and can fall the material-throwing device that material on it is thrown to cylindrical shell (2) inwall by charging aperture (14), the material-throwing device below is provided with the beating unit that can impact the material of whereabouts when rotating with rotating shaft (4).
2. chain type centrifugal crusher as claimed in claim 1, it is characterized in that: described material-throwing device comprises that the end face pressed on ring of feed throwing disc (6) is furnished with many convex tendons (7) for being connected feed throwing disc (6) with rotating shaft (4).
3. chain type centrifugal crusher as claimed in claim 2, it is characterized in that: the end face of described feed throwing disc (6) is provided with the low inside and high outside conical surface.
4. as claim 1,2 or 3 described chain type centrifugal crushers, it is characterized in that: described beating unit is many chains (5).
5. chain type centrifugal crusher as claimed in claim 4 is characterized in that: described many chains (5) are set to many groups in groups, and every group is comprised of two chains (5) that are oppositely arranged at least, and described many group chains from top to bottom set gradually.
6. chain type centrifugal crusher as claimed in claim 5 is characterized in that: in described many group chains, the two adjacent groups chain is crisscross arranged.
7. chain type centrifugal crusher as claimed in claim 5 is characterized in that: in described many group chains, uppermost one group of chain is connected on the bottom surface of material-throwing device, and all the other each groups are connected in rotating shaft (4).
8. chain type centrifugal crusher as claimed in claim 1, it is characterized in that: the brace summer that described cylindrical shell (2) inwall bottom arranges by the interval is connected with axle bed (8), the lower end of rotating shaft (4) is rotatably connected on axle bed (8), the upper end of rotating shaft (4) is rotatably connected on top cover (3), and rotating shaft (4) is connected with power set power by the upper end of exposing top cover (3).
