Abstract
The invention relates to a bottom sowing-type mariculture facility which is suitable for the sea area with silt bottom, in particular to a bottom sowing-type raft frame and a net cage for marine bivalve mollusks, sea cucumbers or mixotrophic culture of marine bivalve mollusks and sea cucumbers. The facility is provided with a PVC pipe, a polyethylene rope for fixing the PVC pipe, a webbing, a stake or an anchor for fixing the facilities, a rope fixed on the stake or the anchor, and a fixable floating ball which is connected to the rope and floats on the surface of water; the PVC pipe is fixed on the polyethylene rope in parallel, the polyethylene rope is arranged in parallel, is perpendicular to the PVC pipe, is positioned at the upper side and the lower side of the two terminals of the PVC pipe and forms the structure similar to a 'soft ladder'; the 'soft ladder' is externally covered by the webbing, and a plurality of independent net cages are formed by combining the PVC pipe, the polyethylene rope and the webbing; the two ends of the undrawn 'soft ladder' are fixed at the bottom of the sea by the stake or the anchor respectively, and the floating ball is fixed at the two ends of the 'soft ladder' by the rope. The facility can effectively prevent the enemies and reduce the influence of storm and ocean current, thus being convenient for management and harvest and favorable to the comprehensive utilization of mariculture area.
Description
Technical field:
The present invention relates to a kind of bottom-sowing type water culture facilities that is applicable to marine site at the bottom of the silt, specifically seawater bivalve shellfish, sea cucumber or the shellfish ginseng bottom-sowing type raft frame and the breeding cage of raising together with.
Background technology:
Current bivalve shellfish mainly contains two kinds of breed patterns such as raft culture and bottom sowing culture as shellfishes such as chlamys farreri, bay scallop or stichopus japonicus.The raft culture technology mainly is as floating well rope with a long rope, it is some large-scale cursory that floating well rope is provided with, floating well rope two ends are fixed on the seabed through the root rope by timber, floating well rope is floated in water, and floating well rope below hangs some breeding cages, and the shellfish or the ginseng class of breed is housed in the breeding cage, the major defect that this kind cultured pattern is: technology high temperature season disease takes place frequently, the aquaculture organism survival rate is low, and the capacity of anti-storm of structure is poor, and main culturing area concentrates on 20 meters isobaths with interior waters.The bottom sowing culture technology is directly to sow seed in the sea area, and this kind cultured the pattern seed and very easily met with harmful animal, and survival rate is low, and the recapture difficulty, and labour intensity is big, and the covering rate is low.
Summary of the invention:
In order to overcome existing raft culture and the deficiency of bottom sowing culture in shellfish, sea cucumber etc. are cultured, the invention provides a kind of bottom-sowing type water culture facilities that is applicable to marine site at the bottom of the silt, this facility has been taken into account the advantage of raft culture and bottom sowing culture, weaken the influence of stormy waves to cultivating system, and can obviously reduce the influence of harmful organisms, convenient management and results.
The technical solution adopted for the present invention to solve the technical problems is:
A kind of bottom-sowing type water culture facilities that is applicable to marine site at the bottom of the silt, this facility be provided with rope, etting, the fixation means of pvc pipe, fixing PVC pipe timber or anchor, be fixed on rope on timber or the anchor, be connected in the fixedly ball float that rope emerges; The pvc pipe secured in parallel is on rope, and rope is arranged in parallel, and is vertical with pvc pipe, be positioned at the both sides up and down at pvc pipe two ends, form the structure that is similar to " rope ladder ", " rope ladder " outer cover etting, combine with etting by pvc pipe, rope, form a plurality of independently breeding cages; " rope ladder " two ends after drawing back schedule the seabed by timber or anchoring respectively, pass through the lanyard ball float at the rope ladder two ends.
The described bottom-sowing type water culture facilities that is applicable to marine site at the bottom of the silt, uses at least one pvc pipe every 1 meter by adjacent two independently between the breeding cage at breeding facility; Pvc pipe secured in parallel between each breeding cage is on four polyethylene ropes, and the both sides up and down at pvc pipe two ends are a polyethylene rope respectively, and four polyethylene ropes are arranged in parallel, and the etting mesh is 10～30mm.
The described bottom-sowing type water culture facilities that is applicable to marine site at the bottom of the silt, the pvc pipe material is any material that can be used for supporting structure in general polyvinyl chloride pipe material or the prior art, the diameter of pvc pipe is 130～150mm, and pvc pipe is common commercially available water supply line, and the outside is coated with corrosion resistant coating.
The described bottom-sowing type water culture facilities that is applicable to marine site at the bottom of the silt, the two ends of pvc pipe are fixed by rope, the rope material is any material that can be used for tying up object in polythene material or the prior art, pvc pipe every a segment distance secured in parallel on polyethylene rope, the spacing of pvc pipe is generally 0.5～1.5 meter according to the weight of aquaculture organism and the hydraulics decision of breeding seawater.
The described bottom-sowing type water culture facilities that is applicable to marine site at the bottom of the silt, etting material are polyethylene or can be compiled into net, seawater corrosion resistance, the material nontoxic to aquaculture organism for any in the prior art.
The described bottom-sowing type water culture facilities that is applicable to marine site at the bottom of the silt, what fix this facility is timber or anchor, the material of timber or anchor is timber or anchor, or is any material that can be used for anchoring in the prior art; Timber or anchoring are on seabed or hermatolith.
The described bottom-sowing type water culture facilities that is applicable to marine site at the bottom of the silt is fixed with rope on timber or anchor, the material of rope is a polythene material, or any material that can be used for making rope in the prior art.
The described bottom-sowing type water culture facilities that is applicable to marine site at the bottom of the silt, rope one end emerges, and is fixed with ball float, and ball float is bubbled through the water column; The material of ball float is a polypropylene material, or any material that can be used for making ball in the prior art.
The invention has the beneficial effects as follows:
1. take into account the advantage of raft culture and bottom sowing culture, the mentality of designing of the change tradition raft frame of novelty;
2. aquaculture organism becomes the end state of dwelling by suspended state, and the change in habitat is more suitable for scallop existence and growth;
3. strengthened the capacity of anti-storm of breeding facility, reduced the influence of natural calamity aquaculture;
4. reduce the invasion and attack of harmful organisms, increase scallop output;
5. cheap, easy and simple to handle, reduce labor intensity, be convenient to management and results;
6. weaken the influence of breed, help culturing the reparation and the comprehensive utilization of marine site ecotope the natural waters ecotope.
Description of drawings:

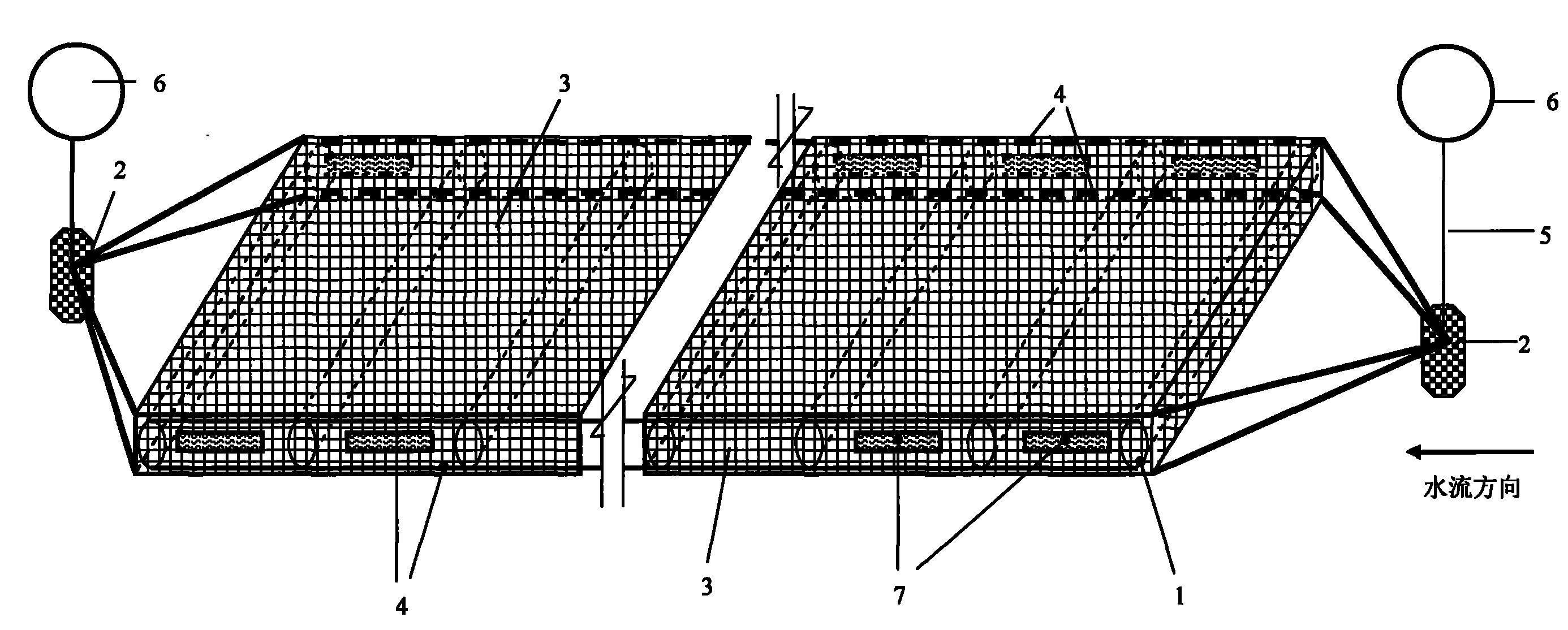

Fig. 1 is a kind of bottom-sowing type water culture facilities structural representation that is applicable to marine site at the bottom of the silt.
Fig. 2 is a kind of bottom-sowing type water culture facilities photo that is applicable to marine site at the bottom of the silt.
Fig. 3 is a kind of bottom-sowing type water culture facilities photo that is applicable to marine site at the bottom of the silt.
Among the figure, 1, the pipe; 2, timber (or anchor); 3, etting; 4, rope; 5, rope; 6, ball float; 7, opening.
Embodiment:
As Figure 1-3, the present invention is applicable to that the bottom-sowing type water culture facilities in marine site is provided with at the bottom of the silt: the etting 3 of the polyethylene rope 4 of pvc pipe 1, fixing PVC pipe and bivalve shellfish or apostichopus japonicus culture cage, the timber of fixing this facility or anchor 2, be fixed on rope 5 on timber or the anchor, be connected in fixedly ball float 6 that rope 5 emerges etc.Between two adjacent breeding cages of breeding facility, use a pvc pipe 1 every 1 meter; Pvc pipe 1 secured in parallel is on 4 (each two of both sides) polyethylene ropes 4, and 4 polyethylene ropes are arranged in parallel, and are vertical with pvc pipe 1, are positioned at the both sides up and down at pvc pipe 1 two ends; Thereby, forming the structure that is similar to " rope ladder ", the length of rope ladder is 16000mm, uses aborning and generally is no more than 50m." rope ladder " outer cover one deck mesh is the etting 3 about 2cm, combines with etting 3 by pvc pipe 1, polyethylene rope 4, in the present embodiment, forms 16 independently cuboid breeding cages." rope ladder " drawn back the back be fixed in the seabed with timber or anchor 2 respectively at two ends.One or several ball float 6 is fixed by rope 5 in two ends at rope ladder, and ball float 6 is bubbled through the water column, and is convenient to management and results.
The two ends of pvc pipe 1 are fixed by rope, the rope material is any material that can be used for tying up object in polythene material or the prior art, pvc pipe 1 every a segment distance secured in parallel on polyethylene rope 4, the spacing of pvc pipe is generally 1000mm according to the weight of aquaculture organism and the hydraulics decision of breeding seawater.Adaptablely be of a size of 0.5～1.5 meter.
Etting 3 materials be polyethylene or for anyly in the prior art can be compiled into net, certain intensity is arranged, seawater corrosion resistance, the material nontoxic to aquaculture organism, the mesh of etting has different mesh sizes according to the size of aquaculture organism, generally at 10～30mm, in the present embodiment, mesh size is 20mm.
What fix this facility is timber or anchor 2, and the material of timber or anchor can be timber or anchor, or is any material that can be used for anchoring in the prior art; Timber or anchoring are on seabed or hermatolith.
Be fixed with rope 5 on timber or anchor, the material of rope is a polythene material, or any material that can be used for making rope in the prior art.Rope 5 one ends emerge, and are fixed with ball float 6, and ball float should be bubbled through the water column; The material of ball float 6 is a polypropylene material, or any material that can be used for making ball in the prior art.
The bottom-sowing type water culture facilities that is applicable to marine site at the bottom of the silt as Figure 1-3 is applied to scallop (chlamys farreri, bay scallop, Patinopecten yessoensis etc.) and cultures.The scallop seedling of some is put in respectively in the breeding cage that is risen by pvc pipe 1, polyethylene rope 4 and etting 3 together support, put seedling before, etting 3 stays mouth at opening 7 places, puts behind the seedling opening 7 is sewed up.After putting seedling, whole bottom-sowing type breeding facility is fixed on the seabed by timber or anchor 2, and at facility two ends stationary rope 5, rope 5 upper ends are ball float 6 fixedly, ball float 6 floats on the sea, is convenient to production management and results.
Bottom-sowing type breeding facility as Figure 1-3 is applied to apostichopus japonicus culture.The stichopus japonicus seedling of some is put in respectively in the breeding cage that is risen by pvc pipe 1, polyethylene rope 4 and etting 3 together support, put seedling before, etting 3 stays mouth at opening 7 places, puts behind the seedling opening 7 is sewed up.After putting seedling, whole bottom-sowing type breeding facility is fixed on the seabed by timber or anchor 2, and at facility two ends stationary rope 5, rope 5 upper ends are ball float 6 fixedly, ball float 6 floats on the sea, is convenient to production management and results.
Bottom-sowing type breeding facility as Figure 1-3 is applied to the shellfish ginseng and raises together with.The stichopus japonicus and scallop (chlamys farreri, bay scallop, the Patinopecten yessoensis etc.) seedling of the suitable blend proportion of some are put in respectively in the breeding cage that is risen by pvc pipe 1, polyethylene rope 4 and etting 3 together support, before putting seedling, etting 3 stays mouth at opening 7 places, puts behind the seedling opening 7 is sewed up.After putting seedling, whole bottom-sowing type breeding facility is fixed on the seabed by timber or anchor 2, and at facility two ends stationary rope 5, rope 5 upper ends are ball float 6 fixedly, ball float 6 floats on the sea, is convenient to production management and results.
Claims (8)
1, a kind of bottom-sowing type water culture facilities that is applicable to marine site at the bottom of the silt, it is characterized in that, this facility be provided with rope, etting, the fixation means of pvc pipe, fixing PVC pipe timber or anchor, be fixed on rope on timber or the anchor, be connected in the fixedly ball float that rope emerges; The pvc pipe secured in parallel is on rope, and rope is arranged in parallel, and is vertical with pvc pipe, be positioned at the both sides up and down at pvc pipe two ends, form the structure that is similar to " rope ladder ", " rope ladder " outer cover etting, combine with etting by pvc pipe, rope, form a plurality of independently breeding cages; " rope ladder " two ends after drawing back schedule the seabed by timber or anchoring respectively, pass through the lanyard ball float at the rope ladder two ends.
2, according to the described bottom-sowing type water culture facilities that is applicable to marine site at the bottom of the silt of claim 1, it is characterized in that, adjacent two independently between the breeding cage at breeding facility, use at least one pvc pipe every 1 meter; Pvc pipe secured in parallel between each breeding cage is on four polyethylene ropes, and the both sides up and down at pvc pipe two ends are a polyethylene rope respectively, and four polyethylene ropes are arranged in parallel, and the etting mesh is 10～30mm.
3, according to the described bottom-sowing type water culture facilities that is applicable to marine site at the bottom of the silt of claim 1, it is characterized in that, the pvc pipe material is any material that can be used for supporting structure in general polyvinyl chloride pipe material or the prior art, the diameter of pvc pipe is 130～150mm, pvc pipe is common commercially available water supply line, and the outside is coated with corrosion resistant coating.
4, according to the described bottom-sowing type water culture facilities that is applicable to marine site at the bottom of the silt of claim 1, it is characterized in that, the two ends of pvc pipe are fixed by rope, the rope material is any material that can be used for tying up object in polythene material or the prior art, pvc pipe every a segment distance secured in parallel on polyethylene rope, the spacing of pvc pipe is generally 0.5～1.5 meter according to the weight of aquaculture organism and the hydraulics decision of breeding seawater.
According to the described bottom-sowing type water culture facilities that is applicable to marine site at the bottom of the silt of claim 1, it is characterized in that 5, the etting material is polyethylene or can be compiled into net, seawater corrosion resistance, the material nontoxic to aquaculture organism for any in the prior art.
6, according to the described bottom-sowing type water culture facilities that is applicable to marine site at the bottom of the silt of claim 1, it is characterized in that, what fix this facility is timber or anchor, and the material of timber or anchor is timber or anchor, or is any material that can be used for anchoring in the prior art; Timber or anchoring are on seabed or hermatolith.
7, according to the described bottom-sowing type water culture facilities that is applicable to marine site at the bottom of the silt of claim 1, it is characterized in that be fixed with rope on timber or anchor, the material of rope is a polythene material, or any material that can be used for making rope in the prior art.
8, according to the described bottom-sowing type water culture facilities that is applicable to marine site at the bottom of the silt of claim 1, it is characterized in that rope one end emerges, and is fixed with ball float, ball float is bubbled through the water column; The material of ball float is a polypropylene material, or any material that can be used for making ball in the prior art.
