CN101098553B - Method and device for implementing automatic selection prefix calling - Google Patents

Method and device for implementing automatic selection prefix calling Download PDF

Info

Publication number
CN101098553B
CN101098553B CN 200610095993 CN200610095993A CN101098553B CN 101098553 B CN101098553 B CN 101098553B CN 200610095993 CN200610095993 CN 200610095993 CN 200610095993 A CN200610095993 A CN 200610095993A CN 101098553 B CN101098553 B CN 101098553B
Authority
CN
Grant status
Grant
Patent type
Prior art keywords
call
network
table
area
information
Prior art date
Application number
CN 200610095993
Other languages
Chinese (zh)
Other versions
CN101098553A (en )
Inventor
李众庆
Original Assignee
联想(北京)有限公司
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Grant date

Links

Abstract

The invention disclose a method for automatically selecting prefix call and a relative device, which substantially comprises that presetting a feasible network list, storing the cost, time section, called area information and call prefix relative to the call service of operator, when call is triggered, according to the attached area of the called number, selecting an item of the feasible network list, which can send call to the area, comparing the cost of the selected item at present time, and finding a feasible network list item with minimum cost, adding the call prefix in the item before the called number to start call. The invention can automatically select the call service of operator, and adds relative prefix before the called number to process call.

Description

自动选择前缀呼叫的实现方法及其装置技术领域[0001] 本发明涉及移动通信终端的呼叫技术,特别是指一种自动选择前缀呼叫的实现方法及其装置。 Automatic calling prefixes implemented method and apparatus TECHNICAL FIELD [0001] The present invention relates to a mobile communication terminal call technology, and particularly to an automatic calling prefixes implemented method and apparatus. 背景技术[0002] 随着移动通信技术的迅猛发展,移动通信网络已经遍布世界各个角落,跨地域的漫游交互更加频繁。 [0002] With the rapid development of mobile communication technology, mobile communication network has spread all over the world, cross-regional roaming interact more frequently. 另外,随着竞争的加剧,运营商和提供的服务也越来越多,同时也为用户利用移动终端进行呼叫,带来了很多麻烦。 In addition, as competition intensifies, operators and service providers is also increasing, but also for the user to make a call using a mobile terminal, a lot of trouble. 举例来说,漫游的用户在呼叫回归属地的时候,需要加归属地的地区码,比如北京本地的移动移动终端,漫游到天津,当需要打电话回北京的固定电话时,需要加北京的区码前缀010。 For example, when a user roaming call back possessions, you need to add the area code attribution, such as Beijing's local mobile mobile terminal roams to Tianjin, when you need to call back to Beijing fixed-line telephone, and needs of the region Beijing code prefix 010. 此外,如果同一个城市同时有几个运营商竞争,外地的移动终端漫游进该城市的时候,就会出现比较复杂的情况,比如归属地在北京的移动终端,在中国移动北京公司入网,漫游到香港,香港有很多个运营商,每当该用户的移动终端注册进入一个运营商的运营范围,运营商都会发送一些相关信息给该移动终端, 比如:拨打内地电话需要加何种前缀,费率是多少等,而且每个运营商采用的前缀都不一样。 In addition, if the same city at the same time there are a few operators to compete in the field of mobile terminal roams into the city and they will appear more complex situations, such as a mobile terminal home in Beijing, China Mobile Beijing company network, roaming Hong Kong, Hong Kong has many operators, whenever the user's mobile terminal to enter a registered operator's scope of operations, the operator will send some information to the mobile terminal, such as: what kind of phone call the mainland need to add a prefix, fees rate is the number, etc., but the use of the prefix each operator are not the same. 因此,给用户的选择和操作带来很大不便。 Therefore, to select and operate the user great inconvenience. [0003] 为解决这一问题,现有技术的第一种方案在移动终端中提供呼叫前编辑功能,主要方案是在用户在移动终端电话号码本中查找到被叫电话号码后,给用户提供修改前缀的机会,用户可以在呼叫前通过键盘输入的方式添加或修改前缀。 [0003] To solve this problem, a first prior art scheme for providing a call before editing function in a mobile terminal, the main program after the user is to find the called telephone number in the telephone directory in the mobile terminal, providing the user the opportunity to modify the prefix, the user can add or modify a prefix before the call through the keyboard. 但是用户呼叫前每次都要手动修改前缀,并且还要记住各运营商与前缀的对应关系,以及费率等等,仍然给用户带来很大的不便。 But before users call every time manually modify the prefix, and also to remember the correspondence between the operators and the prefix, and the rates and so on, is still a great deal of inconvenience to the user. [0004] 现有技术的另一方案,在2003年7月2日公开的申请号为CN01139103. 0的中国专利申请中,提供了一种快速拨打电话号码装置及方法。 Chinese patent application [0004] Another aspect of the prior art, in Application No. 2003, July 2 open to CN01139103. 0, there is provided a fast dial a phone number device and method. 该方案在移动终端中设置一个运营商资料与其互联网电话服务前缀的对照表,用户在呼叫时先通过查询对照表找到运营商对应的电话服务前缀,然后再选择被叫电话号码,将被叫电话号码添加在前缀后,发起呼叫。 The program is provided in a mobile terminal information table one operator prefix its Internet phone service, telephone service users to find a prefix corresponding to an operator in a lookup table by the call, then select the called telephone number, the called telephone after adding a prefix number to initiate a call. 该方案每次需要用户根据对照表中的运营商资料来选择运营商,然后再选择被叫号码,操作起来也比较麻烦,特别是当对照表中的运营商较多时,就更加困难。 The program requires each user to select a carrier based on the carrier table data, and then select the called number, the operation is too much trouble, especially when a large table in the carrier, it is more difficult. 另外,当运营商资料或前缀发生变化,如何更新对照表;当用户漫游时如何添加国别码、地区码等问题,该方案都未给予解决。 In addition, when the data carrier or prefix changes, how to update the table; when the user roams how to add the issue of country code, area code, etc., none of the solutions to solve them. 发明内容[0005] 有鉴于此,本发明的目的在于提供一种自动选择前缀呼叫的实现方法及其装置, 能够自动选择运营商的呼叫服务,并将对应的前缀添加到被叫号码前进行呼叫。 SUMMARY [0005] In view of this, an object of the present invention is to provide a method and apparatus for automatically selecting a prefix implement the call, the operator can automatically select service call, and the corresponding prefix before the called number to a call . [0006] 基于上述目的,本发明提供的一种自动选择前缀呼叫的实现方法,预先设置可行网络表,保存运营商提供的呼叫服务所对应的费率、时间段、被叫地域信息和呼叫前缀,并包括以下步骤:[0007] AO.接收到呼叫服务信息后,将所述呼叫服务信息添加到所述可行网络表中,其中,所述呼叫服务信息为当运营商的服务器检测到移动终端进入到所述运营商的服务区后,向所述移动终端发送的至少包括有运营商在本地提供的呼叫服务对应的费率、时间段、 被叫地域信息和呼叫前缀的呼叫服务信息;[0008] A.呼叫触发后,根据被叫号码的所属地域,在所述可行网络表中选出可向该地域进行呼叫的可行网络表条目;[0009] B.比较所述所选出的可行网络表条目在当前时间下的费率,找出费率最低的一个可行网络表条目;[0010] C.将所述费率最低的一个可行网络表条目 [0006] Based on the above object, the present invention provides an automatic selection implemented method call prefix, set in advance feasible network table stored call services provided by the rate corresponding to the time period, the called party information and call prefix area and comprising the steps of:. [0007] AO after receiving the call service information, adding the information to the call service network table feasible, wherein, when said information service call operator server detects that the mobile terminal after the operator enters the service area, transmits to the mobile terminal comprises at least the rate, time, geographical information and call the called prefixes call service information corresponding to the service call in the local operators provide; [ 0008] A. after the call trigger, in accordance with the location area of ​​the called number, in the selected table possible possible network may be a network table entry to the local call; [0009] B. the comparison of the selected feasible table entry in the current network time rate, the lowest rate to find a viable network table entry; [0010] C. to the lowest rate of a viable network table entry 的呼叫前缀添加到被叫号码前发起呼叫。 Initiate a call to the called number before you add call prefix. [0011] 该方法所述呼叫服务信息承载在约定格式的短消息中,移动终端收到短消息后进一步包括:判断是否符合约定格式,如果是,则将该消息中的呼叫服务信息添加到自身可行网络表中。 [0011] The method the call service information carried in the short message in the agreed format, the mobile terminal after receiving the short message further comprises: determining whether the agreed format, if so, the message service information to the call itself feasible netlist. [0012] 该方法所述步骤AO后进一步包括:针对从运营商收到的呼叫服务信息和所述移动终端中原有可行网络表中条目进行相与操作。 [0012] The method further comprises the step of post-AO: perform the operation for the phase information received from the call service operator and the mobile terminal in the existing feasible network entries in the table. [0013] 该方法所述被叫地域信息是被叫所在地的地域码;[0014] 移动终端的电话号码本中保存有联系人的被叫号码和地域码,步骤A具体为:呼叫触发后,根据被叫号码找出对应的地域码在可行网络表中选出该地域码对应的可行网络表条目。 [0013] The area information of the called method is called location area code; [0014] a telephone book stored in the mobile terminal of the called number and the contact area code, step A is: after the call is triggered, identify the called number corresponding to the selected geographical area code corresponding to the code table entry in the network feasible feasible netlist. [0015] 该方法所述可行网络表的每个条目中进一步包括:是否需要地域的表项;[0016] 步骤C前进一步包括:cl.根据步骤B所选可行网络表条目中的是否需要地域表项判断是否需要添加地域码,如果是,则进一步在被叫号码前添加地域码,否则,不添加。 [0015] Each entry in the method table of the possible network further comprises: whether the entry area; [0016] Step C before further comprises:. Cl Step B according to whether the selected area network feasible table entry determine whether the entry area code needs to be added, and if so, further adding geographical code before the called number, otherwise, do not add. [0017] 该方法所述地域码是国家码或地区码、或区码、或国家码与区码的组合。 [0017] This method is the area code or country code area code, or area code, or a combination of the country code and area code. [0018] 基于上述目的本发明还提供了一种自动选择前缀呼叫的装置,包括:[0019] 可行网络表生成单元,用于根据移动终端的接收发射单元接收的呼叫服务信息生成可行网络表条目保存在可行网络表中;其中,所述可行网络表用于保存运营商提供的呼叫服务所对应的费率、时间段、被叫地域信息和呼叫前缀,所述呼叫服务信息为当运营商的服务器检测到移动终端进入到所述运营商的服务区后,向所述移动终端发送的至少包括有运营商在本地提供的呼叫服务对应的费率、时间段、被叫地域信息和呼叫前缀的呼叫服务fn息;[0020] 存储单元,用于保存可行网络表;[0021] 预拨暂存单元,用于暂存当前呼叫的被叫号码和添加的前缀;[0022] 搜索和号码添加单元,用于根据被叫地域信息在存储单元的可行网络表中搜索当前时段最低费率的条目,将该条目下的呼叫前 [0018] Based on the above-described object of the present invention further provides an apparatus for automatically selecting a prefix call, comprising: [0019] feasible netlist generating unit for generating a viable network entry table according to the received transmission unit of the mobile terminal service information received call in a possible network table stored; wherein, when the information carrier is a feasible network call rates table for storing the service provided by the operator corresponding to the time period, called area information and call prefix, the call service When the server detects that the mobile terminal enters the service area of ​​the operator, transmits to the mobile terminal comprises at least rates, time, and calling the called area information corresponding to the service call prefix operators locally provided fn call service information; [0020] storage means for storing viable netlist; [0021] earmarked temporary storage unit for temporarily storing the current call and the called number prefix added; [0022] Search and number adding unit before, according to current information search region called the lowest possible rate in the period table storage unit the network entry, the entry in the call 缀添加到预拨暂存单元的被叫号码前。 Prefix before the called number is added to the temporary storage unit is set aside. [0023] 从上面所述可以看出,发明提供的一种自动选择前缀呼叫的实现方法及其装置, 可以自动选择费率最低的呼叫服务进行呼叫,用户不需要在每次呼叫前编辑添加前缀;可以充分利用动态排队的优势,给用户省钱;自动完成网络选取,并进一步自动加上前缀,自适应加上国码区码进行呼叫。 [0023] As can be seen from the above, the invention provides a method and apparatus for automatically selecting implement call prefix, can automatically select the lowest rate for the call service call, the user does not need to edit each call before adding a prefix ; dynamic queue can take advantage of, the user money; automatically select the network, and further automatically add the prefix, country code area code plus adaptive call. [0024] 附图说明[0025] 图1为本发明较佳实施例中运营商的服务器端向移动终端发送呼叫服务信息的流程示意图;[0026] 图2为本发明较佳实施例中移动终端接收呼叫服务信息的流程示意图;[0027] 图3为本发明较佳实施例中用户终端呼叫过程的流程示意图;[0028] 图4为本发明较佳实施例自动选择前缀呼叫的装置结构示意图;[0029] 图5为本发明较佳实施例自动选择前缀呼叫装置漫游到香港界面示意图;[0030] 图6为从用户选择联系人示意图;[0031] 图7为自动选择运行商后,自动加上前缀,国码区码后发起呼叫,并显示的情况;[0032] 图8为对香港本地电话进行呼叫,自动隐去区码后的呼叫情况。 [0024] BRIEF DESCRIPTION OF schematic flow chart of transmitting the call information to the mobile terminal services server preferred embodiments carriers [0025] FIG. 1 of the present invention; mobile terminal receives the preferred embodiment [0026] FIG. 2 of the present invention, schematic flow chart of the call service information; [0027] FIG. 3 is a schematic flow diagram of user terminal calls in the process of the preferred embodiment of the invention; call prefix configuration diagram of an apparatus for automatically selecting the preferred embodiments [0028] of the present invention, FIG. 4; [ 0029] FIG. 5 shows the preferred embodiment of the automatic call device roamed into prefixes interface Kong schematic invention; [0030] FIG. 6 is a schematic view of a contact from the user to select; [0031] FIG. 7 is a rear automatic selection operators automatically add after the case of a call prefix, country code area code, and displayed; [0032] FIG. 8 is a local phone call to Hong Kong, the call is automatically withheld situation after the area code. [0033] 具体实施方式[0034] 下面结合附图及具体实施例对本发明再作进一步详细地说明。 [0033] DETAILED DESCRIPTION [0034] accompanying drawings and the following specific embodiments of the present disclosure is further described in detail. [0035] 本发明的自动选择前缀呼叫的实现方法的主要思想是:预先设置可行网络表,保存运营商提供的呼叫服务所对应的费率、时间段、被叫地域信息和呼叫前缀。 [0035] The main idea of ​​the method for implementing the present invention automatically prefixes the call is: presetting feasible network table stored call services provided by the rate corresponding to the time period, geographic information and call the called prefix. 在呼叫触发后,根据被叫号码的所属地域,在可行网络表中选出可向该地域进行呼叫的可行网络表条目;比较所选出的可行网络表条目在当前时间下的费率,找出费率最低的一个可行网络表条目;将所选可行网络表条目中的呼叫前缀添加到被叫号码前发起呼叫。 After the call is triggered, according to the location area of ​​the called number table entry may select a viable network for the call to the local network table feasible; feasible rates comparing the selected table entry in the current network time, to find the lowest rate of a viable network table entry; possible to add the selected network call prefix table entry to a call before the called number. [0036] 其中,地域信息是指被叫所在国家/地区、城市等,一般可以用国别码/地区码、区码表示,国别码和地区码为方便描述,在本发明中有时也统一称为国码。 [0036] wherein the area information is called country / region, city, etc., may be generally the country code / area code, area code, said area code and the country code for the convenience of description, the present invention may also be standardized in the called country code. [0037] 下面具体说明本发明方法的一个较佳实施例。 [0037] The following detailed description of the present invention, a preferred embodiment of the method of Fig. [0038] 在移动终端的电话号码本中,为每个电话号码保存其所对应的国别/地区码和区码,参见表1所示。 [0038] In the telephone directory of the mobile terminal, stored country / area code and the area code corresponding to it for each phone number, as shown in Table 1. [0039] [0039]

Figure CN101098553BD00051

[0041] 表1[0042] 对于电话号码本中的固定电话号码,需要保存国别/地区码和区号;手机号码只需要保存国别/地区码。 [0041] Table 1 [0042] For the telephone book in the fixed telephone number, you need to save the country / region code and area code; phone number only need to save the country / area code. [0043] 在运营商的服务器端采用统一格式,通过短信方式或其他广播方式向进入服务区的移动终端发送提供的呼叫服务信息,至少包括:前缀、拨打各地的各个时间段的费用率等。 [0043] uniform format on the server side operator, call service messages provided to enter the service area of ​​the mobile terminal via SMS or other broadcasts, including at least: prefix, expense rate to dial each time period of the country. 一个较佳地实施例的格式参见表2所示。 The format of one embodiment of the preferred embodiment shown in Table 2. [0044] [0044]

Figure CN101098553BD00052

[0045]表2[0046] 如表2所示,运营商发送给移动终端的呼叫服务信息中,包括:运营商名、前缀、费率、被呼叫地区、时间段、是否需要国码(即国家/地区码)、是否需要区码。 [0045] Table 2 [0046] As shown in Table 2, the operator sends a call service message to the mobile terminal, comprising: operator name, prefixes, rates, called area, period, whether the country code (i.e. country / area code), area code if needed. 另外,为了与其他普通的短消息区别开,可以约定呼叫服务信息的格式,例如:以特殊的在手机上无法显示的字符开头和结尾,而在服务器上可以输入的字符,比如扩展的ASCII字符。 In addition, in order to open other ordinary short message difference, you may agree to form call service information, for example: a special character at the beginning and end of the phone can not be displayed, and the character on the server can be entered, such as extended ASCII characters . [0047] 移动终端在本地维护一个可行网络表,在接收到运营商发来的固定格式的呼叫服务信息后,将其中的信息保存在本地可行网络表中。 [0047] In the mobile terminal to maintain a viable local network table, after receiving the call service message sent by the operator of a fixed format, in which information is stored in a local network table feasible. [0048] 运营商的服务器端向移动终端发送呼叫服务信息的过程,参见图1所示,包括:[0049] 步骤101,运营商的服务器端检测移动终端是否进入运营商的服务区,即是否进入到与该运营商服务器相连的基站服务范围,如果有移动终端进入到服务区,则进入步骤102;否则,返回,继续检测。 Server [0048] The service operator transmits the call information to the mobile terminal process, referring to FIG. 1, comprising: [0049] Step 101, the operator's server detects whether the mobile terminal enters the service area of ​​the operator, i.e., whether the range of the base station into the service operator is connected to the server, if the mobile terminal enters the service area, the process proceeds to step 102; otherwise, returns to continue detection. [0050] 步骤102,移动终端对该服务区进行注册,并且基站还会发送运营商标识给移动终端。 [0050] Step 102, the mobile terminal registers the service area and the base station also transmits to the mobile terminal operator identification. [0051] 步骤103,在注册完毕后,触发运营商服务器发送所述固定格式的呼叫服务信息给移动终端。 [0051] Step 103, after the registration is completed, the operator triggers the call server transmits the service information to the mobile terminal fixed format. [0052] 上述过程中,运营商服务器检测到移动终端进入服务区后,向移动终端发送信息为现有技术,比如:乘客到达机场时,机场的移动台在侦测到乘客手机进入机场的移动基站范围时,自动会给手机终端发送“祝你旅途愉快! ”的信息,而飞机当到达目的地时,目的地和原归属地都会发送信息,比如“欢迎来到XX城市,今天气温XX度等” “祝你旅途愉快,XX 城市气温XX度”等。 Mobile passenger arrival airport, the mobile station detects a passenger in the airport into the airport the mobile phone: the [0052] above-described process, the operator server detects that the mobile terminal enters the service area, the mobile terminal transmits information to the prior art, such as range of the base station, handset will automatically send a "Bon voyage!" message, and when the plane reaches its destination, the destination and the original home will send a message, such as "Welcome to the city XX, XX-degree temperatures today etc. "" I wish you a pleasant journey, XX XX city temperature degree "and so on. [0053] 移动终端接收呼叫服务信息的过程,参见图2所示,包括:[0054] 步骤201,移动终端进入一个新的服务区完成注册后,判断是否收到短消息,如果是则进入步骤202 ;否则,返回,继续等待。 [0053] The process of the mobile terminal receives the call information and services, as shown in FIG. See, comprising 2: [0054] Step 201, the mobile terminal enters a new service area after the completion of registration, it is determined whether the short message is received, if the process proceeds to step 202; otherwise, returns, continue to wait. [0055] 步骤202〜204,检查收到的短消息的格式,比如:检查该短消息的开头和结尾,并判断是否符合预定格式,如果是,则进入步骤205,否则,按照普通短消息处理。 [0055] Step 202~204, check the received short message format, for example: check the beginning and end of the short message, and determines whether the predetermined format, and if so, the process proceeds to step 205, otherwise, the short message according to the conventional process . [0056] 步骤205,移动终端将收到的短消息中的呼叫服务信息保存在本地的可行网络表中。 [0056] Step 205, the mobile terminal transmits a call received short message service information stored locally in the netlist feasible. [0057] 优选地,进一步针对运营商这一项将收到的呼叫服务信息和手机中原有可行网络表中条目进行相与操作,以防止不可行的运营商业占据可行网络表中的位置,比如有些网络在某些地段受干扰或者信号不好,暂时无法提供服务,会导致选中这个运营商后,呼叫失败。 [0057] Preferably, this one will call for further information and phone services received in the original table entries viable network operation phase for the operators to prevent feasible business operations viable network occupy the position in the table, such as some networks in some sections of disturbed or the signal is not good, temporarily unable to provide the service, this will lead to the selected operators, call failures. 这个检查的步骤也可以在发起呼叫的时候进行,看选中的运营商,是否在可行网络表中就可以。 This check can also be carried out in steps to initiate a call when the selected operator to see whether the network can be viable in the table. [0058] 如果当地同时有多个运营商,则移动终端针对每个运营商反复执行步骤201〜 205。 [0058] If there are multiple local carriers, the mobile terminal 205 repeatedly performs step 201~ for each operator. [0059] 举个例子来说,假设当地有四家运营商Sunday、Orange、盈科电讯和PCS,给当前移动终端发来的呼叫服务信息,参见表3所示。 [0059] For example, suppose there are four local operators Sunday, Orange, PCCW and PCS, the mobile terminal sent to the current call service information, as shown in Table 3. [0060] [0060]

Figure CN101098553BD00061

[0061][0062] [0063][0064] [0061] [0062] [0063] [0064]

Figure CN101098553BD00071

[0069] 表3[0070] 表3示出的是上述四家运营商所发来的呼叫服务信息按照接收的先后次序排列的集合。 [0069] Table 3 [0070] Table 3 shows that the four operators issued to call the service information receiving arrangement according to priorities set. 上述呼叫服务信息属于同一运营商的,运营商可以逐条发送,也可以一起,比如放在同一条短信息中发送给移动终端。 Said call service information belonging to the same operator, the operator may send one by one, can be together, for example on the same short message to the mobile terminal. [0071] 移动终端收到运营商发来的上述呼叫服务信息后,将其添加到自身保存的可行网络表中,添加并排序整理后的可行网络表,参见表4所示。 [0071] After the mobile terminal receives the incoming carrier call service information, adds it to the table stored by the network feasible added after the sort and possible finishing netlist shown in Table 4. [0072] [0072]

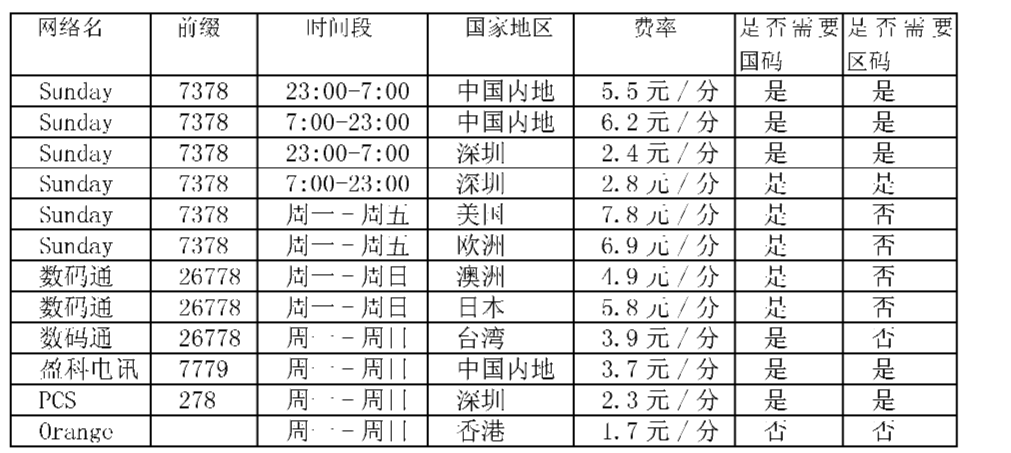

Figure CN101098553BD00072

[0074] 表4[0075] 为了便于查询,可将同一运营商提供的呼叫服务放在一起保存;或者将同一呼叫地的放在一起,根据按照费率进行排序。 [0074] Table 4 [0075] In order to facilitate queries, call service can be provided by the same operator on the stored together; to the same call or put together, sorted according to the rates. 这样,可供用户选择的呼叫服务除原来已有的数码通、Sunday提供的呼叫服务以外,还增加了Sunday、Orange、盈科电讯和PCS四家运营商提供的呼叫服务。 In this way, the user can select an existing call services in addition to the original SmarTone, Sunday call service provided, it also increases the call service Sunday, Orange, PCCW and four PCS operators to offer. 如果还进行了针对运营商的相与操作,则表4中数码通对应的条目应隐藏或删除。 If you have been operating phase for operators, SmarTone the table entry corresponding to 4 should be hidden or deleted. [0076] 在收到呼叫服务信息后,移动终端可以进一步把呼叫目的地翻译成当地的国码或区码后进行保存,比如:美国是1,英国是49,中国是86,中国深圳是86-755,香港是852,这个可以由预先存放在终端上的对照表查询而得出。 After the [0076] After receiving the call service information, the mobile terminal can be further translated into a local call destination country code or area code to save, such as: the United States is 1, the United Kingdom is 49, China 86, China Shenzhen 86 -755, Hong Kong is 852, this can be derived from the table stored in advance in the terminal queries. 另外,也可以由服务商在发送呼叫服务信息时提供目的地的国码或区码,或直接用国码或区码代替国家或地区的名字。 In addition, can also be provided by the service provider when sending call information service country code or area code of destination, or in place of the name of the country or region directly by the country code or area code. [0077] 用户终端的呼叫过程,参见图3所示:[0078] 步骤301,用户在移动终端的电话号码本中查找到预呼叫的联系人,按呼叫键开始拨打电话。 A call [0077] user terminal, refer to Figure 3: [0078] Step 301, the user to find the telephone number of the mobile terminal according to the pre-contact to call, press the call button to start a call. [0079] 步骤302,移动终端找出电话号码本中该联系人对应的国码、区码。 [0079] Step 302, the mobile terminal to identify the country code of the phone number corresponding to the contact of this, area code. [0080] 上述步骤301和302中,如果电话号码本中没有被叫联系人号码,也可以直接输入被叫电话号码,如果是国内呼叫,则加上相应的区码,如果国际呼叫还需加上国码。 [0080] The above-described steps 301 and 302, if the called telephone number does not present a contact number, may be directly input the called telephone number, if a domestic call, with the corresponding region code, if the need to add an international call the country code. 对于直接输入的电话号码,还需要增加从输入的电话号码中识别国码和区码的步骤。 For the telephone number entered directly, but also necessary to increase the step of identifying the country code and area code in the telephone number input from. 从一串输入的电话号码中识别出过码和区码是现有技术。 String input from the telephone number identified in code and area code through prior art. [0081] 步骤303,根据国码、区码在可行网络表中找出可选择的可行网络表条目。 [0081] Step 303, the country code, area code to find a viable alternative network table entries in the table according to the network feasible. [0082] 步骤304,根据当前时间从可选择的条目中找出费率最低的一条可行网络表条目。 [0082] Step 304, the lowest rate to find a feasible alternative network entry from the table entries based on the current time. [0083] 步骤305,将该条对应的呼叫前缀添加到呼叫号码前。 [0083] Step 305, adds the article corresponding to the dial prefix before the calling number. [0084] 步骤306〜307,根据该条目中是否需要添加国码一项中的内容,判断还是否需要添加国码,如果是,则在号码中添加国码,进入步骤308 ;否则,直接进入步骤308。 [0084] Step 306~307, based on whether the content needs to add a country code in the entry, it is determined whether or not also need to add country code, if so, adding the country code number, the process proceeds to step 308; otherwise, directly into the step 308. [0085] 步骤308〜309,根据该条目中是否需要添加区码一项中的内容,判断还是否需要添加区码,如果是,则在号码中添加区码,进入步骤310 ;否则,直接进入步骤310。 [0085] Step 308~309, based on whether the content needs to add an area code in the entry, it is determined whether to add a further area code, if so, add the area code number, the process proceeds to step 310; otherwise, directly into the step 310. [0086] 步骤310,对添加前缀、国码、区码后的号码发起呼叫。 [0086] Step 310, to add a prefix, country code, the area code number of a call. [0087] 根据本发明的方法,本发明还提供了一种自动选择前缀呼叫的装置,参见图4所示。 [0087] The method of the present invention, the present invention also provides an apparatus for automatically prefixes the call, see FIG. 4. 该装置包括:可行网络表生成单元、存储单元、搜索和号码添加单元、预拨暂存单元依次连接;并且可行网络表生成单元与手机的接收发射单元连接,存储单元和预拨号暂存单元分别与手机的输入单元连接。 The apparatus comprising: a viable network table generation unit, a storage unit, and search for number adding unit, temporary storage unit earmarked sequentially connected; and viable network table generating unit and the transmitting unit connected to the receiving phone, memory unit and the temporary storage unit are pre-dial an input unit connected to the phone. [0088] 可行网络表生成单元,用于根据接收发射单元接收的呼叫服务信息生成相应的网络费率条目保存在存储单元的可行网络表中,并可进一步负责可行网络表的维护和更新。 [0088] feasible netlist generating unit configured to generate the corresponding network entry rates possible network table stored in the storage unit according to a call transmitting information reception unit receives the service, and may be responsible for possible further maintained and updated netlist. [0089] 存储单元,用于保存可行网络表以及电话号码本。 [0089] The storage unit configured to store telephone numbers and viable netlist present. [0090] 输入单元,用于将联系人的电话号码、国码、区码等信息输入电话号码本,并在呼叫时,将从电话号码本中查找到的被叫联系人号码输入到预拨暂存单元。 [0090] an input unit, contact phone number, country code, area code and other information is present for inputting a telephone number, and the call, from the phone book to find the called number into contact earmarked temporary storage unit. [0091] 预拨暂存单元,用于暂存当前呼叫的被叫号码和添加的前缀。 [0091] earmarked temporary storage unit for temporarily storing the current call and the called number prefix added. [0092] 搜索和号码添加单元,用于根据输入的被叫联系人号码在存储单元的电话号码本中搜索对应的地域码,并根据该地域码在可行网络表中搜索最低费率的条目,将其对应的前缀添加到预拨暂存单元的被叫号码前;并进一步根据条目内容判断是否需要添加地域码,若需要进一步将地域码添加到被叫号码前。 [0092] Search and adding unit number, contact number for the called telephone number entered in the storage unit in the present search for the corresponding area code, and search for an entry in the lowest possible rate in the network based on the area code table, corresponding prefix added before the called number to set aside the temporary storage unit; and further whether it is necessary to add local content according to the item code, if necessary further to add to area code before the called number. [0093] 为更清晰表达采用本发明后的效果,采用一个详细实例来说明,图5-图8是用户实际使用时的情况。 [0093] The effect is more clearly expressed the present invention, a detailed example will be described using FIG. 5-8 is a case where the user actually uses. [0094] 图5为采用本发明的装置漫游到香港后,手机进入运营商SUNDAY的服务区的情况。 [0094] FIG. 5 is a device roaming to the present invention after Hong Kong, where the mobile phone enters the service area of ​​the operator SUNDAY. [0095] 此时要对联系人张三发起呼叫,图6在电话号码本中找到张三的电话号码,先对他的办公电话发起呼叫。 [0095] To initiate a call to a contact at this time Joe Smith, Joe Smith 6 to find the phone number in the phone book, the first to initiate a call to his office phone. [0096] 找到办公电话为:国码86区码755电话号码沈955888,然后在表4中查找,在那个时间段,打深圳电话PCS的费率最低,于是自动选择PCS,在手机屏幕上显示PCS。 [0096] to find the office telephone: 86 country code area code phone number 755 955 888 Shen, and then look in Table 4, in that time period, the rate hit the lowest Shenzhen PCS phone, then automatically selects the PCS, displayed on the phone screen PCS. 如图7 所示,然后在呼叫号码前自动加上PCS的呼叫前缀278,然后进行呼叫,呼叫的号码显示在屏幕上。 As shown in FIG 7, and then automatically add the prefix before the calling number of the call PCS 278, and then make a call, the call number is displayed on the screen. [0097] 如果选择的是香港本地的电话,比如张三的手机2为香港本地手机号码区码为852,和运营商所在的区码一致,则判定为本地号码,在表4中,找到ORANGE对本地呼叫最便宜,于是自动选择ORANGE作为服务商,在手机屏幕上显示ORANGE,并且不需要加区码,把区码自动隐去,只对后8位号码发起呼叫。 [0097] If the choice is Hong Kong's local telephone, mobile phone, such as Joe Smith 2 Hong Kong local area code phone number is consistent with area code 852, and the operator is located, is determined to local numbers in Table 4, find the ORANGE the cheapest local call, then automatically selected as the service provider ORANGE, ORANGE displayed on the phone screen, and do not need to add area code, the area code is automatically faded, only to initiate a call to the number eight. 如图8所示。 As shown in FIG. [0098] 以上所述仅为本发明的较佳实施例而已,并不用以限制本发明,凡在本发明的精神和原则之内,所作的任何修改、等同替换、改进等,均应包含在本发明的保护范围之内。 [0098] The foregoing is only preferred embodiments of the present invention but are not intended to limit the present invention, any modifications within the spirit and principle of the present invention, the, equivalent substitutions, improvements should be included in the within the scope of the present invention.

Claims (7)

  1. 1. 一种自动选择前缀呼叫的实现方法,其特征在于,预先设置可行网络表,保存运营商提供的呼叫服务所对应的费率、时间段、被叫地域信息和呼叫前缀,并包括以下步骤:AO.接收到呼叫服务信息后,将所述呼叫服务信息添加到所述可行网络表中,其中,所述呼叫服务信息为当运营商的服务器检测到移动终端进入到所述运营商的服务区后,向所述移动终端发送的至少包括有运营商在本地提供的呼叫服务对应的费率、时间段、被叫地域信息和呼叫前缀的呼叫服务信息;A.呼叫触发后,根据被叫号码的所属地域,在所述可行网络表中选出可向该地域进行呼叫的可行网络表条目;B.比较所述所选出的可行网络表条目在当前时间下的费率,找出费率最低的一个可行网络表条目;C.将所述费率最低的一个可行网络表条目中的呼叫前缀添加到被叫号码前发起呼叫 An automatic calling prefixes implemented method, wherein the preset feasible network table stored call services provided by the rate corresponding to the time period, the called call prefix and area information, and comprising the steps of :. AO after receiving the call service information, adding the information to the call service network table feasible, wherein, when said information service call operator server detects that the mobile terminal enters the service operator after the region, sending to the mobile terminal comprises at least the rate, time, geographical information and call the called prefixes call service information corresponding to the call service provided by the local operator;. a trigger after a call, according to the called area number belongs, is selected in the feasible network table entry may be a viable network table to the local call; B comparing the rates of the selected table entry is feasible in the current network time, to find the costs. one possible network lowest table entry;. C adds a prefix call the lowest possible rate a network table entry before a call to the called number
  2. 2.根据权利要求1所述的方法,其特征在于,所述呼叫服务信息承载在约定格式的短消息中,移动终端收到短消息后进一步包括:判断是否符合约定格式,如果是,则将该消息中的呼叫服务信息添加到自身可行网络表中。 2. The method according to claim 1, wherein the call service information carried in the short message in the agreed format, the mobile terminal after receiving the short message further comprises: determining whether the agreed format, and if so, call service the message information is added to the table itself viable network.
  3. 3.根据权利要求1所述的方法,其特征在于,所述步骤AO后进一步包括:针对从运营商收到的所述呼叫服务信息和所述移动终端中原有可行网络表中条目进行相与操作。 3. The method according to claim 1, wherein, after said step AO further comprising: performing phase for the received call from the service operator and the mobile terminal information in the existing feasible network entry in the table operating.
  4. 4.根据权利要求1所述的方法,其特征在于,所述被叫地域信息是被叫所在地的地域码;移动终端的电话号码本中保存有联系人的被叫号码和地域码,步骤A具体为:呼叫触发后,根据被叫号码找出对应的地域码在可行网络表中选出该地域码对应的可行网络表条目。 4. The method according to claim 1, wherein the area information is called the called location area code; telephone book of the mobile terminal and the called number is stored in the contact area code, Step A specifically: after the call is triggered, according to the called number to find the corresponding geographical area code of the selected code table entry corresponding to the network feasible feasible netlist.
  5. 5.根据权利要求1所述的方法,其特征在于,所述可行网络表的每个条目中进一步包括:是否需要地域的表项;步骤C前进一步包括:cl.根据步骤B所选可行网络表条目中的是否需要地域表项判断是否需要添加地域码,如果是,则进一步在被叫号码前添加地域码,否则,不添加。 5. The method according to claim 1, wherein each entry of the feasible network table further comprises: whether the entry area; C before further comprises the step of: cl Step B according to the selected network feasible. table entry determines whether the entry area need to add code area, and if so, then the area code is further added before the called number, otherwise, not added.
  6. 6.根据权利要求4或5所述的方法,其特征在于,所述地域码是国家码或地区码、或区码、或国家码与区码的组合。 6. The method according to claim 4 or claim 5, wherein said geographical code is a country code or area code, or area code, or a combination of the country code and area code.
  7. 7. 一种自动选择前缀呼叫的装置,其特征在于,包括:可行网络表生成单元,用于根据移动终端的接收发射单元接收的呼叫服务信息生成可行网络表条目保存在可行网络表中;其中,所述可行网络表用于保存运营商提供的呼叫服务所对应的费率、时间段、被叫地域信息和呼叫前缀,所述呼叫服务信息为当运营商的服务器检测到移动终端进入到所述运营商的服务区后,向所述移动终端发送的至少包括有运营商在本地提供的呼叫服务对应的费率、时间段、被叫地域信息和呼叫前缀的呼叫服务信息;存储单元,用于保存可行网络表;预拨暂存单元,用于暂存当前呼叫的被叫号码和添加的前缀; 搜索和号码添加单元,用于根据被叫地域信息在存储单元的可行网络表中搜索当前时段最低费率的条目,将该条目下的呼叫前缀添加到预拨暂存单元的被叫号码前。 An automatic call prefix selection means, characterized by comprising: a viable network table generating unit for generating a viable network table entries stored in the table according to the received network feasible transmitting unit of the mobile terminal receives a call service information; wherein , a table for feasible network operators to provide call service to save the rate corresponding to the time period, called area information and call prefix, the call service information to the operator when the server detects that the mobile terminal into the later operator's service area, transmits to the mobile terminal service information comprising at least a call rates, period of time, called call prefix and area information corresponding to the service call in the local operators provide; a storage unit, with possible to save the netlist; earmarked temporary storage unit for temporarily storing the prefix of the called number and adding the current call; add numbers and search unit for searching for a network currently feasible table storage unit according to geographical information of the called entry lowest rate period, the entry in the call prefix before the called number is added to the temporary storage unit is set aside.
