一种实木复合地板及制造方法，所述的地板至少由三层板材经结构复合工艺加工而成，所述的中间基材层主要是用指接加工工艺制成的长木方料块构成，将长木方料块一一拼接成基材坯料板，在该基材坯料板的上下各至少复合有一层纤维方向不相同的木单板并形成
A solid wood composite floor and its manufacturing method, wherein the floor is made of at least three layers of boards processed through a structural composite process, and the intermediate substrate layer is mainly composed of long wooden blocks made by a finger-joined process. The long wooden blocks are spliced one by one to form a base blank, and at least one layer of wood veneers with different fiber directions are compounded on the upper and lower sides of the base blank to form a
Description
Technical field
What the present invention relates to is solid wooden compound floor and the manufacture method that a kind of finger joint lumber process structure is produced, and belongs to floor and processing technique field.
Background technology
In the prior art, the structure of solid wooden compound floor is generally three layers or multilayer and makes through the splicing combination process, this composite floor board of producing through the compound splicing processing technology, because its long limit is the cross-section fiber tissue of timber, when on its limit, processing tongue and groove, can have influence on the quality of processing, cause the coarse of tongue and groove face, not only be difficult to be processed into snap close, and influence the installation on floor, reduce the quality of flooring product, use in the installation process concrete, install and to go up glue or beat keel, directly cause the increase of installation cost and the rising of indoor environmental pollution, influence result of use.
Summary of the invention
The objective of the invention is to overcome the deficiency of above-mentioned existence, and provide a kind of finger technology and structure combination process to be integrated, produce a kind of solid wooden compound floor and manufacture method of brand new Wood Processing.
The objective of the invention is to finish by the anti-case of following technology, it is processed through the structure combination process by the three ply board material at least, substrate layer is made long flitch material piece with the finger processing technology in the middle of described, long flitch material piece is spliced into the base material blank plate one by one, this base material blank plate each is compounded with one deck machine direction veneer inequality at least and forms up and down
Type structure shape.
Described base material blank plate is spliced mutually by the rib of the long flitch material piece more than two by between any two at least.
Described base material blank be compounded with the rectangular veneer of one deck machine direction at least up and down.
Be compounded with on one deck veneer above the described base material blank, also be compounded with above the veneer at this and decorate wooden skin.
Be compounded with two-layer veneer below the described base material blank, and the machine direction of this two-layer veneer meets at right angles.
The aforesaid solid wooden compound floor method of a kind of manufacturing, it is to become a block length flitch material piece as floor base material by the finger processes timber earlier, again a block length flitch material is spliced into the floor base material blank plate mutually, and be compounded with machine direction veneer inequality up and down piecing together good base material blank plate, the floor blank block is formed
Type structure shape.
The lath that described long flitch material is Len req and width, by being spliced into required floor base material blank plate embedding rib between the long flitch material in twos, the base material blank plate that splicing is good is compounded with the rectangular veneer of machine direction up and down to the long flitch material that finger is good more at least by structure design principle.
Be compounded with by conventional combination process again on the veneer on the described base material blank plate and decorate wooden skin, and on the veneer under the base material blank plate, be compounded with the rectangular veneer of machine direction by conventional combination process again.
The present invention can process multiple snap close, and is attractive in appearance, firm, can satisfy the pulling force of its snap close, thoroughly changed the stress of floor board block, made full use of the various characteristics of timber, and in use coefficient of deformation is little to make the floor, satisfies under various environment and uses; Owing to adopt finger technology, can fully adopt coniferous forest productions such as various small dimension woods, save timber resources especially, protect natural forest resourceies; It is convenient especially to install, and can not beat keel without gluing, saves cost nearly 35%; Have simple in structure, characteristics such as processing technology is simple, and quality is good, and cost is low, and is easy for installation, and result of use is good.
Description of drawings
Fig. 1 is the structural representation of the long flitch material piece of finger one-tenth of the present invention.
Fig. 2 is the structural representation of floor base material blank block of the present invention.

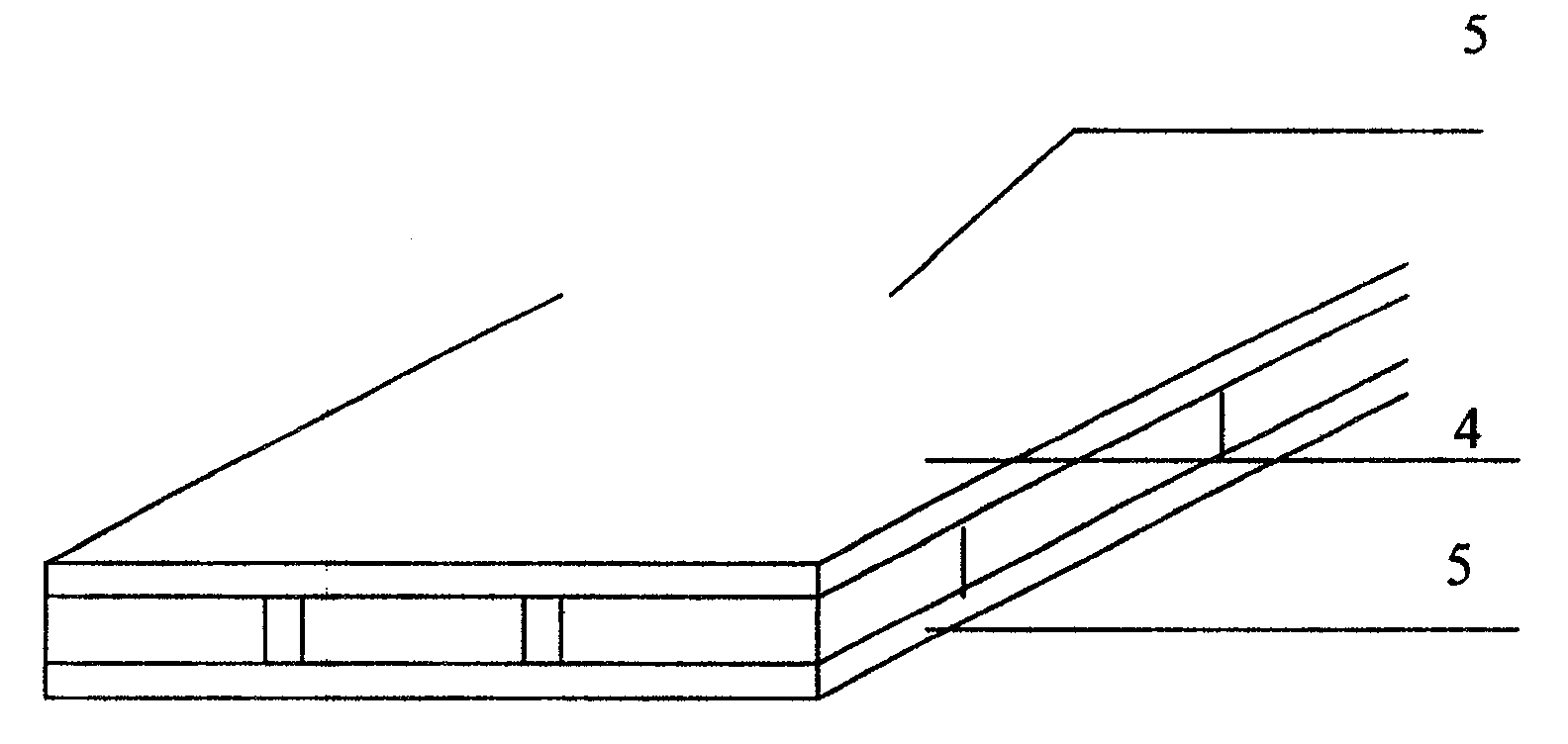

Fig. 3 is a flooring structure schematic diagram of the present invention.
Fig. 4 is a floor of the present invention decomposition texture schematic diagram.
The specific embodiment
The present invention will be described in detail below in conjunction with accompanying drawing: the present invention is processed through the structure combination process by the three ply board material at least, substrate layer mainly is to constitute with the long flitch material piece 1 that the finger processing technology is made in the middle of described, see shown in the accompanying drawing 1, so-called finger processing technology is meant: timber is processed into square stock piece 2, join successively then, it covers the long flitch material piece 1 that also is spliced mutually in one side or upper and lower surface with finger wood skin 3.Shown in the accompanying drawing 2, will long flitch material piece 1 one by one contiguous concatenation become base material blank plate 4, this base material blank plate 4 each is compounded with one deck machine direction veneer inequality 5 at least and forms up and down
Type structure shape.In splicing, described base material blank plate 4 is spliced mutually by the rib 6 of the long flitch material piece 4 more than two by between any two at least.
Base material blank plate 4 of the present invention be compounded with the rectangular veneer 5 of one deck machine direction at least up and down; Shown in Figure 3, be compounded with the horizontal veneer of one deck 5 above the described base material blank plate 4, i.e. the machine direction of the machine direction of this veneer 5 and base material blank plate 4 meet at right angles (90 degree); Also be compounded with the horizontal veneer of one deck 5 below the same base material blank plate 4; And form
Type structure shape.
Shown in the accompanying drawing 4, also be compounded with on the superincumbent veneer 5 and decorate wooden skin 7; Then be compounded with vertical veneer 8 on the veneer 5 below, promptly veneer 8 meets at right angles with the machine direction of adjacent veneer 5, has increased the floor non-deformability.Inequality or the rectangular description of the machine direction that the present invention became is that the timber machine direction of pointing between the layer is arranged.
Solid wooden compound floor manufacture method of the present invention, it is to become a block length flitch material piece as floor base material by the finger processes timber earlier, again a block length flitch material piece is spliced into the floor base material blank plate mutually, and be compounded with machine direction veneer inequality up and down piecing together good base material blank plate, the floor blank block is formed
Type structure shape.
Described long flitch material piece is the lath of Len req and width, by being spliced into required floor base material blank plate embedding rib between the long flitch material piece in twos, the base material blank plate that splicing is good is compounded with the rectangular veneer of machine direction up and down to the long flitch material piece that finger is good more at least by structure design principle.
Be compounded with by conventional combination process again on the veneer on the described base material blank plate and decorate wooden skin, and on the veneer under the base material blank plate, be compounded with the rectangular veneer of machine direction by conventional combination process again.
The present invention processes the base material that growth flitch material piece is used for the floor by finger technology with timber, by the structure combination process long flitch material is added that rib is spliced into the floor base material blank plate again, and be compounded with veneer thereon, because the long side direction of this composite floor board is the rift grain direction of timber and has veneer compound up and down, it is very fine and smooth to make it can process various snap closes and machined surface arbitrarily, and the floor need not when installing to play glue, beats keel, it is nearly 35% that cost reduces, and market prospects are very good.
Each embodiment that the scope of protection of present invention is not limited to introduce herein; and related know-how; personnel are familiar with as structure complex technique etc. is this specialty; therefore as long as understand content of the present invention and characteristic; various forms of conversion and replacement can be done, and the technology of the present invention can be implemented easily.
Claims (3)
1, a kind of solid wooden compound floor, it is processed through the structure combination process by the three ply board material at least, substrate layer mainly is to constitute with the long flitch material piece that the finger processing technology is made in the middle of described, long flitch material piece is spliced into the base material blank plate one by one, this base material blank plate each is compounded with one deck machine direction veneer inequality at least and forms up and down
Type structure shape; It is characterized in that described base material blank plate is spliced mutually by the rib of the long flitch material piece more than two by between any two at least; Described base material blank plate be compounded with the rectangular veneer of one deck machine direction at least up and down; Be compounded with on one deck veneer above the described base material blank plate, also be compounded with above the veneer at this and decorate wooden skin.
2, solid wooden compound floor according to claim 1 it is characterized in that being compounded with two-layer veneer below the described base material blank plate, and the machine direction of this two-layer veneer meets at right angles.
3, a kind of manufacturing claim 1 or 2 described solid wooden compound floor methods, it is to become a block length flitch material piece as floor base material by the finger processes timber earlier, again a block length flitch material is spliced into the floor base material blank plate mutually, and be compounded with machine direction veneer inequality up and down piecing together good base material blank plate, the floor blank block is formed
Type structure shape; The lath that described long flitch material is Len req and width, by being spliced into required floor base material blank plate embedding rib between the long flitch material in twos, the base material blank plate that splicing is good is compounded with the rectangular veneer of machine direction up and down to the long flitch material that finger is good more at least by structure design principle; Be compounded with by the conventional structure combination process again on the veneer on the described base material blank plate and decorate wooden skin, and on the veneer under the base material blank plate, be compounded with the rectangular veneer of machine direction by conventional combination process again.
