Definitions

  • the present invention relates to a circuit breaker and a circuit breaker method.
  • the disclosed technology aims to simplify the configuration of a circuit breaker that branches in multiple directions.
  • the disclosed technology includes a cutoff unit for cutting off current in two directions, a plurality of slots into which the cutoff units are inserted, and connections between different points depending on the slots into which the cutoff units are inserted.
  • the circuit breaker includes a casing including a pre-wired circuit.
  • FIG. 1 is a diagram showing an example of the configuration of a power feeding system according to the present embodiment. It is a diagram showing a circuit breaker branching in two directions.
  • FIG. 3 is a diagram showing a circuit breaker branching into three directions. It is a diagram showing a circuit breaker branching in four directions.
  • FIG. 2 is a diagram showing an example of the appearance of a case of a circuit breaker according to Example 1 of the embodiment of the present invention.
  • FIG. 2 is a first diagram showing an example of the internal wiring of the case of the circuit breaker according to Example 1 of the embodiment of the present invention. It is a figure showing an example of a conventional cutoff unit.
  • FIG. 2 is a diagram showing an example of an internal circuit of a conventional cutoff unit.
  • FIG. 1 is a diagram showing an example of a conventional bidirectional power feeding system.
  • FIG. 2 is a sequence diagram illustrating an example of a handshake flow in a conventional bidirectional power supply system.
  • FIG. 7 is a first diagram for explaining a method for determining a power feeding route according to Example 2 of the embodiment of the present invention.
  • FIG. 7 is a second diagram for explaining a method for determining a power feeding route according to Example 2 of the embodiment of the present invention.
  • FIG. 7 is a diagram for explaining a method of locking a power supply path and setting protection coordination according to Example 2 of the embodiment of the present invention.
  • FIG. 1 is a diagram showing an example of a hardware configuration of a computer.
  • FIG. 2 is a diagram for explaining a conventional cutoff circuit.
  • FIG. 2 is a diagram for explaining a conventional branch breaker circuit. It is a figure which shows an example of the branch cutoff circuit based on Example 3 of embodiment of this invention. It is a figure which shows an example of the housing
  • circuit breaker according to this embodiment may be a DC circuit breaker or an AC circuit breaker.
  • the method of the circuit breaker according to this embodiment may be any of a mechanical type, a hybrid type, and a semiconductor type.
  • FIG. 1 is a diagram showing an example of the configuration of a power feeding system according to the present embodiment.
  • the power source, load, etc. are, for example, the first electric vehicle 101, the second electric vehicle 102, the first solar power generation facility 103, the wind power generation facility 104, the second solar power generation facility 105, and the first building 106. , a second building 107 , a train 108 , a first data center 109 , a second data center 110 , and a charging facility 111 .
  • Circuit breakers are installed at branch points of the power supply network.
  • the two-way circuit breaker 901 is a circuit breaker that branches in two directions.
  • a three-way circuit breaker 902 that branches in three directions
  • a four-way circuit breaker 903 that branches in four directions
  • a five-way circuit breaker 904 that branches in five directions
  • a six-way circuit breaker 905 that branches in six directions are connected to the power supply network. installed at each branch point.

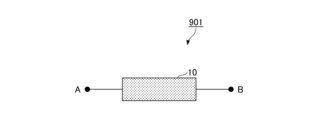

  • FIG. 2 is a diagram showing a circuit breaker branching in two directions.
  • the two-way circuit breaker 901 includes one interrupting unit 10.
  • the cutoff unit 10 is connected between AB.
  • the cutoff unit 10 can cut off current in two directions, from A to B and from B to A.
  • FIG. 3 is a diagram showing a circuit breaker branching into three directions.
  • Three-way circuit breaker 902 includes three interrupting units 10. Each cutoff unit 10 is connected between AB, BC, and AC, respectively. Each cutoff unit 10 can cut off current in two directions between two connected points. Thereby, the three-way circuit breaker 902 can interrupt currents in all combinations of the three points A, B, and C.
  • FIG. 4 is a diagram showing a circuit breaker branching in four directions.
  • the four-way circuit breaker 903 includes six interrupting units 10. Each cutoff unit 10 is connected between AB, AC, AD, BC, BD, and CD. Each cutoff unit 10 can cut off current in two directions between two connected points. Thereby, the four-way circuit breaker 903 can interrupt currents in all combinations of directions at the four points A, B, C, and D.
  • the circuit breaker can be expanded by combining a circuit breaker unit capable of shutting off in two directions with an external casing having a plurality of slots. Specifically, an example will be described in which branching in multiple directions, such as three directions and four directions, is made possible by changing the position of the slot into which the cutoff unit is inserted.
  • FIG. 5 is a diagram showing an example of the appearance of the casing of the circuit breaker according to Example 1 of the embodiment of the present invention.
  • the housing 20 is configured such that a plurality (for example, six in the example of FIG. 5) of the cutoff units 10 can be inserted therein.
  • the interrupting units 10 inserted into each slot are connected between different points. For example, the interrupting unit 10 inserted into the first slot is connected between the A connector and the B connector, and the interrupting unit 10 inserted into the second slot is connected between the A connector and the C connector. be done.
  • FIG. 6 is a first diagram showing an example of the internal wiring of the casing of the circuit breaker according to Example 1 of the embodiment of the present invention.
  • the housing 20 shown in FIG. 5 has six slots 30 into which six isolation units 10 can be inserted.
  • the interrupting units 10 inserted into each slot 30 are wired in advance so as to be connected between different points.
  • the circuit including the first slot 30 functions as a two-way circuit 801.
  • the circuit breaker including the circuit breaker 10 and the housing 20 inserted into the first slot 30 functions as a two-way circuit breaker 901.
  • a circuit including the first to third slots 30 functions as a three-way circuit 802.
  • the circuit breaker including the circuit breaker 10 and the housing 20 inserted into the first to third slots 30 functions as a three-way circuit breaker 902.
  • a circuit including the first to sixth slots 30 functions as a four-way circuit 803.
  • the circuit breaker including the circuit breaker 10 and the housing 20 inserted into the six slots 30 from the first to the sixth slot functions as a four-way circuit breaker 903.
  • FIG. 7 is a diagram showing an example of a conventional shut-off unit.
  • a conventionally commonly used shutoff unit 40 includes four connectors 11 and one internal circuit 12.
  • FIG. 8 is a diagram showing an example of the internal circuit of a conventional cutoff unit.
  • the internal circuit 12 includes, for example, a switch 121, a capacitor 122, and a diode 123.
  • the capacitor 122 functions to suppress voltage fluctuations when the circuit is interrupted for a short time.
  • the diode 123 functions to suppress overvoltage when the circuit is interrupted for a long time.
  • Such an internal circuit 12 can cut off current in only one direction.
  • FIG. 9 is a diagram showing an example of a cutoff unit according to Example 1 of the embodiment of the present invention.
  • the cutoff unit 10 according to this embodiment includes four connectors 11 and two internal circuits 12.
  • the internal circuit 12 may be the circuit shown in FIG.
  • the internal circuits 12 are connected in series in opposite directions. Thereby, the cutoff unit 10 can cut off current in two directions (bidirectional).
  • a circuit breaker that branches in multiple directions is configured by combining the above-described circuit breaker unit 10 and the housing 20. Although a circuit breaker with four directions or less has been described, a circuit breaker extending in five directions or more can be similarly configured.
  • FIG. 10 is a diagram showing a circuit breaker branching in five directions.
  • the five-way circuit breaker 904 includes ten interrupting units 10. Each cutoff unit 10 is connected between AB, between AC, between AD, between AE, between BC, between BD, between BE, between CD, between CE, and between DE. Each cutoff unit 10 can cut off current in two directions between two connected points. Thereby, the five-way circuit breaker 904 can interrupt currents in all combinations of the five points A, B, C, D, and E.
  • FIG. 11 is a diagram showing a circuit breaker branching in six directions.
  • the six-way circuit breaker 905 includes 15 disconnection units 10.
  • Each of the cutoff units 10 has a cutoff between AB, AC, AD, AE, AF, BC, BD, BE, BF, CD, CE, CF, DE, DF, and EF. are connected in between.
  • Each cutoff unit 10 can cut off current in two directions between two connected points. Thereby, the six-way circuit breaker 905 can interrupt currents in all combinations of directions at the six points A, B, C, D, E, and F.
  • FIG. 12 is a second diagram showing an example of the internal wiring of the case of the circuit breaker according to Example 1 of the embodiment of the present invention.
  • the housing 20 has 15 slots 30 into which 15 cutoff units 10 can be inserted.
  • the interrupting units 10 inserted into each slot 30 are wired in advance so as to be connected between different points.
  • the circuit including the first slot 30 functions as a two-way circuit 801.
  • the circuit breaker including the circuit breaker 10 and the housing 20 inserted into the first slot 30 functions as a two-way circuit breaker 901.
  • a circuit including the first to third slots 30 functions as a three-way circuit 802.
  • the circuit breaker including the circuit breaker 10 and the housing 20 inserted into the first to third slots 30 functions as a three-way circuit breaker 902.
  • a circuit including the first to sixth slots 30 functions as a four-way circuit 803.
  • the circuit breaker including the circuit breaker 10 and the housing 20 inserted into the six slots 30 from the first to the sixth slot functions as a four-way circuit breaker 903.
  • a circuit including the first to tenth slots 30 functions as a five-way circuit 804.
  • the circuit breaker including the circuit breaker 10 and the housing 20 inserted into the ten slots 30 from the first to the tenth slot functions as a five-way circuit breaker 904.
  • a circuit including the first to fifteenth slots 30 functions as a six-way circuit 805.
  • the circuit breaker including the circuit breaker 10 and the housing 20 inserted into the fifteen slots 30 from the first to the fifteenth slot functions as a six-way circuit breaker 905.
  • FIG. 13 is a diagram showing the appearance of a casing of a circuit breaker according to a modification of Example 1 of the embodiment of the present invention.
  • the housing 21 shown in FIG. 13 includes six slots 30 for realizing a four-way circuit breaker 903, and further includes a seventh slot for inserting a capacitor box and an eight slot for inserting a fan. and a second slot.
  • the capacitor box may be, for example, a capacitor that suppresses arcing during interruption, a transient voltage countermeasure circuit, an overcurrent countermeasure circuit, or the like.
  • the fan may be a cooler for cooling heat generated due to conduction loss at the DC cutoff contact.
  • the housing 21 has four connectors A to D facing outward. Each connector is connected to various power supplies, loads, etc. in the power supply network.
  • the shutoff unit 10 capable of shutting off in two directions is combined with the external casing 20 having a plurality of slots.
  • the structure of the circuit breaker that branches in the direction can be simplified. For example, since one type of interrupting unit 10 can constitute a circuit breaker that branches in multiple types of directions, the interrupting unit 10 can be mass-produced.
  • interrupting unit 10 interrupts current in two directions (bidirectional)
  • a interrupting unit that interrupts current in one direction may be used.
  • one type (or several types) of slot-type circuit breakers can be used in two directions or three directions. It is possible to configure multi-directional branch points such as directional, four-directional, five-directional, six-directional, etc.
  • Power routing is also possible by controlling ON/OFF of the circuit breaker according to this embodiment for each port.
  • a power supply system including multidirectional branch points as shown in Fig. 1 secures the power supply route by locking the one-to-one or n-to-n power supply route for a certain period of time.
  • the circuit breaker has an interlock function that prevents it from intersecting with another power supply route while power is being supplied, and if the power supply route branches during power supply, the circuit breaker is equipped with OCP (Over Current Protection) to provide a protective coordination function. )
  • OCP Over Current Protection
  • FIG. 14 is a diagram showing an example of a conventional bidirectional power feeding system.
  • a power supply system 920 for bidirectionally supplying power between base A and base B includes a power supply converter at each base.
  • Base A is an example of a building that serves as a base, such as a communications building.
  • Base B is, for example, a shelter.
  • Each converter communicates (handshakes) with each other before exchanging power.
  • power can be exchanged in both directions on a one-to-one basis between bases.
  • FIG. 15 is a sequence diagram showing an example of a handshake flow in a conventional bidirectional power supply system.
  • the converter located at base A is referred to as a first converter 931, and the converter located at base B is referred to as a second converter 932.
  • first converter 931 is transmitting power (power transmission mode) and the second converter 932 is receiving power (power reception mode).
  • This state is referred to as state ⁇ .
  • a state in which the first converter 931 is receiving power (power receiving mode) and the second converter 932 is transmitting power (power transmitting mode) is defined as state ⁇ .
  • FIG. 15 shows the flow of transition from state ⁇ to state ⁇ .
  • the first converter 931 stops power transmission (step S101).
  • the first converter 931 notifies the second converter 932 of the stoppage (step S102).
  • the second converter 932 Upon receiving the stop notification, the second converter 932 notifies the first converter 931 to start power transmission (step S103). Upon receiving the notification of the start of power transmission, first converter 931 changes the operation mode to power reception mode (step S104).
  • the first converter 931 notifies the second converter 932 of the change in the operating mode (step S105).
  • the second converter 932 receives the notification of the change in the operation mode, it changes the operation mode to the power transmission mode (step S106).
  • the above procedure completes the transition from state ⁇ to state ⁇ .
  • FIG. 16 is a diagram showing the configuration of a power supply system according to Example 2 of the embodiment of the present invention.
  • a control device is installed at each site to control the converter at each site and the circuit breakers arranged in the power supply network.
  • a converter 50, a control device 60, and an insulation monitoring device 70 are installed.
  • the control device 60 includes a control section 61, a storage section 62, a determination section 63, a monitoring section 64, a display section 65, and a communication section 66.
  • Control unit 61 controls converter 50 and circuit breaker 22 .
  • the storage unit 62 stores information such as threshold values necessary for control.
  • the determination unit 63 performs determination processing for determining the operation mode of each converter, determining the power supply route, etc.
  • the monitoring unit 64 monitors the operation mode of power supply by the converter 50 based on detection results from an ammeter, a voltmeter, and the like.
  • the display unit 65 displays control details.
  • the communication unit 66 communicates with the database 80 and the control device 60 (installed at another base (base B, etc.)).
  • the database 80 stores learned models generated through analysis, learning, etc. Note that the database 80 may be of a centralized type or a distributed type.
  • FIG. 17 is a flowchart illustrating an example of the flow of control processing according to Example 2 of the embodiment of the present invention.
  • the control device 60 acquires basic data (step S201).
  • the basic data may be, for example, GB operating time, X capacitor capacity, cable impedance, fuse blowing characteristics, power network configuration, slot type circuit breaker information, currently locked route information, etc.
  • control device 60 acquires control data (step S202).
  • the control data may be specifications of a converter capable of transmitting power, specifications of a converter capable of receiving power, PV power, SoC of a storage battery, load capacity, weather information, weather forecast information, etc. Note that the control device 60 may accept input of control data.
  • the determination unit 63 determines the operation mode of each converter (step S203). Specifically, when the converter 50 of the base A is transmitting power to the base B, the determination unit 63 controls the converter 50 of the base B to be in the power receiving mode and not to be in the power transmitting mode.
  • the monitoring unit 64 detects that power is being transmitted using a control signal, a detector, etc.
  • the determination unit 63 controls the converter 50 at base A to be in the power reception mode and not to be in the power transmission mode.
  • the determination unit 63 determines a power feeding route (step S204). Details of the method for determining the power supply route will be described later.
  • the communication unit 66 communicates between the control devices (step S205).
  • the control device 60 may execute the handshake procedure shown in FIG. 15.
  • Control unit 61 then transmits control signals to converter 50 and circuit breaker 22, respectively (step S206).
  • control unit 61 locks the power supply path and sets protection cooperation (step S207).
  • a method for locking the power supply path and setting protection coordination will be described later.
  • Control unit 61 transmits control signals to converter 50 and circuit breaker 22, respectively, according to the settings (step S208). Upon detecting the elapse of a certain period of time or the pressing of the emergency stop signal, the control unit 61 unlocks the power supply path and resets protection coordination (step S209).
  • FIG. 18 is a flowchart illustrating an example of the flow of the power supply route determination process according to Example 2 of the embodiment of the present invention.
  • the determination unit 63 selects the shortest route among the available power supply routes connecting the bases (step S301). Next, the determination unit 63 selects the second shortest route among the available power supply routes connecting the bases (step S302).
  • FIG. 18 shows a configuration example of one-to-one power feeding
  • the determination unit 63 may also set a current threshold for n-to-n power feeding and execute a similar interlock.
  • the interlock condition may be that the sum of the transmitted power and the sum of the received power (+power transmission loss) match.
  • FIG. 19 is a first diagram for explaining a method for determining a power feeding route according to Example 2 of the embodiment of the present invention.
  • FIG. 19 shows a method for determining a power supply route in the case of one-to-one power supply.
  • the determination unit 63 determines the shortest route and the second shortest route. By determining a plurality of power feeding paths, the impedance of the power feeding path can be reduced and wiring loss can be reduced.
  • FIG. 20 is a second diagram for explaining a method for determining a power feeding route according to Example 2 of the embodiment of the present invention.
  • FIG. 20 shows a method for determining the power supply route in the case of one-to-two power supply.
  • the determination unit 63 determines, for example, a route for supplying power from the second building 107 to the first electric vehicle 101 (route 1) and the second electric vehicle 102 (route 2). Because there are branches in the feeder line, it is necessary to limit the maximum current before and after the branch for protection coordination at the branch point.
  • FIG. 21 is a diagram for explaining a method of locking a power supply path and setting protection coordination according to Example 2 of the embodiment of the present invention.
  • the control unit 61 turns on all circuit breakers 22 installed in the power supply path connecting the converter 50 in the power transmission mode and the converter 50 in the power reception mode. Further, the control unit 61 fixes all circuit breakers 22 installed in paths intersecting the power feeding path to OFF (interlock). Further, the control unit 61 recognizes that the other circuit breakers 22 can be used on other routes. In this way, the control unit 61 locks the power supply path.
  • control unit 61 sets the OCP of the circuit breaker 22, such as a fuse, a molded circuit breaker, etc., according to the number of branching paths. In this way, the control unit 61 executes the protection cooperation setting. This eliminates the need for the cost, time, etc. of constructing a new route.
  • the control device 60 can be realized, for example, by causing a computer to execute a program that describes the processing contents described in this embodiment.
  • this "computer” may be a physical machine or a virtual machine on a cloud.
  • the "hardware” described here is virtual hardware.
  • the above program can be recorded on a computer-readable recording medium (portable memory, etc.), and can be stored or distributed. It is also possible to provide the above program through a network such as the Internet or e-mail.
  • FIG. 22 is a diagram showing an example of the hardware configuration of the computer.
  • the computer in FIG. 22 includes a drive device 1000, an auxiliary storage device 1002, a memory device 1003, a CPU 1004, an interface device 1005, a display device 1006, an input device 1007, an output device 1008, etc., which are interconnected by a bus B.
  • a program that realizes processing on the computer is provided, for example, on a recording medium 1001 such as a CD-ROM or a memory card.
  • a recording medium 1001 such as a CD-ROM or a memory card.
  • the program is installed from the recording medium 1001 to the auxiliary storage device 1002 via the drive device 1000.
  • the program does not necessarily need to be installed from the recording medium 1001, and may be downloaded from another computer via a network.
  • the auxiliary storage device 1002 stores installed programs as well as necessary files, data, and the like.
  • the memory device 1003 reads and stores the program from the auxiliary storage device 1002 when there is an instruction to start the program.
  • the CPU 1004 implements functions related to the device according to programs stored in the memory device 1003.
  • the interface device 1005 is used as an interface for connecting to a network.
  • a display device 1006 displays a GUI (Graphical User Interface) or the like based on a program.
  • the input device 1007 is composed of a keyboard, a mouse, buttons, a touch panel, or the like, and is used to input various operation instructions.
  • An output device 1008 outputs the calculation result.
  • the computer may include a GPU (Graphics Processing Unit) or a TPU (Tensor Processing Unit) instead of the CPU 1004, or may include a GPU or a TPU in addition to the CPU 1004. In that case, the processing may be divided and executed, for example, the GPU or TPU executes processing that requires special calculations, and the CPU 1004 executes other processing.
  • control device 60 realizes the interlock function and the protection cooperation function by locking the power supply path and setting the protection cooperation.
  • the interlock allows cables (routes) related to power supply and reception to be separated from other power supply routes, creating an independent and safe route. Also, changing the route does not require physical additions or renovations.
  • Example 3 In this embodiment, an example will be described in which the integration of branch cutoff circuits is realized.
  • FIG. 23 is a diagram for explaining a conventional cutoff circuit.
  • Internal circuit 12 includes switch 121 and A and B.
  • a of FIG. 23 a capacitor or the like is used to suppress voltage fluctuations when the circuit is interrupted for a short time.
  • B of FIG. 23 a capacitor, a diode, or the like is used to suppress overvoltage when the circuit is interrupted for a long time.
  • FIG. 24 is a diagram for explaining a conventional branch breaker circuit.
  • branching has been achieved by arranging the circuits in FIG. 23 as shown in internal circuits 12-1 to 12-3 in FIG. That is, conventionally, the branch breaker circuit has not been considered as an integrated device.
  • FIG. 25 is a diagram showing an example of a branch cutoff circuit according to Example 3 of the embodiment of the present invention.
  • the second embodiment by cooperatively controlling the operation of each circuit breaker, there is no need to connect a load device or the like on the connection point side of each circuit breaker, and no capacitors, diodes, etc. are required. Therefore, we will delete them and create an integrated configuration (systemization).
  • FIG. 26 is a diagram showing an example of a case of a circuit breaker according to Example 3 of the embodiment of the present invention.
  • the housing 23 has a capacitor box in the seventh slot.
  • the slot may be replaced depending on the conditions (rated current, voltage suppression level, etc.). Also, capacitors that tend to deteriorate may be slotted and replaced.
  • FIG. 27 is a diagram showing an example of a circuit breaker circuit according to Example 3 of the embodiment of the present invention.
  • a capacitor 90 By mounting a capacitor 90 on the output side of each port as in the example of the double line diagram shown in FIG. 27, the branch cutoff circuit shown in FIG. 25 can be realized.
  • the capacitors, diodes, etc. on the connection point side of each circuit breaker are removed to create an integrated configuration. This reduces the cost and size of the circuit breaker. Therefore, it is possible to realize the integration of branch cutoff circuits that can accommodate complex networks.
  • the casing includes ten or more slots into which the cutoff units are inserted, and circuits prewired to be connected between five or more different points depending on the slots into which the cutoff units are inserted.
  • the circuit breaker according to item 1 or 2.
  • (Section 5) a interrupting unit for interrupting current in two directions; By a circuit breaker comprising a housing including a plurality of slots into which the breaking units are inserted, and circuits that are pre-wired to be connected between different points depending on the slots in which the breaking units are inserted, Blocks current in multiple directions, Blocking method.

Landscapes

  • Engineering & Computer Science (AREA)
  • Power Engineering (AREA)
  • Emergency Protection Circuit Devices (AREA)
  • Remote Monitoring And Control Of Power-Distribution Networks (AREA)
PCT/JP2022/017505 2022-04-11 2022-04-11 遮断器および遮断方法 Ceased WO2023199378A1 (ja)

Priority Applications (3)

Application Number Priority Date Filing Date Title
JP2024515189A JPWO2023199378A1 (enExample) 2022-04-11 2022-04-11
US18/854,304 US20250246387A1 (en) 2022-04-11 2022-04-11 Circuit breaker and interruption method
PCT/JP2022/017505 WO2023199378A1 (ja) 2022-04-11 2022-04-11 遮断器および遮断方法

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
PCT/JP2022/017505 WO2023199378A1 (ja) 2022-04-11 2022-04-11 遮断器および遮断方法

Publications (1)

Publication Number Publication Date
WO2023199378A1 true WO2023199378A1 (ja) 2023-10-19

Family

ID=88329213

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/JP2022/017505 Ceased WO2023199378A1 (ja) 2022-04-11 2022-04-11 遮断器および遮断方法

Country Status (3)

Country Link
US (1) US20250246387A1 (enExample)
JP (1) JPWO2023199378A1 (enExample)
WO (1) WO2023199378A1 (enExample)

Citations (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JPH0374106U (enExample) * 1989-11-22 1991-07-25
JP3113266U (ja) * 2005-06-03 2005-09-02 株式会社昭電 ユニット式分電盤
WO2020021656A1 (ja) * 2018-07-25 2020-01-30 三菱電機株式会社 半導体遮断器及び遮断装置

Patent Citations (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JPH0374106U (enExample) * 1989-11-22 1991-07-25
JP3113266U (ja) * 2005-06-03 2005-09-02 株式会社昭電 ユニット式分電盤
WO2020021656A1 (ja) * 2018-07-25 2020-01-30 三菱電機株式会社 半導体遮断器及び遮断装置

Also Published As

Publication number Publication date
US20250246387A1 (en) 2025-07-31
JPWO2023199378A1 (enExample) 2023-10-19

Similar Documents

Publication Publication Date Title
US12444776B2 (en) Battery cluster management device and battery energy storage system
Lasseter Microgrids
ES2702988T3 (es) Procedimientos y sistemas de operación de un sistema de generación de energía
US20120019203A1 (en) Energy storage and vehicle charging system and method of operation
US20170214225A1 (en) Interconnect and metering for renewables, storage and additional loads with electronically controlled disconnect capability for increased functionality
KR101571213B1 (ko) 고장처리장치를 구비하는 마이크로그리드 시스템 및 그 동작 방법
WO2015134851A1 (en) Dc power server for a dc microgrid
Prasai et al. Protection of meshed microgrids with communication overlay
US10122291B2 (en) Redundant control device and method of HVDC system
GB2523535A (en) Breaker circuit configurations for multi-terminal DC systems
WO2023199376A1 (ja) 制御装置、給電システム、制御方法およびプログラム
Chandraratne et al. Smart grid protection through self-healing
CN113113900A (zh) 微电网保护控制系统、方法、设备及存储介质
CN104953699A (zh) 微电网系统无缝切换控制方法
WO2023199378A1 (ja) 遮断器および遮断方法
WO2023199377A1 (ja) 遮断器および遮断方法
Haider et al. Protection coordination using superconducting fault current limiters in microgrids
JP2015195655A (ja) パワーコンディショナ
CN113809766B (zh) 一种多母线储能系统及其控制方法
Larruskain et al. Requirements for fault protection in HVDC grids
US20230275405A1 (en) Switching system
Štefko et al. Design of a protection system for distributed energy sources in distribution grids
CN212695892U (zh) 一种双开关电源热备供电组
Chanaa et al. Islanding Detection Method of a Photovoltaic Installation Destined to Power a RLC Load and Integrated to LV Network.
JP2018074643A (ja) 停電補償装置付き分電盤

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 22937358

Country of ref document: EP

Kind code of ref document: A1

ENP Entry into the national phase

Ref document number: 2024515189

Country of ref document: JP

Kind code of ref document: A

WWE Wipo information: entry into national phase

Ref document number: 18854304

Country of ref document: US

NENP Non-entry into the national phase

Ref country code: DE

122 Ep: pct application non-entry in european phase

Ref document number: 22937358

Country of ref document: EP

Kind code of ref document: A1

WWP Wipo information: published in national office

Ref document number: 18854304

Country of ref document: US
