Definitions

  • the invention belongs to the field of household appliances, and in particular to a washing machine and a method for placing the same.
  • FIG. 1 it is a schematic diagram of an existing drum washing machine, including a power button, a display screen, a door and window, a casing, a foot and a detergent casing, and a conventional commercial drum washing machine or a pulsator washing machine is placed in the development of a university or a community. Location, consumers need to put coins or swipe cards.
  • Figure 2 is a schematic view of the control panel of the existing drum washing machine. For the consumer, the consumer needs to prepare the coin himself; or purchase or pay the deposit to use the card; even if the laundry is small, it needs to be washed once.
  • the present invention has been made in view of the above.
  • the technical problem to be solved by the present invention is to overcome the deficiencies of the prior art, and to provide a washing machine and a method for placing the same, which can realize the process of laundry payment payment through the mobile terminal.
  • a first aspect of the invention provides a method for ordering a washing machine, the steps comprising:
  • the target washing machine after receiving the order making order, the target washing machine generates payment information according to the laundry information
  • the method further includes:
  • the quantity information of the idle washing machine and the distance information to the terminal are obtained, and the idle washing machines are sorted according to the distance information.
  • the method further includes:
  • the attribute information of the target washing machine is sent to the terminal, and the attribute information is pushed to the terminal; preferably, the attribute information includes one or a combination of the following: model number, brand number, brand date, production date, and washing capacity. ,location information.
  • the method specifically includes:
  • the target washing machine detects that the laundry is put into the inner cylinder, and then weighs the laundry to obtain the weight information of the laundry;
  • the step S32 specifically includes:
  • the weight of the laundry is divided into N files, and each clothing corresponds to different charging standards;
  • the step S3 specifically includes:
  • the user selects corresponding washing information from the display screen of the washing machine before weighing or weighing the clothes, and preferably, the washing information is any one of the following or a combination thereof:
  • Water level information water temperature information, dehydration speed information, material information, drying information, washing time information;
  • the method further includes:
  • the washing end information is pushed to the terminal to prompt the user to complete the laundry washing.
  • a second aspect of the present invention provides a washing machine using the washing machine placing method according to the first aspect, comprising: a washing machine body, a controller, a function selecting unit, a weighing unit, and a display unit, the controller and the function
  • the selection unit and the display unit are disposed on a control tray of the washing machine body, and the function selection unit, the weighing unit and the display unit are all connected to the controller;
  • the controller calculates a payment fee according to the laundry weight information acquired by the weighing unit and the washing information acquired by the function selection unit, and pushes the payment fee to the display unit for display, and the controller controls the washing machine body pair after the payment is completed. Wash the clothes.
  • the function selection unit comprises at least one of the following:
  • Water level selection module Water level selection module, water temperature selection module, dehydration speed selection module, material selection module, drying selection module and time selection module.
  • the display unit comprises at least one of the following: a display screen, a presentation key, a time display unit, a payment information display unit, a next indication key, a start key, and a return key.
  • the time display unit displays at least one of the following: an expected washing time, a remaining washing time, and a running time of each function;
  • a return reminder information field is provided on one side of the return key.
  • the present invention has the following advantageous effects compared with the prior art.
  • the invention can generate corresponding payment information according to the weight, material, washing method and the like of the laundry, so that the diversified needs of the user can be more satisfied, and the corresponding washing cost is more reasonably charged, thereby providing convenience to the user, and By the invention, it is avoided that the user finds that the washing machine is being used after reaching the washing machine, and the user runs white, which brings convenience to the user.
  • the user can use the mobile phone, computer, tablet, notebook, etc. to use the platform of online payment, such as Alipay, WeChat or online banking, to scan the above-mentioned one-dimensional code or two-dimensional code or input the corresponding digital number to perform the target washing machine.
  • the washing service pays for the fee.
  • the distance is sorted according to the near and far, for the user The selection is made, so that after the user selects the nearest free washing machine as the target washing machine, the user can find the target washing machine with the laundry quickly, thereby improving the user experience.
  • the invention can set different payment fees for clothes of different gear weights, and can also according to the user's selected washing information (for example, water level information, water temperature information, dehydration speed information, material information, drying information, washing time information, etc. Determine the corresponding fee, and combine with the cost corresponding to the above weight information to obtain the final payment fee, then push the payment fee to the display for display, and display the corresponding payment QR code for the The user pays for the fee using Alipay or WeChat.
  • washing information for example, water level information, water temperature information, dehydration speed information, material information, drying information, washing time information, etc.
  • Figure 1 is a schematic view of a conventional washing machine
  • FIG. 2 is a schematic view of a control panel of a conventional washing machine
  • FIG. 3 is a flow chart of a method for placing a washing machine according to an embodiment of the present invention.
  • FIG. 4 is a flowchart showing an expansion of a method for placing a washing machine according to an embodiment of the present invention
  • FIG. 5 is a specific flow chart of S3 of the embodiment of the present invention.
  • Figure 6 is a specific flow chart of S32 in Figure 5;

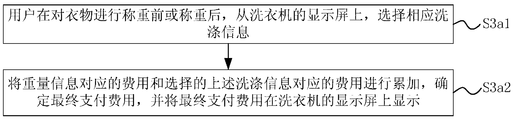

  • FIG. 7 is another specific flow chart of S3 of the embodiment of the present invention.
  • FIG. 8 is a block diagram showing the structure of a washing machine of the present invention.
  • Figure 9 is a schematic view showing the structure of a control tray of the washing machine of the present invention.
  • washing machine body 1 washing machine body, 2 controller, 3 weighing unit, 4 function selection unit, 41 water level selection module, 42 water temperature selection module, 43 dehydration speed selection module, 44 material selection module, 45 drying selection module, 46 time Select module, 5 display unit, 51 display, 52 demo description button, 53 time display Display unit, 54 next indication button, 55 return button, 56 start button, 57 payment information display unit.
  • connection In the description of the present invention, it should be noted that the terms “installation”, “connected”, and “connected” are to be understood broadly, and may be fixed or detachable, for example, unless otherwise explicitly defined and defined. Connected, or integrally connected; can be mechanical or electrical; can be directly connected or indirectly connected through an intermediate medium. The specific meaning of the above terms in the present invention can be understood in a specific case by those skilled in the art.
  • the washing machine of the present invention is a pulsator washing machine or a drum washing machine, preferably a drum washing machine.
  • each commercial washing machine is networked and then data exchange between the washing machine and the user terminal is performed through the server.
  • an embodiment of the present invention provides a method for ordering a washing machine, and the steps include:
  • the target washing machine after receiving the order making order, the target washing machine generates payment information according to the laundry information
  • the predetermined range of users can be set according to their own needs, for example, you can choose within a radius of 100 meters, within a radius of 1 kilometer, or within a radius of 2 kilometers, etc., according to the actual situation and preferences of the user;
  • the user can then select the washing machine (ie, the target washing machine) that suits him or her from the mobile phone. After the user clicks on the washing machine in the middle of the mobile phone, the window will pop up on the screen of the mobile phone when the user clicks. After "Yes", the mobile phone will send an order reservation command to the washing machine through the server;
  • the server then extracts relevant information of the target washing machine and sends the information to the user's mobile phone, so that the user can find the target washing machine with the laundry that needs to be washed according to the information, and then put the laundry into the target washing machine, and the target washing machine will be based on
  • Corresponding payment information is generated according to the weight, material, washing method, and the like of the laundry, and the payment information is displayed on the display screen of the target washing machine, wherein the payment information may be numbered by one-dimensional code, two-dimensional code or number.
  • the user may use the platform for online payment, such as Alipay, WeChat or online banking, to scan the above-mentioned one-dimensional code or two-dimensional code or input a corresponding digital number to pay for the washing service of the target washing machine;
  • online payment such as Alipay, WeChat or online banking
  • the server will issue a washing command to the target washing machine, and after the target washing machine receives the washing command, the start button is turned on, and the washing machine is operated to wash the laundry.
  • the user can receive other orders until the user reaches the target washing machine and uses the washing machine to complete the laundry washing, in order to prevent the user from using the target washing machine for washing after the order is placed, resulting in the target.
  • the washing machine is vacant, if the target washing machine has not used the target washing machine to perform laundry washing within a certain time threshold range, the target washing machine will consider the reserved order to be invalid and start receiving other orders.
  • the present invention can generate corresponding payment information according to the weight, material, washing method and the like of the laundry, so that the user's diversified needs can be more satisfied, and the corresponding washing cost is more reasonably charged to the user.
  • the convenience is provided, and the user is prevented from finding that the washing machine is being used after the user arrives at the washing machine, and the user runs white, which brings convenience to the user.
  • the method further includes:
  • the quantity information of the idle washing machine and the distance information to the terminal are obtained, and the idle washing machines are sorted according to the distance information.
  • the user sorts in a near-to-far manner for the user to select, and the general user selects the washing machine closest to himself as the target washing machine, so that the user selects the nearest one. After the idle washing machine is the target washing machine, it can quickly find the target washing machine with the laundry to improve the user experience.
  • step S2 the method further includes:
  • the attribute information of the target washing machine is sent to the terminal, and the attribute information is pushed to the terminal; preferably, the attribute information includes one or a combination of the following: model number, brand number, brand date, production date, and washing capacity. ,location information.
  • the attribute information includes one or a combination of the following: model number, brand number, brand date, production date, and washing capacity. ,location information.
  • the server will obtain the attribute information of the target washing machine, and send the attribute information to the user terminal. If the user is dissatisfied with the target washing machine, he can choose to cancel the order and re-select the target washing machine from the idle washing machine. ;
  • the user directly retrieves the attribute information of the corresponding idle washing machine, and selects a suitable target washing machine to wash the laundry according to the attribute information of the washing machine and the distance sorting in step S21.
  • step S3 specifically includes:
  • the target washing machine detects that the laundry is put into the inner cylinder, and then weighs the laundry to obtain the weight information of the laundry;
  • step S32 specifically includes:
  • the weight of the laundry is divided into N files, and each clothing corresponds to different charging standards;
  • the washing machine acquires the weight information of the laundry through the gravity sensor, or by rotating the inner cylinder, according to the inside Obtaining the weight information of the laundry by different accelerations of the rotation of the cylinder;
  • the corresponding payment costs are also different (for example, the weight M of the clothes is divided into three gears, 0Kg ⁇ M ⁇ 4Kg is one gear, and the fee is 2 yuan; 4Kg ⁇ M ⁇ 8Kg is the second gear, and the fee is 4 yuan; >8Kg is the third gear, which costs 6 yuan).
  • the charges can be made more reasonable and convenient for users.
  • step S3 specifically includes:
  • the user selects corresponding washing information from the display screen of the washing machine before weighing or weighing the clothes, and preferably, the washing information is any one of the following or a combination thereof:
  • Water level information water temperature information, dehydration speed information, material information, drying information, washing time information;
  • the user may select a suitable washing mode by using a water level selection module, a water temperature selection module, a spin speed selection module, a material selection module, a drying selection module, and a time selection module before or after obtaining the weight information of the laundry.
  • the user can select one or more of the above modules. If the user does not set the above module, the water level selection module, the water temperature selection module, the spin speed selection module, the material selection module and the time selection module will automatically set the default settings.
  • the method is to wash (for example, the water level is the standard water level, the water temperature is the normal temperature, the dehydration speed is the common speed, the material is cotton and linen), and if the drying module is not selected, the drying mode will not be started;
  • Different washing information corresponds to different expenses, and the corresponding cost is determined according to the selected washing information of the user, and combined with the cost corresponding to the weight information, the final payment fee is obtained, and then the payment fee is pushed to the display screen.
  • the method further includes:
  • the washing end information is pushed to the terminal to prompt the user to complete the laundry washing.
  • the user terminal is sent a prompt message to prompt the user to take the laundry away, so that the user can know in time after the washing is completed, and the user is avoided. I forgot to wash the clothes, and the target washing machine can continue to receive other orders after the user takes the clothes away.
  • an embodiment of the present invention provides a washing machine using the washing machine placing method according to the first embodiment, including a washing machine body 1, a controller 2, a function selecting unit 4, and weighing.
  • the unit 3 and the display unit 5, the controller 2, the function selecting unit 4 and the display unit 5 are disposed on the control tray of the washing machine body 1, and the function selecting unit 4, the weighing unit 3 and the display unit 5 are both The controller 2 is connected;
  • the controller 2 calculates a payment fee based on the laundry weight information acquired by the weighing unit 3 and the washing information acquired by the function selecting unit 4, and pushes the payment fee to the display unit 5 for display, and the controller 2 completes the payment.
  • the washing machine body 1 is then controlled to wash the laundry.
  • the function selection unit 4 comprises at least one of the following:
  • the water level selection module 41 the water temperature selection module 42, the spin-drying speed selection module 43, the material selection module 44, the drying selection module 45, and the time selection module 46.
  • the user can use the water level selection module 41 to select different water consumption according to his own preference (for example, the water level selection module 41 is provided with a high water level, a middle water level, and a low water level), and the water temperature selection module 42 can be used to select different washing water temperatures (for example, The water temperature selection module 42 is provided with a high water temperature, a medium water temperature, and a low water temperature.
  • the spin speed selection module 43 selects different spin speeds (for example, the spin speed selection module 43 is provided with a high speed, a medium speed, and a low speed.
  • the material selection module 44 selects the corresponding material washing method (for example, the material selection module 44 is provided with a selection button of cotton, linen, wool, etc.), and the drying selection module 45 is provided with whether to select the drying button, and also to bake. Dry time selection button, the user can choose whether to need to dry according to need, if you choose to dry clothes, you can also use the drying time selection button to select the corresponding drying time.
  • the display unit 5 includes at least one of the following: a display screen, a presentation key 52, a time display unit 535, a payment information display unit 575, a next instruction key 54, a start key 56, and a return key 55,
  • the time display unit 535 displays at least one of the following: the expected washing time, the remaining time of washing, and the running time of each function;
  • a return reminder information field is provided on one side of the return key 55.
  • the instruction key 52 stores the video of the entire process in the control system of the washing machine. After the user triggers the presentation instruction key 52, the video information is retrieved, and the entire operation process is played on the display screen, thereby facilitating the user to understand and operate.
  • the next instruction key 54 after the corresponding function is selected from the function selection unit 4, triggers the next instruction key 54 to enter the next step; the return key 55 is triggered to return to the previous function interface, and a return reminder is provided on the side of the return key 55.
  • Information Bar
  • clicking the next indication button 54 automatically pushes the selection information of the next function selection unit 4 until the selection is completed and clicks the next instruction.
  • the key 54 will enter the payment fee generation phase to generate corresponding payment fee information.
  • the start button 56 of the washing machine is triggered, and the washing machine starts washing the laundry.
  • the washing end information is sent to the server through the prompting unit, and the server forwards the information to the corresponding user's mobile phone, prompting the user that the laundry has been washed, and the user can receive the washing end prompt information, and then the washing machine can be used from the washing machine.
  • the washing end prompt information is sent to the server through the prompting unit, and the server forwards the information to the corresponding user's mobile phone, prompting the user that the laundry has been washed, and the user can receive the washing end prompt information, and then the washing machine can be used from the washing machine.
  • the washing end prompt information is sent to the server through the prompting unit
  • the weighing unit 3 is a gravity sensor disposed at the bottom of the inner cylinder in the washing machine body 1 , and the gravity sensor determines the weight information according to the gravity action of the laundry; or the weighing unit 3 is an acceleration sensor, which is disposed on the inner cylinder and can be The rotation of the inner cylinder determines the weight information of the laundry.
  • the bottom plate of the outer casing is fastened and connected with a foot to support the whole washing machine; a washing outer cylinder is suspended inside the outer casing, and a washing inner cylinder is inside; the outer cylinder has an upper hanging portion, and is hung on the side panel of the washing machine or the reinforcing beam through the hanging spring; the outer cylinder By the lower connecting portion, connected to and supported by the bottom plate through the damper; having a water inlet system and a drainage system; having a heating member to heat the washing water; having a drying system for drying the laundry; a detergent box for consumption
  • the detergent is delivered, or even if the machine has an automatic delivery function, the consumer can also preferably deliver the detergent through the detergent box; the power button, the merchant after-sales personnel is responsible for starting, or remotely turning on; the display is used to display the program. Options, demo descriptions, billing collection displays, and more.
  • Consumers can use the smart phone, through the commercial smart washing machine APP software or the public number of the commercial smart washing machine merchant can query the number and working conditions of the nearby commercial washing machine, the consumer can make an order for the commercial smart washing machine that has not carried out the washing task. After the order is successfully issued, the consumer is prompted to place the model and code or characteristics of the washing machine, so that the consumer can find the washing machine.
  • the consumer takes the laundry to be delivered to the commercial smart washing machine that has been placed, and places the laundry into the washing machine to close the door and window.
  • the washing machine quickly rotates, weighs the clothes, and weighs the error. Therefore, the charge is charged according to the gear position.
  • 1-4Kg is the I file and the charge is 2 yuan
  • 4-8Kg is the II file, the charge is 4 yuan
  • 8-12Kg is The III file charges 6 yuan.
  • the controller determines the charging position according to the weighing, the controller controls the display content of the washing machine screen, and also has the QR code payment information, and reminds the consumer to scan the two-dimensional code. Consumers can use a smartphone to scan a QR code to pay via WeChat, Alipay and other payment instruments.
  • the user After the payment is successful, the user will send a reminder message to the consumer's smartphone through the commercial smart washing machine APP software or the public number of the commercial smart washing machine merchant: the order has been generated, and the washing has begun; the business information; the single number information. During this process, the consumer can query the washing process.
  • the commercial smart washing machine APP software or the public number of the commercial smart washing machine merchant sends a reminder message to the consumer's smart phone: the washing is completed, please charge the clothes.

Landscapes

  • Engineering & Computer Science (AREA)
  • Business, Economics & Management (AREA)
  • Physics & Mathematics (AREA)
  • General Physics & Mathematics (AREA)
  • Accounting & Taxation (AREA)
  • Computer Networks & Wireless Communication (AREA)
  • Strategic Management (AREA)
  • General Business, Economics & Management (AREA)
  • Theoretical Computer Science (AREA)
  • Textile Engineering (AREA)
  • Finance (AREA)
  • Control Of Washing Machine And Dryer (AREA)

Abstract

一种洗衣机及其下单方法，所述方法的步骤包括：S1，在预定范围内搜索洗衣机的运行状态，并获取空闲洗衣机的相关信息，并将空闲洗衣机的相关信息发送至终端；S2，通过终端从空闲洗衣机中选择目标洗衣机，然后向目标洗衣机发送下单预约命令；S3，目标洗衣机接收到下单预约命令后，根据待洗衣物信息，生成支付信息；S4，支付完成后，洗衣机开始运行，对衣物进行洗涤。用户能够利用自己的手机搜索附近空闲的洗衣机，避免了用户到达洗衣机后发现洗衣机正在使用的情况，通过移动终端利用支付宝、微信或者网银等网络支付平台扫描或输入相应支付码，来对洗涤服务进行支付，方便用户使用。

Description

一种洗衣机及其下单方法 技术领域
本发明属于家电领域，具体地说，涉及一种洗衣机及其下单方法。
背景技术
如图1所示，是现有的滚筒洗衣机的示意图，包括，电源键、显示屏、门窗、外壳、底脚和洗涤剂外壳，常规的商用滚筒洗衣机或者波轮洗衣机放置在高校、社区的制定位置，消费者需要投放硬币或者刷卡。如图2所示是现有滚筒洗衣机的控制面板的示意图，对于消费者而言，消费者需要自己准备硬币；或者购买、或者交付押金使用卡片；洗的衣物即便很少也需要按照一次满载洗涤收费；甚至有的消费者带着衣物达到商用洗衣机房，却发现洗衣机全部使用中等浪费时间精力的情况，这些都是一种不便；而对于商家来说，硬币的回收也需要投入人力，全国大规模连锁实现极其困难。
现在消费者都已经完全适应了智能手机及移动支付如扫描二维码支付等，现有消费者随时随地的带着手机，即便没有带现金，也能够使用移动支付在商店购买各种商品。
2016年支付清算协会向支付机构下发《条码支付业务规范》(征求意见稿)，意见稿中明确指出支付机构开展条码业务需要遵循的安全标准。这是央行官方承认二维码支付地位，移动支付将越来重要。
因此，如何通过移动终端实现衣物洗涤支付的过程，成为目前亟待解决的问题。
有鉴于此特提出本发明。
发明内容
本发明要解决的技术问题在于克服现有技术的不足，提供一种洗衣机及其下单方法，能够通过移动终端实现衣物洗涤支付的过程。
为解决上述技术问题，本发明采用技术方案的基本构思是：
本发明的第一方面提供了一种洗衣机下单方法，步骤包括：
S1，在预定范围内搜索洗衣机的运行状态，并获取空闲洗衣机的相关信息，并将空闲洗衣机的相关信息发送至终端；
S2，通过终端从空闲洗衣机中选择目标洗衣机，然后向目标洗衣机发送下单预约命令；
S3，目标洗衣机接收到下单预约命令后，根据待洗衣物信息，生成支付信息；
S4，支付完成后，洗衣机开始运行，对衣物进行洗涤。
优选地，在所述步骤S1还包括：
获取空闲洗衣机的数量信息和到终端的距离信息，并根据距离信息对空闲洗衣机进行排序。
优选地，步骤S2之后还包括：
S21，下单预约成功后，向终端发送目标洗衣机的属性信息，并将属性信息推送至终端；优选地，其中属性信息包括下列之一或其组合：型号、编号、品牌、生产日期、洗涤容量、位置信息。
优选地，在所述步骤S3具体包括：
S31，目标洗衣机检测到衣物放入内筒之后对衣物进行称重，获取衣物的重量信息；
S32，获取与重量信息相匹配的收费标准，生成支付信息，将所述支付信息推送至洗衣机显示屏上，提示用户进行支付。
优选地，所述步骤S32具体包括：
S321，将洗涤衣物的重量分为N档，每档衣物对应不同的收费标准；
S322，根据衣物的重量信息，判断衣物所在的档位，并将该档位对应的费用在洗衣机的显示屏上显示，提示用户支付相应费用。
优选地，所述步骤S3具体还包括：
S3a1，用户在对衣物进行称重前或称重后，从洗衣机的显示屏上，选择相应洗涤信息，优选地，洗涤信息为下列任一或其组合：
水位信息、水温信息、脱水转速信息、材质信息、烘干信息、洗涤时间信息；
S3a2，将重量信息对应的费用和选择的上述洗涤信息对应的费用进行累加， 确定最终支付费用，并将最终支付费用在洗衣机的显示屏上显示。
优选地，在所述步骤S4之后还包括：
S5，洗涤结束后，将洗涤结束信息推送至终端，提示用户衣物洗涤完成。
本发明的第二方面提出了一种洗衣机，使用上述第一方面所述的洗衣机下单方法，包括，洗衣机本体、控制器、功能选择单元、称重单元和显示单元，所述控制器、功能选择单元和显示单元设置在洗衣机本体的控制盘座上，所述功能选择单元、称重单元和显示单元均与所述控制器相连；
所述控制器根据称重单元获取的衣物重量信息和功能选择单元获取的洗涤信息计算得出支付费用，并将支付费用推送至显示单元进行显示，所述控制器在支付完成后控制洗衣机本体对衣物进行洗涤。
优选地，所述功能选择单元包括下列至少之一：
水位选择模块、水温选择模块、脱水转速选择模块、材质选择模块、烘干选择模块和时间选择模块。
优选地，所述显示单元包括下列至少之一，显示屏、演示说明键、时间显示单元、付款信息显示单元、下一步指示键、启动键和返回键，
优选地，时间显示单元显示下列至少之一：预计洗涤时间、洗涤剩余时间和各个功能的运行时间；
更优选地，在返回键的一侧设有返回提醒信息栏。
采用上述技术方案后，本发明与现有技术相比具有以下有益效果。
本发明能够根据待洗衣物的重量、材质、洗涤方法等的不同生成对应的支付信息，这样更能满足用户多样化的需求，进而更加合理的收取相应的洗涤费用，给用户提供了便利，并且，通过本发明避免了用户到达洗衣机后发现洗衣机正在使用，出现用户白跑的情况，给用户带来了便利。
用户可以通过手机、电脑、平板、笔记本等，利用支付宝、微信或者网银等可以进行网络支付的平台对上述的一维码、二维码进行扫描或者输入对应的数字编号，来对目标洗衣机进行的洗涤服务进行费用支付。
根据空闲洗衣机到用户终端的距离按照由近及远的方式进行排序，以供用户 进行选择，这样用户在选定最近的空闲洗衣机为目标洗衣机后，能够带着待洗衣物能够比较快速的找到目标洗衣机，提升用户体验。
本发明能够为不同档位重量的衣物设置不同的支付费用，并且还能根据用户的选择的洗涤信息(例如，水位信息、水温信息、脱水转速信息、材质信息、烘干信息、洗涤时间信息等)确定相应的费用，并跟上述重量信息对应的费用进行结合，得出最终的支付费用，然后将该支付费用推送到显示屏上进行显示，并将相应的支付二维码显示出来，以供用户利用支付宝或微信进行费用的支付。
在目标洗衣机将衣物洗涤完成后，向用户的终端发送提示信息，提示用户将衣物取走，这样用户能够在洗涤完成后能够及时获知，避免出现用户忘记洗涤衣物的情况，并且目标洗衣机在用户将衣物取走之后就可以继续接收其他订单了。
下面结合附图对本发明的具体实施方式作进一步详细的描述。
附图说明
附图作为本发明的一部分，用来提供对本发明的进一步的理解，本发明的示意性实施例及其说明用于解释本发明，但不构成对本发明的不当限定。显然，下面描述中的附图仅仅是一些实施例，对于本领域普通技术人员来说，在不付出创造性劳动的前提下，还可以根据这些附图获得其他附图。在附图中：
图1是现有的洗衣机的示意图；
图2是现有的洗衣机的控制面板的示意图；
图3是本发明的实施例的洗衣机下单方法的流程图；
图4是本发明的实施例的洗衣机下单方法的拓展流程图；
图5是本发明的实施例的S3具体流程图；
图6是图5中的S32的具体流程图；
图7是本发明的实施例的S3另一个具体流程图；
图8是本发明的洗衣机的结构框图；
图9是本发明的洗衣机的控制盘座的结构示意图。
图中：1洗衣机本体，2控制器，3称重单元，4功能选择单元，41水位选择模块，42水温选择模块，43脱水转速选择模块，44材质选择模块，45烘干选择模块，46时间选择模块，5显示单元，51显示屏，52演示说明键，53时间显 示单元，54下一步指示键，55返回键，56启动键，57付款信息显示单元。
需要说明的是，这些附图和文字描述并不旨在以任何方式限制本发明的构思范围，而是通过参考特定实施例为本领域技术人员说明本发明的概念。
具体实施方式
为使本发明实施例的目的、技术方案和优点更加清楚，下面将结合本发明实施例中的附图，对实施例中的技术方案进行清楚、完整地描述，以下实施例用于说明本发明，但不用来限制本发明的范围。
在本发明的描述中，需要说明的是，术语“上”、“下”、“前”、“后”、“左”、“右”、“竖直”、“内”、“外”等指示的方位或位置关系为基于附图所示的方位或位置关系，仅是为了便于描述本发明和简化描述，而不是指示或暗示所指的装置或元件必须具有特定的方位、以特定的方位构造和操作，因此不能理解为对本发明的限制。
在本发明的描述中，需要说明的是，除非另有明确的规定和限定，术语“安装”、“相连”、“连接”应做广义理解，例如，可以是固定连接，也可以是可拆卸连接，或一体地连接；可以是机械连接，也可以是电连接；可以是直接相连，也可以通过中间媒介间接相连。对于本领域的普通技术人员而言，可以具体情况理解上述术语在本发明中的具体含义。
本发明的洗衣机为波轮洗衣机或滚筒洗衣机，优选为滚筒洗衣机。
实施例一
首先，将每个商用洗衣机进行联网管理，然后通过服务器进行洗衣机和用户终端的数据交互。
如图3所示，本发明的实施例提供了一种洗衣机下单方法，步骤包括：
S1，在预定范围内搜索洗衣机的运行状态，并获取空闲洗衣机的相关信息，并将空闲洗衣机的相关信息发送至终端；
S2，通过终端从空闲洗衣机中选择目标洗衣机，然后向目标洗衣机发送下单预约命令；
S3，目标洗衣机接收到下单预约命令后，根据待洗衣物信息，生成支付信息；
S4，支付完成后，洗衣机开始运行，对衣物进行洗涤。
其中，预定范围用户可以根据自己的需要进行设定，例如可以选择方圆100米内、方圆1公里内或者方圆2公里内等，根据用户的实际情况和喜好进行相应设定；
并从预定范围内的所有洗衣机中将处于洗涤中的洗衣机去除，并将空闲洗衣机的数量和每个空闲洗衣机对应的位置记录下来，再将记录下来的空闲洗衣机的数量和对应位置关系发送到用户的手机上，然后，用户就可以从自己的手机上选择适合自己的洗衣机(即目标洗衣机)，用户点击自己相中的洗衣机后手机屏幕上就会弹出“是否下单”的窗口，当用户点击“是”之后手机就会通过服务器向洗衣机发送下单预约命令；
然后服务器提取目标洗衣机的相关信息，并将这些信息发送至用户的手机上，这样用户就可以带着需要洗涤的衣物根据这些信息找到目标洗衣机，然后将衣物放入目标洗衣机中，目标洗衣机会根据待洗衣物的重量、材质、洗涤方法等的不同生成对应的支付信息，并将该支付信息在目标洗衣机的显示屏上进行显示，其中该支付信息可以以一维码、二维码或数字编号等方式进行显示，用户利用支付宝、微信或者网银等可以进行网络支付的平台对上述的一维码、二维码进行扫描或者输入对应的数字编号，来对目标洗衣机进行的洗涤服务进行费用支付；
最后，支付完成后，服务器会向目标洗衣机下达洗涤命令，目标洗衣机接收到该洗涤命令之后就会开启启动键，运行洗衣机对衣物进行洗涤。
其中，在用户选定目标洗衣机进行下单预约之后，直至用户达到目标洗衣机并利用该洗衣机对衣物洗涤完成后才能接收其他订单，为了避免用户进行下单预约后不利用目标洗衣机进行洗涤，导致目标洗衣机空置的情况出现，如果该目标洗衣机在一定时间阈值范围内用户还没有利用该目标洗衣机进行衣物洗涤，该目标洗衣机就会认为该预约订单失效，并开始接收其他订单。
通过上述技术方案，本发明能够根据待洗衣物的重量、材质、洗涤方法等的不同生成对应的支付信息，这样更能满足用户多样化的需求，进而更加合理的收取相应的洗涤费用，给用户提供了便利，并且，通过本发明避免了用户到达洗衣机后发现洗衣机正在使用，出现用户白跑的情况，给用户带来了便利。
优选地，在所述步骤S1还包括：
获取空闲洗衣机的数量信息和到终端的距离信息，并根据距离信息对空闲洗衣机进行排序。
在上述技术方案中，根据空闲洗衣机到用户终端的距离按照由近及远的方式进行排序，以供用户进行选择，一般的用户都会选择离自己最近的洗衣机为目标洗衣机，这样用户在选定最近的空闲洗衣机为目标洗衣机后，能够带着待洗衣物能够比较快速的找到目标洗衣机，提升用户体验。
如图4所示，步骤S2之后还包括：
S21，下单预约成功后，向终端发送目标洗衣机的属性信息，并将属性信息推送至终端；优选地，其中属性信息包括下列之一或其组合：型号、编号、品牌、生产日期、洗涤容量、位置信息。其他步骤跟上述图1中的步骤相同。
为了便于用户了解，在下单预约成功后，服务器会获取目标洗衣机的属性信息，并将这些属性信息发送给用户终端，如果用户对目标洗衣机不满意可以选择取消订单，重新从空闲洗衣机中选取目标洗衣机；
或者，用户在下单预约之前，直接调取相应空闲洗衣机的属性信息，根据洗衣机的属性信息并结合步骤S21的距离排序，选择适合的目标洗衣机洗涤衣物。
如图5所示，在所述步骤S3具体包括：
S31，目标洗衣机检测到衣物放入内筒之后对衣物进行称重，获取衣物的重量信息；
S32，获取与重量信息相匹配的收费标准，生成支付信息，将所述支付信息推送至洗衣机显示屏上，提示用户进行支付。
如图6所示，所述步骤S32具体包括：
S321，将洗涤衣物的重量分为N档，每档衣物对应不同的收费标准；
S322，根据衣物的重量信息，判断衣物所在的档位，并将该档位对应的费用在洗衣机的显示屏上显示，提示用户支付相应费用。
在上述技术方案中，当用户将衣物放入洗衣机，并将洗衣机门或盖进行关闭后，洗衣机通过重力传感器来获取衣物的重量信息，或者通过转动内筒，根据内 筒的转动的加速度的不同获取衣物的重量信息；
由于衣物重量的不同对应支付费用也是不同的(例如，将衣物重量M分为三档，0Kg＜M≤4Kg为一档，收费2元；4Kg＜M≤8Kg为二档，收费4元；M＞8Kg为三档，收费6元)，这样，能够使收费更加合理，方便用户的使用。
如图7所示，所述步骤S3具体还包括：
S3a1，用户在对衣物进行称重前或称重后，从洗衣机的显示屏上，选择相应洗涤信息，优选地，洗涤信息为下列任一或其组合：
水位信息、水温信息、脱水转速信息、材质信息、烘干信息、洗涤时间信息；
S3a2，将重量信息对应的费用和选择的上述洗涤信息对应的费用进行累加，确定最终支付费用，并将最终支付费用在洗衣机的显示屏上显示。
在上述技术方案中，用户可以在获取衣物的重量信息之前或者之后，利用水位选择模块、水温选择模块、脱水转速选择模块、材质选择模块、烘干选择模块和时间选择模块选择合适的洗涤方式，用户可以从上述模块中选择一种或多种，如果用户没有对上述模块进行设置，上述水位选择模块、水温选择模块、脱水转速选择模块、材质选择模块和时间选择模块就会自动进行默认设置的方式进行洗涤(例如水位为标准水位，水温为常温，脱水转速为常用转速，材质为棉麻)，烘干模块如果没有选择，则会不启动烘干模式；
不同的洗涤信息对应不同的费用，根据用户的选择的洗涤信息确定相应的费用，并跟上述重量信息对应的费用进行结合，得出最终的支付费用，然后将该支付费用推送到显示屏上进行显示，并将相应的支付二维码显示出来，以供用户利用支付宝或微信进行费用的支付。
如图1所示，在所述步骤S4之后还包括：
S5，洗涤结束后，将洗涤结束信息推送至终端，提示用户衣物洗涤完成。
在上述技术方案中，为了给用户提供便利，在目标洗衣机将衣物洗涤完成后，向用户的终端发送提示信息，提示用户将衣物取走，这样用户能够在洗涤完成后能够及时获知，避免出现用户忘记洗涤衣物的情况，并且目标洗衣机在用户将衣物取走之后就可以继续接收其他订单了。
实施例二
如图8和图9所示，本发明的实施例提出了一种洗衣机，使用上述实施例一所述的洗衣机下单方法，包括，洗衣机本体1、控制器2、功能选择单元4、称重单元3和显示单元5，所述控制器2、功能选择单元4和显示单元5设置在洗衣机本体1的控制盘座上，所述功能选择单元4、称重单元3和显示单元5均与所述控制器2相连；
所述控制器2根据称重单元3获取的衣物重量信息和功能选择单元4获取的洗涤信息计算得出支付费用，并将支付费用推送至显示单元5进行显示，所述控制器2在支付完成后控制洗衣机本体1对衣物进行洗涤。
优选地，所述功能选择单元4包括下列至少之一：
水位选择模块41、水温选择模块42、脱水转速选择模块43、材质选择模块44、烘干选择模块45和时间选择模块46。
用户可以根据自己的喜好利用水位选择模块41选择不同的用水量(例如水位选择模块41上设有高水位、中水位、低水位三档)，可以利用水温选择模块42选择不同的洗涤水温(例如水温选择模块42上设有高水温、中水温、低水温三档)，利用脱水转速选择模块43选择不同的脱水转速(例如脱水转速选择模块43上设有高转速、中转速、低转速三档)，利用材质选择模块44选择相应的材质洗涤方式(例如材质选择模块44上设有棉麻、呢绒、羊毛等选择按键)，烘干选择模块45上设有是否选择烘干按键，还有烘干时间选择按钮，用户可以根据需要选择是否需要烘干，如果选择烘干衣物也可以利用烘干时间选择按钮选择相应的烘干时间。
优选地，所述显示单元5包括下列至少之一，显示屏、演示说明键52、时间显示单元535、付款信息显示单元575、下一步指示键54、启动键56和返回键55，
优选地，时间显示单元535显示下列至少之一：预计洗涤时间、洗涤剩余时间和各个功能的运行时间；
更优选地，在返回键55的一侧设有返回提醒信息栏。
为了使用户能够快速的了解洗衣机的下单和选择过程，在洗衣机上设有演示 说明键52，在洗衣机的控制系统中存储有整个过程的视频，用户触发该演示说明键52之后，就会调取视频信息，在显示屏上播放整个操作过程，进而便于用户理解和操作。
下一步指示键54，从功能选择单元4中选定相应功能后，触发下一步指示键54进入下一步；触发返回键55，返回至上一功能界面，在返回键55的一侧设有返回提醒信息栏。
在上述技术方案中，用户从多个功能选择单元4中每完成一个选项后，点击下一步指示键54就会自动推送下一步的功能选择单元4的选择信息，直至选择完成后点击下一步指示键54就会进入支付费用生成阶段，生成相应的支付费用信息。
用户根据该支付费用信息进行支付后，就会触发洗衣机的启动键56，洗衣机就会开始对衣物进行洗涤。
洗衣机洗涤完成后，会通过提示单元向服务器发送洗涤结束信息，服务器将该信息转发至对应用户的手机上，提示用户衣物已洗涤完成，用户在收到洗涤结束提示信息后，就可以从该洗衣机中将衣物取走了。
另外，称重单元3为重力传感器设置在洗衣机本体1内的内筒底部，重力传感器根据衣物在重力作用确定重量信息；或者所述称重单元3为加速度传感器，设置在内筒上，能够根据内筒的转动确定衣物的重量信息。
实施例三
本实施例的洗衣机的结构为：
外壳的底板紧固连接有底脚，支撑整个洗衣机；外壳内部悬挂有洗涤外筒，内部有洗涤内筒；外筒有上悬挂部，通过悬挂弹簧挂在洗衣机侧面板或者加强梁上；外筒由下连接部，通过阻尼器连接在底板上并由其支撑；具有进水系统和排水系统；具有加热部件，加热洗涤水；具有烘干系统，用于烘干衣物；洗涤剂盒，便于消费者投放洗涤剂，或者即便本机具有自动投放功能，消费者也可以通过该洗涤剂盒最佳投放洗涤剂；电源键，商家售后人员负责启动，或者远程遥控开启；显示屏，用来显示程序选项，演示说明，计费收取显示等内容。
消费者手机安装商用智慧洗衣机APP软件，或者微信关注商用智慧洗衣机商 家的公众号。然后就可以进入下述过程：
1、手机下单：
消费者可以使用智能手机，通过商用智慧洗衣机APP软件或者商用智慧洗衣机商家的公众号可以查询到附近商用洗衣机的数量及工作情况，消费者可以对未进行洗涤任务的商用智慧洗衣机进行下单预约。下单成功后，提示消费者下单洗衣机的型号及编码或者特征，便于消费者找到所述洗衣机。
2消费者支付费用：
消费者带着所要洗涤的衣物到达所下单的商用智慧洗衣机，并将衣物放置进入洗衣机，关闭门窗。洗衣机快速通过转动，对衣物称重，称重有误差，所以收费是按照档位收费，比如1-4Kg为I档，收费2元；4-8Kg为II档，收费4元；8-12Kg为III档收费6元。控制器根据称重，判断收费档位，控制器控制洗衣机屏幕显示内容，里面还有二维码支付信息，并提醒消费者扫描二维码。消费者可以使用智能手机通过扫描二维码通过微信，支付宝等支付工具支付。
3衣物洗涤
只有当消费者扫码支付成功，洗衣机才开始进行洗涤工作。
支付成功后，会通过商用智慧洗衣机APP软件或者商用智慧洗衣机商家的公众号给消费者的智能手机发送提醒消息：订单已生成，并已经开始洗涤；商家信息；单号信息等。在此过程，消费者可以查询洗涤过程。
4洗涤完成
在洗涤最后阶段或者洗涤结束后商用智慧洗衣机APP软件或者商用智慧洗衣机商家的公众号给消费者的智能手机发送提醒消息:洗涤已完成，请收取衣物。
以上所述仅是本发明的较佳实施例而已，并非对本发明作任何形式上的限制，虽然本发明已以较佳实施例揭露如上，然而并非用以限定本发明，任何熟悉本专利的技术人员在不脱离本发明技术方案范围内，当可利用上述提示的技术内容做出些许更动或修饰为等同变化的等效实施例，但凡是未脱离本发明技术方案的内容，依据本发明的技术实质对以上实施例所作的任何简单修改、等同变化与修饰，均仍属于本发明方案的范围内。

Claims (10)

  1. 一种洗衣机下单方法，其特征在于，步骤包括：
    S1，在预定范围内搜索洗衣机的运行状态，并获取空闲洗衣机的相关信息，并将空闲洗衣机的相关信息发送至终端；
    S2，通过终端从空闲洗衣机中选择目标洗衣机，然后向目标洗衣机发送下单预约命令；
    S3，目标洗衣机接收到下单预约命令后，根据待洗衣物信息，生成支付信息；
    S4，支付完成后，洗衣机开始运行，对衣物进行洗涤。
  2. 根据权利要求1所述的洗衣机下单方法，其特征在于，在所述步骤S1还包括：
    获取空闲洗衣机的数量信息和到终端的距离信息，并根据距离信息对空闲洗衣机进行排序。
  3. 根据权利要求1所述的洗衣机下单方法，其特征在于，步骤S2之后还包括：
    S21，下单预约成功后，向终端发送目标洗衣机的属性信息，并将属性信息推送至终端；优选地，其中属性信息包括下列之一或其组合：型号、编号、品牌、生产日期、洗涤容量、位置信息。
  4. 根据权利要求1所述的洗衣机下单方法，其特征在于，在所述步骤S3具体包括：
    S31，目标洗衣机检测到衣物放入内筒之后对衣物进行称重，获取衣物的重量信息；
    S32，获取与重量信息相匹配的收费标准，生成支付信息，将所述支付信息推送至洗衣机显示屏上，提示用户进行支付。
  5. 根据权利要求4所述的洗衣机下单方法，其特征在于，所述步骤S32具体包括：
    S321，将洗涤衣物的重量分为N档，每档衣物对应不同的收费标准；
    S322，根据衣物的重量信息，判断衣物所在的档位，并将该档位对应的费用在洗衣机的显示屏上显示，提示用户支付相应费用。
  6. 根据权利要求1所述的洗衣机下单方法，其特征在于，所述步骤S3具体还包括：
    S3a1，用户在对衣物进行称重前或称重后，从洗衣机的显示屏上，选择相应洗涤信息，优选地，洗涤信息为下列任一或其组合：
    水位信息、水温信息、脱水转速信息、材质信息、烘干信息、洗涤时间信息；
    S3a2，将重量信息对应的费用和选择的上述洗涤信息对应的费用进行累加，确定最终支付费用，并将最终支付费用在洗衣机的显示屏上显示。
  7. 根据权利要求1-6任一项所述的洗衣机下单方法，其特征在于，在所述步骤S4之后还包括：
    S5，洗涤结束后，将洗涤结束信息推送至终端，提示用户衣物洗涤完成。
  8. 一种洗衣机，使用上述权利要求1-7任一项所述的洗衣机下单方法，包括，洗衣机本体、控制器，其特征在于，还包括：功能选择单元、称重单元和显示单元，所述控制器、功能选择单元和显示单元设置在洗衣机本体的控制盘座上，所述功能选择单元、称重单元和显示单元均与所述控制器相连；
    所述控制器根据称重单元获取的衣物重量信息和功能选择单元获取的洗涤信息计算得出支付费用，并将支付费用推送至显示单元进行显示，所述控制器在支付完成后控制洗衣机本体对衣物进行洗涤。
  9. 根据权利要求8所述的洗衣机，其特征在于，所述功能选择单元包括下列至少之一：
    水位选择模块、水温选择模块、脱水转速选择模块、材质选择模块、烘干选择模块和时间选择模块。
  10. 根据权利要求8所述的洗衣机，其特征在于，所述显示单元包括下列至少之一，显示屏、演示说明键、时间显示单元、付款信息显示单元、下一步指示键、启动键和返回键，
    优选地，时间显示单元显示下列至少之一：预计洗涤时间、洗涤剩余时间和各个功能的运行时间；
    更优选地，在返回键的一侧设有返回提醒信息栏。
PCT/CN2017/106401 2016-10-24 2017-10-17 一种洗衣机及其下单方法 Ceased WO2018077055A1 (zh)

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
CN201610927716.5 2016-10-24
CN201610927716.5A CN107974800A (zh) 2016-10-24 2016-10-24 一种洗衣机及其下单方法

Publications (1)

Publication Number Publication Date
WO2018077055A1 true WO2018077055A1 (zh) 2018-05-03

Family

ID=62004852

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/CN2017/106401 Ceased WO2018077055A1 (zh) 2016-10-24 2017-10-17 一种洗衣机及其下单方法

Country Status (2)

Country Link
CN (1) CN107974800A (zh)
WO (1) WO2018077055A1 (zh)

Cited By (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN114134679A (zh) * 2020-09-03 2022-03-04 青岛海尔滚筒洗衣机有限公司 洗衣机异常判断方法、装置及洗衣机
CN116227635A (zh) * 2023-02-10 2023-06-06 艾米丁(杭州)互联网科技有限公司 一种用于洗护工厂的智能预约调度管理系统
US12163266B2 (en) 2022-06-09 2024-12-10 Haier Us Appliance Solutions, Inc. Laundry treatment appliance and method of using the same according to individual laundry load weights
US12421641B2 (en) 2022-10-19 2025-09-23 Haier Us Appliance Solutions, Inc. Laundry treatment appliance and method of using the same according to matched laundry loads

Families Citing this family (11)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN108914484B (zh) * 2018-07-14 2020-12-15 陆应祥 自动分列式洗干衣系统
CN108978118B (zh) * 2018-07-30 2023-10-10 厦门悠生活网络科技有限公司 共享洗衣机系统、控制方法及存储介质
CN111648086B (zh) * 2019-02-19 2022-10-14 青岛海尔洗衣机有限公司 一种定时取衣的洁衣方法及衣物处理设备
CN110471318B (zh) * 2019-06-26 2022-05-10 康美药业股份有限公司 一种制药发热炉的智能控制系统
CN110241553A (zh) * 2019-07-01 2019-09-17 珠海格力电器股份有限公司 一种洗衣设备的预约控制方法、装置、存储介质及服务器
CN111020987B (zh) * 2019-12-31 2021-06-18 海信集团有限公司 一种洗衣机及用户终端
CN113215769B (zh) * 2020-01-21 2024-05-24 青岛海尔洗衣机有限公司 洗涤控制方法及装置
CN113957657B (zh) * 2020-07-21 2024-01-09 青岛海尔洗衣机有限公司 共享洗衣机推荐方法、设备及系统
CN114164604B (zh) * 2020-09-11 2025-01-10 青岛海尔洗衣机有限公司 数据推送方法、装置、电子设备及存储介质
CN114541081B (zh) * 2020-11-24 2025-02-25 青岛海尔洗衣机有限公司 洗涤设备的控制方法、装置及设备
CN116163107B (zh) * 2021-11-25 2026-02-27 重庆海尔洗衣机有限公司 公共洗衣机的控制方法

Citations (6)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JPH1157300A (ja) * 1997-08-20 1999-03-02 Tousei Denki Kk クリーニング処理装置
US20020065770A1 (en) * 2000-11-29 2002-05-30 Nec Corporation Management system and management method for fee-based service as well as recording medium on which program therefor is recorded
CN103668859A (zh) * 2012-09-21 2014-03-26 Lg电子株式会社 衣物处理设备及其控制该设备的方法
CN103745537A (zh) * 2013-12-27 2014-04-23 宁波瑞丽洗涤有限公司 一种自助洗衣服务终端，包括该终端的系统和自助洗衣方法
CN105671862A (zh) * 2016-04-22 2016-06-15 青岛中怡智能安全研究院有限公司 洗衣机、洗衣机控制装置及系统
CN105803729A (zh) * 2014-12-30 2016-07-27 青岛海尔洗衣机有限公司 洗衣机控制方法

Family Cites Families (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN105133249A (zh) * 2015-09-17 2015-12-09 田菲 一种远程控制洗衣机进行洗衣的方法及装置

Patent Citations (6)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JPH1157300A (ja) * 1997-08-20 1999-03-02 Tousei Denki Kk クリーニング処理装置
US20020065770A1 (en) * 2000-11-29 2002-05-30 Nec Corporation Management system and management method for fee-based service as well as recording medium on which program therefor is recorded
CN103668859A (zh) * 2012-09-21 2014-03-26 Lg电子株式会社 衣物处理设备及其控制该设备的方法
CN103745537A (zh) * 2013-12-27 2014-04-23 宁波瑞丽洗涤有限公司 一种自助洗衣服务终端，包括该终端的系统和自助洗衣方法
CN105803729A (zh) * 2014-12-30 2016-07-27 青岛海尔洗衣机有限公司 洗衣机控制方法
CN105671862A (zh) * 2016-04-22 2016-06-15 青岛中怡智能安全研究院有限公司 洗衣机、洗衣机控制装置及系统

Cited By (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN114134679A (zh) * 2020-09-03 2022-03-04 青岛海尔滚筒洗衣机有限公司 洗衣机异常判断方法、装置及洗衣机
US12163266B2 (en) 2022-06-09 2024-12-10 Haier Us Appliance Solutions, Inc. Laundry treatment appliance and method of using the same according to individual laundry load weights
US12421641B2 (en) 2022-10-19 2025-09-23 Haier Us Appliance Solutions, Inc. Laundry treatment appliance and method of using the same according to matched laundry loads
CN116227635A (zh) * 2023-02-10 2023-06-06 艾米丁(杭州)互联网科技有限公司 一种用于洗护工厂的智能预约调度管理系统

Also Published As

Publication number Publication date
CN107974800A (zh) 2018-05-01

Similar Documents

Publication Publication Date Title
WO2018077055A1 (zh) 一种洗衣机及其下单方法
US10711382B2 (en) Self laundry system
US11423363B2 (en) Fault diagnosis apparatus for electrically operated smoking devices
CN106048977B (zh) 洗衣机的控制系统及控制方法
US20160147207A1 (en) Home appliance, mobile device and home appliance control system
CN104835262A (zh) 一种基于手机微信的洗衣收发系统及其方法
TWI598735B (zh) Information sharing method
EP3389000A1 (en) Washing machine and one-click order method using the same
JP2018524719A (ja) セルフサービス洗濯機の制御方法、端末及びシステム
KR20050097282A (ko) 임대 세탁기의 통합관리장치 및 그 방법
JP2025031886A (ja) コインランドリー利用支援システム
JP6487595B1 (ja) コインランドリー洗濯代行マッチング支援システム
CN205557094U (zh) 洗衣机、洗衣机控制装置及系统
KR102279634B1 (ko) 셀프 세탁소를 이용한 세탁 서비스 제공 방법, 장치 및 컴퓨터-판독가능기록매체
EP2355025A1 (fr) Procédé d'évaluation d'un appareil ou d'un bâtiment destiné à être raccordé à un réseau de distribution d'énergie et application pour terminal mobile associée
JP7778497B2 (ja) コインランドリーシステムおよびコインランドリーの制御方法
CN207302206U (zh) 饮水机及其控制系统
JP2023042283A (ja) セルフランドリーシステム
KR102268513B1 (ko) 셀프장비 무인 결제 방법
KR102777947B1 (ko) 세탁물 수거 처리 장치
JP2026010809A (ja) ランドリー管理システム
JP7738338B2 (ja) 飲料自動提供システム及び飲料提供機
JP2002159800A (ja) コインランドリー・システム
JP2025179767A (ja) 機器、現金決済履歴情報収集方法、後付けキャッシュレス決済ユニット及びアプリケーションプログラム
RU97377U1 (ru) Система прачечных самообслуживания

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 17865564

Country of ref document: EP

Kind code of ref document: A1

NENP Non-entry into the national phase

Ref country code: DE

122 Ep: pct application non-entry in european phase

Ref document number: 17865564

Country of ref document: EP

Kind code of ref document: A1
