RU2699373C1 - Method for regeneration of electric precipitator electrodes and device for its implementation - Google Patents
Method for regeneration of electric precipitator electrodes and device for its implementation Download PDFInfo
- Publication number
- RU2699373C1 RU2699373C1 RU2018129360A RU2018129360A RU2699373C1 RU 2699373 C1 RU2699373 C1 RU 2699373C1 RU 2018129360 A RU2018129360 A RU 2018129360A RU 2018129360 A RU2018129360 A RU 2018129360A RU 2699373 C1 RU2699373 C1 RU 2699373C1
- Authority
- RU
- Russia
- Prior art keywords
- regeneration
- field
- electrodes
- corona
- period
- Prior art date
Links
Images
Classifications
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B03—SEPARATION OF SOLID MATERIALS USING LIQUIDS OR USING PNEUMATIC TABLES OR JIGS; MAGNETIC OR ELECTROSTATIC SEPARATION OF SOLID MATERIALS FROM SOLID MATERIALS OR FLUIDS; SEPARATION BY HIGH-VOLTAGE ELECTRIC FIELDS
- B03C—MAGNETIC OR ELECTROSTATIC SEPARATION OF SOLID MATERIALS FROM SOLID MATERIALS OR FLUIDS; SEPARATION BY HIGH-VOLTAGE ELECTRIC FIELDS
- B03C3/00—Separating dispersed particles from gases or vapour, e.g. air, by electrostatic effect
- B03C3/34—Constructional details or accessories or operation thereof
- B03C3/66—Applications of electricity supply techniques
- B03C3/68—Control systems therefor
Abstract
Description
Изобретение относится к электрической очистке газов от пыли неагрессивных газов в теплоэнергетике, цветной и черной металлургии, химической и другим отраслях промышленности.The invention relates to the electrical cleaning of gases from dust of non-aggressive gases in the power system, non-ferrous and ferrous metallurgy, chemical and other industries.
Известны способы регенерации электродов электрофильтра, заключающиеся в расчете режимов регенерации осадительных и коронирующих электродов электрофильтра на основании конструктивных и технологических параметров электрофильтра. Реализация данных способов режимов осуществляют с помощью реле времени, программных устройств, например, контроллеров Е1ех-24, имеющих жесткую циклическую программу управления. Применяются также приборы АСУ типа КЭП, ПУРФ, МИУРФ, ПАРУС, АУР, АРВ, системы управления СУ-12, СУ-24 и их модификации, также имеющие жесткую циклическую программу.Known methods for the regeneration of electrodes of an electrostatic precipitator, consisting in the calculation of the regeneration modes of precipitation and corona electrodes of an electrostatic precipitator based on the design and technological parameters of the electrostatic precipitator. The implementation of these modes of modes is carried out using a time relay, software devices, for example, E1ex-24 controllers having a rigid cyclic control program. Also used are ACS devices of the type KEP, PURF, MIURF, SAIL, AUR, ARV, control systems SU-12, SU-24 and their modifications, which also have a rigid cyclic program.
К недостаткам известных способов регенерации электродов электрофильтра относится тот факт, что режимы регенерации электродов электрофильтра устанавливают по аналогии с другими электрофильтрами - аналогами, или рассчитывают при наладке электрофильтров вручную. При этом отсутствует возможность постоянного автоматического учета изменяющихся технологических параметров работы электрофильтра и пылегазового потока. В итоге снижается степень очистки газов.The disadvantages of the known methods of regenerating electrostatic electrodes include the fact that the regeneration modes of electrostatic electrodes are set by analogy with other electrostatic precipitators - analogues, or are calculated when setting up electrostatic precipitators manually. In this case, there is no possibility of constant automatic accounting of the changing technological parameters of the operation of the electrostatic precipitator and dust and gas flow. As a result, the degree of gas purification is reduced.
Известен способ автоматического управления процессом регенерации осадительных электродов н-секционного электрофильтра мартеновской печи (см. АС 1510930 SU Пикулик Н.В. и др. 1987 г.), по которому регенерация электродов осуществляется автоматически в соответствии с технологическим режимом работы печи. Недостатком является использование дифманометра, прибора, который устанавливается дополнительно в цепи технологического оборудования и создание специальной цепи связи между мартеновской печью и электрофильтром. Кроме этого, не учитываются изменяющиеся по времени параметры пылегазового потока и свойств улавливаемой пыли.A known method for automatically controlling the process of regeneration of precipitation electrodes of an n-section electrostatic precipitator of an open-hearth furnace (see AC 1510930 SU Pikulik N.V. et al. 1987), according to which the regeneration of electrodes is carried out automatically in accordance with the technological mode of operation of the furnace. The disadvantage is the use of a differential pressure gauge, a device that is additionally installed in the technological equipment circuit and the creation of a special communication circuit between the open-hearth furnace and the electrostatic precipitator. In addition, the time-varying parameters of the dust and gas flow and the properties of the captured dust are not taken into account.
Технической задачей предлагаемого изобретения и достигаемым при ее решении техническим результатом является повышение степени очистки газов электрофильтром за счет постоянного по времени отслеживания режима работы каждого поля электрофильтра и последующей автоматической установкой режимов регенерации коронирующих и осадительных электродов, соответствующих фактическому технологическому режиму работы каждого поля электрофильтра.The technical task of the invention and the technical result achieved by solving it is to increase the degree of gas purification by an electrostatic precipitator due to the time-constant monitoring of the operation mode of each field of the electrostatic precipitator and the subsequent automatic setting of regeneration modes of corona and precipitation electrodes corresponding to the actual technological regime of operation of each electrostatic precipitator field.
Указанный технический результат достигается тем, что в электрофильтре сначала измеряют период времени от момента окончания регенерации коронирующих электродов до момента начала снижения тока короны, или до момента начала повышения напряжения на коронирующем электроде при отключенном механизме встряхивания коронирующих электродов на исследуемом поле электрофильтра. На основании величины этого периода вычисляют период τкэ1п встряхивания коронирующих электродов исследуемого поля электрофильтра. Далее рассчитывают удельное электрическое сопротивление пыли в исследуемом поле электрофильтра и интервал времени встряхивания осадительных электродов исследуемого поля электрофильтра. Далее с помощью программного блока автоматически устанавливают интервал регенерации осадительных электродов каждого исследуемого поля электрофильтра. Такую последовательность операций осуществляют непрерывно по каждому полю электрофильтра.The specified technical result is achieved in that the electrostatic precipitator first measures the period of time from the moment the regeneration of the corona electrodes ends, until the beginning of the decrease in the corona current, or until the voltage on the corona electrode begins to increase when the mechanism of shaking the corona electrodes in the studied field of the electrostatic precipitator is switched off. Based on the magnitude of this period, the period τ ke1p of shaking of the corona electrodes of the studied field of the electrostatic precipitator is calculated. Next, the specific electrical resistance of dust in the investigated field of the electrostatic precipitator and the time interval of shaking the precipitation electrodes of the studied field of the electrostatic precipitator are calculated. Then, using the program unit, the regeneration interval of the precipitation electrodes of each studied field of the electrostatic precipitator is automatically set. This sequence of operations is carried out continuously for each field of the electrostatic precipitator.
Реализация предлагаемого способа регенерации электродов электрофильтра осуществляют в устройстве АСУ механизмами регенерации коронирующих и осадительных электродов электрофильтра следующим образом. На фиг. 1 представлена блок-схема устройства для реализации способа.The implementation of the proposed method for the regeneration of electrodes of an electrostatic precipitator is carried out in an ACS device by the mechanisms of regeneration of corona and precipitation electrodes of an electrostatic precipitator as follows. In FIG. 1 shows a block diagram of a device for implementing the method.
Перечень позиций на чертеже:The list of positions in the drawing:
1 - Электрофильтр;1 - Electrofilter;
2 - Блок питания коронирующих электродов высоким напряжением;2 - Power supply unit of the corona electrodes with high voltage;
3 - Механизм регенерации осадительных электродов;3 - The mechanism of regeneration of precipitation electrodes;
4 - Механизм регенерации коронирующих электродов;4 - The mechanism of regeneration of the corona electrodes;
5 - Блок измерения периода времени между окончанием регенерации и снижением тока короны или повышения напряжения на коронирующих электродах;5 - Unit for measuring the period of time between the end of regeneration and a decrease in the corona current or an increase in voltage at the corona electrodes;
6 - Блок вычисления периода регенерации коронирующих электродов;6 - Block calculating the regeneration period of the corona electrodes;
7 - Блок вычисления удельного электрического сопротивления пыли;7 - Unit for calculating the electrical resistivity of dust;
8 - Блок расчета периода регенерации осадительных электродов.8 - Block calculating the regeneration period of the precipitation electrodes.
Электрофильтр «1» подключен к блоку питания «2», который подает высокое напряжение на коронирующие электроды и имеет функцию мгновенной регистрации тока и напряжения на коронирующих электродах. Регенерация осадительных электродов осуществляется с помощью механизма «3», регенерация коронирующих электродов - механизма «4». Блок измерения периода времени τкэ1п подключен и получает сигнал от механизма «4» регенерации коронирующих электродов. На блок измерения «5» подаются от блока питания «2» значения величин тока и напряжения на коронирующих электродах. Блок вычисления «6» периода времени регенерации коронирующих электродов подает управляющий сигнал на блок «4» регенерации коронирующих электродов и одновременно The electrostatic precipitator “1” is connected to the power supply unit “2”, which supplies high voltage to the corona electrodes and has the function of instantaneous recording of current and voltage at the corona electrodes. The regeneration of the precipitation electrodes is carried out using the mechanism "3", the regeneration of the corona electrodes - mechanism "4". The unit for measuring the time period τ ke1p is connected and receives a signal from the mechanism “4” for the regeneration of the corona electrodes. The measurement unit "5" is fed from the power supply unit "2" the values of the current and voltage on the corona electrodes. The unit for calculating the “6” period of the regeneration time of the corona electrodes supplies a control signal to the block “4” of the regeneration of the corona electrodes and simultaneously
к блоку «7» расчета УЭС пыли. Блок «8» расчета периода регенерации подключен к блоку «7» и подает управляющий сигнал на механизм «3» регенерации осадительных электродов.to block "7" calculation of dust resistivity. Block “8” for calculating the regeneration period is connected to block “7” and provides a control signal to the mechanism “3” for regeneration of the precipitation electrodes.
Устройство АСУ регенерации электродов электрофильтра работает следующим образом.Device ACS regeneration of electrodes of the electrostatic precipitator operates as follows.
На основании сигнала от механизма «4» об окончании регенерации коронирующих электродов и сигнала от блока «2» тока или напряжения, блок «5» измеряет период времени первого и последующих полей: τкэ1п, τкэ2п, τкэ3п и т.д. Интервалы регенерации коронирующих электродов в блоке «6» устанавливаются программой в соответствии с определенным периодом времени от окончания регенерации коронирующих электродов до начала снижения тока короны или повышения напряжения при отключенном встряхивании коронирующих электродов на каждом поле электрофильтра.Based on the signal from the “4” mechanism about the end of the regeneration of the corona electrodes and the signal from the current or voltage block “2”, the “5” block measures the time period of the first and subsequent fields: τ ke1p , τ ke2p , τ ke3p , etc. The intervals for the regeneration of the corona electrodes in block “6” are set by the program in accordance with a certain period of time from the end of the regeneration of the corona electrodes to the beginning of a decrease in the corona current or an increase in voltage when the shaking of the corona electrodes is switched off on each field of the electrostatic precipitator.
В блоке «7» рассчитывают УЭС для первого поля электрофильтра по следующей формуле:In block "7" calculate the resistivity for the first field of the electrostatic precipitator according to the following formula:

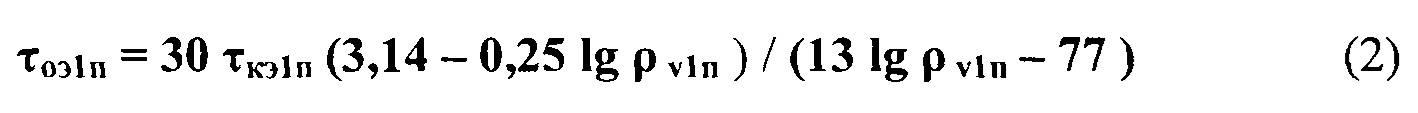

В блоке «8» рассчитывают и устанавливают для первого поля период регенерации осадительных электродов электрофильтра с учетом УЭС пыли по следующей формуле:In block "8" calculate and set for the first field the regeneration period of the precipitation electrodes of the electrostatic precipitator taking into account the dust resistivity according to the following formula:
Обозначения в формулах (1) и (2) следующие:The designations in formulas (1) and (2) are as follows:
τкэ1п - измеренный период времени между моментом окончанием регенерации коронирующих электродов и моментом уменьшения тока короны или повышения напряжения на коронирующих электродах первого поля;τ ke1p - the measured period of time between the moment the regeneration of the corona electrodes ends and the moment the corona current decreases or the voltage across the corona electrodes of the first field increases;
ρv1п - УЭС пыли на первом поле;ρ v1п - resistivity of dust in the first field;
k - коэффициент, зависящий от типа электрофильтра;k is a coefficient depending on the type of electrostatic precipitator;
Q - расход газа на первом поле;Q is the gas flow in the first field;
η1п - степень очистки газа первым полем электрофильтра;η 1p - the degree of gas purification by the first field of the electrostatic precipitator;
τкэ1п - интервал регенерации коронирующих электродов первого поля;τ ke1p is the regeneration interval of the corona electrodes of the first field;
τоэ1п - интервал регенерации осадительных электродов первого поля;τ oe1p is the regeneration interval of the precipitation electrodes of the first field;
Lк1п - длина коронирующих электродов первого поля.L k1n - the length of the corona electrodes of the first field.
Из блока «8» подается управляющий сигнал на механизм «3» регенерации осадительного электрода электрофильтра.From block "8" a control signal is supplied to the mechanism "3" of regeneration of the precipitating electrode of the electrostatic precipitator.
Далее аналогичным образом рассчитывают и устанавливают программой необходимые параметры для второго поля и последующих полей электрофильтра.Then, in the same way, the necessary parameters for the second field and subsequent fields of the electrostatic precipitator are calculated and set by the program.
Измерения периодов регенерации коронирующих электродов полей ЭФ (τкэ1п, τкэ2п, τкэ3п и т.д) производят периодически в зависимости от режима работы технологической The periods of regeneration of the corona electrodes of the EF fields (τ ke1p , τ ke2p , τ ke3p , etc.) are measured periodically depending on the operating mode of the process
установки. Они задаются вручную программе и могут составлять, например, на электрофильтрах ТЭС период 1…2 часа, на электрофильтрах с часто изменяющимся режимом работы - 5…10 минут.installation. They are set manually by the program and can be, for example, on the TPP electrostatic precipitators a period of 1 ... 2 hours, on electrostatic precipitators with a frequently changing operating mode - 5 ... 10 minutes.
Кроме этого, в частных случаях реализации данного изобретения, полученные данные по величине удельного электрического сопротивления пыли полей электрофильтра используют для настройки режима работы блоков питания полей электрофильтра высоким напряжением.In addition, in special cases of the implementation of this invention, the obtained data on the value of the electrical resistivity of the dust of the fields of the electrostatic precipitator is used to adjust the operating mode of the power supply units of the electrostatic precipitator fields with a high voltage.
Также на основании полученных данных можно рассчитать коэффициент Кинтер - соотношения интервалов регенерации коронирующих или осадительных электродов конкретного электрофильтра. Так как они равны между собой, то по соотношению этих интервалов можно получать информацию о величине степени очистки газа в каждом поле электрофильтра.Also, based on the data obtained, it is possible to calculate the coefficient K inter - the ratio of the intervals of regeneration of the corona or precipitation electrodes of a particular electrostatic precipitator. Since they are equal to each other, by the ratio of these intervals it is possible to obtain information about the degree of gas purification in each field of the electrostatic precipitator.
Преимущества предлагаемого изобретения заключаются в достижение непрерывного автоматического отслеживании и изменении режимов регенерации и коронирующих, и совместно, осадительных электродов. Это позволяет обеспечивать работу ЭФ по очистке газа с повышенной эффективностью.The advantages of the invention lie in the achievement of continuous automatic tracking and changing of the regeneration regimes and of the corona and, together, precipitation electrodes. This allows you to ensure the work of EF gas purification with increased efficiency.
Указанные признаки являются существенными и взаимосвязаны между собой с образованием устойчивой совокупности существенных признаков, достаточной для получения требуемого технического результата.These features are significant and interconnected with the formation of a stable set of essential features sufficient to obtain the desired technical result.
Указанный технический результат достигается тем, что предлагается автоматическая система управления режимами регенерации электрофильтра, объединенная с АСУ ТП электрофильтра.The specified technical result is achieved by the fact that an automatic control system for regeneration modes of the electrostatic precipitator is proposed, combined with the automatic process control system of the electrostatic precipitator.
Настоящее изобретение промышленно применимо, так как для его реализации не требуются специальные оснастки, датчики и новые The present invention is industrially applicable, since its implementation does not require special accessories, sensors and new
