Abstract
1. Стул-стремянка, содержащая подвижную и неподвижную части, включающие панели, ножки, спинку, нижние, средние и верхние царги, боковины, шарниры, ступеньки, отличающийся тем, что верхняя ступенька подвижной части установлена таким образом, что ее геометрический центр по вертикали совпадает с геометрическим центром площади опоры ножек.2. Стул-стремянка по п.1, отличающийся тем, что соприкасающиеся между собой поверхности подвижной и неподвижной частей снабжены демпферами.1. A step-ladder containing movable and fixed parts, including panels, legs, back, lower, middle and upper drawers, sidewalls, hinges, steps, characterized in that the upper step of the movable part is installed so that its vertical geometric center coincides with the geometric center of the foot support area. 2. The stepladder according to claim 1, characterized in that the surfaces of the moving and stationary parts in contact with each other are provided with dampers.
Description
Полезная модель относится к мебели, а именно к стульям, трансформируемым в стремянки.The utility model relates to furniture, namely to chairs that are transformed into stepladders.
Известен стул-стремянка по патенту на полезную модель RU 35505. Стул включает сидение, выполненное из двух частей, соединенных шарниром, позволяющим изменять взаимное положение частей сидения друг относительно друга. Недостаток данной конструкции заключается в его неустойчивости, т.к при трансформации стула в стремянку, верхняя ступенька стремянки оказывается сильно смещенной от геометрического центра площади основания к краю, что может привести к опрокидыванию изделия.Known step-chair according to the patent for utility model RU 35505. The chair includes a seat made of two parts connected by a hinge, allowing you to change the relative position of the parts of the seat relative to each other. The disadvantage of this design is its instability, because when the chair is transformed into a stepladder, the upper step of the stepladder is strongly shifted from the geometric center of the base area to the edge, which can lead to the product toppling over.
Известен также стул-стремянка (изделие), который по своим конструктивным признакам наиболее близок к предлагаемой полезной модели, и который можно выбрать в качестве прототипа (http://www.mebelcross.ru/product_info.php?products_id=5701). Изделие трансформируется из положения «стул» в положение «стремянка». Стул содержит сидение с ножками и спинкой, элементы которой скреплены между собой царгами. Сидение включает неподвижную и подвижную части, соединенные между собой шарниром, что дает возможность вращать подвижную часть относительно неподвижной части, и трансформировать стул в стремянку. Обе части снабжены ступеньками.A stepladder chair (product) is also known, which by its design features is closest to the proposed utility model, and which can be chosen as a prototype (http://www.mebelcross.ru/product_info.php?products_id=5701). The product is transformed from the “chair” position to the “stepladder” position. The chair contains a seat with legs and a back, the elements of which are fastened together by the drawers. The seat includes fixed and movable parts interconnected by a hinge, which makes it possible to rotate the movable part relative to the stationary part, and transform the chair into a stepladder. Both parts are equipped with steps.
Недостаток приведенной конструкции заключается в неустойчивости. Это объясняется тем, что геометрический центр верхней ступени смещен к спинке стула, и по вертикали далеко отстоит от геометрического центра площади опоры ножек стула. Чем выше расположена верхняя ступенька от уровня пола и чем больше смещение - тем неустойчивее стул. То есть, не исключена возможность опрокидывания изделия. При трансформации стула в стремянку и обратно, соприкасающиеся деревянные поверхности производят стук, что неприятно воздействует на слух.The disadvantage of this design is instability. This is due to the fact that the geometric center of the upper stage is shifted to the back of the chair, and is vertically far from the geometric center of the area of the support of the legs of the chair. The higher the upper step is located from the floor level and the greater the offset - the more unstable the chair. That is, the possibility of overturning the product is not ruled out. When the chair is transformed into a stepladder and vice versa, the touching wooden surfaces produce a knock, which unpleasantly affects the hearing.
Техническая задача, на которую направлена полезная модель, заключается в повышении потребительских свойств изделия: в повышении устойчивости и уменьшении стука соприкасающихся поверхностей.The technical problem, which the utility model is aimed at, is to increase the consumer properties of the product: to increase stability and reduce the knock of contacting surfaces.
Техническое решение достигнуто путем размещения верхней ступеньки таким образом, чтобы ее геометрический центр по вертикали совпадал с геометрическим центром площади опоры ножек стула. Для уменьшения шума при трансформации изделия, соприкасающиеся между собой поверхности подвижного и неподвижного частей снабжены силиконовыми демпферами.The technical solution was achieved by placing the upper step so that its vertical geometric center coincided with the geometric center of the area of the support of the legs of the chair. To reduce noise during product transformation, the surfaces of the moving and stationary parts in contact with each other are equipped with silicone dampers.

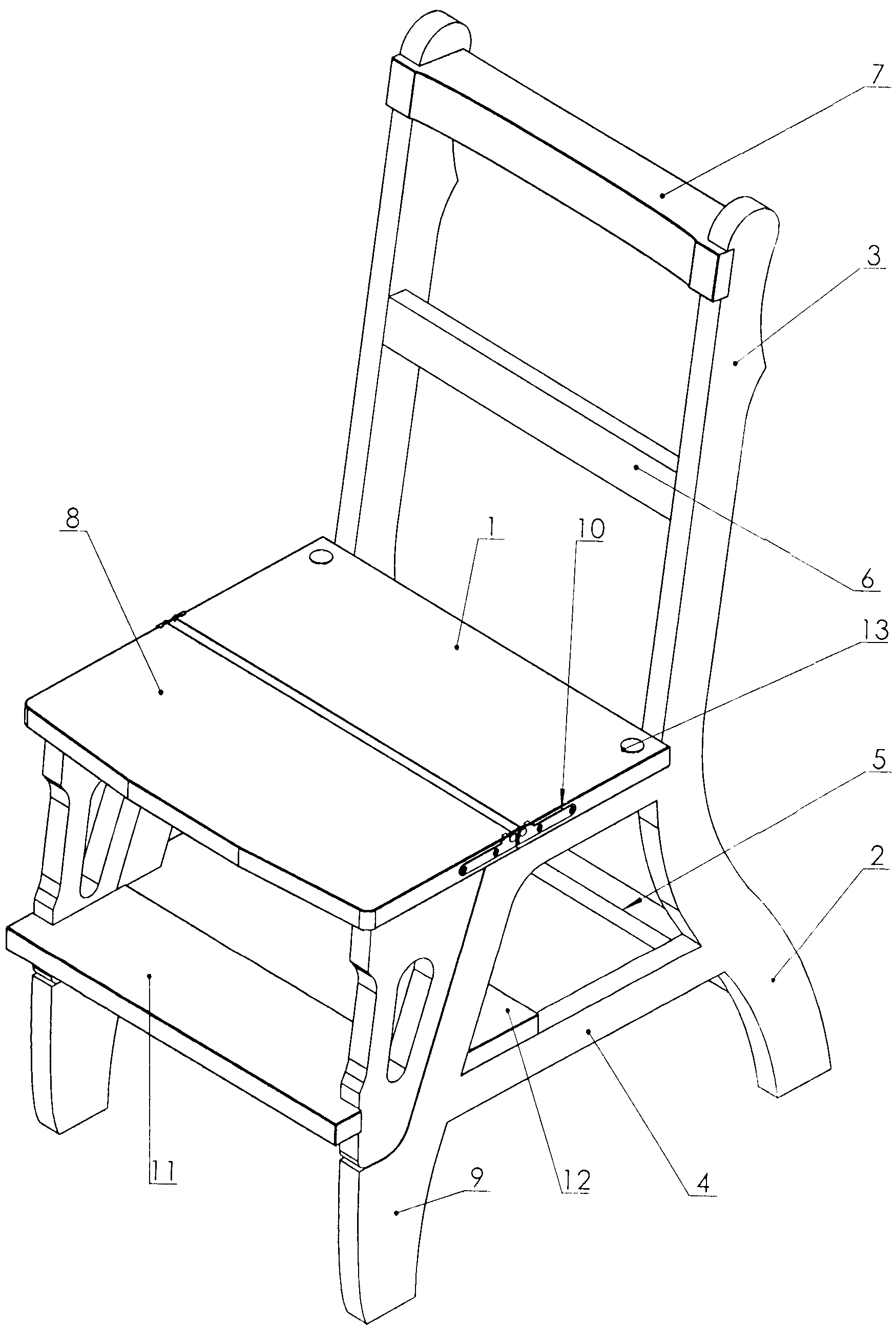

На фигуре 1 и 2 приведены чертежи изделия в положении «стул» и «стремянка».The figures 1 and 2 show the drawings of the product in the “chair” and “stepladder” positions.
Стул стремянка содержит неподвижную и подвижную части. Неподвижная часть включает панель сидения 1 с ножками 2, спинку 3, нижние царги 4 и 5, среднюю царгу 6 и верхнюю царгу 7. Подвижная часть включает панель 8, являющуюся в положении «стул» продолжением панели 1 и закрепленную на боковинах 9. Подвижная и неподвижная части снабжены шарнирами 10. В качестве шарнира может быть применена ломберная петля. Подвижная часть снабжена ступенькой 11, являющейся в положении «стремянка» верхней ступенькой, а неподвижная часть снабжена нижней ступенькой 12, опирающейся на царги 4. Соприкасающиеся между собой поверхности подвижной и неподвижной части снабжены демпферами 13 и 14.The stepladder chair contains fixed and movable parts. The fixed part includes the
Изделие трансформируется следующим образом:The product is transformed as follows:
Для трансформации изделия из положения «стул» в положение «стремянка» необходимо подвижную часть провернуть вокруг шарнира 10 до тех пор, пока поверхность панели 8 не ляжет на поверхность панели 1. При этом демпферы 13 и 14 смягчают возникающий стук. Для обратной трансформации производят противоположное действие.To transform the product from the "chair" to the "step" position, it is necessary to turn the movable part around the
