본 발명은 강성 향상을 위한 체결부재가 결합하는 철근콘크리트 강합형 파형강판 보강 구조물에 관한 것으로, 더욱 상세하게는 파형강판의 산부와 골부를 갖는 벤딩된 단위 파형강판이 길이 방향으로 따라 연속적으로 결합되어 아치형태를 갖는 파형강판 아치섹션이 구비되는 과정에서 단위 파형강판을 겹치게 결합하는 부분에서 체결부재가 외측면을 따라 절곡되어 볼팅 작업이 이루어지는 부분의 강성을 향상시키도록 하고, 길이방향으로 설치되어진 베이스아치 구조물의 상부에 철근콘크리트 보강구조를 추가하여 하중이 고르게 분포되며 정항력을 높여 파손이나 변형을 방지하도록 하는 강성 향상을 위한 체결부재가 결합하는 철근콘크리트 강합형 파형강판 구조물에 관한 것이다.BACKGROUND OF THE INVENTION Field of the Invention [0001] The present invention relates to a steel reinforced concrete structure reinforced concrete reinforced structure to which a fastening member for improving rigidity is coupled, and more particularly to a reinforced concrete reinforced steel reinforced structure having a raised portion and a valley portion, In the process of providing the corrugated steel plate arch section having an arch shape, the engaging member is bent along the outer surface at the portion where the unit corrugated steel plates are overlapped to each other to improve the rigidity of the portion where the bolting operation is performed, Reinforced concrete structure reinforced structure is added to the upper part of the arch structure to uniformly distribute the load and to improve the rigidity to prevent breakage or deformation.
일반적으로 파형강판 구조물은 구조자체가 연성구조물로써 부등침하 등에 유연하게 대응이 가능하여 콘크리트 구조물의 단점을 보완하는 호환성이 있으므로 도로나 철도를 횡단하는 지하통로, 용수 또는 배수용 암거에 사용되고 있으며, 최근에는 소하천을 횡단하는 교량이나 골재 사이로, 수조 및 건축용 건자재 등으로 널리 이용되고 있다.Generally, the corrugated steel plate structure is a flexible structure, which is flexible and can be flexibly applied to unequal subsidence, so it is used for underground passages, water or ship culverts across roads and railways, Are widely used as bridges and aggregates across small streams, as water tanks, and as building materials for construction.
파형강관 구조물은 파형강관을 조립하여 완성하는 구조물이므로 각각의 파형강판의 조합에 따 그 구조물의 크기 및 형상을 다양하게 사용할 수 있다.The corrugated steel pipe structure is a structure that is completed by assembling corrugated steel pipes. Therefore, the size and shape of the corrugated steel pipe can be variously used depending on the combination of corrugated steel sheets.
가장 기본적인 단면인 원형 단면에서부터 통수 능력을 향상시킨 pipe-arch형, 그 외에도 타원형, Underpass형, Arch형, High-Profile Arch형, Low-Profile Arch형, Pear Arch형, Box-Culvert형 등 용도 및 현장 상황에 맞게 다양한 단면의 모양을 사용할 수 있다.It is used for pipe-arch type, which has the most basic cross-section, and pipe-arch type, which has improved water-permeability. Other uses include elliptical type, underpass type, arch type, high profile arch type, low profile arch type, Pear Arch type and box- Various cross-sectional shapes can be used to suit the situation in the field.
또한, 보강재를 이용한 Multi-Span형식의 단면으로 보다 큰 구조물에도 파형강판의 적용이 가능하다.In addition, it is possible to apply corrugated steel sheet to a larger structure by multi-span type cross section using reinforcement.
이러한 파형강판 구조물은 파형강판에 볼드 등의 체결구를 삽입할 수 있도록 체결구멍이 형성되고, 복수의 산과 골이 반복되게 형성되어 파형을 이루고 있고, 파형강판의 일측 산에는 파형강판의 가장자리로부터 일정거리 이격된 위치에 체결공이 형성되어 있고, 골에는 산에서 형성된 체결공보다 덜 이격된 위치에 체결구멍이 형성되어 있다.In such a corrugated steel plate structure, a fastening hole is formed in the corrugated steel plate so as to insert a fastening hole such as a bold, and a plurality of mountains and valleys are repeatedly formed to form a corrugation. At one side of the corrugated steel plate, The fastening hole is formed at a position spaced apart from the fastening hole, and the fastening hole is formed at a position which is less distant from the fastening hole formed in the mountain.
파형강판의 타측은 인접한 파형강판과의 체결을 위하여 인접한 파형강판의 일측 체결공 위치에 맞추어 골 부분에서는 파형강판의 가장자리로부터 일정거리 이격된 위치에 체결공이 형성되어 있고, 산 부분에서는 골 부분에서 형성된 체결공보다 덜 이격된 위치에 체결공이 형성되어 있다.The other side of the corrugated steel sheet is formed with a fastening hole at a position spaced from the edge of the corrugated steel sheet by a predetermined distance at the corrugated portion in accordance with the position of the fastening hole on one side of the adjacent corrugated steel sheet for fastening with the corrugated steel sheet adjacent thereto, And a fastening hole is formed at a position that is less apart from the fastening hole.
파형강판 구조물은 각 파형강판을 인접하는 파형강판의 아래쪽으로 겹쳐 볼팅으로 결합되게 연속 배치하여 구비되어지는데, 이러한 중첩식 구조물은 파형강판의 휨 저항성능이 우수하다는 장점으로 활용범위가 확대되고 있다.The corrugated steel sheet structure is provided by continuously stacking the corrugated steel sheets below the adjacent corrugated steel sheets by bolting. Such a superposed structure has an advantage in that the corrugated steel sheet has excellent bending resistance.
그러나 파형강판 구조물은 파형강판이 순차적으로 인접한 파형강판의 하부로 겹쳐 볼팅으로 결합되는 과정에서 접촉면적이 작으며 1열 또는 2열의 볼팅으로 결합됨에 따라 겹쳐지는 면적과 볼팅으로 결합되는 면적이 충분히 확도되지 못하는 문제점이 있었다.However, the corrugated steel plate structure has a small contact area in the course of joining the corrugated steel plates to the lower portion of the adjacent corrugated steel sheets in the process of joining by the bolting, and the area overlapping with the bolting is sufficiently There is a problem that it can not be done.
또한, 볼팅 작업에 어려움이 있었고, 충분한 강성이 유지되지 못하는 문제점이 있었다.In addition, there is a problem that the bolting operation is difficult and the sufficient rigidity can not be maintained.
그리고 이로 이내 안전성이 충분하게 확보되지 못하는 또 다른 문제점이 있었다.And there was another problem that the safety was not sufficiently secured within this.
한편, 파형강판 구조물은 크기가 작을 경우, 벤딩된 하나의 강판이 이용되어지고, 크기가 클 경우, 벤딩 공정에서 벤딩율을 크게하여 제조된 것을 겹쳐 볼팅 조립공정으로 설치되어지게 된다.On the other hand, when the corrugated steel plate structure is small, a single bent steel plate is used. If the corrugated steel plate structure is large, the bending rate of the corrugated steel plate structure is increased.
파형강판을 이용한 구조물의 시공은 기초지반에 시공된 채널에 볼팅으로 파형강판의 하부가 직각 되도록 설치된 후 설치된 파형강판의 가장자리에 다른 파형강판의 가장자리가 서로 겹쳐지게 맞대어진 상태에서 볼팅작업을 반복하여 파형강판으로 이루어진 구조물을 얻을수 있게 된다.The construction of the structure using the corrugated steel plate is performed by installing the corrugated steel plate so that the lower portion of the corrugated steel plate is perpendicular to the channel installed in the foundation ground, then repeating the bolting operation while the corrugated steel plates are overlapped with each other A structure made of a corrugated steel sheet can be obtained.
이러한 파형강판 구조물은 얇은 파형강판에 주름이 연속되어지는 형태를 갖도록 형성되어 있음으로써, 경간의 길이가 짧은 곳에는 사용하기 충분하나 경간의 길이가 긴 경우, 종단면적이 작아 압축력에 대한 저항력이 줄어들어 부분적인 변형이 발생되는 원인이 있었다.Such a corrugated steel plate structure is formed to have a shape in which wrinkles are continuously formed on a thin corrugated steel sheet. Therefore, when the length of the span is long, There was a cause of partial deformation.
이러한 원인을 해소하기 위한 방안으로 발명특허 제0698028호(2007. 3. 15. 등록)의 파형강판 구조물의 보강방법 및 보강구조가 제안되었고, 제안된 보강구조는 파형강판의 앵커볼트 삽입홈에 앵커볼트가 결합되어지고, 앵커볼트가 철근과 와이어로 결속되어진 상태에서 파형강판의 둘레를 따라 콘크리트가 경화되어지는 라이어에 의하여 보강되어 지도록 하였으나, 천공된 앵커볼트에 의한 단면이 감소됨에 따라 국부적인 하중이 작용하게 될 경우, 변형이 발생되는 문제점이 있었다.In order to solve this problem, a reinforcing method and a reinforcing structure of a corrugated steel plate structure of the invention Patent No. 0698028 (registered on Mar. 15, 2007) have been proposed. The proposed reinforcing structure is anchored to the anchor bolt insertion groove of the corrugated steel sheet The anchor bolts are coupled with the reinforcing bars and the reinforcing members are reinforced by the reinforcing lieers along the peripheries of the corrugated steel plates. However, as the cross-section of the perforated anchor bolts is reduced, local loads There is a problem that deformation occurs.
이러한 문제점을 해소하기 위해 발명특허 제1189620호(2012. 10. 04. 등록)는 철근콘크리트 강합성 파형강판 구조물에 관한 것으로서 파형강판으로 이루어진 베이스아치구조물의 상부에 철근콘크리트 보강구조가 구비되어지는 철근콘크리트 강합성 파형강판 구조물에 있어서, 상기 강합성 파형강판 구조물은 상기 파형강판에 형성된 두 개의 골부에 앵커지지편이 각각 일정 간격으로 결합되어지고, 상기 앵커지지편은 펀칭홀이 형성된 수평부재의 양측 단부가 외측 상부로 절곡되어지게 경사부재가 형성되어 상기 경사부재의 외측면이 상기 골부의 양측면에 각각 맞대어져 용접되어지되, 상기 수평부재의 펀칭홀에 스페이서앵커의 하부에 형성된 나사부가 관통되게 끼워져 트윈너트로 결합되어지고, 상기 스페이서앵커의 상부에 수평연결부가 내측으로 절곡되어 서로 마주보게 형성되어지며, 상기 스페이서앵커의 수평연결부 하측으로 배력근이 일정간격으로 결합되어지고, 상기 수평연결부의 하부와 배력근의 상부 사이에 상부주철근이 결합되어지며, 상기 배력근과 상부주철근이 결합된 스페이서앵커에 찬넬지지부의 찬넬수평부 및 찬넬수직부가 맞대어져 결합되어지고, 상기 앵커지지편이 각각 용접되어진 파형강판의 골부 양측단부 산부에 거푸집널이 결합되어지며, 상기 파형강판과 거푸집널에 의하여 형성된 공간부에 콘크리트가 타설되어 경화되어짐을 특징으로 한다.In order to solve this problem, the invention patent No. 1189620 (registered on October 10, 2012) relates to a steel reinforced concrete reinforced concrete steel reinforced concrete structure having reinforced concrete reinforced structure on the upper part of a base arch structure made of corrugated steel The steel composite structure of the composite steel of the present invention is characterized in that the anchor support pieces are respectively coupled to two valley portions formed on the corrugated steel plate at regular intervals, And an outer surface of the tapered member is welded to both side surfaces of the trough portion. The threaded portion formed at the lower portion of the spacer anchor is inserted into the punching hole of the horizontal member so as to penetrate the twin And a horizontal connection portion is formed at an upper portion of the spacer anchor, And an upper cast iron core is coupled between a lower portion of the horizontal connection portion and an upper portion of an expansion core, and the upper and lower reinforcement rods are coupled to each other. And a plate vertical portion and a channel vertical portion of the channel support portion are coupled to the spacer anchor to which the upper cast iron rope is coupled and the form plate is coupled to both ends of the corrugated end portion of the corrugated steel plate to which the anchor support members are respectively welded, And the concrete is placed in the space formed by the form plate to be hardened.
그러나, 상측에는 스페이서앵컬를 연결하고, 하측에는 배력근을 설치한 후 그 사이에 철근이 골부를 따라서 형성되어 짐으로써, 콘크리트 내부에서 강성을 향상시키는 것에 한계성이 있어서 다양하게 적용할 수 없는 결점이 있었다.However, since the reinforcement is formed along the valley between the spacer angles on the upper side and the exhaust reinforcement rods on the lower side, there is a limit to improve the rigidity in the concrete, so that various drawbacks there was.
따라서 이러한 종래의 결점을 해소하기 위하여 안출된 것으로 본 발명의 해결과제는, 파형강판을 결합할 때 겹치는 부분에 연속 4홀을 형성하여 4개의 볼트와 4개의 너트로 결합함으로써 체결부분에서 강성을 더욱 향상시키도록 하는 것을 목적으로 한다.Accordingly, it is an object of the present invention to overcome the drawbacks of the prior art, and it is an object of the present invention to provide a method of manufacturing a corrugated steel sheet by forming four continuous holes in an overlapping portion, And the like.
본 발명의 다른 해결과제는, 파형강판의 골부에 설치되는 스페이서 앵커의 상측에서 철근의 가로 방향에 상부 수평철근과 하부 보강철근을 분리하여 결합함으로써 파형강판 구조물의 내면의 변형을 방지하고 수명을 연장하는 것을 목적으로 한다.Another object of the present invention is to prevent the deformation of the inner surface of the corrugated steel plate structure and to prolong the life of the corrugated steel plate structure by separating and joining the upper horizontal reinforcing bar and the lower reinforcing steel bar in the lateral direction of the reinforcing bars from above the spacer anchor provided on the valley of the corrugated steel plate .
본 발명은 폭 방향을 따라 복수의 골부와 산부가 형성되고 길이 방향을 따라 일정한 곡률로 벤딩되어 표면에 아연 도금된 파형강판의 폭 방향으로 산부에 펀칭홀이 형성되며 펀칭홀이 형성된 가장자리가 서로 겹쳐지게 맞대어져 파형강판의 하부에서 상부를 향하여 볼트의 숫나사가 관통되어 너트로 결합하고 상기 볼트로 거푸집널에 형성된 플랜지가 체결되는 베이스아치 구조물과, 상기 베이스아치 구조물의 상부에서 배력근과 상부철근이 파형강판의 상부와 거푸집널 사이로 제공되는 공간부의 가운데 위치되는 중앙철근의 양쪽에 배치되도록 함과 동시에 콘크리트가 경화되어진 상태에서 파형광관의 표면에 긴밀하게 밀착되도록 골부의 양쪽 앵커 지지편에 결합되는 스페이서 앵커의 상측에 상부 주철근과 배력근을 보호하는 거푸집널의 내부 공간부에 콘크리트가 타설되어 파형강관 구조물의 단면적을 넓혀 충분한 하중이 지지되는 철근콘크리트 보강구조가 구비되며, 상기 골부와 산부에는 길이 방향에서 일정한 간격으로 인접한 부분에서 지그재그 형태가 되도록 연속 4홀을 형성한 후 상기 파형강판을 결합하여 연속 4홀의 하측에서 4개의 볼트가 관통하여 상부로 노출된 상태에서 4개의 너트가 나사결합되는 콘크리트 강합형 파형강판 보강구조물에 있어서,
상기 상부 주철근의 하측에 위치하는 배력근의 중앙에 중앙철근이 위치하고, 상기 배력근의 양쪽 단부에 상부 부철근이 배근된 후,
상기 상부 부철근의 좌측과 중앙철근 및 상부 부철근의 우측과 중앙철근을 상부 부철근과 중앙철근의 상측에서 2개의 상부 수평철근이 ""형과 같이 양쪽 선단에 절곡한 상부 절곡부로 감싸 결속되도록 하는 것을 포함하고,
상기 상부 부철근의 좌측과 중앙철근 및 상부 부철근의 우측과 중앙철근을 상부 부철근과 중앙철근의 상측에서 2개의 하부 보강철근 양쪽에 형성한 하부 내측 절곡부와 하부 외측 절곡부로 결속되도록 하되;
상기 보강철근은 ""형과 같이 양쪽 선단에서 절곡한 하부 내측 절곡부와 하부 외측 절곡부의 안쪽에서 서로 다른 경사각을 갖도록 외측에서 내측을 향하여 하측 방향으로 절곡되는 경사각이 크게 형성된 후 하측의 보강 절곡부에서 중앙을 향하여 외측에 비해 더 작은 경사각을 갖도록 형성되어 좌측에 있는 상부 부철근과 중앙 철근의 상측에서 감싸도록 결합한 후 우측에 있는 상부 부철근과 중앙철근의 상측에서 배근한 다음에 철선으로 고정되는 것을 특징으로 하는 것이다.
The present invention is characterized in that a plurality of valleys and crests are formed along the width direction and are bent at a constant curvature along the longitudinal direction to form punched holes in the crests in the width direction of the galvanized corrugated steel sheet and the edges formed with the punched holes overlap each other A base arch structure in which a male screw of a bolt penetrates through a corrugated steel plate from the bottom to the top of the corrugated steel plate and is engaged with a nut and a flange formed on the form plate is fastened by the bolt; A spacer disposed on both sides of a central reinforcing bar located at the center of a space portion provided between an upper portion of the corrugated steel plate and the formwork and a spacer fitted to both the anchor supports of the valley portion so as to closely contact the surface of the corrugated tube, Inside the upper part of the anchor is an inner ball of the formwork that protects the upper and lower axes. A reinforced concrete reinforcing structure in which concrete is placed in the shaft portion and a cross sectional area of the corrugated steel pipe structure is enlarged so that a sufficient load is supported and a continuous four holes are formed in the valley portion and the crest portion so as to form a zig- And four nuts are screwed in a state that four bolts penetrate through the lower four sides of the continuous four holes and are exposed to the upper side by engaging the corrugated steel plates,
A central reinforcing bar is positioned at the center of the reinforcing rods located below the upper reinforcing rods, an upper reinforcing bar is laid on both ends of the reinforcing rods,
The left and central reinforcing bars of the upper reinforcing bars and the right and central reinforcing bars of the upper reinforcing bars are formed such that two upper horizontal reinforcing bars are " Quot; shape, such that the upper bending portion is folded at both ends thereof,
The left and central reinforcing bars of the upper reinforcing bars and the right and central reinforcing bars of the upper reinforcing bars are bound to the lower inner reinforcing bars and the lower outside reinforcing bars formed on both the upper reinforcing bar and the upper reinforcing bars at both sides thereof,
The reinforcing bars are " Shaped inner bending portion bent at both ends and inner side of the lower outer bending portion so as to have an inclination angle that is bent from the outer side toward the inner side in the downward direction, The upper reinforcing bar and the middle reinforcing bar are coupled to each other so as to be wrapped around the upper reinforcing bar and the upper reinforcing bar on the left side, .
삭제delete
삭제delete
삭제delete
삭제delete
본 발명은 파형강판을 결합할 때 겹치는 부분에 연속 4홀을 형성하여 4개의 볼트와 4개의 너트로 결합함으로써 강성을 더욱 향상시켜 안정된 파형강판 구조물을 제공하는 효과가 있는 것이다.The present invention has the effect of providing a stable corrugated steel plate structure by further improving the rigidity by forming four consecutive holes in the overlapping portion when joining the corrugated steel plates and combining them with four bolts and four nuts.
본 발명은 파형강판의 골부에 설치되는 스페이서 앵커의 상측에서 철근의 가로 방향에 상부 수평철근과 하부 보강철근을 분리하여 결합함으로써 파형강판 구조물의 내면의 변형을 방지하고 수명을 연장하며 구조물의 수명을 연장시키는 효과를 제공하는 것이다.In the present invention, the upper horizontal reinforcing bar and the lower reinforcing steel are separated from each other in the transverse direction of the reinforcing bars at the upper side of the spacer anchor provided at the valley of the corrugated steel plate, thereby preventing the deformation of the inner surface of the corrugated steel plate structure, extending its service life, To provide an effect of extending.
본 발명은 파형강판 구조물의 강한 결합력과 종단면적을 더욱 늘여 압축력에 대한 저항력을 향상시켜 변형을 방지하며, 안정된 파형강판 구조물이 제공되는 효과가 있는 것이다.The present invention has the effect of providing a corrugated steel plate structure with improved strength and cross-sectional area of a corrugated steel plate structure to prevent deformation by increasing resistance to compressive force and providing a stable corrugated steel plate structure.
도 1 은 본 발명의 파형강판의 앵커 지지편에 스페이서 앵커를 결합한 후 상부 주 철근을 연결한 상태의 단면도
도 2 는 본 발명의 상부 주 철근에 배력근을 연결한 상태의 단면도
도 3 은 본 발명의 배력근 양쪽에 상부 부 철근과 중앙철근을 연결한 상태의 단면도
도 4 는 본 발명의 부 철근과 중앙철근을 하부 보강철근으로 체결한 상태의 단면도
도 5 는 본 발명의 부 철근과 중앙철근을 상부 수평철근으로 체결한 상태의 단면도
도 6 은 본 발명의 공간에 거푸짐널을 설치한 상태의 단면도

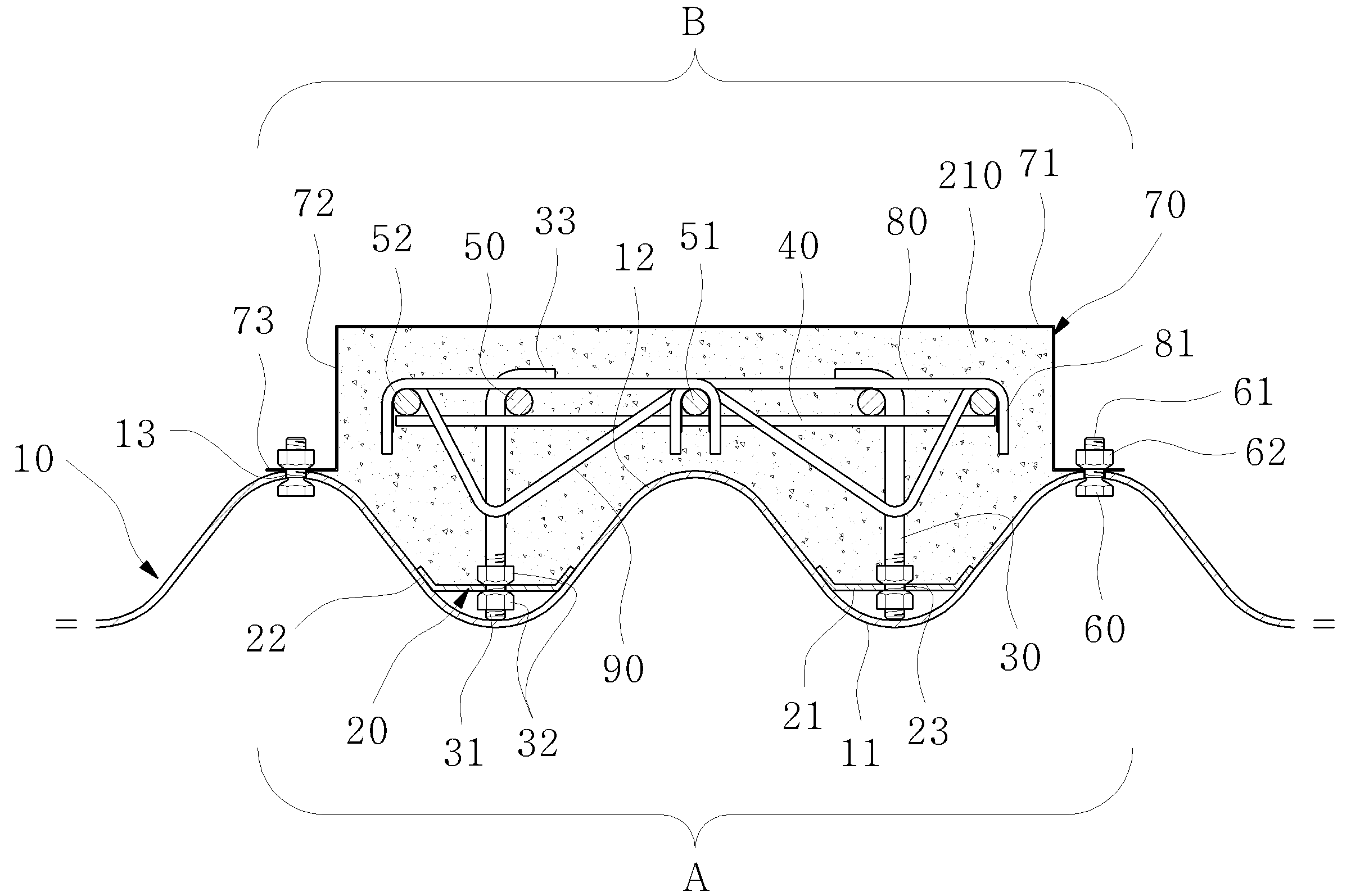

도 7 은 본 발명의 거푸집널 공간에 시멘트를 충진시킨 상태의 단면도
도 8 은 본 발명의 주요 부분에 대한 내부를 보인 사시도
도 9 는 본 발명의 설치상태를 나타낸 아치형 파형강판 구조물의 정면도
도 10 은 본 발명의 파형강판에 연속 4홀을 형성한 분리 상태의 사시도
도 11 은 본 발명의 파형강판에 연속 4홀을 형성하여 결합한 상태의 단면도
도 12 는 본 발명의 파형강판에 연속 4홀을 지그재그 형태로 성형한 상태의 평면도
도 13 은 본 발명의 파형강판을 겹치게 하여 4개의 볼트를 결합한 상태의 단면도1 is a cross-sectional view of a corrugated steel plate according to the present invention in which a spacer anchor is joined to an anchor support piece,
Fig. 2 is a cross-sectional view of an upper main reinforcing bar of the present invention,
Fig. 3 is a cross-sectional view of a state in which an upper reinforcing bar and a central reinforcing bar are connected to both sides of the reinforcing bar of the present invention
Fig. 4 is a cross-sectional view of a state in which the sub-reinforcing bars and the central reinforcing bars of the present invention are fastened with a lower reinforcing steel
5 is a cross-sectional view of the present invention in which the sub-reinforcing bars and the central reinforcing bars are fastened with the upper horizontal reinforcing bars
FIG. 6 is a cross-sectional view of a state in which a bump board is installed in a space of the present invention
FIG. 7 is a cross-sectional view of a state where the formwork space of the present invention is filled with cement
Figure 8 is a perspective view of the interior of a major portion of the present invention.
9 is a front view of an arch-shaped corrugated steel plate structure showing the installed state of the present invention
10 is a perspective view of a corrugated steel sheet according to the present invention in which four continuous holes are formed,
11 is a sectional view of a corrugated steel sheet according to the present invention,
12 is a plan view of a corrugated steel sheet according to the present invention in a state where four consecutive holes are formed in a zigzag shape
13 is a cross-sectional view of a state in which the corrugated steel sheet of the present invention is superposed and four bolts are joined together
이하에서 본 발명의 바람직한 실시예를 첨부시킨 도면에 따라 보다 상세하게 설명하기로 한다.DETAILED DESCRIPTION OF THE PREFERRED EMBODIMENTS Hereinafter, preferred embodiments of the present invention will be described in detail with reference to the accompanying drawings.
본 발명에 따른 강성 향상을 위한 체결부재가 결합하는 철근콘크리트 강합형 파형강판 보강 구조물은 도 1 내지 도 9에 도시된 바와 같이, 파형강관(10)으로 이루어진 베이스아치 구조물(A)의 상부에 철근콘크리트 보강구조(B)가 구비된다.As shown in FIGS. 1 to 9, the reinforced concrete reinforced corrugated steel plate reinforcing structure to which the fastening members for improving the rigidity according to the present invention are combined includes a reinforcing member A concrete reinforcing structure B is provided.
상기 베이스아이 구조물(A)은 골부(11)와 산부(12)가 반복되게 형성된 파형강관(10)이 폭 방향과 길이 방향으로 반복되게 결합된다.In the base eye structure A, a
상기 각각의 파형강관(10) 폭 방향 산부(12)에는 적어도 한 칸의 산부(12)를 건너띠도록 펀칭홀(13)이 형성되어지고, 펀칭홀(13)은 파형강판(10)의 산부(12) 하부에서 상부를 향하여 볼트(60)의 숫나사(61)가 관통되어 너트(62)로 결합된다.A punching
상기 관통홀(13)은 거푸집널(70)을 설치하기 위한 위치와, 파형강판(10)이 겹치게 결합되어 서로 고정하는 곳에서 사용되는 것이다.The through holes 13 are used in a position where the
상기 너트(62)의 하부와 파형강판(10)의 가장자리에 형성된 산부(12) 사이에는 거푸집널(70)에 형성된 플랜지(73)가 체결된다.A
상기 베이스아치 구조물(A)을 구성하는 각각의 파형강판(10)은 표면에 아연도금 되어진 것을 사용하여 부식되는 것을 방지할 수 있도록 하는 것이 바람직하다.It is preferable that each of the
상기 철근콘크리트 보강구조(B)는 파형강판 구조물의 단면적을 넓혀 충분한 하중이 지지되는 기능을 갖는 것으로, 골부(11)의 양쪽에 앵커 지지편(20), 스페이서 앵커(30), 배력근(40), 상부 주철근(50), 중앙철근(51), 상부 부철근(52), 거푸집널(70) 및 공간부(200)에 타설되어 경화되는 콘크리트(210)로 구성된다.The reinforcing concrete reinforcing structure B has a function of supporting a sufficient load by expanding the cross sectional area of the corrugated steel plate structure. The reinforcing concrete reinforcing structure B has an
상기 앵커 지지편(20)은 후술하는 배력근(40)과 상부철근(50)이 파형강판(10)의 상부와 거푸집널(70) 사이로 제공되어지는 공간부(200)의 가운데 위치되는 중앙철근(51)의 양쪽에서 배치되도록 함과 동시에 콘크리트(210)가 경화되어진 상태에서 경화되어진 콘크리트(210)가 파형강판(10)의 표면에 긴밀되게 밀착될 수 있는 기능이 제공되어지게 된다.The
상기 파형강판(10)에 형성된 두 개의 골부(11)에 앵커 지지편(20)이 각각 일정 간격을 갖도록 맞대어져 용접으로 결합되어진다.The
이를 위해, 상기 앵커 지지편(20)은 평판형태를 갖는 강판이 절단되어 형성된 수평부재(21)의 가운데 관통홀(23)이 형성되어 상기 스페이서 앵커(30)의 하부에 형성된 나사부(31)가 관통되어 트윈너트(32)에 의하여 결합되어진다. The
이때, 상기 트윈너트(32)는 2개 너트로 이루어진 것으로 하나의 너트는 수평부재(21)의 상부에 위치되어지며, 나머지 너트는 수평부재(21)의 하부로 위치된다.At this time, the
상기 수평부재(21)의 양측 단부에는 경사부재(22)가 외측 상부로 절곡되게 일체로 형성되어 상기 파형강판(10)에 형성된 골부(11)의 양측면에 각각 밀착되게 맞대어져 용접으로 결합되어 진다.At both side ends of the
상기 스페이서 앵커(30)는 양쪽에서 서로 마주보도록 기역자로 절곡되어 있으며, 기역자로 절곡된 부분에 상부 주철근(50)이 위치하여 서로 결속되어 있고, 하단에 나사부(31)가 형성되진 기역자의 형태를 갖게 된다.The
상기 스페이서 앵커(30)의 상부에는 수평연결부(33)가 내측으로 절곡되어 서로 마주보게 형성되어지고, 상기 스페이서 앵커(30)의 수평연결부(33) 하측으로 배력근(40)이 일정간격에서 철선으로 결합되어지고, 상기 수평연결부(33)의 하부와 배력근(40)의 상부 사이에 상부 주철근(50)이 철선으로 결합된다.A horizontal connecting
본 발명에서는 상부 주철근(50)이 수평연결부(33)의 하부와 배력근(40)의 상부 사이에 철선으로 결합되어지도록 하였으나, 이러한 형태 이외에 도 3에 도시된 바와 같이, 상부 주철근(50)의 사이 중앙에 중앙철근(51)이 위치하고, 상기 배력근(40)의 양쪽 선단에 상부 부철근(52)을 더 배근되도록 할 수 있다.In the present invention, the upper
이러한 경우, 파형강판 구조물의 외측으로 복토 과정에서 발생되는 하중에 따른 응력의 변화로 인하여 취약해지는 철근콘크리트 보강구조(B)의 하부를 더 보강할 수 있게 된다.In this case, it is possible to further reinforce the lower portion of the reinforced concrete reinforcing structure (B), which is weakened due to a change in stress due to the load generated in the earthquake process outside the corrugated steel plate structure.
배력근(40)의 중앙에 배근된 중앙철근(51)과 양쪽에 배근된 상부 부철근(52)은 상측에서 2개의 상부 수평철근(80)을 이용하여 결합하고, 하측에서 2개의 하부 보강철근(90)을 이용하여 결합하는 것이다.The central reinforcing
상기 상부 수평철근(80)은 ""형과 같이 양쪽 선단에서 절곡한 상부 절곡부(81)가 형성되어 좌측에 있는 상부 부철근(52)과 중앙철근(51)의 상측에서 감싸도록 결합한 후 우측에 있는 상부 부철근(52)과 중앙철근(51)의 상측에서 배근한 다음에 철선으로 고정되는 것이다.The upper horizontal reinforcing
상기 보강철근(90)은 ""형과 같이 양쪽 선단에서 절곡한 하부 내측 절곡부(92)와 하부 외측 절곡부(93)의 안쪽에서 서로 다른 경사각을 갖도록 외측에서 내측을 향하여 하측 방향으로 절곡되는 경사각이 크게 형성된 후 하측의 보강 절곡부(91)에서 중앙을 향하여 외측에 비해 더 작은 경사각을 갖도록 형성되어 좌측에 있는 상부 부철근(52)과 중앙 철근(51)의 상측에서 감싸도록 결합한 후 우측에 있는 상부 부철근(52)과 중앙철근(51)의 상측에서 배근한 다음에 철선으로 고정되는 것이다.The reinforcing
상기 보강철근(90)은 하측으로 ""형이 되도록 절곡되어 하측 방향으로 돌출된 보강 절곡부(91)의 양쪽 상측에 형성한 하부 내측 절곡부(92)와 하부 외측 절곡부(93)를 통하여 중앙철근(51)과 상부 부철근(52)을 결속함으로써 파형강판 구조물의 외측으로 복토 과정에서 발생되는 하중에 따른 응력의 변화로 인하여 취약해지는 철근콘크리트 보강구조(B)의 하부를 더 보강할 수 있게 된다.The reinforcing
상기 거푸집널(70)은 강판이 가로방향으로 절곡되어지며, 세로방향으로 벤딩되어진 단면이 형태를 갖는 것으로 수평패널(71)의 양측에 수직패널(72)이 하향으로 각각 절곡되게 형성되어지고, 상기 수직패널(72)의 하부에 펀칭홀(74)이 형성된 플랜지(73)가 외측으로 각각 절곡되게 형성되어 상기 양측의 플랜지(73)가 파형강판(10)의 산부(11)에 맞대어져 볼트(60)와 너트(62)로 결합된다.The
이때, 상기 볼트결합은 볼트(60)의 머리가 파형강판(10)의 내측 하부에 걸려짐과 동시에 볼트(60)의 숫나사(61)가 파형강판(10)의 상부로 노출되어 노출된 숫나사(61)가 플랜지(73)에 형성된 펀칭홀(74)을 관통하여 너트(62)로 결합되어질 수 있게 된다.At this time, the bolt connection is formed such that the head of the
상기 파형강판(10)과 거푸집널(70)에 의하여 형성된 공간부(200)에는 콘크리트(210)가 타설되어 경화되어지게된다.The concrete 210 is placed and cured in the
상기 베이스아치 구조물(A)의 상부에 구비된 철근콘크리트 보강구조(B)는 길이방향으로 이격거리를 두고 반복되게 설치되도록 하는 것이 바람직하다.It is preferable that the reinforcing concrete reinforcing structure B provided on the upper portion of the base arch structure A is repeatedly installed at a distance in the longitudinal direction.
한편, 본 발명에서는 상기 베이스아치 구조물(A)의 상부에 구비된 철근콘크리트 보강구조(B)가 길이방향으로 이격 거리를 두고 반복되게 설치되어지도록 하였으나, 이러한 형태 이외에 철근콘크리트 보강구조(B)가 베이스아치 구조물(A)의 상부 좌,우측의 히프부 상부에 각각 설치되어지도록 할 수 있다. 이러한 경우, 응력이 작용하는 과정에서 가장 취약한 부분을 보강하는 가운데 소재를 절감할 수 있게 된다.Meanwhile, in the present invention, the reinforced concrete reinforcing structure (B) provided on the upper part of the base arch structure (A) is repeatedly installed at a distance in the longitudinal direction. However, the reinforced concrete reinforcing structure (B) And can be installed on the top left and right bottom portions of the base arch structure A, respectively. In this case, it is possible to reduce the material while reinforcing the weakest part in the process of stress.
도 9는 본 발명에 따른 파형강판 구조물의 모멘트를 도시한 것으로, 모멘트 M은 크라운부(a)에서는 내측으로 양(+)의 벤딩모멘트가 발생되어 상기 파형강판(10)이 부담하고, 상기 크라운부(a)의 양측 히프부(b)에서는 외측으로 음(-)의 벤딩모멘트가 발생되는 과정에서 상기 베이스아치 구조물(A)의 상부 좌,우측의 히프부(b) 상부에 각각 설치되어진 철근콘크리트 보강구조(B)가 부담하게 된다. 이때, 상기 콘크리트 보강구조(B)는 크라운부(a)와 히프부(b)사이에 위치되어지도록 하는 것이 더욱 바람직하다.FIG. 9 shows the moment of the corrugated steel plate structure according to the present invention. In the crown portion (a), a positive bending moment is generated inward to bear the
본 발명에서는 상기 베이스아치 구조물(A)의 상부에 구비된 철근콘크리트 보강구조(B)가 길이방향으로 이격거리를 두고 반복되게 설치되어지도록 하였으나, 이러한 형태 이외에 베이스아치 구조물(A)의 상부에 이격거리 없이 전체가 설치되어지도록 하는 것이 바람직하다.In the present invention, the reinforced concrete reinforcing structure (B) provided on the upper portion of the base arch structure (A) is repeatedly installed at a distance in the longitudinal direction. However, It is preferable that the whole is installed without a distance.
본 발명에서는 상기 수평 연결부(33)의 하부와 배력근(40)의 상부 사이에 상부 주철근(50)이 철선으로 결합되어지도록 하였으나, 이러한 형태 이외에 상기 배력근(40)은 양측단이 스페이서 앵커(30)의 외측으로 더 연장되어 있으므로 이 부분에 상부 부철근(52)이 배근되어지며, 배력근(40)의 중앙 상측에 중앙철근(51)이 배근되어지도록 한다.In the present invention, the upper
한편, 본 발명은 도 10 내지 도 13에 도시한 바와 같이, 파형강판(10)의 폭 방향에서 양 선단이 겹치게 연결되는 부분에 4개의 볼트(100)와 4개의 너트(101)를 이용하여 결합하는 것이 가능하다.10 to 13, the present invention is characterized in that four
파형강판(10)의 골부(11)와 산부(12)에는 일정한 간격에서 지그재그 형태가 되도록 연속 4홀(120)로 형성되어 있다.The
상기 파형강판(10)이 2중으로 겹치도록 결합한 상태에서 연속 4홀(120)의 저면에서 4개의 볼트(102)를 연속 4홀(120)에 끼워 상측에서 4개의 너트(101)를 나사결합으로 끼워질 수 있다.Four bolts 102 are inserted into the continuous four
상기 마주하는 파형강판(10)이 겹쳐지며 연속 4홀(120)이 일치하도록 결합하고, 하측에서 상측 방향으로 4개의 볼트(102)가 연속 4홀(120)을 관통하여 상부로 노출된 상태에서 4개의 너트(103)가 나사결합되도록 한다.The four
또한, 연속 4홀(120)은 산부(11)와 골부(12)에 4개씩 형성하되; 인접하는 부분과 일자형태로 일정한 간격을 갖도록 형성하거나, 인접한 부분과 지그재그 형태가 되도록 형성하여 인접한 볼트(100)의 체결위치를 달리함으로써 체결부분에서의 강성을 향상시켜 안정된 체결상태를 제공하는 것이다.Four continuous four
이상의 설명은 본 발명의 기술 사상을 예시적으로 설명한 것에 불과한 것으로서, 본 발명이 속하는 기술 분야에서 통상의 지식을 가진 자라면 본 발명의 본질적인 특성에서 벗어나지 않는 범위에서 다양한 변형이 가능하다. 따라서, 본 발명에 개시된 실시예들은 본 발명의 기술 사상을 한정하기 위한 것이 아니라 설명하기 위한 것이고, 이러한 실시예에 의하여 본 발명의 기술 사상의 범위가 한정되는 것은 아니다. 본 발명의 보호범위는 아래의 청구범위에 의하여 해석되어야 하며, 그와 동등한 범위 내에 있는 모든 기술 사상은 본 발명의 권리범위에 포함되는 것으로 해석되어야 할 것이다.While the present invention has been particularly shown and described with reference to exemplary embodiments thereof, it is to be understood that the invention is not limited to the disclosed exemplary embodiments. Therefore, the embodiments disclosed in the present invention are intended to illustrate rather than limit the scope of the present invention, and the scope of the technical idea of the present invention is not limited by these embodiments. The scope of protection of the present invention should be construed according to the following claims, and all technical ideas within the scope of equivalents should be construed as falling within the scope of the present invention.
본 발명은 파형강판 구조물의 상측에서 스페이서 앵커 상측에 설치한 상부 주철근의 사이에 중앙철근을 외측에 상부 부철근을 배근한 후 상측에서 분리되는 상부 수평철근을 독립되게 결합하고 하측에서 보강 절곡부를 갖는 하부 보강철근을 배근하여 압축력에 대한 저항력을 높여 변형을 방지하며, 파형강판을 겹치도록 체결함에 있어서 골부와 산부의 연속 4홀이 지그재그 형태로 이루어져 결합되도록 하고, 연속 4홀에서 관통하는 볼트를 갖는 다중 볼트 및 판형헤드의 결합을 통하여 파형강판의 강성을 향상시켜 매우 안정된 구조물을 제공하는 매우 유용한 발명을 제공하는 것이다.The present invention relates to a method of manufacturing a steel plate structure having an upper anchor and an upper anchor and an upper reinforcement and a lower reinforcement, In order to prevent the deformation by reinforcing the lower reinforcing bars by increasing the resistance against the compressive force and to connect the corrugated steel plates so as to overlap, four consecutive holes of the valley and the mountain are formed in a zigzag shape, It is an object of the present invention to provide a highly stable structure by improving the rigidity of the corrugated steel plate through the combination of the multi-bolt and the plate-shaped head.
10 : 파형강판 11 : 골부
12 : 산부 13 : 체결홀
20 : 앵커 지지편 21 : 수평부재
22 : 경사부재 23 : 관통홀
30 : 스페이서 앵커 31 : 나수부
32 : 트윈너트 33 : 수평 연결부
40 : 배력근 50 : 상부 주철근
51 : 중앙철근 52 : 상부 부철근
60 : 볼트 61 : 나사부
62 : 너트 70 : 거푸집널
71 : 수평패널 72 : 수직패널
73 : 플랜지 74 : 펀칭홀
80 : 상부 수평철근 81 : 상부 절곡부
90 : 하부 보강철근 91 : 보강 절곡부
92 : 하부 내측 절곡부 93 : 하부 외측 절곡부
100 : 4개의 볼트 101 : 4개의 너트
120 : 연속 4홀 200 : 공간부
210 : 콘크리트10: corrugated steel plate 11: valley
12: hill part 13: fastening hole
20: anchor support piece 21: horizontal member
22: inclined member 23: through hole
30: spacer anchor 31:
32: Twin nut 33: Horizontal connection
40: Axis muscle 50: Upper main muscle
51: central reinforcing bar 52: upper reinforcing bar
60: bolt 61: thread
62: nut 70: die plate
71: horizontal panel 72: vertical panel
73: Flange 74: Punching hole
80: upper horizontal reinforcement 81: upper bend
90: lower reinforcing bar 91: reinforcing bent portion
92: lower inward bending portion 93: lower outward bending portion
100: 4 bolts 101: 4 nuts
120: 4 consecutive holes 200: Space part
210: Concrete
Claims (5)
상기 상부 주철근(50)의 하측에 위치하는 배력근(40)의 중앙에 중앙철근(51)이 위치하고, 상기 배력근(40)의 양쪽 단부에 상부 부철근(52)이 배근된 후,
상기 상부 부철근(52)의 좌측과 중앙철근(51) 및 상부 부철근(52)의 우측과 중앙철근(51)을 상부 부철근(52)과 중앙철근(51)의 상측에서 2개의 상부 수평철근(80)이 ""형과 같이 양쪽 선단에 절곡한 상부 절곡부(81)로 감싸 결속되도록 하는 것을 포함하고,
상기 상부 부철근(52)의 좌측과 중앙철근(51) 및 상부 부철근(52)의 우측과 중앙철근(51)을 상부 부철근(52)과 중앙철근(51)의 상측에서 2개의 하부 보강철근(90) 양쪽에 형성한 하부 내측 절곡부(92)와 하부 외측 절곡부(93)로 결속되도록 하되;
상기 보강철근(90)은 ""형과 같이 양쪽 선단에서 절곡한 하부 내측 절곡부(92)와 하부 외측 절곡부(93)의 안쪽에서 서로 다른 경사각을 갖도록 외측에서 내측을 향하여 하측 방향으로 절곡되는 경사각이 크게 형성된 후 하측의 보강 절곡부(91)에서 중앙을 향하여 외측에 비해 더 작은 경사각을 갖도록 형성되어 좌측에 있는 상부 부철근(52)과 중앙 철근(51)의 상측에서 감싸도록 결합한 후 우측에 있는 상부 부철근(52)과 중앙철근(51)의 상측에서 배근한 다음에 철선으로 고정되는 것을 특징으로 하는 강성 향상을 위한 체결부재가 결합하는 철근콘크리트 강합형 파형강판 보강 구조물.A plurality of troughs 11 and crests 12 are formed along the width direction and bent at a constant curvature along the longitudinal direction to form punched holes 13 in the crests 12 in the width direction of the galvanized corrugated steel sheet 10 And the edges formed with the punching holes 13 are overlapped and overlapped with each other so that the male screw 61 of the bolt 60 penetrates from the lower part to the upper part of the corrugated steel plate 10 and is engaged with the nut 62, A base arch structure A in which a flange 73 formed on the formwork board 70 is fastened to the base steel arch structure 60 and an excitation rope 40 and an upper reinforcing bar 50 on the base arch structure A, And the central reinforcing bars 51 positioned at the center of the space portion 200 provided between the upper portion of the waveguide 10 and the formwork 70. The concrete reinforcing bars 51 are disposed on both sides of the central reinforcing bars 51, Which is engaged with both anchor supporting pieces 20 of the valley portion 11 so as to be closely in close contact with the surface of the spacer 11, The concrete 210 is poured into the inner space portion 200 of the formwork board 70 which protects the upper cast iron rope 50 and the expansion rope 40 on the upper side of the upper portion 30 to increase the cross sectional area of the corrugated steel pipe structure, A continuous four-hole 120 is formed in the valley 11 and the crest 12 so as to form a staggered shape at a portion adjacent to the crest 11 at regular intervals in the longitudinal direction, Wherein four nuts (101) are screwed in a state that four bolts (100) penetrate through the four holes (120) at the bottom of the continuous four holes (120)
A central reinforcing bar 51 is located at the center of the reinforcing rope 40 located below the upper reinforcing rope 50 and an upper reinforcing bar 52 is placed at both ends of the reinforcing rope 40,
The right side and the central reinforcing bars 51 of the upper side reinforcing bar 52 and the central reinforcing bars 51 and the upper reinforcing bars 52 are divided into two upper and lower reinforcing bars 52, When the reinforcing bars 80 are " Quot; -shaped upper bent portion 81 bent at both ends,
The right and central reinforcing bars 51 of the upper reinforcing bars 52 and the central reinforcing bars 51 and the upper reinforcing bars 52 are reinforced by the upper reinforcing bars 52 and the upper reinforcing bars 51, To be bound to the lower inner bend section (92) and the lower outer bend section (93) formed on both sides of the reinforcing bar (90);
The reinforcing steel bar 90 is " The lower inner bending portion 92 bent at both ends and the lower outer bending portion 93 are inclined at an angle different from each other at an inclination angle from the outer side toward the inner side, The upper reinforcing bars 52 and the upper reinforcing bars 52 are connected to each other so as to surround the upper reinforcing bars 52 on the left side and the upper side of the central reinforcing bars 51, And reinforcing structure of the reinforced concrete reinforced corrugated steel sheet to which the fastening member for improving the rigidity is combined.
Priority Applications (1)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
KR1020170067511A KR101832291B1 (en) | 2017-05-31 | 2017-05-31 | Reinforced Concrete Composite Corrugated Steel Shear Reinforced Structures Combined with Fastening Members for Stiffness Improvement |
Applications Claiming Priority (1)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
KR1020170067511A KR101832291B1 (en) | 2017-05-31 | 2017-05-31 | Reinforced Concrete Composite Corrugated Steel Shear Reinforced Structures Combined with Fastening Members for Stiffness Improvement |
Publications (1)
Publication Number | Publication Date |
---|---|
KR101832291B1 true KR101832291B1 (en) | 2018-02-26 |
Family
ID=61531386
Family Applications (1)
Application Number | Title | Priority Date | Filing Date |
---|---|---|---|
KR1020170067511A KR101832291B1 (en) | 2017-05-31 | 2017-05-31 | Reinforced Concrete Composite Corrugated Steel Shear Reinforced Structures Combined with Fastening Members for Stiffness Improvement |
Country Status (1)
Country | Link |
---|---|
KR (1) | KR101832291B1 (en) |
Cited By (1)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
KR102274910B1 (en) | 2021-03-08 | 2021-07-12 | 대한강관 주식회사 | Corrugated steel plate structure reinforcement structure combined with corrugated steel pipe filling concrete |
Citations (3)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
KR100805929B1 (en) * | 2006-09-26 | 2008-02-21 | 평산에스아이 주식회사 | Corrugated steel sheet having rational jointing part for improvement of compressive strength, flexibility and ductility |
KR101189620B1 (en) * | 2011-12-05 | 2012-10-10 | 주식회사 픽슨이앤씨 | Corrugated steelplate structure of steel concrete steel composition |
KR101620096B1 (en) * | 2015-09-23 | 2016-05-24 | (주) 렉스틸 | Combination structure of corrugated steel plate for bending performance improving and building method for corrugated steel construction using the same |
-
2017
- 2017-05-31 KR KR1020170067511A patent/KR101832291B1/en active IP Right Grant
Patent Citations (3)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
KR100805929B1 (en) * | 2006-09-26 | 2008-02-21 | 평산에스아이 주식회사 | Corrugated steel sheet having rational jointing part for improvement of compressive strength, flexibility and ductility |
KR101189620B1 (en) * | 2011-12-05 | 2012-10-10 | 주식회사 픽슨이앤씨 | Corrugated steelplate structure of steel concrete steel composition |
KR101620096B1 (en) * | 2015-09-23 | 2016-05-24 | (주) 렉스틸 | Combination structure of corrugated steel plate for bending performance improving and building method for corrugated steel construction using the same |
Cited By (1)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
KR102274910B1 (en) | 2021-03-08 | 2021-07-12 | 대한강관 주식회사 | Corrugated steel plate structure reinforcement structure combined with corrugated steel pipe filling concrete |
Similar Documents
Publication | Publication Date | Title |
---|---|---|
KR101654931B1 (en) | Reinforcement rib and overhead structure incorporating the same | |
US7171788B2 (en) | Masonry connectors and twist-on hook and method | |
KR101816767B1 (en) | Reinforced concrete reinforced concrete structure | |
KR101189620B1 (en) | Corrugated steelplate structure of steel concrete steel composition | |
BR112016017131B1 (en) | THREE-DIMENSIONAL LIGHTWEIGHT STEEL STRUCTURE FORMED BY TWO-WAY CONTINUOUS DOUBLE BEAMS | |
KR20150029917A (en) | Corrugated steel reinforced concrete composite structures | |
KR101168763B1 (en) | Composite bridge construction method | |
KR101225662B1 (en) | Prefabricated precast steel grid composite deck and the construction method therewith | |
KR101084736B1 (en) | A shear connector which install the position-fixing device, a girder with that connector, and the method of slab construction using it all | |
KR101816142B1 (en) | Girder-plate type bridge using arch-shape composite girder and construction method thereof | |
KR101533576B1 (en) | Composite beam having truss reinforcement embedded in a concrete | |
KR101885735B1 (en) | Deck Having Truss Girder with stiffened top-chord of formed steel section | |
US8220219B2 (en) | Reinforcing assembly, and reinforced concrete structures using such assembly | |
CN202990197U (en) | Lap joint rib type prestress double-direction composite slab | |
JP4740029B2 (en) | Manufacturing method of floor slab or lining board | |
KR101499337B1 (en) | Wide PC beam for slim floor | |
KR100728743B1 (en) | Corrugated steel plates concrete bridge | |
KR101832291B1 (en) | Reinforced Concrete Composite Corrugated Steel Shear Reinforced Structures Combined with Fastening Members for Stiffness Improvement | |
KR101024991B1 (en) | Hollowness slab type-deck plate structure and contruction method thereof | |
CN102808372B (en) | The integral precast overlapping bridge of a kind of freely-supported and construction method | |
KR102608598B1 (en) | Waveform steel sheet structure equipped with the reinforcing mold | |
KR102054990B1 (en) | Coupling Bar and End Reinforced Beam Using T-Shaped Member | |
CN212956124U (en) | Combined multi-span bridge plate connecting structure | |
KR101744333B1 (en) | Corrugated Slim Deck Reinforced Having Truss Girder | |
KR101752285B1 (en) | Hybrid beam with wide PSC lower flange and enlarged section upper flange and structure frame using the same |
Legal Events
Date | Code | Title | Description |
---|---|---|---|
E701 | Decision to grant or registration of patent right | ||
GRNT | Written decision to grant |
