Description

The present invention relates to a pulverizer, and more particularly to a pulverizer capable of pulverizing various products such as papers, magnetic tape recording media such as cassette tapes, optical recording media, and substrates.

  Some pulverizers are provided with a casing having an upper input port for supplying a material to be crushed and a lower discharge port for discharging a pulverized material, and a pulverizing means disposed in a pulverization chamber in the casing (patent) Document 1 and Patent document 2).

  That is, in the pulverizer described in Patent Document 1 and the like, as shown in FIG. 23, a discharge plate 5 having a large number of discharge holes 4 is arranged at the lower discharge port 3 of the casing 1. A crushing chamber 6 is constituted by the plate 5 and the inner surface of the casing 1. A crushing means 7 is arranged in the crushing chamber 6. The crushing means 7 includes a hammer member 9 disposed on the rotating disk 8 at a predetermined pitch along the circumferential direction, and a fixed blade 10 fixed to the inner surface of the crushing chamber 6 (the inner surface of the casing 1). The The fixed blade 10 is disposed along an arc surface corresponding to a circular locus drawn by the tip edge of the hammer member 9 during rotation.

For this reason, if a material to be crushed is introduced from the upper inlet 2 of the casing 1 and supplied to the crushing chamber 6, the hammer member 9 rotates and the hammer member 9 and the fixed blade 10 cooperate to grind. Things are crushed. Then, the pulverized product is discharged to the outside from the hole portion of the discharge plate 5 of the lower discharge port 3.
JP-A-8-117634 JP 2001-153149 A

Since the pulverized material is discharged to the outside from the hole portion of the discharge plate 5 of the lower discharge port 3, the pulverized material easily adheres to the discharge plate 5. For this reason, it is preferable to be able to remove the discharge plate 5. In order to allow removal, it is necessary to provide a fitting groove or the like in the casing 1 and fit the discharge plate into the fitting groove. However, in such a case, the pulverized material bites into (attaches to) the fitting groove, making it difficult to take out the discharge plate 5.

  In view of the above problems, the present invention provides a pulverizer that can prevent the pulverized material from adhering to a discharge plate or the like and can easily put in and out the discharge plate.

  The pulverizer of the present invention includes a pulverization chamber in which a pulverization unit is accommodated, and includes a pulverized material storage unit that receives the pulverized product pulverized by the pulverization unit below the pulverization unit. And a discharge plate having a plurality of holes through which the pulverized material passes. The discharge plate includes a pulverized product. The main body of the arc-shaped flat plate having a large number of holes through which it passes, and the fitting groove extending from the side edge of the arc-shaped flat plate and extending along the arc direction provided on the inner surface of the grinding chamber And a guide portion that has a taper shape that changes along the arc direction, and a vertical width dimension of the fitting groove that corresponds to the guide portion along the arc direction. The taper shape changes.

According to the pulverizer of the present invention, the pulverized product pulverized in the pulverization chamber is discharged to the pulverized product storage unit through the hole of the discharge plate, so that the pulverized product larger than this hole is pulverized. It remains in the chamber and is further pulverized by pulverizing means. For this reason, only the pulverized product pulverized to the hole diameter of the hole portion or less can be discharged to the outside. In addition, the height of the guide portion of the discharge plate is a tapered shape that changes along the arc direction, and the vertical width of the fitting groove is a taper that changes along the arc direction corresponding to the guide portion. When pulling out the discharge plate, if you pull out the large height side, the height dimension on the counter-drawing side will be small, and this small height side will be pulled out to the large height side. Become.

The crushing chamber is preferably provided with an openable / closable lid member so that the guide portion of the discharge plate can be taken in and out when the lid member is open. Thus, by providing the lid member, it is possible to facilitate the operation of pulling out the discharge plate to the outside and the operation of inserting the discharge plate from the outside.

The height of the guide portion is preferably increased on the opening side of the crushing chamber where the lid member is mounted.

  According to the present invention, it is possible to discharge only the pulverized product pulverized to a diameter equal to or smaller than the hole diameter. Therefore, the object to be crushed can be pulverized to a desired size, and the performance as a pulverizer can be improved. Various information media such as paper, magnetic tape recording media, optical recording media, and substrates can be used. Can be pulverized stably.

  When pulling out the discharge plate, the height dimension on the opposite side is small, and the height dimension is pulled out on the small side and the height dimension on the large side. For this reason, a clearance gap is sequentially formed between the fitting groove and the guide portion, and the drawing can be facilitated. That is, the discharge plate and the crushing chamber can be easily cleaned.

  In particular, by providing the lid member, it is possible to facilitate the operation of pulling out the discharge plate to the outside and the operation of inserting the discharge plate from the outside, and the crusher is excellent in workability. Further, the height of the guide portion can be further improved by making the discharge plate in and out more easily by raising the opening side of the crushing chamber in which the lid member is mounted.

An embodiment of a pulverizer according to the present invention will be described with reference to FIGS.

  FIG. 3 shows a pulverizer according to the present invention. The pulverizer includes a box body 160 having an input port 122 through which an object to be crushed is charged, and a pulverizer body K (see FIG. 2) housed in the box body 160. The box 160 includes an upper storage portion 160a in which the pulverizer body K is stored, and a lower storage portion 160b that constitutes the pulverized material storage portion. The upper storage portion 160a includes a front wall 11, a rear wall 12, left and right walls 13a and 13b, and an upper wall 14, and an inclined wall 15 is provided at an upper end corner portion. Is provided. Although not shown in the drawings, the inclined wall 15 is provided with various switches for operating the crusher. The material to be crushed includes various products such as papers, magnetic tape recording media such as cassette tapes, optical recording media, and substrates.

The lower storage portion 160 b includes front doors 16 a and 16 b, a rear wall 17, left and right walls 18 a and 18 b, and a bottom wall 19. Handles 105 and 105 are attached to the front doors 16a and 16b, respectively, and the lower storage portion 160b can be opened and closed by swinging the front doors 16a and 16b. A storage case that constitutes a pulverization unit storage unit described later is stored in the lower storage unit 160b. A caster 106 is attached to the bottom wall 19 so that the crusher can be moved.

As shown in FIGS. 1 and 2, the pulverizer body K includes a casing 21 that constitutes a pulverization chamber 26, and pulverizing means 27 that is disposed in the pulverization chamber 26 of the casing 21. The casing 21 includes a casing main body 31 and a lid member 32 that closes an opening (side opening) 40 of the casing main body 31. In addition, a hopper 33 for putting a material to be crushed is attached to the upper wall 31 a in the casing body 31, and the hopper 33 accommodates a charging path structure 110 (see FIG. 7).

  As shown in FIGS. 7 and 8, the charging path structure 110 includes a flange portion 112 in which a rectangular through hole 111 is formed, a front wall 113 depending from the flange portion 112, and a rear portion depending on the flange portion 112. It includes a wall 114, left and right side walls 115a and 115b depending from the flange portion 112, and a connecting wall 116 that connects intermediate portions in the rear vertical direction of the side walls 115a and 115b.

  The hopper 33 has an inclined upper wall 33a opposite to the inclined wall 15 of the box 160, and an insertion hole 117 into which the input path constituting body 110 is inserted is provided in the upper wall 33a. In this case, the flange portion 112 of the input path structure 110 is locked to the upper wall 33a, and in this locked state, the hook portion 112 of the input path structure 110 is fixed with a fastener such as a bolt member (not shown). Fix to the upper wall 33a of the hopper 33. A cushion material 118 made of a rectangular ring-shaped elastic material is disposed on the upper surface of the collar portion 112, and the cushion material 118 is in contact with the inner surface of the inclined wall 15 of the box body 160.

  Further, the front wall 113 of the charging path structure 110 includes an upper member 113a and a lower member 113b, the lower member 113b is disposed on the back side, and a step 113c is provided between the upper member 113a and the lower member 113b. Is provided. The rear wall 114 of the charging path structure 110 includes a first wall 114a that hangs down from the rear side of the rectangular through hole 111 of the flange 112, and a second wall 114b that is bent at a right angle from the lower end of the first wall 114a to the rear side. And a third wall 114c that is bent at a right angle downward from the second wall 114b, and a fourth wall 114d that is bent so as to be substantially parallel to the front wall 113 from the lower end of the third wall 114c.

  For this reason, the input path 120 is comprised by the front wall 113, the rear wall 114, and the left and right side walls 115a and 115b. In addition, a rectangular opening 121 provided in the inclined wall 15 of the box 160, a rectangular through hole 111 of the flange 112 of the charging path structure 110, a rectangular through hole 118a of the cushion material 118, and the like, the charging path 120. The charging port 122 is configured.

  The input port 122 of the input channel 120 is closed by the input port lid member 125. That is, the insertion port lid member 125 is formed of a rectangular flat plate whose base end edge (long side on the front side of the insertion port 122) 125 a is pivotally attached via the pivot 124, and the elastic force of the elastic member 127 is reduced. Then, the tip edge (long side portion on the side opposite to the pivot axis) 125b comes into contact with the second wall 114b of the rear wall 114 from the inside. As a result, the charging port 122 is closed. When an external force in the direction of arrow F in FIG. 8B (an external force larger than the elastic force of the elastic member 127) is applied to the charging port lid member 125 from this closed state, the charging port lid member 125 is centered on the pivot axis 124. Oscillates in the direction, and the inlet 122 is opened.

  By the way, the charging port 122 is closed in a state where the charging port lid member 125 is horizontally disposed. For this reason, the front wall 113 is inclined at a predetermined angle with respect to the vertical direction, and the charging path 120 is inclined in the oblique direction.

  An inner lid member 128 and a rear lid member 129 on the back side (downward) than the inner lid member 128 are disposed inside the charging path 120. The inner lid member 128 has a plate-shaped main body plate 130 whose upper edge 130a is pivoted in the input path so as to be displaceable between the input path closed state and the input path open state, and the main body plate 130 is closed. And a weight portion 131 to be in a state.

  That is, the main body plate 130 is horizontally mounted on the side walls 115 a and 115 b and the upper end edge portion 130 a is fixed to the shaft member 132 disposed in the vicinity of the lower end edge of the rear wall 114. As shown in FIG. 8A at the center, it can swing in the directions of arrows G and H. The weight portion 131 is made of a thick plate member having a rectangular cross section, and the upper end edge thereof is fixed to the shaft member 132. In this case, the main body plate 130 and the weight portion 131 are arranged so as to form a predetermined angle (for example, about 45 °) in a side view.

  For this reason, the main body plate 130 and the weight portion 131 are balanced, and the lower end edge 130b (lower long side) of the main body plate 130 is in contact with the inner surface of the lower member 113b of the front wall 113. For this reason, the charging path 120 is closed. In this closed state, if a downward pressing force is applied to the main body plate 130, the main body plate 130 swings in the direction of arrow H about the shaft center of the shaft member 132 as shown in FIG. The charging path 120 is opened.

  The back cover member 129 is configured by a swing plate 135 having an upper end edge portion 135a pivoted in the input path 120. That is, the upper end edge portion 135a is fixed to the shaft member 133 that is horizontally mounted on the side walls 115a and 115b on the back side of the shaft member 132 of the inner lid member 128. For this reason, in the free state, the back cover member 129 is disposed along the vertical direction and swings about the axis of the shaft member 133 in the directions of arrows I and J.

  As will be described later, the crushing chamber 26 opens on an extension line of the charging path 120. For this reason, in the free state in which the back cover member 129 maintains the vertical state, it is possible to prevent the pulverized material scattered from the pulverization chamber 26 from entering the input path. Moreover, the back cover member 129 is arranged along the vertical direction and swings around the axis of the shaft member 133 in the directions of arrows I and J, so that the object to be crushed charged from the charging port 122 is When the depth lid member 129 is reached, the depth lid member 129 can be pressed to the back side, and the passage of the object to be crushed is allowed.

  Moreover, when the charging path structure 110 is accommodated in the box 160, as shown in FIG. 5, the connection wall 116 will be arrange | positioned along a perpendicular direction. A baffle plate 98 made of a flexible material such as rubber or resin is attached to the connecting wall 116. That is, the baffle plate 98 is formed of a rectangular flat plate body, and the upper side portion 98a is sandwiched between the connection wall 116 and the pressing plate 137, and is attached to the connection wall 116 via a fastener such as a bolt member (not shown). For this reason, the baffle plate 98 is arrange | positioned along a perpendicular direction.

  As shown in FIG. 1, the crushing chamber 26 includes a main body chamber 26 a in which the crushing means 27 is disposed, and a guide path 20 that communicates with a lower portion (downstream portion) of the charging path 120. A guide surface 20a of the guide path 20 is continuously formed on the front wall 113 of the charging path 120 and is inclined at substantially the same inclination angle. That is, the material to be crushed from the charging path 120 is guided to the main body chamber 26a along the guide surface 20a. In this case, as shown in FIG. 1, the baffle plate 98 is suspended in the guide path 20 of the crushing chamber 26, and can prevent the crushed material scattered from the inside of the crushing chamber 26 from entering the charging path.

  As shown in FIGS. 1 and 2, the crushing means 27 is provided with a rotating shaft 45, a hammer member 29 protruding radially from the rotating shaft 45, and an outer diameter side of the hammer member 29 in the casing 21. The fixed blade 47 is provided. That is, as shown in FIG. 2, the rotating shaft 45 is provided with discs 48 arranged at a predetermined pitch along the longitudinal direction thereof, and a spacer 49 is interposed between the discs 48. In a state where each hammer member 29 is sandwiched between the spacers 49, the rotary shaft 45 and the hammer member 29 are integrated by bolt / nut coupling.

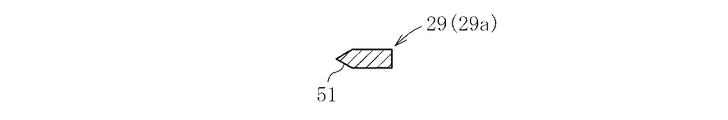

  In this case, as shown in FIGS. 6 to 8, the hammer member 29 (first hammer member 29a) is composed of a rod-like body having a flat rectangular cross section with a recess 50 formed at the base end edge, and has one long side. A blade portion (grinding blade) 52 is formed on the tip side. A through hole 53 is provided in the vicinity of the recess 50.

  Each disk 48 is provided with a through hole (not shown). As shown in FIG. 2, the first hammer member 29 (29a) is sandwiched between the disk 48 and the spacer 49. A bolt member (not shown) is inserted into the through hole 48, the through hole 53 of the hammer member 29, and the spacer 49 from the outside of one outer disk 48, and protrudes outward from the other outer disk 48. The nut member 55 (see FIG. 1) is screwed onto the screw end portion of the bolt member. At this time, the recess 50 of the hammer member 29 a is fitted to the outer peripheral surface of the rotating shaft 45.

  As shown in FIG. 2, four hammer members 29 (29a) are arranged along the axial direction of the rotating shaft 45 to constitute a hammer member assembly. As shown in FIG. Four bodies are arranged at a pitch of 90 degrees along the circumferential direction.

  Further, as shown in FIG. 2, support legs 56 and 57 are arranged on both sides of the casing 21, and end portions of the rotary shaft 45 are rotatably supported by the support legs 56 and 57 via bearing members 58 and 59. Is supported. One end of the rotating shaft 45 is connected to an output shaft of a driving motor (not shown) via an interlocking mechanism 60 having a belt member. For this reason, when the driving motor is driven, the driving force of the driving motor is transmitted to the rotating shaft 45 via the interlocking mechanism 60 to rotate.

  By the way, as shown in FIG. 2, each fixed blade 47 has a U-shape including a first blade 61, a second blade 62, and a connecting piece portion 63 that connects the first blade 61 and the second blade 62. A plurality of fixed blades 47 are fixed to a flat plate-shaped holding plate 64 and an arc-shaped holding plate 65 (see FIGS. 12 and 13). In this case, the flat holding plate 64 is fixed to the lower surface of the upper wall 31a of the casing 21. Further, each fixed blade 47 (47a) fixed to the flat plate holding plate 64 has a connecting piece 63 and a bolt member 67 inserted into the flat plate holding plate 64 screwed into the upper wall 31a of the casing 21. The At this time, the plurality of fixed blades 47 fixed to the flat plate-like holding plate 64 protrude downward, that is, into the crushing chamber 26. As shown in FIG. 1, the blade edge 68 of the first blade 61 and the second blade 62 on the upper wall 31a side faces the opening 40 side.

  Further, as described above, the hammer member 29 (29a) rotates around the axis of the rotary shaft 45, so that the tip edge of the hammer member 29 draws a circular locus during rotation. Therefore, the arc-shaped holding plate 65 has an arc shape having a radius of curvature along (opposed to) this circular locus. The casing 21 is formed with a plate fitting groove 66 (see FIG. 14) along the circular locus on the outer diameter side of the circular locus, and the arc-shaped holding plate 65 is fitted into the plate fitting groove 66. Combined. The plate fitting groove 66 is a circular groove formed in each of the front wall 31b and the rear wall 31c.

  The fixed blades 47 (47 b) attached to the arc-shaped holding plate 65 are also fixed to the arc-shaped holding plate 65 through the bolt members 67. As shown in FIGS. 12 and 13, the arc-shaped holding plate 65 is disposed on both short sides of the substrate portion 70 and the inner surface of the substrate portion 70 (the surface on the side from which the fixed blade 47 protrudes). Short side frames 71a and 71b, and long side frames 72a and 72b arranged on both long sides of the inner surface of the substrate portion 70. One fixed blade 47b is arranged on one long side frame 72a side, and two fixed blades 47b are arranged on the other long side frame 72b side.

  Further, as shown in FIG. 1, a lower discharge port 23 is formed in the lower portion of the crushing chamber 26, and a discharge plate 73 is disposed in the lower discharge port 23. As shown in FIGS. 4 and 5, the discharge plate 73 has an arcuate plate body 156 having a large number of holes 155 through which the pulverized material passes, and an inner surface of the pulverization chamber 26 along the arc direction. And a guide portion 157 that fits into a pair of fitting grooves 165 (see FIG. 6). The guide portion 157 has a taper shape that hangs down from the side edge of the main body portion 156 of the arc-shaped flat plate and whose height dimension changes along the arc direction. That is, the guide portion 157 satisfies H1> H2 when the height on the opening (side opening) 40 side of the casing body 31 is H1 and the height on the inner side of the casing body 31 is H2. Yes.

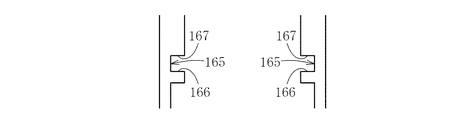

  Further, as shown in FIG. 6, the plate fitting groove 165 has an outer diameter side receiving surface portion 166 and an inner diameter side receiving surface portion 167, and between the outer diameter side receiving surface portion 166 and the inner diameter side receiving surface portion 167. The interval (the vertical width dimension of the fitting groove) is a tapered shape that varies along the arc direction. For this reason, the discharge plate 73 can be taken into and out of the crushing chamber 26 through the opening (side opening) 40 of the casing body 31. In the state where the discharge plate 73 is mounted in the crushing chamber 26 (the guide portion 157 is fitted in the fitting groove 165), the main body portion 156 follows the circular locus of the tip edge of the hammer member 29 ( It has an arc shape with a radius of curvature facing each other.

  By the way, a guide body 75 is disposed on the downstream side (lower side) of the guide path 20 to lift the object to be crushed to the pulverization chamber 26 side. As shown in FIGS. 15 and 16, the guide body 75 is integrally fixed to the arc-shaped holding plate 76. Also in this case, the arc-shaped holding plate 76 has an arc shape having a radius of curvature along (opposed to) the circular locus of the tip edge of the hammer member 29, like the arc-shaped holding plate 65 that holds the fixed blade 47. Become.

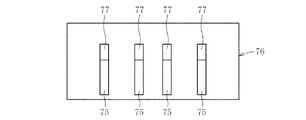

  Moreover, the guide body 75 consists of the block piece extended in the width direction of the plate, and the inclined surface 77 is formed in the upper end edge. Four guide bodies 75 are arranged on the arc-shaped holding plate 76 at a predetermined pitch along the longitudinal direction. The guide body 75 is arranged on the downstream side (lower side) of the guide path 20 by fitting the arc-shaped holding plate 76 into the plate fitting groove 66.

  In this case, the guide body 75, the fixed blade 47 b, and the discharge plate 73 are sequentially arranged from the downstream side of the guide path 20 toward the opening 40. During rotation of the hammer member 29, the blade portion 52 of each hammer member 29 passes between the guide bodies 75 and between the first blade 61 and the second blade of the fixed blade 47a on the upper wall 31a side. pass. On the plate fitting groove 66 side, the blade portions 52 of the inner three hammer members 29 pass between the first blade 61 and the second blade of the fixed blade 47b.

  By the way, the opening 40 forms approximately 120 degrees in a front view, and flanges 80 and 81 are provided at the longitudinal opening end and the oblique opening end of the front wall 31b, respectively, and the longitudinal opening end and the oblique direction of the rear wall 31c. Reed portions 82 and 83 are provided at the open ends, respectively. It should be noted that ribs 84 and 85 are provided at the middle portion in the vertical direction of the front wall 31b and the end portion opposite to the opening.

  The lid member 32 includes a front wall 87, a rear wall 88, and a peripheral wall 89, and a lower end portion of the lid member 32 is pivotally connected to the main body 31 of the casing 21 by a hinge portion 90 as indicated by arrows C and D. . The peripheral wall 89 is seen from the front, the first wall 89a rising from the hinge portion 90, the second wall 89b connected to the first wall 89a, the third wall 89c connected to the second wall 89b, A third wall 89d connected to the third wall 89c.

As described above, the front wall 87 has a fan shape, and has a first end surface corresponding to the longitudinal opening end surface of the front wall 31b of the casing 21 and a second end surface corresponding to the oblique opening end of the front wall 31b of the casing 21. Are provided with flanges 91 and 92, respectively. The rear wall 88 is also fan-shaped, and the first end surface corresponding to the longitudinally open end surface of the rear wall 31c of the casing 21 and the second end surface corresponding to the obliquely open end of the rear wall 31c of the casing 21 (Not shown) is provided.

  Therefore, as shown by the solid line in FIG. 2, the lid member 32 can bring the flange portions 91 and 92 of the front wall 87 into contact with the flange portions 80 and 81 of the front wall 31 b of the casing 21 and the rear wall. The 88 flanges can be brought into contact with the flanges 82 and 83 of the rear wall 31 c of the casing 21.

  In this way, the abutted state is a closed state by the lid member 32. In this closed state, the opening end of the plate fitting groove 66 on the opening 40 side is closed, and the plates 65, 73, 76 fitted in the plate fitting groove 66 are opened to the opening side. Omission is prevented. Further, the withdrawal of each of the plates 65, 73, 76 to the opposite opening side is restricted by the opposite opening end of the plate fitting groove 66. For this reason, each plate 65, 73, 76 can be fixed at a fixed position in the closed state by the lid member 32. The lid member 32 is provided with a handle 99 for performing an opening / closing operation.

  Next, a pulverization method using the pulverizer configured as described above will be described. As shown in FIG. 7 and FIG. 8A, since the inlet 122 is closed by the inlet lid member 125, the inlet lid member 125 is pressed inward with the material to be crushed, Alternatively, the user presses the input port lid member 125 inward to open the input port 122 as shown in FIG. As a result, the material to be crushed is input to the input path 120 from the input port 122. In this state, the charging path 120 is closed by the inner lid member 128. For this reason, even if the pulverized material in the crushing chamber 26 enters the charging path 120, the inner lid member 128 can prevent scattering toward the charging port 122.

  Further, when the object to be crushed reaches the inner lid member 128, the inner lid member 128 is pressed downward by the object to be crushed and swings in the direction of arrow H in FIG. Allow passage. When the object to be crushed passes through the inner lid member 128, the object to be crushed has passed through the inlet 122, and the inlet port member 125 is caused by the elastic force of the elastic member 127 as shown in FIG. Return to the closed state. For this reason, even if the inner lid member 128 is in the open state, the charging port lid member 125 has returned to the closed state, so that the crushed material does not jump out of the charging port 122.

  Then, if the object to be crushed passes through the inner lid member 128 and reaches the inner lid member 129, the inner lid member 129 can swing, so that it is pushed by the object to be crushed and this inner lid member 129 is pushed. The material to be ground in the member 129 is allowed to pass. After that, it is guided by the guide path 20 and supplied to the main body chamber 26 a of the crushing chamber 26. At this time, the rotary shaft 45 is rotated to rotate the hammer member 29 in the direction of arrow A in FIG.

  The object to be pulverized is lifted to the pulverizing chamber 26 side by the guide body 75 provided at the entrance of the main body chamber 26a. That is, the object to be crushed that has descended along the inclined guide surface 20a is guided by the inclined surface 77 through the guide body 75 and floats up from the inclined guide surface 20a. For this reason, the object to be crushed is hit with a rotating hammer member 29 and cut with a cutting edge. Then, the hammer member 29 is wound around the cut piece, and the cut piece is further finely cut and unwound by the fixed blade 47b on the lower discharge port side and the fixed blade 47a on the upper wall 31a side. In this way, by providing the guide body 75, the object to be crushed can be lifted, so that when the object to be pulverized is a sheet, the object to be crushed is prevented from adhering to the wall surface, The hammer member 29 can be crushed.

  The pulverized material is discharged from a discharge hole 74 of a discharge plate 73 provided in the lower discharge port 23 to a storage case (not shown) disposed in the lower portion of the casing 21, that is, in the lower storage portion 160 b of the box 160. .

  By the way, when the object to be crushed enters the crushing chamber 26, the object to be crushed bites into the rotating hammer member 29, so that the object to be crushed is not easily repelled by the hammer member 29.

  However, since the baffle plate 98 hangs down in the guide path 20 of the crushing chamber 26 as shown in FIG. 2, even if the object to be crushed is blown off, the baffle plate 98 causes the material to be crushed to be crushed. 26 is returned.

  Therefore, even if the object to be crushed is a plastic block such as a cassette tape, the object to be crushed is hit with a rotating hammer member 29 like a sheet-like object such as paper. Cut with a cutting edge. Then, the hammer member 29 is wound around the cut piece, and the cut piece is further finely cut and unwound by the fixed blade 47 on the lower discharge port side and the fixed blade 47 on the upper wall 31a side, and the pulverized product It becomes.

In the discharge plate 73 according to the present invention, only the pulverized material pulverized to the diameter of the hole 155 or less can be discharged to the outside. Therefore, the object to be crushed can be pulverized to a desired size, and the performance as a pulverizer can be improved. Various information media such as paper, magnetic tape recording media, optical recording media, and substrates can be used. Can be pulverized stably.

  When pulling out the discharge plate 73, if the large height side is pulled out, the height dimension on the counter-drawing side becomes small, and the small height dimension side is pulled out to the large height side. For this reason, as shown by the phantom line in FIG. 5, a gap is sequentially formed between the fitting groove 165 and the guide portion 157, and the drawing can be facilitated. It is possible to facilitate the cleaning of the discharge plate 73 and the crushing chamber.

  In particular, by providing the lid member 32, it is possible to facilitate the operation of pulling out the discharge plate 73 to the outside and the operation of inserting the discharge plate 73 from the outside, and a pulverizer excellent in workability. Become. In addition, the height of the guide portion 157 can be further facilitated by taking in and out the discharge plate 73 by increasing the opening side of the crushing chamber in which the lid member is mounted.

  In this pulverizer, the charging port 122 is closed by the charging port lid member 125 in a free state. In this state, when the charging port lid member 125 is pressed against the elastic force of the elastic member 127, the charging port 122 is opened, and the material to be crushed can be charged. Further, in the free state, the inner lid member 128 blocks the inside of the charging path by its own weight. However, if the object to be crushed that has entered the charging path 120 in the opening state of the inlet reaches the inner lid member 128, The object to be crushed is opened by being pressed by the object, and the object to be crushed is put into the crushing chamber 26.

  In other words, when the charging port 120 for the object to be crushed is in the charging state, the charging port lid member 125 is in the open state, but the charging path 122 is blocked by the internal lid member 128, so Goods do not flow out to the outside through the charging path 120. In addition, when the object to be crushed passes through the inner lid member 128, since the object to be crushed has passed through the inlet 120, the inlet 120 is closed by the inlet lid member 125. The pulverized material does not flow out through the charging port 120.

  As described above, when the material to be crushed is put into the crushing chamber 26, the material to be crushed is allowed to be charged, but the charging path 120 is blocked by the internal lid member 128 or the charging port lid member 125. Become. Therefore, the pulverized product pulverized in the pulverization chamber 26 is prevented from flowing out from the inlet 122, and the exterior of the pulverizer and the pulverizer installation chamber are hardly contaminated with the pulverized product. Thus, the operator can work comfortably and facilitate cleaning.

  In particular, by providing the back cover member 129, when the pulverized material passes through the internal cover member 128 and the internal cover member 128 is in the open state, the charging port cover member 125 has been artificially opened. However, the back cover member 129 can restrict the return of the pulverized material to the charging path 120. That is, if the pulverized material is scattered from the pulverization chamber 26 side, the scattered material hits the back surface 129a of the back cover member 129. When a pressing force is applied by this collision, the back cover member 129 swings in the direction of the arrow I, and the lower end portion 135b of the back cover member 129 is turned on as shown in the phantom line of FIG. It contacts the lower edge of the front wall 113 of the structure 110. As a result, the charging path 120 is blocked at the bottom. For this reason, it is possible to improve the effect of preventing the pulverized material from flowing out through the inlet 122. In addition, the back cover member 129 can allow the material to be crushed to be put into the pulverization chamber, and the back cover member 129 does not disturb the charging into the pulverization chamber 26.

  The inner lid member 128 has a plate-shaped main body plate 130 whose upper edge 130a is pivoted in the input path so as to be displaceable between the input path closed state and the input path open state, and the main body plate 130 is connected to the input path. It can comprise with the weight part 131 made into a closed state. That is, the weight of the weight portion 131 allows the main body plate 130 to be swung so as to be in the closing path, and if the object to be crushed passes through the inner lid member 128, it is pressed by the object to be crushed. The main body plate 130 is opened.

  The back cover member 129 can be configured by a swing plate 135 having an upper end edge portion 135a pivotally connected in the input path. In other words, in the free state, the swinging plate 135 can maintain the vertical state, thereby restricting the return of the pulverized material to the charging path 120. Further, if the object to be crushed passes through the back cover member 129, the object to be crushed is pushed by the object to be crushed to allow passage of the object to be crushed.

Further, according to the pulverizer, the object to be pulverized can be lifted to the pulverization chamber 26 side by the guide body 75 provided on the downstream side of the guide path 20, and the object to be pulverized is brought into contact with the hammer member 29. Can do. That is, the object to be pulverized does not adhere to the inner surface of the pulverizing chamber 26, and the object to be pulverized can be stably pulverized.

  Since the pulverized material is discharged to the outside (downward) from the hole portion 74 of the discharge plate 73, the pulverized material larger than the diameter of the hole portion 74 is not discharged and remains in the pulverization chamber 26, and further, the hammer member 29 and the fixed blade 47. For this reason, only the pulverized material pulverized to the diameter of the hole 74 or less can be discharged to the outside. Further, the fixed blade 47 and the guide body 75 are attached to the arc-shaped holding plates 65 and 76, respectively, and are excellent in handleability.

  By attaching the fixed blade 47 and the guide body 75 to the arc-shaped holding plates 65 and 76 in the plate fitting groove 66 of the casing 21, respectively, the discharge plate 73 and the plates 65 and 76 of the fixed blade 47 and the guide body 75 are mounted. Can be attached to the casing 21, and the fixed blade 47, the guide body 75, etc. can be easily set. Moreover, the mounting work of the plates 65 and 76 can be performed through the opening 40 provided in the casing 21. By closing the opening 40 with the lid member 32, the plates 65 and 76 mounted in the plate fitting groove 66 can be fixed.

  Therefore, the opening 40 is opened, the fixed blade 47 and the guide body 75 are fitted to the arc-shaped holding plates 65 and 76 in the plate fitting groove 66 of the casing 21, respectively, and the lid member 32 is closed. Then, the fixed blade 47, the guide body 75, etc. can be set at a fixed position. If the lid member 32 is opened from the set state, the fixed state of the plates 65 and 76 is released, and the discharge plate 73, the fixed blade 47, and the plates 65 and 76 of the guide body 75 can be taken out. It becomes.

  Therefore, the maintenance and replacement work of the fixed blade 47, the guide body 75, etc. can be performed in a short time and reliably, and this pulverizer can be used stably over a long period of time, which contributes to a reduction in running cost.

  Further, since the object to be crushed is pulverized by the hammer member 29 and the fixed blade 47, it can be pulverized by paper such as a soft book or a hard substrate. Various information (personal information, etc.) Can be crushed to a non-reproducible state. In addition, when paper is crushed with an existing shredder, the paper fibers are finely cut, so it is inferior in recyclability. However, when paper is crushed with the pulverizer of the present invention, the paper fibers remain relatively recyclable. Excellent.

  FIG. 17 shows a modified example of the fixed blade 47 b (150) attached to the arc-shaped holding plate 65. As shown in FIGS. 18 and 19, the fixed blade 47 b includes a rectangular base portion 140 and a pair of relatively thick rising walls that are erected from both end portions (long side end portions) of the base portion 140. 141, 141. Bolt holes 142 are formed in the base 140. The bolt hole 142 includes a large diameter portion 142a and a through hole 142b communicating with the large diameter portion 142a. A bolt member (not shown) is inserted into the bolt hole 142 and screwed to the plate 65.

  In this case, the arc-shaped holding plate 65 includes two fixed blades 150A and 150B on the upper side, and a lower fixed blade 150C disposed between the fixed blades 150A and 150B. Blade portions 143 and 143 are provided on the sides of the rising walls 141 and 141. The blade portion 143 is arranged so as to face upward. Further, the blade edge 143 a of the blade portion 143 has a taper that inclines backward from the base portion 140 side toward the distal end side of the rising wall 141. That is, the blade edge 143a is inclined with respect to the radial direction of the arc surface corresponding to the circular locus drawn by the tip end of the hammer member 9 during rotation. It is positioned by the positioning block 145 of the fixed blades 150A and 150B.

  Such a fixed blade 150 has high rigidity, and furthermore, since the blade edge 143a of the blade portion 143 is tapered, it can be stably pulverized.

  Note that fixed blades 150D and 150E as shown in FIG. 20 may be used as the fixed blade 47a fixed to the flat holding plate 64. Since these fixed blades 150D and 150E are the same as the fixed blades 150A, 150B and 150C, description thereof will be omitted.

  Incidentally, the hammer member 29 may be as shown in FIGS. The hammer member (second hammer member) 29b in this case has a flat hammer portion 100 on the tip side and a crushing blade 101 in the center. Also in the hammer member 29b, a recess 50 that fits to the outer peripheral surface of the rotary shaft 45 is formed at the base edge, and a through-hole 53 for attaching the hammer member 29b is formed in the vicinity of the recess 50. Is provided.

  For this reason, this hammer member 29b can also be attached to the rotating shaft 45 easily and in a short time, and can rotate integrally with the rotating shaft 45. In particular, by using this hammer member 29, the object to be crushed can be hit and crushed by the flat plate hammer portion 100 on the front end side. Moreover, the tape etc. which are entangled with the hammer member 29b etc. in the center part of the crushing chamber 26 can be cut (sheared).

  Therefore, the hammer member 29b shown in FIGS. 21 to 23 is optimal for crushing cassette tapes. 9 to 11, the cassette tapes can be crushed, and even the hammer member 29b shown in FIGS. 21 to 23 can grind paper. Is possible.

  Since each hammer member 29a, 29b can be attached and detached easily and in a short time, the hammer member 29b shown in FIG. 21 and the like and the hammer member 29a shown in FIG. The hammer member 29 can be exchanged according to the object.

  By arranging a plurality of types of hammer members 29, the hammer members 29 can be exchanged according to the type of object to be crushed. Therefore, the object to be crushed can be crushed by the hammer member 29 that is optimal for pulverization, and the pulverization accuracy as a pulverizer is improved.

  As described above, in the pulverizer, various objects such as a substrate (a substrate on which electronic parts are mounted), a magnetic tape recording medium such as a cassette tape, an optical recording medium, and paper can be used. It is. That is, with this pulverizer, it is possible to pulverize from a hard object (for example, a base) to a soft object (for example, paper) with a single machine. For this reason, conventionally, the pulverizer to be used has been selected depending on the material, shape, size, hardness, etc. of the material to be pulverized. A wide range of pulverization is possible with a single unit. Therefore, the facility cost can be reduced, the running cost is lowered, the processing cost is reduced as a whole, and the personal information is excellent in protection and recyclability.

  As described above, the embodiment of the present invention has been described. However, the present invention is not limited to the above-described embodiment, and various modifications are possible. For example, the shape, size, number, and the like of the hole 155 of the discharge plate 73 The pulverized product discharged to the pulverized product storage unit can be variously changed according to the particle size and the like, and the hole 155 has different shapes and different sizes without having the same shape and size. May be. The amount of displacement of the height of the guide portion 157 can be variously changed in consideration of the insertion / removal properties of the discharge plate 73.

  Although the back cover member 129 does not block the charging path 120 in the free state, the back cover member 129 may be in contact with the front wall 113 of the charging path structure 110 and closed in this free state. . Further, the rear cover member 129 may be omitted, and conversely, in addition to the insertion port cover member 125, the inner cover member 128, and the rear cover member 129, another cover member is additionally provided. May be. Even if the inner lid member 128 is constituted by the swing plate 135 or the like like the inner lid member 129, the inner lid member 129 is provided with a flat plate-like main body portion and a weight portion like the inner lid member 128. You may comprise. As the elastic member 127 for closing the charging port lid member 125, various springs can be used as long as they can elastically press in the direction for closing the charging port lid member 125 (the direction of arrow E in FIG. 8A). A member can be used. The shape, size, and the like of the charging port 122 can be variously changed as long as the material to be crushed can be charged.

  Increasing or decreasing the number of hammer member assemblies and the number of hammer members 29 in each hammer member assembly are arbitrary. Increasing or decreasing the number of fixed blades 47 arranged on one plate 64, 65 is also arbitrary. Furthermore, the number of plates 65 fitted in the plate fitting grooves 66 and the circumferential length of the plates 65 can be arbitrarily set.

  A discharge hole may also be provided in the plate 65 for fixing the fixed blade 47, and the pulverized material may be discharged from the discharge hole into the product chamber (crushed material storage chamber). In this case, the discharge holes and the discharge holes 74 of the discharge plate are not limited to circular holes, but may be elliptical holes, triangular holes, rectangular holes, or the like, and may be slit holes or the like. May be.

  The fixed blade 47 may be disposed on the inner surface of the peripheral wall 89 of the lid member 32. In addition, a plurality of crushing assisting protrusions 95 (such as a bar extending in the horizontal direction having a square or rectangular cross section) may be provided on the inner surface of the peripheral wall 89 of the lid member 32. , The tip edge of the hammer member 29 passes in the vicinity of the crushing assisting convex portion 95 of the lid member 32, and the cutting piece is crushed by the tip edge of the hammer member 29 and the crushing assisting convex portion 95. .

  Further, the rotational speed of the hammer member 29 can be changed according to the type of the object to be crushed, and at this time, the rotational speed may be changed between the initial stage of pulverization and the final stage of pulverization. In this case, at the initial stage of pulverization, the speed is gradually increased, and then the speed is gradually increased, or at the initial stage of pulverization, the engine is operated at a low speed for a predetermined time. This high speed can be operated for a predetermined time.

  Since the fixed blade shown in FIGS. 18 and 19 has high rigidity, the fixed blade 150 may be provided so as to pulverize the object to be crushed into the guide passage 20 with the fixed blade 150. Good. Further, the number and arrangement pitch of the fixed blades 150 arranged in each part can be variously changed within a range not impairing the rotation of the hammer member.

It is a side view of the grinder main body which shows embodiment of this invention. It is an expanded view of the state which removed the cover member of the grinder main body of the said grinder. It is a simplified front view of the pulverizer. It is a perspective view of the plate for discharge. It is a side view of the plate for discharge. It is a simplified sectional view of a crushing chamber. It is a side view of the input path of the grinder of a grinder. The charging path of a crusher is shown, (a) is a simplified view of the closing state of the charging port lid member, (b) is a simplified view of the opening state of the charging port lid member, and (c) is a simplified view of the open state of the internal lid member. It is. It is a front view of a hammer member. It is a side view of a hammer member. FIG. 10 is a sectional view taken along line XX in FIG. 9. It is a top view which shows a fixed blade and a holding plate. It is sectional drawing of the plate for holding holding the fixed blade. It is sectional drawing of the plate for holding holding the fixed blade. It is a top view which shows a guide body and a plate for holding. It is sectional drawing of the plate for holding holding the guide body. It is a top view which shows the modification of the fixed blade by the side of a guide path. It is a front view of the modification of a fixed blade. It is a side view of the modification of a fixed blade. It is a top view which shows the modification of the fixed blade of a casing upper wall side. It is a front view of another hammer member. It is a side view of another hammer member. It is the YY sectional view taken on the line of FIG. It is sectional drawing of the conventional grinder.

Explanation of symbols

23 Discharge port 26 Crushing chamber 27 Crushing means 73 Discharge plate 155 Hole 156 Body 157 Guide part

Claims (3)

A pulverization chamber containing the pulverization means, and a pulverized material storage section for receiving the pulverized product pulverized by the pulverization means are provided below the pulverization chamber. A crusher in which an outlet is formed, and a discharge plate having a large number of holes through which pulverized material passes is disposed at the discharge port,
The discharge plate is suspended from the main body portion of the arc-shaped flat plate having a large number of holes through which the pulverized material passes, and from the side edge of the arc-shaped flat plate and along the arc direction provided on the inner surface of the crushing chamber. And a guide part that fits into the extending fitting groove. The height of the guide part is a tapered shape that changes along the arc direction, and the vertical width of the fitting groove corresponds to the guide part. A crusher characterized by having a taper shape that changes along the arc direction. The crusher according to claim 1, wherein a lid member that can be freely opened and closed is attached to the crushing chamber, and the guide portion of the discharge plate can be taken in and out when the lid member is open. The pulverizer according to claim 2, wherein the height of the guide portion is set higher on the opening side of the pulverization chamber in which the lid member is mounted.

Images
