Abstract

<P>PROBLEM TO BE SOLVED: To increase underground water without the sedimentation of a deposite by percolating underground running water in a channel. <P>SOLUTION: The channel is formed of a bottom face 13 and a pair of side walls 11, 12 provided at facing side edges at the bottom face 13. A water collecting part 16 having slant faces 14, 15 inclined up and down in the flowing direction, and in the lower part of the water collecting part 16, a draining part 17 is arranged that continuously drains water accumulated in the water collecting part 16 to the outside so as not to form a step between the slants 14, 15. <P>COPYRIGHT: (C)2004,JPO&NCIPI

Description

【０００１】
【発明の属する技術分野】
本発明は、地下への透水を可能とし、且つ、ヘドロ・ゴミ等が堆積しない水路及び水路用ブロックに関する。
【０００２】
【従来の技術】
従来、水路底部より水を地面（地下）に染み込ませるには、図１６、図１７に示すように枡１０１等を設置していた。水路の要部には枡部が設けられており、枡部１０１の内部には、砂利１０２等が敷き詰められて砂利１０２等により外部と連通している。雨水が水路を流れた後は、水路底面部には雨水は存在しないが、要所に設けられた枡部１０１には雨水１０３が溜まっている状態となる。この枡部１０１に溜まった雨水は、砂利１０２等を浸透して、地下へ透水し、地下水の増量を図っている。
【０００３】
しかし、このような水路及び枡部は、雨水が透水した後に透水部である砂利１０２上に雨水に含まれていたヘドロ・ゴミ１０４等が堆積し、悪臭又はボーフラ等が発生する等の問題があった。
【０００４】
【発明が解決しようとする課題】
現在、降雨量が少ないことによる深刻な水不足が問題となっている地域がある。例えば、平成１４年の松山地方もその一つである。水路内の水をそのまま海に流出するのではなく、少しでも地下に透水させ、地下水の増量を図る必要がある。
【０００５】
また、従来の水路における透水部にはヘドロ・ゴミ等が堆積し、悪臭の原因又はボーフラ等が発生する原因となっている。これらのヘドロ・ゴミ等の影響を避けるため浸透用の枡を設けることを敬遠する地域もあった。
【０００６】
したがって、本発明は、ヘドロ・ゴミ等が堆積することなく、水路内の水を地下に透水させ、地下水の増量を可能とする水路及びこれに用いる水路用ブロックの提供を目的とするものである。
【０００７】
【課題を解決するための手段】
上述したような目的を達成するために提案される本発明に係る水路用ブロックは、底面部と、上記底面部に相対向する側縁に設けられた一対の側壁とからなり、開口された流水方向に他の水路用ブロックと連結されて水路を形成し、上記底面部には、流水方向の上下に傾斜した傾斜面を有する集水部が設けられ、上記集水部には、上記集水部の下方に、上記傾斜面と段差を有しないように連続して上記集水部に貯留した水を外部に排出する排水部が設けられているものである。
【０００８】
この水路用ブロックに設けられた集水部は、雨等の流水が流れた後も、一定期間は流水を保有することができ、集水部の下部に設けられる排水部から地下に流水を排出させることができる。換言すれば、地面に流水を供給することができ、地下水の増量を図ることができる。また、この集水部は、底面部に設けられた傾斜面により形成されており、雨等により、ある程度の流量がある時に、排水部に堆積したゴミ・ヘドロ等を流動させ、取り除くことができる。
【０００９】
また、本発明に係る水路用ブロックの集水部に設けられた傾斜面は、排水部との間に段部が形成されないように構成しているため、水路内を流れる流水により、排水部に堆積したゴミ・ヘドロ等を容易に取り除くことができる。
【００１０】
また、本発明に係る水路用ブロックを用いた水路は、底面部と、上記底面部に相対向する側縁に設けられた一対の側壁とからなる水路用ブロックを開口された流水方向に連結して形成され、上記底面部には、流水方向の上下に傾斜した傾斜面を有する集水部が設けられ、上記集水部には、上記集水部の下方に、上記傾斜面と段差を有しないように連続して上記集水部に貯留した水を外部に排出する排水部が設けられ、上記水路用ブロックの下側に、上記排水部から排出した水を透水する透水部が設けられているものである。本発明に係る水路用ブロックを用いた水路は、ゴミ・ヘドロ等が堆積することなく、地下に水を供給できるので、地下水を増量させることができる。
【００１１】
【発明の実施の形態】
以下、本発明に係る水路及びこれに用いる水路用ブロックの具体的な実施の形態について、図面を参照しながら説明する。
【００１２】
本発明に係る水路に用いる水路用ブロックは、図１に示すように、底面部１３と、この底面部１３の相対向する側縁に設けられた一対の側壁１１、１２とから構成される。
【００１３】
この一対の側壁１１、１２と底面部１３は、流水方向に垂直な平面状に略Ｕ字状の断面形状を有しており、この内部に雨水等の流水を流す水路を形成する。
【００１４】
底面部１３には、流水方向の上下に傾斜した傾斜面１４、１５を有する集水部１６が設けられている。傾斜面１４、１５は、流水方向の互いに異なる方向に上下に傾斜しており、この傾斜面１４、１５により囲まれた部分は流水し、流水が終了した時に、流体を集水して、所定量溜めることができる集水部１６を形成する。尚、本実施例では、図１に示すように、傾斜面１４、１５は、連続的に滑らかに形成された曲線状であるが、直線状に傾斜したものでも良い。
【００１５】
この集水部１６には、集水部１６の下方の一番低い部分に、集水部１６に溜めた水を外部、すなわち地面（土）に排出する排水部１７が設けられている。この排水部１７は、例えば、図１に示すように傾斜面１４、１５の下端に設けた開口部１８である。
【００１６】

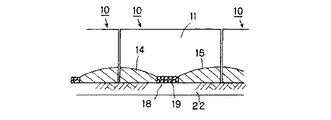

図２に示すように、開口部１８には、底面部１３の開口端における段差をなくすように砂利等からなる透水材１９を配設する。この開口端に配設された透水材１９により、排水部１７（開口部１８）と傾斜面１４、１５は、段差を有しない滑らかな面を形成している。本実施例では、透水材１９として、砂利を敷設しているが、砕石等の流水に流されることなく、且つ透水性を有するものであれば良い。
【００１７】
本発明に係る水路は、上述の水路用ブロックの下側に、上記排水部１７から排出した水を透水する透水部２２が設けられている。この透水部２２には、砂利、砂、モルタル、砕石等からなる透水部材が配設されている。
【００１８】
この水路に、雨等の流水が流れ込んだ時、水路は図３に示すような状態となる。さらに、この流水の流入が終わった時、水路は図４に示すような状態となる。図中矢印Ａは、流水の流れ方向を示すものである。図４に示すように、傾斜面１４、１５により囲まれた集水部１６には、集水された流水２０を所定量溜めることができる。このとき、傾斜面１４、１５の高低差、傾斜量を変更することにより、この流水を保有できる量を調整することが可能である。集水部１６に保有された流水２０は、排水部１７から外部、すなわち、水路の下の地面に排出される。このとき、本実施例では、開口部１８（排水部１７）に設けられた透水材１９を透水して排出される。
【００１９】
図５に示すように、集水部１６に保有された流水が排水部１７を透水して外部に排出された後、排水部１７には、流水２０中に含まれた堆積物２１が堆積する。この堆積物２１は、雨水等に含まれるゴミやヘドロ等である。また、図７は、集水部１６に保有された流水２０が透水され、堆積物２１が堆積している状態を示す図である。ここで、透水部に段差を有する段部が形成された場合は、堆積物は、その段部に堆積してしまう恐れがある。また、このゴミやヘドロ等の堆積物は、長期間堆積することで、悪臭の原因又はボーフラ等が発生する原因となる。ここで、排水部１７から外部に排出された流水は、水路用ブロックの下側に設けられた透水部２２を透水して、地下に流入する。
【００２０】
上述のように、排水部１７と傾斜面１４、１５は段差を有しない滑らかな面を形成しているため、この堆積物２１は、次に流水２０等が流入し、一定の流速となった時、図６に示すように、その流水２０の流れの勢いにより、排水部１７から流されて、取り除かれる。堆積物２１が除去された後は、図４に示すように、集水部１６に流体が保有された状態となる。このように、本願に係る水路用ブロック及びこれを用いた水路は、堆積物２１を堆積させることなく、排水部１７から流水２０を排出させることができるものである。すなわち、本願に係る水路用ブロック及びこれを用いた水路は、堆積物２１を堆積することなく、地面に水を供給し、地下水を増加させることを可能とするものである。
【００２１】
さらに、上述の実施例では、集水部が底面部の略中央に設けられているが、図８に示すように、集水部３６が底面部３３の流路方向の両端に設けられていても良い。この水路用ブロック３０の底面部３３には、流路方向に傾斜面３４、３５が設けられる。一の水路用ブロック３０の傾斜面３４と、この水路用ブロック３０に隣接する水路用ブロックの傾斜面により囲まれた部分が集水部３６となる。この集水部３６の下方の一番低い部分に、集水部３６に溜められた水を外部に排出する排水部として、例えば開口部３８が形成されている。図８に示すように、集水部３６が底面部３３の流路方向の両端に設けられた場合も、上述と同様の機能を有するので、堆積物が堆積することなく、地下に流水を排出可能である。また、上述の実施例において、傾斜面は２つ設けられているが、傾斜面は１つでも良い。
【００２２】
次に、本願の水路用ブロックの他の実施例について、図９、図１０を、用いて説明する。尚、上述の実施例と同様のものには、同じ符号を付して、説明を省略する。
【００２３】
本実施例に係る水路用ブロック４０は、集水部４６が底面部４３の一の対角線上を略頂部として下方に傾斜する２つの傾斜面４４、４５を有し、各傾斜面の下側に排水部４７が設けられている。
【００２４】
底面部４３の対角線の内一の対角線４９は、略頂部を形成し、この対角線４９の両側には、下方に向かって傾斜する傾斜面４４、４５が形成される。図１０に示すように、一の水路用ブロック４０の傾斜面４４と、該傾斜面に接するように配設された他の水路用ブロック４０ａの傾斜面の内、傾斜面４４に相対向する傾斜面４５ａとにより囲まれた領域は雨水等が流水した後に、流水を溜めることができる集水部４６を形成する。この集水部４６には、その一番低い部分に排水部４７が設けられる。この排水部４７は、集水部４６が保有した流水を、透水させ、地面（土）に排出させる。この排水部４７は、例えば、図９に示すように底面部４３の流水方向の両端に設けられた開口部４８である。
【００２５】
この開口部４８も、上述の実施例と同様に、砂利等の透水材１９が敷設されることにより、一の水路用ブロック４０の傾斜面４４、他の水路用ブロック４０ａの傾斜面４５ａ及び開口部４８は、段差のない滑らかな面を形成している。よって、本実施例に係る水路用ブロック４０及びこれを用いた水路は、堆積物が堆積することなく、地下に流水を排出可能とするものである。
【００２６】
また、本願の水路用ブロックのさらに他の実施例について、図１１、図１２を用いて説明する。尚、上述の実施例と同様のものには、同じ符号を付して、説明を省略する。
【００２７】
この水路用ブロック５０は、集水部６１が底面部５３の一対の対角線５８、５９の交点となる略中心を頂部として下方に傾斜する４つの傾斜面５４〜５７を有し、流水方向に相対向する傾斜面の下側に排水部６２を設ける。
【００２８】
底面部５３の一対の対角線５８、５９の交点は、最も厚みを有して形成される。換言すると、対角線５８、５９の交点は、頂部６０を形成し、対角線５８、５９に沿って四方に傾斜面５４〜５７を有している。
【００２９】
図１２に示すように、一の水路用ブロック５０の傾斜面５４と該傾斜面が隣接するように配設された他の水路用ブロック５０ａの傾斜面５５ａにより囲まれた領域は雨水等が流水した後に、流水を溜めることができる集水部６１を形成する。この集水部６１には、その一番低い部分に排水部６２が設けられる。この排水部６２は、集水部６１が保有した流水を、透水させ、地面（土）に排出させる、この排水部６２は、例えば図１１に示すように底面部５３の流路方向の両端に設けられた開口部６３である。
【００３０】
この開口部６３も、上述の実施例と同様に、砂利等の透水材１９が敷設されることにより、一の水路用ブロック５０の傾斜面５４、他の水路用ブロック５０ａの傾斜面５５ａ及び開口部６３は、段差のない滑らかな面を形成している。よって、本実施例に係る水路用ブロック５０及びこれを用いた水路は、堆積物が堆積することなく、地下に流水を排出可能とするものである。
【００３１】
また、本願の水路用ブロックのさらに他の実施例について、図１３〜図１５を用いて説明する。本実施例に係る水路用ブロック７０は、図１３に示すように、底面部７３と、この底面部１３の流水方向に相対向する側縁に設けられた一対の側壁７１、７２とから構成される。この一対の側壁７１、７２と底面部７３は、流水方向に垂直な平面上に略Ｕ字状の断面形状を有しており、この内部に雨水等の流水を流す水路を形成する。
【００３２】
底面部７３には、流水方向の上下に傾斜した傾斜面７４、７５と、流水方向と略直角方向に傾斜する傾斜面７６とを有する集水部７８が設けられている。傾斜面７４、７５は、流水方向の互いに異なる方向に上下に傾斜している。この傾斜面７４、７５と流水方向と略直角方向に傾斜する傾斜面７６により囲まれた部分は流水し、流水が終了した時に、流水を集水して、所定量溜めることができる集水部７８を形成する。この集水部７８には、集水部７８の下方の一番低い部分に、集水部７８に溜めた水を外部、すなわち地面（土）に排出する排水部７９が設けられている。
【００３３】
この排水部７９は、例えば、図１５に示すように、傾斜面７６の下側で接触する側壁７２との角部７７に形成されており、外部に連通する貫通孔８０である。この貫通孔８０には、集水部７８に保有した流水を、離れた位置で排水可能な配水管８１が挿入される。この配水管８１には、砂利等の透水材８２等が傾斜面７４、７５、７６及び側壁７２と滑らかな面を形成するように詰め込まれる。この透水材８２により、排水部７９は、傾斜面７４〜７６と段差を有さない。よって、この配水管８１は、流水のみを透水させ、堆積物８３は、透水材８２により排水部７９付近に堆積する。この堆積物８３は、上述の実施例と同様に、次に流水が流入し、一定の流速となった時、排水部７９が傾斜面７４〜７６と段差のない滑らかな面を形成するため、流水の流れの勢いにより、排水部７９から流されて取り除かれる。尚、この排水部７９を用いた場合は、図１４、図１５に示すように配水管８１を貯水槽８５に接続させることにより、排水を貯水槽８５に貯留することができる。
【００３４】
ところで、水路を形成する地域には、水路底面部から流水を浸透させることにより、地盤沈下等が発生する危険性がある地域がある。この水路用ブロック７０は、配水管８１により集水部７８に保有した流水を離れた位置で排水できるので、例えば、水路を地盤沈下等が発生する危険性がある場所に設置する場合でさえも、この配水管８１により地盤沈下の危険性がない安全な位置まで導き排出させることが可能である。
【００３５】
このように、本実施例に係る水路用ブロック７０は、地盤沈下等が発生する危険性がある地域にも適用可能であり、且つそのような地域であっても堆積物が堆積することなく地下に流水を排出可能とするものである。
【００３６】
また、上述のいずれかの水路用ブロックを用いて水路を形成する時は、従来の水路と同様に、隣接する側壁をプレートで固定し、その継ぎ目にはモルタル等の目地材を注入することで実現する。水路には、蓋付タイプ、開放タイプ、ＪＩＳ製品タイプ、大型等があるが、本実施例は、いずれの場合にも適用可能である。
【００３７】
【発明の効果】
上述したように、本発明の水路用ブロック及びこれを用いた水路は、堆積物を堆積させることなく、排水部から流水を排出させることができ、この流水を地下水に供給することができる。よって、簡易な構造で容易に地下水の増量を図ることができるものである。
【図面の簡単な説明】
【図１】本発明の実施例に係る水路用ブロックの斜視図である。
【図２】本発明の実施例に係る水路用ブロックの断面図である。
【図３】本発明の実施例に係る水路用ブロックに流水が流入した状態を示す断面図である。
【図４】本発明の実施例に係る水路用ブロックへの流水の流入が終了した直後の状態を示す断面図である。
【図５】本発明の実施例に係る水路用ブロックの排水部から流水の透水が終了した状態を示す断面図である。
【図６】本発明の実施例に係る水路用ブロックの排水部に堆積した堆積物が除去される時の状態を示す断面図である。
【図７】本発明の実施例に係る水路用ブロックの堆積物が堆積する状態を示す平面図である。
【図８】本発明の実施例に係る水路用ブロックの集水部の位置を変えたことを示す斜視図である。
【図９】底面部の一の対角線上を略頂部として下方に傾斜する２つの傾斜面を有した水路用ブロックの斜視図である。
【図１０】底面部の一の対角線上を略頂部として下方に傾斜する２つの傾斜面を有した水路用ブロックの平面図である。
【図１１】底面部の一対の対角線の交点となる略中心を頂部として下方に傾斜する４つの傾斜面を有する水路用ブロックの斜視図である。
【図１２】底面部の一対の対角線の交点となる略中心を頂部として下方に傾斜する４つの傾斜面を有する水路用ブロックの平面図である。
【図１３】集水部から遠く離れた位置で排水可能な水路用ブロックの斜視図である。
【図１４】集水部から遠く離れた位置で排水可能な水路用ブロックの平面図である。
【図１５】集水部から遠く離れた位置で排水可能な水路用ブロックの配水管を挿入した状態を示す図である。
【図１６】従来の水路の枡部を示す斜視図である。
【図１７】従来の水路の枡部を示す断面図である。
【符号の説明】
１０ 水路用ブロック、 １１、１２ 側壁、 １３ 底面部、 １４、１５傾斜面、 １６ 集水部、 １７ 排水部、１８ 開口部、 １９ 透水材、２０ 流水、 ２１ 堆積物[0001]
TECHNICAL FIELD OF THE INVENTION
TECHNICAL FIELD The present invention relates to a waterway and a waterway block that allow water to pass underground and do not accumulate sludge and dirt.
[0002]
[Prior art]
Conventionally, a basin 101 or the like is installed as shown in FIGS. 16 and 17 to allow water to permeate the ground (underground) from the bottom of the waterway. A basin is provided in a main part of the waterway, and a gravel 102 and the like are spread inside the basin 101 and communicate with the outside by the gravel 102 and the like. After the rainwater flows through the waterway, there is no rainwater at the bottom of the waterway, but rainwater 103 is stored in the basin 101 provided at a key point. The rainwater accumulated in the basin 101 penetrates the gravel 102 and the like and permeates underground to increase the amount of groundwater.
[0003]
However, such a waterway and a basin have a problem that after the rainwater permeates, the sludge / garbage 104 and the like contained in the rainwater accumulate on the gravel 102 which is a water permeable portion, thereby generating a bad smell or a bobble. there were.
[0004]
[Problems to be solved by the invention]
At present, there are areas where serious water shortages due to low rainfall are a problem. For example, the Matsuyama district in 2002 is one of them. It is necessary to increase the amount of groundwater by allowing the water in the canals to permeate underground as much as possible, instead of flowing into the sea.
[0005]
In addition, sludge, dust, and the like accumulate in the water-permeable portion of the conventional waterway, causing a bad smell or a boula. Some areas have refused to set up a measure for infiltration to avoid the effects of sludge and trash.
[0006]
Accordingly, an object of the present invention is to provide a waterway that allows the water in the waterway to permeate underground without accumulating sludge and garbage and the like and increase the amount of groundwater, and a waterway block used for the waterway. .
[0007]
[Means for Solving the Problems]
A waterway block according to the present invention proposed to achieve the object as described above has a bottom surface portion and a pair of side walls provided on side edges opposed to the bottom surface portion, and an open flowing water block is provided. A water channel is formed by being connected to another water channel block in the direction, and a water collecting portion having an inclined surface that is vertically inclined in the flowing water direction is provided on the bottom surface portion, and the water collecting portion includes the water collecting portion. A drain portion is provided below the portion to continuously discharge the water stored in the water collecting portion to the outside so as not to have a step with the inclined surface.
[0008]
The water collecting part provided in this waterway block can retain the flowing water for a certain period even after flowing water such as rain, and discharge the flowing water to the underground from the drainage part provided at the lower part of the water collecting part Can be done. In other words, running water can be supplied to the ground, and the amount of groundwater can be increased. In addition, the water collecting portion is formed by an inclined surface provided on the bottom portion, and when there is a certain flow rate due to rain or the like, garbage and sludge accumulated in the drainage portion can flow and be removed. .
[0009]
In addition, since the inclined surface provided in the water collecting portion of the waterway block according to the present invention is configured so that a step portion is not formed between the water collecting portion and the drainage portion, the flowing water flowing in the waterway causes the drainage portion to have an inclined surface. Accumulated garbage and sludge can be easily removed.
[0010]
In addition, the water channel using the water channel block according to the present invention, the bottom portion, and a water channel block composed of a pair of side walls provided on the side edge opposed to the bottom portion is connected in the flowing direction of the open water. A water collecting portion having an inclined surface that is vertically inclined in the direction of flowing water is provided on the bottom surface portion, and the water collecting portion has a step with the inclined surface below the water collecting portion. A drain portion for continuously discharging the water stored in the water collecting portion to the outside so as not to be provided is provided, and a water permeable portion for transmitting water discharged from the drain portion is provided below the waterway block. Is what it is. The water channel using the water channel block according to the present invention can supply water to the underground without accumulating garbage and sludge, so that the amount of groundwater can be increased.
[0011]
BEST MODE FOR CARRYING OUT THE INVENTION
Hereinafter, specific embodiments of a waterway according to the present invention and a waterway block used for the waterway will be described with reference to the drawings.
[0012]
As shown in FIG. 1, the waterway block used in the waterway according to the present invention includes a bottom surface portion 13 and a pair of side walls 11 and 12 provided on opposing side edges of the bottom surface portion 13.
[0013]
The pair of side walls 11, 12 and the bottom portion 13 have a substantially U-shaped cross-sectional shape in a plane perpendicular to the flowing water direction, and form a water channel through which flowing water such as rainwater flows.
[0014]
The bottom 13 is provided with a water collecting part 16 having inclined surfaces 14 and 15 inclined vertically in the flowing water direction. The inclined surfaces 14 and 15 are vertically inclined in directions different from each other in the direction of flowing water, and a portion surrounded by the inclined surfaces 14 and 15 flows water. The water collecting part 16 which can store a fixed amount is formed. In the present embodiment, as shown in FIG. 1, the inclined surfaces 14 and 15 have a curved shape formed continuously and smoothly, but may have a linearly inclined shape.
[0015]
The water collecting part 16 is provided with a drain part 17 for discharging the water collected in the water collecting part 16 to the outside, that is, the ground (soil), at the lowest part below the water collecting part 16. The drain portion 17 is, for example, an opening 18 provided at the lower end of the inclined surfaces 14 and 15 as shown in FIG.
[0016]
As shown in FIG. 2, a water permeable material 19 made of gravel or the like is disposed in the opening 18 so as to eliminate a step at the opening end of the bottom portion 13. Due to the water permeable material 19 disposed at the opening end, the drain portion 17 (opening 18) and the inclined surfaces 14 and 15 form a smooth surface having no step. In the present embodiment, gravel is laid as the water-permeable material 19, but any material may be used as long as the material is not permeated by flowing water such as crushed stone and has water permeability.
[0017]
The waterway according to the present invention is provided with a water permeable portion 22 for passing water discharged from the drainage portion 17 below the waterway block. The water-permeable portion 22 is provided with a water-permeable member made of gravel, sand, mortar, crushed stone, or the like.
[0018]
When flowing water such as rain flows into this waterway, the waterway is in a state as shown in FIG. Further, when the inflow of the flowing water is completed, the water channel is in a state as shown in FIG. Arrow A in the figure indicates the flow direction of flowing water. As shown in FIG. 4, a predetermined amount of collected running water 20 can be stored in the water collecting portion 16 surrounded by the inclined surfaces 14 and 15. At this time, by changing the height difference between the inclined surfaces 14 and 15 and the amount of inclination, it is possible to adjust the amount that can hold the flowing water. The running water 20 held in the water collecting part 16 is discharged from the drain part 17 to the outside, that is, to the ground below the water channel. At this time, in the present embodiment, the water is permeated through the water permeable material 19 provided in the opening 18 (drainage portion 17) and is discharged.
[0019]
As shown in FIG. 5, the sediment 21 contained in the flowing water 20 accumulates in the draining part 17 after the flowing water retained in the water collecting part 16 permeates the draining part 17 and is discharged to the outside. . The sediment 21 is garbage or sludge contained in rainwater or the like. FIG. 7 is a diagram showing a state in which flowing water 20 held in the water collecting unit 16 is permeated and deposits 21 are deposited. Here, when a step having a step is formed in the water-permeable portion, the deposit may be deposited on the step. Further, the deposits such as dust and sludge are accumulated for a long period of time, and cause a bad smell or a boahura. Here, the flowing water discharged from the drainage unit 17 to the outside flows through the water-permeable unit 22 provided below the channel block, and flows into the underground.
[0020]
As described above, since the drainage portion 17 and the inclined surfaces 14 and 15 form a smooth surface having no step, the sediment 21 has a constant flow velocity with flowing water 20 or the like flowing in next. At this time, as shown in FIG. 6, the water 20 flows away from the drainage unit 17 and is removed by the force of the flowing water 20. After the sediment 21 is removed, as shown in FIG. 4, the water is collected in the water collecting part 16. As described above, the waterway block according to the present application and the waterway using the same can discharge the flowing water 20 from the drainage unit 17 without depositing the deposit 21. That is, the waterway block and the waterway using the same according to the present application can supply water to the ground and increase groundwater without depositing the sediment 21.
[0021]
Further, in the above-described embodiment, the water collecting portion is provided substantially at the center of the bottom portion. However, as shown in FIG. 8, the water collecting portions 36 are provided at both ends of the bottom portion 33 in the flow direction. Is also good. The bottom surface portion 33 of the channel block 30 is provided with inclined surfaces 34 and 35 in the flow channel direction. A portion surrounded by the inclined surface 34 of one waterway block 30 and the inclined surface of the waterway block adjacent to the waterway block 30 serves as a water collecting portion 36. For example, an opening 38 is formed in the lowest part below the water collecting part 36 as a drainage part for discharging the water stored in the water collecting part 36 to the outside. As shown in FIG. 8, even when the water collecting portions 36 are provided at both ends of the bottom surface portion 33 in the flow path direction, the same function as described above is performed, and the flowing water is discharged underground without deposits being deposited. It is possible. In the above-described embodiment, two inclined surfaces are provided, but only one inclined surface may be provided.
[0022]
Next, another embodiment of the waterway block of the present invention will be described with reference to FIGS. 9 and 10. The same components as those in the above-described embodiment are denoted by the same reference numerals, and description thereof will be omitted.
[0023]
The waterway block 40 according to the present embodiment has two inclined surfaces 44 and 45 in which the water collecting portion 46 inclines downward with one diagonal of the bottom portion 43 being substantially the top, and is provided below each inclined surface. A drain 47 is provided.
[0024]
One diagonal line 49 of the diagonal lines of the bottom surface portion 43 forms a substantially apex, and on both sides of the diagonal line 49, inclined surfaces 44 and 45 inclined downward are formed. As shown in FIG. 10, of the inclined surface 44 of one waterway block 40 and the inclined surface 44 of the other waterway block 40 a disposed so as to be in contact with the inclined surface, facing the inclined surface 44. A region surrounded by the surface 45a forms a water collecting portion 46 that can store flowing water after rainwater or the like flows. The water collecting part 46 is provided with a drain part 47 at the lowest part. The drain part 47 allows the flowing water held by the water collecting part 46 to permeate and discharge to the ground (soil). The drainage portions 47 are, for example, openings 48 provided at both ends of the bottom surface portion 43 in the flowing water direction as shown in FIG.
[0025]
Similarly to the above-described embodiment, the opening 48 is also provided with the permeable material 19 such as gravel, so that the inclined surface 44 of one channel block 40, the inclined surface 45a of the other channel block 40a and the opening are formed. The portion 48 forms a smooth surface without a step. Therefore, the waterway block 40 according to the present embodiment and the waterway using the same are capable of discharging flowing water underground without deposits being deposited.
[0026]
Still another embodiment of the waterway block of the present invention will be described with reference to FIGS. The same components as those in the above-described embodiment are denoted by the same reference numerals, and description thereof will be omitted.
[0027]
The waterway block 50 has four inclined surfaces 54 to 57 in which the water collecting portion 61 inclines downward with the approximate center, which is the intersection of the pair of diagonal lines 58 and 59 of the bottom portion 53, as the top, and is opposed to the flowing water direction. A drain 62 is provided below the facing inclined surface.
[0028]
The intersection of the pair of diagonal lines 58 and 59 of the bottom surface 53 is formed with the largest thickness. In other words, the intersection of the diagonal lines 58 and 59 forms the top 60, and has inclined surfaces 54 to 57 in four directions along the diagonal lines 58 and 59.
[0029]
As shown in FIG. 12, a region surrounded by the inclined surface 54 of one waterway block 50 and the inclined surface 55a of another waterway block 50a arranged so that the inclined surfaces are adjacent to each other is filled with rainwater or the like. After that, a water collecting portion 61 capable of storing running water is formed. The water collecting part 61 is provided with a drain part 62 at the lowest part thereof. The drainage portion 62 allows the flowing water held by the water collecting portion 61 to permeate and discharge the groundwater (soil). The drainage portion 62 is provided, for example, at both ends of the bottom portion 53 in the flow direction as shown in FIG. The opening 63 is provided.
[0030]
Similarly to the above-described embodiment, the opening 63 is also provided with the permeable material 19 such as gravel, so that the inclined surface 54 of one channel block 50, the inclined surface 55a of the other channel block 50a and the opening are formed. The portion 63 forms a smooth surface without a step. Therefore, the waterway block 50 according to the present embodiment and the waterway using the same are capable of discharging flowing water underground without deposits being deposited.
[0031]
Still another embodiment of the waterway block of the present invention will be described with reference to FIGS. As shown in FIG. 13, the waterway block 70 according to the present embodiment includes a bottom surface portion 73 and a pair of side walls 71 and 72 provided on side edges of the bottom surface portion 13 facing each other in the flowing water direction. You. The pair of side walls 71 and 72 and the bottom surface portion 73 have a substantially U-shaped cross-sectional shape on a plane perpendicular to the flowing water direction, and form a water channel through which flowing water such as rainwater flows.
[0032]
The bottom surface 73 is provided with a water collecting portion 78 having inclined surfaces 74 and 75 inclined vertically in the flowing water direction and an inclined surface 76 inclined substantially perpendicular to the flowing water direction. The inclined surfaces 74 and 75 are vertically inclined in directions different from each other in the flowing water direction. A portion surrounded by the inclined surfaces 74 and 75 and an inclined surface 76 inclined at a direction substantially perpendicular to the direction of flowing water is allowed to flow, and when the flowing is completed, a collecting portion capable of collecting the flowing water and storing a predetermined amount. 78 is formed. The water collecting part 78 is provided with a drain part 79 at the lowest part below the water collecting part 78 for discharging the water collected in the water collecting part 78 to the outside, that is, the ground (soil).
[0033]
For example, as shown in FIG. 15, the drain portion 79 is formed at a corner 77 with the side wall 72 that contacts below the inclined surface 76, and is a through hole 80 that communicates with the outside. A water distribution pipe 81 capable of draining the flowing water held in the water collecting portion 78 at a remote position is inserted into the through hole 80. A water permeable material 82 such as gravel is packed into the water distribution pipe 81 so as to form a smooth surface with the inclined surfaces 74, 75, 76 and the side walls 72. Due to the water permeable material 82, the drain portion 79 does not have a step with the inclined surfaces 74 to 76. Therefore, the water distribution pipe 81 allows only flowing water to permeate, and the sediment 83 is deposited near the drain part 79 by the water permeable material 82. This sediment 83 forms a smooth surface without a step with the inclined surfaces 74 to 76 when the flowing water flows in at a constant flow rate next time, as in the above-described embodiment, Due to the flow force of the running water, the water is washed out from the drainage section 79 and removed. When the drainage section 79 is used, the drainage can be stored in the water storage tank 85 by connecting the water distribution pipe 81 to the water storage tank 85 as shown in FIGS.
[0034]
By the way, in an area where a waterway is formed, there is an area where there is a danger that land subsidence or the like will occur due to infiltration of flowing water from the bottom of the waterway. Since the waterway block 70 can drain the flowing water held in the water collecting part 78 by the water distribution pipe 81 at a position away from the waterway, for example, even when the waterway is installed in a place where there is a danger of land subsidence or the like occurring. With this water distribution pipe 81, it is possible to guide and discharge to a safe position where there is no danger of land subsidence.
[0035]
As described above, the waterway block 70 according to the present embodiment can be applied to an area where there is a risk of land subsidence or the like, and even in such an area, sediment does not accumulate and It is possible to discharge running water.
[0036]
Also, when forming a water channel using any of the above-mentioned water channel blocks, similarly to the conventional water channel, the adjacent side wall is fixed with a plate, and a joint material such as mortar is injected into the joint at the joint. Realize. The water channel includes a type with a lid, an open type, a JIS product type, a large size, and the like, but this embodiment is applicable to any case.
[0037]
【The invention's effect】
As described above, the waterway block of the present invention and the waterway using the same can discharge running water from the drainage section without depositing sediment, and can supply the running water to groundwater. Therefore, the amount of groundwater can be easily increased with a simple structure.
[Brief description of the drawings]
FIG. 1 is a perspective view of a block for a waterway according to an embodiment of the present invention.
FIG. 2 is a sectional view of a block for a waterway according to an embodiment of the present invention.
FIG. 3 is a cross-sectional view showing a state where flowing water flows into a block for a waterway according to an embodiment of the present invention.
FIG. 4 is a cross-sectional view showing a state immediately after the inflow of flowing water into the waterway block according to the embodiment of the present invention.
FIG. 5 is a cross-sectional view showing a state in which permeation of flowing water from the drainage portion of the waterway block according to the embodiment of the present invention has been completed.
FIG. 6 is a cross-sectional view showing a state in which deposits accumulated in a drainage portion of the waterway block according to the embodiment of the present invention are removed.
FIG. 7 is a plan view showing a state in which deposits of the waterway block according to the embodiment of the present invention are deposited.
FIG. 8 is a perspective view showing that a position of a water collecting portion of the block for a waterway according to the embodiment of the present invention has been changed.
FIG. 9 is a perspective view of a block for a waterway having two inclined surfaces which are inclined downward with one diagonal on the bottom surface being substantially the top.
FIG. 10 is a plan view of a block for a waterway having two inclined surfaces inclined downward with one diagonal on the bottom being substantially the top.
FIG. 11 is a perspective view of a block for a waterway having four inclined surfaces inclined downward with a top at a substantially center which is an intersection of a pair of diagonal lines on the bottom surface.
FIG. 12 is a plan view of a block for a waterway having four inclined surfaces that are inclined downward with an apex at a substantially center which is an intersection of a pair of diagonal lines on the bottom surface.
FIG. 13 is a perspective view of a block for a water channel that can be drained at a position far from the water collecting section.
FIG. 14 is a plan view of a waterway block capable of draining at a position far from the water collecting section.
FIG. 15 is a diagram showing a state where a water pipe of a block for a water channel that can be drained at a position far from the water collecting section is inserted.
FIG. 16 is a perspective view showing a measure of a conventional waterway.
FIG. 17 is a cross-sectional view showing a measure of a conventional waterway.
[Explanation of symbols]
DESCRIPTION OF SYMBOLS 10 Block for waterway, 11, 12 Side wall, 13 Bottom part, 14, 15 Inclined surface, 16 Water collecting part, 17 Drainage part, 18 Opening part, 19 Permeable material, 20 Running water, 21 Sediment

Claims (7)

底面部と、上記底面部に相対向する側縁に設けられた一対の側壁とからなり、開口された流水方向に他の水路用ブロックと連結されて水路を形成する水路用ブロックにおいて、
上記底面部には、流水方向の上下に傾斜した傾斜面を有する集水部が設けられ、
上記集水部には、上記集水部の下方に、上記傾斜面と段差を有しないように連続して上記集水部に貯留した水を外部に排出する排水部が設けられている水路用ブロック。A bottom block and a pair of side walls provided on side edges opposed to the bottom section, in a channel block for forming a channel by being connected to another channel block in the direction of open flowing water,
In the bottom part, a water collecting part having an inclined surface that is vertically inclined in the flowing water direction is provided,
The water collecting portion is provided with a drain portion below the water collecting portion, a drain portion for continuously discharging water stored in the water collecting portion to the outside so as not to have a step with the inclined surface. block. 上記傾斜面は、連続的に滑らかに形成された曲線状である請求項１記載の水路用ブロック。The waterway block according to claim 1, wherein the inclined surface has a curved shape continuously and smoothly formed. 上記集水部は、上記底面部の一の対角線上を略頂部として下方に傾斜する２つの傾斜面を有し、各傾斜面の下側に排水部を設ける請求項１記載の水路用ブロック。2. The waterway block according to claim 1, wherein the water collecting portion has two inclined surfaces which are inclined downward with one diagonal on the diagonal line being substantially a top, and a drainage portion is provided below each inclined surface. 3. 上記集水部は、上記底面部の一対の対角線の交点となる略中心を頂部として下方に傾斜する４つの傾斜面を有し、流水方向に相対向する傾斜面の下側に排水部を設ける請求項１記載の水路用ブロック。The water collecting part has four inclined surfaces inclined downward with the approximate center, which is the intersection of a pair of diagonal lines of the bottom surface part, as a top part, and a drainage part is provided below the inclined surface facing the flowing water direction. The waterway block according to claim 1. 上記排水部は、上記傾斜面の下端に設けた開口である請求項１乃至請求項４の内いずれか１に記載の水路用ブロック。The waterway block according to any one of claims 1 to 4, wherein the drainage portion is an opening provided at a lower end of the inclined surface. 上記開口と上記傾斜面とが段差を有しないように、上記排水部の開口には、開口端における段差をなくすように透水材を配設する請求項５記載の水路用ブロック。The waterway block according to claim 5, wherein a water-permeable material is provided at the opening of the drainage portion so as to eliminate a step at the opening end so that the opening and the inclined surface have no step. 底面部と、上記底面部に相対向する側縁に設けられた一対の側壁とからなる水路用ブロックを開口された流水方向に連結して形成される水路において、
上記底面部には、流水方向の上下に傾斜した傾斜面を有する集水部が設けられ、
上記集水部には、上記集水部の下方に、上記傾斜面と段差を有しないように連続して上記集水部に貯留した水を外部に排出する排水部が設けられ、
上記水路用ブロックの下側に、上記排水部から排出した水を透水する透水部が設けられる水路。In a water channel formed by connecting a bottom channel portion and a channel block for water channel composed of a pair of side walls provided on side edges opposed to the bottom portion in an opened flowing direction,
In the bottom part, a water collecting part having an inclined surface that is vertically inclined in the flowing water direction is provided,
In the water collecting part, a drain part is provided below the water collecting part, which continuously discharges water stored in the water collecting part to the outside so as not to have a step with the inclined surface,
A water channel provided with a water permeable portion that allows water discharged from the drainage portion to be provided below the water channel block.
JP2003059031A 2003-03-05 2003-03-05 Waterway block and waterway using the same Expired - Fee Related JP4174348B2 (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
JP2003059031A JP4174348B2 (en) 2003-03-05 2003-03-05 Waterway block and waterway using the same

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
JP2003059031A JP4174348B2 (en) 2003-03-05 2003-03-05 Waterway block and waterway using the same

Publications (2)

Publication Number Publication Date
JP2004270181A true JP2004270181A (en) 2004-09-30
JP4174348B2 JP4174348B2 (en) 2008-10-29

Family

ID=33121990

Family Applications (1)

Application Number Title Priority Date Filing Date
JP2003059031A Expired - Fee Related JP4174348B2 (en) 2003-03-05 2003-03-05 Waterway block and waterway using the same

Country Status (1)

Country Link
JP (1) JP4174348B2 (en)

Cited By (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
KR101411476B1 (en) * 2013-12-04 2014-06-24 선진기업(주) Environment for improving water quality channel
CN112359943A (en) * 2020-10-30 2021-02-12 吉林建筑大学 Drainage channel of view building

Families Citing this family (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
KR102058210B1 (en) * 2019-04-09 2019-12-20 주식회사 태원콘크리트 Irrigation pipe with storage tank

Cited By (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
KR101411476B1 (en) * 2013-12-04 2014-06-24 선진기업(주) Environment for improving water quality channel
CN112359943A (en) * 2020-10-30 2021-02-12 吉林建筑大学 Drainage channel of view building

Also Published As

Publication number Publication date
JP4174348B2 (en) 2008-10-29

Similar Documents

Publication Publication Date Title
KR100952192B1 (en) Water pocket well for infiltrating a rainwater
KR101703319B1 (en) Rainwater permeate retention system
JP2009235884A (en) Outflow restraining drain port for road
KR101510615B1 (en) Penetration type rainwater storage tank and construction method of the same
JP2009127359A (en) Drainage structure for side ditch
CN208650225U (en) A kind of infiltration type drainage ditch
JP4445168B2 (en) Rainwater infiltration system
JP5083602B2 (en) Spill control street
JPH10102573A (en) Percolating pit concurrently serving as storage tank
JP4511077B2 (en) Rainwater drainage treatment system
KR101494221B1 (en) Continuous Stream Water Intake System and Structure without Power
KR100763119B1 (en) Purification system for runoff
KR100714315B1 (en) A flower bed type infiltration and detention system
JP2004270181A (en) Block for channel and channel using the same
KR101163130B1 (en) Street inlet with a separable permeable member
KR100429768B1 (en) a rivers the quality of water purgation equipment by a riverbed filtering and that method
KR100529500B1 (en) Method for drainage of road
JP2006328640A (en) Culvert drainage structure and rainwater penetration treating method
JPH08311938A (en) Recharge type storage facility
KR101865757B1 (en) Water treatment device for low impact development
JP2009074285A (en) Rainwater feed piping structure for rainwater storage and permeating facility
JP2009097151A (en) Permeable structure
KR100978238B1 (en) Hoding tank for purification, Dual-structure drainpipe and Infiltration and detention system with them
KR100730993B1 (en) Intake Facility for First runoff in Stream
CN213389558U (en) Municipal administration permeable pavement structure

Legal Events

Date Code Title Description
A621 Written request for application examination

Free format text: JAPANESE INTERMEDIATE CODE: A621

Effective date: 20060206

A977 Report on retrieval

Free format text: JAPANESE INTERMEDIATE CODE: A971007

Effective date: 20071012

A131 Notification of reasons for refusal

Free format text: JAPANESE INTERMEDIATE CODE: A131

Effective date: 20071023

A521 Written amendment

Free format text: JAPANESE INTERMEDIATE CODE: A523

Effective date: 20071214

A131 Notification of reasons for refusal

Free format text: JAPANESE INTERMEDIATE CODE: A131

Effective date: 20080325

A521 Written amendment

Free format text: JAPANESE INTERMEDIATE CODE: A523

Effective date: 20080404

TRDD Decision of grant or rejection written
A01 Written decision to grant a patent or to grant a registration (utility model)

Free format text: JAPANESE INTERMEDIATE CODE: A01

Effective date: 20080805

A01 Written decision to grant a patent or to grant a registration (utility model)

Free format text: JAPANESE INTERMEDIATE CODE: A01

A61 First payment of annual fees (during grant procedure)

Free format text: JAPANESE INTERMEDIATE CODE: A61

Effective date: 20080818

R150 Certificate of patent or registration of utility model

Free format text: JAPANESE INTERMEDIATE CODE: R150

FPAY Renewal fee payment (event date is renewal date of database)

Free format text: PAYMENT UNTIL: 20110822

Year of fee payment: 3

FPAY Renewal fee payment (event date is renewal date of database)

Free format text: PAYMENT UNTIL: 20120822

Year of fee payment: 4

LAPS Cancellation because of no payment of annual fees
