EP1522650A3 - Awning - Google Patents

Awning Download PDF

Info

Publication number
EP1522650A3
EP1522650A3 EP04023879A EP04023879A EP1522650A3 EP 1522650 A3 EP1522650 A3 EP 1522650A3 EP 04023879 A EP04023879 A EP 04023879A EP 04023879 A EP04023879 A EP 04023879A EP 1522650 A3 EP1522650 A3 EP 1522650A3
Authority
EP
European Patent Office
Prior art keywords
along
guide rail
articulated
awning
extension profile
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Granted
Application number
EP04023879A
Other languages
German (de)
French (fr)
Other versions
EP1522650B1 (en
EP1522650A2 (en
Inventor
Karl Heinz Stawski
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Weinor GmbH and Co KG
Original Assignee
Weinor Dieter Weiermann GmbH and Co
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Weinor Dieter Weiermann GmbH and Co filed Critical Weinor Dieter Weiermann GmbH and Co
Publication of EP1522650A2 publication Critical patent/EP1522650A2/en
Publication of EP1522650A3 publication Critical patent/EP1522650A3/en
Application granted granted Critical
Publication of EP1522650B1 publication Critical patent/EP1522650B1/en
Anticipated expiration legal-status Critical
Expired - Lifetime legal-status Critical Current

Links

Classifications

    • E—FIXED CONSTRUCTIONS
    • E04—BUILDING
    • E04F—FINISHING WORK ON BUILDINGS, e.g. STAIRS, FLOORS
    • E04F10/00—Sunshades, e.g. Florentine blinds or jalousies; Outside screens; Awnings or baldachins
    • E04F10/02—Sunshades, e.g. Florentine blinds or jalousies; Outside screens; Awnings or baldachins of flexible canopy materials, e.g. canvas ; Baldachins
    • E04F10/06—Sunshades, e.g. Florentine blinds or jalousies; Outside screens; Awnings or baldachins of flexible canopy materials, e.g. canvas ; Baldachins comprising a roller-blind with means for holding the end away from a building
    • E04F10/0611—Sunshades, e.g. Florentine blinds or jalousies; Outside screens; Awnings or baldachins of flexible canopy materials, e.g. canvas ; Baldachins comprising a roller-blind with means for holding the end away from a building with articulated arms supporting the movable end of the blind for deployment of the blind
    • E04F10/0618—Sunshades, e.g. Florentine blinds or jalousies; Outside screens; Awnings or baldachins of flexible canopy materials, e.g. canvas ; Baldachins comprising a roller-blind with means for holding the end away from a building with articulated arms supporting the movable end of the blind for deployment of the blind whereby the pivot axis of the articulation is perpendicular to the roller
    • E—FIXED CONSTRUCTIONS
    • E04—BUILDING
    • E04F—FINISHING WORK ON BUILDINGS, e.g. STAIRS, FLOORS
    • E04F10/00—Sunshades, e.g. Florentine blinds or jalousies; Outside screens; Awnings or baldachins
    • E04F10/02—Sunshades, e.g. Florentine blinds or jalousies; Outside screens; Awnings or baldachins of flexible canopy materials, e.g. canvas ; Baldachins
    • E04F10/06—Sunshades, e.g. Florentine blinds or jalousies; Outside screens; Awnings or baldachins of flexible canopy materials, e.g. canvas ; Baldachins comprising a roller-blind with means for holding the end away from a building
    • E04F10/0607—Sunshades, e.g. Florentine blinds or jalousies; Outside screens; Awnings or baldachins of flexible canopy materials, e.g. canvas ; Baldachins comprising a roller-blind with means for holding the end away from a building with guiding-sections for supporting the movable end of the blind
    • E—FIXED CONSTRUCTIONS
    • E04—BUILDING
    • E04F—FINISHING WORK ON BUILDINGS, e.g. STAIRS, FLOORS
    • E04F10/00—Sunshades, e.g. Florentine blinds or jalousies; Outside screens; Awnings or baldachins
    • E04F10/02—Sunshades, e.g. Florentine blinds or jalousies; Outside screens; Awnings or baldachins of flexible canopy materials, e.g. canvas ; Baldachins
    • E04F10/06—Sunshades, e.g. Florentine blinds or jalousies; Outside screens; Awnings or baldachins of flexible canopy materials, e.g. canvas ; Baldachins comprising a roller-blind with means for holding the end away from a building
    • E04F10/0637—Sunshades, e.g. Florentine blinds or jalousies; Outside screens; Awnings or baldachins of flexible canopy materials, e.g. canvas ; Baldachins comprising a roller-blind with means for holding the end away from a building with mechanisms for adjusting the inclination of the blind
    • E—FIXED CONSTRUCTIONS
    • E04—BUILDING
    • E04F—FINISHING WORK ON BUILDINGS, e.g. STAIRS, FLOORS
    • E04F10/00—Sunshades, e.g. Florentine blinds or jalousies; Outside screens; Awnings or baldachins
    • E04F10/02—Sunshades, e.g. Florentine blinds or jalousies; Outside screens; Awnings or baldachins of flexible canopy materials, e.g. canvas ; Baldachins
    • E04F10/06—Sunshades, e.g. Florentine blinds or jalousies; Outside screens; Awnings or baldachins of flexible canopy materials, e.g. canvas ; Baldachins comprising a roller-blind with means for holding the end away from a building
    • E04F10/0666—Accessories
    • E04F10/067—Accessories acting as intermediate support of the flexible canopy

Landscapes

  • Engineering & Computer Science (AREA)
  • Architecture (AREA)
  • Civil Engineering (AREA)
  • Structural Engineering (AREA)
  • Building Awnings And Sunshades (AREA)

Abstract

Ausfahrbarer Sonnenschutz (4), insbesondere Markise, zur Anbringung an Baukonstruktionen (1), insbesondere oberhalb von Bauten und Wintergärten, mit einem von einem Tuchwickel abrollbaren Tuch (5), dessen vorderes Ende an einem Ausfahrprofil (6) befestigt ist, sowie mit mindestens zwei Führungsschienen (2, 3), auf denen Gleitteile, an denen das Ausfahrprofil (6) befestigt ist, verfahrbar geführt sind, wobei an jeder Führungsschiene (2, 3) mindestens ein Hebelarm (7, 8) angeordnet ist, dessen erstes Ende (9, 10) an dem entlang der Führungsschiene (2, 3) beweglichen Gleitteil, insbesondere Schlitten, angelenkt ist und dessen zweites vorderes Ende (11, 12) am Ausfahrprofil (6) entlang des Ausfahrprofils beweglich angelenkt ist.

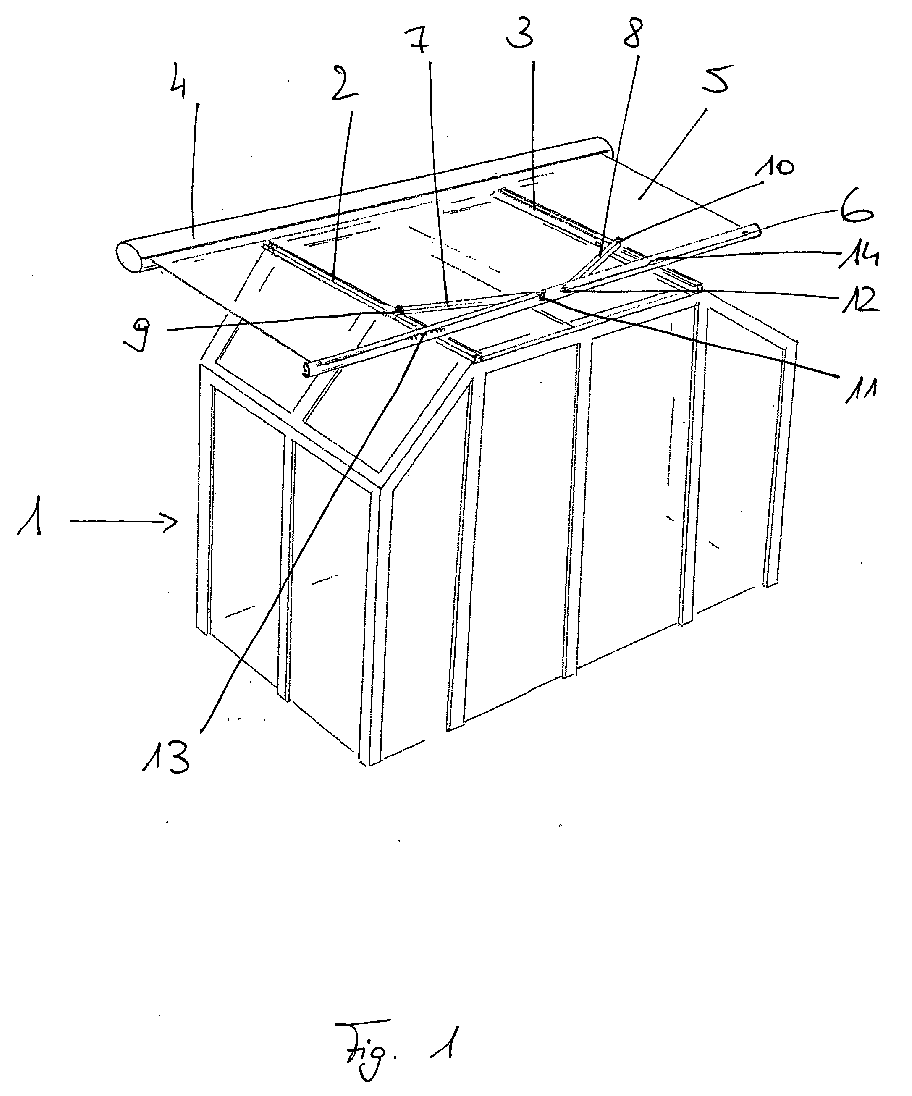

Figure 00000001
Retractable sunshade (4), in particular awning, for attachment to building structures (1), in particular above buildings and conservatories, with a towel roll (5), the front end of which is attached to an extension profile (6) and at least two guide rails (2, 3) on which sliding parts, on which the extension profile (6) is fixed, are movably guided, wherein on each guide rail (2, 3) at least one lever arm (7, 8) is arranged, the first end ( 9, 10) on the along the guide rail (2, 3) movable sliding part, in particular carriage, is articulated and whose second front end (11, 12) on the Ausfahrprofil (6) along the Ausfahrprofils is articulated movable.
Figure 00000001
EP04023879.2A 2003-10-10 2004-10-07 Awning Expired - Lifetime EP1522650B1 (en)
