EP1420078A2 - Brearing steel excellent in corrosion resistance - Google Patents
Brearing steel excellent in corrosion resistance Download PDFInfo
- Publication number
- EP1420078A2 EP1420078A2 EP03026063A EP03026063A EP1420078A2 EP 1420078 A2 EP1420078 A2 EP 1420078A2 EP 03026063 A EP03026063 A EP 03026063A EP 03026063 A EP03026063 A EP 03026063A EP 1420078 A2 EP1420078 A2 EP 1420078A2
- Authority
- EP
- European Patent Office
- Prior art keywords
- bearing steel
- steel
- less
- carbide
- concentration
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
- 229910000831 Steel Inorganic materials 0.000 title claims abstract description 110
- 239000010959 steel Substances 0.000 title claims abstract description 110
- 238000005260 corrosion Methods 0.000 title claims description 40
- 230000007797 corrosion Effects 0.000 title claims description 40
- 238000005256 carbonitriding Methods 0.000 claims abstract description 26
- 238000005255 carburizing Methods 0.000 claims abstract description 22
- 229910045601 alloy Inorganic materials 0.000 claims description 7
- 239000000956 alloy Substances 0.000 claims description 7
- 229910052804 chromium Inorganic materials 0.000 claims description 3
- 238000012360 testing method Methods 0.000 description 71
- 238000005096 rolling process Methods 0.000 description 43
- 239000000463 material Substances 0.000 description 17
- 238000010438 heat treatment Methods 0.000 description 9
- 238000010791 quenching Methods 0.000 description 9
- 230000000171 quenching effect Effects 0.000 description 9
- 238000005496 tempering Methods 0.000 description 8
- 238000009661 fatigue test Methods 0.000 description 7
- 239000013078 crystal Substances 0.000 description 6
- 239000002245 particle Substances 0.000 description 6
- 230000000052 comparative effect Effects 0.000 description 5
- 238000009826 distribution Methods 0.000 description 5
- 230000000694 effects Effects 0.000 description 5
- QGZKDVFQNNGYKY-UHFFFAOYSA-N Ammonia Chemical compound N QGZKDVFQNNGYKY-UHFFFAOYSA-N 0.000 description 4
- 239000002253 acid Substances 0.000 description 4
- 239000011148 porous material Substances 0.000 description 4
- OKTJSMMVPCPJKN-UHFFFAOYSA-N Carbon Chemical compound [C] OKTJSMMVPCPJKN-UHFFFAOYSA-N 0.000 description 3
- 238000000137 annealing Methods 0.000 description 3
- 229910052799 carbon Inorganic materials 0.000 description 3
- 230000003749 cleanliness Effects 0.000 description 3
- 238000011109 contamination Methods 0.000 description 3
- 238000004090 dissolution Methods 0.000 description 3
- 238000011156 evaluation Methods 0.000 description 3
- 238000000034 method Methods 0.000 description 3
- 229910052759 nickel Inorganic materials 0.000 description 3
- 229910052758 niobium Inorganic materials 0.000 description 3
- 229910052720 vanadium Inorganic materials 0.000 description 3
- IJGRMHOSHXDMSA-UHFFFAOYSA-N Atomic nitrogen Chemical compound N#N IJGRMHOSHXDMSA-UHFFFAOYSA-N 0.000 description 2
- QAOWNCQODCNURD-UHFFFAOYSA-N Sulfuric acid Chemical compound OS(O)(=O)=O QAOWNCQODCNURD-UHFFFAOYSA-N 0.000 description 2
- 229910021529 ammonia Inorganic materials 0.000 description 2
- 229910001566 austenite Inorganic materials 0.000 description 2
- 239000003599 detergent Substances 0.000 description 2
- 230000002542 deteriorative effect Effects 0.000 description 2
- 238000011161 development Methods 0.000 description 2
- 238000009863 impact test Methods 0.000 description 2
- 230000001965 increasing effect Effects 0.000 description 2
- JEIPFZHSYJVQDO-UHFFFAOYSA-N iron(III) oxide Inorganic materials O=[Fe]O[Fe]=O JEIPFZHSYJVQDO-UHFFFAOYSA-N 0.000 description 2
- 238000004519 manufacturing process Methods 0.000 description 2
- 229910000734 martensite Inorganic materials 0.000 description 2
- 239000011159 matrix material Substances 0.000 description 2
- 238000005259 measurement Methods 0.000 description 2
- 238000002844 melting Methods 0.000 description 2
- 230000008018 melting Effects 0.000 description 2
- 229910052750 molybdenum Inorganic materials 0.000 description 2
- 229910052698 phosphorus Inorganic materials 0.000 description 2
- 239000000843 powder Substances 0.000 description 2
- 229910052710 silicon Inorganic materials 0.000 description 2
- 239000000243 solution Substances 0.000 description 2
- 239000000126 substance Substances 0.000 description 2
- 229910000967 As alloy Inorganic materials 0.000 description 1
- 229910000760 Hardened steel Inorganic materials 0.000 description 1
- 229910000997 High-speed steel Inorganic materials 0.000 description 1
- ATJFFYVFTNAWJD-UHFFFAOYSA-N Tin Chemical compound [Sn] ATJFFYVFTNAWJD-UHFFFAOYSA-N 0.000 description 1
- 239000000356 contaminant Substances 0.000 description 1
- 230000003009 desulfurizing effect Effects 0.000 description 1
- 230000006866 deterioration Effects 0.000 description 1
- 239000000428 dust Substances 0.000 description 1
- 239000008151 electrolyte solution Substances 0.000 description 1
- 230000002708 enhancing effect Effects 0.000 description 1
- 238000000605 extraction Methods 0.000 description 1
- 239000007789 gas Substances 0.000 description 1
- 238000010191 image analysis Methods 0.000 description 1
- 230000006698 induction Effects 0.000 description 1
- 230000001050 lubricating effect Effects 0.000 description 1
- 238000005121 nitriding Methods 0.000 description 1
- 229910052757 nitrogen Inorganic materials 0.000 description 1
- 230000035515 penetration Effects 0.000 description 1
- OXNIZHLAWKMVMX-UHFFFAOYSA-N picric acid Chemical compound OC1=C([N+]([O-])=O)C=C([N+]([O-])=O)C=C1[N+]([O-])=O OXNIZHLAWKMVMX-UHFFFAOYSA-N 0.000 description 1
- 239000002244 precipitate Substances 0.000 description 1
- 230000002265 prevention Effects 0.000 description 1
- 238000012545 processing Methods 0.000 description 1
- 239000000523 sample Substances 0.000 description 1
- 229920006395 saturated elastomer Polymers 0.000 description 1
- 239000002344 surface layer Substances 0.000 description 1
- 230000009466 transformation Effects 0.000 description 1
- 230000000007 visual effect Effects 0.000 description 1
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 description 1
Images
Classifications
-
- C—CHEMISTRY; METALLURGY
- C22—METALLURGY; FERROUS OR NON-FERROUS ALLOYS; TREATMENT OF ALLOYS OR NON-FERROUS METALS
- C22C—ALLOYS
- C22C38/00—Ferrous alloys, e.g. steel alloys
- C22C38/04—Ferrous alloys, e.g. steel alloys containing manganese
-
- C—CHEMISTRY; METALLURGY
- C22—METALLURGY; FERROUS OR NON-FERROUS ALLOYS; TREATMENT OF ALLOYS OR NON-FERROUS METALS
- C22C—ALLOYS
- C22C38/00—Ferrous alloys, e.g. steel alloys
- C22C38/001—Ferrous alloys, e.g. steel alloys containing N
-
- C—CHEMISTRY; METALLURGY
- C22—METALLURGY; FERROUS OR NON-FERROUS ALLOYS; TREATMENT OF ALLOYS OR NON-FERROUS METALS
- C22C—ALLOYS
- C22C38/00—Ferrous alloys, e.g. steel alloys
- C22C38/002—Ferrous alloys, e.g. steel alloys containing In, Mg, or other elements not provided for in one single group C22C38/001 - C22C38/60
-
- C—CHEMISTRY; METALLURGY
- C22—METALLURGY; FERROUS OR NON-FERROUS ALLOYS; TREATMENT OF ALLOYS OR NON-FERROUS METALS
- C22C—ALLOYS
- C22C38/00—Ferrous alloys, e.g. steel alloys
- C22C38/02—Ferrous alloys, e.g. steel alloys containing silicon
-
- C—CHEMISTRY; METALLURGY
- C22—METALLURGY; FERROUS OR NON-FERROUS ALLOYS; TREATMENT OF ALLOYS OR NON-FERROUS METALS
- C22C—ALLOYS
- C22C38/00—Ferrous alloys, e.g. steel alloys
- C22C38/06—Ferrous alloys, e.g. steel alloys containing aluminium
-
- C—CHEMISTRY; METALLURGY
- C22—METALLURGY; FERROUS OR NON-FERROUS ALLOYS; TREATMENT OF ALLOYS OR NON-FERROUS METALS
- C22C—ALLOYS
- C22C38/00—Ferrous alloys, e.g. steel alloys
- C22C38/18—Ferrous alloys, e.g. steel alloys containing chromium
- C22C38/40—Ferrous alloys, e.g. steel alloys containing chromium with nickel
- C22C38/44—Ferrous alloys, e.g. steel alloys containing chromium with nickel with molybdenum or tungsten
-
- C—CHEMISTRY; METALLURGY
- C22—METALLURGY; FERROUS OR NON-FERROUS ALLOYS; TREATMENT OF ALLOYS OR NON-FERROUS METALS
- C22C—ALLOYS
- C22C38/00—Ferrous alloys, e.g. steel alloys
- C22C38/18—Ferrous alloys, e.g. steel alloys containing chromium
- C22C38/40—Ferrous alloys, e.g. steel alloys containing chromium with nickel
- C22C38/46—Ferrous alloys, e.g. steel alloys containing chromium with nickel with vanadium
-
- C—CHEMISTRY; METALLURGY
- C22—METALLURGY; FERROUS OR NON-FERROUS ALLOYS; TREATMENT OF ALLOYS OR NON-FERROUS METALS
- C22C—ALLOYS
- C22C38/00—Ferrous alloys, e.g. steel alloys
- C22C38/18—Ferrous alloys, e.g. steel alloys containing chromium
- C22C38/40—Ferrous alloys, e.g. steel alloys containing chromium with nickel
- C22C38/48—Ferrous alloys, e.g. steel alloys containing chromium with nickel with niobium or tantalum
-
- C—CHEMISTRY; METALLURGY
- C22—METALLURGY; FERROUS OR NON-FERROUS ALLOYS; TREATMENT OF ALLOYS OR NON-FERROUS METALS
- C22C—ALLOYS
- C22C38/00—Ferrous alloys, e.g. steel alloys
- C22C38/18—Ferrous alloys, e.g. steel alloys containing chromium
- C22C38/40—Ferrous alloys, e.g. steel alloys containing chromium with nickel
- C22C38/50—Ferrous alloys, e.g. steel alloys containing chromium with nickel with titanium or zirconium
-
- C—CHEMISTRY; METALLURGY
- C23—COATING METALLIC MATERIAL; COATING MATERIAL WITH METALLIC MATERIAL; CHEMICAL SURFACE TREATMENT; DIFFUSION TREATMENT OF METALLIC MATERIAL; COATING BY VACUUM EVAPORATION, BY SPUTTERING, BY ION IMPLANTATION OR BY CHEMICAL VAPOUR DEPOSITION, IN GENERAL; INHIBITING CORROSION OF METALLIC MATERIAL OR INCRUSTATION IN GENERAL
- C23C—COATING METALLIC MATERIAL; COATING MATERIAL WITH METALLIC MATERIAL; SURFACE TREATMENT OF METALLIC MATERIAL BY DIFFUSION INTO THE SURFACE, BY CHEMICAL CONVERSION OR SUBSTITUTION; COATING BY VACUUM EVAPORATION, BY SPUTTERING, BY ION IMPLANTATION OR BY CHEMICAL VAPOUR DEPOSITION, IN GENERAL
- C23C8/00—Solid state diffusion of only non-metal elements into metallic material surfaces; Chemical surface treatment of metallic material by reaction of the surface with a reactive gas, leaving reaction products of surface material in the coating, e.g. conversion coatings, passivation of metals
- C23C8/06—Solid state diffusion of only non-metal elements into metallic material surfaces; Chemical surface treatment of metallic material by reaction of the surface with a reactive gas, leaving reaction products of surface material in the coating, e.g. conversion coatings, passivation of metals using gases
- C23C8/08—Solid state diffusion of only non-metal elements into metallic material surfaces; Chemical surface treatment of metallic material by reaction of the surface with a reactive gas, leaving reaction products of surface material in the coating, e.g. conversion coatings, passivation of metals using gases only one element being applied
- C23C8/20—Carburising
- C23C8/22—Carburising of ferrous surfaces
-
- C—CHEMISTRY; METALLURGY
- C23—COATING METALLIC MATERIAL; COATING MATERIAL WITH METALLIC MATERIAL; CHEMICAL SURFACE TREATMENT; DIFFUSION TREATMENT OF METALLIC MATERIAL; COATING BY VACUUM EVAPORATION, BY SPUTTERING, BY ION IMPLANTATION OR BY CHEMICAL VAPOUR DEPOSITION, IN GENERAL; INHIBITING CORROSION OF METALLIC MATERIAL OR INCRUSTATION IN GENERAL
- C23C—COATING METALLIC MATERIAL; COATING MATERIAL WITH METALLIC MATERIAL; SURFACE TREATMENT OF METALLIC MATERIAL BY DIFFUSION INTO THE SURFACE, BY CHEMICAL CONVERSION OR SUBSTITUTION; COATING BY VACUUM EVAPORATION, BY SPUTTERING, BY ION IMPLANTATION OR BY CHEMICAL VAPOUR DEPOSITION, IN GENERAL
- C23C8/00—Solid state diffusion of only non-metal elements into metallic material surfaces; Chemical surface treatment of metallic material by reaction of the surface with a reactive gas, leaving reaction products of surface material in the coating, e.g. conversion coatings, passivation of metals
- C23C8/06—Solid state diffusion of only non-metal elements into metallic material surfaces; Chemical surface treatment of metallic material by reaction of the surface with a reactive gas, leaving reaction products of surface material in the coating, e.g. conversion coatings, passivation of metals using gases
- C23C8/28—Solid state diffusion of only non-metal elements into metallic material surfaces; Chemical surface treatment of metallic material by reaction of the surface with a reactive gas, leaving reaction products of surface material in the coating, e.g. conversion coatings, passivation of metals using gases more than one element being applied in one step
- C23C8/30—Carbo-nitriding
- C23C8/32—Carbo-nitriding of ferrous surfaces
Definitions
- the present invention relates to bearing steel and particularly to bearing steel which is excellent in corrosion resistance, surface fatigue strength and rolling fatigue life and which is adapted for large-size bearing parts in a rolling machine (mill), a thermal power generator, a hydraulic powder generator, etc.
- a carburized material of case-hardened steel such as JIS SCr, JIS SCM or JIS SNCM has been heretofore used as bearing steel for large-size bearing parts.
- JIS SCr case-hardened steel
- JIS SCM JIS SCM
- JIS SNCM JIS SNCM
- Japanese Patent Publication 14416/1990 has disclosed bearing steel adapted for large-size bearing parts and containing JIS SNCM 815 as a base material, and an appropriate amount of Si and Ni added to the base material.
- rust may be formed due to penetration of rolling water in accordance with the rolling machine.
- the rust brings about reduction in rolling fatigue life. Therefore, development of bearing steel more excellent in corrosion resistance is required newly so that the bearing steel can be adapted for large-size bearing parts.
- carbonitriding treatment is more effective than ordinary carburizing treatment because nitriding improves heat resistance and because stability of residual austenite improves rolling fatigue strength against contaminants (rolling fatigue strength under an environment contaminated with dust). Accordingly, development of bearing steel excellent in carbonitriding characteristic is also required.
- the invention is developed to solve the problem and an object of the invention is to provide bearing steel which is excellent in corrosion resistance, surface fatigue strength and rolling fatigue life and excellent in carbonitriding characteristic and which is particularly adapted for large-size bearing parts.
- the invention is characterized by having the following arrangement.
- FIG. 1 is a view typically showing rod-like carbide existing in steel.
- the inventors have examined various alloy elements. As a result, it has been found that both reduction in the amount of added Si and addition of an appropriate amount of Ni and Cr are effective in improving corrosion resistance.
- the reason why the presence of rod-like carbide deteriorates both rolling fatigue life and impact resistance can be conceived as follows. That is, the bearing steel cracks along a surface of rod-like carbide which is an inclusion, or the rod-like carbide is apt to operate as a start point of the crack. It is further conceived that corrosion resistance also deteriorates because the bearing steel is apt to corrode along the surface of the rod-like carbide. In the invention, it has been found that those properties deteriorate particularly when rod-like carbide having an aspect ratio of not lower than 3 and having a minor diameter of not larger than 2 ⁇ m is produced.
- the inventors have also found that carbonitriding treatment improves both corrosion resistance and rolling fatigue life and that addition of an appropriate amount of Ni and Mo is effective in improving rolling fatigue life.
- the invention is based on the aforementioned knowledge.
- the size of each oxide inclusion in the steel before carburizing or carbonitriding treatment is preferably selected to be not larger than 50 ⁇ m in terms of the maximum diameter. That is, the inventors have found that corrosion resistance can be improved when the size of each oxide inclusion in the steel is reduced to be not larger than 50 ⁇ m.
- the steel is preferably subjected to intermediate annealing and secondary quenching/tempering successively so that the steel exhibits a surface C concentration of not lower than 0.7 %, contains carbide having an area percentage of not higher than 15 % and contains 0.1 % by area or less of carbide having an aspect ratio of not lower than 3 and having a minor diameter of not smaller than 2 ⁇ m.
- the steel may further contain 0.05 wt% to 1. 0 wt% of V, and 0.1 wt% or less of Nb as alloy components.
- crystal grains can be made so fine that characteristic of the bearing steel can be improved.
- C 0.10 % to 0.35 %
- the amount of C needs to be not smaller than 0.10 % in order to obtain required strength as bearing steel and keep sufficient surface hardness after carburizing or carbonitriding treatment. If the content of C is larger than 0.35 %, both toughness and machinability are reduced. Accordingly, the content of C is selected to be in a range of from 0.10 % to 0.35 %.
- Si ⁇ 0.5 % Si is effective in making a quench-hardened martensitic structure dense to thereby improve toughness and fatigue resistance of steel. In this sense, Si is a significant component in the invention.
- Mn 0.2 % to 1.5 %
- Mn is an element which operates as a deacidifying and desulfurizing element at the time of melting steel and which is effective in improving hardenability of steel. In this invention, therefore, the steel contains 0.2 % or more of Mn. Both processability and machinability, however, deteriorate if the content of Mn is larger than 1.5 %. Accordingly, the upper limit of the content of Mn is set at 1.5 %.
- Ni 1.0 % to 3.5 %
- Ni is a significant component in the invention and has a great effect on improvement in corrosion resistance of steel.
- Ni is an element effective in improving hardenability of steel and toughness of steel after quenching/tempering.
- the steel contains 1.0 % or more of Ni. Both toughness and processability of steel, however, deteriorate if the content of Ni is larger than 3.5 %. Accordingly, the upper limit of the content of Ni is set at 3.5 %.
- the content of Ni is set from 2.0 to 3.0%.
- Cr: 1.0 % to 5.0 % Cr is also a significant component in the invention and has a great effect on improvement in corrosion resistance of steel. Cr is an element effective in improving hardenability of steel and strength and toughness of steel after quenching/tempering. In the invention, therefore, the steel contains 1.0 % or more of Cr. If the content of Cr is larger than 5.0 %, both hardenability and machinability, however, deteriorate while the effect on improvement in corrosion resistance is saturated. Accordingly, the upper limit of the content of Cr is set at 5.0 %. Preferably, the content of Cr is set from 1.0 to 2.0 %.
- Mo 0.03 % to 2.5 % Mo is an element effective in improving strength of steel.
- the steel contains 0.03 % or more of Mo. Both hardenability and machinability, however, deteriorate simultaneously if the content of Mo is larger than 2.5 %. Accordingly, the upper limit of the content of Mo is set at 2.5 %.
- the contents of Mo is set from 0.3 to 1.0 %.
- Al: 0.005 % to 0.050 % Al forms AlN effective in making crystal grains fine. In the invention, therefore, the steel contains 0.005 % or more of Al. The effect on prevention of production of coarse crystal grains is however reduced as well as cleanliness of steel deteriorates if the content of Al is larger than 0.050 %.
- the upper limit of the content of Al is set at 0.050 %.
- Ti ⁇ 0.003 % Ti generates a hard precipitate TiN which operates as a fracture start point of rolling fatigue fracture and which causes reduction in rolling fatigue life. In the invention, therefore, the content of Ti is limited to be not larger than 0.003 %.
- O ⁇ 0.0015 % O reduces cleanliness of steel to cause reduction in rolling fatigue life. In the invention, therefore, the content of O is limited to be not larger than 0.0015 %.
- N ⁇ 0.025 % N is bonded to Al to generate AlN which operates to make crystal grains fine. Strength of steel, however, deteriorates if a large amount of N is contained.
- the upper limit of the content of N is set at 0.025 %. More preferably, the content of N is in a range of from 0.01 % to 0.02 %.
- V 0.05 % to 1.0 % Nb: ⁇ 0.1 %
- Each of V and Nb is an element that contributes to making crystal grains fine. The effect on making crystal grains fine is reduced if the content of each of V and Nb is too large. Accordingly, when each of V and Nb needs to be added as a selected element, the steel contains 0.05 % to 1.0 % of V, and 0.1 % or less of Nb.
- Surface C Concentration Surface C concentration after heat treatment is important in order to keep strength of steel.
- a surface C concentration of not lower than 0.7 % is required for obtaining required hardness and rolling fatigue life.
- surface C concentration is preferably set from 0.7 % to 0.9 %.
- Carbide Fine carbide is required for ensuring rolling fatigue life. If the area percentage of carbide is higher than 15 %, strength of steel is reduced in reverse.
- rod-like carbide 10 having an aspect ratio of not lower than 3 in terms of the ratio of major diameter to minor diameter and having a minor diameter of not smaller than 2 ⁇ m is produced as shown in Fig. 1. If the area percentage of the rod-like carbide 10 produced thus is higher than 0.1 %, both rolling fatigue life and impact resistance are reduced remarkably.
- Oxide Inclusion The presence of an oxide inclusion reduces rolling fatigue life because the oxide inclusion serves as a start point of rolling fatigue fracture. In addition, the presence of such an oxide inclusion large in size reduces corrosion resistance because the interface between the oxide inclusion and a matrix is preferentially corroded under a corrosive environment.
- the maximum diameter of the oxide inclusion is preferably controlled to be not larger than 50 ⁇ m in order to obtain bearing steel excellent in corrosion resistance and rolling fatigue life.
- Heat Treatment When the amount of added alloy elements is large after carburizing or carbonitriding, there is the possibility that required surface hardness cannot be obtained because the martensitic transformation point (Ms point) of steel becomes so low that a large amount of residual austenite is produced. It is therefore preferable that secondary quenching/tempering is performed. In this case, intermediate annealing may be preferably performed before the second quenching so that the formof carbide is made appropriate to improve hardenability of the matrix. Further, addition of nitrogen is effective in improving corrosion resistance.
- a vacuum induction melting furnace 150 g of steel having chemical components shown in Table 1 was melted and hot-forged at 1200°C to produce a round bar having a diameter of 32 mm or 65 mm. After the round bar was normalized at 900°C, the round bar was subjected to spheroidizing treatment as softening treatment at 760°C to prepare a test material. For evaluation of cleanliness of the material, a size distribution of oxide inclusion particles was measured by an acid dissolution extraction-pore electrical resistance method (method for measuring volume of particles on the basis of change in electrical resistance at the time of passage of the particles through pores).
- a round bar of ⁇ 20 mm was cut out of an R/2 portion of the material. After the round bar was quenched from 850°C, about 30 g of a 1 mm-thick thin plate was cut out of the round bar and subjected to acid dissolution. Extraction of oxide inclusions by acid dissolution was performed with a solution of sulfuric acid and permanganic acid. The extracted oxide inclusions were dispersed into 200 cc of an electrolytic solution. A size distribution of particles in 500 ⁇ l of the dispersed solution was measured in the condition of an aperture size (pore size) of 100 ⁇ m by the Multisizer made by Beckman Coulter, Inc.
- Table 1 shows the measured maximum diameter of the oxide inclusions. In any test material of steel according to the invention, the maximum diameter of the oxide inclusions was not larger than 50 ⁇ m.
- a corrosion test was performed in a humid condition and in a crevice corrosion condition. Specifically, a roughly processed test specimen having a diameter of 20 mm and a length of 36 mm was cut out of each of the materials. The test specimen was carburized at 960°C for 22 hours in a furnace in an atmosphere of 1. 2 % carbonpotential as a carburizing condition. After quenched from 860°C, the test specimen was intermediately annealed at 660°C for 4 hours, secondarily quenched at 790°C and tempered at 180°C. After a cylindrical surface of the test specimen was then ground-finished, the test specimen was subjected to the corrosion test.
- the roughly processed test specimen provided in the aforementioned manner was carburized in the same condition as described above and then carbonitrided at 850°C for 7 hours in a furnace in an atmosphere of 1.2 % carbon potential and 5 % ammonia addition as a carbonitriding condition.
- the test specimen was intermediately annealed and secondarily quenched in the same manner as described above.
- a combined cycle testing machine was used in the corrosion test. The state of corrosion was examined after each test specimen was left at a test temperature of 49°C ⁇ 1°C with 95 % or higher relative humidity for 24 hours. With respect to crevice corrosion, the test specimen was placed quietly on a V block so that a contact portion between the V block and the test specimen was in the crevice corrosion condition.
- a center portion of the test specimen was cut with a micro-cutter and ground-finished. Then, a C concentration distribution from a surface layer of the test specimen was measured by an electron probe microanalyser (EPMA) to thereby obtain the surface C concentration.
- EPMA electron probe microanalysis
- Carbide was measured as follows. A center portion of the test specimen was cut with amicro-cutter and ground-finished. Then, the test specimen was corroded by picral so that carbide came out from the test specimen. The carbide was observed in five visual fields by a 5000-power scanning electron microscope (SEM), so that the area percentage of carbide and the major and minor diameters of all carbide particles as shown in Fig. 1 were measured by image analysis.
- SEM 5000-power scanning electron microscope
- a thrust type rolling fatigue test was performed in order to examine rolling fatigue strength of bearing parts.
- a ring-like test specimen having an outer diameter of 63 mm, an inner diameter of 28.7 mm and a thickness of 9 mm was cut out of each material so that it was used as a roughly processed test specimen.
- test specimen was subjected to carburizing treatment and quenching/tempering treatment as heat treatment.
- the carburizing condition was the same as in the corrosion test specimen.
- one test surface of the test specimen was ground-finished by 0.15 mm and the other test surface of the test specimen was lapped so that the test specimen was used as a thrust type rolling fatigue test specimen.
- the roughly processed test specimen provided in the aforementioned manner was subjected to carbonitriding treatment and quenching/tempering treatment.
- the carbonitriding condition was the same as in the corrosion test specimen.
- the test specimen was subjected to the same ground finish so that the test specimen was used as a thrust type rolling fatigue test specimen.
- a thrust type rolling fatigue testing machine was used in the test.
- the test was performed in the test condition shown in Table 2.
- High-speed steel gas atomized powder having a hardness of 750 Hv and having a particle size of 100 ⁇ m to 180 ⁇ m obtained by classification was used in the test under a contamination environment.
- the rolling fatigue life was evaluated on the basis of the number (L 10 ) of cycles in which the probability of accumulated breakage reached 10 % in a Weibull distribution and the number (L 50 ) of cycles in which the probability of accumulated breakage reached 50 % in a Weibull distribution when the test was repeated by 16 cycles in the same test condition.
- a Charpy impact test was performed in order to examine toughness of bearing parts.
- a roughly processed test specimen which was 12 mm wide, 14 mm high and 55 mm long and in which a notch having a depth of 1.8 mm and a curvature radius of 10 mm was formed in the lengthwise center of the test specimen was cut out of each of the materials.
- the test specimen was subjected to carburizing and quenching/tempering treatment as heat treatment.
- the carburizing condition was as follows.
- the test specimen was carburized at 930°C for 4 hours in a furnace in an atmosphere of 1.2 % carbon potential. After quenched from 850°C, the test specimen was intermediately annealed at 660°C for 4 hours, secondarily quenched from 790°C and tempered at 180°C. After the heat treatment, the test specimen was ground into a test specimen which was 10 mm wide and 10 mm high and in which a notch having a depth of 2 mm and a curvature radius of 10 mm was formed in the test specimen. The test specimen was subjected to the Charpy test.
- the roughly processed test specimen provided in the aforementioned manner was carbonitrided and quenched/tempered.
- the carbonitriding condition was as follows. After carburized in the same manner as described above, the test specimen was carbonitrided at 850°C for 5 hours in a furnace in an atmosphere of 1.2 % carbon potential and 5% ammonia addition. Then, the test specimen was intermediately annealed and secondarily quenched/tempered in the same manner as described above. After the heat treatment, the test specimen was ground-finished in the same manner as described above. The test specimen was subjected to the Charpy test. A Charpy testing machine was used in the test. Energy absorbed at breakage of the test specimen was measured at ordinary temperature.

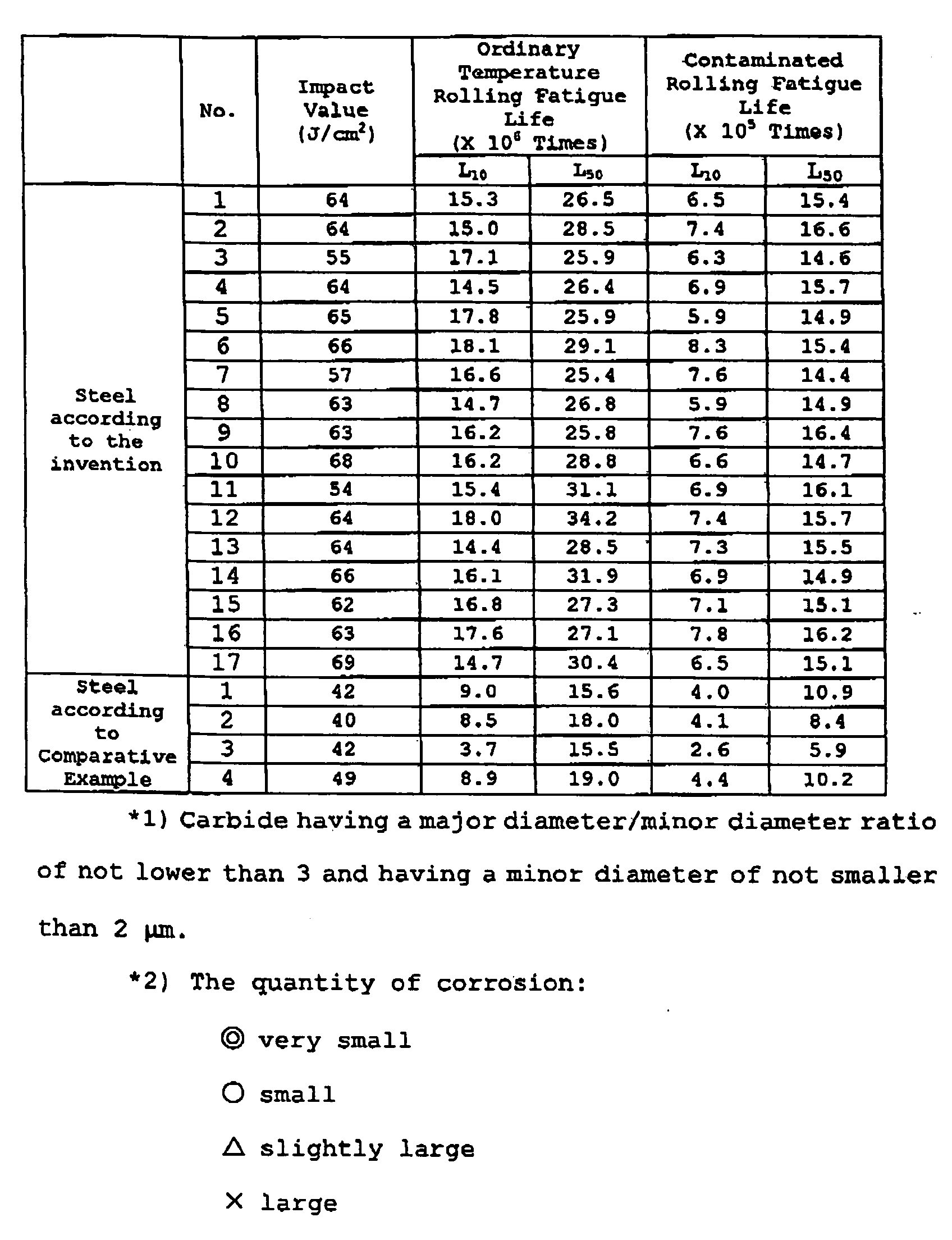

- Table 3 shows test results of the carburized materials.
- the surface C concentration was not lower than 0.7 %
- the area percentage of carbide was not higher than 15 %
- the area percentage of rod-like carbide was not higher than 0.1 %.
- the term "rod-like carbide” used herein means carbide having a maj or diameter/minor diameter ratio (aspect ratio) of not lower than 3 and having a minor diameter of not smaller than 2 ⁇ m.
- the Charpy impact value of steel according to the invention is equal to or greater than that of steel according to Comparative Examples. It is obvious that the steel according to the invention is excellent in crushing strength as bearing parts.
- Table 4 shows test results of the carbonitrided materials.
- the surface C concentration was not lower than 0.7 %
- the area percentage of carbide was not higher than 15 %
- the area percentage of rod-like carbide was not higher than 0.1 %. Accordingly, it is obvious that steel according to the invention is more excellent in corrosion resistance, rolling fatigue life and impact value than steel according to Comparative Examples. It is further obvious that the carbonitrided materials are more excellent in corrosion resistance than the carburized materials, and that the rolling fatigue life of steel made of any one of the carbonitrided materials is improved under the contamination condition.
- bearing steel which exhibits excellent corrosion resistance even in the case where the bearing steel is adapted to bearing parts in a rolling machine, a thermal power generator, a hydraulic power generator, etc. and which is excellent in surface fatigue strength and rolling fatigue life and also excellent in carbonitriding characteristic.
Abstract
Description
There has been however an increasing demand for long-lived bearing parts in recent years. Under such circumstances, attempt to add alloy elements such as Si, Ni, Mo, etc. to thereby improve rolling fatigue strength has been made.
Therefore, development of bearing steel more excellent in corrosion resistance is required newly so that the bearing steel can be adapted for large-size bearing parts.
wherein the bearing steel after carburizing or carbonitriding treatment exhibits a surface C concentration of not lower than 0.7 %, contains 15 % or less by area of carbide and contains 0.1 % or less by area of carbide having an aspect ratio of not lower than 3 in terms of the ratio of major diameter to minor diameter and having a minor diameter of not smaller than 2 µm.
With this aspect, the corrosion resistance thereof is remarkably improved and the rod-like carbide is hard to be generated thereby enhancing the like of the bearing steal. Further, the bearing steal according to this aspect has good balance between the corrosion resistance and the life.
That is, it has been apparent that a surface C concentration high enough to be not lower than a certain degree is required for improving rolling fatigue life but increase in C concentration causes increase in area percentage of carbide to thereby deteriorate corrosion resistance and causes production of rod-like carbide to thereby deteriorate both rolling fatigue life and impact resistance remarkably.
It is further conceived that corrosion resistance also deteriorates because the bearing steel is apt to corrode along the surface of the rod-like carbide.
In the invention, it has been found that those properties deteriorate particularly when rod-like carbide having an aspect ratio of not lower than 3 and having a minor diameter of not larger than 2 µm is produced.
The invention is based on the aforementioned knowledge.
When these components are contained in the steel, crystal grains can be made so fine that characteristic of the bearing steel can be improved.
C: 0.10 % to 0.35 %
The amount of C needs to be not smaller than 0.10 % in order to obtain required strength as bearing steel and keep sufficient surface hardness after carburizing or carbonitriding treatment. If the content of C is larger than 0.35 %, both toughness and machinability are reduced. Accordingly, the content of C is selected to be in a range of from 0.10 % to 0.35 %.
Si: < 0.5 %
Si is effective in making a quench-hardened martensitic structure dense to thereby improve toughness and fatigue resistance of steel. In this sense, Si is a significant component in the invention. Corrosion resistance of steel, however, deteriorates remarkably if the amount of added Si is not smaller than 0.5 %. Furthermore, both toughness and processability deteriorate. Accordingly, the content of Si is selected to be smaller than 0.5 %.
Mn: 0.2 % to 1.5 %
Mn is an element which operates as a deacidifying and desulfurizing element at the time of melting steel and which is effective in improving hardenability of steel. In this invention, therefore, the steel contains 0.2 % or more of Mn. Both processability and machinability, however, deteriorate if the content of Mn is larger than 1.5 %. Accordingly, the upper limit of the content of Mn is set at 1.5 %.
P: S 0.03 %
S: ≤ 0.03 %
Each of P and S causes deterioration of strength of bearing steel. In the invention, therefore, the amount of each of P and S is limited to be not larger than 0.03 %.
Ni: 1.0 % to 3.5 %
Ni is a significant component in the invention and has a great effect on improvement in corrosion resistance of steel. Ni is an element effective in improving hardenability of steel and toughness of steel after quenching/tempering. In the invention, therefore, the steel contains 1.0 % or more of Ni. Both toughness and processability of steel, however, deteriorate if the content of Ni is larger than 3.5 %. Accordingly, the upper limit of the content of Ni is set at 3.5 %. Preferably, the content of Ni is set from 2.0 to 3.0%.
Cr: 1.0 % to 5.0 %
Cr is also a significant component in the invention and has a great effect on improvement in corrosion resistance of steel. Cr is an element effective in improving hardenability of steel and strength and toughness of steel after quenching/tempering. In the invention, therefore, the steel contains 1.0 % or more of Cr. If the content of Cr is larger than 5.0 %, both hardenability and machinability, however, deteriorate while the effect on improvement in corrosion resistance is saturated. Accordingly, the upper limit of the content of Cr is set at 5.0 %. Preferably, the content of Cr is set from 1.0 to 2.0 %.
Mo: 0.03 % to 2.5 %
Mo is an element effective in improving strength of steel. In the invention, therefore, the steel contains 0.03 % or more of Mo. Both hardenability and machinability, however, deteriorate simultaneously if the content of Mo is larger than 2.5 %. Accordingly, the upper limit of the content of Mo is set at 2.5 %. Preferably, the contents of Mo is set from 0.3 to 1.0 %.
Al: 0.005 % to 0.050 %
Al forms AlN effective in making crystal grains fine. In the invention, therefore, the steel contains 0.005 % or more of Al. The effect on prevention of production of coarse crystal grains is however reduced as well as cleanliness of steel deteriorates if the content of Al is larger than 0.050 %. Accordingly, the upper limit of the content of Al is set at 0.050 %.
Ti: ≤ 0.003 %
Ti generates a hard precipitate TiN which operates as a fracture start point of rolling fatigue fracture and which causes reduction in rolling fatigue life. In the invention, therefore, the content of Ti is limited to be not larger than 0.003 %.
O: ≤ 0.0015 %
O reduces cleanliness of steel to cause reduction in rolling fatigue life. In the invention, therefore, the content of O is limited to be not larger than 0.0015 %.
N: ≤ 0.025 %
N is bonded to Al to generate AlN which operates to make crystal grains fine. Strength of steel, however, deteriorates if a large amount of N is contained. In the invention, therefore, the upper limit of the content of N is set at 0.025 %. More preferably, the content of N is in a range of from 0.01 % to 0.02 %.
V: 0.05 % to 1.0 %
Nb: ≤ 0.1 %
Each of V and Nb is an element that contributes to making crystal grains fine. The effect on making crystal grains fine is reduced if the content of each of V and Nb is too large. Accordingly, when each of V and Nb needs to be added as a selected element, the steel contains 0.05 % to 1.0 % of V, and 0.1 % or less of Nb.
Surface C Concentration
Surface C concentration after heat treatment is important in order to keep strength of steel. A surface C concentration of not lower than 0.7 % is required for obtaining required hardness and rolling fatigue life.
In the case of carburizing processing, when the C concentration increases, are percentage of carbide is increased thereby not only deteriorating resistance of corrosion but also deteriorating both rolling fatigue life and impact resistance. Therefore, surface C concentration is preferably set from 0.7 % to 0.9 %.
Carbide
Fine carbide is required for ensuring rolling fatigue life. If the area percentage of carbide is higher than 15 %, strength of steel is reduced in reverse.
Oxide Inclusion
The presence of an oxide inclusion reduces rolling fatigue life because the oxide inclusion serves as a start point of rolling fatigue fracture. In addition, the presence of such an oxide inclusion large in size reduces corrosion resistance because the interface between the oxide inclusion and a matrix is preferentially corroded under a corrosive environment.
The maximum diameter of the oxide inclusion is preferably controlled to be not larger than 50 µm in order to obtain bearing steel excellent in corrosion resistance and rolling fatigue life.
Heat Treatment
When the amount of added alloy elements is large after carburizing or carbonitriding, there is the possibility that required surface hardness cannot be obtained because the martensitic transformation point (Ms point) of steel becomes so low that a large amount of residual austenite is produced. It is therefore preferable that secondary quenching/tempering is performed.
In this case, intermediate annealing may be preferably performed before the second quenching so that the formof carbide is made appropriate to improve hardenability of the matrix. Further, addition of nitrogen is effective in improving corrosion resistance.
For evaluation of cleanliness of the material, a size distribution of oxide inclusion particles was measured by an acid dissolution extraction-pore electrical resistance method (method for measuring volume of particles on the basis of change in electrical resistance at the time of passage of the particles through pores).
Extraction of oxide inclusions by acid dissolution was performed with a solution of sulfuric acid and permanganic acid.
The extracted oxide inclusions were dispersed into 200 cc of an electrolytic solution. A size distribution of particles in 500 µl of the dispersed solution was measured in the condition of an aperture size (pore size) of 100 µm by the Multisizer made by Beckman Coulter, Inc.
In any test material of steel according to the invention, the maximum diameter of the oxide inclusions was not larger than 50 µm.
Specifically, a roughly processed test specimen having a diameter of 20 mm and a length of 36 mm was cut out of each of the materials. The test specimen was carburized at 960°C for 22 hours in a furnace in an atmosphere of 1. 2 % carbonpotential as a carburizing condition. After quenched from 860°C, the test specimen was intermediately annealed at 660°C for 4 hours, secondarily quenched at 790°C and tempered at 180°C. After a cylindrical surface of the test specimen was then ground-finished, the test specimen was subjected to the corrosion test.
A combined cycle testing machine was used in the corrosion test. The state of corrosion was examined after each test specimen was left at a test temperature of 49°C ± 1°C with 95 % or higher relative humidity for 24 hours.
With respect to crevice corrosion, the test specimen was placed quietly on a V block so that a contact portion between the V block and the test specimen was in the crevice corrosion condition.
A ring-like test specimen having an outer diameter of 63 mm, an inner diameter of 28.7 mm and a thickness of 9 mm was cut out of each material so that it was used as a roughly processed test specimen.
The carburizing condition was the same as in the corrosion test specimen.
After the heat treatment, one test surface of the test specimen was ground-finished by 0.15 mm and the other test surface of the test specimen was lapped so that the test specimen was used as a thrust type rolling fatigue test specimen.
The carbonitriding condition was the same as in the corrosion test specimen.
After the heat treatment, the test specimen was subjected to the same ground finish so that the test specimen was used as a thrust type rolling fatigue test specimen.
High-speed steel gas atomized powder having a hardness of 750 Hv and having a particle size of 100 µm to 180 µm obtained by classification was used in the test under a contamination environment.
The rolling fatigue life was evaluated on the basis of the number (L10) of cycles in which the probability of accumulated breakage reached 10 % in a Weibull distribution and the number (L50) of cycles in which the probability of accumulated breakage reached 50 % in a Weibull distribution when the test was repeated by 16 cycles in the same test condition.
Rolling Fatigue Life Test Condition | |
Testing Machine | Thrust Type Rolling Fatigue Life Testing Machine |
Contact Surface Pressure | 5.5 (4.9) GPa |
Rotational Speed | 1800 rpm |
Test Temperature | Ordinary Temperature |
Lubricating | Turbine #68 |
Dirt Content | No Dirt (0.25 g/l) |
Note) Values put in parentheses show a contaminated rolling fatigue test condition. |
A roughly processed test specimen which was 12 mm wide, 14 mm high and 55 mm long and in which a notch having a depth of 1.8 mm and a curvature radius of 10 mm was formed in the lengthwise center of the test specimen was cut out of each of the materials.
The carburizing condition was as follows. The test specimen was carburized at 930°C for 4 hours in a furnace in an atmosphere of 1.2 % carbon potential. After quenched from 850°C, the test specimen was intermediately annealed at 660°C for 4 hours, secondarily quenched from 790°C and tempered at 180°C.
After the heat treatment, the test specimen was ground into a test specimen which was 10 mm wide and 10 mm high and in which a notch having a depth of 2 mm and a curvature radius of 10 mm was formed in the test specimen. The test specimen was subjected to the Charpy test.
The carbonitriding condition was as follows. After carburized in the same manner as described above, the test specimen was carbonitrided at 850°C for 5 hours in a furnace in an atmosphere of 1.2 % carbon potential and 5% ammonia addition. Then, the test specimen was intermediately annealed and secondarily quenched/tempered in the same manner as described above.
After the heat treatment, the test specimen was ground-finished in the same manner as described above. The test specimen was subjected to the Charpy test.
A Charpy testing machine was used in the test. Energy absorbed at breakage of the test specimen was measured at ordinary temperature.
It is further obvious that the carbonitrided materials are more excellent in corrosion resistance than the carburized materials, and that the rolling fatigue life of steel made of any one of the carbonitrided materials is improved under the contamination condition.
Claims (13)
- Bearing steel excellent in corrosion resistance comprising:0.10 wt% to 0.35 wt% of C;less than 0.5 wt% of Si;0.2 wt% to 1.5 wt% of Mn;0.03 wt% or less of P;0.03 wt% or less of S;1.0 wt% to 3.5 wt% of Ni;1.0 wt% to 5.0 wt% of Cr;0.03 wt% to 2.5 wt% of Mo;0.005 wt% to 0.050 wt% of Al;0.003 wt% or less of Ti;0.0015 wt% or less of O;0.025 wt% or less of N; and
wherein the bearing steel after carburizing or carbonitriding treatment exhibits a surface C concentration of not lower than 0.7 %, contains 15 % or less by area of carbide and contains 0.1 % or less by area of carbide having an aspect ratio of not lower than 3 in terms of the ratio of major diameter to minor diameter and having a minor diameter of not smaller than 2 µm. - The bearing steel according to claim 1 further comprising at least one of 0.05 wt% to 1.0 wt% of V, and 0.1 wt% or less of Nb as an alloy component.
- The bearing steel according to claim 1, wherein Ni is set from 2.0 wt% to 3.0 wt%.
- The bearing steel according to claim 1, wherein Cr is set from 1.0 wt% to 2.0 wt%.
- The bearing steel according to claim 1, wherein Mo is set from 0.3 wt% to 1.0 wt%.
- The bearing steel according to claim 1, wherein Ni is set from 2.0 wt% to 3.0 wt%, Cr is set from 1.0 wt% to 2.0 wt% and Mo is set from 0.3 wt% to 1.0 wt%.
- The bearing steel according to claim 1, wherein the bearing steel after carbonitriding treatment exhibits the surface C concentration of lower than 0.9 %.
- The bearing steel according to claim 2, wherein the bearing steel after carbonitriding treatment exhibits the surface C concentration of lower than 0.9 %.
- The bearing steel according to claim 6, wherein the bearing steel after carburizing treatment exhibits the surface C concentration of lower than 0.9 %.
- The bearing steel according to claim 1, wherein the bearing steel after carbonitriding treatment exhibits the surface C concentration of from 0.79 to 0.82 %.
- The bearing steel according to claim 6, wherein the bearing steel after carbonitriding treatment exhibits the surface C concentration of from 0.79 to 0.82 %.
- The bearing steel according to claim 1, wherein the bearing steel after carburizing exhibits the surface C concentration of not lower than 0.9 %.
- The bearing steel according to claim 2, wherein the bearing steel after carburizing exhibits the surface C concentration of not lower than 0.9 %.
Applications Claiming Priority (2)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
JP2002328854 | 2002-11-12 | ||
JP2002328854 | 2002-11-12 |
Publications (3)
Publication Number | Publication Date |
---|---|
EP1420078A2 true EP1420078A2 (en) | 2004-05-19 |
EP1420078A3 EP1420078A3 (en) | 2006-05-03 |
EP1420078B1 EP1420078B1 (en) | 2019-02-27 |
Family
ID=32171371
Family Applications (1)
Application Number | Title | Priority Date | Filing Date |
---|---|---|---|
EP03026063.2A Expired - Lifetime EP1420078B1 (en) | 2002-11-12 | 2003-11-12 | Bearing steel excellent in corrosion resistance |
Country Status (2)
Country | Link |
---|---|
US (1) | US20040094238A1 (en) |
EP (1) | EP1420078B1 (en) |
Cited By (4)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
EP1978124A1 (en) * | 2007-04-05 | 2008-10-08 | Kabushiki Kaisha Kobe Seiko Sho | Forging steel, forging and crankshaft |
EP2169082A1 (en) * | 2008-09-30 | 2010-03-31 | Kabushiki Kaisha Kobe Seiko Sho | Forged product with a steel composition containing 0.15-0.75%C, Si, Mn, Ni, Cr, Mo, V and Al and crankshaft manufactured from it. |
WO2016107517A1 (en) * | 2014-12-30 | 2016-07-07 | 中车戚墅堰机车车辆工艺研究所有限公司 | High wear-resistant alloy steel for railway frog and manufacturing method therefor |
CN106893947A (en) * | 2017-03-28 | 2017-06-27 | 北京科技大学 | It is a kind of to be resistant to 400 degree of preparation methods of the bearing steel of high temperature |
Families Citing this family (4)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
WO2010067872A1 (en) | 2008-12-12 | 2010-06-17 | 株式会社ジェイテクト | Constituent member of bearing, process for production of same, and ball-and-roller bearing provided with the constituent member |
JP7152832B2 (en) | 2018-06-18 | 2022-10-13 | 株式会社小松製作所 | machine parts |
JP7270343B2 (en) | 2018-06-18 | 2023-05-10 | 株式会社小松製作所 | Method for manufacturing mechanical parts |
CN114032470B (en) * | 2022-01-07 | 2022-04-05 | 北京科技大学 | Carburizing bearing steel and preparation method thereof |
Citations (14)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
GB763398A (en) | 1953-09-01 | 1956-12-12 | Gussstahlwerk Bochumer Ver Ag | Improvements in or relating to steel |
US4026727A (en) | 1975-11-04 | 1977-05-31 | A. Finkl & Sons Company | Fatigue resistant steel, machinery parts and method of manufacture thereof |
JPH0214416A (en) | 1988-07-01 | 1990-01-18 | Hitachi Ltd | Thin film magnetic head |
JPH03100142A (en) | 1989-09-13 | 1991-04-25 | Kobe Steel Ltd | Case hardening steel for bearing having excellent crushing property and its manufacture |
JPH0673492A (en) | 1993-03-19 | 1994-03-15 | Aichi Steel Works Ltd | Case hardening steel of high quality |
JPH06287711A (en) | 1993-03-31 | 1994-10-11 | Sumitomo Metal Ind Ltd | Steel parts excellent in rolling fatigue life |
US5383768A (en) | 1989-02-03 | 1995-01-24 | Hitachi, Ltd. | Steam turbine, rotor shaft thereof, and heat resisting steel |
JPH0860294A (en) | 1994-08-17 | 1996-03-05 | Kobe Steel Ltd | Production of parts for machine structural use, excellent in fatigue strength, and case hardening steel for producing pertinent parts for machine structural use |
JPH08120438A (en) | 1994-10-19 | 1996-05-14 | Kobe Steel Ltd | Production of parts for machine structure |
US5595610A (en) | 1991-06-07 | 1997-01-21 | Kabushiki Kaisha Kobe Seiko Sho | Method of manufacturing case-hardened parts with little distortion in heat treatment and superior strength in bending fatigue |
EP0763606A1 (en) | 1995-01-18 | 1997-03-19 | Nippon Steel Corporation | Long-lived carburized bearing steel |
EP0933440A1 (en) | 1997-07-22 | 1999-08-04 | Nippon Steel Corporation | Case hardened steel excellent in the prevention of coarsening of particles during carburizing thereof, method of manufacturing the same, and raw shaped material for carburized parts |
JP2000054069A (en) | 1998-07-30 | 2000-02-22 | Nippon Steel Corp | Carburized material excellent in rolling fatigue characteristic |
JP2001073067A (en) | 1999-08-31 | 2001-03-21 | Sanyo Special Steel Co Ltd | Steel excellent in rolling fatigue life and its production |
Family Cites Families (2)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
JP3646467B2 (en) * | 1996-07-31 | 2005-05-11 | 日本精工株式会社 | Rolling bearing |
US6719854B2 (en) * | 2001-01-22 | 2004-04-13 | Hitachi Metals Ltd. | Rolling Bearing |
-
2003
- 2003-11-12 US US10/704,539 patent/US20040094238A1/en not_active Abandoned
- 2003-11-12 EP EP03026063.2A patent/EP1420078B1/en not_active Expired - Lifetime
Patent Citations (14)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
GB763398A (en) | 1953-09-01 | 1956-12-12 | Gussstahlwerk Bochumer Ver Ag | Improvements in or relating to steel |
US4026727A (en) | 1975-11-04 | 1977-05-31 | A. Finkl & Sons Company | Fatigue resistant steel, machinery parts and method of manufacture thereof |
JPH0214416A (en) | 1988-07-01 | 1990-01-18 | Hitachi Ltd | Thin film magnetic head |
US5383768A (en) | 1989-02-03 | 1995-01-24 | Hitachi, Ltd. | Steam turbine, rotor shaft thereof, and heat resisting steel |
JPH03100142A (en) | 1989-09-13 | 1991-04-25 | Kobe Steel Ltd | Case hardening steel for bearing having excellent crushing property and its manufacture |
US5595610A (en) | 1991-06-07 | 1997-01-21 | Kabushiki Kaisha Kobe Seiko Sho | Method of manufacturing case-hardened parts with little distortion in heat treatment and superior strength in bending fatigue |
JPH0673492A (en) | 1993-03-19 | 1994-03-15 | Aichi Steel Works Ltd | Case hardening steel of high quality |
JPH06287711A (en) | 1993-03-31 | 1994-10-11 | Sumitomo Metal Ind Ltd | Steel parts excellent in rolling fatigue life |
JPH0860294A (en) | 1994-08-17 | 1996-03-05 | Kobe Steel Ltd | Production of parts for machine structural use, excellent in fatigue strength, and case hardening steel for producing pertinent parts for machine structural use |
JPH08120438A (en) | 1994-10-19 | 1996-05-14 | Kobe Steel Ltd | Production of parts for machine structure |
EP0763606A1 (en) | 1995-01-18 | 1997-03-19 | Nippon Steel Corporation | Long-lived carburized bearing steel |
EP0933440A1 (en) | 1997-07-22 | 1999-08-04 | Nippon Steel Corporation | Case hardened steel excellent in the prevention of coarsening of particles during carburizing thereof, method of manufacturing the same, and raw shaped material for carburized parts |
JP2000054069A (en) | 1998-07-30 | 2000-02-22 | Nippon Steel Corp | Carburized material excellent in rolling fatigue characteristic |
JP2001073067A (en) | 1999-08-31 | 2001-03-21 | Sanyo Special Steel Co Ltd | Steel excellent in rolling fatigue life and its production |
Cited By (6)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
EP1978124A1 (en) * | 2007-04-05 | 2008-10-08 | Kabushiki Kaisha Kobe Seiko Sho | Forging steel, forging and crankshaft |
EP2169082A1 (en) * | 2008-09-30 | 2010-03-31 | Kabushiki Kaisha Kobe Seiko Sho | Forged product with a steel composition containing 0.15-0.75%C, Si, Mn, Ni, Cr, Mo, V and Al and crankshaft manufactured from it. |
US8343255B2 (en) | 2008-09-30 | 2013-01-01 | Kobe Steel, Ltd. | Forged product and crankshaft manufactured from it |
WO2016107517A1 (en) * | 2014-12-30 | 2016-07-07 | 中车戚墅堰机车车辆工艺研究所有限公司 | High wear-resistant alloy steel for railway frog and manufacturing method therefor |
CN106893947A (en) * | 2017-03-28 | 2017-06-27 | 北京科技大学 | It is a kind of to be resistant to 400 degree of preparation methods of the bearing steel of high temperature |
CN106893947B (en) * | 2017-03-28 | 2018-07-27 | 北京科技大学 | A kind of preparation method for the bearing steel being resistant to 400 degree of high temperature |
Also Published As
Publication number | Publication date |
---|---|
EP1420078A3 (en) | 2006-05-03 |
US20040094238A1 (en) | 2004-05-20 |
EP1420078B1 (en) | 2019-02-27 |
Similar Documents
Publication | Publication Date | Title |
---|---|---|
EP3088550B1 (en) | Production method of carburized steel component and carburized steel component | |
KR100951216B1 (en) | Bearing Part, Heat Treatment Method Thereof, and Rolling Bearing | |
JP2590645B2 (en) | Rolling bearing | |
US6485581B2 (en) | Bearing for main spindle of machine tool | |
EP2530178A1 (en) | Case-hardened steel and carburized material | |
EP1512761A1 (en) | Contact pressure-resistant member and method of making the same | |
JP4319001B2 (en) | Rolling bearing | |
EP2253728A1 (en) | Rolling component and manufacturing method thereof | |
JP2008280583A (en) | Case-hardening steel excellent in surface fatigue strength due to hydrogen embrittlement | |
JP4283643B2 (en) | Bearing steel and bearing parts with excellent corrosion resistance | |
JP2004301321A (en) | Bearing for alternator and bearing for pulley | |
CN111601908A (en) | Carburized bearing steel member and steel bar for carburized bearing steel member | |
JP4998054B2 (en) | Rolling bearing | |
EP1420078A2 (en) | Brearing steel excellent in corrosion resistance | |
JP4114218B2 (en) | Rolling bearing | |
JP4343357B2 (en) | Rolling bearing parts for high temperature | |
JP4569961B2 (en) | Manufacturing method of parts for ball screw or one-way clutch | |
JP2005042188A (en) | Carbonitrided bearing steel with excellent rolling fatigue life under debris-contaminated environment | |
JPH10204612A (en) | Dehydrogenation for machine parts | |
JP6639839B2 (en) | Bearing steel with excellent whitening resistance and exfoliation life | |
JP2005113257A (en) | Rolling bearing | |
JP4458592B2 (en) | Rolling bearing parts for high temperature | |
WO2000028102A1 (en) | High-temperature rolling bearing part | |
JP4343356B2 (en) | Rolling bearing parts for high temperature | |
JP7180300B2 (en) | Steel parts and manufacturing method thereof |
Legal Events
Date | Code | Title | Description |
---|---|---|---|
PUAI | Public reference made under article 153(3) epc to a published international application that has entered the european phase |
Free format text: ORIGINAL CODE: 0009012 |
|
AK | Designated contracting states |
Kind code of ref document: A2 Designated state(s): AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HU IE IT LI LU MC NL PT RO SE SI SK TR |
|
AX | Request for extension of the european patent |
Extension state: AL LT LV MK |
|
PUAL | Search report despatched |
Free format text: ORIGINAL CODE: 0009013 |
|
AK | Designated contracting states |
Kind code of ref document: A3 Designated state(s): AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HU IE IT LI LU MC NL PT RO SE SI SK TR |
|
AX | Request for extension of the european patent |
Extension state: AL LT LV MK |
|
RAP1 | Party data changed (applicant data changed or rights of an application transferred) |
Owner name: JTEKT CORPORATION |
|
17P | Request for examination filed |
Effective date: 20061018 |
|
AKX | Designation fees paid |
Designated state(s): DE FR |
|
17Q | First examination report despatched |
Effective date: 20070704 |
|
REG | Reference to a national code |
Ref country code: DE Ref legal event code: R079 Ref document number: 60351831 Country of ref document: DE Free format text: PREVIOUS MAIN CLASS: C23C0008220000 Ipc: C22C0038440000 |
|
GRAP | Despatch of communication of intention to grant a patent |
Free format text: ORIGINAL CODE: EPIDOSNIGR1 |
|
RIC1 | Information provided on ipc code assigned before grant |
Ipc: C22C 38/48 20000101ALI20180308BHEP Ipc: C22C 38/44 20000101AFI20180308BHEP Ipc: C23C 8/32 19850101ALI20180308BHEP Ipc: C22C 38/02 20000101ALI20180308BHEP Ipc: C22C 38/50 20000101ALI20180308BHEP Ipc: C23C 8/22 19850101ALI20180308BHEP Ipc: C22C 38/04 20000101ALI20180308BHEP Ipc: C22C 38/46 20000101ALI20180308BHEP Ipc: C22C 38/00 19740701ALI20180308BHEP Ipc: C22C 38/06 20000101ALI20180308BHEP |
|
INTG | Intention to grant announced |
Effective date: 20180323 |
|
GRAJ | Information related to disapproval of communication of intention to grant by the applicant or resumption of examination proceedings by the epo deleted |
Free format text: ORIGINAL CODE: EPIDOSDIGR1 |
|
GRAP | Despatch of communication of intention to grant a patent |
Free format text: ORIGINAL CODE: EPIDOSNIGR1 |
|
INTC | Intention to grant announced (deleted) | ||
INTG | Intention to grant announced |
Effective date: 20180727 |
|
GRAJ | Information related to disapproval of communication of intention to grant by the applicant or resumption of examination proceedings by the epo deleted |
Free format text: ORIGINAL CODE: EPIDOSDIGR1 |
|
GRAP | Despatch of communication of intention to grant a patent |
Free format text: ORIGINAL CODE: EPIDOSNIGR1 |
|
INTC | Intention to grant announced (deleted) | ||
INTG | Intention to grant announced |
Effective date: 20181009 |
|
GRAS | Grant fee paid |
Free format text: ORIGINAL CODE: EPIDOSNIGR3 |
|
GRAA | (expected) grant |
Free format text: ORIGINAL CODE: 0009210 |
|
RIC1 | Information provided on ipc code assigned before grant |
Ipc: C22C 38/00 20060101ALI20180308BHEP Ipc: C23C 8/32 20060101ALI20180308BHEP Ipc: C22C 38/46 20060101ALI20180308BHEP Ipc: C22C 38/44 20060101AFI20180308BHEP Ipc: C23C 8/22 20060101ALI20180308BHEP Ipc: C22C 38/50 20060101ALI20180308BHEP Ipc: C22C 38/02 20060101ALI20180308BHEP Ipc: C22C 38/06 20060101ALI20180308BHEP Ipc: C22C 38/48 20060101ALI20180308BHEP Ipc: C22C 38/04 20060101ALI20180308BHEP |
|
AK | Designated contracting states |
Kind code of ref document: B1 Designated state(s): DE FR |
|
REG | Reference to a national code |
Ref country code: DE Ref legal event code: R096 Ref document number: 60351831 Country of ref document: DE |
|
REG | Reference to a national code |
Ref country code: DE Ref legal event code: R097 Ref document number: 60351831 Country of ref document: DE |
|
PLBE | No opposition filed within time limit |
Free format text: ORIGINAL CODE: 0009261 |
|
STAA | Information on the status of an ep patent application or granted ep patent |
Free format text: STATUS: NO OPPOSITION FILED WITHIN TIME LIMIT |
|
26N | No opposition filed |
Effective date: 20191128 |
|
PGFP | Annual fee paid to national office [announced via postgrant information from national office to epo] |
Ref country code: FR Payment date: 20221010 Year of fee payment: 20 |
|
PGFP | Annual fee paid to national office [announced via postgrant information from national office to epo] |
Ref country code: DE Payment date: 20220621 Year of fee payment: 20 |
|
REG | Reference to a national code |
Ref country code: DE Ref legal event code: R071 Ref document number: 60351831 Country of ref document: DE |
