EP1251150A1 - Graft copolymer and solution type water-and-oil repellant composition containing the same - Google Patents

Graft copolymer and solution type water-and-oil repellant composition containing the same Download PDF

Info

Publication number
EP1251150A1
EP1251150A1 EP00977978A EP00977978A EP1251150A1 EP 1251150 A1 EP1251150 A1 EP 1251150A1 EP 00977978 A EP00977978 A EP 00977978A EP 00977978 A EP00977978 A EP 00977978A EP 1251150 A1 EP1251150 A1 EP 1251150A1
Authority
EP
European Patent Office
Prior art keywords
group
polymer
vinyl monomer
oil
graft copolymer
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Granted
Application number
EP00977978A
Other languages
German (de)
French (fr)
Other versions
EP1251150A4 (en
EP1251150B1 (en
Inventor
Fumihiko Yodogawa Works Yamaguchi
Makoto Yodogawa Works HANAZAWA
Kazunori Yodogawa Works HAYASHI
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Daikin Industries Ltd
Original Assignee
Daikin Industries Ltd
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Daikin Industries Ltd filed Critical Daikin Industries Ltd
Priority to EP04018565A priority Critical patent/EP1475410B1/en
Publication of EP1251150A1 publication Critical patent/EP1251150A1/en
Publication of EP1251150A4 publication Critical patent/EP1251150A4/en
Application granted granted Critical
Publication of EP1251150B1 publication Critical patent/EP1251150B1/en
Anticipated expiration legal-status Critical
Expired - Lifetime legal-status Critical Current

Links

Classifications

    • C—CHEMISTRY; METALLURGY
    • C09—DYES; PAINTS; POLISHES; NATURAL RESINS; ADHESIVES; COMPOSITIONS NOT OTHERWISE PROVIDED FOR; APPLICATIONS OF MATERIALS NOT OTHERWISE PROVIDED FOR
    • C09K—MATERIALS FOR MISCELLANEOUS APPLICATIONS, NOT PROVIDED FOR ELSEWHERE
    • C09K3/00—Materials not provided for elsewhere
    • C09K3/18—Materials not provided for elsewhere for application to surfaces to minimize adherence of ice, mist or water thereto; Thawing or antifreeze materials for application to surfaces
    • C—CHEMISTRY; METALLURGY
    • C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08F—MACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONLY INVOLVING CARBON-TO-CARBON UNSATURATED BONDS
    • C08F265/00—Macromolecular compounds obtained by polymerising monomers on to polymers of unsaturated monocarboxylic acids or derivatives thereof as defined in group C08F20/00
    • C08F265/04—Macromolecular compounds obtained by polymerising monomers on to polymers of unsaturated monocarboxylic acids or derivatives thereof as defined in group C08F20/00 on to polymers of esters
    • C—CHEMISTRY; METALLURGY
    • C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08F—MACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONLY INVOLVING CARBON-TO-CARBON UNSATURATED BONDS
    • C08F259/00—Macromolecular compounds obtained by polymerising monomers on to polymers of halogen containing monomers as defined in group C08F14/00
    • C—CHEMISTRY; METALLURGY
    • C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08F—MACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONLY INVOLVING CARBON-TO-CARBON UNSATURATED BONDS
    • C08F259/00—Macromolecular compounds obtained by polymerising monomers on to polymers of halogen containing monomers as defined in group C08F14/00
    • C08F259/08—Macromolecular compounds obtained by polymerising monomers on to polymers of halogen containing monomers as defined in group C08F14/00 on to polymers containing fluorine
    • C—CHEMISTRY; METALLURGY
    • C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08F—MACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONLY INVOLVING CARBON-TO-CARBON UNSATURATED BONDS
    • C08F267/00—Macromolecular compounds obtained by polymerising monomers on to polymers of unsaturated polycarboxylic acids or derivatives thereof as defined in group C08F22/00
    • C—CHEMISTRY; METALLURGY
    • C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08F—MACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONLY INVOLVING CARBON-TO-CARBON UNSATURATED BONDS
    • C08F267/00—Macromolecular compounds obtained by polymerising monomers on to polymers of unsaturated polycarboxylic acids or derivatives thereof as defined in group C08F22/00
    • C08F267/04—Macromolecular compounds obtained by polymerising monomers on to polymers of unsaturated polycarboxylic acids or derivatives thereof as defined in group C08F22/00 on to polymers of anhydrides
    • C—CHEMISTRY; METALLURGY
    • C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08F—MACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONLY INVOLVING CARBON-TO-CARBON UNSATURATED BONDS
    • C08F277/00—Macromolecular compounds obtained by polymerising monomers on to polymers of carbocyclic or heterocyclic monomers as defined respectively in group C08F32/00 or in group C08F34/00
    • C—CHEMISTRY; METALLURGY
    • C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08F—MACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONLY INVOLVING CARBON-TO-CARBON UNSATURATED BONDS
    • C08F290/00—Macromolecular compounds obtained by polymerising monomers on to polymers modified by introduction of aliphatic unsaturated end or side groups
    • C08F290/02—Macromolecular compounds obtained by polymerising monomers on to polymers modified by introduction of aliphatic unsaturated end or side groups on to polymers modified by introduction of unsaturated end groups
    • C08F290/04—Polymers provided for in subclasses C08C or C08F
    • C08F290/046—Polymers of unsaturated carboxylic acids or derivatives thereof
    • C—CHEMISTRY; METALLURGY
    • C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08F—MACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONLY INVOLVING CARBON-TO-CARBON UNSATURATED BONDS
    • C08F290/00—Macromolecular compounds obtained by polymerising monomers on to polymers modified by introduction of aliphatic unsaturated end or side groups
    • C08F290/02—Macromolecular compounds obtained by polymerising monomers on to polymers modified by introduction of aliphatic unsaturated end or side groups on to polymers modified by introduction of unsaturated end groups
    • C08F290/06—Polymers provided for in subclass C08G
    • C—CHEMISTRY; METALLURGY
    • C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08F—MACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONLY INVOLVING CARBON-TO-CARBON UNSATURATED BONDS
    • C08F291/00—Macromolecular compounds obtained by polymerising monomers on to macromolecular compounds according to more than one of the groups C08F251/00 - C08F289/00
    • C—CHEMISTRY; METALLURGY
    • C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08L—COMPOSITIONS OF MACROMOLECULAR COMPOUNDS
    • C08L51/00—Compositions of graft polymers in which the grafted component is obtained by reactions only involving carbon-to-carbon unsaturated bonds; Compositions of derivatives of such polymers
    • C08L51/003—Compositions of graft polymers in which the grafted component is obtained by reactions only involving carbon-to-carbon unsaturated bonds; Compositions of derivatives of such polymers grafted on to macromolecular compounds obtained by reactions only involving unsaturated carbon-to-carbon bonds

Definitions

  • the present invention relates to a graft copolymer, and a solvent-based water- and oil-repellent composition comprising the same.
  • solvents for water- and oil-repellent products for example, halogen solvents such as R113 are being replaced by petroleum solvents.
  • problems such as solidification or precipitation of products at low temperature arise even if the solvent is merely replaced.
  • the water- and oil-repellent product is diluted with the petroleum solvent having low solubility such as solvent having a small content of an aromatic compound, problems such as precipitation or concentration distribution arise.
  • Japanese Patent Kokoku Publication No. 50082/1986 discloses a water- and oil-repellent agent comprising a graft copolymer obtained by the graft copolymerization which utilizes the reactivity of an OH group.
  • the graft copolymer is insufficient in water repellency because a hydroxyl group remains in the polymer.
  • Japanese Patent Kokai Publication No. 228534/1994 discloses a water- and oil-repellent agent comprising a fluorine-containing graft copolymer.
  • the fluorine-containing graft copolymer is insufficient in solubility in the petroleum solvent because a repeating unit derived from a fluorine-containing monomer is contained in only a trunk polymer of the graft copolymer.
  • Japanese Patent Kokai Publication No. 95516/1997 discloses a water- and oil-repellent agent comprising a copolymer of a perfluoroalkyl vinyl monomer containing an acid anhydride.
  • the solubility is insufficient unless a fluorine content is low, because the copolymer is not a graft polymer.
  • An object of the present invention is to give a water- and oil-repellent agent having the improved water-repellency (particularly, to cellulose fibers such as cotton fibers) and the improved solubility in a petroleum solvent (particularly nonaromatic solvents).
  • the present inventors discovered that both of the improved solubility of a water- and oil-repellent agent in petroleum solvents due to high solubility possessed by an acid anhydride structure and the improved water repellency caused by the improved adhesion to fibers due to polarity possessed by the acid anhydride structure (interaction between the acid anhydride structure and a hydroxyl group of cellulose fibers such as cotton fibers) can be imparted to a solvent-based water- and oil-repellent agent by introducing the acid anhydride structure into a graft copolymer.
  • the present invention provides a solvent-based water- and oil-repellent agent composition
  • a solvent-based water- and oil-repellent agent composition comprising a graft copolymer comprising a repeating unit derived from a vinyl monomer having a perfluoroalkyl group and a repeating unit derived from a polymerizable cyclic acid anhydride, and an organic solvent.
  • the present invention also provides a graft copolymer comprising a repeating unit derived from a vinyl monomer having a perfluoroalkyl group and a repeating unit derived from a polymerizable cyclic acid anhydride.
  • the graft copolymer has a trunk polymer comprising:
  • graft copolymer examples include the followings:

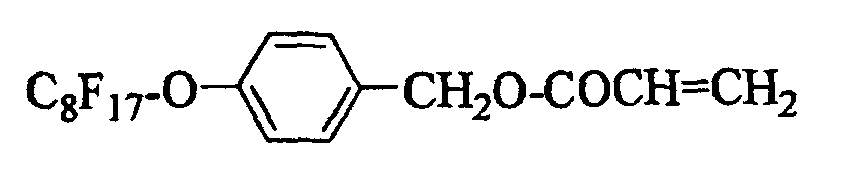

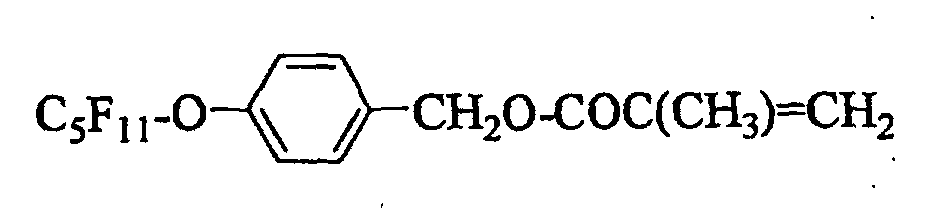

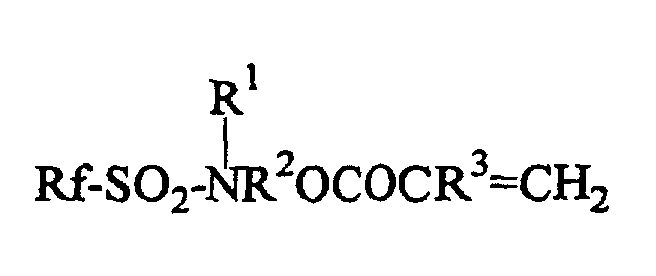

  • the perfluoroalkyl group-containing vinyl monomers (A) and (D), which constitutes the trunk polymer and/or branch polymer, may be a (meth)acrylate having a perfluoroalkyl group.
  • fluoroalkyl group-containing (meth)acrylates can be used in combination.
  • the vinyl monomer having the perfluoroalkyl group may be another fluorine-containing monomer.
  • Examples of the fluorine-free vinyl monomer (B) and (F) include a (meth)acrylate ester.
  • the (meth)acrylate ester may be an ester between (meth)acrylic acid and an aliphatic alcohol such as a monohydric alcohol and a polyhydric alcohol (such as divalent alcohol).
  • fluorine-free vinyl monomer examples include: (meth)acrylates such as 2-ethylhexyl (meth)acrylate, cyclohexyl (meth)acrylate, lauryl (meth)acrylate, stearyl (meth)acrylate, hydroxyalkyl (meth)acrylate, tetrahydrofurfuryl (meth)acrylate, polyoxyalkylene (meth)acrylate, 3-chloro-2-hydroxypropyl (meth)acrylate, ' glycidyl (meth)acrylate, N,N-dimethylaminoethyl (meth)acrylate, N,N-diethylaminoethyl (meth)acrylate, benzyl (meth)acrylate, glycidyl methacrylate, hydroxypropyl monomethacrylate, 2-hydroxy-3-phenoxypropyl acrylate, 2-hydroxyethyl acrylate, glycerol monomethacrylate,
  • Examples thereof further include ethylene, butadiene, vinyl acetate, chloroprene, vinyl halide such as vinyl chloride, vinylidene halide, acrylonitrile, vinyl alkyl ketone, N-vinylcarbazole, vinyl pyrrolidone, and (meth)acrylic acid.
  • vinyl halide such as vinyl chloride, vinylidene halide, acrylonitrile, vinyl alkyl ketone, N-vinylcarbazole, vinyl pyrrolidone, and (meth)acrylic acid.
  • the fluorine-free vinyl monomer may be a silicon-containing monomer (for example, (meth)acryloyl group-containing alkylsilane, (meth)acryloyl group-containing alkoxysilane, and (meth)acryloyl group-containing polysiloxane).
  • silicon-containing monomer for example, (meth)acryloyl group-containing alkylsilane, (meth)acryloyl group-containing alkoxysilane, and (meth)acryloyl group-containing polysiloxane.
  • silicon-containing monomer examples include: (meth)acryloxytrialkylsilane, (meth)acryloxytrialkoxysilane, (meth)acryloxypolysiloxane, (meth)acryloxypropyltrialkylsilane, (meth) acryloxypropyltrialkoxysilane, (meth)acryloxypropylpolysiloxane, allyltrialkylsilane, allyltrialkoxysilane, allylpolysiloxane, vinyltrialkylsilane, vinyltrialkoxysilane, and vinylpolysiloxane.
  • the (meth)acryloxypropylpolysiloxane may be wherein R 20 is H or CH 3 , R 21 is H or CH 3 , R 22 is H or CH 3 , R 23 is H or CH 3 , and n is from 1 to 100 (for example, (meth)acryloxypropylpolydimethylsiloxane).
  • At least two types of the fluorine-free vinyl monomers can be also used in combination.
  • the polymerizable cyclic acid anhydrides (C) and (G) may be a compound having a carbon-carbon double bond copolymerizable with the vinyl monomer (for example, the perfluoroalkyl group-containing and/or fluorine-free vinyl monomer), and at least one intramolecular cyclic carboxylic anhydride structure in one molecule.
  • the carbon-carbon double bond in the polymerizable cyclic acid anhydrides (C) and (G) may be inside or outside of a cyclic carboxylic anhydride structure ring.

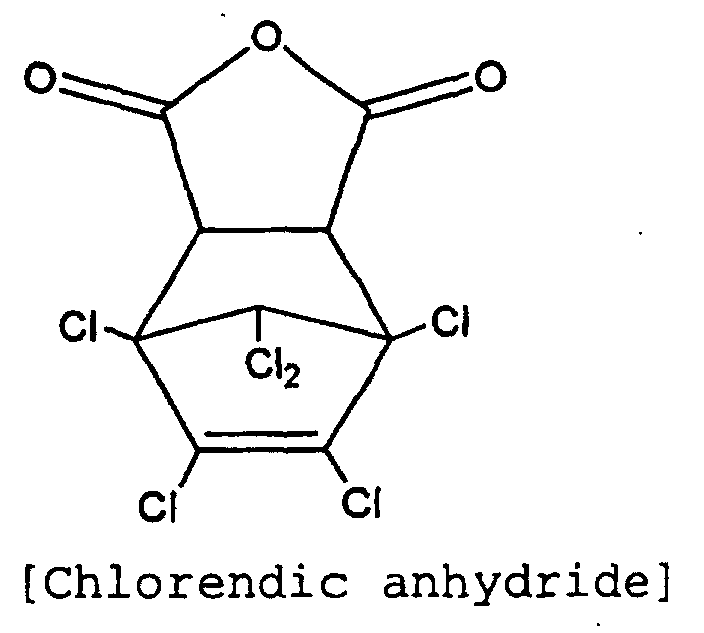

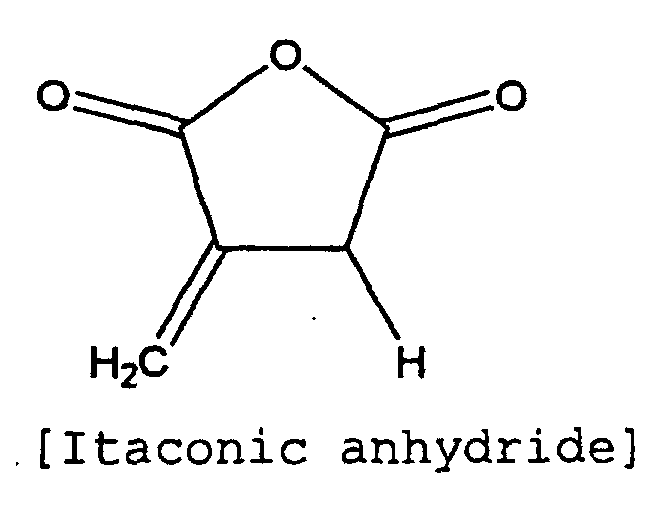

  • the polymerizable cyclic acid anhydrides (C) and (G) having the carbon-carbon double bond inside of the cyclic carboxylic anhydride structure ring may be, for example, a compound of the formula: wherein R 31 and R 32 are independently a hydrogen atom or a saturated hydrocarbon group having 1 to 10 carbon atoms, and R 31 and R 32 may be combined to form a substituted or unsubstituted ring having 4 to 30 carbon atoms.
  • the polymerizable cyclic acid anhydrides (C) and (G) having the carbon-carbon double bond outside of the cyclic carboxylic anhydride structure ring may be, for example, a compound of the formula: wherein R 33 and R 34 are combined to form a substituted (for example, with a methyl group or a cyclic anhydride group) or unsubstituted ring having a carbon-carbon double bond and 4 to 30 carbon atoms, R 35 and R 36 are a hydrogen atom or a saturated hydrocarbon group (such as an alkyl group) having 1 to 10 carbon atoms, R 37 , R 38 , R 39 , R 40 , R 41 and R 42 are independently a chlorine atom, a hydrogen atom or a saturated hydrocarbon group (such as an alkyl group) having 1 to 10 carbon atoms, and R 37 and R 39 may be combined to form a substituted (for example, with a halogen atom) or unsubstituted divalent saturated hydrocarbon group having 1
  • the polymerizable cyclic acid anhydrides (C) and (G) are preferably a compound having a carbon-carbon double bond and one intramolecular cyclic carboxylic anhydride structure, for example, maleic anhydride.
  • the bonding group in the vinyl monomer (D) having the group bonding to the branch polymer may be an NCO group, a glycidyl group, an acid chloride group and/or a halomethyl group.
  • the vinyl monomer (D) having the group bonding to the branch polymer may be an isocyanate group, glycidyl group or acid chloride group-containing vinyl monomer.
  • the isocyanate group (NCO), the glycidyl group or the acid chloride group is reacted with the active hydrogen group of the branch polymer so that the trunk polymer is bonded to the branch polymer.
  • isocyanate group-containing vinyl monomer means a compound having a carbon-carbon double bond and an isocyanate group. Generally, the numbers of the carbon-carbon double bonds and of the isocyanate groups in the isocyanate group-containing vinyl monomer are one.
  • a molecule of the isocyanate group-containing vinyl monomer usually has a carbon-carbon double bond at one terminal of the molecule and an isocyanate group at the other terminal of the molecule.
  • the isocyanate group-containing vinyl monomer includes, for example,
  • R 13 is a linear, branched or cyclic hydrocarbon group (for example, an
  • Examples of the compound having two isocyanate groups (iii-1) include 2,4-tolylene diisocyanate, 2,6-tolylene diisocyanate, diphenylmethane diisocyanate, naphthalene diisocyanate, hexamethylene diisocyanate, xylene diisocyanate, and isophorone diisocyanate.
  • the reaction between the compound having two isocyanate groups (iii-1) and the monomer having active hydrogen (iii-2) may be conducted in a solvent (especially, an aprotic solvent, for example, an ester solvent) optionally using a catalyst such as dibutyltin dilaurate.
  • a solvent especially, an aprotic solvent, for example, an ester solvent
  • a catalyst such as dibutyltin dilaurate.
  • the amount of the monomer having active hydrogen (iii-2) in the reaction may be from 1.0 to 2.0 equivalents, and preferably from 1.0 to 1.7 equivalents, based on the compound having two isocyanate groups (iii-1) .
  • Examples of the vinyl monomer having the glycidyl group include glycidyl (meth)acrylate.
  • Examples of the vinyl monomer having the acid chloride group include (meth)acryloyl chloride.
  • the branch polymer When the group bonding to the branch polymer is the isocyanate group, the glycidyl group or the acid chloride group, the branch polymer may be formed from the above-mentioned monomer and a chain transfer agent.
  • the active hydrogen group of the branch polymer reacting with the group (that is, the isocyanate group, the glycidyl group or the acid chloride group), bonding to the branch polymer, of the trunk polymer is an active hydrogen group of the chain transfer agent bonding to one terminal of the branch polymer.
  • the chain transfer agent may be a chain transfer agent having an active hydrogen group at both terminals, for example, an alkylenethiol chain transfer agent having an active hydrogen group or an aryl chain transfer agent having an active hydrogen group.
  • the active hydrogen group include OH, NH 2 , SO 3 H, NHOH, COOH, and SH.
  • the number of carbon atoms of the alkylene group of the alkylenethiol may be from 1 to 20.

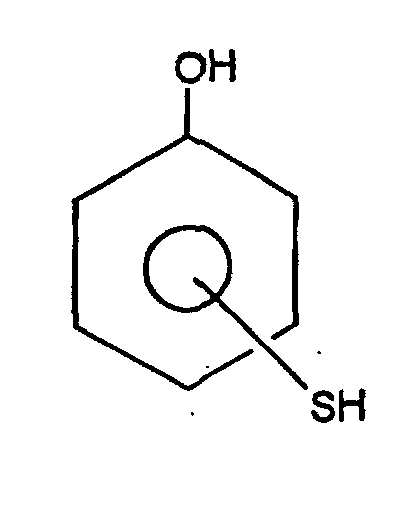

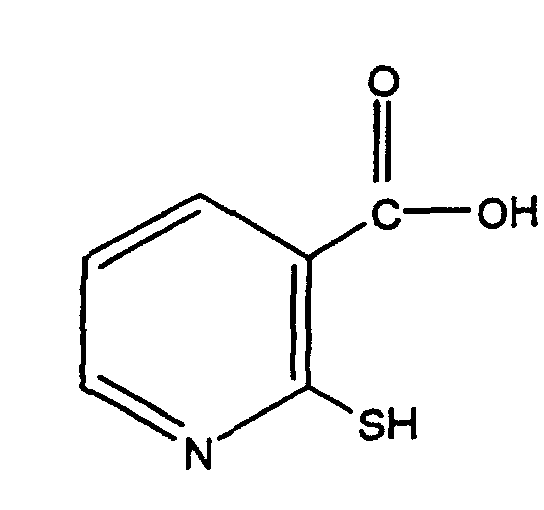

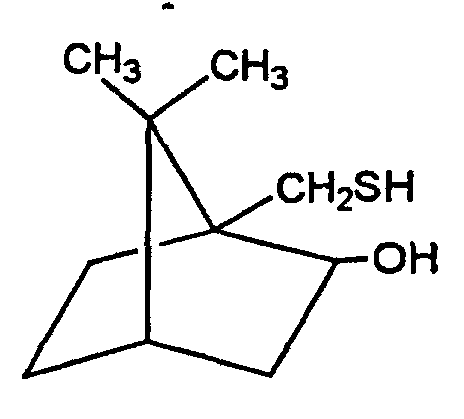

  • alkylenethiol chain transfer agent examples include the followings. HS(CH 2 ) n OH [n is 2, 4, 6 or 11], HSCH 2 COOH, HSCH 2 CH(CH 3 )COOH, HSCH 2 CH 2 SO 3 Na, HSCH 2 CH 2 SO 3 H, and
  • allyl chain transfer agent examples include the followings.
  • the amount of the chain transfer agent may be at most 0.7 mol, for example from 0.05 to 0.7 mol, particularly from 0.1 to 0.5 mol, based on 1 mol of the branch monomer.
  • the chain transfer agent may be bonded at one terminal of the branch polymer obtained by polymerizing the branch monomer.
  • the chain transfer agent can control the length of a chain of the branch polymer.
  • the vinyl monomer (D) having the group bonding to the branch polymer may be a vinyl monomer having a halomethyl group (-CH 2 X (X: a halogen atom)).
  • the trunk polymer can bond to the branch polymer by substituting the halogen atom of the halomethyl group with the branch polymer.
  • the halomethyl group-containing monomer may be a monomer having the halomethyl group and a styrene group.
  • the halomethyl group-containing monomer may be a compound represented by the formula: wherein R is -CH 3 or H, R' is a direct bond or C 1-3 alkylene group, and X is a halogen atom.
  • halomethyl group-containing monomer examples include chloromethylstyrene, bromomethylstyrene and 1-chloroethylstyrene.
  • a halogen atom in the halomethyl group is preferably a chlorine atom.
  • the trunk polymer and/or the branch polymer preferably has at least two repeating unit.
  • the trunk polymer and/or the branch polymer may be a block polymer or a random polymer.
  • the total amount of the perfluoroalkyl group-containing vinyl monomers (A) and (B) may be from 10 to 75 parts by weight, for example, from 10 to 65 parts by weight
  • the total amount of the fluorine-free vinyl monomers (B) and (F) may be from 0 to 89.8 parts by weight, for example, from 0 to 89 parts by weight, particularly from 1 to 50 parts by weight
  • the amount of the vinyl monomer (D) having the group bonding to the branch polymer may be from 0.1 to 10 parts by weight, for example from 1 to 10 parts by weight
  • the total amount of the polymerizable cyclic acid anhydrides (C) and (G) may be from 0.1 to 89.9 parts by weight, for example, from 0.1 to 50 parts by weight, based on 100 parts by weight of the graft copolymer.
  • the weight ratio of the trunk polymer to the branch polymer may be from 5:95 to 95:5, preferably from 10:90 to 90:10, particularly from 30:70 to 70:30.
  • the trunk polymer may have 0 to 75 parts by weight, for example, 0 to 65 parts by weight, particularly 1 to 50 parts by weight of the repeating unit derived from the perfluoroalkyl group-containing vinyl monomer (A), based on 100 parts by weight of the trunk polymer.
  • the trunk polymer may have 0.1 to 89.9 parts by weight, for example, 0.1 to 50 parts by weight of the repeating unit derived from the polymerizable cyclic acid anhydride (C), based on 100 parts by weight of the trunk polymer.
  • the branch polymer may have 0 to 75 parts by weight, for example, 0 to 65 parts by weight, particularly 1 to 50 parts by weight of the repeating unit derived from the perfluoroalkyl group-containing vinyl monomer (E), based on 100 parts by weight of the branch polymer.
  • the branch polymer may have 0 to 75 parts by weight, for example, 0 to 50 parts by weight of the repeating unit derived from the polymerizable cyclic acid anhydride (G), based on 100 parts by weight of the branch polymer.
  • the graft copolymer may have an number average molecular weight of 5,000 to 200,000, preferably 5,000 to 100,000 (measured by GPC in THF, in terms of styrene).
  • a method of synthesizing the graft copolymer includes a graft polymerization method of a macromonomer; a method of reacting a branch polymer having an active hydrogen group at one terminal, which is polymerized by using a chain transfer agent having an active hydrogen group, with a trunk polymer having a group (an NCO group, a glycidyl group and an acid chloride group) reactive with active hydrogen; a method which comprises generating a living free radical in a trunk polymer having a halomethyl group by a metal halide catalyst, and replacing a halogen atom with a branch polymer, such as an ATRP (Atomic Transfer Radical Polymerization) method; and a method of polymerizing a branch monomer by using a chain transfer initiator species such as a free radical, a cationically active species, an anionically active species and a hydroperoxide in a trunk polymer (cf.
  • a chain transfer initiator species such as a free radical,
  • graft polymerization which can easily control a polymerization degree of a branch polymer; the method of reacting a branch polymer having an active hydrogen group at one terminal, which is polymerized by using a chain transfer agent having an active hydrogen group, with a trunk polymer having a group (an NCO group, a glycidyl group and an acid chloride group) reactive with active hydrogen; and the method which comprises generating a living free radical in a trunk polymer having a halomethyl group by a metal halide catalyst and replacing a halogen atom with a branch polymer, such as an ATRP method.
  • the preparation of the graft copolymer according to the present invention can be conducted in any of the following methods (A) and (B), when, for example, the group bonding to the branch polymer is an NCO group, a glycidyl group or an acid chloride group.
  • the method (A) comprises the steps of:
  • the method (B) comprises the steps of:
  • the polymerization step (A-1) of the branch polymer and the polymerization steps (A-3) and (B-1) of the trunk polymer may be conducted in a solvent at a temperature of 70 to 80°C using a polymerization initiator.
  • the polymerization time is generally from 2 to 12 hours.
  • reaction steps (A-2) and (B-2) of reacting the active hydrogen group of the chain transfer agent constituting the branch polymer with the isocyanate group contained in the monomer constituting the trunk polymer may be conducted in a solvent at a temperature of 30 to 65°C.
  • the polymerization time is generally from 2 to 24 hours.
  • the polymerization initiator for example, azobisisobutyronitrile, benzoyl peroxide, di-tert-butyl peroxide, lauryl peroxide, cumene hydroperoxide, tert-butyl' peroxide pivalate, and diisopropylperoxy dicarbonate are used.
  • the amount of the polymerization initiator is preferably from 1 to 10 parts by weight based on 100 parts by weight of the monomer.
  • the polymerization solvent may be a polar solvent, a hydrocarbon solvent, or a mixture of these solvents.
  • a protic solvent having an active hydrogen group such as alcohol solvent can not be used.
  • the preparation of the graft copolymer can be conducted as follows.
  • the branch polymer is bonded to the trunk polymer by using reactivity of the halomethyl group (-CH 2 X (X: halogen atom)) in the trunk polymer. It is believed that a living free radical is generated by the metal halide catalyst and a halogen atom in the halomethyl group of the trunk polymer is replaced with the branch polymer.
  • ATRP Atomic Transfer Radical Polymerization
  • ATRA Atom Transfer Radical Addition
  • a halogen atom in the metal halide used as the catalyst is preferably chlorine.
  • the metal in the metal halide are copper (Cu) and a transition metal of VIII group, for example, iron (Fe) and ruthenium (Ru).
  • the metal halide are CuCl, CuCl 2 , FeCl 2 , NiCl 2 and RuCl 2 .
  • the addition amount of the metal halide (for example, CuCl) may be from 0.1 to 5 mol, preferably from 0.5 to 1.5, more preferably from 0.8 to 1.2 mol, based on 1 mol of the halomethyl group-containing monomer (for example, chloromethylstyrene).
  • a solubilizing agent or dispersing agent (that is, accelerating agent) for metal halide is preferably used.
  • the accelerating agent is preferably a compound which coordinates the metal halide to give a ligand and increases the solubility of the metal halide in a polymerization solvent.
  • Examples of the accelerating agent are an organic nitrogen-containing compound and an organic phosphorus-containing compound.
  • organic nitogen-containing compound for example, an amine
  • organic nitogen-containing compound for example, an amine
  • Examples of the organic phosphorus-containing compound are P(C 6 H 5 ) 3 , P(OC 6 H 5 ) 3 , P(C 2 H 5 ) 3 and P(OC 2 H 5 ) 3 .
  • the amount of the accelerating agent may be at most 10 mol, for example, from 0.5 to 8 mol, preferably from 1 to 4 mol, more preferably from 1.8 to 3 mol, based on 1 mol of the metal halide.
  • a temperature of ATRP reaction for forming the branch polymer may be from 50 to 250°C, preferably from 60 to 200°C, more preferably from 80 to 150°C.
  • a reaction time may at most 24 hours, for example, from 1 to 12 hours.
  • the reaction is preferably conducted in the presence of a solvent.
  • a solvent Various fluorine-free solvents can be used as the solvent.
  • a hydrocarbon solvent, a polar solvent and a mixture thereof are preferably used.
  • the polar solvent is a solvent having a polar group in a molecule.
  • the polar group include a hydroxyl group, a carboxyl group, an ester group, an acyl group, and an ether oxygen group.
  • the polar solvent include an alcohol solvent, a glycol solvent, an ester solvent, and a ketone solvent.
  • the hydrocarbon solvent may be a solvent which is composed only of carbon and hydrogen.
  • the hydrocarbon solvent may be an aliphatic hydrocarbon.
  • examples of the hydrocarbon solvent include n-heptane, n-hexane, n-octane, cyclohexane, methylcyclohexane, cyclopentane, methylcyclopentane, methylpentane, 2-ethylpentane, isoparaffin hydrocarbon, liquid paraffin, decane, undecane, dodecane, mineral spirit, and mineral turpentine. In some case, an aromatic solvent may be used.
  • Examples of the alcohol solvent include butyl alcohol and isopropyl alcohol.
  • Examples of the glycol solvent include propylene glycol monomethyl ether, propylene glycol monoethyl ether, dipropylene glycolmonomethyl ether, dipropylene glycol monoethyl ether, and acetate thereof.
  • Examples of the ester solvent include a monobasic acid ester such as methyl acetate, ethyl acetate, and butyl acetate; and a dibasic acid ester such as diethyl succinate, diethyl adipate, dibutyl phthalate, and dioctyl phthalate.
  • Examples of the ketone solvent include methyl isobutyl ketone (MIBK), methyl ethyl ketone, and acetone.
  • a mixture of the hydrocarbon solvent and the polar solvent may also be used.
  • the weight ratio of the hydrocarbon solvent to the polar solvent may be from 100:0 to 0:100, for example 5:95 to 95:5.
  • An organic solvent solution of the graft copolymer is a solvent-based water- and oil-repellent agent composition.
  • the water- and oil-repellent agent composition of the present invention may contain other water- and oil-repellent agents and additives, for example, softening agents, antistatic agents, cross-linking agents and crease-proofing agents, if necessary.
  • a substrate to be treated with the water- and oil-repellent agent composition of the present invention includes various substances.
  • the substrate to be treated include textiles, glass, papers, woods, hides, furs, asbestos, bricks, cements, metals and oxides, ceramics, plastics, coated surfaces, and plasters.
  • the textiles include animal- and vegetable-origin natural fibers such as cotton, hemp, wool, and silk; synthetic fibers such as polyamide, polyester, polyvinyl alcohol, polyacrylonitrile, polyvinyl chloride, and polypropylene; semisynthetic fibers such as rayon and acetate, etc.; and a mixture of these fibers.
  • the water-and oil-repellent agent composition of the present invention can be applied to the substrate by a method of applying the composition onto the surface of the substrate to be treated using a known process such as dip coating, and then drying the composition.
  • the water- and oil-repellent agent composition of the present invention can also be used, for example, as an aerosol by adding propellants.
  • propellants include fluoroalkane or chlorofluoroalkane having 1 or 2 carbon atoms, LPG gas, dimethyl ether, nitrogen gas, and carbon dioxide gas.
  • Typical examples of the fluoroalkane or chlorofluoroalkane having 1 or 2 carbon atoms include dichlorodifluoromethane, trichlorotrifluoroethane, chlorodifluoromethane, chlorodifluoroethane, dichlorotrifluoroethane, tetrafluoroethane, and a mixture of at least two types of them.
  • the amount of the propellant is preferably 0.05 to 2 times as much as the total weight of the surface treatment agent composition containing the solvent.
  • a container having a mechanism for spraying out a liquid contained in the container for example, an aerosol container or a spray container is filled with the aerosol.
  • a polymer solution is diluted with a mineral spirit so that a solid content of the diluted solution is 0.8% by weight, and then sprayed over a cloth using a hand spray so that the cloth is sufficiently wetted.
  • a cloth a polyester cloth, a polyester/cotton mixed spun cloth and a cotton cloth are used. After drying at room temperature for 10 hours, the water repellency and oil repellency are evaluated in the following procedures.
  • the water repellency is expressed by the water repellency No. (cf. the following Table 1) determined by the spray method according to JIS (Japanese Industrial Standard)-L-1092 (1998).
  • the oil repellency is determined by dropping several drops of a test solution shown in Table 2 onto two positions on the surface of a test cloth and then observing the penetration state of the drops after 30 seconds, according to AATCC-TM118.
  • Water repellency No. State 5 No wet on the surface 4 Slight wet on the surface 3 Partial wet on the surface 2 Wet on the surface 1 Wet over the whole surface
  • Oil repellency Test solution Surface tension (dyne/cm, 25°C) 8 n-Heptane 20.0 7 n-Octane 21.8 6 n-Decane 23.5 5 n-Dodecane 25.0 4 n-Tetradecane 26.7 3 n-Hexadecane 27.3 2 n-Hexadecane/Nujol (35/65 by weight) 29.6 1 Nujol 31.2 0 Inferior to 1 -
  • the polymer solution After adjusting the concentration of the polymer solution to 15% by weight by using a petroleum solvent, the polymer solution is stored at -5°C for one month. It is evaluated whether or not solidification or precipitation occurs. The evaluation is conducted by dissolving the polymer in mineral spirit for "in aromatic-containing solvent” and in n-decane for "in nonaromatic solvent”.
  • the polymer solution is diluted with n-decane so that the solid content of the diluted solution is 0.8% by weight, and then stored at -5°C for one month. It is evaluated whether or not solidification or precipitation occurs.
  • a monomer consumption ratio in the preparation of each of a branch polymer and a graft copolymer was 100%.
  • An NMR analysis revealed that a composition ratio (molar ratio) of respective ingredients in the polymer was
  • CMS Chloromethylstyrene
  • 2-Ethylhexyl methacrylate (2-EHMA) 90g
  • MAN Maleic anhydride
  • PERBUTYL PV tert-Butyl peroxypivalate
  • the reaction was conducted at 110°C for 8 hours in a nitrogen atmosphere with shaking, to give a graft copolymer having the branch polymer bonded to the trunk polymer. After the reaction, a monomer consumption ratio determined by a gas chromatography was 100%.
  • the mixture was adjusted by diluting with mineral turpentine to a solid content of 15 % by weight. 10 % by weight of active carbon was added to the solution. After shaking at room temperature for 2 hours, active carbon was filtered off by filter paper.
  • An Emission spectrometer using an inductively coupled plasma (ICP) revealed that copper did not remain in the resultant filtrate.
  • a GPC revealed that a number average molecular weight of the resultant graft polymer was 11,200.
  • the monomer consumption ratio after the reaction in each step of preparing a trunk polymer and a branch polymer, determined by a gas chromatography was 100%.
  • Used ingredients (g) First step polymerization (trunk polymer) Second step polymerization (branch polymer) CMS 2-EHMA FA MAN FA 2-EHMA MAN Ex. 11 5 90 - 9 100 10 - Ex. 12 5 95 - 4 100 5 5 Ex. 13 5 85 5 9 100 10 -
  • the monomer consumption ratio after the reaction in a step of preparing each of a branch polymer and a graft copolymer, determined by a gas chromatography was 100%.
  • An NMR analysis revealed that a composition ratio (molar ratio) of respective ingredients in the branch polymer was
  • the monomer consumption ratio after the reaction in a step of preparing each of a branch polymer and a graft copolymer, determined by a gas chromatography was 100%.
  • An NMR analysis revealed that a composition ratio (molar ratio) of respective ingredients in the branch polymer was
  • the monomer consumption ratio after the reaction in a step of preparing each of a trunk polymer and a branch polymer, determined by a gas chromatography was 100%.
  • a GPC revealed that the resultant graft polymers had a number average molecular weight of 11,600 in Comparative Example 8 and a number average molecular weight of 12,300 in Comparative Example 9.
  • a GPC revealed that the resultant random polymer had a number average molecular weight of 13,400.
  • a GPC revealed that the resultant random polymer had a number average molecular weight of 14,500.
  • the graft copolymer has excellent solubility in a petroleum solvent and excellent water repellency due to the improved adhesion to fibers caused by polarity possessed by anhydride structure, since the cyclic acid anhydride is introduced to the graft copolymer.

Landscapes

  • Chemical & Material Sciences (AREA)
  • Organic Chemistry (AREA)
  • Health & Medical Sciences (AREA)
  • Chemical Kinetics & Catalysis (AREA)
  • Medicinal Chemistry (AREA)
  • Polymers & Plastics (AREA)
  • Engineering & Computer Science (AREA)
  • Combustion & Propulsion (AREA)
  • Materials Engineering (AREA)
  • Addition Polymer Or Copolymer, Post-Treatments, Or Chemical Modifications (AREA)
  • Macromonomer-Based Addition Polymer (AREA)
  • Graft Or Block Polymers (AREA)
  • Materials Applied To Surfaces To Minimize Adherence Of Mist Or Water (AREA)

Abstract

A solvent-based water- and oil-repellent agent composition, which contains a graft copolymer having a repeating unit derived from a vinyl monomer having a perfluoroalkyl group and a repeating unit derived from a polymerizable cyclic acid anhydride and an organic solvent, has high product stalibity and high dilution stability and can give high water- and oil-repellency.

Description

FIELD OF THE INVENTION
The present invention relates to a graft copolymer, and a solvent-based water- and oil-repellent composition comprising the same.
RELATED ART
In view of regulation of fluorocarbons and environmental problems, solvents for water- and oil-repellent products, for example, halogen solvents such as R113 are being replaced by petroleum solvents. However, problems such as solidification or precipitation of products at low temperature arise even if the solvent is merely replaced. When the water- and oil-repellent product is diluted with the petroleum solvent having low solubility such as solvent having a small content of an aromatic compound, problems such as precipitation or concentration distribution arise.
When the fluorine concentration in an active component of the water- and oil-repellent agent is reduced to impart high product stability and high dilution stability to the water- and oil-repellent agent composition, the water- and oil-repellency is lowered.
Japanese Patent Kokoku Publication No. 50082/1986 discloses a water- and oil-repellent agent comprising a graft copolymer obtained by the graft copolymerization which utilizes the reactivity of an OH group. However, the graft copolymer is insufficient in water repellency because a hydroxyl group remains in the polymer.
Japanese Patent Kokai Publication No. 228534/1994 discloses a water- and oil-repellent agent comprising a fluorine-containing graft copolymer. However, the fluorine-containing graft copolymer is insufficient in solubility in the petroleum solvent because a repeating unit derived from a fluorine-containing monomer is contained in only a trunk polymer of the graft copolymer.
Japanese Patent Kokai Publication No. 95516/1997 discloses a water- and oil-repellent agent comprising a copolymer of a perfluoroalkyl vinyl monomer containing an acid anhydride. However, the solubility is insufficient unless a fluorine content is low, because the copolymer is not a graft polymer.
SUMMARY OF THE INVENTION
An object of the present invention is to give a water- and oil-repellent agent having the improved water-repellency (particularly, to cellulose fibers such as cotton fibers) and the improved solubility in a petroleum solvent (particularly nonaromatic solvents).
The present inventors discovered that both of the improved solubility of a water- and oil-repellent agent in petroleum solvents due to high solubility possessed by an acid anhydride structure and the improved water repellency caused by the improved adhesion to fibers due to polarity possessed by the acid anhydride structure (interaction between the acid anhydride structure and a hydroxyl group of cellulose fibers such as cotton fibers) can be imparted to a solvent-based water- and oil-repellent agent by introducing the acid anhydride structure into a graft copolymer.
The present invention provides a solvent-based water- and oil-repellent agent composition comprising a graft copolymer comprising a repeating unit derived from a vinyl monomer having a perfluoroalkyl group and a repeating unit derived from a polymerizable cyclic acid anhydride, and an organic solvent.
The present invention also provides a graft copolymer comprising a repeating unit derived from a vinyl monomer having a perfluoroalkyl group and a repeating unit derived from a polymerizable cyclic acid anhydride.
DETAILED EXPLANATION OF THE INVENTION
For example, the graft copolymer has a trunk polymer comprising:
  • (A) optionally present, a vinyl monomer having a perfluoroalkyl group,
  • (B) optionally present, a fluorine-free vinyl monomer,
  • (C) optionally present, a polymerizable cyclic acid anhydride, and
  • (D) a vinyl monomer having a group bonding to a branch polymer, and
    a branch polymer comprising:
  • (E) optionally present, a vinyl monomer having a perfluoroalkyl group,
  • (F) optionally present, a fluorine-free vinyl monomer, and
  • (G) optionally present, a polymerizable cyclic acid anhydride,
    • wherein at least one of the components (A) and (E) is an essential component, and at least one of the components (C) and (G) is an essential component.
    Examples of the graft copolymer include the followings:
  • (i) a graft copolymer having a trunk polymer comprising the vinyl monomer having the perfluoroalkyl group (A) and the polymerizable cyclic acid anhydride (C) and a branch polymer comprising the vinyl monomer having the perfluoroalkyl group (E) and the polymerizable cyclic acid anhydride (G);
  • (ii) a graft copolymer having a trunk polymer comprising the vinyl monomer having the perfluoroalkyl group (A) but no polymerizable cyclic acid anhydride (C) and a branch polymer comprising the polymerizable cyclic acid anhydride (G) but no vinyl monomer having the perfluoroalkyl group (E);
  • (iii) a graft copolymer having a trunk polymer comprising the polymerizable cyclic acid anhydride (C) but no vinyl monomer having the perfluoroalkyl group (A) and a branch polymer comprising the vinyl monomer having the perfluoroalkyl group (E) but no polymerizable cyclic acid anhydride (G);
  • (iv) a graft copolymer having a trunk polymer comprising the vinyl monomer having the perfluoroalkyl group (A) and the polymerizable cyclic acid anhydride (C) and a branch polymer comprising the vinyl monomer having the perfluoroalkyl group (E) but no polymerizable cyclic acid anhydride (G);
  • (v) a graft copolymer having a trunk polymer comprising the polymerizable cyclic acid anhydride (C) but no vinyl monomer having the perfluoroalkyl group (A) and a branch polymer comprising the vinyl monomer having the perfluoroalkyl group (E) and the polymerizable cyclic acid anhydride (G);
  • (vi) a graft copolymer having a trunk polymer comprising the vinyl monomer having the perfluoroalkyl group (A) but no polymerizable cyclic acid anhydride (C) and a branch polymer comprising the vinyl monomer having the perfluoroalkyl group (E) and the polymerizable cyclic acid anhydride (G);
  • (vii) a graft copolymer having a trunk polymer comprising the vinyl monomer having the perfluoroalkyl group (A) and the polymerizable cyclic acid anhydride (C) and a branch polymer comprising the polymerizable cyclic acid anhydride (G) but no vinyl monomer having the perfluoroalkyl group (E);
  • (viii) a graft copolymer having a trunk polymer comprising the vinyl monomer having the perfluoroalkyl group (A) and the polymerizable cyclic acid anhydride (C) and a branch polymer comprising the fluorine-free monomer (F) but no polymerizable cyclic acid anhydride (G) and no vinyl monomer having the perfluoroalkyl group (E); and
  • (ix) a graft copolymer having a trunk polymer comprising the fluorine-free vinyl monomer (B) but no vinyl monomer having the perfluoroalkyl group (A) and no polymerizable cyclic acid anhydride (C) and a branch polymer comprising the polymerizable cyclic acid anhydride (G) and the vinyl monomer having the perfluoroalkyl group (E).
    • The perfluoroalkyl group-containing vinyl monomers (A) and (D), which constitutes the trunk polymer and/or branch polymer, may be a (meth)acrylate having a perfluoroalkyl group.
    The perfluoroalkyl group-containing (meth)acrylate may be represented by the following general formula: Rf-A2-OCOCR18=CH2 wherein Rf is a perfluoroalkyl group having 3 to 21 carbon atoms, R18 is hydrogen or a methyl group, and A2 is a divalent organic group.
    Examples of the perfluoroalkyl group-containing (meth)acrylate include:
    Figure 00070001
    Rf-(CH2)nOCOCR3=CH2
    Figure 00070002
    Figure 00080001
    Figure 00080002
    Rf-O-Ar-CH2OCOCR3=CH2 wherein Rf is a perfluoroalkyl group having 3 to 21 carbon atoms, R1 is hydrogen or an alkyl group having 1 to 10 carbon atoms, R2 is an alkylene group having 1 to 10 carbon atoms, R3 is hydrogen or a methyl group, Ar is arylene group which optionally has a substituent group, and n is an integer of 1 to 10.
    Specific examples of the perfluoroalkyl group-containing (meth)acrylate include the followings. CF3(CF2)7(CH2)OCOCH=CH2, CF3(CF2)6(CH2)OCOC(CH3)=CH2, (CF3)2CF(CF2)6(CH2)2OCOCH=CH2, CF3(CF2)7(CH2)2OCOC(CH3)=CH2, CF3(CF2)7(CH2)2OCOCH=CH2, CF3(CF2)7SO2N(CH3)(CH2)2OCOCH=CH2, CF3(CF2)7SO2N(C2H5)(CH2)2OCOC(CH3)=CH2, (CF3)2CF(CF2)6CH2CH(OCOCH3)CH2OCOC(CH3)=CH2, (CF3)2CF(CF2)8CH2CH(OH)CH2OCOCH=CH2, CF3C6F10(CF2)2SO2N(CH3)(CH2)2OCOCH=CH2
    Figure 00090001
    Figure 00090002
    Figure 00090003
    As a matter of course, at least two types of the fluoroalkyl group-containing (meth)acrylates can be used in combination.
    The vinyl monomer having the perfluoroalkyl group may be another fluorine-containing monomer. Examples of the another fluorine-containing monomer include a fluorinated olefin (having, for example, 3 to 20 carbon atoms) such as CF3(CF2)7CH=CH2.
    Examples of the fluorine-free vinyl monomer (B) and (F) include a (meth)acrylate ester. The (meth)acrylate ester may be an ester between (meth)acrylic acid and an aliphatic alcohol such as a monohydric alcohol and a polyhydric alcohol (such as divalent alcohol).
    Examples of the fluorine-free vinyl monomer include: (meth)acrylates such as 2-ethylhexyl (meth)acrylate, cyclohexyl (meth)acrylate, lauryl (meth)acrylate, stearyl (meth)acrylate, hydroxyalkyl (meth)acrylate, tetrahydrofurfuryl (meth)acrylate, polyoxyalkylene (meth)acrylate, 3-chloro-2-hydroxypropyl (meth)acrylate, ' glycidyl (meth)acrylate, N,N-dimethylaminoethyl (meth)acrylate, N,N-diethylaminoethyl (meth)acrylate, benzyl (meth)acrylate, glycidyl methacrylate, hydroxypropyl monomethacrylate, 2-hydroxy-3-phenoxypropyl acrylate, 2-hydroxyethyl acrylate, glycerol monomethacrylate, β-acryloyloxyethyl hydrogen succinate, β-methacryloyloxyethyl hydrogen phthalate, 2-acryloyloxyethylhexahydrophthalic acid, 2-acryloyloxyethylphthalic acid, 2-acryloyloxyethyl-2-hydroxyethylphthalic acid, methacrylic acid hydroxypropyltrimethylammonium chloride, dimethylaminoethyl methacrylate, diethylaminoethyl methacrylate, 2-acryloyloxyethyl acid phosphate, glycosyl ethyl methacrylate, methacrylamide, 2-hydroxy-3-acryloyloxypropyl methacrylate, 2-methacryloyloxyethyl acid phosphate, and hydroxypivalic acid neopentyl glycol diacrylate; styrenes such as styrene and p-isopropylstyrene; (meth)acrylamides such as (meth)acrylamide, diacetone(meth)acrylamide, N-methylol(meth)acrylamide, N-butoxymethylacrylamide, and 2-acrylamide-2-methylpropanesulfonic acid; and vinyl ethers such as vinyl alkyl ether.
    Examples thereof further include ethylene, butadiene, vinyl acetate, chloroprene, vinyl halide such as vinyl chloride, vinylidene halide, acrylonitrile, vinyl alkyl ketone, N-vinylcarbazole, vinyl pyrrolidone, and (meth)acrylic acid.
    The fluorine-free vinyl monomer may be a silicon-containing monomer (for example, (meth)acryloyl group-containing alkylsilane, (meth)acryloyl group-containing alkoxysilane, and (meth)acryloyl group-containing polysiloxane).
    Examples of the silicon-containing monomer include: (meth)acryloxytrialkylsilane, (meth)acryloxytrialkoxysilane, (meth)acryloxypolysiloxane, (meth)acryloxypropyltrialkylsilane, (meth) acryloxypropyltrialkoxysilane, (meth)acryloxypropylpolysiloxane, allyltrialkylsilane, allyltrialkoxysilane, allylpolysiloxane, vinyltrialkylsilane, vinyltrialkoxysilane, and vinylpolysiloxane.
    The (meth)acryloxypropylpolysiloxane may be
    Figure 00110001
    wherein R20 is H or CH3, R21 is H or CH3, R22 is H or CH3, R23 is H or CH3, and n is from 1 to 100 (for example, (meth)acryloxypropylpolydimethylsiloxane).
    At least two types of the fluorine-free vinyl monomers can be also used in combination.
    The polymerizable cyclic acid anhydrides (C) and (G) may be a compound having a carbon-carbon double bond copolymerizable with the vinyl monomer (for example, the perfluoroalkyl group-containing and/or fluorine-free vinyl monomer), and at least one intramolecular cyclic carboxylic anhydride structure in one molecule. The carbon-carbon double bond in the polymerizable cyclic acid anhydrides (C) and (G) may be inside or outside of a cyclic carboxylic anhydride structure ring.
    The polymerizable cyclic acid anhydrides (C) and (G) having the carbon-carbon double bond inside of the cyclic carboxylic anhydride structure ring may be, for example, a compound of the formula:
    Figure 00120001
    wherein R31 and R32 are independently a hydrogen atom or a saturated hydrocarbon group having 1 to 10 carbon atoms, and R31 and R32 may be combined to form a substituted or unsubstituted ring having 4 to 30 carbon atoms.
    Specific examples include maleic anhydride (R31=H and R32=H) and citraconic anhydride (R31=H and R32=CH3).
    The polymerizable cyclic acid anhydrides (C) and (G) having the carbon-carbon double bond outside of the cyclic carboxylic anhydride structure ring may be, for example, a compound of the formula:
    Figure 00130001
    Figure 00130002
    Figure 00130003
    wherein R33 and R34 are combined to form a substituted (for example, with a methyl group or a cyclic anhydride group) or unsubstituted ring having a carbon-carbon double bond and 4 to 30 carbon atoms,
    R35 and R36 are a hydrogen atom or a saturated hydrocarbon group (such as an alkyl group) having 1 to 10 carbon atoms,
    R37, R38, R39, R40, R41 and R42 are independently a chlorine atom, a hydrogen atom or a saturated hydrocarbon group (such as an alkyl group) having 1 to 10 carbon atoms, and
    R37 and R39 may be combined to form a substituted (for example, with a halogen atom) or unsubstituted divalent saturated hydrocarbon group having 1 to 10 carbon atoms.
    Specific examples of the polymerizable cyclic acid anhydrides (C) and (G) are as follows:
    Figure 00140001
    Figure 00150001
    Figure 00150002
    Figure 00150003
    Figure 00160001
    Figure 00160002
    The polymerizable cyclic acid anhydrides (C) and (G) are preferably a compound having a carbon-carbon double bond and one intramolecular cyclic carboxylic anhydride structure, for example, maleic anhydride.
    The bonding group in the vinyl monomer (D) having the group bonding to the branch polymer may be an NCO group, a glycidyl group, an acid chloride group and/or a halomethyl group.
    The vinyl monomer (D) having the group bonding to the branch polymer may be an isocyanate group, glycidyl group or acid chloride group-containing vinyl monomer. The isocyanate group (NCO), the glycidyl group or the acid chloride group is reacted with the active hydrogen group of the branch polymer so that the trunk polymer is bonded to the branch polymer.
    The term isocyanate group-containing vinyl monomer" means a compound having a carbon-carbon double bond and an isocyanate group. Generally, the numbers of the carbon-carbon double bonds and of the isocyanate groups in the isocyanate group-containing vinyl monomer are one. A molecule of the isocyanate group-containing vinyl monomer usually has a carbon-carbon double bond at one terminal of the molecule and an isocyanate group at the other terminal of the molecule.
    The isocyanate group-containing vinyl monomer includes, for example,
  • (i) an isocyanate group-containing (meth)acrylate ester,
  • (ii) a vinyl isocyanate represented by the formula: H2C=C(R11)-A1-NCO wherein R11 is H or a linear, branched or cyclic hydrocarbon group (for example, an alkyl group) having 1 to 20 (for example, 1 to 10) carbon atoms and A1 is a direct bond or a hydrocarbon group having 1 to 20 carbon atoms, and
  • (iii) a reaction product of (iii-1) a compound having two isocyanate groups and (iii-2) a compound having a carbon-carbon double bond and active hydrogen.
    • Examples of the isocyanate group-containing (meth)acrylate ester (i) include: H2C=C(R12)COO(CH2CH2O)n(CH2)m-NCO wherein R12 is H or CH3, n is from 0 to 20, and m is from 1 to 20 (for example, 2-isocyanatoethyl (meth)acrylate).
    Examples of the vinyl isocyanate (ii) include: H2C=C(R13)-NCO wherein R13 is a linear, branched or cyclic hydrocarbon group (for example, an alkyl group or a cyclohexyl group) having 1 to 20 (for example, 1 to 10) carbon atoms, H2C=C(R14)-(CH2)n-NCO wherein R14 is H or a linear, branched or cyclic hydrocarbon group (for example, an alkyl group or a cyclohexyl group) having 1 to 20 (for example, 1 to 10) carbon atoms, and n is from 2 to 20, and H2C=C(R15)-Ph-C(R16)2-NCO wherein R15 is H or CH3, R16 is H or CH3, and Ph is a phenylene group.
    Examples of the compound having two isocyanate groups (iii-1) include 2,4-tolylene diisocyanate, 2,6-tolylene diisocyanate, diphenylmethane diisocyanate, naphthalene diisocyanate, hexamethylene diisocyanate, xylene diisocyanate, and isophorone diisocyanate.
    Examples of the compound having the carbon-carbon double bond and active hydrogen (iii-2) (hereinafter referred to as a "monomer having active hydrogen") include:
    hydroxyethyl (meth)acrylate, HO(CH2CH2O)nCOC(R17)C=CH2 wherein R17 is H or CH3 and n is from 2 to 20, and aminoethyl (meth)acrylate.
    The reaction between the compound having two isocyanate groups (iii-1) and the monomer having active hydrogen (iii-2) may be conducted in a solvent (especially, an aprotic solvent, for example, an ester solvent) optionally using a catalyst such as dibutyltin dilaurate. The amount of the monomer having active hydrogen (iii-2) in the reaction may be from 1.0 to 2.0 equivalents, and preferably from 1.0 to 1.7 equivalents, based on the compound having two isocyanate groups (iii-1) .
    Examples of the vinyl monomer having the glycidyl group include glycidyl (meth)acrylate.
    Examples of the vinyl monomer having the acid chloride group include (meth)acryloyl chloride.
    When the group bonding to the branch polymer is the isocyanate group, the glycidyl group or the acid chloride group, the branch polymer may be formed from the above-mentioned monomer and a chain transfer agent. The active hydrogen group of the branch polymer reacting with the group (that is, the isocyanate group, the glycidyl group or the acid chloride group), bonding to the branch polymer, of the trunk polymer is an active hydrogen group of the chain transfer agent bonding to one terminal of the branch polymer.
    The chain transfer agent may be a chain transfer agent having an active hydrogen group at both terminals, for example, an alkylenethiol chain transfer agent having an active hydrogen group or an aryl chain transfer agent having an active hydrogen group. Examples of the active hydrogen group include OH, NH2, SO3H, NHOH, COOH, and SH. The number of carbon atoms of the alkylene group of the alkylenethiol may be from 1 to 20.
    Examples of the alkylenethiol chain transfer agent include the followings. HS(CH2)nOH [n is 2, 4, 6 or 11], HSCH2COOH, HSCH2CH(CH3)COOH, HSCH2CH2SO3Na, HSCH2CH2SO3H, and
    Figure 00200001
    Examples of the allyl chain transfer agent include the followings.
    Figure 00210001
    Figure 00210002
    Figure 00210003
    Figure 00210004
    For example, when the group bonding to the branch polymer is the NCO group, the active hydrogen group of the chain transfer agent reacts with an isocyanate group of the trunk polymer to form a -NH-C(=O)- linkage (an amide linkage). When the active hydrogen group is a OH group, it forms a urethane linkage (-NH-C(=O)-O-). When the active hydrogen group is a NH2 group, it forms a urea group (-NH-C(=O)-NH-).
    The amount of the chain transfer agent may be at most 0.7 mol, for example from 0.05 to 0.7 mol, particularly from 0.1 to 0.5 mol, based on 1 mol of the branch monomer. The chain transfer agent may be bonded at one terminal of the branch polymer obtained by polymerizing the branch monomer. The chain transfer agent can control the length of a chain of the branch polymer.
    The vinyl monomer (D) having the group bonding to the branch polymer may be a vinyl monomer having a halomethyl group (-CH2X (X: a halogen atom)). The trunk polymer can bond to the branch polymer by substituting the halogen atom of the halomethyl group with the branch polymer.
    The halomethyl group-containing monomer may be a monomer having the halomethyl group and a styrene group.
    The halomethyl group-containing monomer may be a compound represented by the formula:
    Figure 00230001
    wherein R is -CH3 or H,
    R' is a direct bond or C1-3 alkylene group, and
    X is a halogen atom.
    Examples of the halomethyl group-containing monomer include chloromethylstyrene, bromomethylstyrene and 1-chloroethylstyrene. A halogen atom in the halomethyl group is preferably a chlorine atom.
    The trunk polymer and/or the branch polymer preferably has at least two repeating unit. The trunk polymer and/or the branch polymer may be a block polymer or a random polymer.
    The total amount of the perfluoroalkyl group-containing vinyl monomers (A) and (B) may be from 10 to 75 parts by weight, for example, from 10 to 65 parts by weight,
    the total amount of the fluorine-free vinyl monomers (B) and (F) may be from 0 to 89.8 parts by weight, for example, from 0 to 89 parts by weight, particularly from 1 to 50 parts by weight,
    the amount of the vinyl monomer (D) having the group bonding to the branch polymer may be from 0.1 to 10 parts by weight, for example from 1 to 10 parts by weight, and the total amount of the polymerizable cyclic acid anhydrides (C) and (G) may be from 0.1 to 89.9 parts by weight, for example, from 0.1 to 50 parts by weight, based on 100 parts by weight of the graft copolymer.
    The weight ratio of the trunk polymer to the branch polymer may be from 5:95 to 95:5, preferably from 10:90 to 90:10, particularly from 30:70 to 70:30.
    The trunk polymer may have 0 to 75 parts by weight, for example, 0 to 65 parts by weight, particularly 1 to 50 parts by weight of the repeating unit derived from the perfluoroalkyl group-containing vinyl monomer (A), based on 100 parts by weight of the trunk polymer.
    The trunk polymer may have 0.1 to 89.9 parts by weight, for example, 0.1 to 50 parts by weight of the repeating unit derived from the polymerizable cyclic acid anhydride (C), based on 100 parts by weight of the trunk polymer.
    The branch polymer may have 0 to 75 parts by weight, for example, 0 to 65 parts by weight, particularly 1 to 50 parts by weight of the repeating unit derived from the perfluoroalkyl group-containing vinyl monomer (E), based on 100 parts by weight of the branch polymer.
    The branch polymer may have 0 to 75 parts by weight, for example, 0 to 50 parts by weight of the repeating unit derived from the polymerizable cyclic acid anhydride (G), based on 100 parts by weight of the branch polymer.
    The graft copolymer may have an number average molecular weight of 5,000 to 200,000, preferably 5,000 to 100,000 (measured by GPC in THF, in terms of styrene).
    A method of synthesizing the graft copolymer includes a graft polymerization method of a macromonomer; a method of reacting a branch polymer having an active hydrogen group at one terminal, which is polymerized by using a chain transfer agent having an active hydrogen group, with a trunk polymer having a group (an NCO group, a glycidyl group and an acid chloride group) reactive with active hydrogen;
    a method which comprises generating a living free radical in a trunk polymer having a halomethyl group by a metal halide catalyst, and replacing a halogen atom with a branch polymer, such as an ATRP (Atomic Transfer Radical Polymerization) method; and
    a method of polymerizing a branch monomer by using a chain transfer initiator species such as a free radical, a cationically active species, an anionically active species and a hydroperoxide in a trunk polymer (cf. Japanese Patent Kokoku Publication 50082/1986). In view of a molecular design for adjusting to various applications, preferable are the graft polymerization which can easily control a polymerization degree of a branch polymer; the method of reacting a branch polymer having an active hydrogen group at one terminal, which is polymerized by using a chain transfer agent having an active hydrogen group, with a trunk polymer having a group (an NCO group, a glycidyl group and an acid chloride group) reactive with active hydrogen; and the method which comprises generating a living free radical in a trunk polymer having a halomethyl group by a metal halide catalyst and replacing a halogen atom with a branch polymer, such as an ATRP method.
    The preparation of the graft copolymer according to the present invention can be conducted in any of the following methods (A) and (B), when, for example, the group bonding to the branch polymer is an NCO group, a glycidyl group or an acid chloride group.
  • (A) a method of copolymerizing a macromonomer, which is obtained by reacting, with a branch polymer, a vinyl monomer having a group bonding to the branch polymer, and a copolymerizable monomer (a trunk monomer) to form a trunk polymer (a method of polymerizing a trunk monomer in the presence o'f a branch polymer), and
  • (B) a method of reacting a trunk polymer, which is obtained by copolymerizing a vinyl monomer having a group bonding to a branch polymer and a copolymerizable monomer, with the branch polymer (a method of separately polymerizing a branch polymer and a trunk polymer).
    • The method (A) comprises the steps of:
  • (A-1) polymerizing a monomer (branch monomer) and optionally a chain transfer agent, which are constituent components of a branch polymer, to give a branch polymer;
  • (A-2) reacting the resultant branch polymer with a vinyl monomer having a group bonding to the branch polymer to give a macromonomer; and
  • (A-3) polymerizing the macromonomer and a trunk monomer to give a graft copolymer.
    • The method (B) comprises the steps of:
  • (B-1) polymerizing a vinyl monomer having a group bonding to a branch polymer and a copolymerizable monomer, which are constituent components of a trunk polymer, to give a trunk polymer having the group bonding to the branch polymer; and
  • (B-2) grafting a separately synthesized branch polymer onto the resultant trunk polymer to give a graft copolymer.
    • The polymerization step (A-1) of the branch polymer and the polymerization steps (A-3) and (B-1) of the trunk polymer may be conducted in a solvent at a temperature of 70 to 80°C using a polymerization initiator. The polymerization time is generally from 2 to 12 hours.
    The reaction steps (A-2) and (B-2) of reacting the active hydrogen group of the chain transfer agent constituting the branch polymer with the isocyanate group contained in the monomer constituting the trunk polymer may be conducted in a solvent at a temperature of 30 to 65°C. The polymerization time is generally from 2 to 24 hours.
    As the polymerization initiator, for example, azobisisobutyronitrile, benzoyl peroxide, di-tert-butyl peroxide, lauryl peroxide, cumene hydroperoxide, tert-butyl' peroxide pivalate, and diisopropylperoxy dicarbonate are used. The amount of the polymerization initiator is preferably from 1 to 10 parts by weight based on 100 parts by weight of the monomer.
    The polymerization solvent may be a polar solvent, a hydrocarbon solvent, or a mixture of these solvents. When the group bonding to the branch polymer exists in the reaction system (namely, in the steps (A-2), (B-1) and (B-2)), a protic solvent having an active hydrogen group such as alcohol solvent can not be used.
    When the group bonding to the branch polymer is a halomethyl group, the preparation of the graft copolymer can be conducted as follows.
  • (C-1) A halomethyl group-containing monomer (for example, chloromethylstyrene), other monomers, a solvent and a polymerization initiator are used to prepare a trunk polymer. The solvent is a halogen-free organic solvent. Examples of the solvent for preparing the trunk polymer are the same as examples of a solvent for the preparation of the branch polymer discussed hereinafter. Typical example of conditions for the polymerization of the trunk polymer is a polymerization temperature of 110°C and a polymerization time of 4 hours. Conventional polymerization initiator such as a peroxide can be used as the polymerization initiator.
  • (C-2) A branch monomer and a metal halide catalyst are added to the trunk polymer to give a graft copolymer in which the branch polymer bonds to the trunk polymer.
    • In the reaction procedure (C-2), the branch polymer is bonded to the trunk polymer by using reactivity of the halomethyl group (-CH2X (X: halogen atom)) in the trunk polymer. It is believed that a living free radical is generated by the metal halide catalyst and a halogen atom in the halomethyl group of the trunk polymer is replaced with the branch polymer. Such reaction procedure is referred to as "ATRP (Atomic Transfer Radical Polymerization) method" or "ATRA (Atom Transfer Radical Addition) method", which are disclosed in, for example, J. S. Wang and K. Matyjaszewsky, Macromolecules, 28, 7572(1955).
    A halogen atom in the metal halide used as the catalyst is preferably chlorine. Examples of the metal in the metal halide are copper (Cu) and a transition metal of VIII group, for example, iron (Fe) and ruthenium (Ru). Examples of the metal halide are CuCl, CuCl2, FeCl2, NiCl2 and RuCl2. The addition amount of the metal halide (for example, CuCl) may be from 0.1 to 5 mol, preferably from 0.5 to 1.5, more preferably from 0.8 to 1.2 mol, based on 1 mol of the halomethyl group-containing monomer (for example, chloromethylstyrene).
    A solubilizing agent or dispersing agent (that is, accelerating agent) for metal halide is preferably used. The accelerating agent is preferably a compound which coordinates the metal halide to give a ligand and increases the solubility of the metal halide in a polymerization solvent. Examples of the accelerating agent are an organic nitrogen-containing compound and an organic phosphorus-containing compound. Examples of the organic nitogen-containing compound (for example, an amine) are bipyridyl (2,2'-dipyridine), a derivative of 2,2'-dipyridine such as 4,4'-bis(5-nonyl)-2,2'-dipyridine, triphenylamine, quinoline, tetramethylene diamine, trialkyl amine having C2-10 alkyl groups, 1,10-phenanthroline, and a compound of the formula: (CH3)2N(C2H4N(CH3))nCH3 (wherein n = 1, 2 or 3). Examples of the organic phosphorus-containing compound are P(C6H5)3, P(OC6H5)3, P(C2H5)3 and P(OC2H5)3. The amount of the accelerating agent may be at most 10 mol, for example, from 0.5 to 8 mol, preferably from 1 to 4 mol, more preferably from 1.8 to 3 mol, based on 1 mol of the metal halide.
    A temperature of ATRP reaction for forming the branch polymer may be from 50 to 250°C, preferably from 60 to 200°C, more preferably from 80 to 150°C. A reaction time may at most 24 hours, for example, from 1 to 12 hours.
    The reaction is preferably conducted in the presence of a solvent. Various fluorine-free solvents can be used as the solvent. A hydrocarbon solvent, a polar solvent and a mixture thereof are preferably used.
    The polar solvent is a solvent having a polar group in a molecule. Examples of the polar group include a hydroxyl group, a carboxyl group, an ester group, an acyl group, and an ether oxygen group. Examples of the polar solvent include an alcohol solvent, a glycol solvent, an ester solvent, and a ketone solvent.
    The hydrocarbon solvent may be a solvent which is composed only of carbon and hydrogen. The hydrocarbon solvent may be an aliphatic hydrocarbon. Examples of the hydrocarbon solvent include n-heptane, n-hexane, n-octane, cyclohexane, methylcyclohexane, cyclopentane, methylcyclopentane, methylpentane, 2-ethylpentane, isoparaffin hydrocarbon, liquid paraffin, decane, undecane, dodecane, mineral spirit, and mineral turpentine. In some case, an aromatic solvent may be used.
    Examples of the alcohol solvent include butyl alcohol and isopropyl alcohol. Examples of the glycol solvent include propylene glycol monomethyl ether, propylene glycol monoethyl ether, dipropylene glycolmonomethyl ether, dipropylene glycol monoethyl ether, and acetate thereof. Examples of the ester solvent include a monobasic acid ester such as methyl acetate, ethyl acetate, and butyl acetate; and a dibasic acid ester such as diethyl succinate, diethyl adipate, dibutyl phthalate, and dioctyl phthalate. Examples of the ketone solvent include methyl isobutyl ketone (MIBK), methyl ethyl ketone, and acetone.
    A mixture of the hydrocarbon solvent and the polar solvent may also be used. The weight ratio of the hydrocarbon solvent to the polar solvent may be from 100:0 to 0:100, for example 5:95 to 95:5.
    An organic solvent solution of the graft copolymer is a solvent-based water- and oil-repellent agent composition.
    The water- and oil-repellent agent composition of the present invention may contain other water- and oil-repellent agents and additives, for example, softening agents, antistatic agents, cross-linking agents and crease-proofing agents, if necessary.
    A substrate to be treated with the water- and oil-repellent agent composition of the present invention includes various substances. Examples of the substrate to be treated include textiles, glass, papers, woods, hides, furs, asbestos, bricks, cements, metals and oxides, ceramics, plastics, coated surfaces, and plasters. Examples of the textiles include animal- and vegetable-origin natural fibers such as cotton, hemp, wool, and silk; synthetic fibers such as polyamide, polyester, polyvinyl alcohol, polyacrylonitrile, polyvinyl chloride, and polypropylene; semisynthetic fibers such as rayon and acetate, etc.; and a mixture of these fibers. The water-and oil-repellent agent composition of the present invention can be applied to the substrate by a method of applying the composition onto the surface of the substrate to be treated using a known process such as dip coating, and then drying the composition.
    The water- and oil-repellent agent composition of the present invention can also be used, for example, as an aerosol by adding propellants. Examples of preferred propellant include fluoroalkane or chlorofluoroalkane having 1 or 2 carbon atoms, LPG gas, dimethyl ether, nitrogen gas, and carbon dioxide gas. Typical examples of the fluoroalkane or chlorofluoroalkane having 1 or 2 carbon atoms include dichlorodifluoromethane, trichlorotrifluoroethane, chlorodifluoromethane, chlorodifluoroethane, dichlorotrifluoroethane, tetrafluoroethane, and a mixture of at least two types of them. The amount of the propellant is preferably 0.05 to 2 times as much as the total weight of the surface treatment agent composition containing the solvent.
    A container having a mechanism for spraying out a liquid contained in the container, for example, an aerosol container or a spray container is filled with the aerosol.
    PREFERRED EMBODIMENTS OF THE INVENTION
    The present invention will be illustrated by the following Examples which do not limit the present invention.
    Characteristics were determined as follows.
    Water- and Oil-repellency
    A polymer solution is diluted with a mineral spirit so that a solid content of the diluted solution is 0.8% by weight, and then sprayed over a cloth using a hand spray so that the cloth is sufficiently wetted. As the cloth, a polyester cloth, a polyester/cotton mixed spun cloth and a cotton cloth are used. After drying at room temperature for 10 hours, the water repellency and oil repellency are evaluated in the following procedures.
    The water repellency is expressed by the water repellency No. (cf. the following Table 1) determined by the spray method according to JIS (Japanese Industrial Standard)-L-1092 (1998).
    The oil repellency is determined by dropping several drops of a test solution shown in Table 2 onto two positions on the surface of a test cloth and then observing the penetration state of the drops after 30 seconds, according to AATCC-TM118.
    Water repellency No. State
    5 No wet on the surface
    4 Slight wet on the surface
    3 Partial wet on the surface
    2 Wet on the surface
    1 Wet over the whole surface
    Oil repellency Test solution Surface tension (dyne/cm, 25°C)
    8 n-Heptane 20.0
    7 n-Octane 21.8
    6 n-Decane 23.5
    5 n-Dodecane 25.0
    4 n-Tetradecane 26.7
    3 n-Hexadecane 27.3
    2 n-Hexadecane/Nujol (35/65 by weight) 29.6
    1 Nujol 31.2
    0 Inferior to 1 -
    Product stability
    After adjusting the concentration of the polymer solution to 15% by weight by using a petroleum solvent, the polymer solution is stored at -5°C for one month. It is evaluated whether or not solidification or precipitation occurs. The evaluation is conducted by dissolving the polymer in mineral spirit for "in aromatic-containing solvent" and in n-decane for "in nonaromatic solvent".
    ○:
    Homogeneous liquid is maintained.
    ×:
    Solidification or precipitation occurs.
    Dilution stability
    The polymer solution is diluted with n-decane so that the solid content of the diluted solution is 0.8% by weight, and then stored at -5°C for one month. It is evaluated whether or not solidification or precipitation occurs.
    ○:
    Homogeneous and transparent liquid is maintained.
    Δ:
    Some turbidity occurs, but homogeneous liquid is maintained for practical use.
    ×:
    Solidification or precipitation occurs.
    Synthesis Example 1 (Synthesis of isocyanate group-containing vinyl monomer)
    In a 500 mL three-necked flask equipped with a dropping funnel,
  • 100 g of 2,4-tolylene diisocyanate,
  • 100 g of ethyl acetate, and
  • 0.1 g dibutyltin dilaurate
    • were charged. While shaking at 60 to 65°C,
    • 90 g of hydroxyethyl methacrylate, and
    • 90 g of ethyl acetate
    were added dropwise through the dropping funnel over 15 minutes and the mixture was reacted for 8 hours to give an isocyanate group-containing vinyl monomer (a) shown below:
    Figure 00380001
    Example 1
    In a 1,000 mL glass polymerization reactor, the following ingredients were charged and reacted in a nitrogen atmosphere at 75°C for 8 hours while shaking to give a branch polymer.
    Mercaptoethanol 3 g
    CF3CF2(C2F4)C2H4OCOCH=CH2 (FA) [n = 3.5 in average] 95 g
    Stearyl methacrylate (StMA) 5 g
    Azoisobutyronitrile 0.17 g
    Ethyl acetate 120 g
    After the completion of the reaction, a gas chromatography analysis revealed that 100% of monomers were consumed. An NMR analysis revealed that a composition ratio (molar ratio) of the respective ingredients in the polymer, namely, a ratio of mercaptoethanol:FA:StMA was 1.0:4.8:0.8.
    After reducing the temperature to 55 to 60°C, 9 g of 2-isocyanatoethyl methacrylate was charged in an air atmosphere and the reaction was conducted at 55 to 60°C for 8 hours while shaking to give a macromonomer. After the completion of the reaction, an absorption peak of a NCO group of an IR spectrum nearly disappeared.
    To the macromonomer, the following ingredients were added and the reaction was conducted in a nitrogen atmosphere at 75°C for 8 hours while shaking to give a graft copolymer.
    2-Ethylhexyl methacrylate (2-EHMA) 100 g
    Maleic anhydride (MAN) 10 g
    Ethyl acetate 515 g
    tert-Butyl peroxypivalate (PERBUTYL PV, manufactured by NOF Corp.) 9 g
    After the completion of the reaction, a gas chromatography analysis revealed that 100% of monomers were consumed. A GPC revealed that a number average molecular weight of the resultant polymer was 8,000.
    The water- and oil-repellency, the product stability and the dilution stability of the resultant polymer solution were determined. The results are shown in Table 10.
    Example 2
    In the same manner as in Example 1, except that 38 g of the solution (50% by weight) of isocyanate group-containing vinyl monomer (a) prepared in Synthesis Example 1 was used instead of of 2-isocyanatoethyl methacrylate, the synthesis was conducted.
    In the preparation of each of the branch polymer and the graft polymer, 100% of monomers were consumed. An NMR analysis revealed that a composition ratio (molar ratio) of respective ingredients in the branch polymer was mercaptoethanol:FA:StMA = 1.0:4.7:0.6.
    After the completion of the reaction for preparing a macromonomer, an NCO absorption of an IR spectrum nearly disappeared. A GPC revealed that a number average molecular weight of the resultant graft polymer was 8,000.
    The water- and oil-repellency, the product stability and the dilution stability of the resultant graft polymer solution were determined. The results are shown in. Table 10.
    Examples 3 to 6
    The same procedure as in Example 1 was repeated, except that the monomers shown in Table 3 were used.
    In the preparation of each of the branch polymer and the graft polymer, 100% of monomers were consumed. An NMR analysis revealed that a composition ratio (molar ratio) of respective ingredients was
  • mercaptoethanol:FA:2-EHMA = 1.0:5.2:1.8 in Example 4,
  • mercaptoethanol:FA:MAN = 1.0:5.0:1.2 in Example 5, and
  • mercaptoethanol:FA:StMA = 1.0:5.8:1.9 in Example 6.
    • After the completion of the reaction for preparing a macromonomer, an NCO absorption of an IR spectrum nearly disappeared. A GPC revealed that a number average molecular weight of the resultant graft polymers was 9,300 in Example 3; 8,900 in Example 4; 8,600 in Example 5; and 8,200 in Example 6.
    The water- and oil-repellency, the product stability and the dilution stability of the resultant polymer solutions were determined. The results are shown in Table 10.
    Used ingredients (g)
    Branch polymer Trunk polymer
    Macromonomer
    Mercapto ethanol FA StMA 2-EHMA MAN 2-Isocyanatoethyl methacrylate Isocyanate group-containing vinyl monomer (a) FA 2-EHMA MAN
    Ex. 1 3 95 5 - - 9 - - 100 10
    Ex. 2 3 95 5 - - - 38 - 100 10
    Ex. 3 3 95 5 - - 9 - - 106 4
    Ex. 4 3 95 - 5 9 - - 100 10
    Ex. 5 3 95 - - 5 9 - - 105 5
    Ex. 6 3 90 10 - - 9 - 5 95 10
    Example 7
    The following ingredients were charged into a 1000 mL glass polymerization reactor and reacted at 75°C for 8 hours in a nitrogen atmosphere with shaking. Ethyl acetate was distilled off to give a branch polymer.
    Mercaptoacetic acid 3g
    FA 95g
    Stearyl methacrylate (StMA) 5g
    Asoisobutyronitrile 0.09g
    Ethyl acetate 120g
    In the preparation of the branch polymer, a monomer consumption ratio determined by a gas chromatography was 100%. An NMR analysis revealed that a composition ratio (molar ratio) of respective ingredients in the polymer was mercaptoethanol:FA:StMA=1.0:6.1:1.3.
    To a solution of branch polymer containing 150 g of methyl isobutyl ketone, added were 5 g of glycidyl methacrylate (GMA) and 1 g of N,N-dimethyllaurylamine in an air atomosphere. The reaction was conducted at 100°C for 10 hours with shaking to give a macromonomer. After the reaction, a consumption ratio of glycidyl methacrylate determined by a gas chromatography was 100%.
    Then, the following ingredients were added to the macromonomer and reacted at 75°C for 8 hours in a nitrogen atmosphere with shaking to give a graft copolymer.
    2-Ethylhexyl methacrylate (2-EHMA) 100g
    Maleic anhydride (MAN) 10g
    Methyl isobutyl ketone 465g
    tert-Butyl peroxypivalate 9g
    (PERBUTYL PV, manufactured by NOF Corp.)
    After the completion of the reaction, a monomer consumption ratio determined by a gas chromatography was 100%. A GPC revealed that a number average molecular weight of the resultant polymer was 9,400.
    The water- and oil-repellency, the product stability and the dilution stability of the resultant polymer solution were determined. The results are shown in Table 10.
    Examples 8 to 10
    Monomers shown in Table 4 were polymerized in the same manner as in Example 7.
    A monomer consumption ratio in the preparation of each of a branch polymer and a graft copolymer was 100%. An NMR analysis revealed that a composition ratio (molar ratio) of respective ingredients in the polymer was
  • mercaptoacetic acid:FA:2-EHMA = 1.0:6.5:2.1 in Example 8,
  • mercaptoacetic acid:FA:MAN = 1.0:6.9:1.6 in Example 9, and
  • mercaptoacetic acid:FA:StMA = 1.0:7.1:2.2 in Example 10.
    • After the completion of the reaction, a monomer consumption ratio of glycidyl methacrylate determined by a gas chromatography was 100%. A GPC revealed that a number average molecular weight of the resultant polymers was 9,300 in Example 8, 8,900 in Example 9, and 8,600 in Example 10.
    The water- and oil-repellency, the product stability and the dilution stability of the resultant polymer solutions were determined. The results are shown in Table 10.
    Used ingredients (g)
    Branch polymer Trunk polymer
    Macromonomer
    Mercaptoacetic acid FA StMA 2-EHMA MAN GMA FA 2-EHMA MAN
    Ex. 7 3 95 5 - - 5 - 100 10
    Ex. 8 3 95 - 5 - 5 - 100 10
    Ex. 9 3 95 - - 5 5 - 106 4
    Ex. 10 3 90 10 - - 5 5 95 10
    Example 11 (First step: Polymerization of trunk polymer)
    The following ingredients were charged into a 500 mL glass polymerization reactor and reacted at 80°C for 8 hours in a nitrogen atmosphere with shaking to give a trunk polymer.
    Chloromethylstyrene (CMS) 5g
    2-Ethylhexyl methacrylate (2-EHMA) 90g
    Maleic anhydride (MAN) 9g
    Diethyl succinate 100g
    tert-Butyl peroxypivalate
    (PERBUTYL PV, manufactured by NOF Corp.)    		 4g
    After the completion of the reaction, a monomer consumption ratio determined by a gas chromatography was 100%.
    (Second step: Polymerization of branch polymer)
    Then, the following ingredients were added to the trunk polymer solution.
    FA 100g
    2-Ethylhexyl methacrylate (2-EHMA) 10g
    Coprous chloride 3g
    Bipyridyl 10g
    Mineral turpentine 100g
    The reaction was conducted at 110°C for 8 hours in a nitrogen atmosphere with shaking, to give a graft copolymer having the branch polymer bonded to the trunk polymer. After the reaction, a monomer consumption ratio determined by a gas chromatography was 100%.
    The mixture was adjusted by diluting with mineral turpentine to a solid content of 15 % by weight. 10 % by weight of active carbon was added to the solution. After shaking at room temperature for 2 hours, active carbon was filtered off by filter paper.
    An Emission spectrometer using an inductively coupled plasma (ICP) revealed that copper did not remain in the resultant filtrate. A GPC revealed that a number average molecular weight of the resultant graft polymer was 11,200.
    The water- and oil-repellency, the product stability and the dilution stability of the resultant polymer solution were determined. The results are shown in Table 10.
    Examples 12 and 13
    The same procedure as in Example 11 was repeated to polymerize monomers shown in Table 5.
    The monomer consumption ratio after the reaction in each step of preparing a trunk polymer and a branch polymer, determined by a gas chromatography was 100%.
    A GPC revealed that the resultant graft polymers had a number average molecular weight of 9,600 in Example 12 and 10,900 in Example 13.
    Used ingredients (g)
    First step polymerization (trunk polymer) Second step polymerization (branch polymer)
    CMS 2-EHMA FA MAN FA 2-EHMA MAN
    Ex. 11 5 90 - 9 100 10 -
    Ex. 12 5 95 - 4 100 5 5
    Ex. 13 5 85 5 9 100 10 -
    Comparative Examples 1 to 4
    The same procedure as in Examples 1 and 2 was repeated to polymerize monomers shown in Table 6.
    The monomer consumption ratio after the reaction in a step of preparing each of a branch polymer and a graft copolymer, determined by a gas chromatography was 100%. An NMR analysis revealed that a composition ratio (molar ratio) of respective ingredients in the branch polymer was
  • mercaptoethanol:FA:StMA = 1.0:4.7:0.9 in Comparative Example 1,
  • mercaptoethanol:FA:StMA = 1.0:4.8:0.6 in Comparative Example 2,
  • mercaptoethanol:FA:2-EHMA = 1.0:5.1:1.5 in Comparative Example 3, and
  • mercaptoethanol:FA:StMA = 1.0:4.8:0.7 in Comparative Example 4.
    • After the completion of the reaction for preparing a macromonomer, an NCO absorption of an IR spectrum nearly disappeared. A GPC revealed that the resultant graft polymers had a number average molecular weight of 8,600 in Comparative Example 1, a number average molecular weight of 8,500 in Comparative Example 2, a number average molecular weight of 8,000 in Comparative Example 3, and a number average molecular weight of 9,400 in Comparative Example 4.
    The water- and oil-repellency, the product stability and the dilution stability of the resultant polymer solutions were determined. The results are shown in Table 11.
    Used ingredients (g)
    Branch polymer Trunk polymer
       Macromonomer
    mercapto ethanol FA StMA 2-EHMA 2-isocyanatoethyl methacrylate isocyanate group-containing vinyl monomer (a) 2-EHMA HEMA
    Com. Ex. 1 3 95 5 - 9 - 110 -
    Com. Ex. 2 3 95 5 - - 38 110 -
    Com. Ex. 3 3 95 - 5 9 - 110 -
    Com. Ex. 4 3 95 5 - 9 - 100 10
    Note)
    HEMA: Hydroxyethyl methacrylate
    Comparative Examples 5 to 7
    The same procedure as in Example 7 was repeated to polymerize monomers shown in Table 7.
    The monomer consumption ratio after the reaction in a step of preparing each of a branch polymer and a graft copolymer, determined by a gas chromatography was 100%. An NMR analysis revealed that a composition ratio (molar ratio) of respective ingredients in the branch polymer was
  • mercaptoacetic acid:FA:StMA = 1.0:6.0:1.3 in Comparative Example 5,
  • mercaptoacetic acid:FA:2-EHMA = 1.0:6.4:2.2 in Comparative Example 6, and
  • mercaptoacetic acid:FA:StMA = 1.0:6.9:1.5 in Comparative Example 7.
    • After the reaction for preparing a macromonomer, a reaction ratio of glycidyl methacrylate determined by a gas chromatography was 100%. A GPC revealed that the resultant graft polymers had a number average molecular weight of 9,100 in Comparative Example 5, a number average molecular weight of 8,600 in Comparative Example 6 and a number average molecular weight of 8,900 in Comparative Example 7.
    The water- and oil-repellency, the product stability and the dilution stability of the resultant polymer solutions were determined. The results are shown in Table 11.
    Used ingredients (g)
    Branch polymer Trunk polymer
    Macromonomer
    mercaptoacetic acid FA StMA 2-EHMA GMA 2-EHMA HEMA
    Com. Ex. 5 3 95 5 - 5 110 -
    Com. Ex. 6 3 95 5 5 110 -
    Com. Ex. 7 3 95 5 - 5 100 10
    Comparative Examples 8 and 9
    The same procedure as in Example 11 was repeated to polymerize monomers shown in Table 8.
    The monomer consumption ratio after the reaction in a step of preparing each of a trunk polymer and a branch polymer, determined by a gas chromatography was 100%.
    A GPC revealed that the resultant graft polymers had a number average molecular weight of 11,600 in Comparative Example 8 and a number average molecular weight of 12,300 in Comparative Example 9.
    The water- and oil-repellency, the product stability and the dilution stability of the resultant polymer solutions were determined. The results are shown in Table 11.
    Used ingredients (g)
    First step polymerization (trunk polymer) Second step polymerization (branch polymer)
    CMS 2-EHMA HEMA FA 2-EHMA
    Com. Ex. 8 5 99 - 100 10
    Com. Ex. 9 5 90 9 100 10
    Comparative Example10
    1.0 Equivalent of 2-isocyanatoethyl methacrylate and 0.7 equivalents of mercaptoethanol were reacted in the presence of 0.1% by weight of dibuthyltin dilaurate in ethyl acetate at 50°C for 12 hours.
    Then, 5.5 g of the reaction product (the product of reaction between the isocyanate group-containing vinyl monomer and mercaptoethanol) and the following ingredients were charged into a 1000 mL glass polymerization reactor, and reacted in a nitrogen atmosphere with shaking at 75°C for 8 hours to give a polymer.
    FA 42.7g
    Stearyl methacrylate (StMA) 2.3g
    2-Ethylhexyl methacrylate (2-EHMA) 45.0g
    Maleic anhydride (MAN) 4.5g
    Ethyl acetate 515g
    tert-Butyl peroxypivalate 9g
    A GPC revealed that the resultant random polymer had a number average molecular weight of 15,000.
    The water- and oil-repellency, the product stability and the dilution stability of the resultant polymer solution were determined. The results are shown in Table 11.
    Comparative Example 11
    The same procedure as in Example 10 was repeated to polymerize monomers shown in Table 9.
    A GPC revealed that the resultant random polymer had a number average molecular weight of 13,400.
    The water- and oil-repellency, the product stability and the dilution stability of the resultant polymer solution were determined. The results are shown in Table 11.
    Comparative Example 12
    1.0 Equivalent of 2-glycidyl methacrylate and 0.7 equivalents of mercaptoethanol were reacted in the presence of 0.1% by weight of N,N-dimethyllaurylamine in ethyl acetate at 50°C for 12 hours.
    Then, 3.7 g of the reaction product (the product of reaction between glycidyl methacrylate and mercaptacetic acid) and the following ingredients were charged into a 1000 mL glass polymerization reactor, and reacted in a nitrogen atmosphere with shaking at 75°C for 8 hours to give a polymer.
    FA 43.5g
    Stearyl methacrylate (StMA) 2.3g
    2-Ethylhexyl methacrylate (2-EHMA) 46.0g
    Maleic anhydride (MAN) 4.6g
    Ethyl acetate 515g
    tert-Butyl peroxypivalate 9g
    A GPC revealed that the resultant random polymer had a number average molecular weight of 14,500.
    The water- and oil-repellency, the product stability and the dilution stability of the resultant polymer solution were determined. The results are shown in Table 11.
    Comparative Example 13
    The following ingrediens were charged into 1000 mL glass polymerization reactor and reacted in a nitrogen atmosphere with shaking at 75°C for 8 hours to give a polymer.
    FA 46.7g
    2-Ethylhexyl methacrylate (2-EHMA) 46.7g
    Maleic anhydride (MAN) 4.3g
    Chloromethylstyrene (CMS) 2.3g
    Ethyl acetate 515g
    tert-Butyl peroxypivalate 9g
    A GPC revealed that the resultant random polymer had a number average molecular weight of 13,600.
    The water- and oil-repellency, the product stability and the dilution stability of the resultant polymer solution were determined. The results are shown in Table 11.
    Used ingredients (g)
    FA StMA 2-EHMA MAN Compound from reaction between 2-isocyanatoethyl methacrylate and mercaptoethanol Compound from reaction between GMA and mercaptoacetic acid CMS
    Com. Ex. 10 42.7 2.3 45.0 4.5 5.5 - -
    Com. Ex. 11 42.7 - 47.3 4.5 5.5 - -
    Com. Ex. 12 43.5 2.3 46.0 4.6 - 3.7 -
    Com. Ex. 13 46.7 - 46.7 4.3 - - 2.3
    Water repellency Oil repellency Product stability Dilution stability
    Polyester Cotton Polyester Cotton In aromatic-containing solvent In non-aromatic solvent
    Ex. 1 5 5 5 6 ○ ○ ○
    Ex. 2 5 5 5 6 ○ ○ ○
    Ex. 3 5 5 4 6 ○ ○ ○
    Ex. 4 5 5 4 6 ○ ○ ○
    Ex. 5 5 5 5 6 ○ ○ ○
    Ex. 6 5 5 4 6 ○ ○ ○
    Ex. 7 5 5 5 6 ○ ○ ○
    Ex. 8 4 5 4 6 ○ ○ ○
    Ex. 9 5 5 5 6 ○ ○ ○
    Ex. 10 5 5 4 6 ○ ○ ○
    Ex. 11 5 5 8 8 ○ ○ ○
    Ex. 12 5 5 7 7 ○ ○ ○
    Ex. 13 4 5 8 7 ○ ○ ○
    Water repellency Oil repellency Product stability Dilution stability
    Polyester Cotton Polyester Cotton In aromatic-containing solvent In non-aromatic solvent
    Com. Ex. 1 5 3 2 2 Δ × ×
    Com. Ex. 2 5 3 2 3 Δ Δ ○
    Com. Ex. 3 4 3 2 2 Δ × ×
    Com. Ex. 4 3 3 3 3 × × ×
    Com. Ex. 5 2 2 0 0 Δ × ×
    Com. Ex. 6 2 2 0 0 Δ × ×
    Com. Ex. 7 3 2 0 0 Δ × ×
    Com. Ex. 8 5 3 4 3 ○ Δ Δ
    Com. Ex. 9 5 3 4 4 ○ × ×
    Com. Ex. 10 2 1 1 1 × × ×
    Com. Ex. 11 2 1 2 1 × × ×
    Com. Ex. 12 1 1 2 1 × × ×
    Com. Ex. 13 1 1 2 1 × × ×
    Effect of the Invention
    The graft copolymer has excellent solubility in a petroleum solvent and excellent water repellency due to the improved adhesion to fibers caused by polarity possessed by anhydride structure, since the cyclic acid anhydride is introduced to the graft copolymer.

    Claims (6)

    1. A solvent-based water- and oil-repellent agent composition comprising:
      a graft copolymer comprising a repeating unit derived from a vinyl monomer having a perfluoroalkyl group and a repeating unit derived from a polymerizable cyclic acid anhydride, and
      an organic solvent.
    2. The water- and oil-repellent agent composition according to claim 1, wherein, in the graft copolymer, a trunk polymer is composed of:
      (A) optionally present, a vinyl monomer having a perfluoroalkyl group,
      (B) optionally present, a fluorine-free vinyl monomer,
      (C) optionally present, a polymerizable cyclic acid anhydride, and
      (D) a vinyl monomer having a group bonding to a branch polymer, and
      a branch polymer is composed of:
      (E) optionally present, a vinyl monomer having a perfluoroalkyl group,
      (F) optionally present, a fluorine-free vinyl monomer, and
      (G) optionally present, a polymerizable cyclic acid anhydride,
      wherein at least one of the components (A) and (E) is an essential component, and at least one of the components (C) and (G) is an essential component.
    3. The water- and oil-repellent agent composition according to claim 2, wherein the total amount of the components (A) and (B) is from 10 to 75 parts by weight, the total amount of the components (B) and (F) is from 0 to 89.8 parts by weight, the amount of the component (D) is from 0.1 to 10 parts by weight, and the total amount of the components (C) and (G) is from 0.1 to 89.9 parts by weight, based on 100 parts by weight of the graft copolymer.
    4. The water- and oil-repellent agent composition according to claim 1, wherein the polymerizable cyclic acid anhydride has a carbon-carbon double bond copolymerizable with the vinyl monomer and at least one intramolecular cyclic carboxylic anhydride structure in one molecule.
    5. The water- and oil-repellent agent composition according to claim 2, wherein the bonding group in the vinyl monomer (D) having the group bonding to the branch polymer is an NCO group, a glycidyl group, an acid chloride group and/or a halomethyl group.
    6. A graft copolymer for a water- and oil-repellent agent, comprising a repeating unit derived from a vinyl monomer having a perfluoroalkyl group and a repeating unit derived from a polymerizable cyclic acid anhydride.
    EP00977978A 1999-12-02 2000-11-28 Graft copolymer and solution type water-and-oil repellant composition containing the same Expired - Lifetime EP1251150B1 (en)

    Priority Applications (1)

    Application Number Priority Date Filing Date Title
    EP04018565A EP1475410B1 (en) 1999-12-02 2000-11-28 Graft copolymer and solvent-based water- and oil-repellent composition comprising the same

    Applications Claiming Priority (3)

    Application Number Priority Date Filing Date Title
    JP34322599 1999-12-02
    JP34322599A JP2001158811A (en) 1999-12-02 1999-12-02 Graft copolymer and solution-type water / oil repellent composition using the same
    PCT/JP2000/008369 WO2001040373A1 (en) 1999-12-02 2000-11-28 Graft copolymer and solution type water-and-oil repellant composition containing the same

    Related Child Applications (1)

    Application Number Title Priority Date Filing Date
    EP04018565A Division EP1475410B1 (en) 1999-12-02 2000-11-28 Graft copolymer and solvent-based water- and oil-repellent composition comprising the same

    Publications (3)

    Publication Number Publication Date
    EP1251150A1 true EP1251150A1 (en) 2002-10-23
    EP1251150A4 EP1251150A4 (en) 2004-03-03
    EP1251150B1 EP1251150B1 (en) 2005-05-25

    Family

    ID=18359892

    Family Applications (2)

    Application Number Title Priority Date Filing Date
    EP04018565A Expired - Lifetime EP1475410B1 (en) 1999-12-02 2000-11-28 Graft copolymer and solvent-based water- and oil-repellent composition comprising the same
    EP00977978A Expired - Lifetime EP1251150B1 (en) 1999-12-02 2000-11-28 Graft copolymer and solution type water-and-oil repellant composition containing the same

    Family Applications Before (1)

    Application Number Title Priority Date Filing Date
    EP04018565A Expired - Lifetime EP1475410B1 (en) 1999-12-02 2000-11-28 Graft copolymer and solvent-based water- and oil-repellent composition comprising the same

    Country Status (7)

    Country Link
    US (1) US6693144B1 (en)
    EP (2) EP1475410B1 (en)
    JP (1) JP2001158811A (en)
    KR (2) KR100793123B1 (en)
    CA (1) CA2392952A1 (en)
    DE (2) DE60020400T2 (en)
    WO (1) WO2001040373A1 (en)

    Cited By (1)

    * Cited by examiner, † Cited by third party
    Publication number Priority date Publication date Assignee Title
    EP1243605A4 (en) * 1999-09-14 2004-03-03 Daikin Ind Ltd GRAFT POLYMER, PROCESS FOR PRODUCING SAID POLYMER, AND WATER-RESISTANT WATER-RESISTANT AND WATER-REPELLENT COMPOSITIONS CONTAINING SAID POLYMER

    Families Citing this family (9)

    * Cited by examiner, † Cited by third party
    Publication number Priority date Publication date Assignee Title
    EP1510252A4 (en) * 2002-05-10 2008-08-06 Daikin Ind Ltd SURFACTANT AND DISPERSION AGENT COMPRISING EACH RETICULATED FLUOROPOLYMER
    US7291696B2 (en) * 2005-11-04 2007-11-06 General Electric Company Composition and associated method
    FR2894602B1 (en) * 2006-04-19 2010-06-11 Arkema TEXTILE PROTECTED BY A FLUORINE POLYMER
    US20120302693A1 (en) * 2011-05-23 2012-11-29 E I Du Pont De Nemours And Company Fluorine containing graft copolymer coating composition
    WO2014034607A1 (en) * 2012-08-30 2014-03-06 日産化学工業株式会社 Fluorine-containing hyperbranched polymer and unsaturated polyester resin composition containing same
    CN103835133B (en) * 2014-03-18 2015-10-28 浙江理工大学 A kind of method preparing floride-free super-hydrophobic fabric face
    WO2015152006A1 (en) * 2014-04-04 2015-10-08 ニッタ株式会社 Side chain crystalline polymer, thermosensitive adhesive agent, thermosensitive adhesive sheet, and thermosensitive adhesive tape
    JP2016069412A (en) * 2014-09-26 2016-05-09 株式会社日本触媒 (Poly) anionic comb polymer and use thereof
    EP3825456B1 (en) * 2018-08-28 2023-12-27 National University Corporation Nara Institute of Science and Technology Water repellent oil repellent agent for fibers and fiber product

    Family Cites Families (20)

    * Cited by examiner, † Cited by third party
    Publication number Priority date Publication date Assignee Title
    IT948231B (en) * 1971-02-22 1973-05-30 Pittman G COPOLYMERS BASED ON FLUOROALKYL ALLYL ETHER AND MALEIC DIOXIDE USEFUL IN PARTICULAR FOR MODIFYING FIBROUS LAYERS PROCEDURE TO MAKE SUCH MODIFICATION AND OBTAINED FIBROUS MATERIALS
    JPS54132694A (en) * 1978-04-07 1979-10-15 Asahi Glass Co Ltd Preparation of high-performance water- and oil-repellent
    JPS6150082A (en) 1984-12-20 1986-03-12 Tokyo Keiki Co Ltd Information processing system
    JPH0260911A (en) * 1988-08-29 1990-03-01 Ricoh Co Ltd Fluorine-containing graft copolymer
    JPH02269717A (en) * 1989-04-12 1990-11-05 Ricoh Co Ltd Fluorine-containing graft copolymer
    JPH07110928B2 (en) * 1991-01-21 1995-11-29 三洋化成工業株式会社 Fluorine-modified wax composition, its manufacturing method, and resin modifier
    JP3246026B2 (en) * 1992-04-23 2002-01-15 ダイキン工業株式会社 Water and oil repellent fiber
    JPH06228534A (en) * 1993-02-01 1994-08-16 Daikin Ind Ltd Water and oil repellent and stainproofing agent
    JPH0718035A (en) * 1993-06-30 1995-01-20 Asahi Glass Co Ltd Fluorine-containing adhesive polymer and laminate using the same
    DE69306578T2 (en) * 1993-10-19 1997-04-10 Minnesota Mining & Mfg High performance compositions with water and oil repellent properties
    JP3656262B2 (en) * 1994-12-07 2005-06-08 旭硝子株式会社 Resin composition and method for producing the same
    JP3603480B2 (en) * 1995-07-27 2004-12-22 旭硝子株式会社 Water / oil repellent composition
    JP3829369B2 (en) 1995-08-23 2006-10-04 旭硝子株式会社 Solvent type water and oil repellent composition and method for producing the same
    KR100206452B1 (en) * 1996-04-10 1999-07-01 이서봉 Fluorine-based graft copolymer and preparation method thereof
    WO1998015598A1 (en) * 1996-10-09 1998-04-16 Daikin Industries, Ltd. Water-repellent, oil-repellent resin composition
    CA2243772C (en) * 1997-07-23 2008-04-15 Asahi Glass Company Ltd. Water and oil repellent composition
    CA2324949A1 (en) * 1998-03-24 1999-09-30 Avantgarb, Llc Modified textile and other materials and methods for their preparation
    JP2000136377A (en) * 1998-08-24 2000-05-16 Asahi Glass Co Ltd Water-dispersed water / oil repellent composition
    JP2000160148A (en) 1998-11-30 2000-06-13 Daikin Ind Ltd Solution type water / oil repellent composition and method for producing the same
    EP1243605B1 (en) * 1999-09-14 2005-03-02 Daikin Industries, Ltd. Graft polymer, process for the production thereof and solution-type water- and oil-repellent compositions containing the polymer

    Cited By (1)

    * Cited by examiner, † Cited by third party
    Publication number Priority date Publication date Assignee Title
    EP1243605A4 (en) * 1999-09-14 2004-03-03 Daikin Ind Ltd GRAFT POLYMER, PROCESS FOR PRODUCING SAID POLYMER, AND WATER-RESISTANT WATER-RESISTANT AND WATER-REPELLENT COMPOSITIONS CONTAINING SAID POLYMER

    Also Published As

    Publication number Publication date
    KR100793123B1 (en) 2008-01-10
    EP1475410A3 (en) 2004-11-17
    WO2001040373A1 (en) 2001-06-07
    EP1475410B1 (en) 2007-04-04
    US6693144B1 (en) 2004-02-17
    CA2392952A1 (en) 2001-06-07
    KR100825248B1 (en) 2008-04-25
    JP2001158811A (en) 2001-06-12
    DE60020400T2 (en) 2006-03-23
    DE60034255D1 (en) 2007-05-16
    DE60020400D1 (en) 2005-06-30
    EP1251150A4 (en) 2004-03-03
    EP1475410A2 (en) 2004-11-10
    KR20020070295A (en) 2002-09-05
    EP1251150B1 (en) 2005-05-25
    DE60034255T2 (en) 2007-12-20
    KR20070086388A (en) 2007-08-27

    Similar Documents

    Publication Publication Date Title
    CA2705600C (en) Fluoropolymer emulsions
    EP1251150B1 (en) Graft copolymer and solution type water-and-oil repellant composition containing the same
    EP0682146B1 (en) Textile product treatment
    US5143991A (en) Copolymer desoiling agent
    EP3865524A1 (en) Fluorine-containing polymer and surface treatment agent
    EP1243605B1 (en) Graft polymer, process for the production thereof and solution-type water- and oil-repellent compositions containing the polymer
    EP1510252A1 (en) Surfactant and dispersion aid each comprising graft fluoropolymer
    WO1998052983A1 (en) Novel polymer and antifouling agent composition containing the same
    JP2000160148A (en) Solution type water / oil repellent composition and method for producing the same
    JP5652383B2 (en) Graft copolymer and solution-type water / oil repellent composition
    JP2000290329A (en) Graft polymer, method for producing the same, and water / oil repellent composition using the same
    JPWO2001019884A1 (en) Graft polymer, its production method, and solution-type water- and oil-repellent composition using the same
    EP1881015B1 (en) Fluoropolymer having s-sulfate group and water/oil repellent composition containing the polymer
    CA2250939A1 (en) Fluorine-containing graft copolymer and its manufacturing method
    JP3603480B2 (en) Water / oil repellent composition
    JPS6321715B2 (en)

    Legal Events

    Date Code Title Description
    PUAI Public reference made under article 153(3) epc to a published international application that has entered the european phase

    Free format text: ORIGINAL CODE: 0009012

    17P Request for examination filed

    Effective date: 20020619

    AK Designated contracting states

    Kind code of ref document: A1

    Designated state(s): AT BE CH CY DE DK ES FI FR GB GR IE IT LI LU MC NL PT SE TR

    A4 Supplementary search report drawn up and despatched

    Effective date: 20040121

    RIC1 Information provided on ipc code assigned before grant

    Ipc: 7C 08F 267/04 B

    Ipc: 7C 08L 51/00 A

    Ipc: 7C 08F 259/08 B

    17Q First examination report despatched

    Effective date: 20040325

    RBV Designated contracting states (corrected)

    Designated state(s): AT BE CH CY DE FR GB IT LI

    RBV Designated contracting states (corrected)

    Designated state(s): DE FR GB IT

    GRAP Despatch of communication of intention to grant a patent

    Free format text: ORIGINAL CODE: EPIDOSNIGR1

    GRAS Grant fee paid

    Free format text: ORIGINAL CODE: EPIDOSNIGR3

    GRAA (expected) grant

    Free format text: ORIGINAL CODE: 0009210

    AK Designated contracting states

    Kind code of ref document: B1

    Designated state(s): DE FR GB IT

    REG Reference to a national code

    Ref country code: GB

    Ref legal event code: FG4D

    REG Reference to a national code

    Ref country code: IE

    Ref legal event code: FG4D

    REF Corresponds to:

    Ref document number: 60020400

    Country of ref document: DE

    Date of ref document: 20050630

    Kind code of ref document: P

    ET Fr: translation filed
    PLBE No opposition filed within time limit

    Free format text: ORIGINAL CODE: 0009261

    STAA Information on the status of an ep patent application or granted ep patent

    Free format text: STATUS: NO OPPOSITION FILED WITHIN TIME LIMIT

    26N No opposition filed

    Effective date: 20060228

    PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

    Ref country code: GB

    Payment date: 20081126

    Year of fee payment: 9

    GBPC Gb: european patent ceased through non-payment of renewal fee

    Effective date: 20091128

    PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

    Ref country code: GB

    Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

    Effective date: 20091128

    REG Reference to a national code

    Ref country code: FR

    Ref legal event code: PLFP

    Year of fee payment: 16

    REG Reference to a national code

    Ref country code: FR

    Ref legal event code: PLFP

    Year of fee payment: 17

    REG Reference to a national code

    Ref country code: FR

    Ref legal event code: PLFP

    Year of fee payment: 18

    REG Reference to a national code

    Ref country code: FR

    Ref legal event code: PLFP

    Year of fee payment: 19

    PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

    Ref country code: DE

    Payment date: 20181113

    Year of fee payment: 19

    PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

    Ref country code: IT

    Payment date: 20181122

    Year of fee payment: 19

    Ref country code: FR

    Payment date: 20181011

    Year of fee payment: 19

    REG Reference to a national code

    Ref country code: DE

    Ref legal event code: R119

    Ref document number: 60020400

    Country of ref document: DE

    PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

    Ref country code: IT

    Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

    Effective date: 20191128

    Ref country code: FR

    Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

    Effective date: 20191130

    Ref country code: DE

    Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

    Effective date: 20200603
