Eine besonders bedienungsfreundliche und energetisch sparsam betreibbare Weckeruhr (11) mit Display (13) für digitale Weckzeitanzeige im 24-Stunden-Format ergibt sich, wenn der Tagesschalter (18), zur Abschaltung des Wecksignales bis zum nächsten Erreichen des eingestellten Weckzeitpunktes, von der sichtseitigen Vorderfront des Gehäuses der Weckeruhr (11) fort auf die der Standfläche gegenüberliegende Gehäuse-Oberfläche verlegt und dort als vergleichsweise langhubig gegen die Standfläche zu bewegender Drucktaster mit akustischer und/oder taktiler Betätigungsrückmeldung ausgelegt ist.

Figure imgaf001

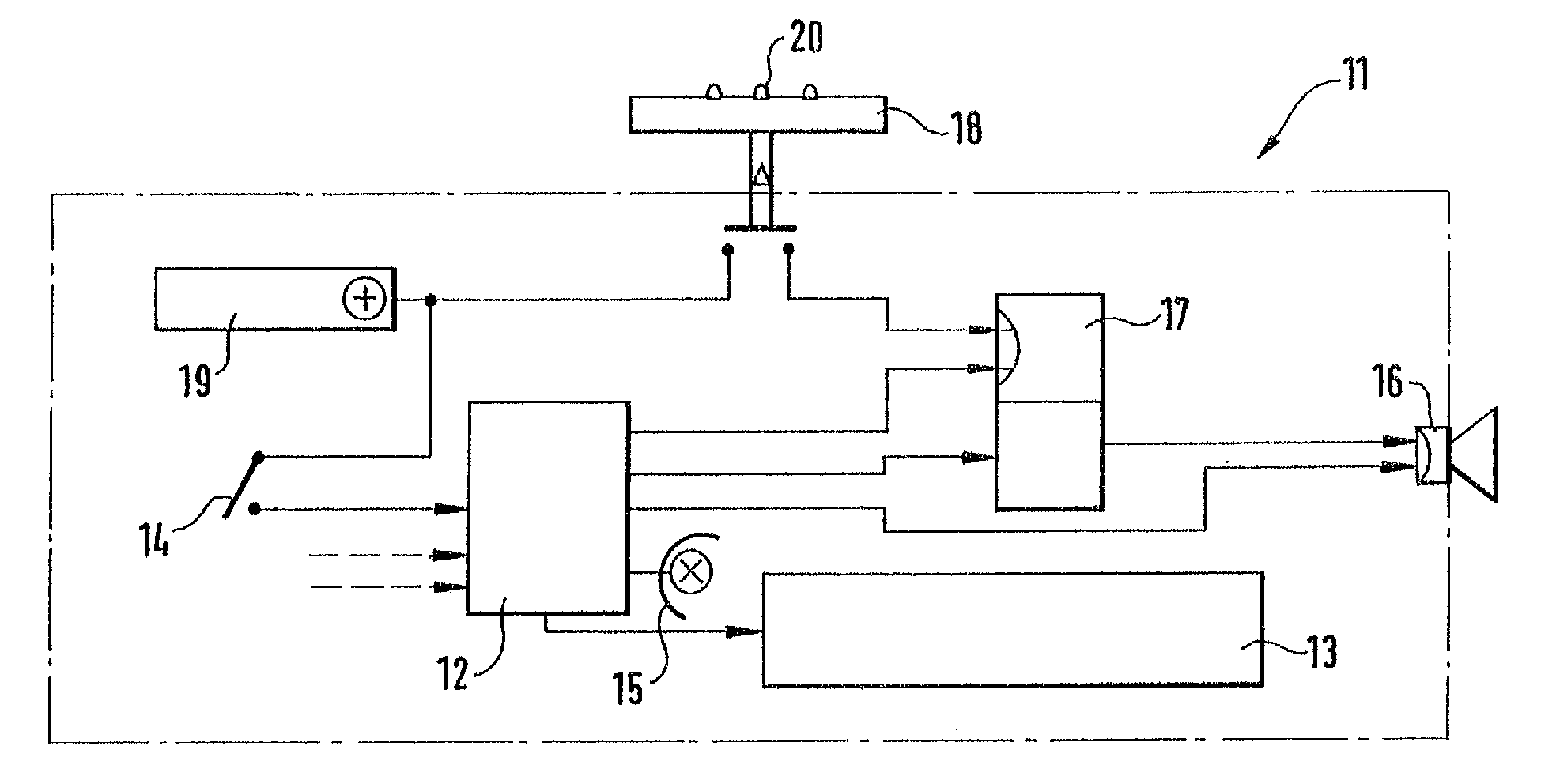

A particularly user-friendly and energetically economical alarm clock (11) with display (13) for digital alarm time display in 24-hour format results when the day switch (18), to switch off the alarm until the next time the set alarm time, from the visible Front of the housing of the alarm clock (11) continues to be laid on the surface opposite the housing surface and there is designed as a comparatively long stroke against the footprint to moving push button with acoustic and / or tactile actuation feedback.
